FRIGIDAIRE FFFH17F6QW User Manual
Freezer
FFFH17F6QW
Place and center
image here.
Frost-Free
16.9 Cu. Ft. Upright
Product Dimensions
Height (Including Hinges) 67-11/16"
Width 34"
Depth (Including Door) 28-1/2"
More Easy-To-Use Features
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative than
ever — designed, built, and engineered in
the U.S.A.
ENERGY STAR®-Qualified
Save money on your utility bills with
ENERGY STAR®-Qualified appliances.
SpaceWise® Adjustable Door Bins
Flexible storage options, with door bins
designed to reposition with ease to fit
your needs.
SpaceWise® Pizza Shelf
Keep frozen pizzas organized on the pizza
shelf so you have easy access when you
want to heat one up.
Signature Features
SpaceWise®
Organization System
Offers organizational solutions
you can customize to fit your needs
like SpaceWise® Adjustable Shelving,
SpaceWise® Adjustable Door Bins,
and SpaceWise® Adjustable Baskets
with color-coordinated clips.
Bright LED Lighting
Brighter LED theatre lighting so you can
spend less time digging through your
freezer for items.
1
SpaceWise® Adjustable
Baskets with
Color-Coordinated Clips
Take organization to the next level with
our heavy-duty adjustable plastic baskets
with color-coordinated clips that snapon, and can be used to organize items by
categories or purchase date so items are
much easier to find.
Frost-Free Operation
Never defrost your freezer again
so you can spend time on more
important things.
Express-Select® Controls with
LCD Display
Easily select options with the touch of
a button.
SpaceWise® Adjustable Shelving
Adjustable shelf allows you to customize
your freezer so you can fit different size
items as your needs change.
Lock with Pop-Out Key
The freezer key automatically ejects after
locking the door so you won’t leave it in
the door.
Soft Freeze™ Zone
A bin that remains slightly warmer than
the freezer interior for convenient storage
for soft freeze items such as ice cream.
Power-On Indicator Light
Know at a glance that your freezer is
working.
ENERGY STAR®
Available in:
White
(W)
1
Compared to Incandescent, 25W and 40W bulbs.
frigidaire.com
Features
C
A
B

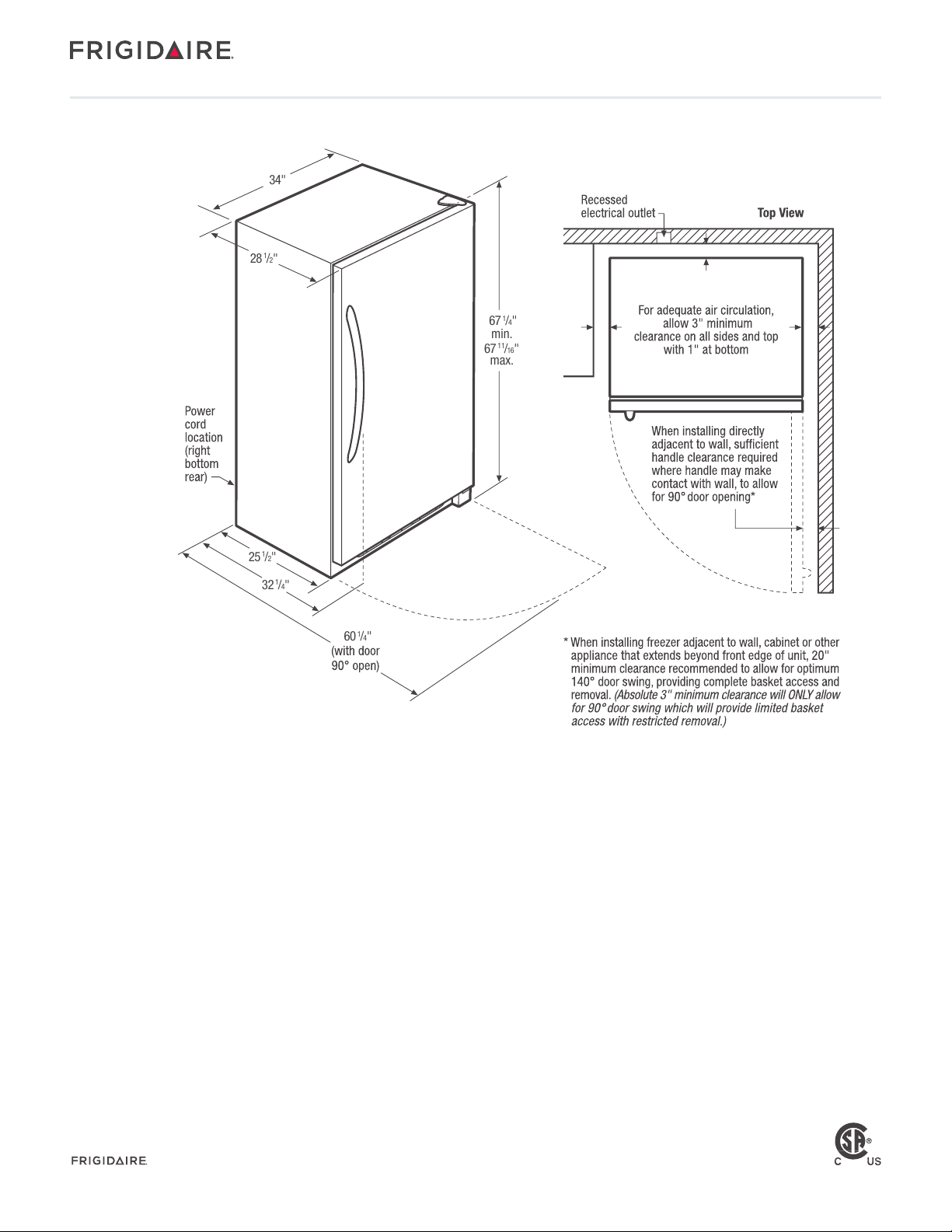

* When installing freezer adjacent
to wall, cabinet or other appliance
that extends beyond front edge of
unit, 20" minimum clearance
recommended to allow for
optimum 140
° door swing,
providing complete basket access
and removal.
(Absolute 3"
minimum clearance will ONLY
allow for 90
°
door swing which
will provide limited basket access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
For adequate air circulation,
allow 3" minimum
clearance on all sides and top
with 1" at bottom
Top View
Recessed
electrical outlet
Door Handle Design
Reversible Door
Automatic Door Closer
Leveling Legs
Lock with Pop-Out Key
Defrost
Adjustable Temperature Control
Front Digital Display
Temp Display Mode
High-Temp Duration Readout
High-Temp Alarm
Door Ajar Alarm
Interior Lighting
Full-Width Adjustable Shelves
Full-Width Fixed Shelves
Removable Trivet
SpaceWise® Shelf Bookend
Mid-Level Baskets
Lower Storage Basket
Basket Dividers
Retractable Pizza Shelf
Soft Freeze™ Zone
SpaceWise® Adjustable Door Bins
Full-Width Door Bins
Store-More™ Tilt-Out Wire Door Bins
Fixed Door Racks
Defrost Drain
Power-On Light
Reach-Through
Yes
Yes
Yes
Frost-Free
Precision Set™
Yes
F / C
Yes
Yes
Yes
LED
3 Glass
1
1
Yes
Yes
3
1
Yes
Certifications
ENERGY STAR®
CSA Rating
Yes
Household
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.12/ kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
16.85
11.6
431
$52
Lower Right Rear
115V, 60Hz
1
.6
5
15
201 Lbs.
Freezer
FFFH17F6QW 16.9 Cu. Ft. Upright
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Including Hinges)
B - Width
•
USA
10200 David Taylor Drive
CANADA
FFFH17F6Q 11/14 © 2014 Electrolux Home Products, Inc.
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
C - Depth (Including Door)
Depth with Door Open 90˚
frigidaire.ca
67-11/16"
34"
28-1/2"
60-1/4"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
