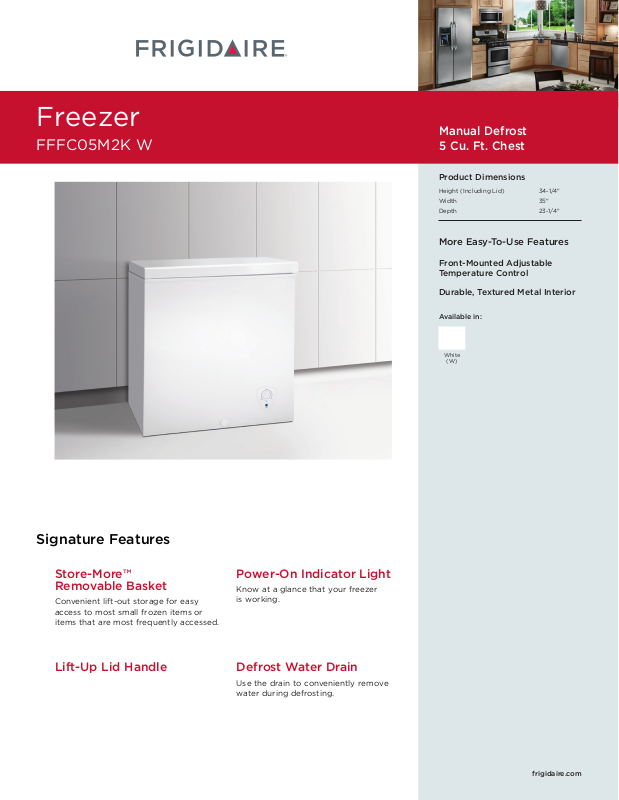

Frigidaire FFFC05M2KW User Manual
Freezer
FFFC05M2K W
Manual Defrost
5 Cu. Ft. Chest
Product Dimensions
Height (Including Lid) 34-1/4"
Width 35"
Depth 23-1/4"
More Easy-To-Use Features
Front-Mounted Adjustable
Temperature Control
Durable, Textured Metal Interior
Available in:
White
(W)
Signature Features
Store-More™
Removable Basket
Convenient lift-out storage for easy
access to most small frozen items or
items that are most frequently accessed.
Lift-Up Lid Handle
Power-On Indicator Light
Know at a glance that your freezer
is working.
Defrost Water Drain
Use the drain to conveniently remove
water during defrosting.
frigidaire.com
Features
Defrost
Adjustable Temperature Control
Interior Lighting
Store-More™ Removable Baskets
Food Organization System
Defrost Water Drain
Lid Handle
Lock with Pop-Out Key
Temp Alarm System
Power-On Light
Manual
Yes
1
Yes
Yes
Yes
Certifications
CSA Rating
Household
Specifications
Total Capacity (Cu. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.1065 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 115
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes &
ordinances.
5.1
242
$26
Bottom Rear
115V / 60Hz / 1.3A
.17
1.3
15
99 Lbs.
Freezer
FFFC05M2K W 5 Cu. Ft. Chest
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Including Lid)
B - Width
C - Depth
D - Height with Lid Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFFC05M2K 12/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
34-1/4"
35"
23-1/4"
55-5/16"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
