Frigidaire FFF318AWA Installation Guide

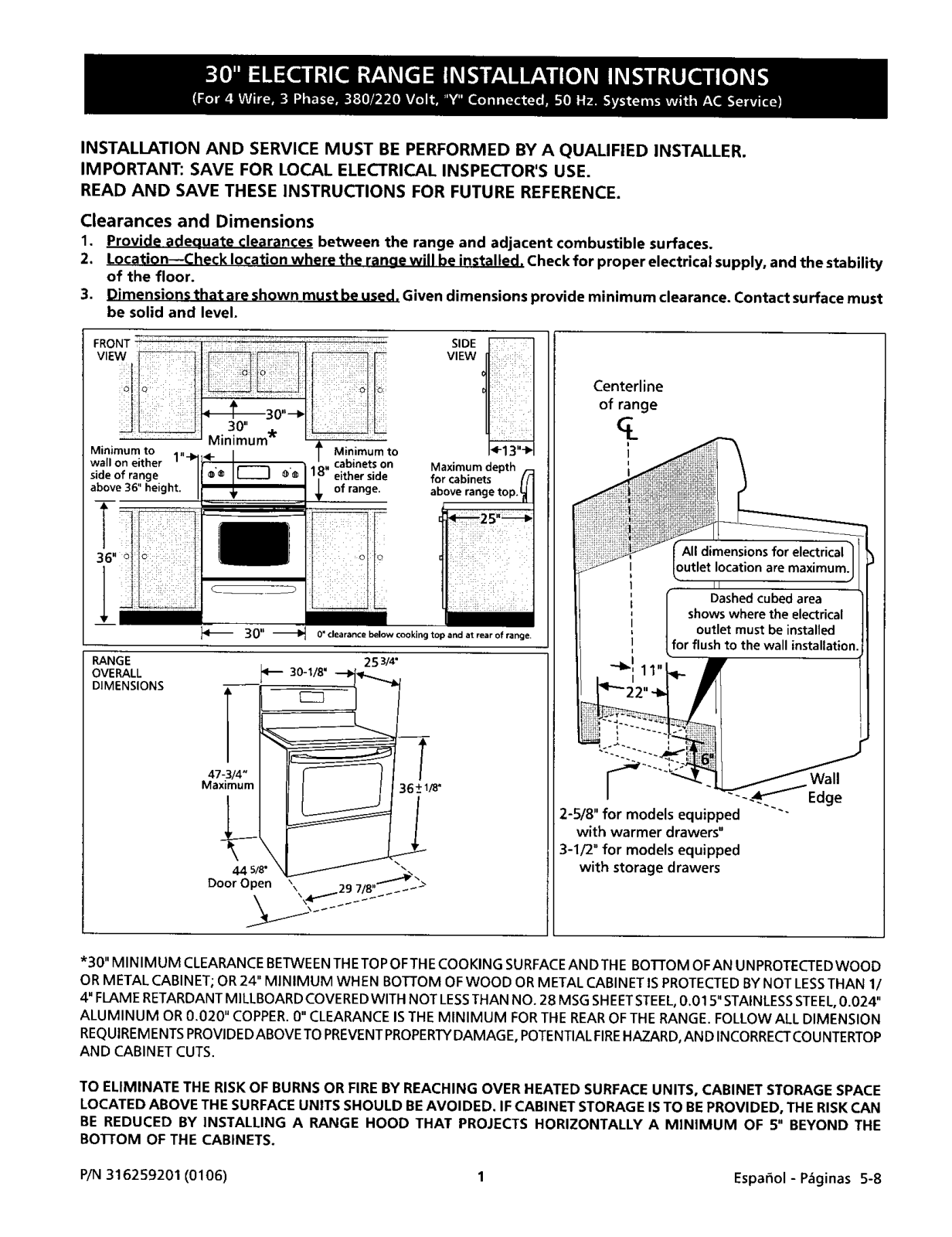

Page 1
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Clearances and Dimensions
1. Provide adeauate clearances between the range and adjacent combustible surfaces.
2. Location--Check location where the ranae will be installed. Check for proper electrical supply, and the stability
of the floor.
3. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be solid and level.
FRONT
WEW F_ ;
sideof range ®'®IF-_ 18 eitberside above36"height. _ _ of range.
_1_ 30 u _ O"clearance below cooking top and at rear ofrange
RANGE
OVERALL
DIMENSIONS
44 S/8"_ _
Door Open \\ 29 7/8'_'_1_
253/4"
SIDE
VIEW
Maximum depth
for cabinets above range top. I
Centerline
of range
All dimensionsfor electrical "
outlet location are maximum.
I II
' f' Dashedcubed area I / showswhere the eectrical
/
J outlet must be installed
I Lforflush to the wall installation
,11t !
S"""_'_ "---.. Edge
2-5/8" for models equipped "'-
with warmer drawers"
3-1/2" for models equipped
with storage drawers
*30" MINIMUM CLEARANCE BETWEEN THETOPOFTHE COOKING SURFACEANDTHE BOTTOM OFAN UNPROTECTED WOOD OR METAL CABINET; OR 24" MINIMUM WHEN BOTTOM OFWOOD OR METAL CABINET IS PROTECTED BY NOT LESSTHAN 1/ 4" FLAME RETARDANT MILLBOARD COVEREDWlTH NOT LESSTHAN NO. 28 MSG SHEET STEEL,0.015" STAINLESS STEEL,0.024"
ALUMINUM OR 0.020" COPPER. 0" CLEARANCE IS THE MINIMUM FOR THE REAR OF THE RANGE. FOLLOW ALL DIMENSION REQUIREM ENTS PROVIDEDABOVE TO PREVENT PROPERTYDAMAGE, POTENTIAL FIREHAZARD, AN D INCORRECTCOUNTERTOP
AND CABINET CUTS.
TO ELIMINATE THE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STORAGE SPACE
LOCATED ABOVE THE SURFACE UNITS SHOULD BE AVOIDED. IF CABINET STORAGE IS TO BE PROVIDED, THE RISK CAN BE REDUCED BY INSTALLING A RANGE HOOD THAT PROJECTS HORIZONTALLY A MINIMUM OF 5" BEYOND THE
BOTTOM OF THE CABINETS.
P/N 316259201 (0106) 1 Espar_ol - P,_ginas 5-8

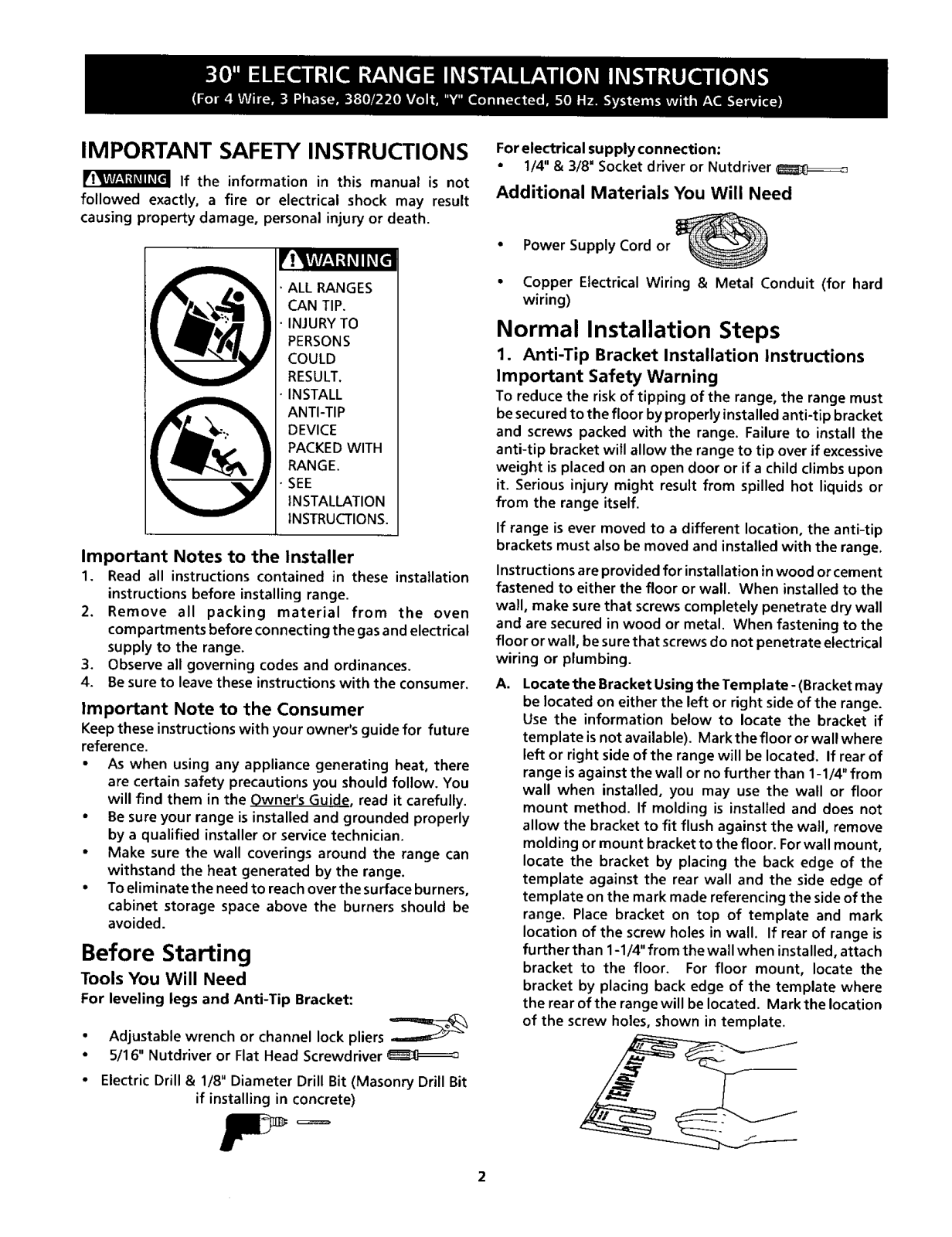

Page 2
IMPORTANT SAFETY INSTRUCTIONS
If the information in this manual is not
followed exactly, a fire or electrical shock may result causing property damage, personal injury or death•
For electrical supply connection:
1/4" & 3/8 j Socket driver or Nutdriver
Additional Materials You Will Need
Power Supply Cord or
ALL RANGES CAN TIP.
INJURY TO PERSONS
COULD RESULT.
INSTALL ANTI-TIP
DEVICE PACKED WITH
RANGE.
SEE INSTALLATION
INSTRUCTIONS.
Important Notes to the Installer
1. Read all instructions contained in these installation instructions before installing range•
2. Remove all packing material from the oven
compartments before connecting the gas and electrical
supply to the range.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future reference•
As when using any appliance generating heat, there are certain safety precautions you should follow. You
will find them in the Owner's Guide. read it carefully•
Be sure your range is installed and grounded properly by a qualified installer or service technician•
Make sure the wall coverings around the range can
withstand the heat generated by the range. To eliminate the need to reach over the surface burners,
cabinet storage space above the burners should be avoided.
Before Starting
Tools You Will Need
For leveling legs and Anti-Tip Bracket:
Adjustable wrench or channel lock pliers
5/16" Nutdriver or Flat Head Screwdriver
Electric Drill & 1/8" Diameter Drill Bit (Masonry Drill Bit
if installing in concrete)
Copper Electrical Wiring & Metal Conduit (for hard
wiring)
Normal Installation Steps
1. Anti-Tip Bracket Installation Instructions Important Safety Warning
To reduce the risk of tipping of the range, the range must
be secured to the floor by properly installed anti-tip bracket
and screws packed with the range. Failure to install the anti-tip bracket will allow the range to tip over if excessive
weight is placed on an open door or if a child climbs upon
it. Serious injury might result from spilled hot liquids or
from the range itself•
If range is ever moved to a different location, the anti-tip brackets must also be moved and installed with the range.
Instructions are provided for installation in wood or cement
fastened to either the floor or wall. When installed to the wall, make sure that screws completely penetrate dry wall
and are secured in wood or metal. When fastening to the floor or wall, be sure that screws do not penetrate electrical wiring or plumbing.
A,
Locate the Bracket Using the Template- (Bracket may be located on either the left or right side of the range.
Use the information below to locate the bracket if
template is not available). Mark the floor or wall where
left or right side of the range will be located. If rear of range isagainst the wall or no further than 1-1/4" from
wall when installed, you may use the wall or floor
mount method• If molding is installed and does not
allow the bracket to fit flush against the wall, remove
molding or mount bracket to the floor• For wall mount,
locate the bracket by placing the back edge of the template against the rear wall and the side edge of template on the mark made referencing the side of the
range. Place bracket on top of template and mark
location of the screw holes in wall. If rear of range is further than 1-1/4"from thewallwhen installed, attach
bracket to the floor. For floor mount, locate the
bracket by placing back edge of the template where the rear ofthe rangewill be located• Mark the location of the screw holes, shown in template.
2

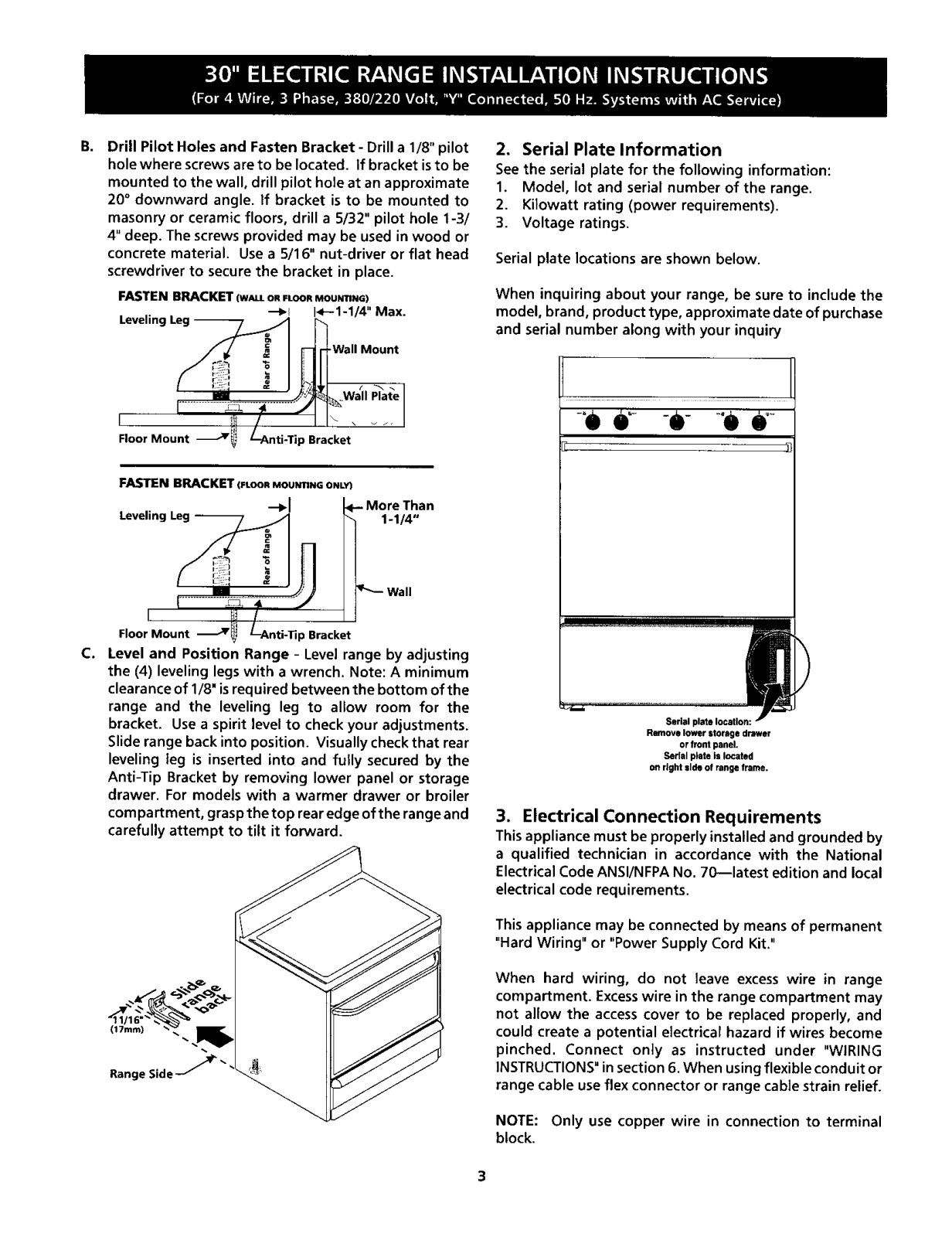

Page 3
B. Drill Pilot Holes and Fasten Bracket- Drilla 1/8" pilot
holewhere screwsare to be located. If bracket isto be mounted to the wall, drill pilot hole at an approximate
20° downward angle. If bracket is to be mounted to
masonryor ceramicfloors, drill a 5/32" pilot hole 1-3/
4" deep. The screwsprovided may be used in wood or concrete material. Use a 5/16" nut-driver or flat head
screwdriverto securethe bracket in place.
FASTEN BRACKET(WALLORFLOORMOUNTING)
"--_l I_-- 1-1/4" Max.
WallMount
2. Serial Plate Information See the serial plate for the following information:
1. Model, lot and serialnumber of the range.
2. Kilowatt rating (power requirements).
3. Voltage ratings.
Serial plate locations are shown below.
When inquiring about your range, be sure to include the model, brand, product type, approximate date of purchase
and serial number along with your inquiry
Levelinc
FloorMount _ L-Anti-TipBracket
FASTEN BRACKET(FLOOnMOUNT1NGONLY)
LevelingLeg--
Floor Mount _ t Bracket
C.
Level and Position Range - Level range by adjusting
the (4) leveling legs with a wrench. Note: A minimum
clearance of 1/8" is required between the bottom of the range and the leveling leg to allow room for the
bracket. Use a spirit level to check your adjustments. Slide range back into position. Visually check that rear leveling leg is inserted into and fully secured by the
Anti-Tip Bracket by removing lower panel or storage
drawer. For models with a warmer drawer or broiler compartment, grasp the top rear edge of the range and
carefully attempt to tilt it forward.
Plate
1-1/4"
-'OO" -O- "OO
Serial plate location:
Remove lower storage drawer
or front panel.
Serlel pFete Is located
on right side of range frame.
3. Electrical Connection Requirements
This appliance must be properly installed and grounded by a qualified technician in accordance with the National
Electrical Code ANSI/NFPA No. 70---latest edition and local electrical code requirements.
This appliance may be connected by means of permanent
"Hard Wiring" or "Power Supply Cord Kit."
When hard wiring, do not leave excess wire in range compartment. Excesswire in the range compartment may not allow the access cover to be replaced properly, and could create a potential electrical hazard if wires become
pinched. Connect only as instructed under "WIRING INSTRUCTIONS" in section 6. When using flexible conduit or range cable use flex connector or range cable strain relief.
NOTE: Only use copper wire in connection to terminal block.
3

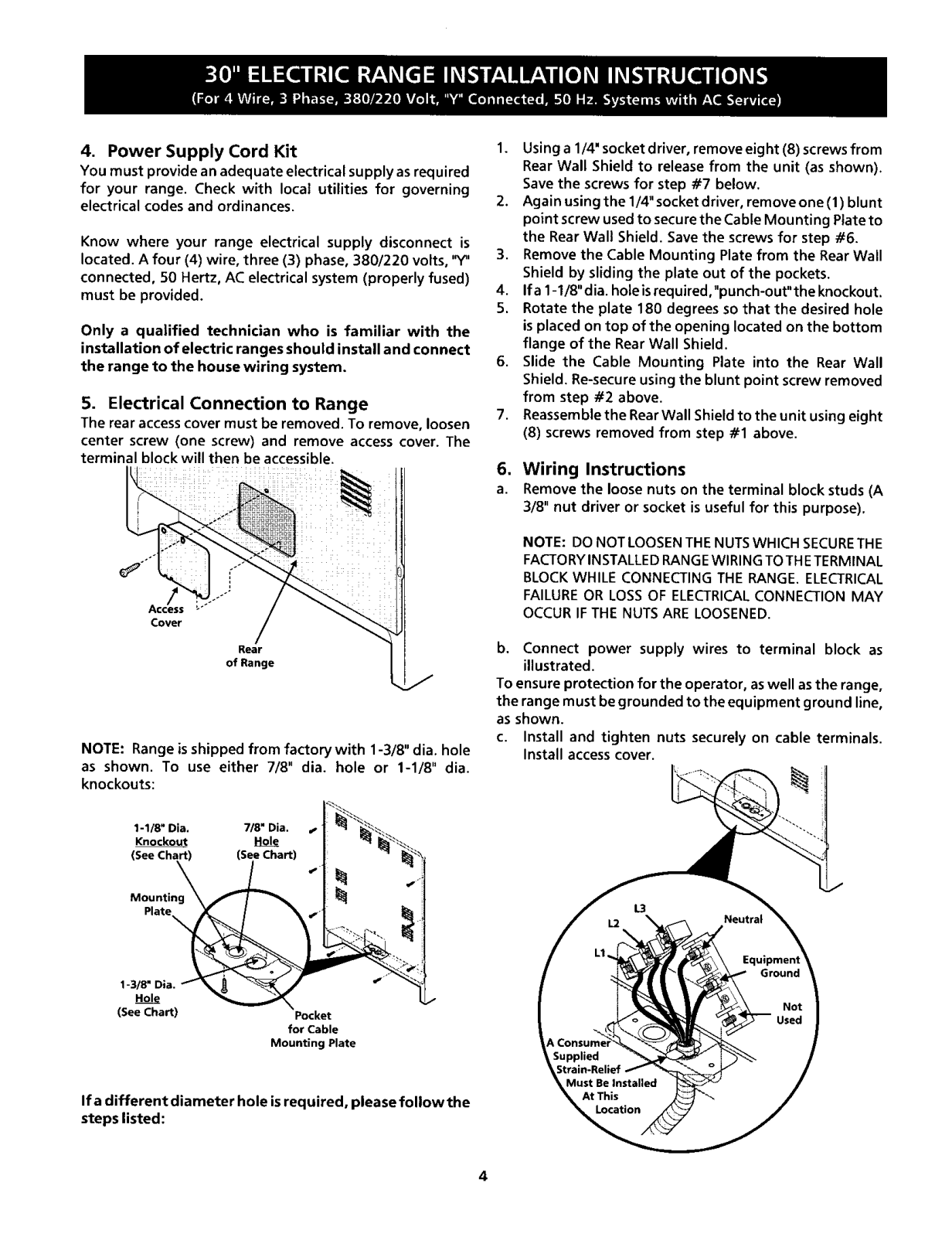

Page 4
4. PowerSupply Cord Kit Youmust providean adequate electrical supplyasrequired
for your range. Check with Iocat utilities for governing
electrical codesand ordinances.
Know where your range electrical supply disconnect is located. A four (4) wire, three (3) phase, 380/220 volts, '_'
connected, 50 Hertz, AC electrical system (properly fused) must be provided.
Only a qualified technician who is familiar with the
installation of electric ranges should install and connect the range to the house wiring system.
5. Electrical Connection to Range
The rear access cover must be removed. To remove, loosen
center screw (one screw) and remove access cover. The terminal block will then be accessible.
1. Using a 1/4' socket driver, remove eight (8) screws from Rear Wall Shield to release from the unit (as shown).
Save the screws for step #7 below.
2. Again using the 1/4" socket driver, remove one (1) blunt point screw used to secure the Cable Mou nting Plate to
the Rear Wall Shield. Save the screws for step #6.
3. Remove the Cable Mounting Plate from the Rear Wall Shield by sliding the plate out of the pockets.
4. Ifa 1-1/8" dia. hole isrequired,"punch-out"the knockout.
5. Rotate the plate 180 degrees so that the desired hole is placed on top of the opening located on the bottom
flange of the Rear Wall Shield.
6. Slide the Cable Mounting Plate into the Rear Wall Shield. Re-secure using the blunt point screw removed
from step #2 above.
7. Reassemble the Rear Wall Shield to the unit using eight (8) screws removed from step #1 above.
6. Wiring Instructions
a. Removethe loosenuts on the terminal block studs(A
3/8" nut driver or socket is usefulfor this purpose).
NOTE: DO NOT LOOSEN THE NUTS WHICH SECURE THE
FACTORYINSTALLED RANGE WIRING TO THETERMINAL BLOCK WHILE CONNECTING THE RANGE. ELECTRICAL
FAILURE OR LOSS OF ELECTRICAL CONNECTION MAY OCCUR IF THE NUTS ARE LOOSENED.
Rear
of Range
NOTE: Range is shipped from factory with 1-3/8" dia. hole
as shown. To use either 7/8" dia. hole or 1-1/8" dia.
knockouts:
1-1/8 _ Dia. 7/8" Dia.
Knockout
(SeeChart)
Mounting
Plate
1-3/8" Dia.
(See Chart)
Pocket
for Cable
Mounting Plate
If a different diameter hole isrequired, please follow the
steps listed:
b. Connect power supply wires to terminal block as
illustrated.
To ensure protection for the operator, as well as the range, the range must be grounded to the equipment ground line,
as shown. c. Install and tighten nuts securely on cable terminals.
Install access cover.
Strain-Relief
4
