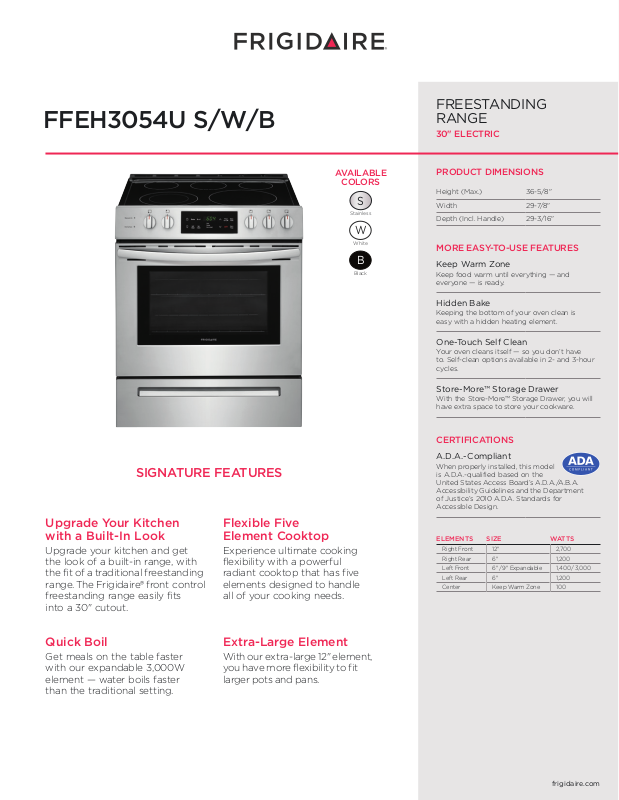

Frigidaire FFEH3054UW, FFEH3054UB Specifications
|
|
FFEH3054U S/W/B |
FREESTANDING |
RANGE |
|
|
30" ELECTRIC |
AVAILABLE
COLORS
S
Stainless
W
White
B
Black
SIGNATURE FEATURES
Upgrade Your Kitchen |
Flexible Five |
with a Built-In Look |
Element Cooktop |
Upgrade your kitchen and get |
Experience ultimate cooking |
the look of a built-in range, with |
flexibility with a powerful |
the fit of a traditional freestanding |
radiant cooktop that has five |
range. The Frigidaire® front control |
elements designed to handle |
freestanding range easily fits |
all of your cooking needs. |
into a 30" cutout. |
|
Quick Boil |
Extra-Large Element |
Get meals on the table faster |
With our extra-large 12" element, |
with our expandable 3,000W |
you have more flexibility to fit |
element — water boils faster |
larger pots and pans. |
than the traditional setting. |
|
PRODUCT DIMENSIONS
Height (Max.) |
36-5/8" |
|
|
Width |
29-7/8" |
|
|
Depth (Incl. Handle) |
29-3/16" |
|
|
MORE EASY-TO-USE FEATURES
Keep Warm Zone
Keep food warm until everything — and everyone — is ready.
Hidden Bake
Keeping the bottom of your oven clean is easy with a hidden heating element.
One-Touch Self Clean
Your oven cleans itself — so you don’t have
to. Self-clean options available in 2- and 3-hour cycles.
Store-More™ Storage Drawer
With the Store-More™ Storage Drawer, you will have extra space to store your cookware.
CERTIFICATIONS
A.D.A.- Compliant
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
ELEMENTS |
SIZE |
WATTS |
|
|
|
Right Front |
12" |
2,700 |
Right Rear |
6" |
1,200 |
|
|
|
Left Front |
6" / 9" Expandable |
1,400 / 3,000 |
Left Rear |
6" |
1,200 |
|
|
|
Center |
Keep Warm Zone |
100 |
frigidaire.com
FFEH3054US
FREESTANDING RANGE
30" ELECTRIC
FEATURES
|
Oven Control / Timing System |
Ready-Select® Controls |
|
|
Surface Type |
Black Ceramic Glass |
|
|
|
|
|
|
Window |
Extra-Large |
|
|
Exterior Door Finish |
Stainless |
|
|
|
|
|
|
Handle Design |
Stainless |
|
|
Exterior Finish (Side Panels) |
Black |
|
|
Oven Cleaning System |
Self Clean |
|
|
|
|
|
|
Drawer Functionality |
Storage |
|
OVEN CONTROLS |
|
|
|
|
|
|
|
|
Bake |
Yes |
|
|
|
|
|
|
Broil |
Yes |
|
|
Delay Bake |
Yes |
|
|
|
|
|
|
Delay Start |
Yes |
|
|
Self-Clean |
2, 3 Hour |
|
|
|
|
|
|
Delay Clean |
Yes |
|
|
Kitchen Timer |
Yes |
|
|
|
|
|
|
Timed Cook Option |
Yes |
|
|
Auto Oven Shut-Off |
12 Hours |
|
|
|
|
|
|
Oven Lock-Out |
Yes |
|
COOKTOP FEATURES |
|
|
|
|
|
|
|
|
Right Front Element (Watts) |
12" – 2700 |
|
|
|
|
|
|
Right Rear Element (Watts) |
6" – 1200 |
|
|
Left Front Element (Watts) |
SpaceWise® Expandable |
|
|
6"/ 9" – 1400 / 3000 |
|
|
|
|
|
|
|
Left Rear Element (Watts) |
6" – 1200 |
|
|
Center Element (Watts) |
Keep Warm Zone – 100 |
|
|
|
|
|
|
Hot Surface Indicator Light |
Yes |
|
|
Element “On” Indicator Light |
Yes |
|
|
|
|
|
OVEN FEATURES |
|
|
|
|
Capacity (Cu. Ft.) |
5.0 |
|
|
Oven Light |
1 Incandescent 40W |
|
|
|
|
|
|
Rack Configuration |
2 Standard |
|
|
Baking System |
Even Baking Technology |
|
|
|
|
|
|
Broiling System |
Vari-Broil™ (Hi / Lo) |
|
|
|
|
|
|
Bake Element / Broil Element (Watts) |
3,500 / 3,900 |
|
|
|
|
|
|
Hidden Bake |
Yes |
|
|
|
|
|
OPTIONAL ACESSORIES |
|
|
|
|
|
|
|
|
Rear Filler Trim - Black |
Included |
|
CERTIFICATIONS |
|
|
|
|
A.D.A. Compliant1 |
Yes |
|
|
Prop-65 |
Yes |
|
SPECIFICATIONS |
|
|
|
|
|
|
|
|
Oven Interior ( H x W x D ) |
18-5/8" x 24-3/8" x 19-1/8" |
|
|
|
|
|
|
Power Supply Connection Location |
Middle Bottom Rear |
|
|
Voltage Rating |
240V / 208V / 60Hz |
|
|
|
|
|
|
Connected Load |
12.5 / 9.5 |
|
|
(kW Rating) @ 240 / 208 Volts |
|
|
|
|
|
|
|
Minimum Circuit Required (Amps) |
40 |
|
|
|
|
|
|
Shipping Weight (Approx.) |
170 Lbs. |
|
1When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
PRODUCT DIMENSIONS
A - Height (Max.) |
36-5/8" |
B - Width |
29-7/8" |
C - Depth (Incl. Handle) |
29-3/16" |
Depth with Door Open 90˚ |
47" |
CABINET CUTOUT DIMENSIONS |
|
|
|
Width (Min.) |
30" |
|
|
Depth (Min.) |
24" |
A
C
B
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com |
FFEH3054U 01/19 |
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca |
© 2018 Electrolux Home Products, Inc. |
