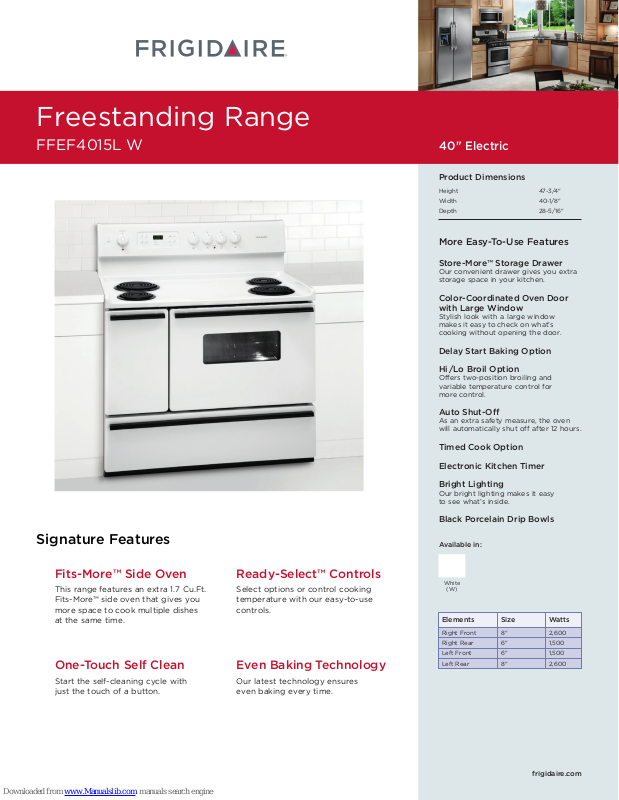

Page 1
Drop-In Cooktop
Freestanding Range
FPEC3085K S
FFEF4015L W
30" Electric
40" Electric
Product Dimensions
Height 47-3/4"
Width 40-1/8"
Depth 28-5/16"
More Easy-To-Use Features
Store-More™ Storage Drawer
Our convenient drawer gives you extra
storage space in your kitchen.
Color-Coordinated Oven Door
with Large Window
Stylish look with a large window
makes it easy to check on what’s
cooking without opening the door.
Delay Start Baking Option
Hi /Lo Broil Option
Offers two-position broiling and
variable temperature control for
more control.
Auto Shut-O
As an extra safety measure, the oven
will automatically shut off after 12 hours.
Signature Features
Fits-More™ Side Oven
This range features an extra 1.7 Cu.Ft.
Fits-More™ side oven that gives you
more space to cook multiple dishes
at the same time.
One-Touch Self Clean
Start the self-cleaning cycle with
just the touch of a button.
Ready-Select™ Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Even Baking Technology
Our latest technology ensures
even baking every time.
Timed Cook Option
Electronic Kitchen Timer
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
Black Porcelain Drip Bowls
Available in:
White
(W)
Elements
Right Front
Right Rear
Left Front
Left Rear
Size
8"
6"
6"
8"
Watts
2,600
1,500
1,500
2,600
frigidaire.com
Page 2
Features
Primary Oven Control /
Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Primary Oven Cleaning System
Side Compartment /
Drawer Functionality
Primary Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shuto
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
Primary Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Even Baking System
Broiling System
Bake Element / Broil Element (Watts)
Auxiliary Oven Features
Capacity (Cu. Ft.)
Oven Control
Oven Cleaning System
Oven Light
Rack Configuration
Bake Element / Broil Element (Watts)
Specifications
Primary Oven Interior ( H x W x D )
Auxiliary Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Ready-Select™ Controls
Color-Coordinated Porcelain
Large
Color-Coordinated
Black
Color-Coordinated
Self Clean
Oven / Storage
Yes
Low and High
Yes
Yes
Yes
Yes
12 Hours
8" – 2,600
6" – 1,500
6" – 1,500
8" – 2,600
Yes / Black Porcelain
3.7
1
2 Standard
Yes
Vari-Broil™ Hi / Lo
3,000 / 2,750
1.7
Mechanical
Manual Clean
1 Standard
1,500 / 1,500
15-3/4" x 22-5/8" x 17-3/4"
16" x 9-9/16" x 19-1/2"
Middle Bottom Rear
240V / 208V / 60Hz
12.7 / 9.5
53.0 / 46.0
40
242 Lbs.
Freestanding Range
FFEF4015L W 40" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
Depth with Door Open 90˚
47-3/4"
40-1/8"
28-5/16"
45-1/2"
Cutout Dimensions
Height (standard)
Width (min.)
Depth (min.)
36"
40-1/4"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFEF4015L 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
