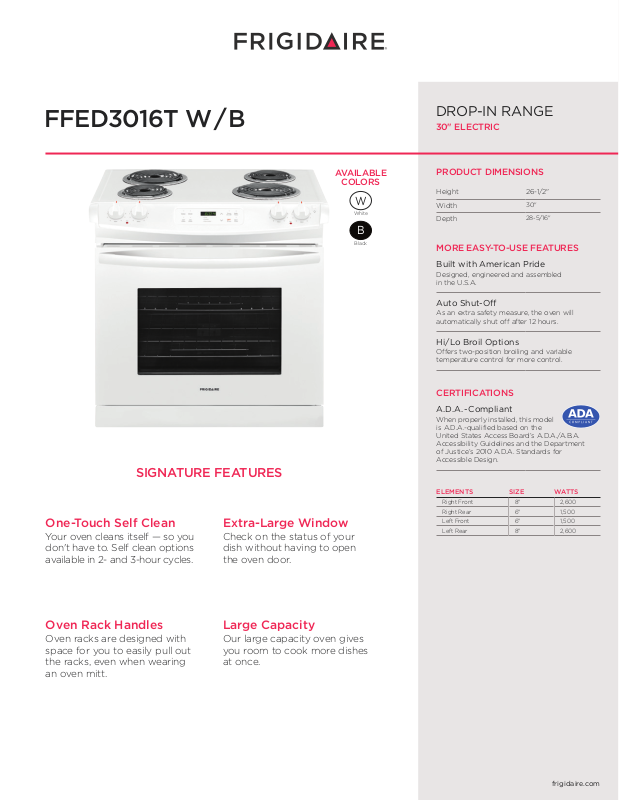

Frigidaire FFED3016TW Specification Sheet
|
|
FFED3016T W / B |
DROP-IN RANGE |
30" ELECTRIC |
AVAILABLE
COLORS
W
White
B
Black
SIGNATURE FEATURES
One-Touch Self Clean
Your oven cleans itself — so you don't have to. Self clean options available in 2- and 3-hour cycles.
Oven Rack Handles
Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
Extra-Large Window
Check on the status of your dish without having to open the oven door.
Large Capacity
Our large capacity oven gives you room to cook more dishes at once.
PRODUCT DIMENSIONS
Height |
26-1/2" |
|
|
Width |
30" |
|
|
Depth |
28-5/16" |
MORE EASY-TO-USE FEATURES
Built with American Pride
Designed, engineered and assembled in the U.S.A.
Auto Shut-Off
As an extra safety measure, the oven will automatically shut off after 12 hours.
Hi/Lo Broil Options
Offers two-position broiling and variable temperature control for more control.
CERTIFICATIONS
A.D.A. - Compliant
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
ELEMENTS |
SIZE |
WATTS |
|
|
|
Right Front |
8" |
2,600 |
|
|
|
Right Rear |
6" |
1,500 |
Left Front |
6" |
1,500 |
Left Rear |
8" |
2,600 |
frigidaire.com
FFED3016T W / B
DROP-IN RANGE
30" ELECTRIC
FEATURES
Oven Control / Timing System |
Ready-Select® Controls |
|
Surface Type |
Color-Coordinated Porcelain |
|
Window |
Extra-Large |
|
Exterior Door Finish |
Color-Coordinated |
|
|
|
|
Handle Design |
Color-Coordinated |
|
Convection System |
|
|
|
|
|
Oven Cleaning System |
Self-Clean |
|
Drawer Functionality |
|
|
|
|
|
OVEN CONTROLS |
|
|
Bake |
Yes |
|
Broil |
Variable |
|
Add-a-Minute |
|
|
Delay Start |
Yes |
|
Self Clean |
2, 3 Hours |
|
|
|
|
Steam Clean |
|
|
Delay Clean |
Yes |
|
|
|
|
Kitchen Timer |
Yes |
|
Timed Cook Option |
|
|
|
|
|
Auto Oven Shut-Off |
12 Hours |
|
COOKTOP FEATURES |
|
|
|
|
|
Right Front Element (Watts) |
8" – 2,600 |
|
|
|
|
Right Rear Element (Watts) |
6" – 1,500 |
|
Left Front Element (Watts) |
6" – 1,500 |
|
Left Rear Element (Watts) |
8" – 2,600 |
|
Center Element (Watts) |
|
|
Hot Surface Indicator Light |
|
|
|
|
|
Coil Cooktop / Drip Bowls |
Yes / Chrome |
|
OVEN FEATURES |
|
|
|
|
|
Capacity (Cu. Ft.) |
4.6 |
|
|
|
|
Oven Light |
1 Halogen |
|
Hidden Bake Element |
|
|
|
|
|
Rack Configuration |
2 Handle Racks |
|
Baking System |
Even Baking Technology |
|
|
|
|
Broiling System |
Vari-Broil™ Hi / Lo |
|
Bake Element / Broil Element (Watts) |
2,750 / 3,400 |
|
OPTIONAL ACCESSORIES |
|
|
|
|
|
Rear Filler Kit – White (W) / Black (B) |
(W) PN # 903113-9011 |
|
(B) PN # 903113-9010 |
||
|
||
Side Panel Kit – White (W) / Black (B) |
(W) PN # 903074-9011 |
|
(B) PN # 903074-9010 |
||
|
||
Backguard Kit – White (W) / Black (B) |
(W) PN # 903046-9011 |
|
(B) PN # 903046-9010 |
||
|
||
Bottom Trim Kit – White (W) / |
(W) PN # 903068-9011 |
|
Black (B) |
(B) PN # 903068-9010 |
|
CERTIFICATIONS |
|
|
|
|
|
A.D.A. Compliant1 |
Yes |
|
SPECIFICATIONS |
|
|
Oven Interior ( H x W x D ) |
17-1/2" x 24-1/8" x 18-3/4" |
|
Power Supply Connection Location |
Left Bottom Rear |
|
|
|
|
Voltage Rating |
240V / 208V / 60 Hz |
|
Connected Load |
11.6 / 8.7 |
|
(kW Rating) @ 240 / 208 Volts2 |
||
Amps @ 120 Volts |
32.7 / 32.1 |
|
Minimum Circuit Required (Amps) |
40 |
|
Shipping Weight (Approx.) |
170 Lbs. |
1When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line.
PRODUCT DIMENSIONS
A - Height |
26-1/2" |
B - Width |
30" |
C - Depth |
28-5/16" |
Depth with Door Open 90˚ |
47-9/16" |
CABINET CUTOUT DIMENSIONS |
|
|
|
Height |
29" † |
|
|
Width (Min./Max.) |
29-15/16" / 30-1/16" * |
Depth (Min./Max.) |
21-3/4" / 22-1/8" ** |
†27-1/2" min. if additional front cabinet filler panel is required (refer to product installation guide on web for filler panel details).
*Cutout and countertop cutout width should match. **24" with optional backguard installed.
C*
* To extreme rear protrusion
A
B
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com |
FFED3016T 02/18 |
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca |
© 2018 Electrolux Home Products, Inc. |
