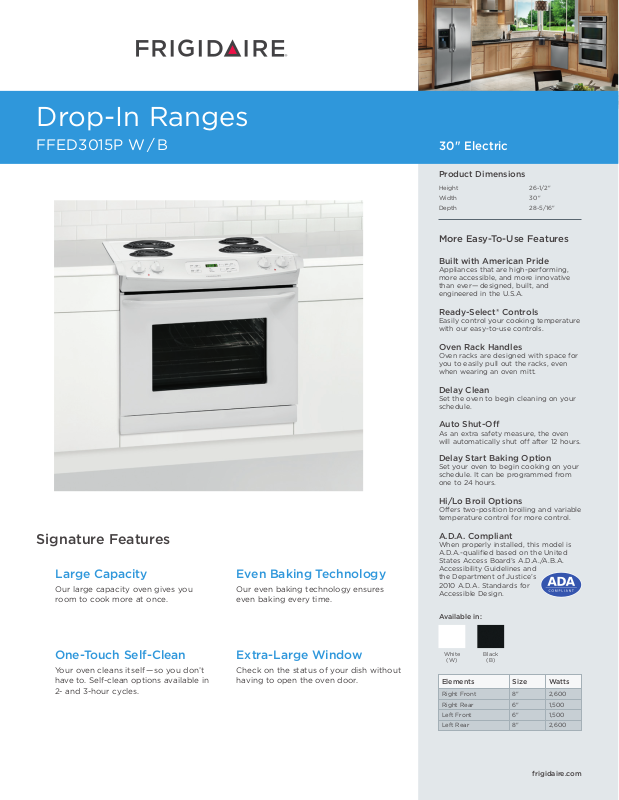

FRIGIDAIRE FFED3015PB User Manual
Drop-In Cooktop
Drop-In Ranges
FPEC3085K S
FFED3015P W / B
30" Electric30" Electric
Product Dimensions
Height 26-1/2"
Width 30"
Depth 28-5/16"
More Easy-To-Use Features
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Ready-Select® Controls
Easily control your cooking temperature
with our easy-to-use controls.
Oven Rack Handles
Oven racks are designed with space for
you to easily pull out the racks, even
when wearing an oven mitt.
Delay Clean
Set the oven to begin cleaning on your
schedule.
Auto Shut-O
As an extra safety measure, the oven
will automatically shut off after 12 hours.
Signature Features
Large Capacity
Our large capacity oven gives you
room to cook more at once.
One-Touch Self-Clean
Your oven cleans itself — so you don’t
have to. Self-clean options available in
2- and 3-hour cycles.
Even Baking Technology
Our even baking technology ensures
even baking every time.
Extra-Large Window
Check on the status of your dish without
having to open the oven door.
Delay Start Baking Option
Set your oven to begin cooking on your
schedule. It can be programmed from
one to 24 hours.
Hi/Lo Broil Options
Offers two-position broiling and variable
temperature control for more control.
A.D.A. Compliant
When properly installed, this model is
A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and
the Department of Justice’s
2010 A.D.A. Standards for
Accessible Design.
Available in:
White
(W)
Elements
Right Front
Right Rear
Left Front
Left Rear
Black
(B)
Size
8"
6"
6"
8"
Watts
2,600
1,500
1,500
2,600
frigidaire.com
Features
B
A
* To extreme
rear protrusion
C
*
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Ready-Select® Controls
Color-Coordinated Porcelain
Extra-Large
Color-Coordinated
Color-Coordinated
Color-Coordinated
Self-Clean
Oven Controls
Bake
Broil
Add-a-Minute
Delay Start
Self-Clean / Clean Options
Steam Clean
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Yes
Low and High
Yes
Yes / 2, 3 Hours
2, 3 Hours
Yes
Yes
12 Hours
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
8" – 2,600
6" – 1,500
6" – 1,500
8" – 2,600
Yes / Chrome
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
4.6
1 Halogen
2 Handle Racks
Even Baking Technology
Vari-Broil™ Hi / Lo
2,750 / 3,400
Optional Accessories
Rear Filler Kit –
White (W) / Black (B)
Side Panel Kit –
White (W) / Black (B)
Backguard Kit –
White (W) / Black (B)
Side Trim Kit –
White (W) / Black (B)
Bottom Trim Kit –
White (W) / Black (B)
Certifications
A.D.A. Compliant
1
(W) PN # 901193-9011
(B) PN # 901193-9010
(W) PN # 903046-9011
(B) PN # 903046-9010
(W) PN # 903076-9011
(B) PN # 903076-9010
(W) PN # 903068-9011
(B) PN # 903068-9010
Yes
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
17-1/2" x 24-1/8" x 18-3/4"
Left Bottom Rear
240V / 208V / 60 Hz
11.6 / 8.7
2
48.3 / 41.8
40
170 Lbs.
Drop-In Ranges
FFED3015P W / B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
Product Dimensions
A - Height
A - Height
B - Width
B - Width
C - Depth
C - Depth
Depth with Door Open 90˚
Depth with Door Open 90˚
26-1/2"
26-1/2"
30"
30"
28-5/16"
28-5/16"
47-9/16"
45-1/2"
Cutout Dimensions
Height
Width (Min. / Max.)
Depth (Min. / Max.)
† 27-1/2" min. if additional front cabinet filler panel is
required (refer to product installation guide on web
for filler panel details).
* Cutout and countertop cutout width should match.
** 24" with optional backguard installed.
29" †
29-15/16" / 30-1/16" *
21-3/4" / 22-1/8" **
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FFED3015P 10/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
30" Electric Drop-In Range
Frig Baseline
Drop-In Ranges
FFED3015P W / B 30" Electric
Drop-In Range Specifications
•
Product Shipping Weight (approx.) – 170 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
•
Connected Load (kW Rating) @ 240 / 208 Volts = 11.6 / 8.7 kW
•
Amps @ 240 / 208 Volts = 48.3 /41.8 Amps
•
Recommended Circuit Breaker – 50 Amps (40 Amps minimum)
•
Always consult local and national electric codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•

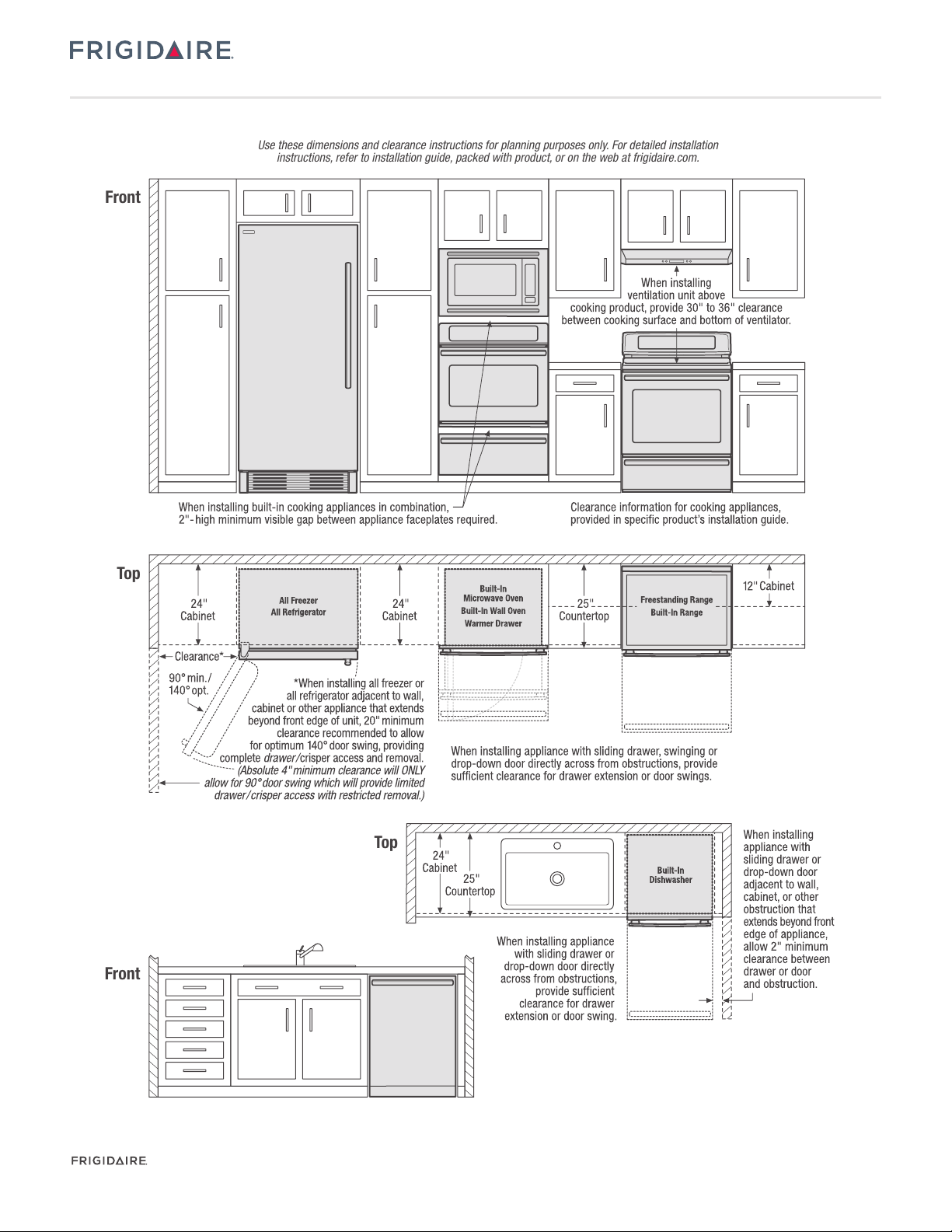

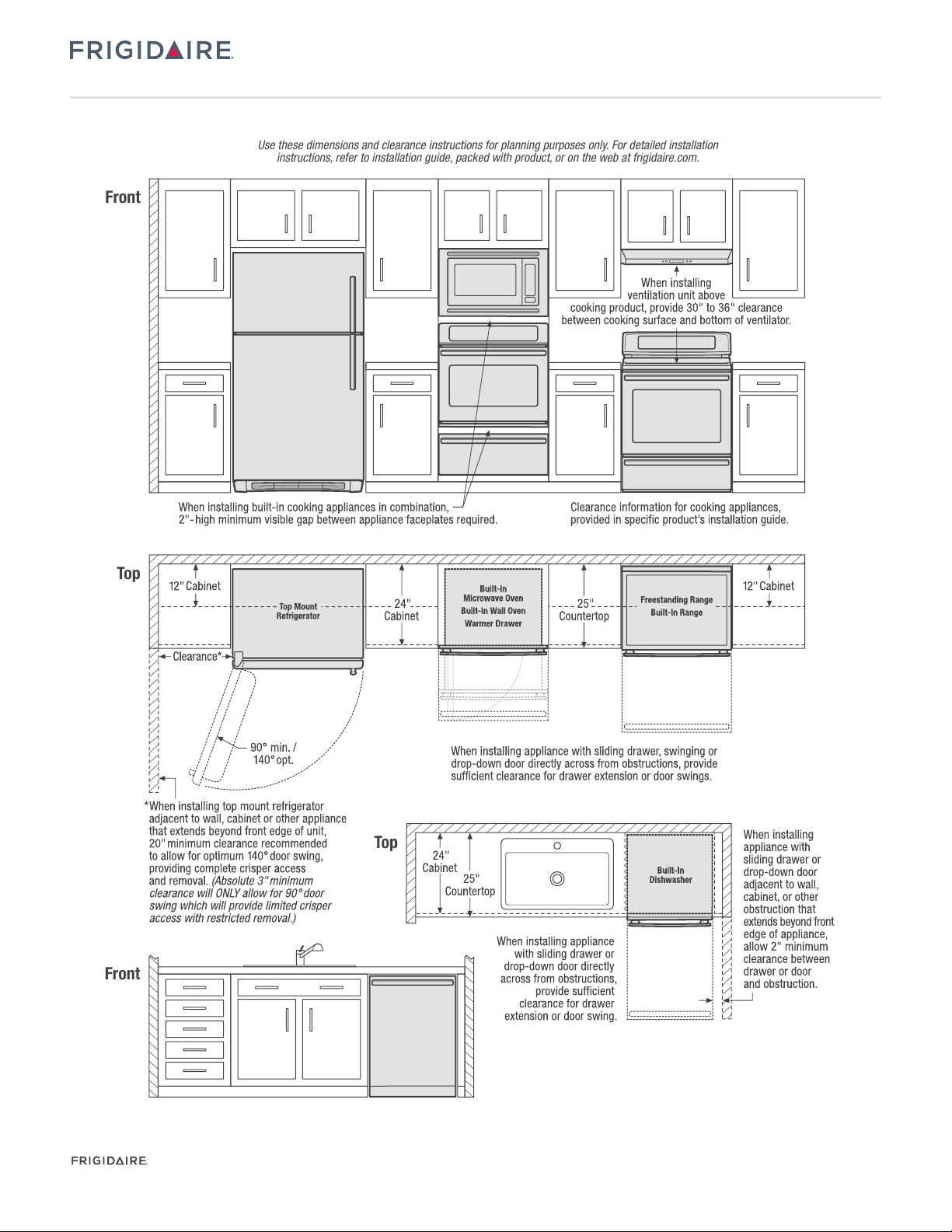

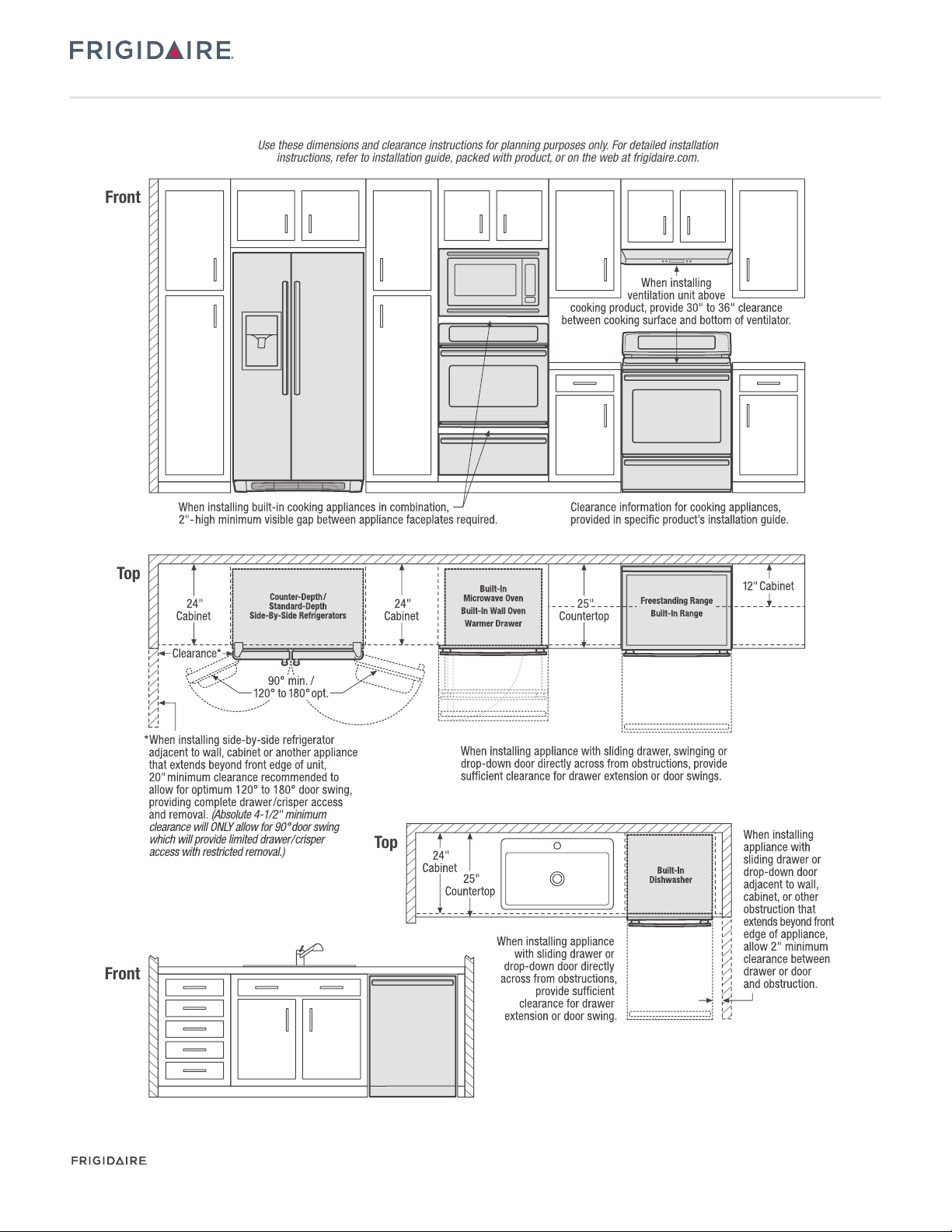

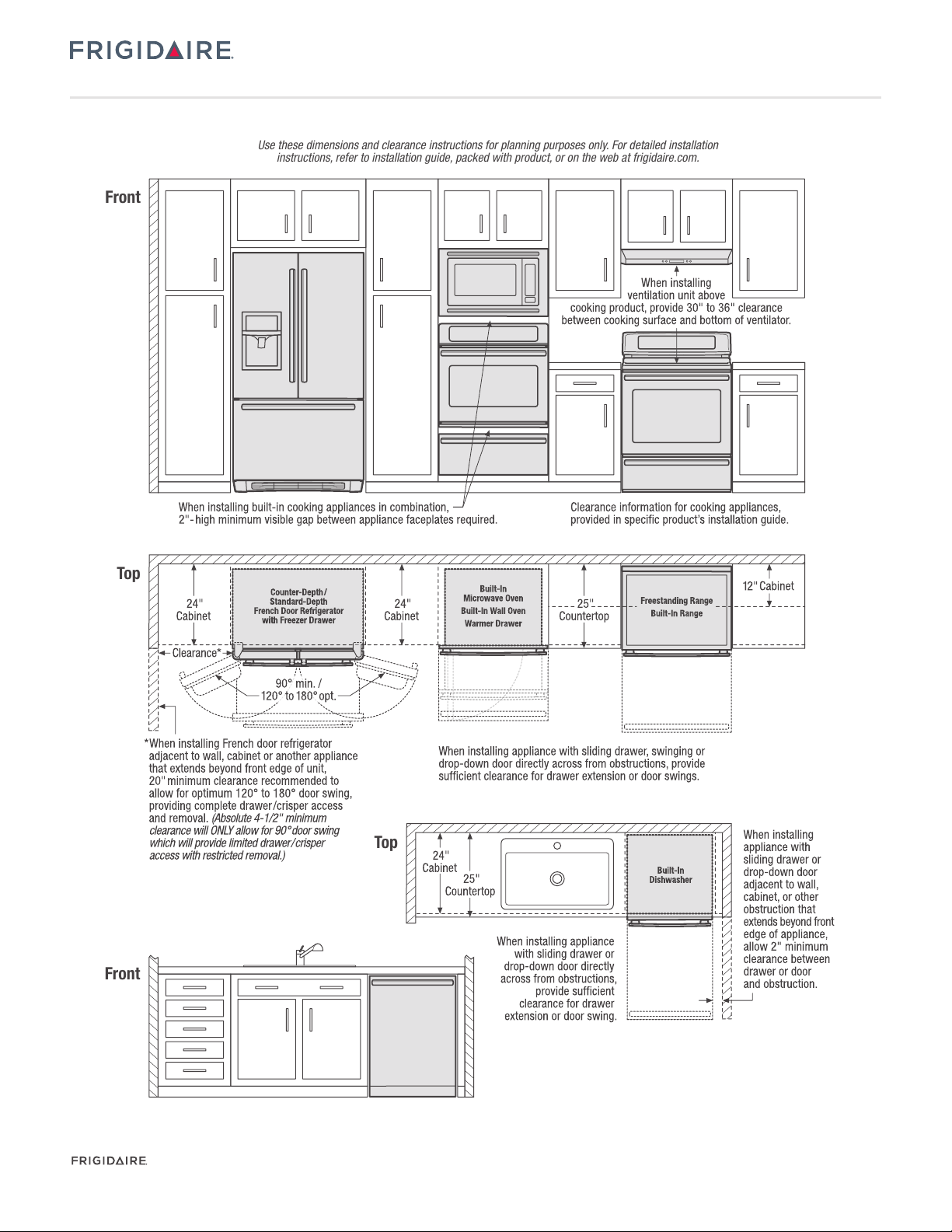

Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than
1/4" flame-retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 30" minimum clearance when cabinet is unprotected.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Countertop Preparation
Rangetop’s side flanges overlap countertop cutout edges – for detailed
preparation instructions, refer to product installation guide on the web.
•
Flat Square-Finish Countertops – require no preparation since
rangetop’s flange lays directly on countertop edge.
•
Formed Front-Edged Countertops – require front molded edge to
be shaved flat 3/4" from each front corner of opening.
•
Tile Countertops – may need trim cut back 3/4" from each front
corner of opening and /or rounded edge flattened.
•
For existing cutout width greater than 30-1/16" reduce the 3/4"
overlap dimension; for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Rear Filler Kit: White – (PN # 901193-9011),
Black – (PN # 901193-9010).
•
Backguard Kit: White – (PN # 903046-9011),
Black – (PN # 903046-9010).
•
Side Trim Kit: White – (PN # 903076-9011),
Black – (PN # 903076-9010).
•
Bottom Trim Kit: White – (PN # 903068-9011),
Black – (PN # 903068-9010).
•
USA
10200 David Taylor Drive
•
CANADA
FFED3015P 10/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
