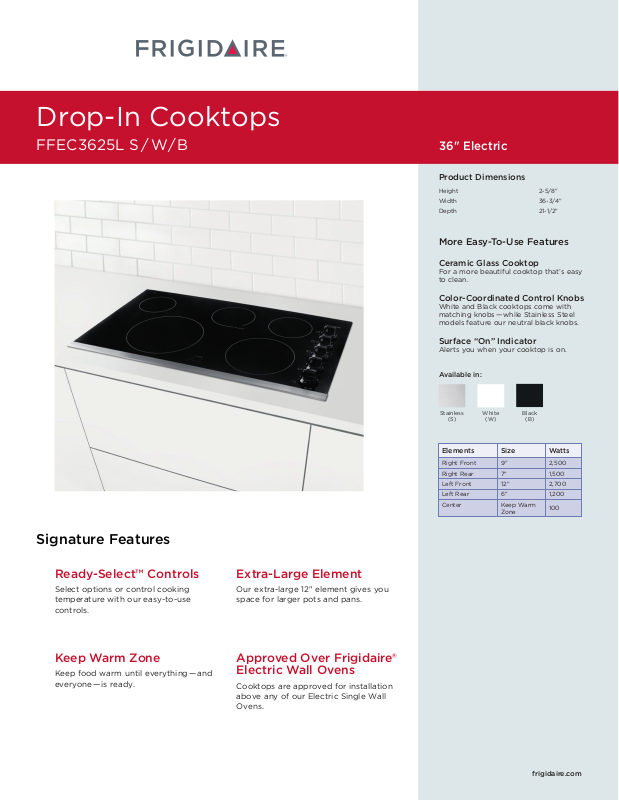

Frigidaire FFEC3625L S, FFEC3625LB, FFEC3625L W DATASHEET
Drop-In Cooktops
FFPEC362085LKS / W/ B
Signature Features
Ready-Select™ Controls
Select options or control cooking temperature with our easy-to-use controls.
Keep Warm Zone
Keep food warm until everything — and everyone — is ready.
Extra-Large Element
Our extra-large 12" element gives you space for larger pots and pans.
Approved Over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Electric Single Wall Ovens.
30"36" Ellectric
Product Dimensions
Height |
2-5/8" |
Width |
36-3/4" |
Depth |
21-1/2" |
More Easy-To-Use Features
Ceramic Glass Cooktop
For a more beautiful cooktop that’s easy to clean.
Color-Coordinated Control Knobs
White and Black cooktops come with matching knobs — while Stainless Steel models feature our neutral black knobs.
Surface “On” Indicator
Alerts you when your cooktop is on.
Available in:
Stainless |
|
|
White |
Black |
|
(S) |
(W) |
(B) |
Elements |
Size |
Watts |
Right Front |
9" |
2,500 |
Right Rear |
7" |
1,500 |
Left Front |
12" |
2,700 |
Left Rear |
6" |
1,200 |
Center |
Keep Warm |
100 |
|
Zone |
|
|
|
|
|
|
|
frigidaire.com
Drop-In Cooktops
|
|
|
|
|
FFEC3625L S / W/ B |
36" Electric |
|||
|
|
|
|
|
|
|
|
|
|
Features |
|
|
|
|
|
|
|
|
|
Controls |
Ready-Select™ |
|
|
|
|
|
|
|
|
Surface Type |
Ceramic Glass |
|
|
|
|
|
|
|
|
Right Front Element (Watts) |
9" - 2,500 |
|
|
|
|
|
|
|
|
Right Rear Element (Watts) |
7" - 1,500 |
|
|
|
|
|
|
|
|
Left Front Element (Watts) |
12" - 2,700 |
|
|
|
|
|
|
|
|
Left Rear Element (Watts) |
6" - 1,200 |
|
|
|
|
|
|
|
|
Keep Warm Zone |
6" - 100 |
|
|
|
|
|
|
|
|
Hot-Surface Indicator Light |
Yes |
|
|
|
|
|
|
|
|
Control Location |
Right Side |
|
|
|
|
|
|
|
|
Knob Color |
Black (S), |
|
|
|
|
|
|
|
|
|
Color-Coordinated |
|
|
|
|
|
|
|
|
|
(W / B) |
|
|
|
|
|
|
|
|
Knob Type |
Plastic |
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
|
|
|
|
|
Power Supply Connection Location |
Right Rear |
|
|
|
|
|
|
|
|
Voltage Rating |
240V /208V / 60Hz |
|
|
|
|
|
|
|
|
Connected Load |
9.6 / 7.2 |
|
|
|
|
|
|
|
|
(kW Rating) @ 240 / 208 Volts1 |
|
|
|
|
|
|
|
|
|
Amps @ 240 / 208 Volts |
40.0 / 35.0 |
|
|
|
|
C |
|
|
|
Minimum Circuit Required (Amps) |
40 |
|
|
B |
|
|
A |
||
|
|
|
|
|
|||||
Approved for Electric Single Wall Oven |
Yes |
|
|
|
|
|
|
|
|
Combination Installation2 |
|
|
|
|
|
|
|
|
|
Shipping Weight (Approx.) |
65 Lbs. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line.
2Cooktops are approved for installation above any of our Electric Single Wall Ovens.
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions |
|
A - Height |
2-5/8" |
B - Width |
36-3/4" |
C - Depth |
21-1/2" |
|
|
Cutout Dimensions |
|
|
Height |
|
5" |
Width |
(Min.) |
35-5/8" |
Width |
(Max.) |
36-1/8" |
Depth |
(Min.) |
20-1/4" |
Depth |
(Max.) |
20-1/2" |
|
|
|
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Granite Countertop Installation Kit available.
Specifications subject to change.
FFEC3625L 02/10 |
© 2010 Electrolux Home Products, Inc. |
Printed in the U.S.A. |
