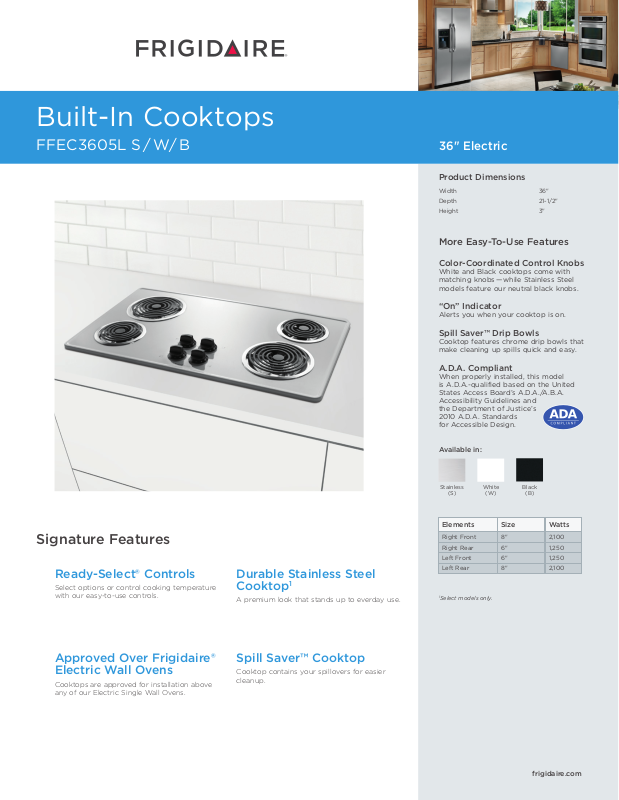

FRIGIDAIRE FFEC3605LB User Manual

Built-In Cooktop
Built-In Cooktops
FPEC3085K S
FFEC3605L S / W/ B
30" Electric
36" Electric
Product Dimensions
Width 36"
Depth 21-1/2"
More Easy-To-Use Features
Color-Coordinated Control Knobs
White and Black cooktops come with matching knobs — while Stainless Steel models feature our neutral black knobs.
“On” Indicator
Alerts you when your cooktop is on.
Spill Saver™ Drip Bowls
Cooktop features chrome drip bowls that make cleaning up spills quick and easy.
A.D.A. Compliant
When properly installed, this model is A.D.A.-qualified based on the United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
Signature Features
Ready-Select® Controls
Select options or control cooking temperature with our easy-to-use controls.
Approved Over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Electric Single Wall Ovens.
Durable Stainless Steel Cooktop
A premium look that stands up to everday use.
1
Spill Saver™ Cooktop
Cooktop contains your spillovers for easier cleanup.
Available in:
Stainless
(S)
Elements
Right Front
Right Rear
Left Front
Left Rear
1
Select models only.
White
(W)
Size
8"
6"
6"
8"
Black
(B)
Watts
2,100
1,250
1,250
2,100
frigidaire.com
A
B
C
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
“On” Indicator
Control Location
Knob Color
Knob Type
Bowl Type
Ready-Select®
Brushed Chrome (S), Color-Coordinated Porcelain (W / B)
8" - 2,100
6" - 1,250
6" - 1,250
8" - 2,100
Yes
Center Front
Black (S), Color-Coordinated (W / B)
Plastic
Chrome
Certifications
A.D.A. Compliant
1
Yes
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 / 208 Volts
2
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)

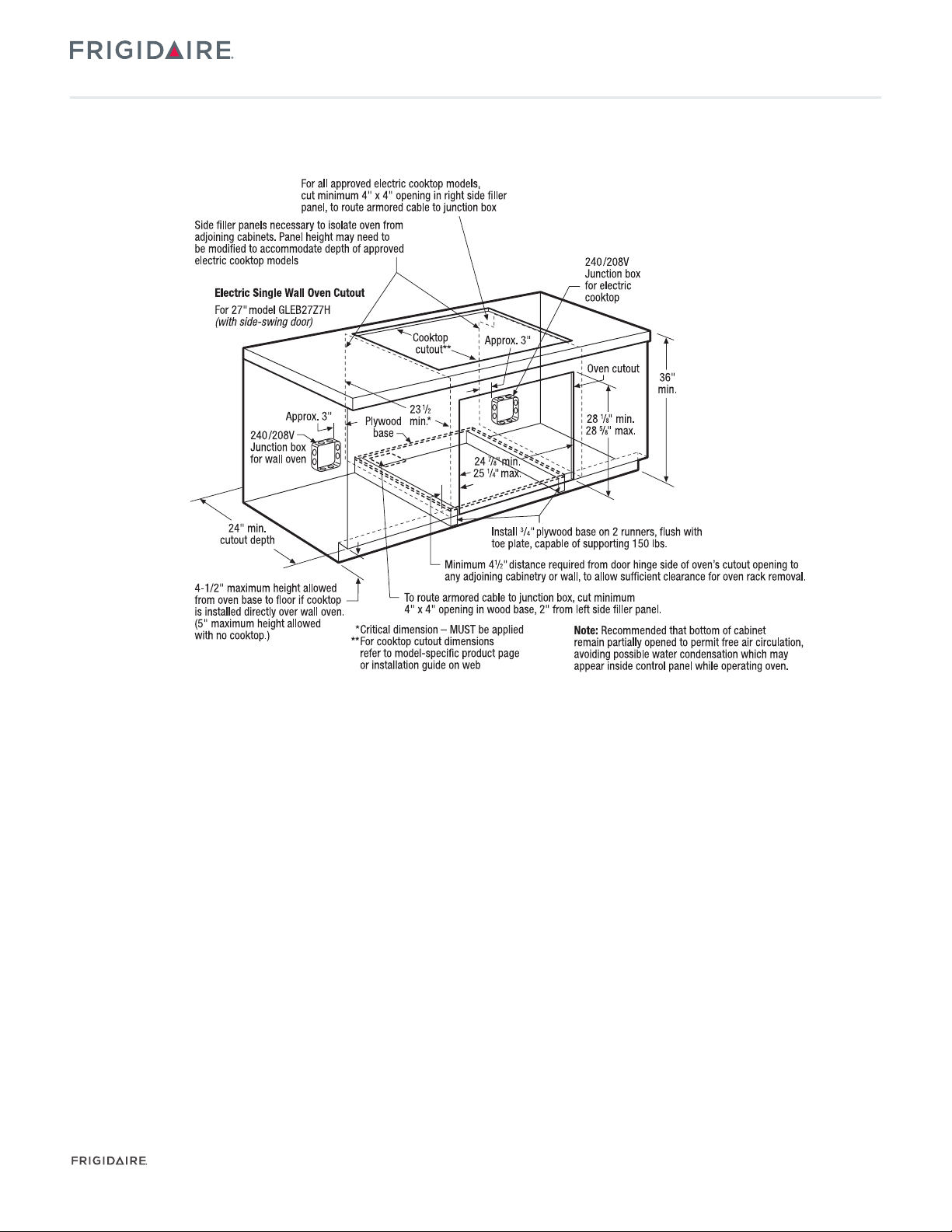

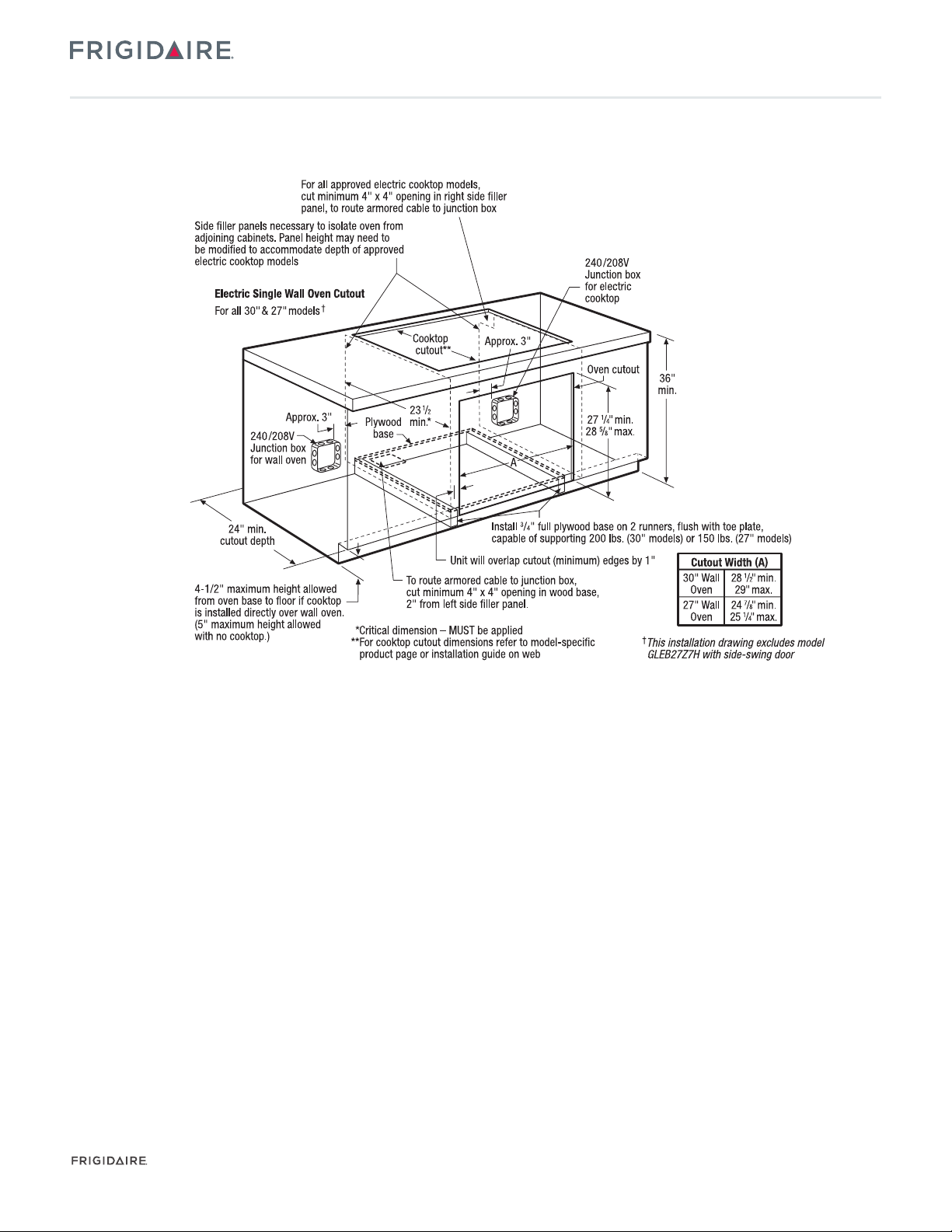

Approved for Electric Single Wall Oven Combination Installation
3
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line.
3
Cooktops are approved for installation above any of our Electric Single Wall Ovens.
Right Rear
240V /208V / 60Hz
6.7 / 5.0
22.3 / 19.2
30
Yes
30 Lbs.
Built-In Cooktops
FFEC3605L S / W/ B 36" Electric
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
36"
21-1/2"
3"
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
32-3/4"
34-1/4"
19"
20"
5"
Granite Countertop
Installation Kit available.
USA
10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
CANADA
FFEC3605L 02/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
Mississauga, ON L5V 3E4
1-800-265-8352
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
