Frigidaire FFEC3205LS1, FFEC3205LW1 Installation Guide
iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.

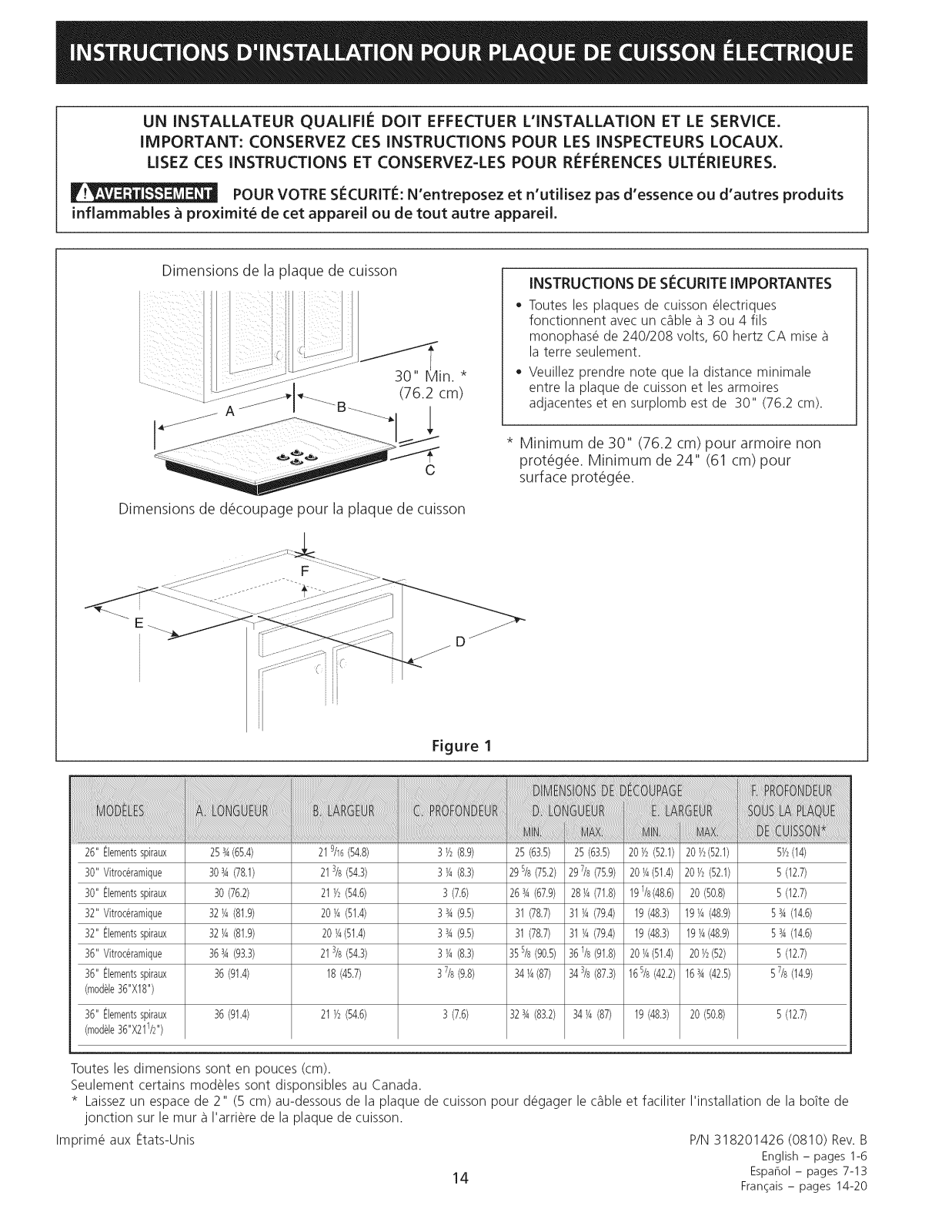

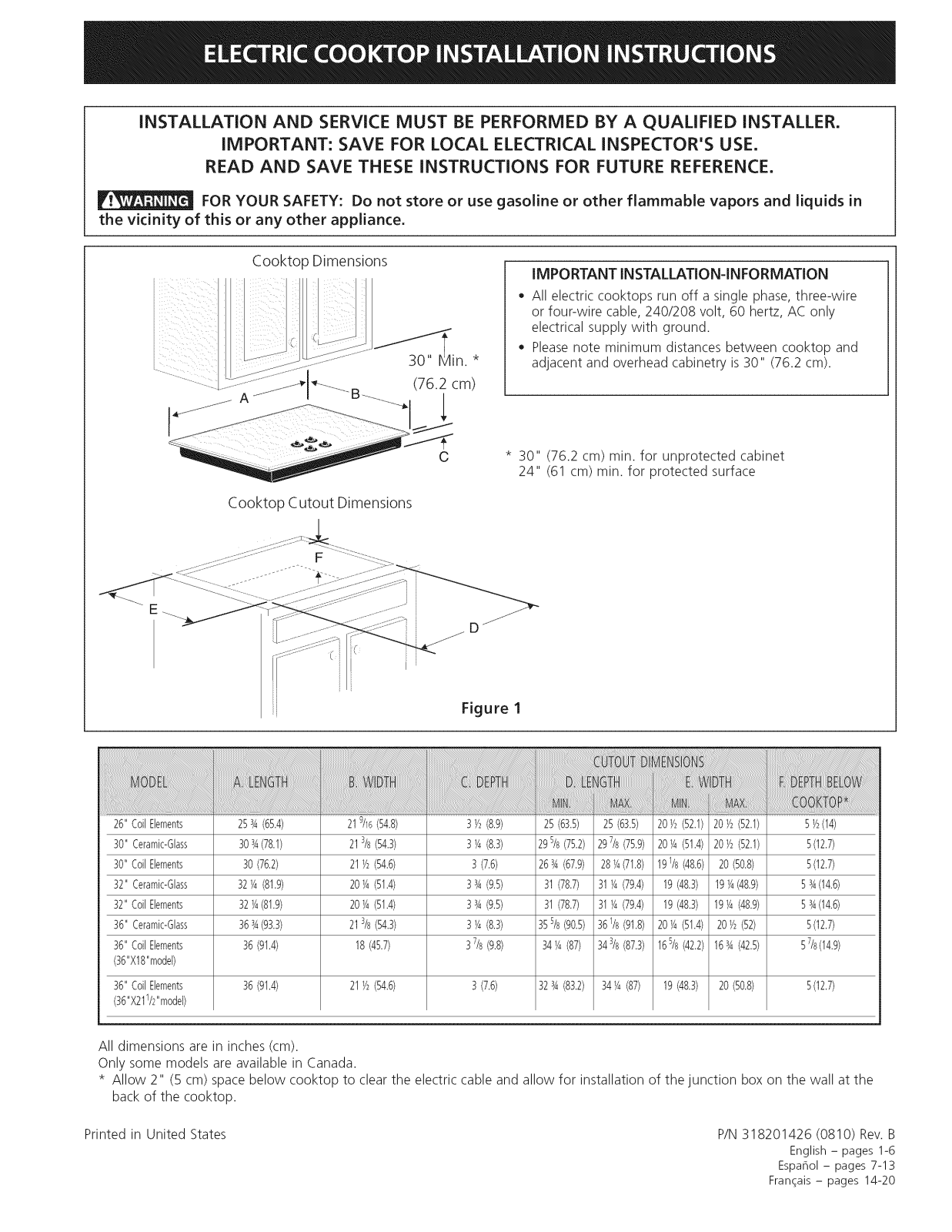

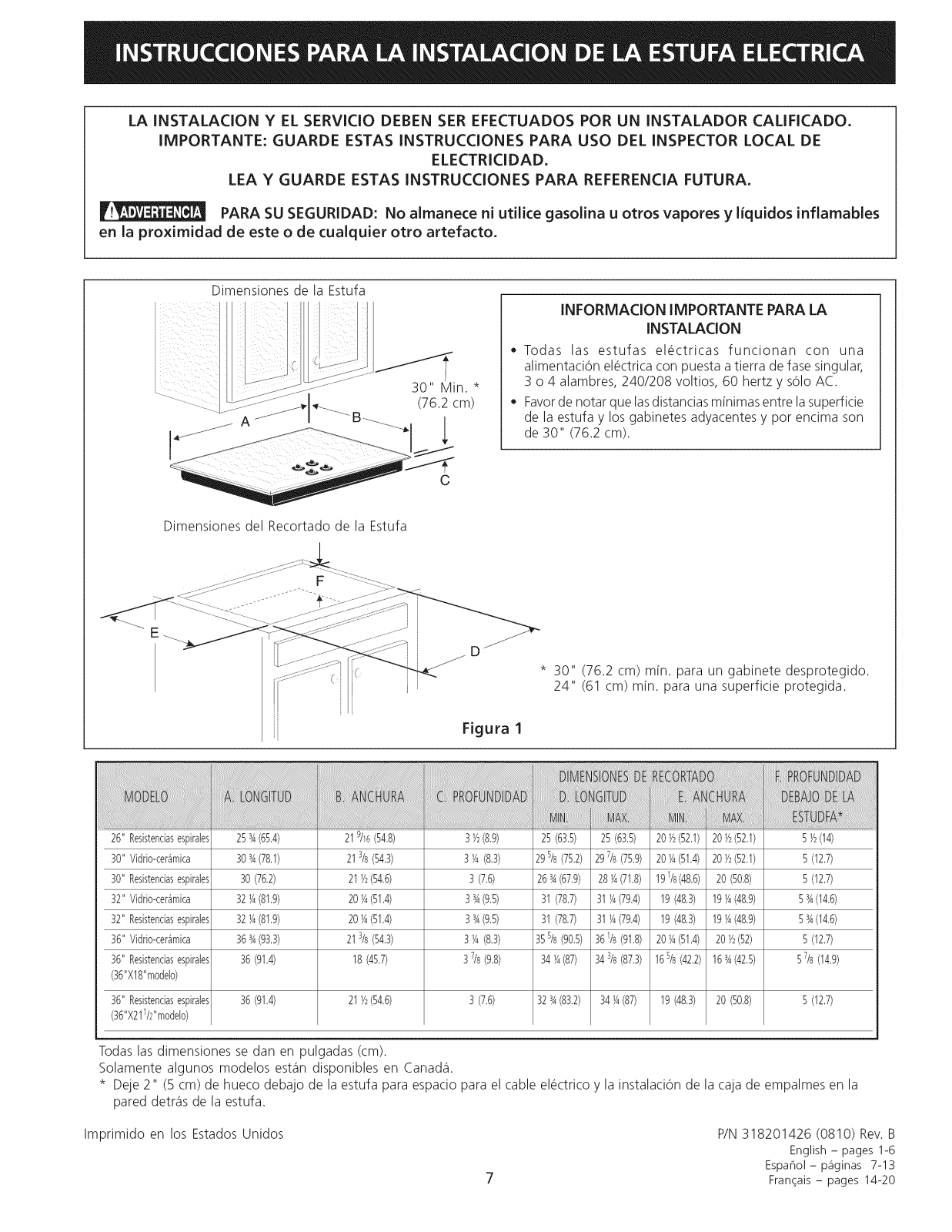

Cooktop Dimensions
Cooktop Cutout Dimensions
IMPORTANT INSTALLATION-INFORMATION
o All electric cooktops run off a single phase, three-wire
or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
Please note minimum distances between cooktop and
adjacent and overhead cabinetry is 30" (76.2 cm).
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Figure I
iiiiiiii!ii!iiililiiliil!iiiiiiiiiiiiiiiiiiiliiiiiiiiiiiiiiiiiliililliiiiii!_ii_i_!!i_ii!ii!ili_iiliii!il!iliii!iii!iiiliiliililliiliililiiiliiliiliililliiiiiiiliiii!!il!iiiiiiiiiiiiiliii!ii!iliiiiiiiiiiliiiiiiiiiiliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!i_iil_i,!:,:_i__:_i_:i__!i_iiiiiii_i_!__i_i_i__i__i__i_i_i__i_i_i__i__i__i_i_i__i_i_!__i_i!_i!_i_i_i:;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i_i_!_i_i!i_!i_!i_!i_!J!i_!_i_i_!_:i_i¸iii_i_i_i_i_i_¸i_i_iiil'i!_i!_ii_ii_ii_i!_!__!_!i_ii_ii_ii_iiiiiiiiiiiiiiiiiiiliii'ii_;i_;i_;i_;i_;i_;i_;i!ii_iiiiiiiiiiiiiiill_i_!_i_i_;_i_ii___!_i_!_i_i_¸i_iiiiiiiiiiiiiiiiiiiiiiiil'i!_i!_ii_ii_ii_i!_!_!_!i_i_i_!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i:ii!i_i!_i!_!_!_!,i,!_!iiiii__i!_i!_i!_i!@_i_ii_!_@i¸iiiiiiii¸ii}iiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiii_¸iiiiiiiiiiiiiii'i!_i!_i!_!_!_!i_i!_i__i__i_i_i_i_i_i_ii!!i:i!_iii_iii!i_i_i_i_i_!__ii_i!}!:_i!_ii_ii_!_i!_i!_i!_i;:il:ii:ii:ii:ii:ii:ii:ii:il:ii:ii:ii:ii:ii_i_i:il_!i_i_i_!__i_i_i_i_i_i_i_i_i_i_i_ii_il_il_ii_i_i_;i_i_i_ii_:!:!:!:!i_!i_i_@__i,i_;_i_i';'i'ii_iiiiiiiiiii
///%!:!:!_!_!!i!i!i!_!!!i!i_!_!_i_!_i_!i!_!iiiiiiiiiii!ii!!i!i!i!i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiiiiiiilililililili!i!i!i!i!i!i_i_iiii_i_i_i_ii!_!_i_i!ii_!!_i_i_i_i_i_i_!_!_!_!_!_!_!_i!i!i!_ii_ii_ii_i_@_ii_ii_ii_ii_ilililiiiii_iiiiiiiiiiiiiiiilill!ii!!ii_!_i_i_iji_ii_ii_ii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiililililili!i!i!i!i!i!ii!i!iiiiiiiiiiiiiiii!i!,@_ii_ii_ii_ii_i!iiliiilili!iiiiiiiiiiiiiiiii!i!i!i!i!i!i_i_i!ii!!ii!_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiliiiiiii!i!i!i!i_i_i!!i!i!iiii'i'i_!i'ii'ii!ii!!ii_'i'_@i_ii_i_i_i_i_i_i_i_i_!i:iM_ii!ii!!i_i'i_!@i!!i!!i!!i!!i!!i!!_!i_!i_!i_i!_!i_i_i!_i_i3!i_!ii!!iiiillii!i!ili!i!iii'i_ii'_!i!!!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!i!!i!i_i_i_i_i_iiliiilili!i!ii!iiiiiiiiilili!i!i!i_ii'_i_!_ii!ii!i!ii!!i'i_i_ii!ii!iiiiiliiiiiiii_i_i_iiiii_}!_!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!@_i_i'_!_@_!i!!i!ii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiB,i,i,!,!!_!!
26"CoilElements 253A(65.4) 219/16(54.8) 3½ (8.9) 25(63.5) 25(63.5) 20½62.1) 20½ 62.1) 5½(14)
30" Ceramk-Glass 303A(78i) 213/8 (54.3) 3Y4(8.3) 295/8(75.2) 20Y4(51.4) 20½ (52.1) 5(12.7)
30"CoilElements 30(76.2) 21½(54.6) 3 (7.6) 2634(67.9) 28Y4(71.8) 19I/8 (48.6) 20(50.8) 5(12.7)
32" Ceramic-Glass 32Y4(81.9) 201A(51.4) 334(9.5) 31(78.7) 31Y4(79.4) 19(48.3) 191A(48.9) 5 34(14.6)
32"CoilElements 321A(81.9) 201A(51.4) 334(9.5) 31 (78.7) 31Y4(79.4) 19(48.3) 19Y4(48.9) 5 34(14.6)
36" Ceramic-Glass 3634(93.3) 213/8 (54.3) 3Y4(8.3) 35% (90.5) 361/8(91.8) 201A(51.4) 20½ (52) 5(12.7)
36"CoilElements 36(91.4) 18(45.7) 37/s(9.8) 34Y4(87) 343/8(87.3) 165/8(42.2) 163A(42.5) 57/8(14.9)
@6"X18"model)
36"CoilElements 36(91.4) 21½(54.6) 3 (7.6) 5(12.7)
(36"X211/2"model)
All dimensions are in inches (cm).
Only some models are available in Canada.
* Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for installation of the junction box on the wall at the
back of the cooktop.
Printed in United States
P/N 318201426 (0810) Rev. B
English - pages 1-6
Espahol- pages 7-13
Fran_ais - pages 14-20
OverheadCabinetShouldNotExceedaMaximum
Depthof13"(33cm)
30"(76.2cm)Min. _' ,,I--YT----_ T---_- ] I
Clearance Between the I ' !1 Min. _ [ I
Top of the Cooking _ ! Recommended L.._ !1 I
Platform and the Bottom -__ 'Distance Between
of an Unprotected Wood "-J Rear Edge of Cutout 10"
or Metal Cabinet_l _ and Nearest ( 25.4 cm)
24" (61 cm) Min. when_
Bottom of Wood or Metal
Cabinet is Protected by Not _,
Less Than 1/8" Flame
Retardant Millboard Covere_
With Not Less Than No. 28
MGS Sheet Steel, 0.015"
(0.4 ram) Stainless Steel,
0.024" (0.6 mm) Aluminum
or 0.020" (0.5 mm) Copper
'_" Corn bustible Surface
Above Countertop
18" _1
(45.7 cm)
25" Min.
63.5 cm Min.)
2 1/2" (6.4 cm) Min.
From Edge of Cutout
to Front Edge of
Countertop
Approximate Location
of Junction Box
* Letters on this figure refer to chart on front
page except for G, H and J.
_To eliminate the risk
of burns or fire by reaching over
heated surfaces, cabinet storage
space located above the cooktop
should be avoided. If cabinet
storage is provided, risk can be
reduced by installing a range hood
that projects horizontally a
minimum of 5" (12.7 cm) beyond
the bottom of the cabinets.
G Min. From Edge of
Cooktop to Nearest
Combustible Wall (Either Side
of Unit).
It is not recommended to use
drawer underneath cooktop. Empty
space is needed for installation
purpose.
12"
(30.5 cm)
26" Coil Elements 3" (7.6 cm) 2" (5.1 cm) 26" (66 cm)
30" Ceramic-Glass 7_/2'' (19.1 cm) 2" (5.1 cm) 30" (76.2 cm)
30" Coil Elements 777" (19.1 cm) 2¼" (5.7 cm) 30" (76.2 cm)
32" Ceramic-Glass 7_/2'' (19.1 cm) 2" (5.1 cm) 32" (81.3 cm)
32" Coil Elements 777" (19.1 cm) 2¼" (5.7 cm) 32" (81.3 cm)
36" Ceramic-Glass 7_/2'' (19.1 cm) 2" (5.1 cm) 36" (91.4 cm)
36" Coil Elements 3" (7.6 cm) 3" (7.6 cm) 36" (91.4 cm)
(36"X 18")
36" Coil Elements 7h" (19.1 cm) 2¼" (5.7 cm) 36" (91.4 cm)
36" X 21h")

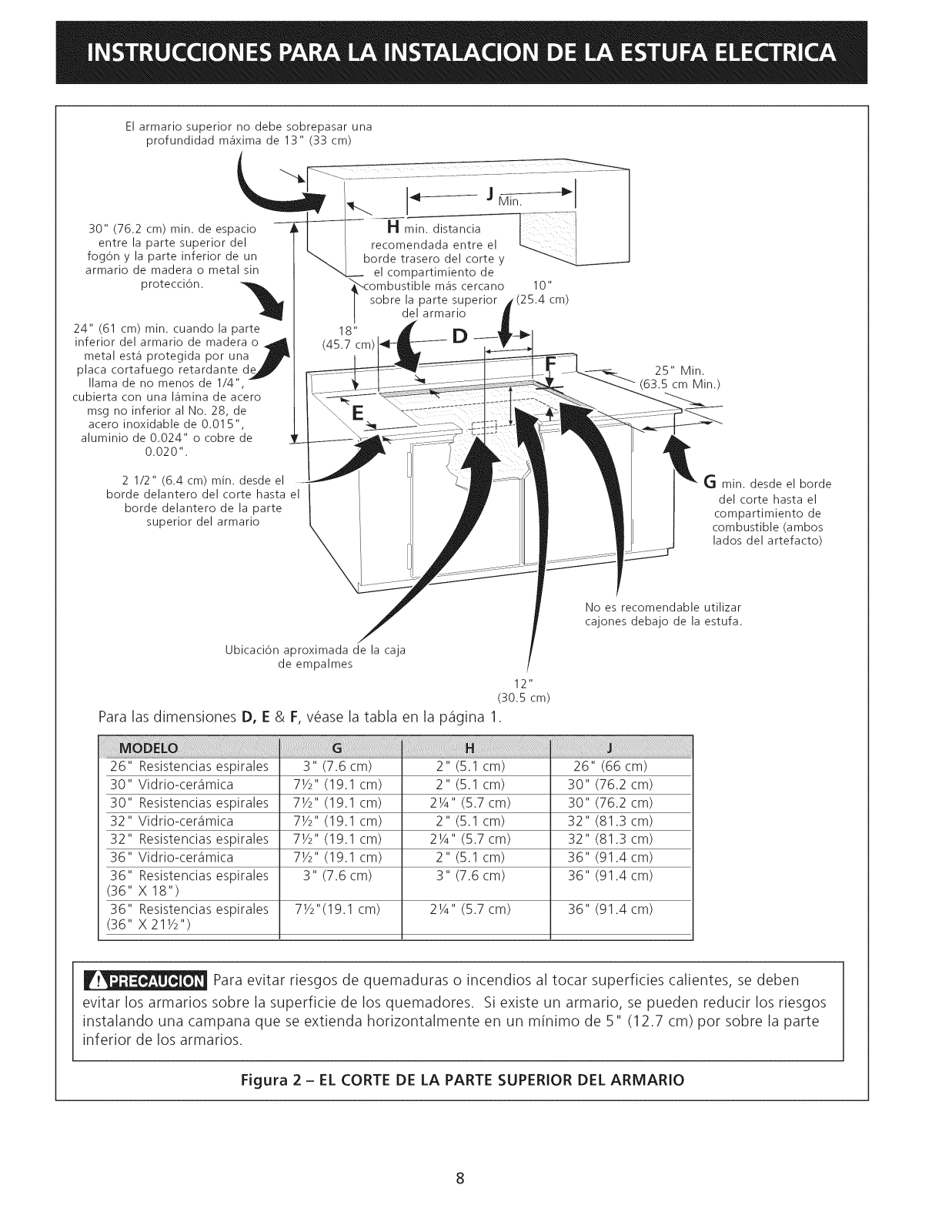

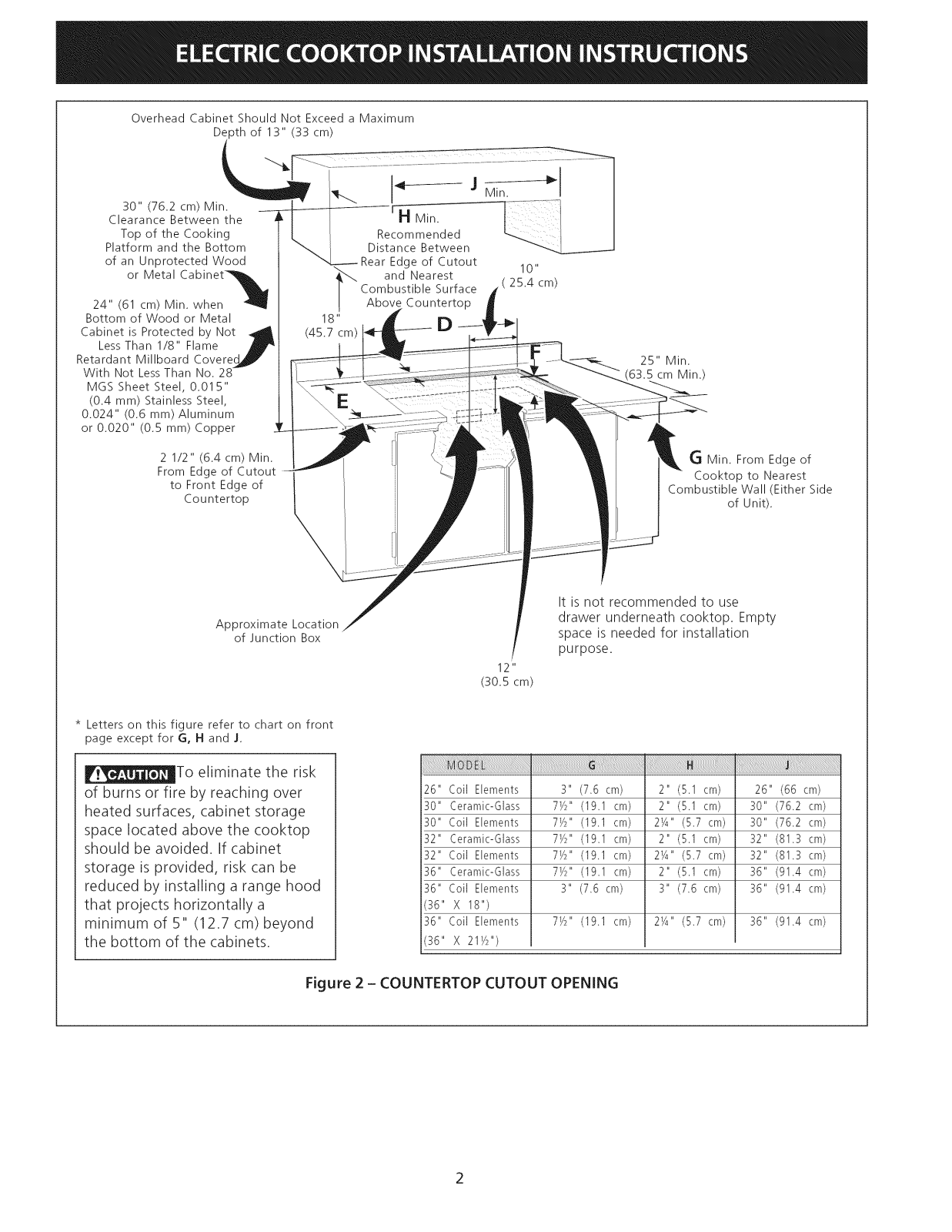

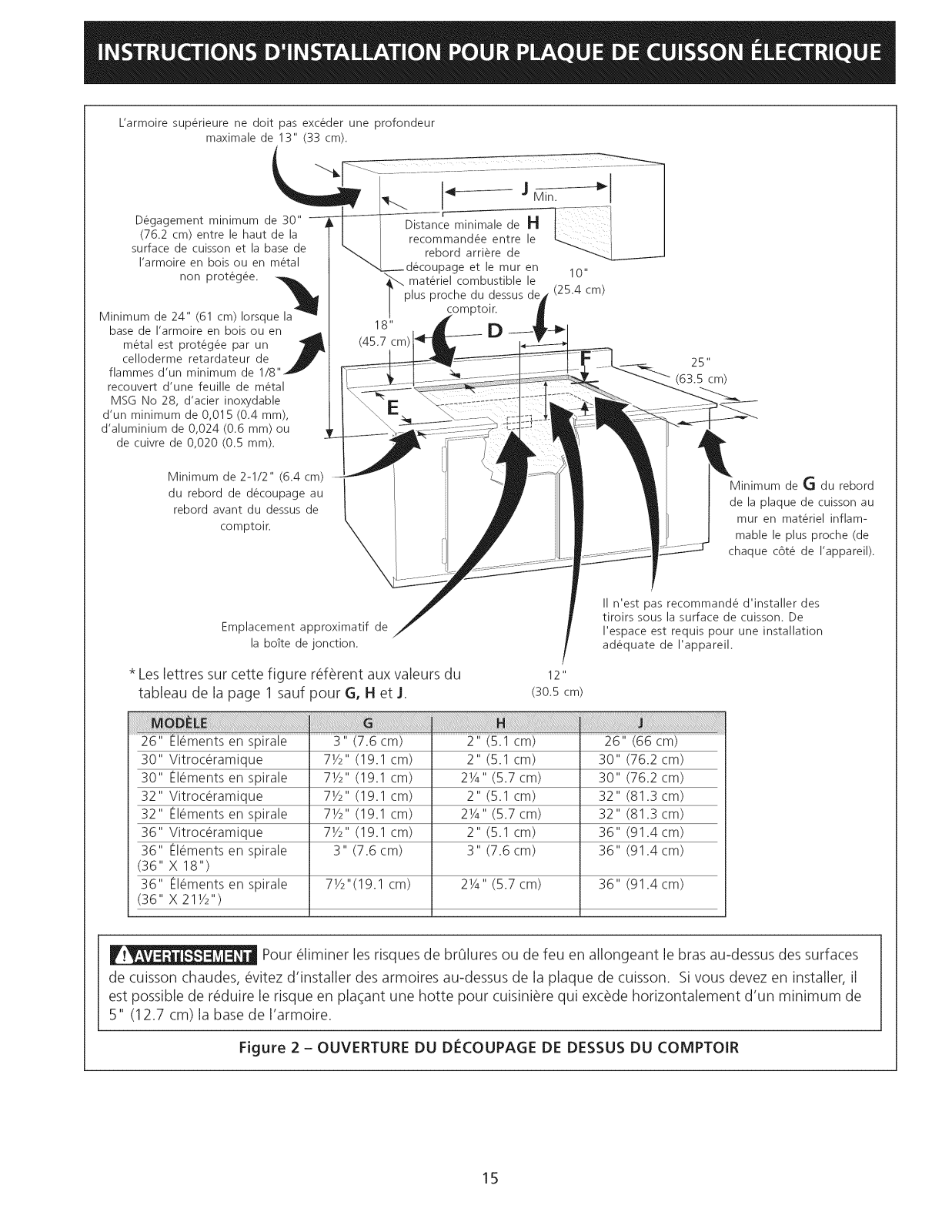

Figure 2 - COUNTERTOP CUTOUT OPENING
2

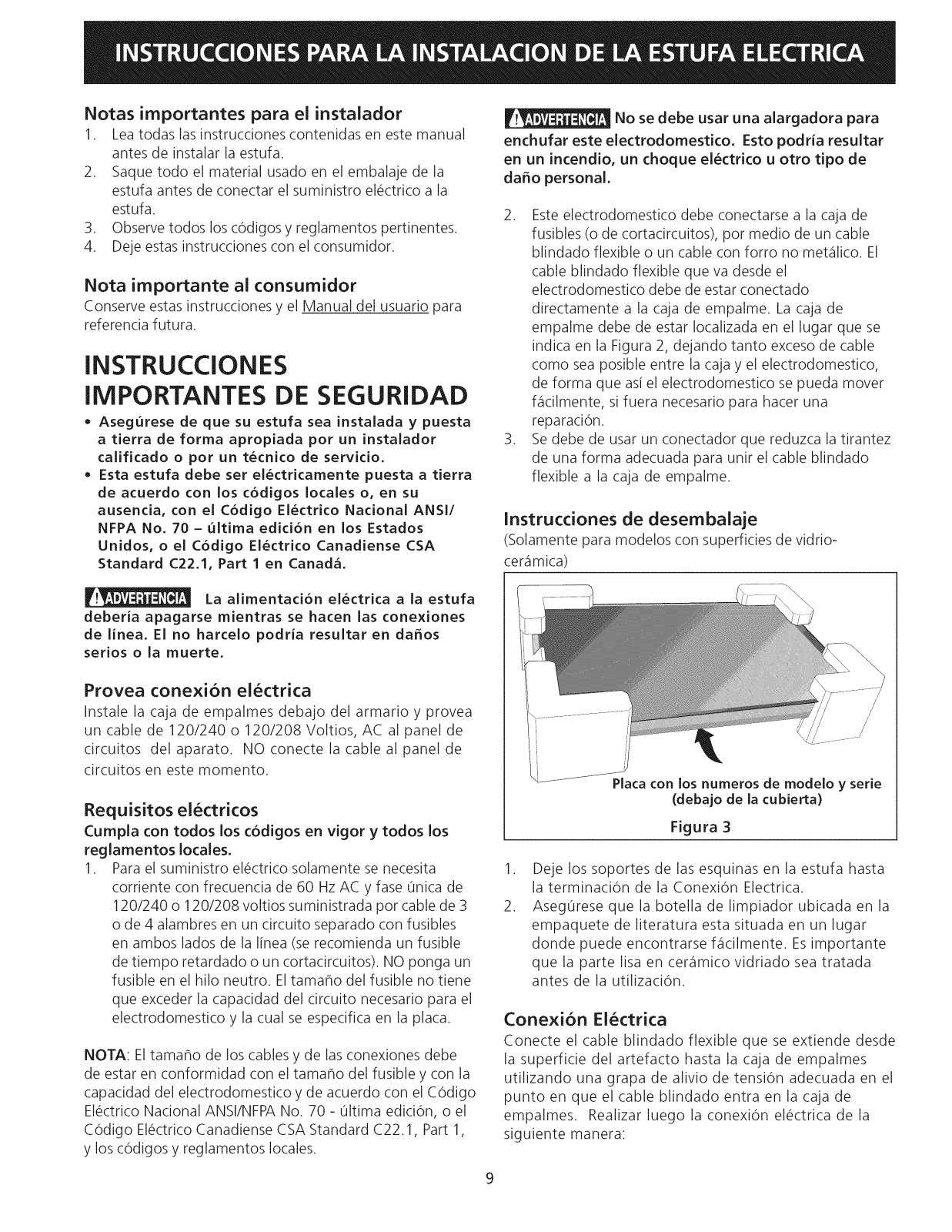

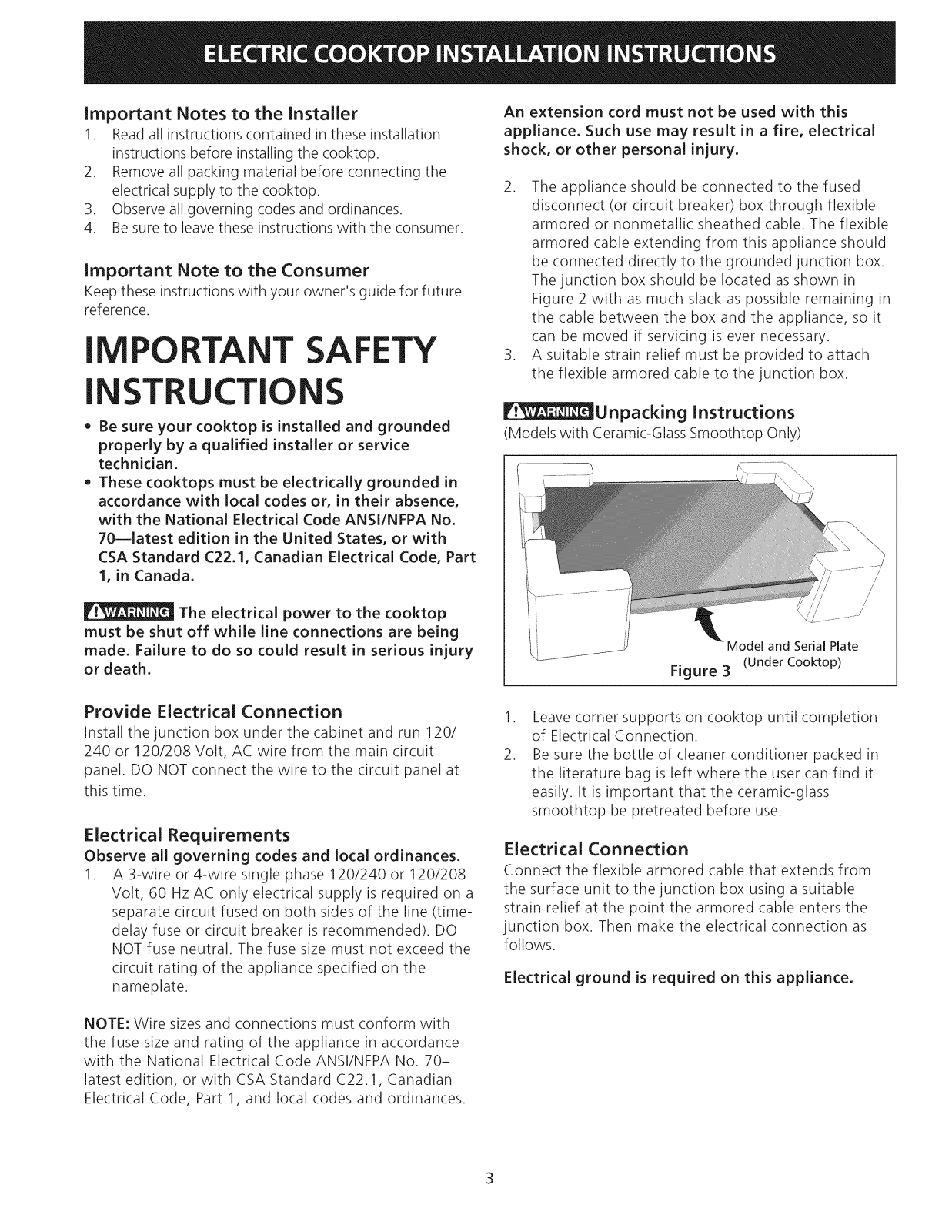

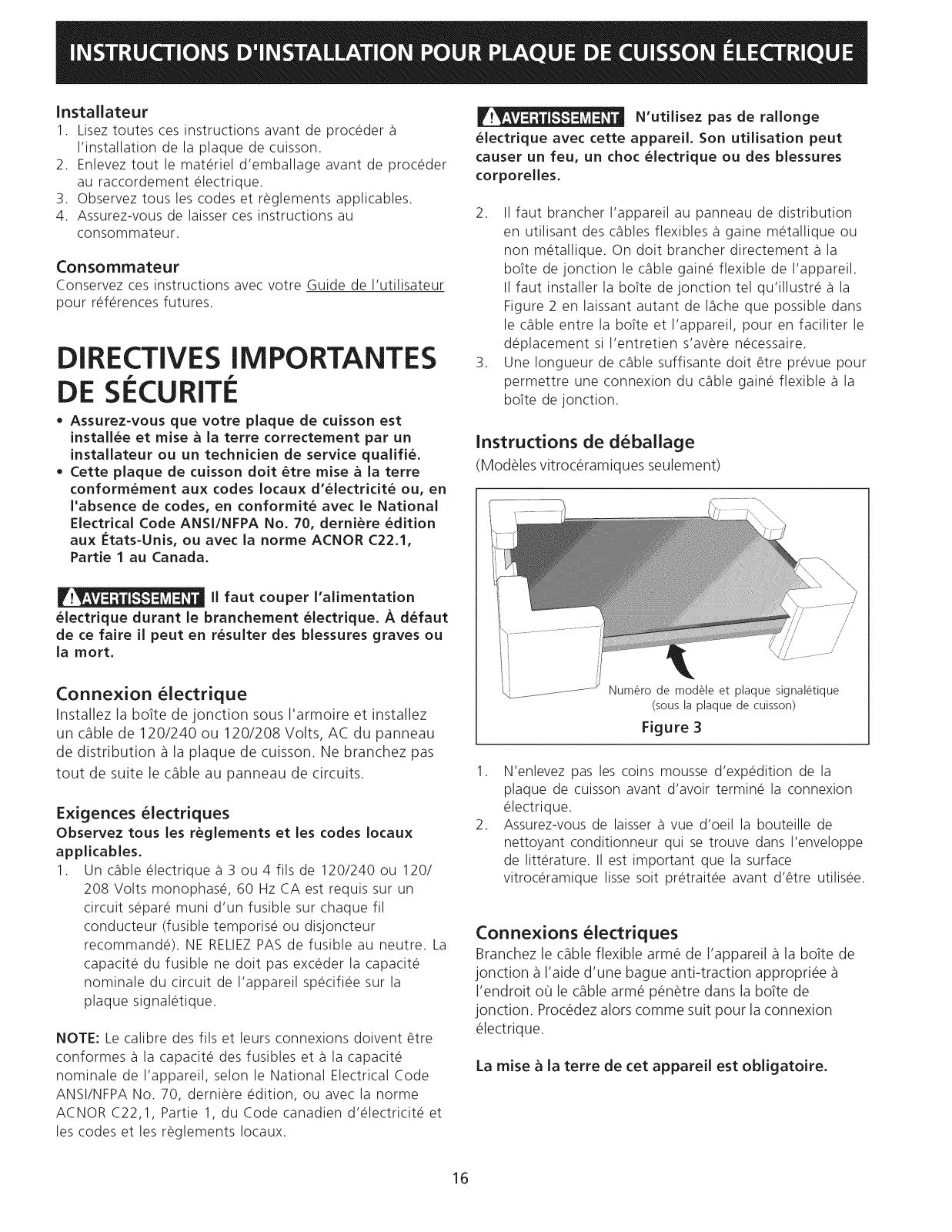

important Notes to the Installer
1. Read all instructions contained in these installation
instructions before installing the cooktop.
2. Remove all packing material before connecting the
electrical supply to the cooktop.
3. Observe all governing codes and ordinances.
4. Be sure to leavethese instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future
reference.
IMPORTANT SAFETY
INSTRUCTION
• Be sure your cooktop is installed and grounded
properly by a qualified installer or service
technician.
These cooktops must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70--latest edition in the United States, or with
CSA Standard C22.1, Canadian Electrical Code, Part
1, in Canada.
An extension cord must not be used with this
appliance. Such use may result in a fire, electrical
shock, or other personal injury.
2. The appliance should be connected to the fused
disconnect (or circuit breaker) box through flexible
armored or nonmetallic sheathed cable. The flexible
armored cable extending from this appliance should
be connected directly to the grounded junction box.
The junction box should be located as shown in
Figure 2 with as much slack as possible remaining in
the cable between the box and the appliance, so it
can be moved if servicing is ever necessary.
3. A suitable strain relief must be provided to attach
the flexible armored cable to the junction box.
_Unpacking Instructions
(Models with Ceramic-Glass Smoothtop Only)
/
The electrical power to the cooktop
must be shut off while line connections are being
made. Failure to do so could result in serious injury
or death.
Provide Electrical Connection
Install the junction box under the cabinet and run 120/
240 or 120/208 Volt, AC wire from the main circuit
panel. DO NOT connect the wire to the circuit panel at
this time.
Electrical Requirements
Observe all governing codes and local ordinances.
1. A 3-wire or 4-wire single phase 120/240 or 120/208
Volt, 60 Hz AC only electrical supply is required on a
separate circuit fused on both sides of the line (time-
delay fuse or circuit breaker is recommended). DO
NOT fuse neutral. The fuse size must not exceed the
circuit rating of the appliance specified on the
nameplate.
NOTE: Wire sizes and connections must conform with
the fuse size and rating of the appliance in accordance
with the National Electrical Code ANSI/NFPA No. 70-
latest edition, or with CSA Standard C22.1, Canadian
Electrical Code, Part 1, and local codes and ordinances.
I and Serial Plate
\_ (Under Cooktop)
,
Leave corner supports on cooktop until completion
of Electrical Connection.
2.
Be sure the bottle of cleaner conditioner packed in
the literature bag is left where the user can find it
easily. It is important that the ceramic-glass
smoothtop be pretreated before use.
Electrical Connection
Connect the flexible armored cable that extends from
the surface unit to the junction box using a suitable
strain relief at the point the armored cable enters the
junction box. Then make the electrical connection as
follows.
Electrical ground is required on this appliance.
Figure 3
/

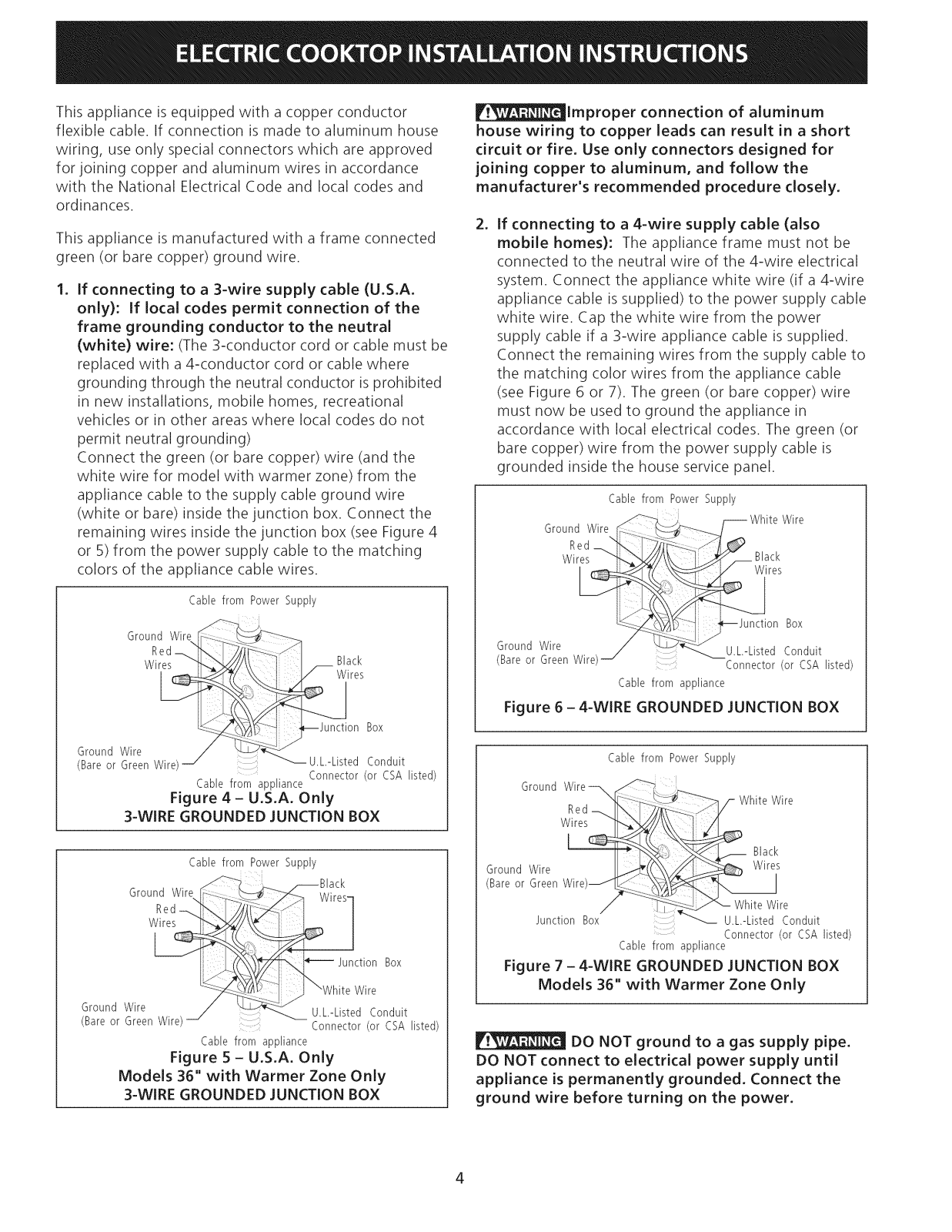

Thisapplianceisequippedwithacopperconductor
flexiblecable.Ifconnectionismadeto aluminumhouse
wiring,useonlyspecialconnectorswhichareapproved
forjoiningcopperandaluminumwiresinaccordance
withtheNationalElectricalCodeandlocalcodesand
ordinances.
Thisapplianceismanufacturedwithaframeconnected
green(orbarecopper)groundwire.
.

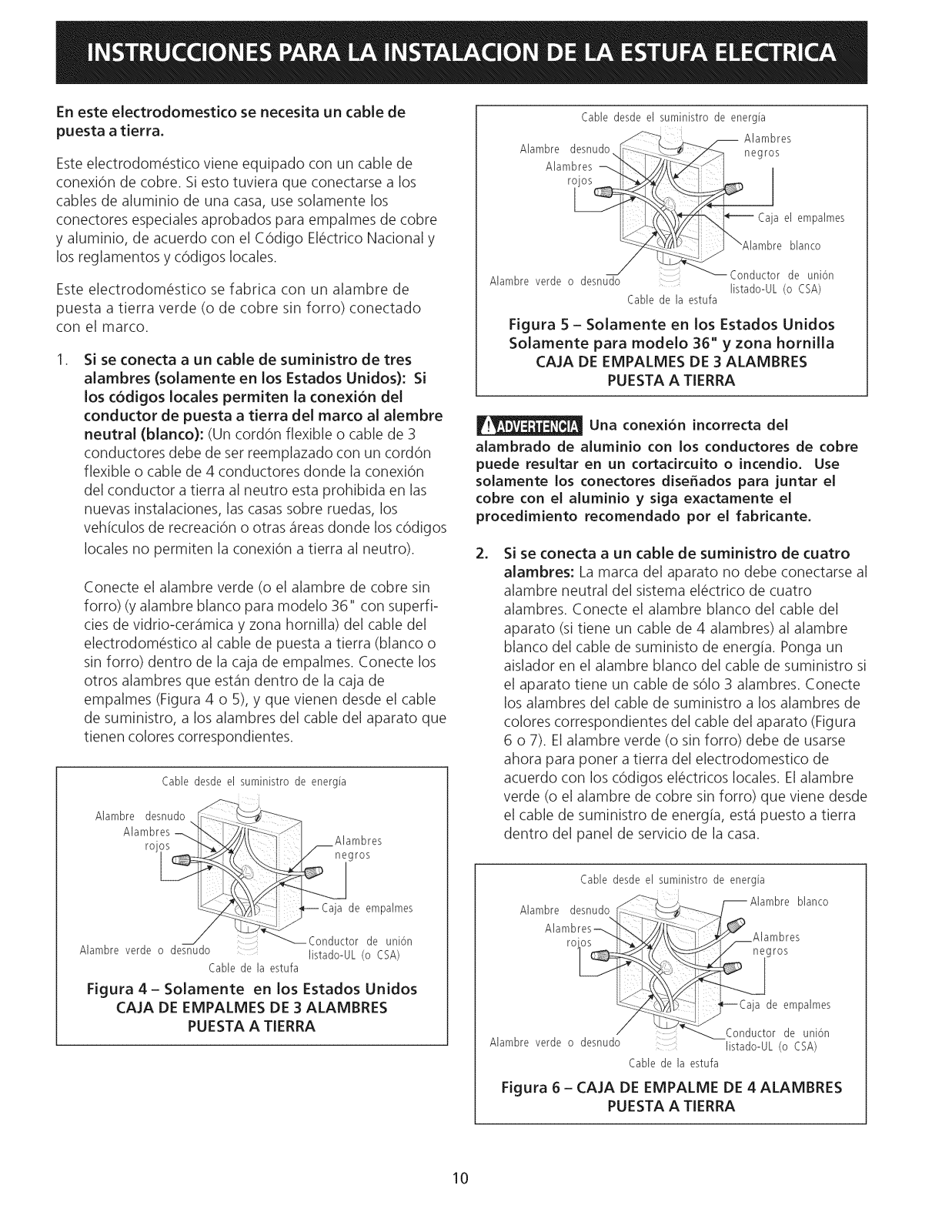

If connecting to a 3-wire supply cable (U.S.A.
only): If local codes permit connection of the
frame grounding conductor to the neutral
(white) wire: (The 3-conductor cord or cable must be
replaced with a4-conductor cord or cable where
grounding through the neutral conductor is prohibited
in new installations, mobile homes, recreational
vehicles or in other areas where local codes do not
permit neutral grounding)
Connect the green (or bare copper) wire (and the
white wire for model with warmer zone) from the
appliance cable to the supply cable ground wire
(white or bare) inside the junction box. Connect the
remaining wires inside the junction box (see Figure 4
or 5) from the power supply cable to the matching
colors of the appliance cable wires.
_lmproper connection of aluminum
house wiring to copper leads can result in a short
circuit or fire. Use only connectors designed for
joining copper to aluminum, and follow the
manufacturer's recommended procedure closely.
.
If connecting to a 4-wire supply cable (also
mobile homes): The appliance frame must not be
connected to the neutral wire of the 4-wire electrical
system. Connect the appliance white wire (if a 4-wire
appliance cable is supplied) to the power supply cable
white wire. Cap the white wire from the power
supply cable if a 3-wire appliance cable is supplied.
Connect the remaining wires from the supply cable to
the matching color wires from the appliance cable
(see Figure 6 or 7). The green (or bare copper) wire
must now be used to ground the appliance in
accordance with local electrical codes. The green (or
bare copper) wire from the power supply cable is
grounded inside the house service panel.
Cable from Power Supply
Ground Wire White Wire
Red .....
Cable from Power Supply
Ground Wire
Red-
Wires
Ground Wire
(Bare or Green Wire) Connector (or CSA listed)
Cable from appliance
:: U.L.-Listed Conduit
Black
Wires
Box

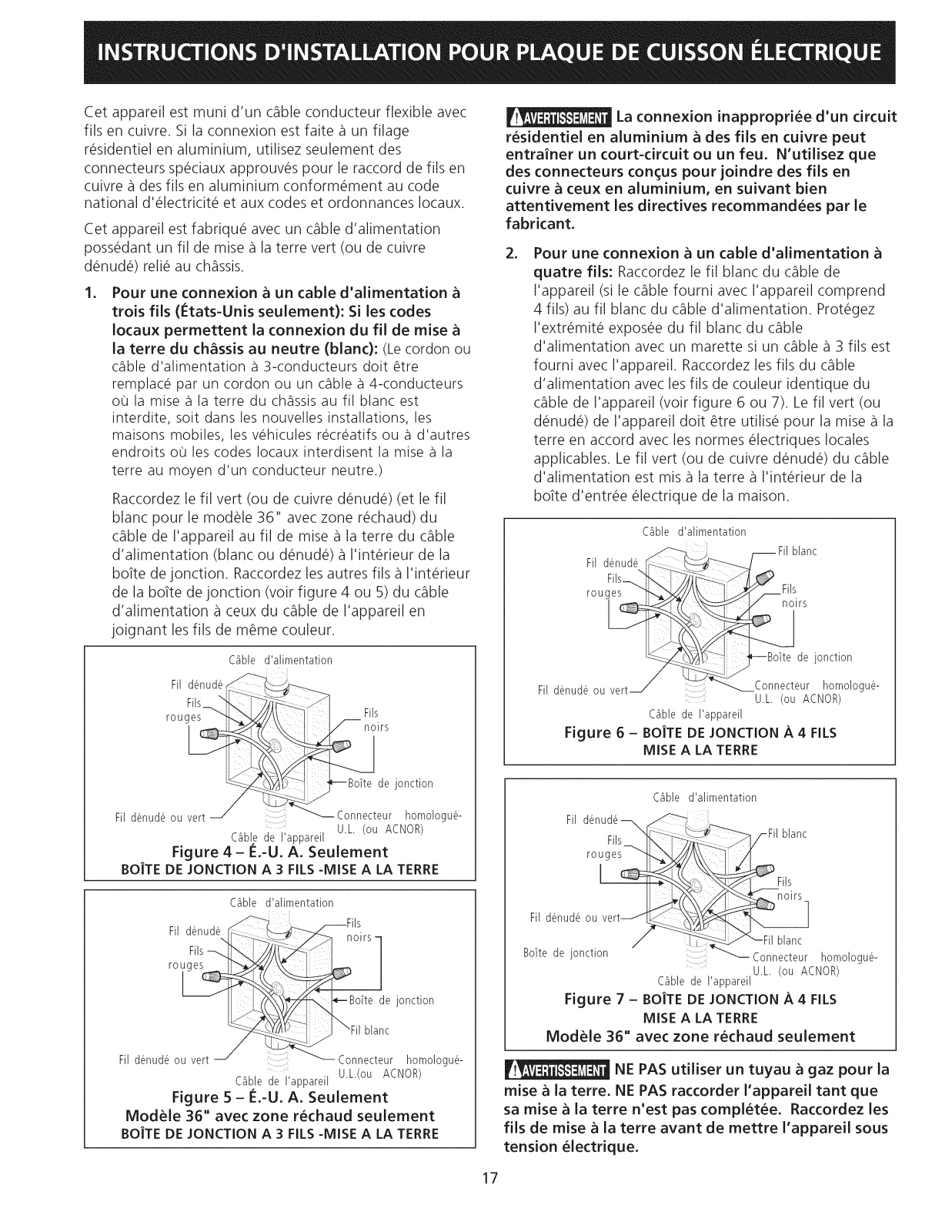

Figure 4 - U.S.A. Only
3-WIRE GROUNDED JUNCTION BOX
Cable from Power Supply
Ground \,\Jr%[: .........._.._'_J"_ - Wires
/ _ _ _Black
Re) _ }
%£
Ground
Wire
(Bare or
' ,....... J _ U.L.-Listed Conduit
Green W re)
Cable from appliance
Connector (or CSA listed)
Figure 5 - U.S.A. Only
Models 36" with Warmer Zone Only
3-WIRE GROUNDED JUNCTION BOX
ires
on Box
Ground Wire ,:._,_J "<_U.L.-Listed Conduit
(Bare or GreenW re}
Cable from appliance
Connector (or CSA listed)
Figure 6 - 4-WIRE GROUNDED JUNCTION BOX
Cable from Power Supply
Ground ,,\!ire_ __
"_ .........._ !&-¢_-_ _- White Wire
Red[I',,.
I
Ground ,,\/ire ] jf_,((%\//[ _:_ ,,\!ires
(BareorGreenWire_X{!__
Junction Box _ U.L.-Listed Conduit

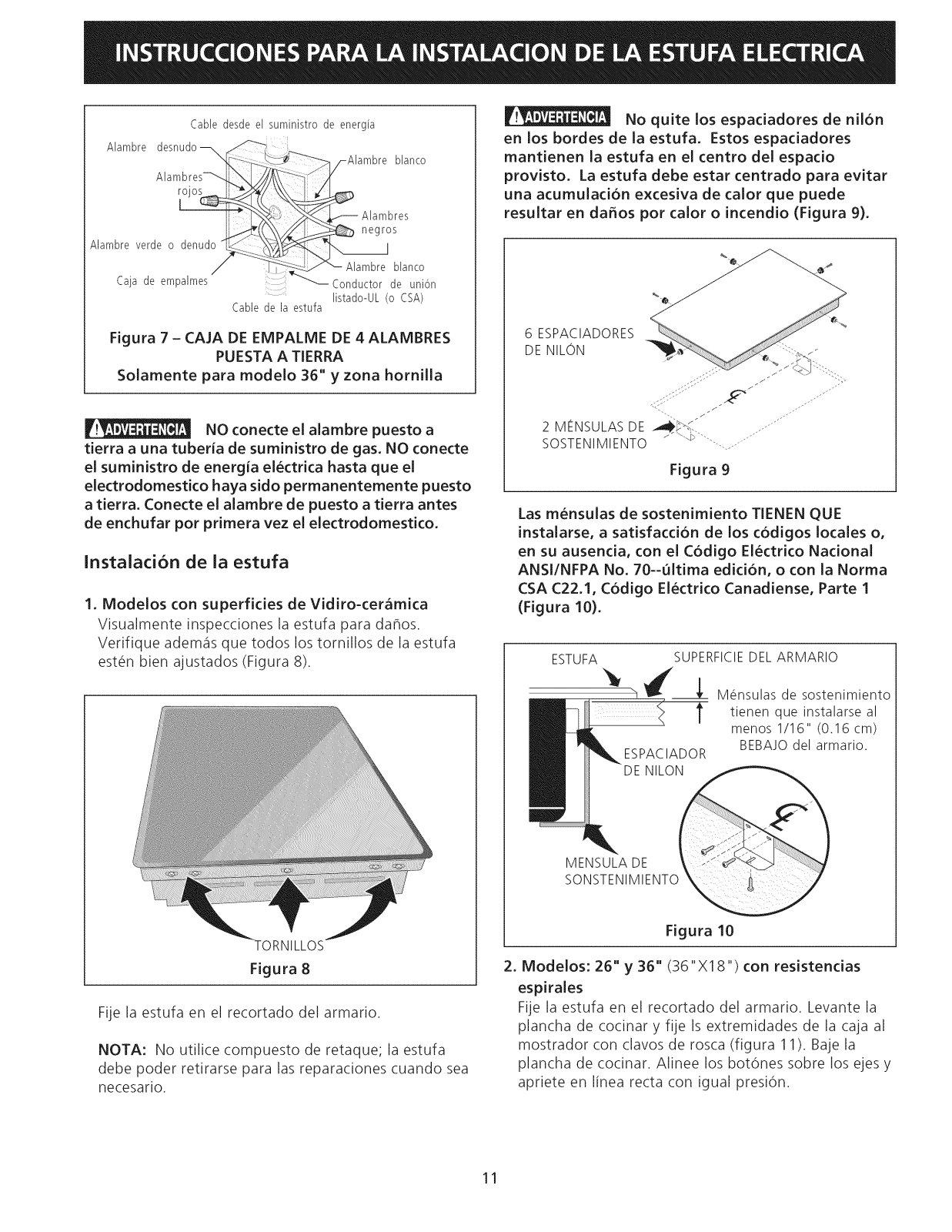

Figure 7 - 4-WIRE GROUNDED JUNCTION BOX
Models 36" with Warmer Zone Only
DO NOT connect to electrical power supply until
appliance is permanently grounded. Connect the
ground wire before turning on the power.
/ ]__ White Wire
Connector (or CSA listed)
Cable from appliance
DO NOT ground to a gas supply pipe.
4

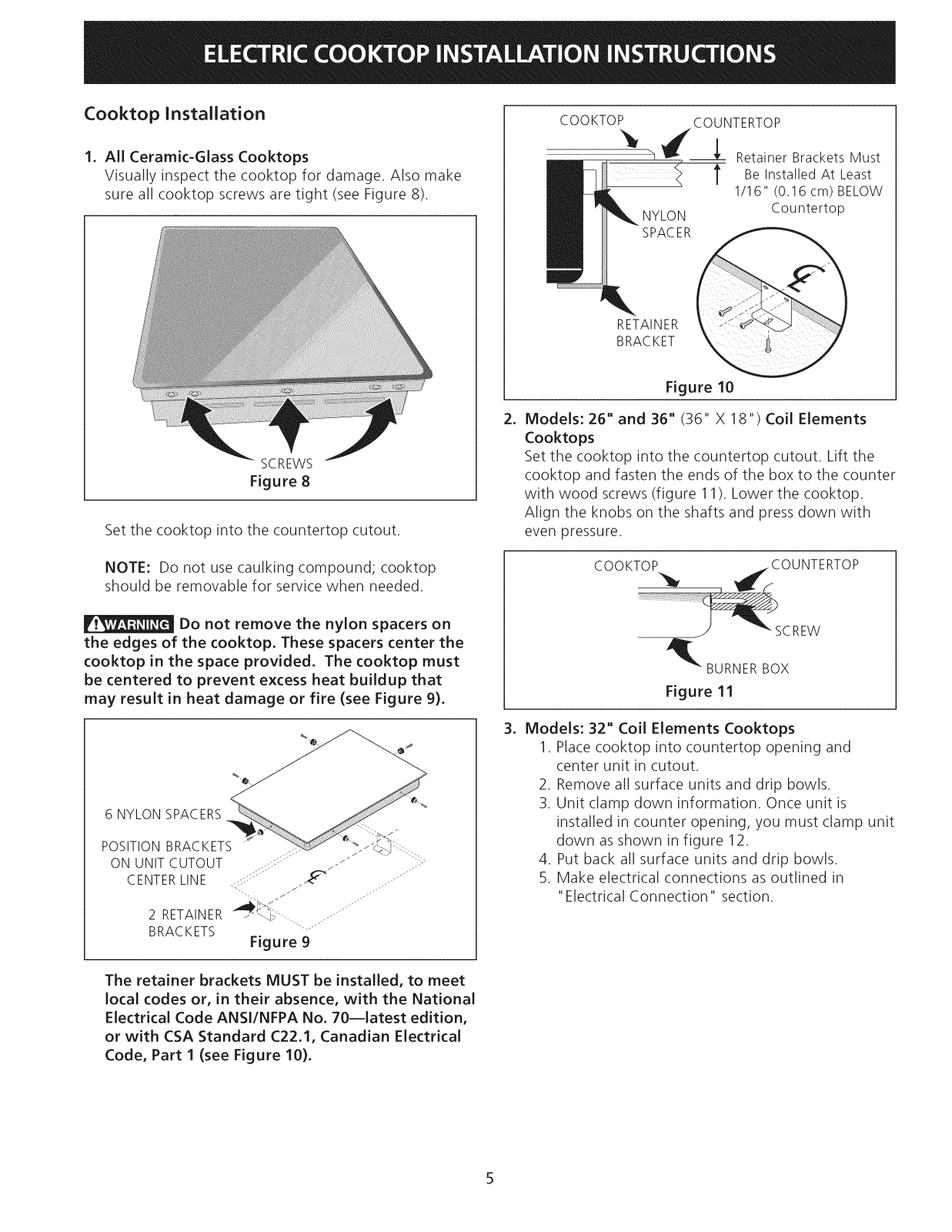

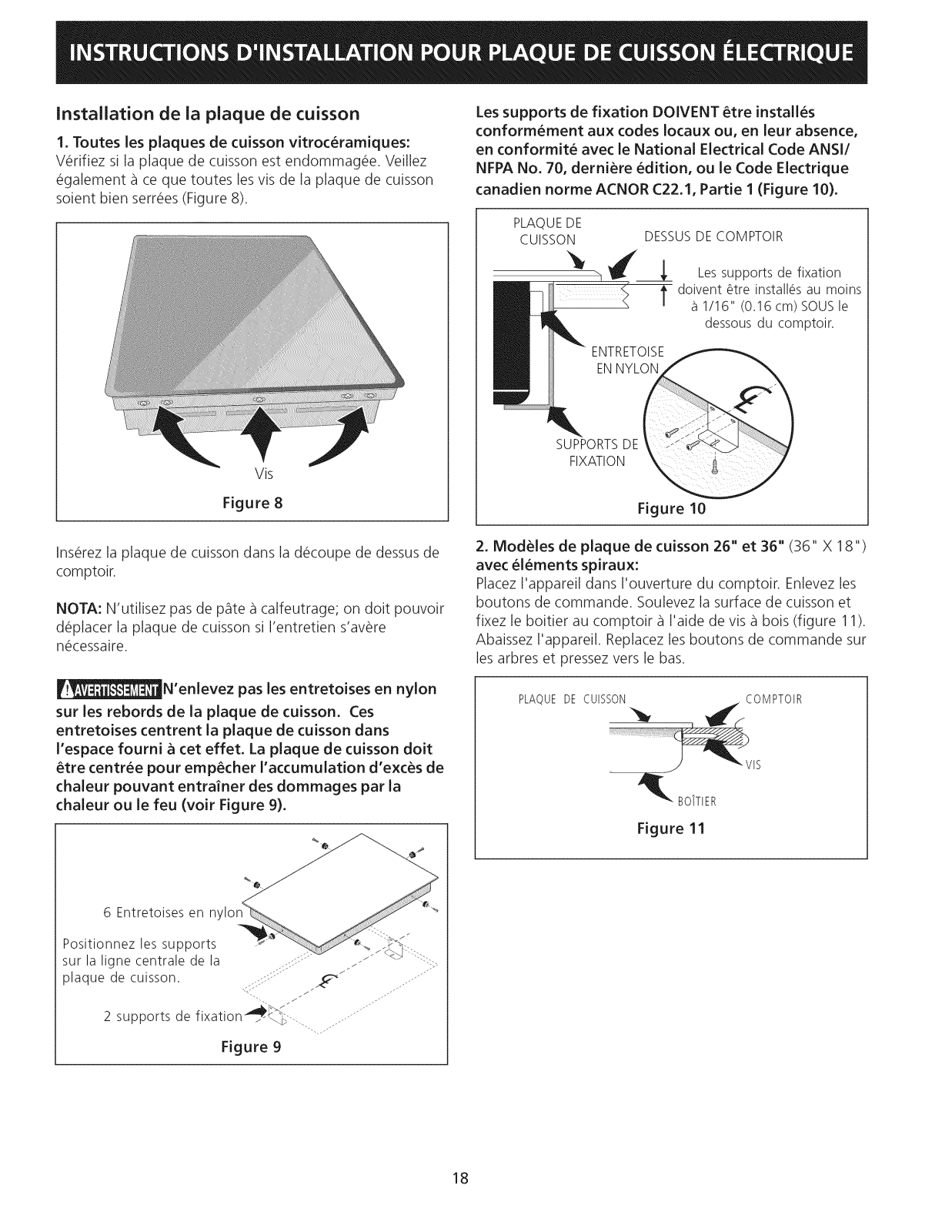

Cooktop Installation
COOKTOP
COUNTERTOP
1. All Ceramk-Glass Cooktops
Visually inspect the cooktop for damage. Also make
sure all cooktop screws are tight (see Figure 8).
SCREWS
Figure 8
Set the cooktop into the countertop cutout.
NOTE: Do not use caulking compound; cooktop
should be removable for service when needed.
_- Retainer Brackets Must
Be Installed At Least
1/16" (0.16 cm) BELOW
NYLON
Countertop
SPACER
RETAINER
BRACKET
Figure 10
.

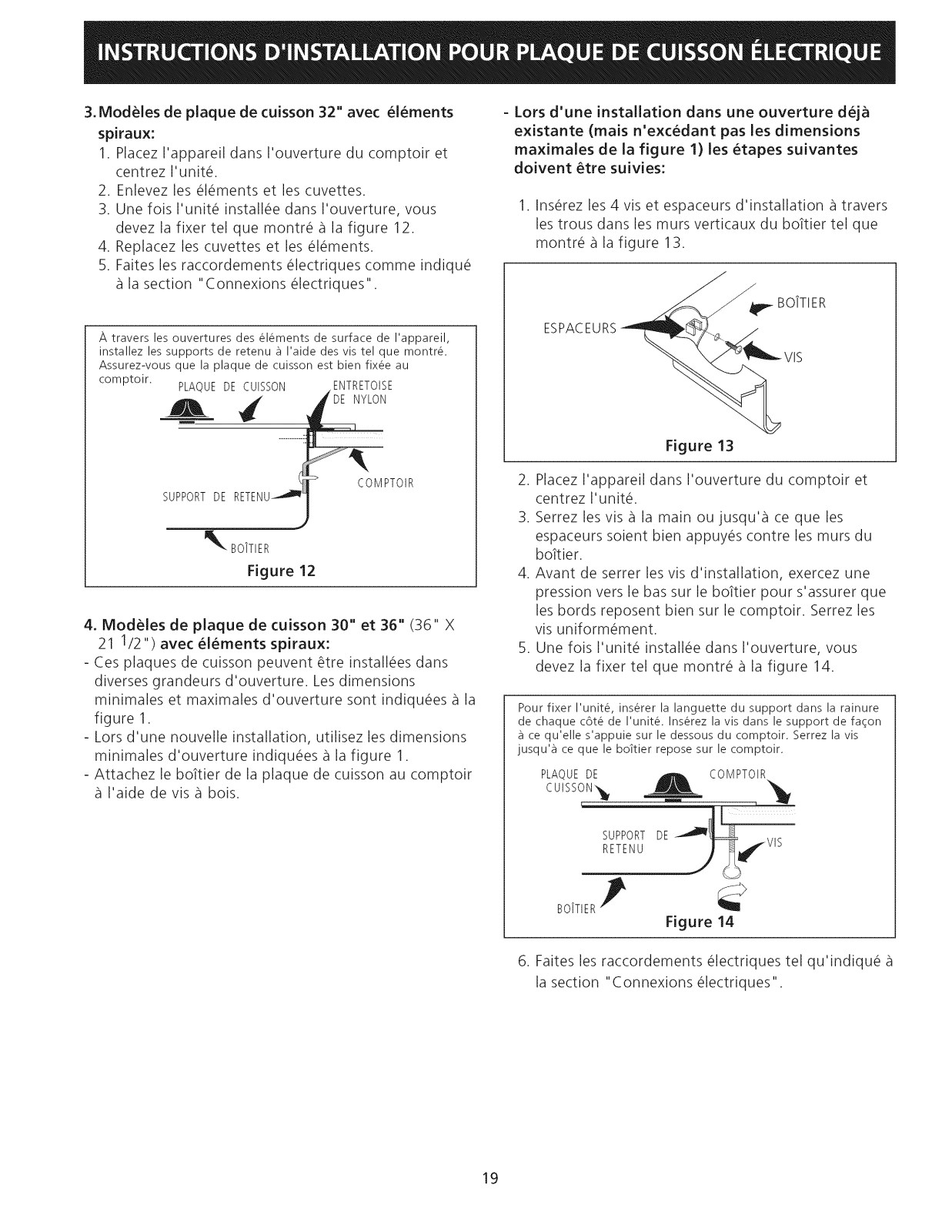

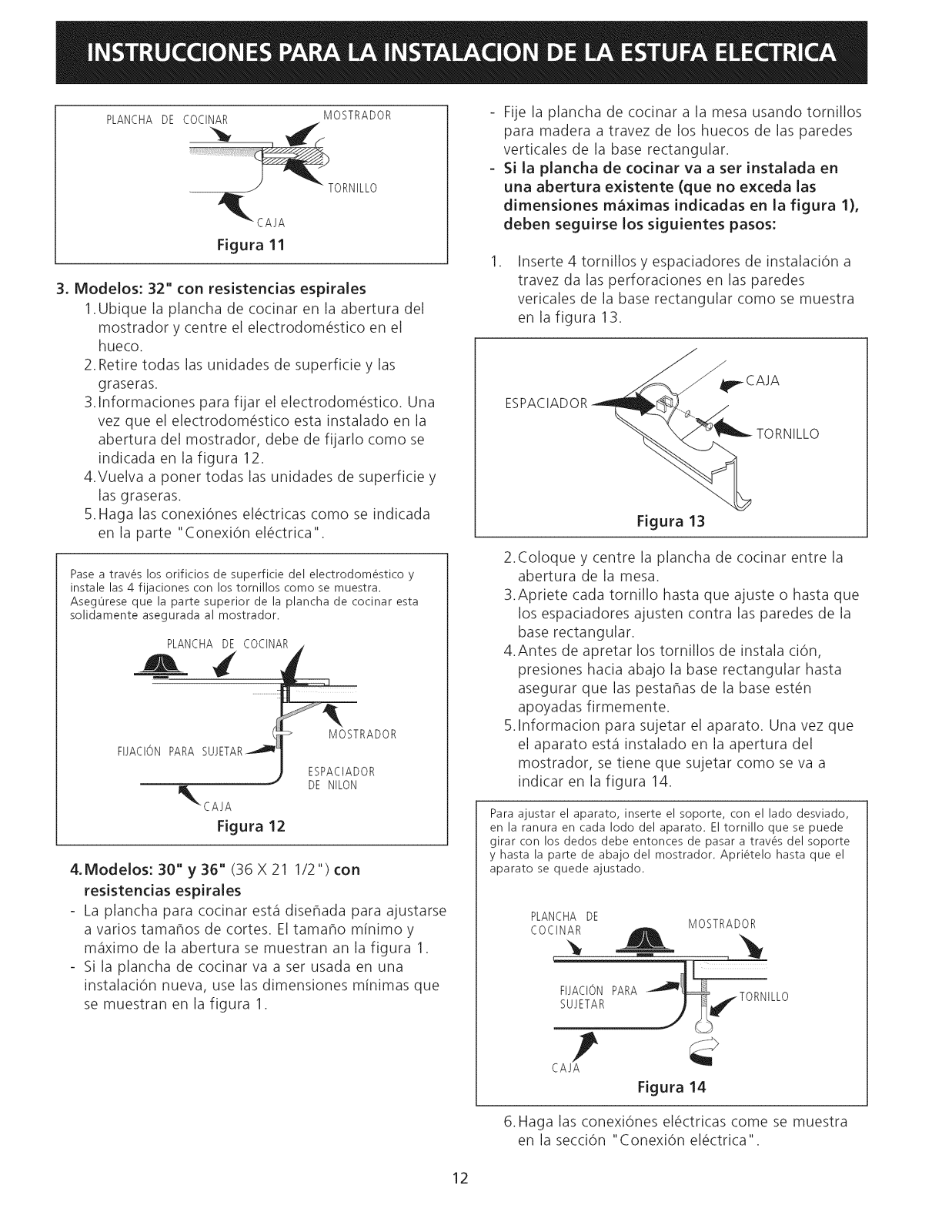

Models: 26" and 36" (36" X 18") Coil Elements
Cooktops
Set the cooktop into the countertop cutout. Lift the
cooktop and fasten the ends of the box to the counter
with wood screws (figure 11). Lower the cooktop.
Align the knobs on the shafts and press down with
even pressure.
CO0KTOP_r . wf...,f'_"jCOUNTERTOP
Do not remove the nylon spacers on
the edges of the cooktop. These spacers center the
cooktop in the space provided. The cooktop must
be centered to prevent excess heat buildup that
may result in heat damage or fire (see Figure 9).
6 NYLON SPACERS
POSITIONBRACKETS
ON UNITCUTOUT -- "
CENTERLINE ....
"- .. //"
,.
.....i:!:>
2 RETAINER _ 4;- ...............
BRACKETS ..........
Figure 9
The retainer brackets MUST be installed, to meet
local codes or, in their absence, with the National
Electrical Code ANSI/NFPA No. 70--latest edition,
or with CSA Standard C22.1, Canadian Electrical
Code, Part 1 (see Figure 10).
J
c REW
]_ BURNERBOX
Figure 11
.
Models: 32" Coil Elements Cooktops
1. Place cooktop into countertop opening and
center unit in cutout.
2. Remove all surface units and drip bowls.
3. Unit clamp clown information. Once unit is
installed in counter opening, you must clamp unit
clown as shown in figure 12.
4. Put back all surface units and drip bowls.
5. Make electrical connections as outlined in
"Electrical Connection" section.

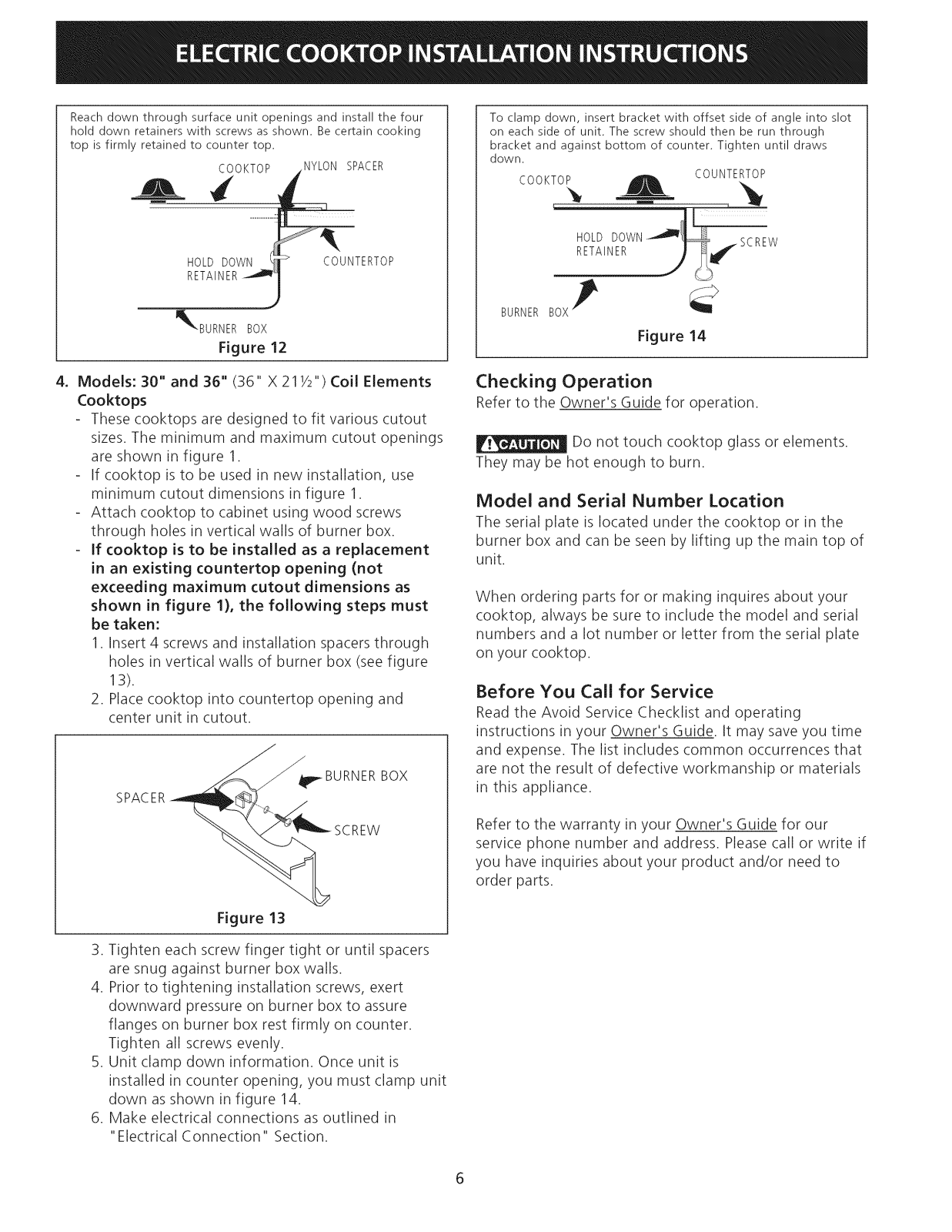

Reach down through surface unit openings and install the four
hold down retainers with screws as shown. Be certain cooking
top is firmly retained to counter top.
COOKTOP
NYLON SPACER
To clamp down, insert bracket with offset side of angle into slot
on each side of unit. The screw should then be run through
bracket and against bottom of counter. Tighten until draws
down.
COOKTOP _ COUNTERTOP
t;....
HOLD DOWN COUNTERTOP
RETAINER
_BURNER BOX
Figure 12
4_
Models: 30" and 36" (36" X 211/2") Coil Elements
Cooktops
These cooktops are designed to fit various cutout
sizes. The minimum and maximum cutout openings
are shown in figure 1.
If cooktop is to be used in new installation, use
minimum cutout dimensions in figure 1.
Attach cooktop to cabinet using wood screws
through holes in vertical walls of burner box.
If cooktop is to be installed as a replacement
in an existing countertop opening (not
exceeding maximum cutout dimensions as
shown in figure 1), the following steps must
be taken:
1. Insert 4 screws and installation spacers through
holes in vertical walls of burner box (see figure
13).
2. Place cooktop into countertop opening and
center unit in cutout.
J
_BURNER BOX
SCREW
Figure 14

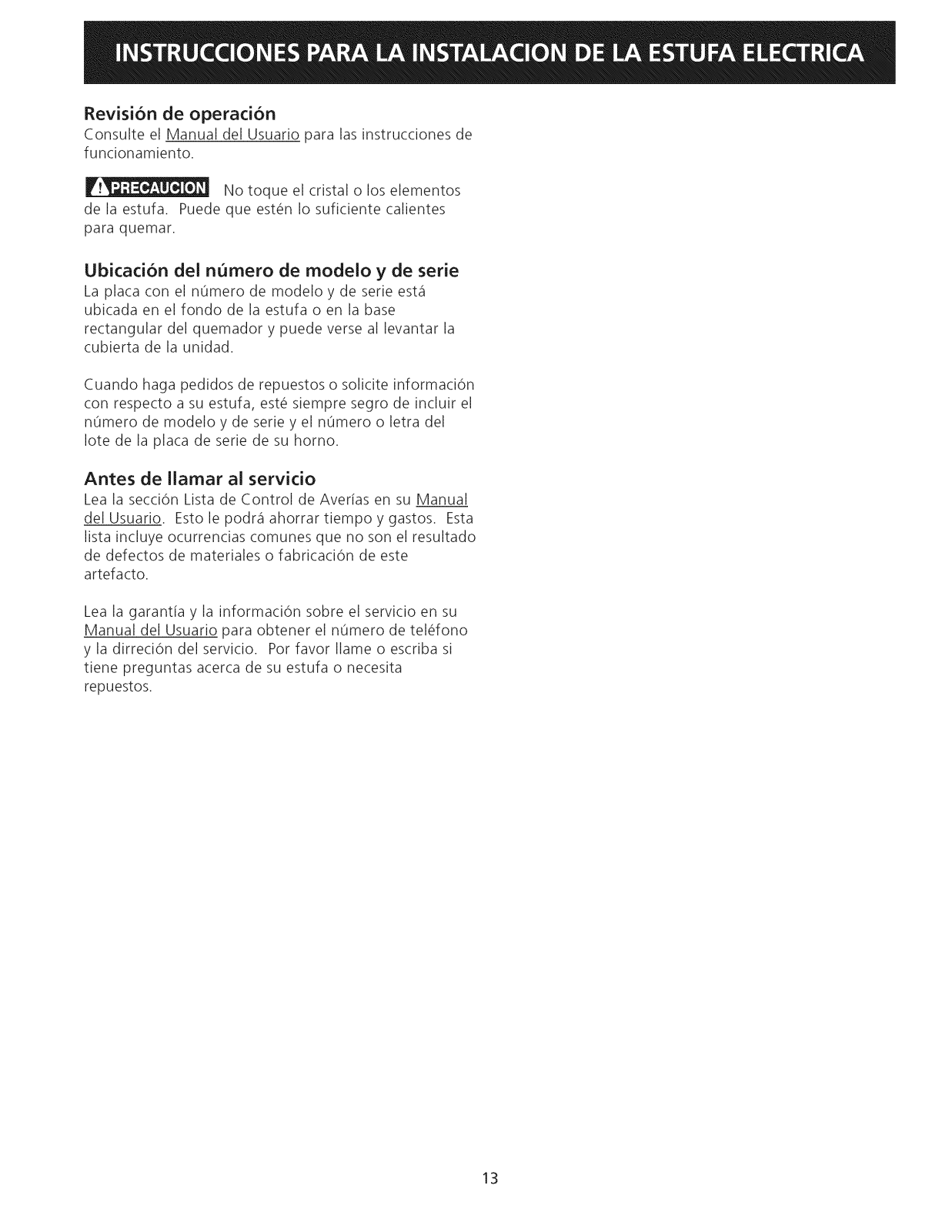

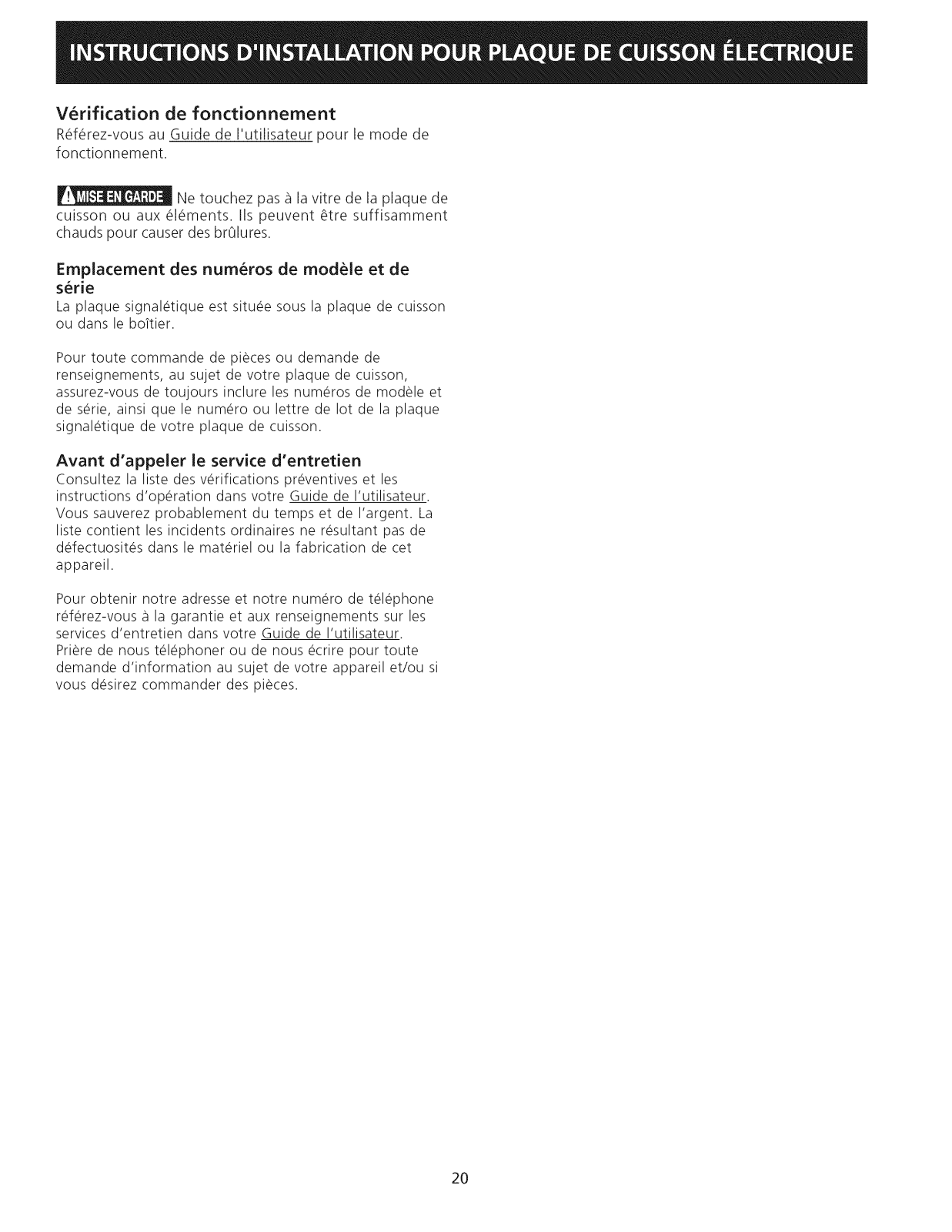

Checking Operation
Refer to the Owner's Guide for operation.
Do not touch cooktop glass or elements.
They may be hot enough to burn.
Model and Serial Number Location
The serial plate is located under the cooktop or in the
burner box and can be seen by lifting up the main top of
unit.
When ordering parts for or making inquires about your
cooktop, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your cooktop.
Before You Call for Service
Read the Avoid Service Checklist and operating
instructions in your Owner's Guide. It may save you time
and expense. The list includes common occurrences that
are not the result of defective workmanship or materials
in this appliance.
SCREW
Figure 13
3. Tighten each screw finger tight or until spacers
are snug against burner box walls.
4. Prior to tightening installation screws, exert
downward pressure on burner box to assure
flanges on burner box rest firmly on counter.
Tighten all screws evenly.
5. Unit clamp down information. Once unit is
installed in counter opening, you must clamp unit
down as shown in figure 14.
6. Make electrical connections as outlined in
"Electrical Connection" Section.
Refer to the warranty in your Owner's Guide for our
service phone number and address. Pleasecall or write if
you have inquiries about your product and/or need to
order parts.
6
Loading...
