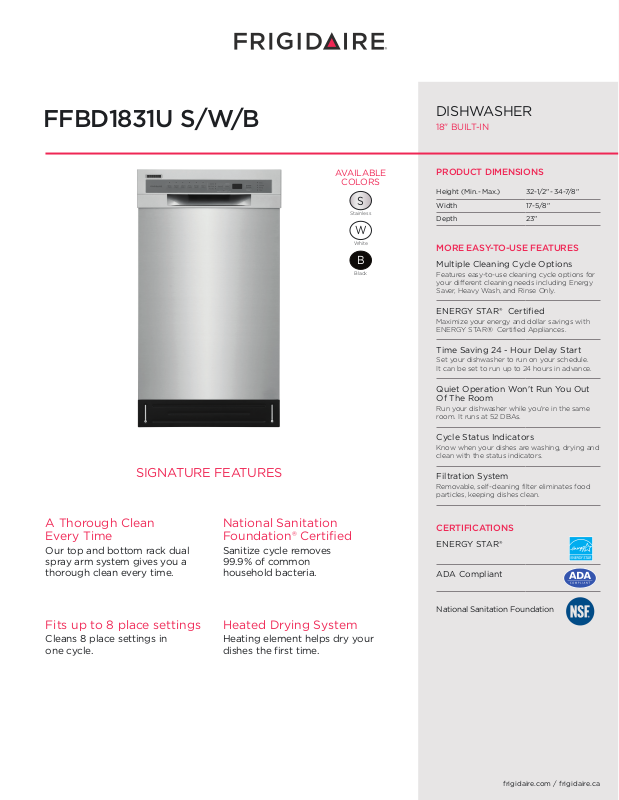

Page 1
FFBD1831U S/W/B
S
W
B
DISHWASHER
18" BUILT-IN
AVAILABLE
COLORS
Stainless
White
Black
PRODUCT DIMENSIONS
Height (Min. - Max.) 32-1/2" - 34-7/8"
Width 17-5/8"
Depth 23"
MORE EASY-TO-USE FEATURES
Multiple Cleaning Cycle Options
Features easy-to-use cleaning cycle options for
your different cleaning needs including Energy
Saver, Heavy Wash, and Rinse Only.
ENERGY STAR® Certified
Maximize your energy and dollar savings with
ENERGY STAR® Certified Appliances.
Time Saving 24 - Hour Delay Start
Set your dishwasher to run on your schedule.
It can be set to run up to 24 hours in advance.
Quiet Operation Won't Run You Out
Of The Room
Run your dishwasher while you're in the same
room. It runs at 52 DBAs.
Cycle Status Indicators
Know when your dishes are washing, drying and
clean with the status indicators.
SIGNATURE FEATURES
A Thorough Clean
Every Time
Our top and bottom rack dual
spray arm system gives you a
thorough clean every time.
Fits up to 8 place settings
Cleans 8 place settings in
one cycle.
National Sanitation
Foundation® Certified
Sanitize cycle removes
99.9% of common
household bacteria.
Heated Drying System
Heating element helps dry your
dishes the first time.
Filtration System
Removable, self-cleaning filter eliminates food
particles, keeping dishes clean.
CERTIFICATIONS
ENERGY STAR®
ADA Compliant
National Sanitation Foundation
frigidaire.com / frigidaire.ca
Page 2
FFBD1831U S/W/B
B
D
C
A
DISHWASHER
18" BUILT-IN
FEATURES
Control Design Ready-Select®
Door Latch Yes
Stay-Put Door Hinge Design Ye s
Low Rinse-Aid Indicator Light Yes
Interior Color Stainless Steel
Interior Design Standard
Wash System Direct Feed
Wash Levels 4
Wash Speeds 5
Sound Package UltraQuiet™ I
Filter Stainless Steel
Filter Trap Removable
Food Disposer Hard
dB Level 52
Drying System Static Vent
CYCLES
Number of Cycles 6
PowerPlus™ (Heavy) Yes
Normal Yes
Rinse Only Yes
China / Crystal Ye s
1 Hr Wash Ye s
Energy Saver Yes
Cycle Indicator Light Yes
Control Lock Yes
OPTIONS
Heat Yes
No Heat Dry Yes
Hi-Temp Wash Yes
Delay Start 1-24 Hours
Sanitize Yes
RACK SYSTEM
Rack Design Deluxe
Rack Coating Nylon
Lower Rack –
SpaceWise® Silverware Basket Standard
Upper Rack –
Rack Type Basic
CERTIFICATIONS
ENERGY STAR® Yes
SPECIFICATIONS
Water Inlet Location Left Bottom Front
Water Usage (Gallons) 4.9
Water Pressure (PSI) 20 – 120
Integral Air Gap on Supply Yes
Leveling Legs 4
Power Supply Connection Location Right Bottom Front
Voltage Rating 120V / 60 Hz / 15A
Connected Load (kW Rating) @ 120 Volts11.44
Amps @ 120 Volts 8.5
Shipping Weight (Approx.) 71 Lbs.
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
PRODUCT DIMENSIONS
A - Height (Min. - Max.) 32-1/2" - 34-7/8"
B - Width 17-5/8"
C - Depth 23"
Depth with Door Open 90° 46"
CUTOUT DIMENSIONS
Height (Min.) 33-1/2"
Height (Max.) 35-1/4"
Width (Min.) 17-5/8-18"
Depth (Min.) 24"
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2019 Electrolux Home Products, Inc.
FFBD1831U 01/19
Meets
requirements of
ASSE 1006
Page 3
18" Built-In Dishwasher w/Ready-Select Controls (RSC)
Baseline (FFBD1821M - A.D.A. Compliant Model)
FFBD1831U S/W/B
DISHWASHER
18" BUILT-IN
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 71 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if connected
with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 120V = 8.5 Amps
•
Always consult local and national electric & plumbing codes. Meets
requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide between 20 and
120 pounds per square inch (psi).
•
Make sure location has right drain, water and electrical outlets to make
Meets
requirements of
ASSE 1006
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
connections.
•
Keep back free of drain, water & electrical supply.
•
Electrical and water supplies should enter cabinet opening on floor, or through
back or side walls, as shown in shaded areas.
•
Connections preferably located toward left side of dishwasher. Do not cross
drain, water or electrical lines in front of motor, blower or frame
•
When installing adjacent to wall, cabinet or other obstruction that extends
beyond front edge of unit, allow 2" minimum clearance between opened door
and obstruction.
•
When installing at end of cabinet line, sides must be fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2019 Electrolux Home Products, Inc.
FFBD1831U 01/19
