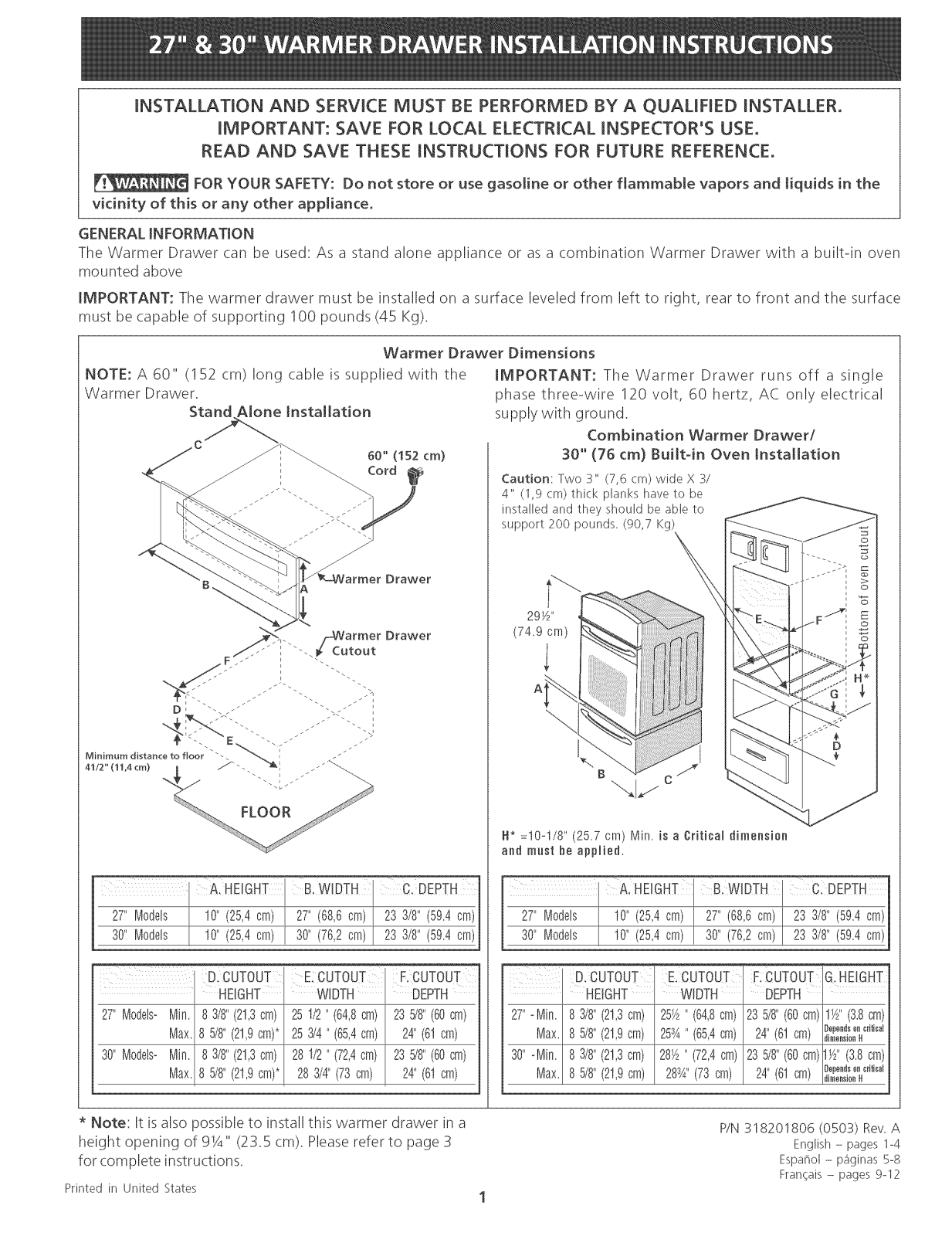

Frigidaire FEW30S2DCB Installation Guide

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUAUNED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FORYOUR SAFETY: Do not store or use gasoline or other flammable vapors and Hquids in the

v[dn[ty of this or any other appliance,

GENERAL INFORMATION The Warmer Drawer can be used: As a stand alone appliance or as a combination Warmer Drawer with a builtqn oven

mounted above IMPORTANT: The warmer drawer must be installed on a surface leveled from left to right, rear to front and the surface

must be capable of supporting 1OOpounds (45 Kg).

IMPORTANT: The Warmer Drawer runs off a single

phase three-wire 120 volt, 60 hertz, AC only electrical

supply with ground.

Combination Warmer Drawer/

30" (76 cm) BuiIt-in Oven Installation

Caution: Two 3" (7,6 cm) wide X 3/ 4" (1,9 cm) thick phrlks have to be

installed arid they should be able to

support 200 pounds, (90,7 Kg)

A. HEIGHT

27" Models I0" (25,4crn) 30" Models 10"(25,4cm)

B,WiDTH I C, DEPTH 1

27"(68,6 cm) 23 3/8" (59.4cm)l 30" 76,2om 23 3/8" (59.4cm)j

, DICUTOUT, E:CUTOUT, F.CUTOUT

HEIGHT WIDTH DEPTH

27"Models-Min, 83/8"(21,3cm) 251/2"(64,8cm) 235/8"(60cm)

Max.85/8"(21,9cm)* 253/4"(65,4cm) 24"(61cm)

30"Models-Min. 83/8"(2!,3cm) 281/2"(72,4cm) 235/8"(60om)

Max.85/8"(21,9cm)* 283/4"(73cm) 24"(61cm)

Note: It is also possible to install this warmer drawer in a

height opening of 9X" (23.5 cm). Pleaserefer to page 3 for complete instructions.

Printed in United States

H* =10-1/8" (25,7 cm) Min, is a @itiGal dimension

and must be applied.

27 Models 10 (25.4cm) 27' (68.6cm) 23 3/8' (59.4crrl)m

A.HEIGHT _-WlDTH C, DEPTH 1

30"Models 10"(25,4cm) 30"(76,2cm) 233/8"(59.4cm)m

-------- D,CUTOUT E,CUTOUT HEIGHT ' WIDTH

27"-Rain.i 83/8"(21,3cm) 25½" (648cm)

Max.I85/8"(21,9cm) 25sA"(65,4cm)

30"-Min.I 83/8"(2!,3cm) 28½"(72,4cm)

Ivlax.I85/8"(21,9cm) 28sA''(73cm)

F: CUTOUTG.HEIGHT

DEPTH

235/8"(60ore)1½"(3.8orn)

24"(61cm) Dependso,critkal

235/8"(60cm)1_"(3.8cm)

24"(61om) D_e,_senGritbal

P/N 318201806 (0503) Rev, A

English - pages 1-4

Espaflo[ - paginas 5-8 Francais - pages 9-12

dimensi0nH

dime_s[0ll H

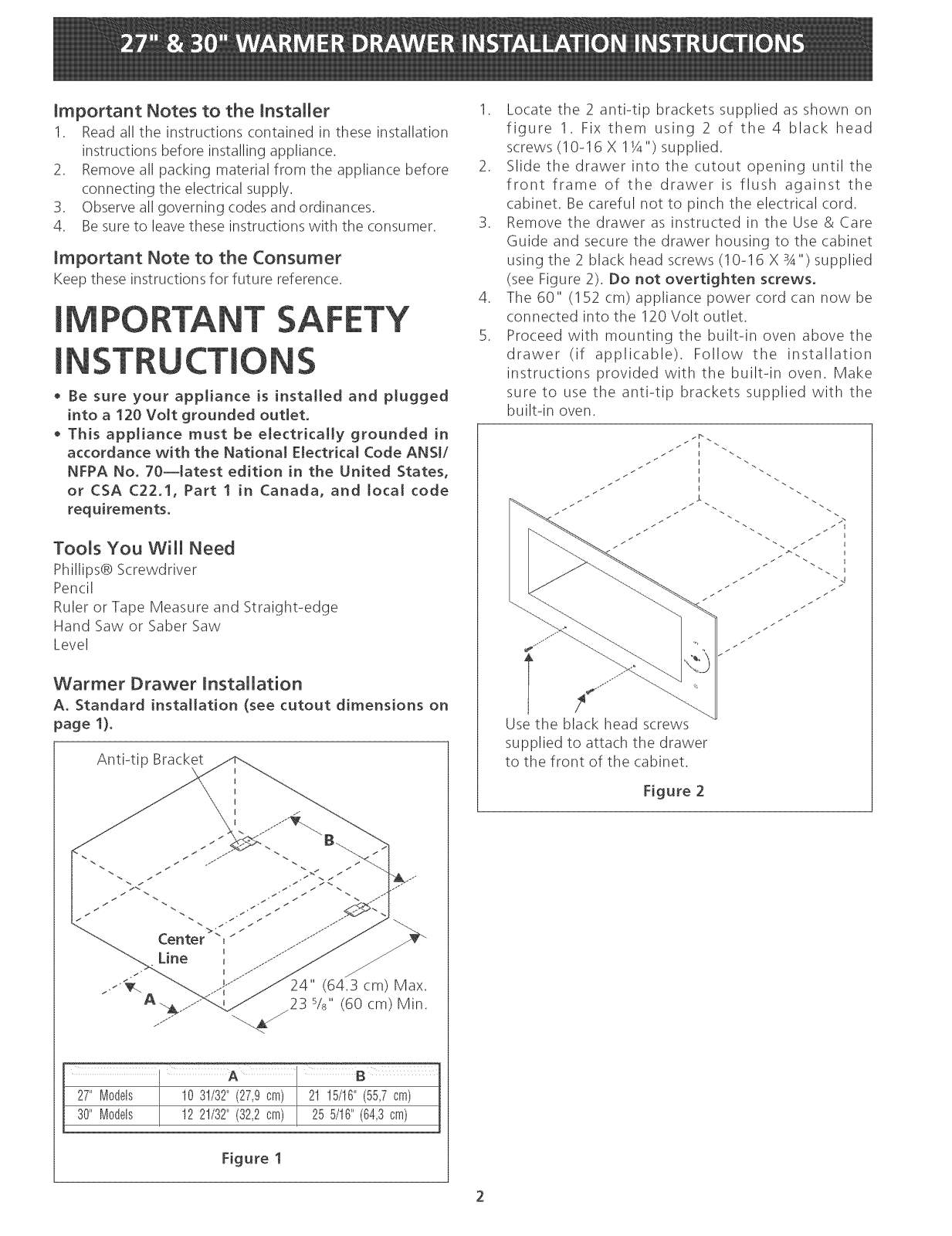

Important Notes to the Installer

1. Read all the instructions contained in these installation instructions before installing appliance,

2. Remove all packing material from the appliance before connecting tile electrical supply,

3. Observe all governing (;odesand ordinances,

4. Be sure to leave these instructions with tile consumer.

Important Note to the Consumer

Keep these instructions for future reference.

IMPORTANT SAFETY

• Be sure your appliance is installed and plugged

into a 120 Vott grounded outtet.

• This appliance must be electrically grounded in

accordance with the National Electrical Code ANSI/ NFPA No. 70--latest edition in the United States,

or CSA C22.1, Part 1 in Canada, and tocal code requirements.

Tools You Will Need

Phillips@ Screwdriver Pencil

Ruler or Tape Measure and Straight-edge Hand Saw or Saber Saw

Level

1. Locate the 2 antPtip brackets supplied as shown on figure 1. Fix them using 2 of the 4 black head

screws (!0-16 X lY4") supplied.

2. Slide the drawer into tile cutout opening until the front frame of tile drawer is flush against the

cabinet. Be careful not to pinch the electrical cord.

3. Remove the drawer as instructed in the Use & Care Guide and secure the drawer housing to the cabinet using the 2 black head screws (10-16 X 3A") supplied

(see Figure 2). Do not overtighten screws.

4. Tile 60" (152 cm) appliance power cord can now be connected into the 120 Volt outlet.

5. Proceed with mounting tile builtdn oven above tile drawer (if applicable). Follow the installation

instructions provided with the builtdn oven. Make sure to use the antPtip brackets supplied with the

builtdn oven.

....--

Warmer Drawer Installation

A. Standard installation (see cutout dimensions on page 1).

AntPtip Bracket

27"Models 1031/32"(27,9cm) 2115/16"(55,7cm) 30"Models 122!/32"(32,2cm) 255/16"(64,3cm)

Use the black head screws supplied to attach tile drawer

to tile front of the cabinet.

Figure 2

Figure 1

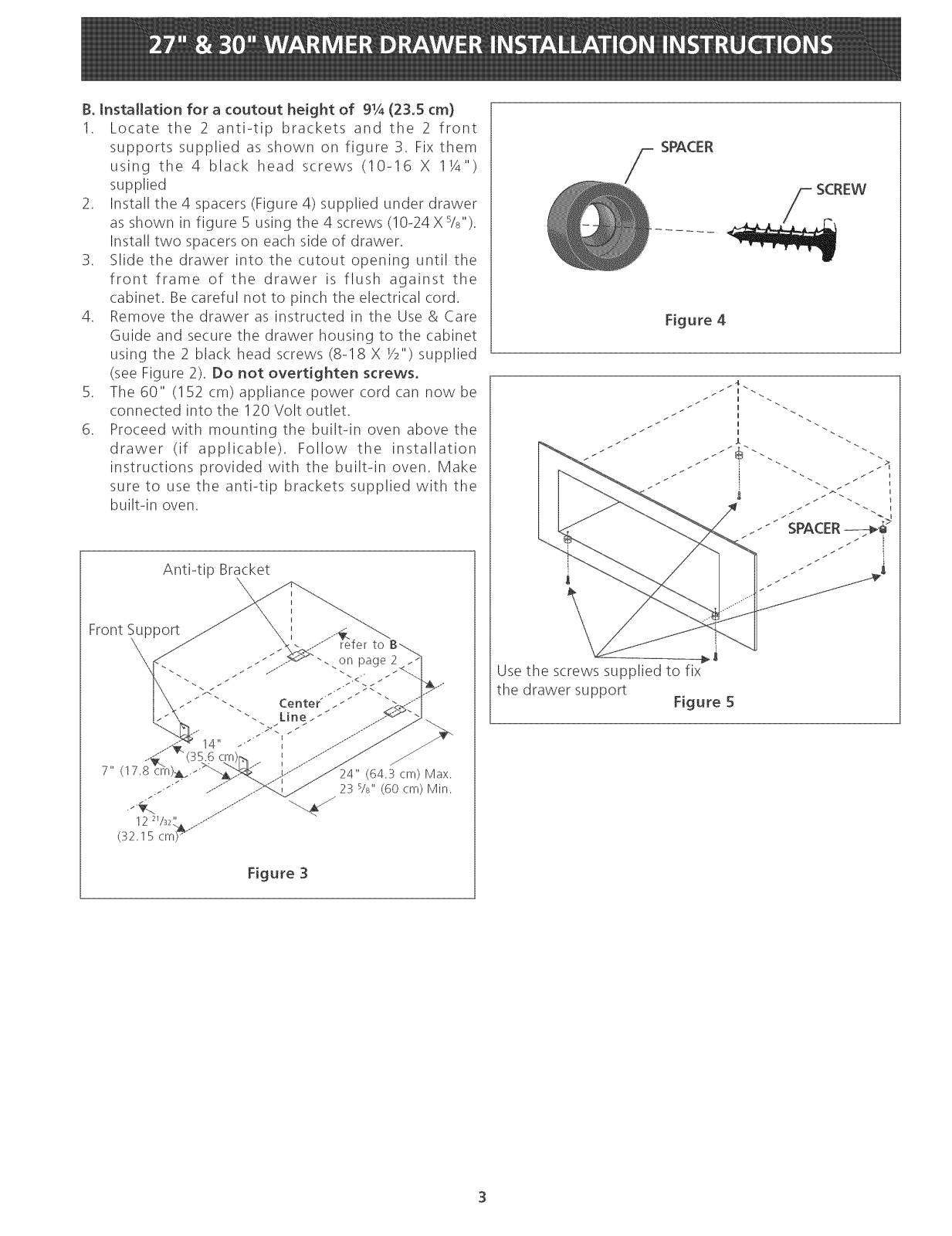

B.[nstaHationforacoutoutheightof 91/4(23.5cm)

1. Locate tile 2 anti-tip brackets and the 2 front supports supplied as shown on figure 3. Fix them

using the 4 black head screws (10-16 X lY4") supplied

2. Install the 4 spacers (Figure 4) supplied under drawer as shown in figure 5 using the 4 screws (I0-24 X %").

Install two spacers on each side of drawer.

3. Slide tile drawer into the cutout opening until the front frame of the drawer is flush against the

cabinet Becareful not to pinch the electrkal (ord.

4. Remove the drawer as instructed in the Use & Care Guide and secure the drawer housing to the cabinet

using the 2 black head screws (8-18 X Y2") supplied (see Figure 2). Do not overtighten screws.

5. The 60" (152 cm) appliance power cord can now be connected into the 120 Volt outlet.

6. Proceed with mounting the built-in oven above the drawer (if applicable). Follow the installation

instructions provided with the built-in oven. Make sure to use the anti-tip brackets supplied with the

built-in oven.

SPACER

Figure 4

Front Su

Anti-tip Bracket

Use the screws supplied to fix

the drawer support

Figure 5

Figure 3
