Frigidaire FEF326ABE, FEF365BXCWA, GLEF396CQA, GLEF396CQB, GLEF396CSA Installation Guide
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

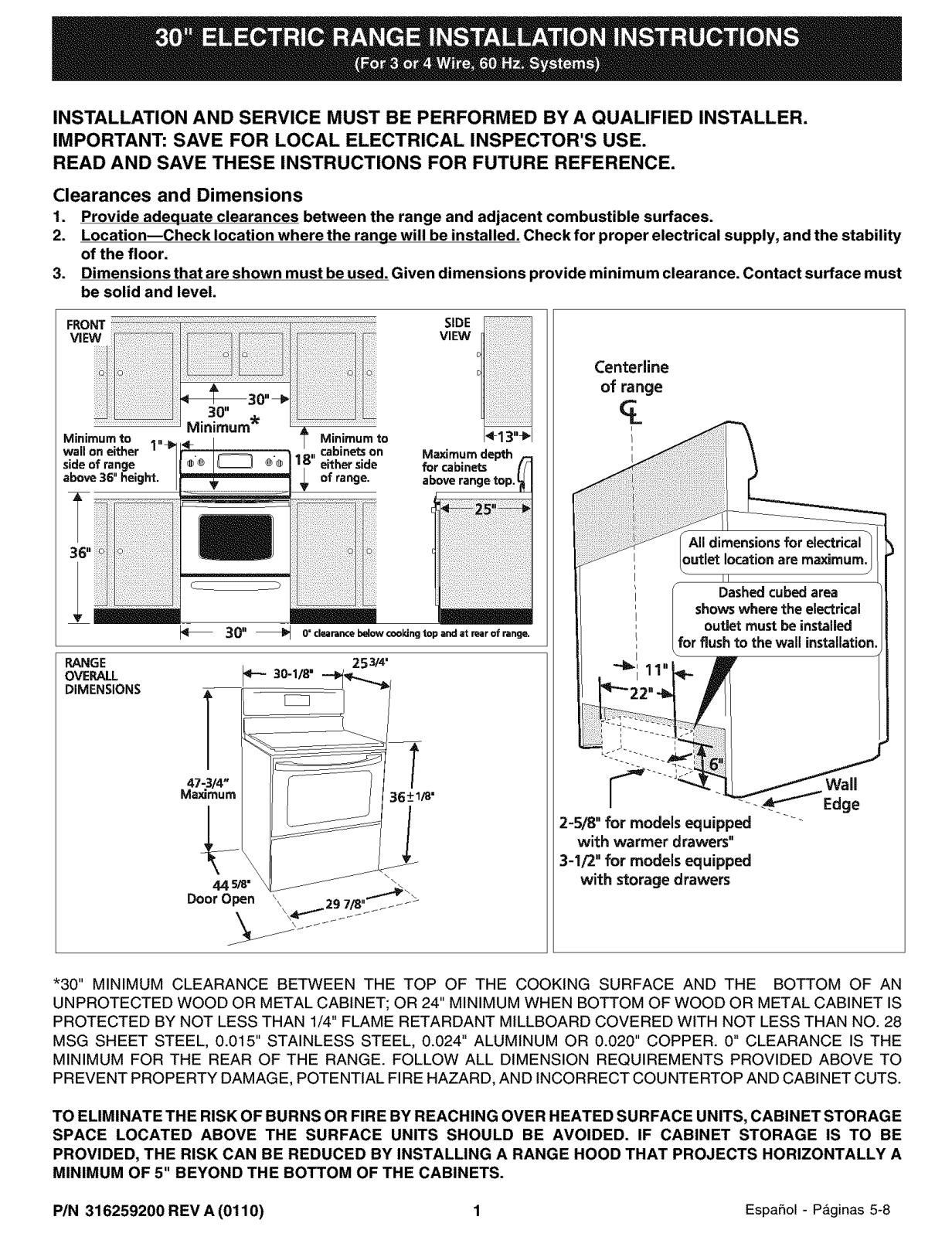

Clearances and Dimensions
1. Provide adequate clearances between the range and adjacent combustible surfaces.
2. Location--Check location where the range will be installed. Check for proper electrical supply, and the stability
of the floor.
3. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must
be solid and level.
SIDE
VIEW
Centeriine
of range
q_
I_13"_1
side ofrange
above 36" height.
of range.
Maximumdepth
for cabinets
aboverangetop.
t
m
I_ 30" _ 0"clearsncebelowco_ldngt_pandatrearofrange.
RANGE
OVERALL
DIMENSIONS
DoorOpen ,,_"_""
*30" MINIMUM CLEARANCE BETWEEN THE TOP OF THE COOKING SURFACE AND THE BOTTOM OF AN
UNPROTECTED WOOD OR METAL CABINET; OR 24" MINIMUM WHEN BOTTOM OF WOOD OR METAL CABINET IS
PROTECTED BY NOT LESS THAN 1/4" FLAME RETARDANT MiLLBOARD COVERED WITH NOT LESS THAN NO. 28
MSG SHEET STEEL, 0.015" STAINLESS STEEL, 0.024" ALUMINUM OR 0.020" COPPER. 0" CLEARANCE IS THE
MINIMUM FOR THE REAR OF THE RANGE. FOLLOW ALL DIMENSION REQUIREMENTS PROVIDED ABOVE TO
PREVENT PROPERTY DAMAGE, POTENTIAL FIRE HAZARD, AND INCORRECT COUNTERTOP AND CABINET CUTS.
_. 253/4'
Tnl
44 S,'_" _
\ 29 7/8 _- _-_
J i
Wall
Edge
2-5/8" for models equipped
with warmer drawers"
3-1/2" for models equipped
with storage drawers
TO ELIMINATE THE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STORAGE
SPACE LOCATED ABOVE THE SURFACE UNITS SHOULD BE AVOIDED. IF CABINET STORAGE IS TO BE
PROVIDED, THE RISK CAN BE REDUCED BY INSTALLING A RANGE HOOD THAT PROJECTS HORIZONTALLY A
MINIMUM OF 5" BEYOND THE BOTTOM OF THE CABINETS.
PIN 316259200 REV A (0110) 1 EspaSol - P#.ginas5-8

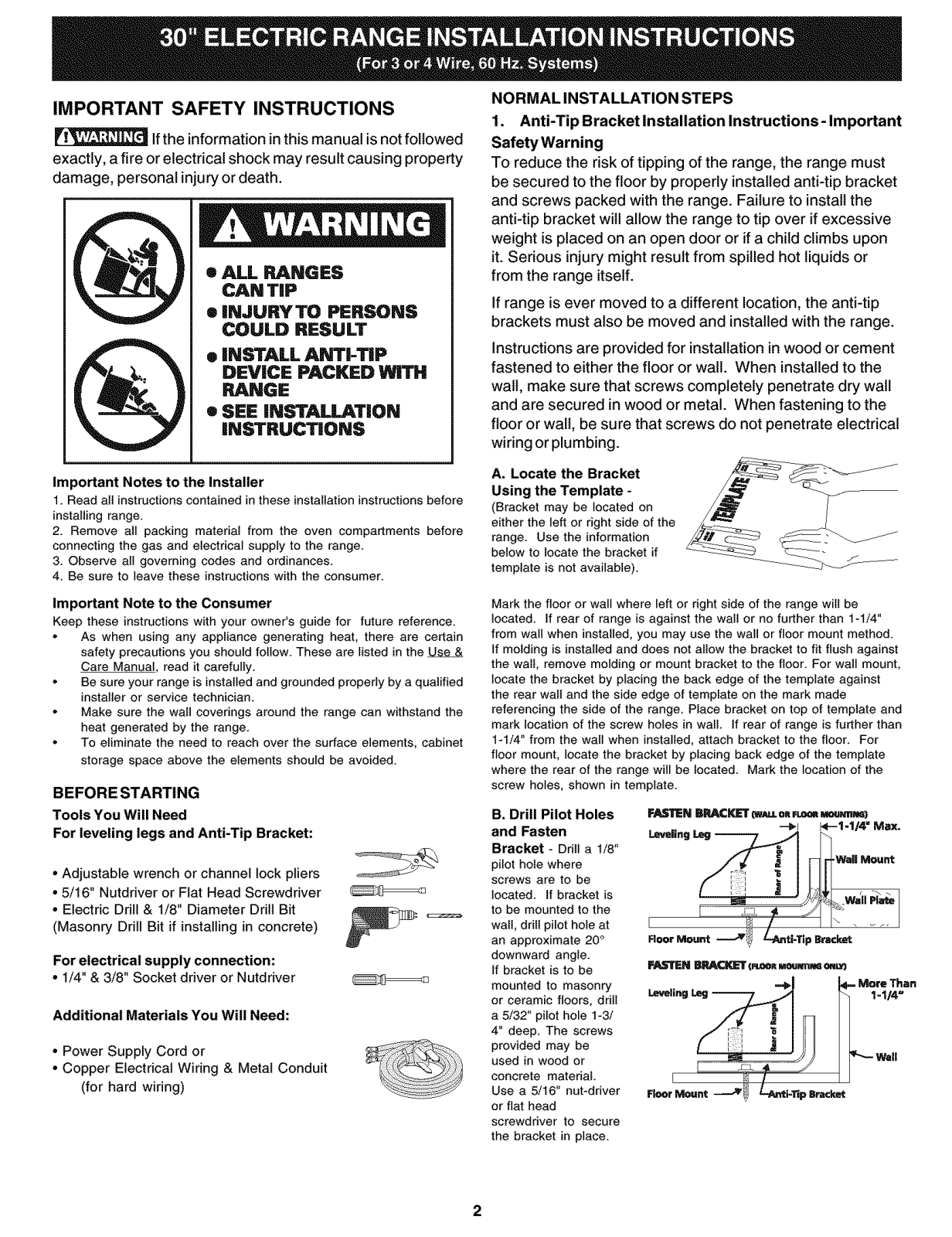

IMPORTANT SAFETY INSTRUCTIONS
Ifthe information inthis manual is not followed
exactly, a fire orelectrical shock may result causing property
damage, personal injury or death.
• ALL RANGES
CAN TiP
• INJURYTO PERSONS
COULD RESULT
• INSTALL ANTI-TIP
DEVICE PACKED WITH
RANGE
• SEE INSTALLATION
INSTRUCTIONS
NORMAL INSTALLATION STEPS
1. Anti-Tip Bracket Installation Instructions- Important
Safety Warning
To reduce the risk of tipping of the range, the range must
be secured to the floor by properly installed anti-tip bracket
and screws packed with the range. Failure to install the
anti-tip bracket will allow the range to tip over if excessive
weight is placed on an open door or if a child climbs upon
it. Serious injury might result from spilled hot liquids or
from the range itself.
If range is ever moved to a different location, the anti-tip
brackets must also be moved and installed with the range.
Instructions are provided for installation in wood or cement
fastened to either the floor or wall. When installed to the
wall, make sure that screws completely penetrate dry wall
and are secured in wood or metal. When fastening to the
floor or wall, be sure that screws do not penetrate electrical
wiring or plumbing.
Important Notes to the Installer
1. Read all instructions contained in these installation instructions before
installing mnge.
2. Remove all packing material from the oven compartments before
connecting the gas and electrical supply to the range.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future reference.
As when using any appliance generating heat, there are certain
safety precautions you should follow. These are listed in the Use&
Care Manual read it carefully.
Be sure your range is installed and grounded properly by a qualified
installer or service technician.
Make sure the wall coverings around the range can withstand the
heat generated by the range.
To eliminate the need to reach over the surface elements, cabinet
storage space above the elements should be avoided.
BEFORE STARTING
Tools You Will Need
For leveling legs and Anti-Tip Bracket:
• Adjustable wrench or channel lock pliers
• 5/16" Nutdriver or Flat Head Screwdriver
• Electric Drill & 1/8" Diameter Drill Bit
(Masonry Drill Bit if installing in concrete)
For electrical supply connection:
• 1/4" & 3/8" Socket driver or Nutdriver
Additional Materials You Will Need:
• Power Supply Cord or
• Copper Electrical Wiring & Metal Conduit
(for hard wiring)
A. Locate the Bracket
Using the Template -
(Bracket may be located on
either the left or right side of the
range. Use the information
below to locate the bracket if
template is not available).
Mark the floor or wall where left or right side of the range will be
located. If rear of range is against the wall or no further than 1-1/4"
from wall when installed, you may use the wall or floor mount method.
If molding is installed and does not allow the bracket to fit flush against
the wall, remove molding or mount bracket to the floor. For wall mount,
locate the bracket by placing the back edge of the template against
the rear wall and the side edge of template on the mark made
referencing the side of the range. Place bracket on top of template and
mark location of the screw holes in wall. If rear of range is further than
1-1/4" from the wall when installed, attach bracket to the floor. For
floor mount, locate the bracket by placing back edge of the template
where the rear of the range will be located. Mark the location of the
screw holes, shown in template.
B. Drill Pilot Holes
and Fasten
Bracket - Drill a 1/8"
pilot hole where
screws are to be
located. If bracket is
to be mounted to the
wall, drill pilot hole at
an approximate 20°
downward angle.
If bracket is to be
mounted to masonry
or ceramic floors, drill
a 5/32" pilot hole 1-3/
4" deep. The screws
provided may be
used in wood or
concrete material.
Use a 5/16" nut-driver
or flat head
screwdriver to secure
the bracket in place.
F/_I_N BR/&CI(EIt(w_J.LonFLOamhIOUNn_3
--_1 1<--1-1/4" Max.
LeveUngLeg_ _
Root
r-ASTEN BRACE_"It (_R Mc_mn_ _u0
Lewling Leg -- 1-1/4"
2
