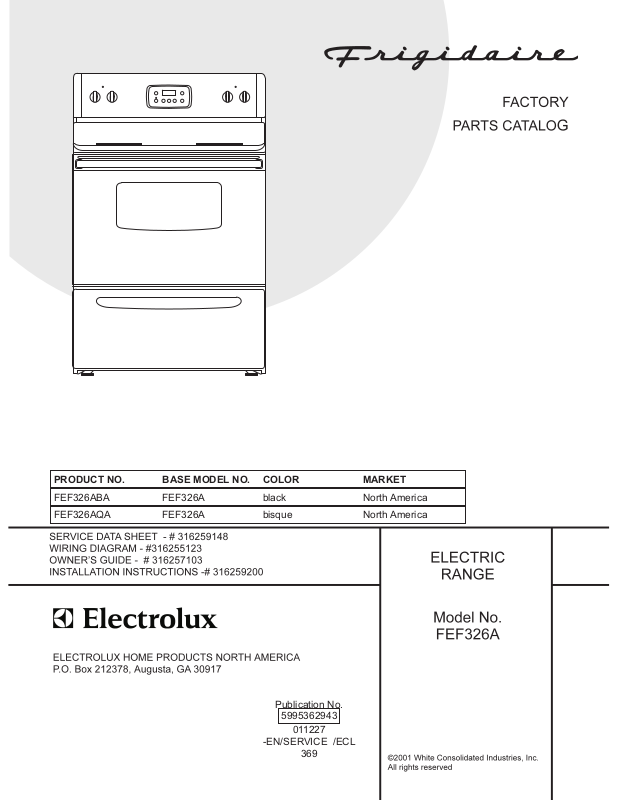

PRODUCT NO. BASE MODEL NO. COLOR MARKET
FEF326ABA FEF326A black North America
FEF326AQA FEF326A bisque North America
Publication No.
5995362943
011227
-EN/SERVICE /ECL
369
Page 2
BACKGUARD
12/01 2
Page 3
A = FEF326A (FEF326ABA)
B = FEF326A (FEF326AQA)
POS. NO PART NO DESCRIPTION
1 316239900 A B Shield,backguard ,rear wall
1* 316248900 A B Spacer,shield ,rear wall
11 316241000 A B Shield,end cap ,RH
11A 316241001 A B Shield,end cap ,LH
14 316022503 A B Light/Lamp,indicator ,surface ,250 V
15 316220204 A - Support,backguard ,black ,RH
15 316220208 - B Support,backguard ,bisque ,RH
15A 316220205 A - Support,backguard ,black ,LH
15A 316220209 - B Support,backguard ,bisque ,LH
18 316240905 A - End Cap,black ,RH
18 316240906 - B End Cap,bisque ,RH
18A 316240904 A - End Cap,black ,LH
18A 316240907 - B End Cap,bisque ,LH
19 316246616 A - Panel,backguard ,black
19 316246617 - B Panel,backguard ,bisque
20 # 316222801 A B Clock/Timer,electronic
20A 316220701 A - Overlay,clock ,black
20A 316220702 - B Overlay,clock ,bisque
24 # 316246001 A - Switch,rocker ,black ,oven light
24 # 316246002 - B Switch,rocker ,bisque ,oven light
31 316223002 A - Knob,warm zone/drw ,black
31 316223003 - B Knob,control ,bisque
46 316040201 A B Lens,indicator light ,red
54 # 316021500 A B Switch,infinite ,small element
54A# 316021501 A B Switch,infinite ,large element
56 316234008 A - Shield,backguard ,black ,inner
56 316234009 - B Shield,backguard ,bisque ,inner
69 5303288565 A B Screw,truss sqdr ,8-32 x 3/16 ,switch mtg
BACKGUARD
* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome
* 316021110 A B Screw,8-18 x 0.5 ,black
Page 4

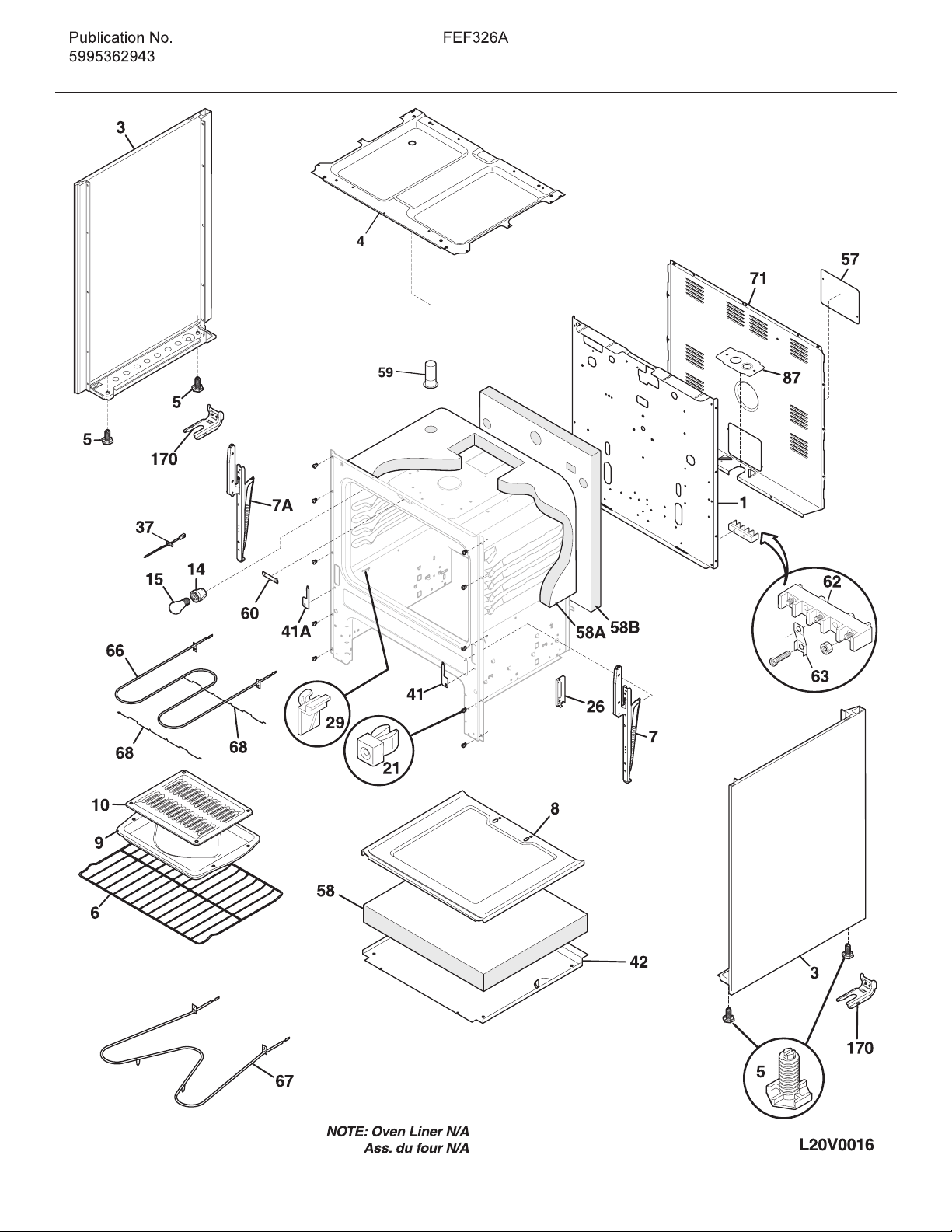

BODY
12/01 4
Page 5
A = FEF326A (FEF326ABA)
B = FEF326A (FEF326AQA)
POS. NO PART NO DESCRIPTION
1 316201300 A B Back,main
3 316230104 A - Panel,bodyside ,black ,RH
3 316230105 A - Panel,bodyside ,black ,LH
3 316230108 - B Panel,bodyside ,bisque ,RH
3 316230109 - B Panel,bodyside ,bisque ,LH
4 316201401 A B Burner Box
5 316129200 A B Screw,leveling ,plastic ,with stop
6 316067902 A B Rack,oven
7 316212908 A B Hinge,oven door ,RH
7A 316212909 A B Hinge,oven door ,LH
8 3203540 A B Panel,oven bottom
9 316081900 A B Pan,broiler
10 316082000 A B Insert,broiler pan
14 316116400 A B Receptacle,oven light
15 5303013071 A B Bulb/Lamp,oven light
21 3014099 A B Spacer,bodyside
26 316206300 A B Support,chassis ,(2)
29 3051162 A B Glide,drawer ,front
37 # 316233900 A B Probe,oven temp
41 316233400 A B Cover,hinge cutout ,RH
41A 316233500 A B Cover,hinge cutout ,LH
42 316206200 A B Shield,wool ,lower
57 316081100 A B Cover,access
58 3200847 A B Insulation,oven bottom
58A 316047707 A B Insulation,1" ,oven wrapper
58B 316054202 A B Insulation,1" ,oven back
59 316073605 A B Tube,oven vent
60 316239100 A B Cover,oven front
62 # 5303935061 A B Terminal Block Kit
62* 5303308427 A B Nut,hex ,10-32
63 5301145190 A B Plate,grounding strap
66 # 316203200 A B Element,broil
67 # 316075103 A B Element,bake
68 316203400 A B Support,broil element
71 316015810 A B Shield,rear wall ,galv steel
87 316081200 A B Bracket,cable mtg
170 5303935180 A B Anti-tip Kit,w/bracket,screw
170* 316107200 A B Bracket,anti-tip
170* 316112500 A B Template,anti-tip
170* 316116000 A B Screw,concrete tpg ,1.75 inch ,anti-tip brkt
BODY
* # 316253105 A B Wiring Harness,main
* 3203550 A B Plug,button ,oven bottom
* 316073400 A B Plate,weight ,(3)
* 5303305345 A - Paint,touch-up ,black
* 5304414035 - B Paint,touch-up ,bisque
* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome
* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 0.5
* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312
* 5303285179 A B Screw,wafer head ,8-32T x 0.500 ,black
* 5308014215 A B Screw,6-20 x 0.312
Page 6

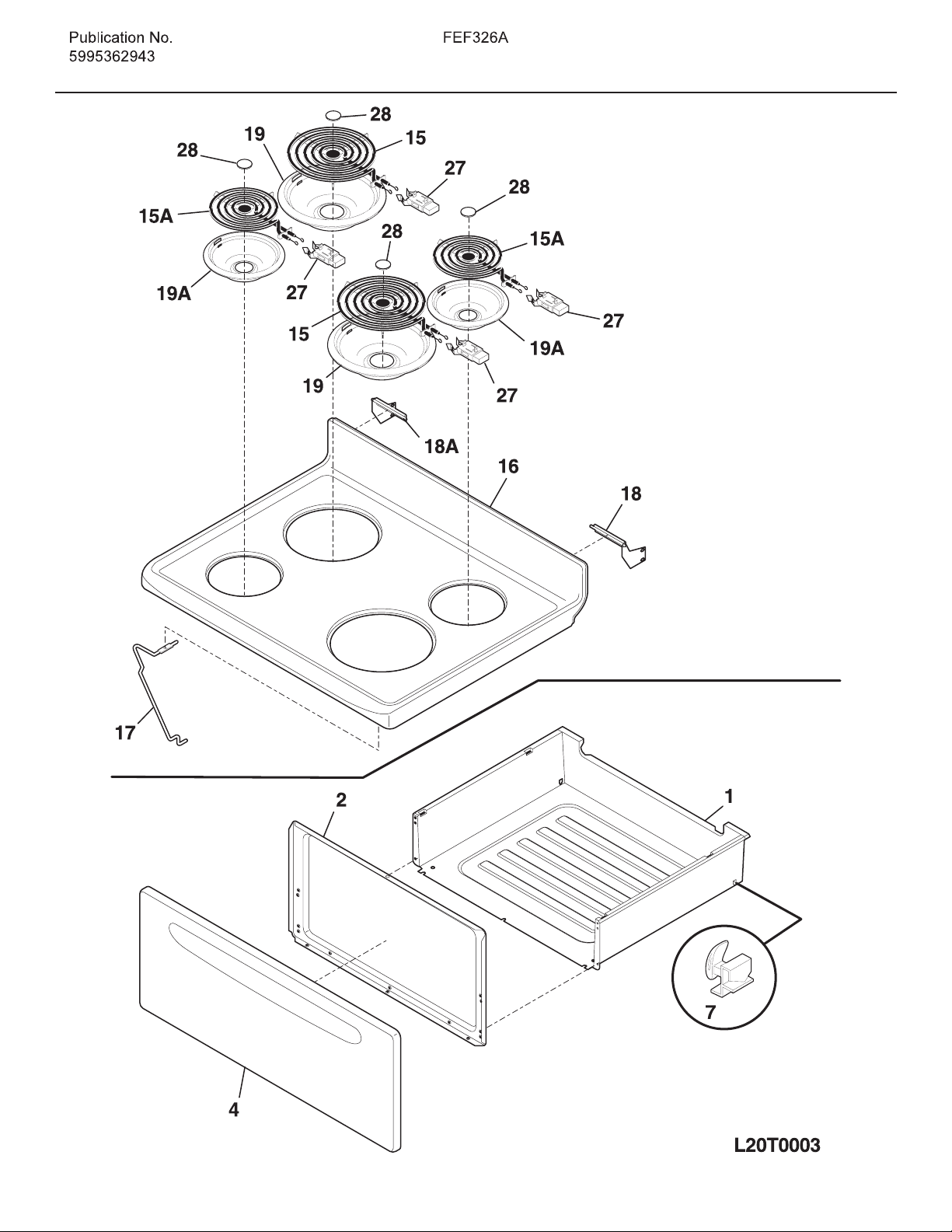

TOP/DRAWER
12/01 6
Page 7
A = FEF326A (FEF326ABA)
B = FEF326A (FEF326AQA)
POS. NO PART NO DESCRIPTION
1 316011503 A B Drawer
2 316231500 A B Liner,drawer
4 316231306 A - Panel,drawer ,black
4 316231309 - B Panel,drawer ,bisque
7 3051163 A B Glide,drawer ,rear
15 # 5303012223 A B Element,surface ,8" ,large
15A# 08067762 A B Element,surface ,6" ,small
16 316202306 A - Main Top,black
16 316202309 - B Main Top,bisque
17 316057601 A B Rod,support ,main top
18 316235900 A B Hinge,main top ,RH
18A 316235901 A B Hinge,main top ,LH
19 # 318067055 A B Pan,surface element ,large ,chrome ,w/clip
19A# 318067045 A B Pan,surface element ,small ,chrome ,w/clip
27 # 5303912666 A B Terminal Block Kit,surface element
28 3017801 A B Medallion,stainless steel ,surf elem
28 5303017715 A B Medallion,1 1/2"dia ,black ,surface element
* # 316253501 A B Wiring Harness,surface element
* 316058600 A B Clip,surface element ,chrome ,(4)
* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome
* 316021110 A B Screw,8-18 x 0.5 ,black
* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312
* 5308014215 A B Screw,6-20 x 0.312
TOP/DRAWER
Page 8

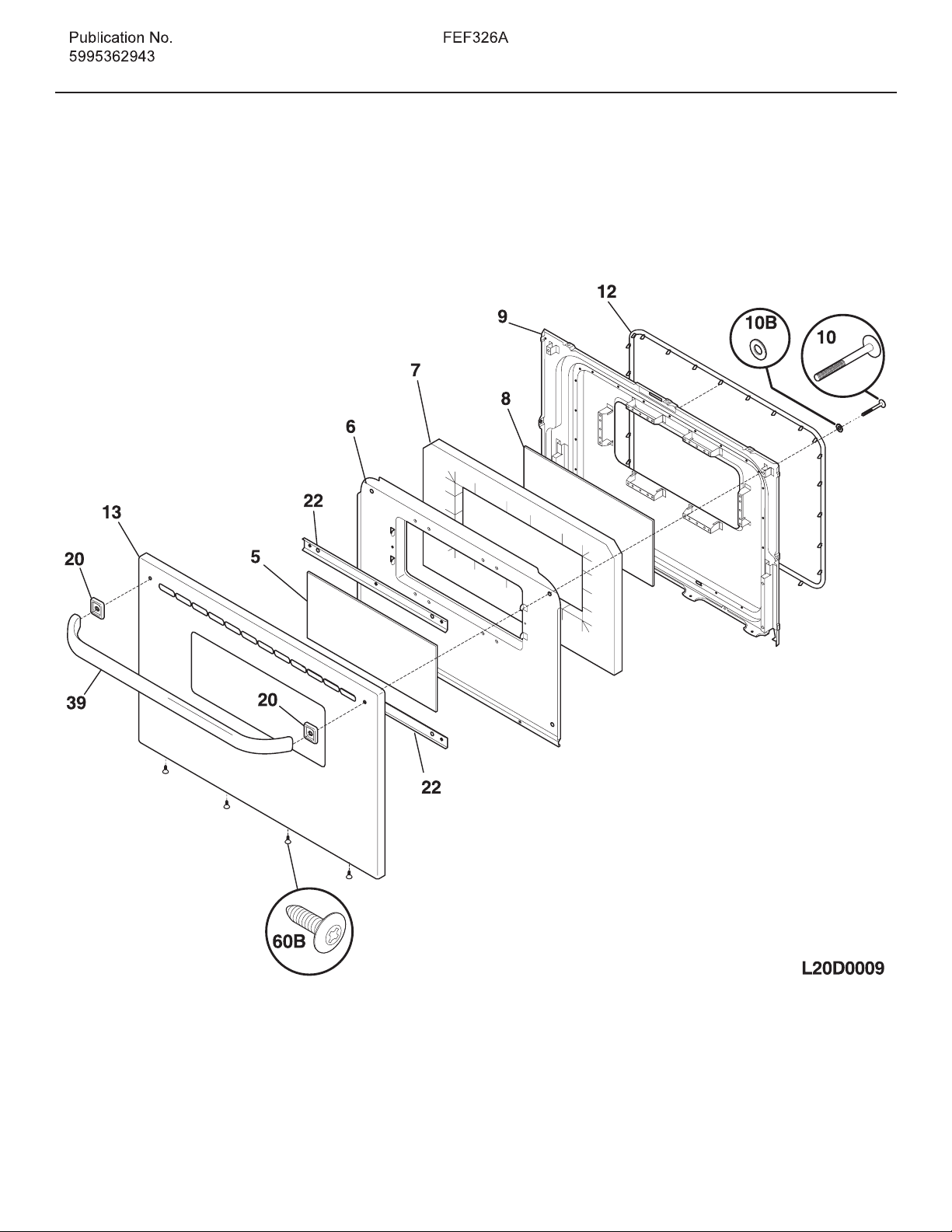

DOOR
12/01 8
Page 9
A = FEF326A (FEF326ABA)
B = FEF326A (FEF326AQA)
POS. NO PART NO DESCRIPTION
5 316050302 A - Glass,oven door ,black ,outer
5 316050306 - B Glass,oven door ,bisque ,outer
6 316222709 A B Shield,oven door ,wool
7 316236801 A B Insulation,oven door
8 316088600 A B Glass,oven door ,inner
9 316230604 A B Liner,oven door
10 5303285179 A B Screw,wafer head ,8-32T x 0.500 ,black
10B 316008401 A B Washer,3/4 OD x 1/4 ID ,steel
12 316239700 A B Seal,oven door
13 316202701 A - Panel,oven door ,black
13 316202704 - B Panel,oven door ,bisque
20 316248400 A - Spacer,handle ,black ,(2)
20 316248403 - B Spacer,handle ,bisque ,(2)
22 5303272476 A B Retainer,glass ,(2) ,angle
39 316248300 A - Handle,oven door ,black
39 316248304 - B Handle,oven door ,bisque
60B 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312
* 316021110 A B Screw,8-18 x 0.5 ,black
* 316245600 A B Seal,door ,air gap
* 316001014 A B Screw,waf hd sq ,10-24 x 1.6 ,handle
DOOR
Page 10

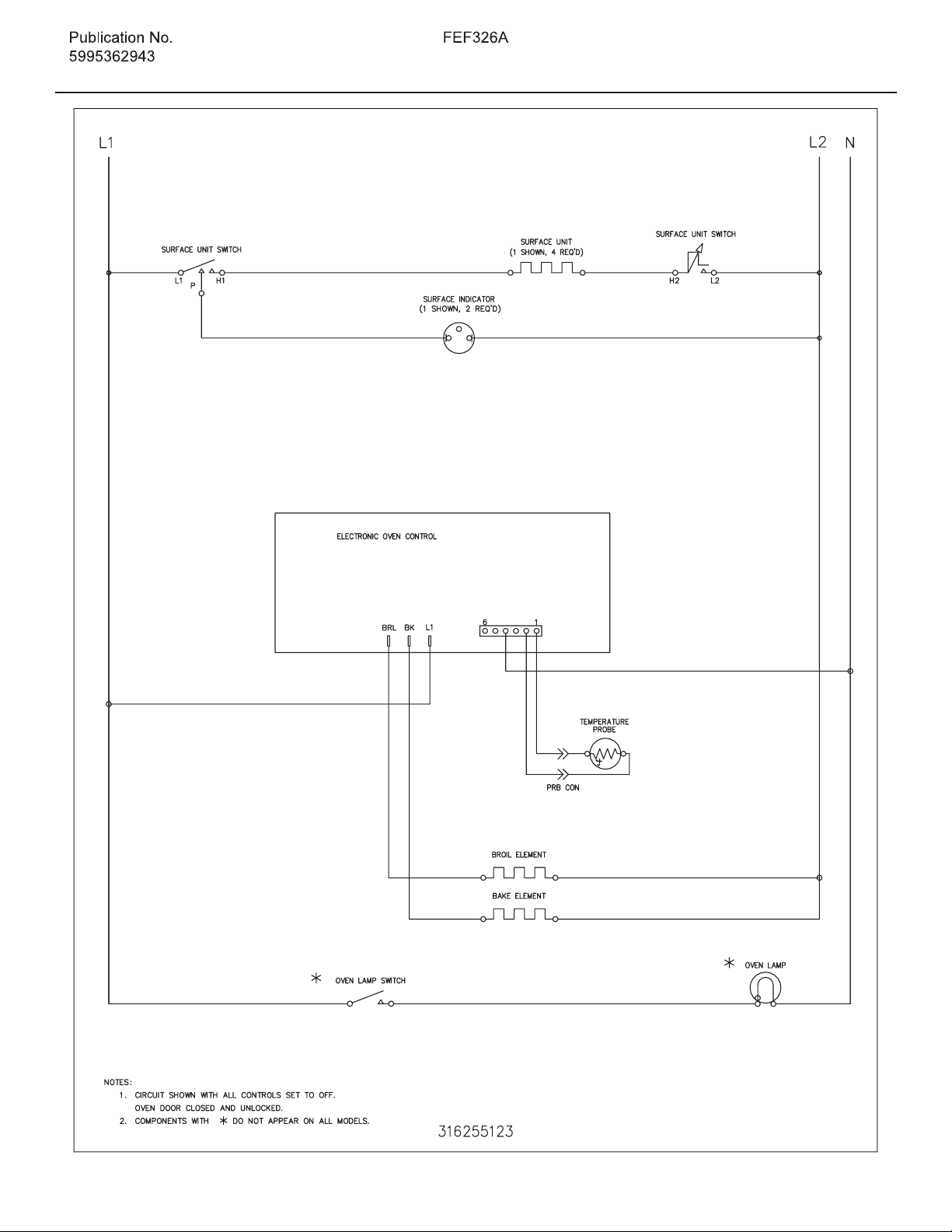

WIRING DIAGRAM
12/01 10
