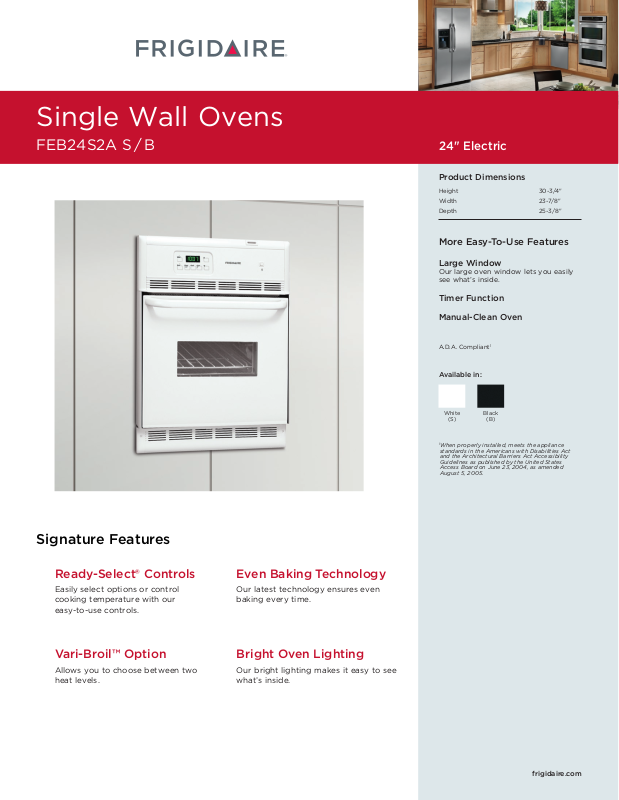

Frigidaire FEB24S2AB User Manual
DropSingle-InWallCooktopOvens
FEB24S2APEC3085KS S/ B
Signature Features
Ready-Select® Controls |
Even Baking Technology |
Easily select options or control |
Our latest technology ensures even |
cooking temperature with our |
baking every time. |
easy-to-use controls. |
|
Vari-Broil™ Option |
Bright Oven Lighting |
Allows you to choose between two |
Our bright lighting makes it easy to see |
heat levels. |
what’s inside. |
30"24" Ellectric
Product Dimensions
Height |
30-3/4" |
Width |
23-7/8" |
Depth |
25-3/8" |
|
|
More Easy-To-Use Features
Large Window
Our large oven window lets you easily see what’s inside.
Timer Function
Manual-Clean Oven
A.D.A. Compliant1
Available in:
White Black
(S)(B)
1When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005.
frigidaire.com
Features |
|
Oven Control / Timing System |
Ready-Select® |
Window |
Large |
Exterior Door Finish |
Color-Coordinated |
Handle Design |
Color-Coordinated |
Oven Cleaning System |
Manual Clean |
Oven Controls |
|
Bake / Broil |
Yes / |
|
Variable (Hi - Lo) |
Convection Conversion |
|
Convection Bake / Broil / Roast |
|
Quick Bake Convection |
|
PowerPlus® / Quick Preheat |
|
My Favorite |
|
Chicken Nugget Button |
|
Pizza Button |
|
Keep Warm |
|
Add-a-Minute |
|
Delay Bake |
|
Self-Clean |
|
Rapid / Quick Clean Option |
|
Delay Clean |
|
Kitchen Timer |
Yes |
Timed Cook Option |
|
Control Lock |
|
Auto Oven Shut-Off |
|
Oven Lock-Out |
|
Oven Features |
|
Capacity (Cu. Ft.) |
3.2 |
Convection System |
|
Oven Light |
1 |
Hidden Bake Element |
|
Rack Configuration |
2 Handle Racks |
Baking System |
Even Baking Technology |
Broiling System |
Vari-Broil™ |
Bake / Broil Element (Watts) |
2,100 / 3,400 |
Certifications |
|
A.D.A. Compliant1 |
Yes |
Sabbath Mode (Star-K® Certified) |
|
Specifications |
|
Oven Interior ( H x W x D ) |
16" x 18-1/2" x 18-1/2" |
Power Supply Connection Location |
Left Bottom Rear |
Voltage Rating |
240V / 208V / 60Hz |
Connected Load |
3.4 /2.6 |
(kW Rating) @ 240 / 208 Volts2 |
|
Amps @ 240 / 208 Volts |
14.5 / 12.5 |
Minimum Circuit Required (Amps) |
20 |
Approved for Under-Counter |
|
Installation |
|
Shipping Weight (Approx.) |
130 Lbs. |
|
|
Single Wall Ovens
FEB24S2A S / B 24" Electric
B
E
A
D
Spacer
C
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions |
|
|
Cutout Dimensions |
|
|
A - Height |
30-3/4" |
|
Height (Min.) |
28-1/8" |
|
B - Width |
23-7/8" |
|
Height (Max.) |
30-1/8" |
|
C - Depth |
25-3/8" |
|
Width |
(Min.) |
22" |
D - Height (Wrapper) |
28-3/32" |
|
Width |
(Max.) |
22-1/4" |
E - Width (Wrapper) |
21-11/16" |
|
Depth |
(Min.) |
23-1/2" |
Depth with Door Open 90˚ |
43-3/4" |
|
|
|
|
|
|
|
|
|
|
1When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005.
2Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line.
Accessories information available on the web at frigidaire.com
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com |
Specifications |
|
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca |
||
subject to change. |
FEB24S2A 02/12 |
© 2012 Electrolux Home Products, Inc. |
