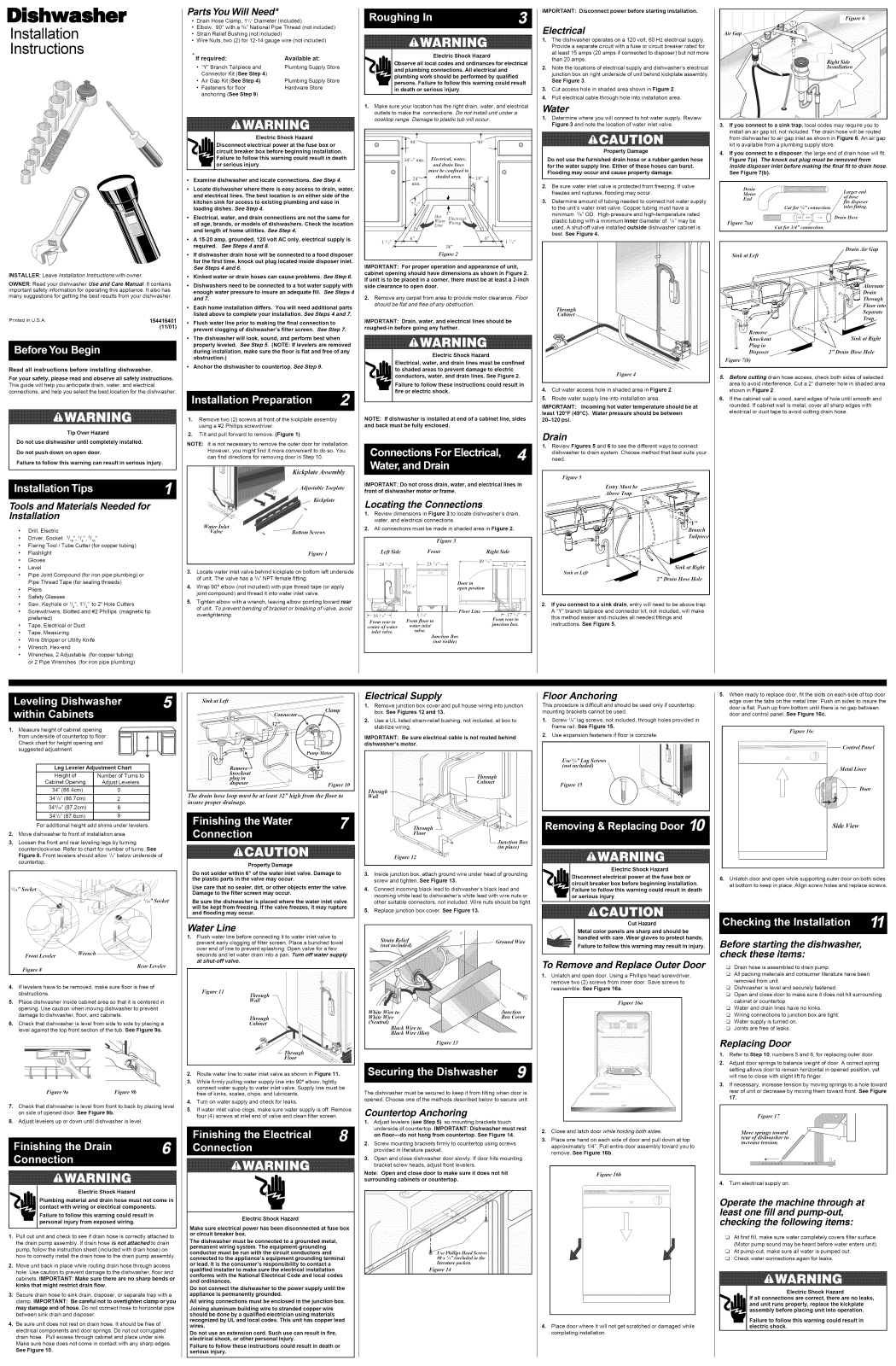

Frigidaire FDB102SDW0 Installation Guide

Dishwasher

Installation Instructions

INSTALLER: Leave Installation Instructions with owner. OWNER: Read your dishwasher Use and Care Manual. It contains

important safety information for operating this appliance. It also has many suggestions for getting the best results from your dishwasher.

Printed in U.S.A.

Read all instructions before installing dishwasher.

For your safety, please read and observe all safety instructions.

This guide will help you anticipate drain, water, and electrical connections, and help you select the best location for the dishwasher.

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door. Failure to follow this warning can result in serious injury.

154416401

(11/01)

Parts You Will Need*

• Drain Hose Clamp, 1W' Diameter (included)

• Elbow, 90° with a 3//' National Pipe Thread (not included)

• Strain Relief Bushing (not included)

• Wire Nuts, two (2) for 12-14 gauge wire (not included)

If required:

• "Y" Branch Tailpiece and Connector Kit (See Step 4)

• Air Gap Kit (See Step 4)

• Fasteners for floor

anchoring (See Step 9)

Electric Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before beginning installation. Failure to follow this warning could result in death

or serious injury.

• Examine dishwasher and locate connections. See Step 4.

• Locate dishwasher where there is easy access to drain, water,

and electrical lines. The best location is on either side of the kitchen sink for access to existing plumbing and ease in

loading dishes. See Step 4.

• Electrical, water, and drain connections are not the same for

all age, brands, or models of dishwashers. Check the location and length of home utilities. See Step 4.

• A 15-20 amp, grounded, 120 volt AC only, electrical supply is required. See Steps 4 and 8.

• If dishwasher drain hose will be connected to a food disposer for the first time, knock out plug located inside disposer inlet.

See Steps 4 and 6.

• Kinked water or drain hoses can cause problems. See Step 6.

• Dishwashers need to be connected to a hot water supply with

enough water pressure to insure an adequate fill. See Steps 4 and 7.

• Each home installation differs. You will need additional parts listed above to complete your installation. See Steps 4 and 7.

• Flush water line prior to making the final connection to prevent clogging of dishwasher's filter screen. See Step 7.

• The dishwasher will look, sound, and perform best when properly leveled. See Step 5. (NOTE: If levelers are removed during installation, make sure the floor is flat and free of any obstruction.)

• Anchor the dishwasher to countertop. See Step 9.

1. Remove two (2) screws at front of the kickplate assembly

using a #2 Phillips screwdriver.

2. Tilt and pull forward to remove. (Figure 1).

NOTE: It is not necessary to remove the outer door for installation.

However, you might find it more convenient to do so. You

can find directions for removing door in Step 10.

Available at:

Plumbing Supply Store

Plumbing Supply Store Hardware Store

Electric Shock Hazard

Observe all local codes and ordinances for electrical

and plumbing connections. All electrical and

plumbing work should be performed by qualified persons. Failure to follow this warning could result in death or serious injury.

1. Make sure your location has the right drain, water, and electrical

outlets to make the connections. Do not install unit under a cooktop range• Damage to plastic tub will occur•

0' I 90°

3414" £1Jn.

24"_'* _ 18"

ram. _"

Electrical, water,

and drain lines

must be confined to

shaded area.

•Elec,w;\ \\\X

24 _

Figure 2

IMPORTANT: For proper operation and appearance of unit, cabinet opening should have dimensions as shown in Figure 2. If unit is to be placed in a corner, there must be at least a 2-inch

side clearance to open door.

2. Remove any carpet from area to provide motor clearance. Floor

should be flat and free of any obstruction.

IMPORTANT: Drain, water, and electrical lines should be roughed-in before going any further.

Electric Shock Hazard

Electrical, water, and drain lines must be confined to shaded areas to prevent damage to electric conductors, water, and drain lines. See Figure 2.

Failure to follow these instructions could result in fire or electric shock.

NOTE: If dishwasher is installed at end of a cabinet line, sides

and back must be fully enclosed.

IMPORTANT: Disconnect power before starting installation.

Electrical

1. The dishwasher operates on a 120 volt, 60 Hz electrical supply. Provide a separate circuit with a fuse or circuit breaker rated for at least 15 amps (20 amps if connected to disposer) but not more than 20 amps.

2. Note the locations of electrical supply and dishwasher's electrical

junction box on right underside of unit behind kickplate assembly.

See Figure 3.

3. Cut access hole in shaded area shown in Figure 2.

4. Pull electrical cable through hole into installation area.

Water

1. Determine where you will connect to hot water supply. Review Figure 3 and note the location of water inlet valve.

Property Damage

Do not use the furnished drain hose or a rubber garden hose

for the water supply line. Either of these hoses can burst.

Flooding may occur and cause property damage.

Be sure water inlet valve is protected from freezing. If valve

freezes and ruptures, flooding may occur.

Determine amount of tubing needed to connect hot water supply to the unit's water inlet valve. Copper tubing must have a minimum 3/8"OD. High-pressure and high-temperature rated plastic tubing with a minimum inner diameter of V4"may be

used. A shut-off valve installed outside dishwasher cabinet is best. See Figure 4.

Through

Figure 4

4. Cut water access hole in shaded area in Figure 2.

5. Route water supply line into installation area.

IMPORTANT: Incoming hot water temperature should be at least 120°F (49°C). Water pressure should be between 20-120 psi.

Drain

1. Review Figures 5 and 6 to see the different ways to connect dishwasher to drain system. Choose method that best suits your

need.

Air Gap

3. If you connect to a sink trap, local codes may require you to install an air gap kit, not included. The drain hose will be routed from dishwasher to air gap inlet as shown in Figure 6. An air gap kit is available from a plumbing supply store.

4. If you connect to a disposer, the large end of drain hose will fit.

Figure 7(a). The knock out plug must be removed from

inside disposer inlet before making the final fit to drain hose.

See Figure 7(b).

Drain 31otor Larger end

End fits disposer

Figure 7(a)

Cut for 3/4" connection.

Sink at Left

Plug in

2" Drain Hose Hole

Figure 7(b)

5. Before cutting drain hose access, check both sides of selected area to avoid interference. Cut a 2" diameter hole in shaded area

shown in Figure 2.

6. If the cabinet wall is wood, sand edges of hole until smooth and rounded. If cabinet wall is metal, cover all sharp edges with electrical or duct tape to avoid cutting drain hose.

_hose

inlet fitting.

Drain Hose

Drain Air Gap

Alternate Drain

Through

Floor into

Separate

Sink at Right

Tools and Materials Needed for

Installation

Drill, Electric Driver, Socket 3/16",1/4",5/16"

Flaring Tool / Tube Cutter (for copper tubing) Flashlight

Gloves Level

Pipe Joint Compound (for iron pipe plumbing) or Pipe Thread Tape (for sealing threads)

Pliers Safety Glasses Saw, Keyhole or 1/2",11/2"to 2" Hole Cutters

Screwdrivers, Slotted and #2 Phillips (magnetic tip preferred)

Tape, Electrical or Duct Tape, Measuring Wire Stripper or Utility Knife

Wrench, Hex-end Wrenches, 2 Adjustable (for copper tubing)

or 2 Pipe Wrenches (for iron pipe plumbing)

Kickplate Assembly

Toeplate

Kiekplate

Water Inlet

Valve ,. Bottom Screws

Figure 1

3. Locate water inlet valve behind kickplate on bottom left underside of unit. The valve has a 3//' NPT female fitting.

4. Wrap 90° elbow (not included) with pipe thread tape (or apply joint compound) and thread it into water inlet valve.

5. Tighten elbow with a wrench, leaving elbow pointing toward rear of unit. To prevent bending of bracket or breaking of valve, avoid

overtightening.

IMPORTANT: Do not cross drain, water, and electrical lines in

front of dishwasher motor or frame.

Locating the Connections

1. Review dimensions in Figure 3 to locate dishwasher's drain, water, and electrical connections.

2. All connections must be made in shaded area in Figure 2.

Figure 3

Left Side Front

24 3/4"_ L

_ 163,d'< F- 1734"

From rear to From rear to

center of water junction box.

inlet vah,e.

1_23 _ '

3,4,,

in.

3 3/4'_

From floor to

water inlet

i i i i

.... 0

Junction Box

(not visible)

Door in

open position

Floor Line _

Right SMe

49 ]£'

Figure 5

Entry Must be Above Trap

Sink at Left

2 Drain Hose Hole

If you connect to a sink drain, entry will need to be above trap. A "Y" branch tailpiece and connector kit, not included, will make this method easier and includes all needed fittings and instructions. See Figure 5.

Sink at Right

Measure height of cabinet opening

from underside of countertop to floor.

Check chart for height opening and suggested adjustment.

Leg Leveler Adjustment Chart

Height of Number of Turns to

Cabinet Opening Adjust Levelers

34" (86.4cm) 0

34W' (86.7cm) 2

34_hd' (87.2cm) 6

34Vg (87.6cm) 9

For additional height add shims under levelers.

Move dishwasher to front of installation area.

Loosen the front and rear leveling legs by turning counterclockwise. Refer to chart for number of turns. See

Figure 8. Front levelers should allow V4"below underside of countertop.

Figure 10

The drain hose loop must be at least 32" high from the floor to insure proper drainage.

Property Damage

Do not solder within 6" of the water inlet valve. Damage to

the plastic parts in the valve may occur.

Use care that no sealer, dirt, or other objects enter the valve. Damage to the filter screen may occur.

Be sure the dishwasher is placed where the water inlet valve

will be kept from freezing. If the valve freezes, it may rupture and flooding may occur.

Electrical Supply

1. Remove junction box cover and pull house wiring into junction

box. See Figures 12 and 13.

2. Use a UL listed strain-relief bushing, not included, at box to stabilize wiring.

IMPORTANT: Be sure electrical cable is not routed behind

dishwasher's motor.

Through

Waft

Junction Box

(in phtce)

Figure 12

3. Inside junction box, attach ground wire under head of grounding

screw and tighten. See Figure 13.

4. Connect incoming black lead to dishwasher's black lead and

incoming white lead to dishwasher's white lead with wire nuts or other suitable connectors, not included. Wire nuts should be tight.

5. Replace junction box cover. See Figure 13.

Floor Anchoring

This procedure is difficult and should be used only if countertop mounting brackets cannot be used.

1. Screw V4"lag screws, not included, through holes provided in frame rail. See Figure 15.

2. Use expansion fasteners if floor is concrete.

Use /4 Lao Screws

(not inclu (_d)

Figure 15

Disconnect electrical power at the fuse box or circuit breaker box before beginning installation.

[_01 Electric Shock Hazard

Failure to follow this warning could result in death or serious injury.

When ready to replace door, fit the slots on each side of top door edge over the tabs on the metal liner. Push on sides to insure the door is flat. Push up from bottom until there is no gap between door and control panel. See Figure 16c.

Figure 16c

-- Control Panel

SMe View

6. Unlatch door and open while supporting outer door on both sides at bottom to keep in place. Align screw holes and replace screws.

Front Leveler

Rear Leveler

Figure 8

4. If levelers have to be removed, make sure floor is free of obstructions.

5. Place dishwasher inside cabinet area so that it is centered in opening. Use caution when moving dishwasher to prevent

damage to dishwasher, floor, and cabinets.

6. Check that dishwasher is level from side to side by placing a level against the top front section of the tub. See Figure 9a.

Figure 9a Figure 9b

7. Check that dishwasher is level from front to back by placing level on side of opened door. See Figure 9b.

8. Adjust levelers up or down until dishwasher is level.

Electric Shock Hazard

Plumbing material and drain hose must not come in contact with wiring or electrical components.

Failure to follow this warning could result in personal injury from exposed wiring.

1. Pull out unit and check to see if drain hose is correctly attached to

the drain pump assembly. If drain hose is not attached to drain pump, follow the instruction sheet (included with drain hose) on how to correctly install the drain hose to the drain pump assembly.

2. Move unit back in place while routing drain hose through access

hole. Use caution to prevent damage to the dishwasher, floor and cabinets. IMPORTANT: Make sure there are no sharp bends or

kinks that might restrict drain flow.

3. Secure drain hose to sink drain, disposer, or separate trap with a

clamp. IMPORTANT: Be careful not to overtighten clamp oryou may damage end of hose. Do not connect hose to horizontal pipe

between sink drain and disposer.

4. Be sure unit does not rest on drain hose. It should be free of

electrical components and door springs. Do not cut corrugated drain hose. Pull excess through cabinet and place under sink.

Make sure hose does not come in contact with any sharp edges.

See Figure 10.

Water Line

Flush water line before connecting it to water inlet valve to prevent early clogging of filter screen. Place a bunched towel over end of line to prevent splashing. Open valve for a few seconds and let water drain into a pan. Turn off water supply

at shut-off valve.

Figure 11

2. Route water line to water inlet valve as shown in Figure 11.

3. While firmly pulling water supply line into 90° elbow, tightly connect water supply to water inlet valve. Supply line must be free of kinks, scales, chips, and lubricants.

4. Turn on water supply and check for leaks.

5. If water inlet valve clogs, make sure water supply is off. Remove four (4) screws at inlet end of valve and clean filter screen.

Make sure electrical power has been disconnected at fuse box

or circuit breaker box. The dishwasher must be connected to a grounded metal,

permanent wiring system. The equipment-grounding

conductor must be run with the circuit conductors and connected to the appliance's equipment grounding terminal

or lead. It is the consumer's responsibility to contact a

qualified installer to make sure the electrical installation conforms with the National Electrical Code and local codes

and ordinances.

Do not connect the dishwasher to the power supply until the

appliance is permanently grounded. All wiring connections must be enclosed in the junction box.

Joining aluminum building wire to stranded copper wire should be done by a qualified electrician using materials

recognized by UL and local codes. This unit has copper lead

wires.

Do not use an extension cord. Such use can result in fire,

electrical shock, or other personal injury.

Failure to follow these instructions could result in death or

serious injury.

Through --\

Wall

Electric Shock Hazard

Strain Relief mot included)

White Wire to Junction White Wire Box Cover

(Neutral)

Bhtck Wire to Bhtck VVire (HoO

Figure 13

The dishwasher must be secured to keep it from tilting when door is opened. Choose one of the methods described below to secure unit.

Ground Wire

Countertop Anchoring

1. Adjust levelers (see Step 5) so mounting brackets touch underside of countertop. IMPORTANT: Dishwasher must rest on floor--do not hang from countertop. See Figure 14.

2. Screw mounting brackets firmly to countertop using screws provided in literature packet.

3. Open and close dishwasher door slowly. If door hits mounting bracket screw heads, adjust front levelers.

Note: Open and close door to make sure it does not hit

surrounding cabinets or countertop.

#8 x % dncluded in the literature packeO.

Figure 14

Cut Hazard

Metal color panels are sharp and should be handled with care. Wear gloves to protect hands.

Failure to follow this warning may result in injury.

To Remove and Replace Outer Door

1. Unlatch and open door. Using a Phillips head screwdriver, remove two (2) screws from inner door. Save screws to

reassemble. See Figure 16a.

Figure 16a

!i:i;: : ;![il¸

Close and latch door while holding both sides.

Place one hand on each side of door and pull down at top approximately 1/4". Pull entire door assembly toward you to remove. See Figure 16b.

Figure 16b

4. Place door where it will not get scratched or damaged while completing installation.

Before starting the dishwasher, check these items:

[] Drain hose is assembled to drain pump. [] All packing materials and consumer literature have been

removed from unit.

[] Dishwasher is level and securely fastened. [] Open and close door to make sure it does not hit surrounding

cabinet or countertop.

[] Water and drain lines have no kinks. [] Wiring connections to junction box are tight.

[] Water supply is turned on. [] Joints are free of leaks.

Replacing Door

Refer to Step 10, numbers 5 and 6, for replacing outer door.

Adjust door springs to balance weight of door. A correct spring setting allows door to remain horizontal in opened position, yet will rise to close with slight lift fo finger.

If necessary, increase tension by moving springs to a hole toward rear of unit or decrease by moving them toward front. See Figure

17.

4. Turn electrical supply on.

Operate the machine through at least one fill and pump-out, checking the following items:

[] At first fill, make sure water completely covers filter surface.

(Motor pump sound may be heard before water enters unit).

[] At pump-out, make sure all water is pumped out. [] Check water connections again for leaks.

Electric Shock Hazard If all connections are correct, there are no leaks, and unit runs properly, replace the kickplate

assembly before placing unit into operation.

Failure to follow this warning could result in

electric shock.
