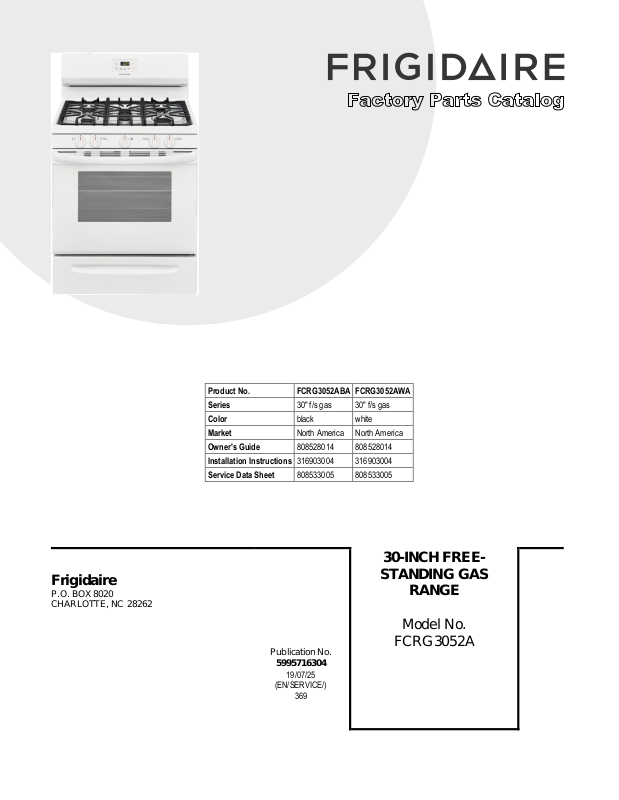

Product No.
FCRG3052ABA
FCRG3052AWA
Series
30" f/s gas
30" f/s gas
Color
black
white
Market
North America
North America
Owner's Guide
808528014
808528014
Installation Instructions
316903004
316903004
Service Data Sheet
808533005
808533005
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995716304
19/07/25
(EN/SERVICE/)
369
30-INCH FREE-
STANDING GAS
RANGE
Model No.
FCRG3052A
Page 2
Publication No: 5995716304 FCRG3052A
BACKGUARD
07/19 2
Page 3
FCRG3052A Publication No: 5995716304
BACKGUARD
POS. NO PART NO. DESCRIPTION
1 316281802 A B Shield, backguard, rear wall
15 5304493644 A - Cap, end, black, RH
15 808754505 - B Cap, end, white, RH
15A 5304493646 A - Cap, end, black, LH
15A 808754506 - B Cap, end, white, LH
19 5304519435 A - Panel, backguard, black
19 5304519434 - B Panel, backguard, white
20 # 5304521341 A B Control, electronic, ES100
20A 316220729 A - Overlay, clock, black
20A 316220728 - B Overlay, clock, white
24 # 5304515139 A - Switch, rocker, black, oven light
24 # 5304515133 - B Switch, rocker, white
36 5304507386 A - Knob, top valve, black
36 5304507387 - B Knob, top valve, white
40 316605358 A - Panel, manifold, black
40 316605357 - B Panel, manifold, white
42 808754601 A - Deflector, backguard
42 808754602 - B Deflector, backguard, light grey
56 316230708 A B Shield, backguard, inner
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316089500 A B Screw, 10-16 x .486
Model Index: A FCRG3052A (FCRG3052ABA)
B FCRG3052A (FCRG3052AWA)
# Functional Parts 3 07/19
* Non-Illustrated Parts
Page 4
Publication No: 5995716304 FCRG3052A
BURNER
07/19 4
Page 5
FCRG3052A Publication No: 5995716304
BURNER
POS. NO PART NO. DESCRIPTION
1 # 5304513540 A B Manifold, pipe
2 # 5304506549 A B Valve, top burner, blue stem, 1125BTU
2A # 5304506547 A B Valve, top burner, black stem, 500BTU
2B # 5304506550 A B Valve, top burner, white stem, 1500BTU
2C # 5304506548 A B Valve, top burner, green stem, 850BTU
2D # 5304506551 A B Valve, top burner, pink stem, 2500BTU
* 316215600 A B Screw, valve mtg., 1/4 - 20
3 # 5304520720 A B Harness, ignition
8 # 808608804 A B Spark Module
8* 316021109 A B Screw, 8-18 x 0.5, chrome
8* 5304505563 A B Wire, ground, spark module, w/connector
10 # 316438400 A B Burner, sealed, 17K
10A# 316438200 A B Burner, sealed, 5K
10B# 316438000 A B Burner, sealed, 12K
10C# 316558300 A B Burner, sealed, 9.5K
10D# 316559300 A B Burner, sealed, 9.5K, oval
11 # 316536621 A B Ignitor/orifice assy .,, top burner, right front, 16K, w/tube & holder
11A# 316536610 A B Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube
11B# 316536612 A B Ignitor/orifice assy., top burner, left rear, 12K, w/holder, tube
11C# 316536602 A B Ignitor/orifice assy., top burner, left front, 9.5K, w/holder, tube
11D# 316536623 A B Ignitor/orifice assy., top burner, center, 9.5K, w/holder & tube
12 316540900 A B Screw, burner, head mtg, (8)
13 316489101 A B Tube-manifold supply
14 # 5304498819 A B Regulator, pressure
14* 316021104 A B Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt
15 316091600 A B Bracket, regulator
* 316089500 A B Screw, 10-16 x .486
17 # 316572800 A B Valve, safety
17* 316498100 A B Shield, wire, safety valve
18 # 316404400 A B Burner, oven
19 # 5304508786 A B Ignitor, bake
20 5304519024 A B Baffle, oven burner
22 5304520704 A B Tube, valve, 3/8
37 316240600 A B Screw, assy mtg, (8), ignitor/orifice
44 # 316527502 A B Orifice, burner, 12K
44A# 316527504 A B Orifice, burner, 5K
44B# 316527508 A B Orifice, top burner, 16K
44C# 316527500 A B Orifice, burner, 9.5K
47 # 316542416 - - LP Conversion Kit
* # 5304494425 A B Harness, ignitor module
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316260800 A B Screw-shoulder, w/shoulder, #8-18 x 1/2"
Model Index: A FCRG3052A (FCRG3052ABA)
B FCRG3052A (FCRG3052AWA)
# Functional Parts 5 07/19
* Non-Illustrated Parts
Page 6
Publication No: 5995716304 FCRG3052A
BODY
07/19 6
Page 7
FCRG3052A Publication No: 5995716304

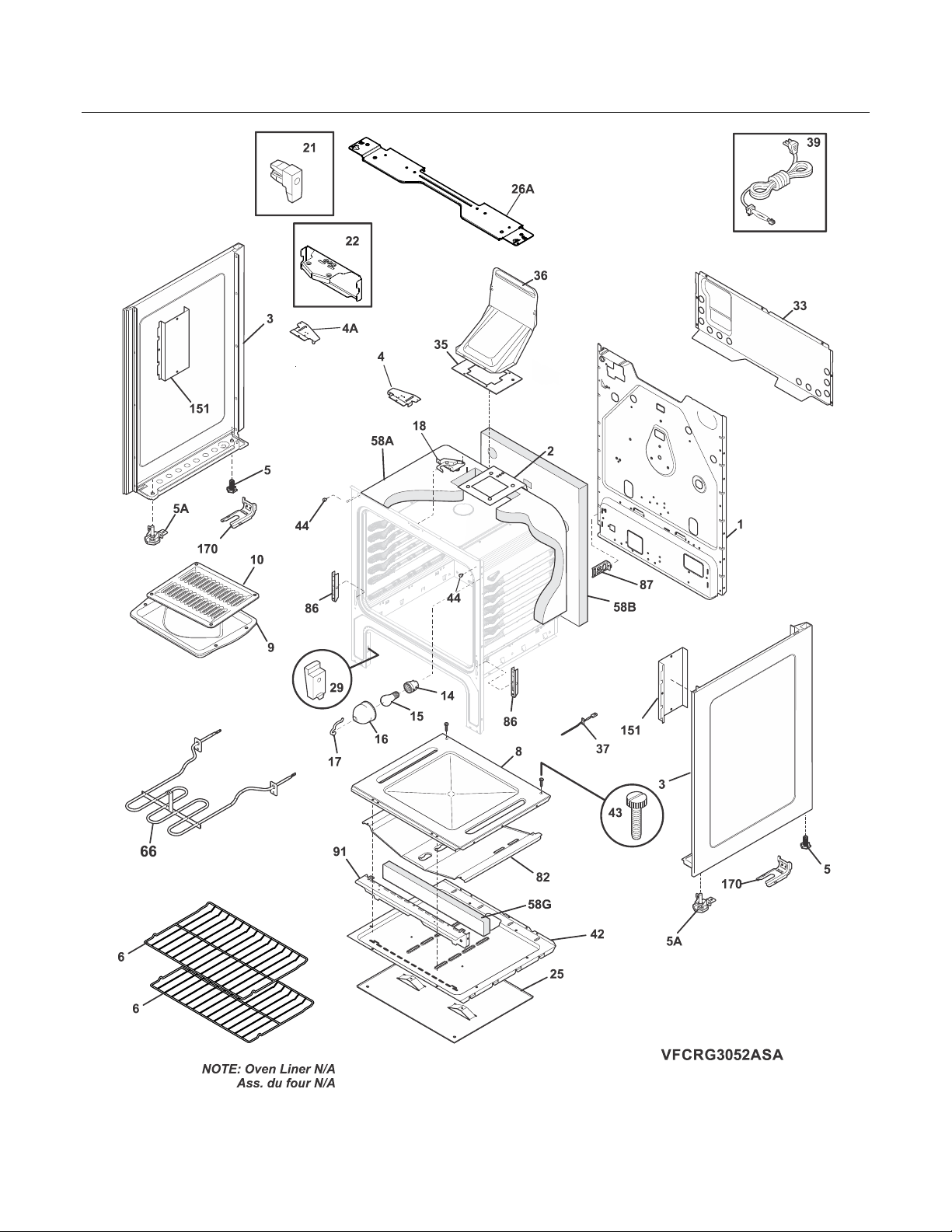

BODY
POS. NO PART NO. DESCRIPTION
1 316401607 A B Back, main
* 316418901 A B Screw, trilobe, 10-32 x 5/16", black
2 316437100 A B Brace, oven top
3 316400136 A - Panel, bodyside, black, RH
3 316400137 A - Panel, bodyside, black, LH
3 316400134 - B Panel, bodyside, white, RH
3 316400135 - B Panel, bodyside, white, LH
4 316605400 A B Bracket-maintop, RH
4A 316605401 A B Bracket-maintop, LH
5 316272900 A B Screw, leveling, plastic, rear, (2)
5A 5304509869 A B Leveling Leg Assy, metal, front, (2), bracket & leg
6 316496201 A B Rack, oven
8 316400603 A B Panel, oven bottom
9 316081900 - - Pan, broilerOPTIONAL ACCESS0RY
10 316082000 - - Insert, broiler panOPTIONAL ACCESS0RY
14 316116400 A B Receptacle, oven light
15 316538901 A B Lamp, oven light
16 318406100 A B Lens, oven light, glass
17 316087500 A B Retainer, lens
18 # 316405802 A B Bracket, hole opening, no latch
21 316408000 A B Clip, bodyside
22 316286300 A B Bracket-bodyside, (2)
* 316279600 A B Screw, bracket, stiffener, (4)
25 316406200 A B Shield, heat, lower
26A 316498200 A B Bracket-support, chassis, aluminum
33 316405900 A B Shield, rear wall
35 316542102 A B Gasket-flue
36 316208903 A B Flue
37 # 316490000 A B Probe, oven temp
39 # 5304509199 A B Cord, electric power, black
* 316001003 A B Screw, ground wire
42 316400700 A B Shield, wool, lower
43 3131732 A B Screw, 8-18 x 1.438, oven bottom
44 316517600 A B Bumper, front, main
58A 316403701 A B Insulation, oven wrapper
58B 316403603 A B Insulation, oven back
58G 08067973 A B Insulation, main front
66 # 5304521340 A B Element, broil
82 316400801 A B Shield, bake burner
82* 316432800 A B Clip, wire
86 316441300 A B Receptacle, hinge
* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
87 316401202 A B Bracket, harness
91 807219501 A B Shield, burner, front
151 5304518926 A B Shield, heat, bodyside, (2)
170 316112005 A B Anti Tip Kit, assy, w/template
170* 316107200 A B Bracket, anti-tip
170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt
170* 316541700 A B Template, anti-tip
Model Index: A FCRG3052A (FCRG3052ABA)
B FCRG3052A (FCRG3052AWA)
# Functional Parts 7 07/19
* Non-Illustrated Parts
Page 8
Publication No: 5995716304 FCRG3052A
BODY
07/19 8
Page 9
FCRG3052A Publication No: 5995716304
BODY
POS. NO PART NO. DESCRIPTION
* # 5304520710 A B Harness, wiring, main
* 316210800 A B Plug, hole, light switch
* 297174300 A B Screw, self pierce, #8, 18x.63
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black, 44*
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 5303288566 A B Screw, TR HD SQD AB, 8-18 x 0.25, (8)
* 316021132 A B Screw, 8-18 X 11/16, black, (3)
* 316089500 A B Screw, 10-16 x .486
* 316215600 A B Screw, valve mtg., 1/4 - 20
* 316260800 A B Screw-shoulder, w/shoulder, #8-18 x 1/2"
Model Index: A FCRG3052A (FCRG3052ABA)
B FCRG3052A (FCRG3052AWA)
# Functional Parts 9 07/19
* Non-Illustrated Parts
Page 10
Publication No: 5995716304 FCRG3052A
TOP/DRAWER
07/19 10
Page 11
FCRG3052A Publication No: 5995716304

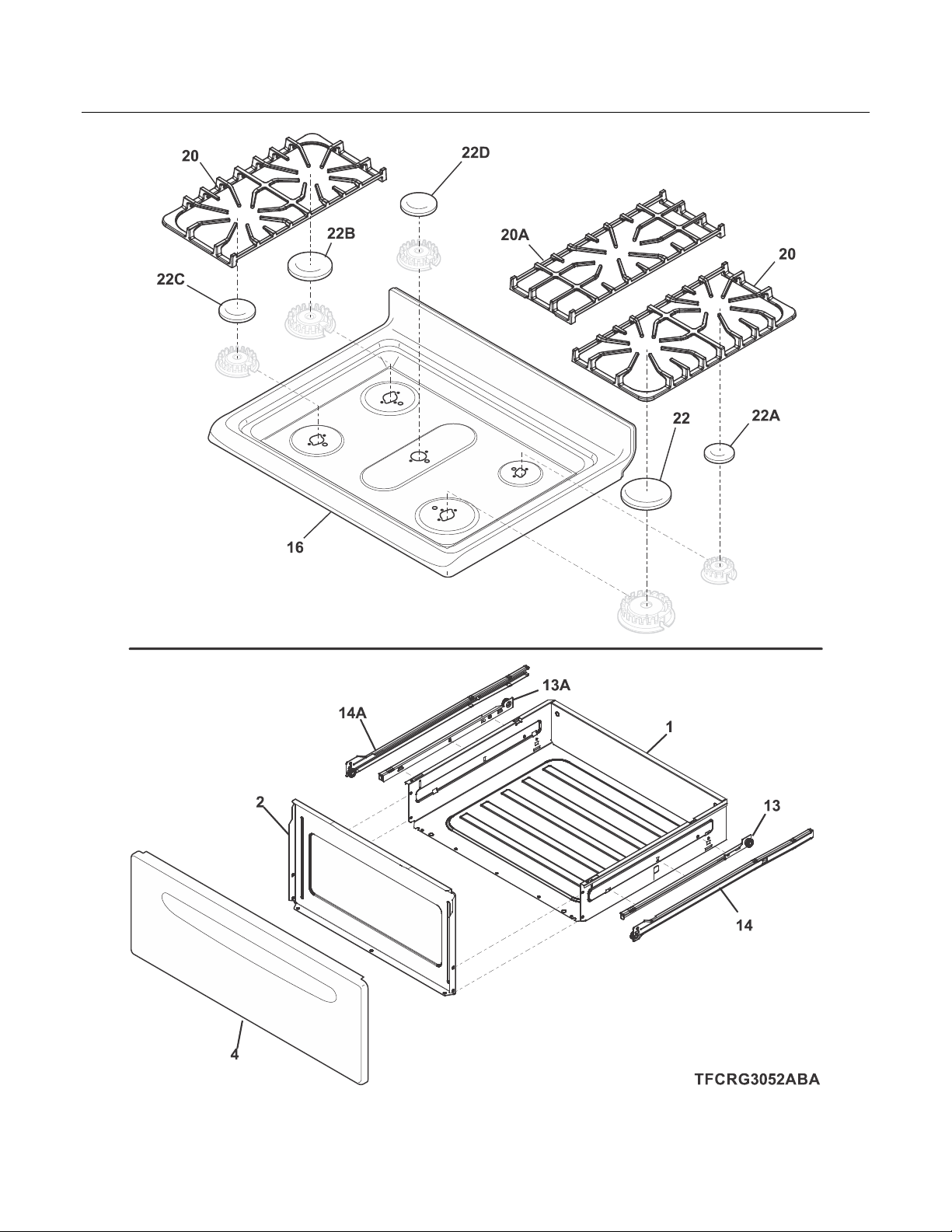

TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 316408706 A B Drawer, utility
2 5304511880 A B Liner, drawer
4 5304513125 A - Panel, drawer, black
4 5304513124 - B Panel, drawer, white
13 5304517905 A B Glide, drawer, black, RH inner
13A 5304517903 A B Glide, drawer, black, LH inner
14 5304517904 A B Glide, drawer, black, RH outer
14A 5304517902 A B Glide, drawer, black, LH outer
16 316610006 A - Main Top, black
16 316610005 - B Main Top, white
20 807327101 A B Grate, burner, black, side, (2)
20A 807412601 A B Grate, burner, black, center
22 316262104 A B Cap, 17K burner, black
22A 316261704 A B Cap, 5K burner, matte, black
22B 316261904 A B Cap, 12K burner, black
22C 316261804 A B Cap, 9.5K burner, matte, black
22D 316559604 A B Cap, 9.5K burner, black, oval
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316089500 A B Screw, 10-16 x .486
* 316260800 A B Screw-shoulder, w/shoulder, #8-18 x 1/2"
Model Index: A FCRG3052A (FCRG3052ABA)
B FCRG3052A (FCRG3052AWA)
# Functional Parts 11 07/19
* Non-Illustrated Parts
Page 12
Publication No: 5995716304 FCRG3052A
DOOR
07/19 12
Page 13
FCRG3052A Publication No: 5995716304

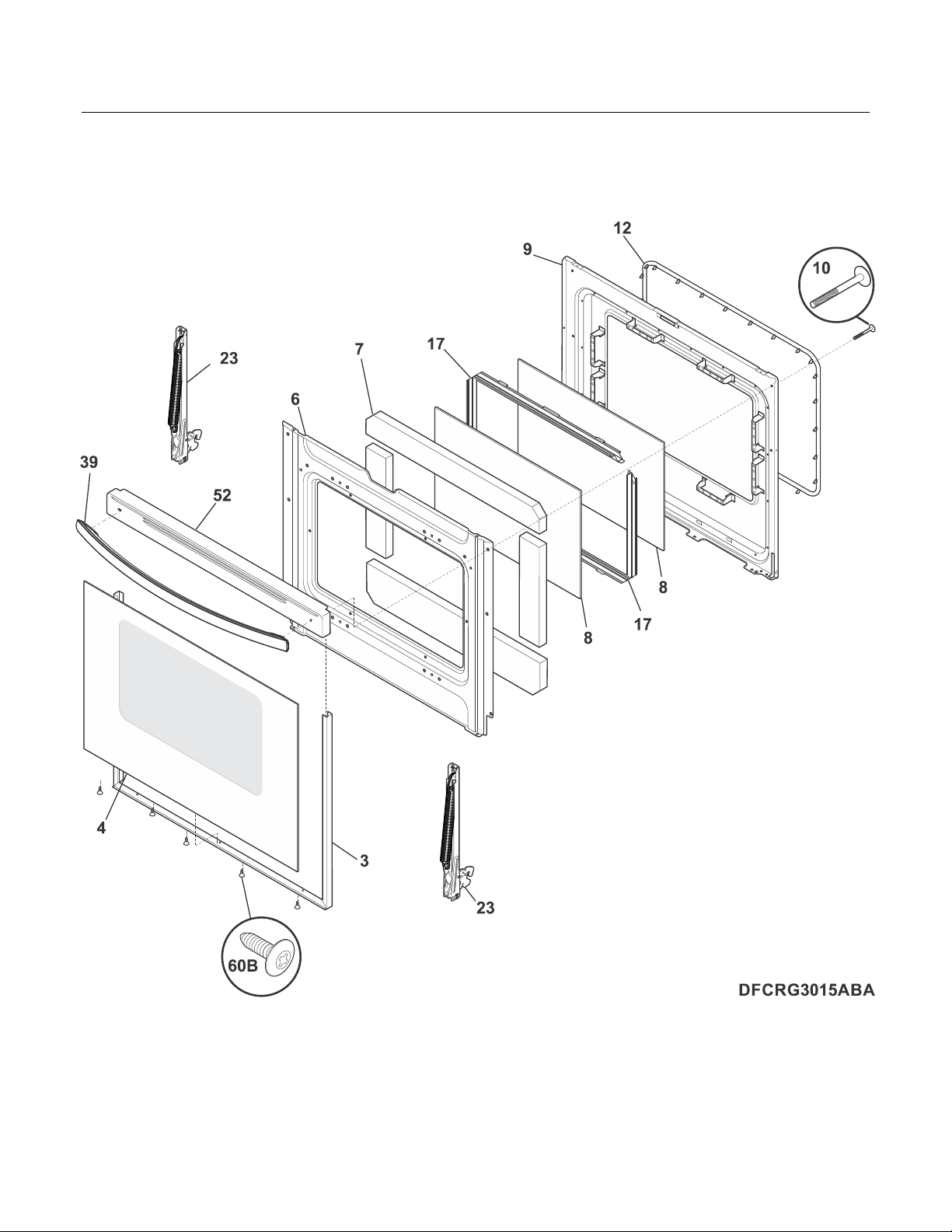

DOOR
POS. NO PART NO. DESCRIPTION
3 5303935378 A - Trim kit-door, 3 sided, black, w/tape
3 5303935379 - B Trim kit-door, 3 sided, white, w/tape
4 316558906 A - Glass, oven door, black, outer
4 316558905 - B Glass, oven door, white, outer
6 316402315 A B Shield, wool
7 316403900 A B Insulation, oven door
8 5304503232 A B Glass, oven door, inner
9 316423807 A B Liner-oven door
10 316433300 A B Screw, 10-14 x 2.125", handle mtg.
12 316403101 A B Seal, oven door
16 316117503 A B Glass, oven door, inner, HRC1
17 5304504811 A B Spacer, glass
23 316575902 A B Hinge, oven door, red
23* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
39 5304522046 A - Handle, door
39 5304507385 - B Handle, door, white
52 316575501 A - Cap, door trim, black
52 316575500 - B Cap, door trim, white
60B 316021109 A B Screw, 8-18 x 0.5, chrome
* 316483102 A B Label, anti-tip
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black, 44*
Model Index: A FCRG3052A (FCRG3052ABA)
B FCRG3052A (FCRG3052AWA)
# Functional Parts 13 07/19
* Non-Illustrated Parts
