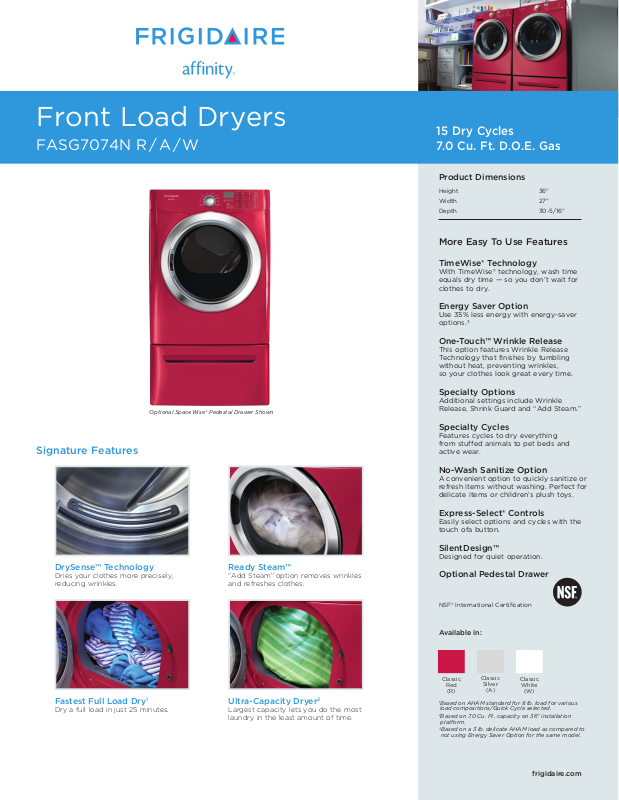

Frigidaire FASG7074NR, FASG7074NW Specification Sheet
Front Load Dryers
FASG7074N R / A / W
Optional SpaceWise® Pedestal Drawer Shown
Signature Features
15 Dry Cycles
7.0 Cu. Ft. D.O.E. Gas
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
TimeWise® Technology
With TimeWise® technology, wash time
equals dry time — so you don’t wait for
clothes to dry.
Energy Saver Option
Use 35% less energy with energy-saver
3
options.
One-Touch™ Wrinkle Release
This option features Wrinkle Release
Technology that finishes by tumbling
without heat, preventing wrinkles,
so your clothes look great every time.
Specialty Options
Additional settings include Wrinkle
Release, Shrink Guard and “Add Steam.”
Specialty Cycles
Features cycles to dry everything
from stuffed animals to pet beds and
active wear.
DrySense™ Technology
Dries your clothes more precisely,
reducing wrinkles.
Fastest Full Load Dry
Dry a full load in just 25 minutes.
1
Ready Steam™
“Add Steam” option removes wrinkles
and refreshes clothes.
Ultra-Capacity Dryer
Largest capacity lets you do the most
laundry in the least amount of time.
2
No-Wash Sanitize Option
A convenient option to quickly sanitize or
refresh items without washing. Perfect for
delicate items or children’s plush toys.
Express-Select® Controls
Easily select options and cycles with the
touch ofa button.
SilentDesign™
Designed for quiet operation.
Optional Pedestal Drawer
NSF® International Certification
Available in:
Classic
Red
(R)
1
Based on AHAM standard for 8 lb. load for various
load compositions/Quick Cycle selected.
2
Based on 7.0 Cu. Ft. capacity on 36" installation
platform.
3
Based on a 3 lb. delicate AHAM load as compared to
not using Energy Saver Option for the same model.
Classic
Silver
(A)
Classic
White
(W)
frigidaire.com
B
C
A
C
B
A
Features
Total Capacity D.O.E. (Cu. Ft.)
Controls
Dryer Drum Interior
Interior Light
Door Trim
Ready Steam™
DrySense™ Technology
Wrinkle Release Technology
TimeWise® Technology
Moisture Sensor
Time Remaining Indicator
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Cycle Signal Volume Control
Control Lock
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
7.0
Express-Select®
Stainless Steel
Yes
Chrome
Option
Yes
Yes
Yes
Yes
Yes
Yes
Chime
Yes
Yes
Yes
Yes
1 to 12 Hours
50
Yes
Yes
SilentDesign™
Yes
Cycles
Dry Cycles
Specialty Cycles
15
6
Options
Temperature Selections
Dryness Level Selections
Timed Dry
5
5
30, 60, 75, 90
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Silver (A)
Classic White (W)
Mobile Home Installation Kit
LP Gas Conversion Kit
Drying Rack
PN # STACKIT4X
(R) PN # CFPWD15R
(A) PN # CFPWD15A
(W) PN # CFPWD15W
PN # 137067200
PN # PCK4200
PN # 137067300
Certifications
NSF® Certified Sanitize
Yes
Specifications
Maximum Exhaust Duct Length1 (Ft.)
Gas Connection
Power Cord Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Heating Element (BTU / HR)
Shipping Weight (Approx.)
1
Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows
and vents. Refer to Installation Guide on web for additional information.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
64
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 15A
2
0.75
7
20,000
140 Lbs.
Front Load Dryers
FASG7074N R / A / W 7.0 Cu. Ft. D.O.E. Gas
NOTE: For planning purposes only. Always consult local and national
electric, gas and plumbing codes. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
Depth with Drawer Fully Extended
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/2"
42-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FASG7074N 06/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
