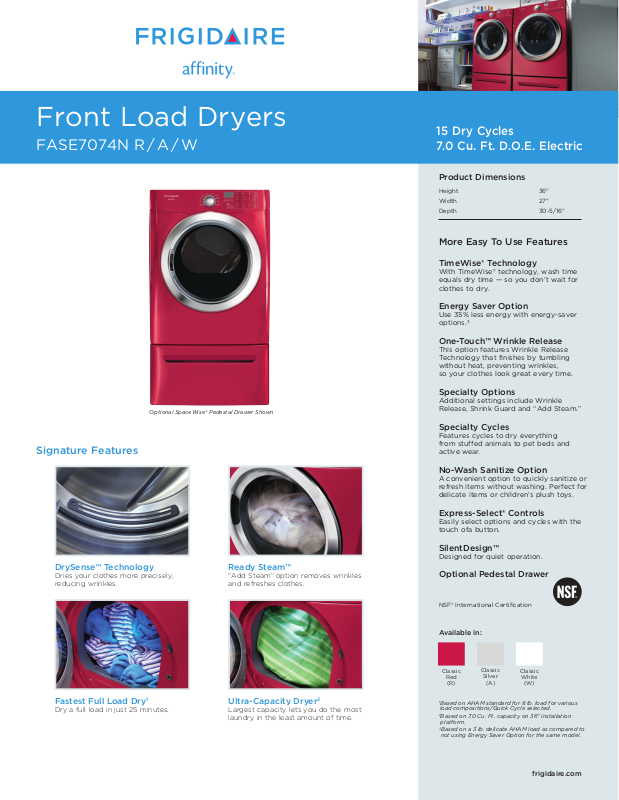

Frigidaire FASE7074NW, FASE7074NR Specification Sheet

Front Load Dryers
FASE7074N R / A / W
Optional SpaceWise® Pedestal Drawer Shown
Signature Features
15 Dry Cycles
7.0 Cu. Ft. D.O.E. Electric
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
TimeWise® Technology
With TimeWise® technology, wash time equals dry time — so you don’t wait for clothes to dry.
Energy Saver Option
Use 35% less energy with energy-saver
3
options.
One-Touch™ Wrinkle Release
This option features Wrinkle Release Technology that finishes by tumbling without heat, preventing wrinkles, so your clothes look great every time.
Specialty Options
Additional settings include Wrinkle Release, Shrink Guard and “Add Steam.”
Specialty Cycles
Features cycles to dry everything from stuffed animals to pet beds and active wear.
DrySense™ Technology
Dries your clothes more precisely, reducing wrinkles.
Fastest Full Load Dry
Dry a full load in just 25 minutes.
1
Ready Steam™
Ultra-Capacity Dryer
Largest capacity lets you do the most laundry in the least amount of time.
2
No-Wash Sanitize Option
A convenient option to quickly sanitize or refresh items without washing. Perfect for delicate items or children’s plush toys.
Express-Select® Controls
Easily select options and cycles with the touch ofa button.
SilentDesign™
Designed for quiet operation.
Optional Pedestal Drawer
NSF® International Certification
Available in:
Classic
Red
(R)
1
Based on AHAM standard for 8 lb. load for various load compositions/Quick Cycle selected.
2
Based on 7.0 Cu. Ft. capacity on 36" installation platform.
3
Based on a 3 lb. delicate AHAM load as compared to not using Energy Saver Option for the same model.
Classic
Silver
(A)
Classic
White
(W)
frigidaire.com
B
C
A
C
B
A
Features
Total Capacity D.O.E. (Cu. Ft.)
Controls
Dryer Drum Interior
Interior Light
Door Trim
Ready Steam™
DrySense™ Technology
Wrinkle Release Technology
TimeWise® Technology
Moisture Sensor
Time Remaining Indicator
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Cycle Signal Volume Control
Control Lock
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
7.0
Express-Select®
Stainless Steel
Yes
Chrome
Option
Yes
Yes
Yes
Yes
Yes
Yes
Chime
Yes
Yes
Yes
Yes
1 to 12 Hours
50
Yes
Yes
SilentDesign™
Yes
Cycles
Dry Cycles
Specialty Cycles
15
6
Options
Temperature Selections
Dryness Level Selections
Timed Dry
5
5
30, 60, 75, 90
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Silver (A)
Classic White (W)
Mobile Home Installation Kit
Drying Rack
PN # STACKIT4X
(R) PN # CFPWD15R
(A) PN # CFPWD15A
(W) PN # CFPWD15W
PN # 137067200
PN # 137067300
Certifications
NSF® Certified Sanitize
Specifications
Maximum Exhaust Duct Length1 (Ft.)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Amps @ 240 Volts
Heating Element @ 240 Volts (Watts)
Shipping Weight (Approx.)
1
Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents. Refer to Installation Guide on web for additional information.
Yes
64
Right Bottom Rear
240V / 60Hz / 30A
5.4
24
5,500
140 Lbs.
Front Load Dryers
FASE7074N R / A / W 7.0 Cu. Ft. D.O.E. Electric
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
Depth with Drawer Fully Extended
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/2"
42-1/2"
USA
10200 David Taylor Drive
CANADA
FASE7074N 06/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
Charlotte, NC 28262
Mississauga, ON L5V 3E4
1-800-FRIGIDAIRE
1-800-265-8352
frigidaire.com
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
