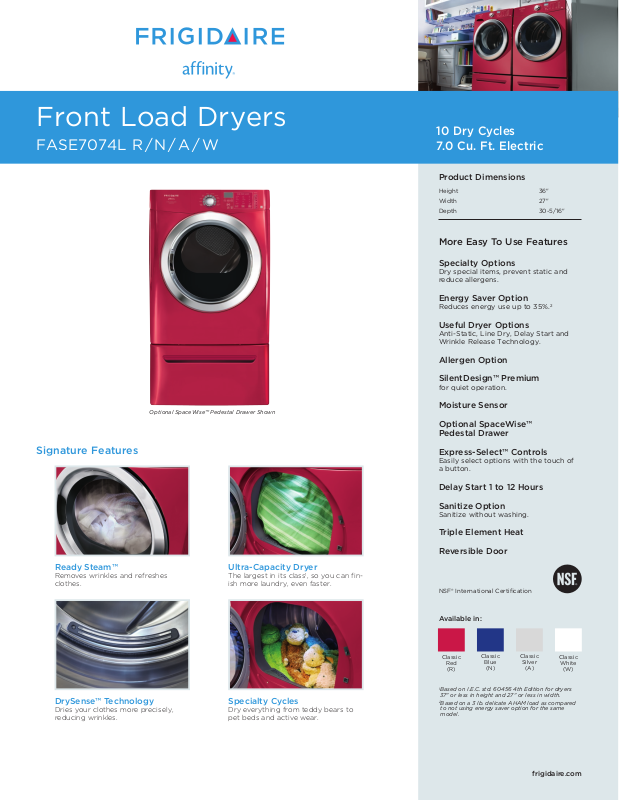

Frigidaire FASE7074LA User Manual
Front Load Dryers
FASE7074L R / N / A / W
10 Dry Cycles
7.0 Cu. Ft. Electric
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
Specialty Options
Dry special items, prevent static and
reduce allergens.
Signature Features
Ready Steam™
Removes wrinkles and refreshes
clothes.
Optional SpaceWise™ Pedestal Drawer Shown
Ultra-Capacity Dryer
The largest in its class1, so you can finish more laundry, even faster.
Energy Saver Option
Reduces energy use up to 35%.
2
Useful Dryer Options
Anti-Static, Line Dry, Delay Start and
Wrinkle Release Technology.
Allergen Option
SilentDesign™ Premium
for quiet operation.
Moisture Sensor
Optional SpaceWise™
Pedestal Drawer
Express-Select™ Controls
Easily select options with the touch of
a button.
Delay Start 1 to 12 Hours
Sanitize Option
Sanitize without washing.
Triple Element Heat
Reversible Door
NSF® International Certification
DrySense™ Technology
Dries your clothes more precisely,
reducing wrinkles.
Specialty Cycles
Dry everything from teddy bears to
pet beds and active wear.
Available in:
Classic
Red
(R)
1
Based on I.E.C. std. 60456 4th Edition for dryers
37" or less in height and 27" or less in width.
2
Based on a 3 lb. delicate AHAM load as compared
to not using energy saver option for the same
model.
Classic
Blue
(N)
Classic
Silver
(A)
frigidaire.com
Classic
White
(W)
B
C
A
C
B
A
Features
Total Capacity (Cu. Ft.)
Controls
Dryer Drum Interior
Interior Light
Door Trim
Ready Steam™
DrySense™ Technology
Wrinkle Release Technology
TimeWise™ Technology
Moisture Sensor
Time Remaining Indicator
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Cycle Signal Volume Control
Control Lock
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
Cycles
Dry Cycles
Specialty Cycles
Options
Temperature Selections
Dryness Level Selections
Timed Dry
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Blue (N)
Classic Silver (A)
Classic Black (B)
Classic White (W)
Mobile Home Installation Kit
Drying Rack
Certifications
NSF® Certified Sanitize
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Amps @ 240 Volts
Heating Element @ 240 Volts (Watts)
Shipping Weight (Approx.)
7.0
Express-Select™
Stainless Steel
Yes
Chrome
Yes
Yes
Yes
Yes
Yes
Yes
Music
Yes
Yes
Yes
Yes
1 to 12 Hours
50
Yes
Yes
SilentDesign™ Premium
Yes
15
6
5
5
15, 30, 45, 90
PN # STACKIT4X
(R) PN # CFPWD15R
(N) PN # CFPWD15N
(A) PN # CFPWD15A
(W) PN # CFPWD15W
PN # 137067200
PN # 137067300
Yes
Right Bottom Rear
240V / 60Hz / 30A
5.0
24
5,500
140 Lbs.
Front Load Dryers
FASE7074L R / N / A / W 7.0 Cu. Ft. Electric
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/4"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FASE7074L 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
