Frigidaire CFEF311GSB Owner’s Manual

& Oven Controls .. 6-7

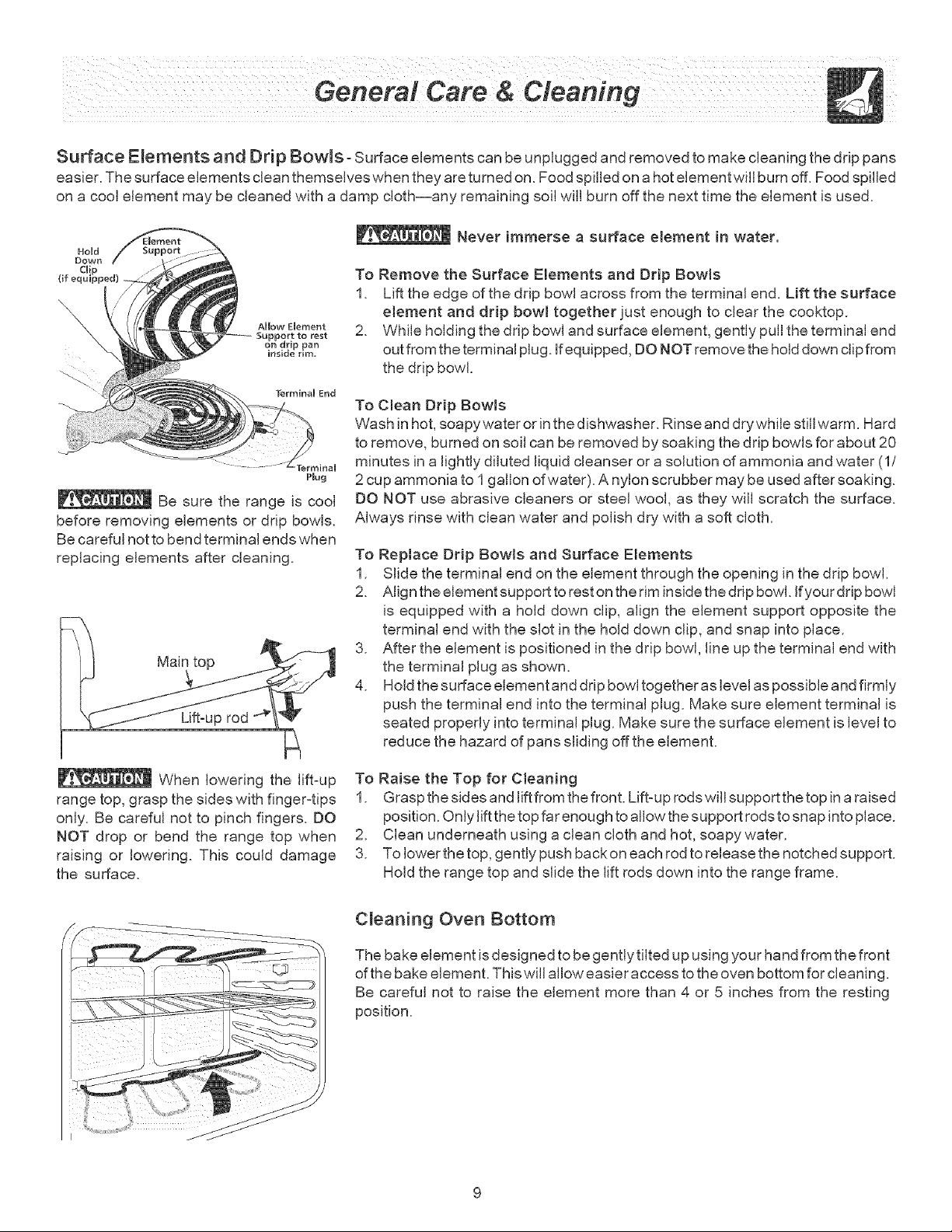

Genera_ Care & C_eaning ......... 8-10

Before You Call

Solutions to Common Problems ........................ 11

2

Warranty ......................... Back Page

Questions? 1-800-944-9044 (UnitedStates)

1-800-668-4606 (Canada)

Visit the Frigidaire Web Site at:

http:flwww.frigidaire.com

READ AND SAVE THESE INSTRUCTIONS pin 316460400(0602)

,u

i I

Serial plate location: Pull out
storage drawer (some models)

Serial pmate

located under

the cooktop

T

(some models)

PLEASE CAREFULLY READ AND SAVE THESE mNSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model.

Use your range only as instructed in this manual. These instructions are not
meant to cover every possible condition and situation that may occur. Common
sense and caution must be practiced when installing, operating and maintaining
any appliance.

Please record your model and seriam numbers below for future reference.
Model Number:

Serial Number:
Purchase Date:

The product sedal plate will provide you both the model number and serial
number for your range. You can find the serial plate on your range at one of the

locations illustrated above.

This Use & Care Manual contains general operating instructions for your range
and feature information for several models. Your range may not have all the
described features. The graphics shown are representational. The graphics on
your range may not look exactly like those shown.

Register Your Product

The self-addressed PRODUCT REGISTRATION CARD should be filled in
completely, signed and returned to Electrolux Home Products.

Read aH instructions before using this appmiance.

Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and fol!ow a!! instructions given.

This Symbol WIll help alert you to situations that may CaUse bodily injury or properiy damage:

Circuit Protection
As a protection against surcharge a 15 amp, 120 volt breaker is provided for the electric outlet. The electrical outlet is
located on top of the control panel. Models with no electric outlet have no breaker.

Remove all tape and packaging before using the range. Destroy
the carton and plastic bags after unpacking the range. Never

allow children to piny with packaging material.
Proper installation--Be sure you r appliance is properly installed
and grounded by a qualified technician in accordance with the

NationaJ Emectrical Code ANSl/NFPA No. 70 latest edition and
local electrical code requirements. Install only per installation

instructions provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power to
the range at the circuit breaker or fuse box in case of an emergency.

© 2006 Electrolux Home Products, Inc.

All rights reserved.

User servicing--Do not repair or replace any part of the

appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician.
This may reduce the risk of personal injury and damage to the

range.
Never modify or alter the construction of a range by removing

leveling legs, panels, wire covers, anti-tip brackets/screws, or

any other part of the product.

Stepping, leaning or sitting on the doors or

drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or play

around the range. The weight of a child on an open door may
cause the range to tip, resulting in serious burns or other injury.

All ranges can tip.

• Injury to persons could result.
Install anti-tip device packed wkh range.

See Installation Instructions.

_To reduce the risk of

tipping, the rangemust be secured by

propedy installed antiotip bracket provided

with the range. To check if the bracket is

installed properly, visually check that rear
leveling leg is inserted into and fully

secured by the anti-tip bracket by

removing lower panel or storage drawer.
For models with a warmer drawer, grasp

the top rear edge of tile range and
carefully attempt to tilt it forward. Refer to

the installation instructions for proper anti*
tip bracket instaflation. __.,

Do not use the oven or warmer drawer (if

equipped) for storage.

Do not store items of interest to chimdren in the

cabinets above a range or on the backguard of a range. Children
climbing on the range to reach items could be seriously injured.

the Room.

Storage in oron Appliance Flammable materials should not
be stored in an oven, warmer drawer, near surface units or in

the storage drawer. This includes paper, plastic and cloth items,
such as cookbooks, plasticware and towels, as well as flammable
liquids. Do not store exp!osives, such as aerosol cans, on or near

the range.

. Do Not Leave Children Alone--Children should not be left alone

or unattended in the area where appliance is in use. They
should never be allowed to sit or stand on any part of the
appliance.

* DO NOTTOUCH SURFACE UNITS, AREAS NEAR THESE UNITS,

HEATING ELEMENTS OR BNTER_OR SURFACES OF THE OVEN,
Both surface units and oven heating elements may be hot even

though they are dark in color. Areas near surface units may
become hot enough to cause burns. During and after use, do not

touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool Among these
areas are the cook top, surfaces facing the cook top, the oven vent
openings and surfaces near these openings, oven door and

window.
Wear Proper ApparemzLooseofitting or hanging garments

should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.

Do Not Use Water or Fmour on Grease Fires--Smother the fire
with a pan lid, or use baking soda, a dry chemical or foamotype

extinguisher.

• When heating fat or grease, watch it closely. Fat or grease may'
catch fire if allowed to become too hot.

• Use Only Dry Potholders--hioist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders

touch hot heating elements. Do not use a towel or other bulky cloth
instead of a potholdeR

• Do Not Heat Unopened Food Containers--Buildup of pressure
may cause container to burst and resumt in injury.

• Remove the oven door from any unused range if it is to be stored
or discarded.

mhiPORTANT--Do not attempt to operate the range during a
power failure. If the power fails, ab_vays turn off the range. If the

range is not turned off and the power resumes, the range will begin
to operate again. Once the power resumes, reset the clock and

oven function.

_MPORTANT _NSTRUCT_ONS FOR US_NGYOUR
COOKTOP

• Know which knob controls each surface heating unit. Place a
pan of food on the unit before turning it on, and turn the unit off
before removing the pan.

• Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having fiat

bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also

improve efficiency.

• Utensil Handles Should Be Turned inward and Not Extend Over
Adjacent Surface Elements--To reduce the risk of bums, ignition

of flammable materials, and spillage due to unintentional contact

with the utensil, the handle of the utensil should be positioned so

that it is turned inward, and does not extend over adjacent surface
units.

• Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoMng and greasy spillovers that
may ignite, or a pan that has boiled dry' may melt.

• Do Not immerse or Soak RemovaMe Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.

• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden

change in temperature. Check the manufacturer's
recommendations for cook top use.

• When flaming foods under a ventilating hood, turn the fan on.

iMPORTANT iNSTRUCTiONS FOR USINGYOUR

OVEN

* Use Care When Opening Oven Door or Warmer Drawer (if

equipped)--Stand to the side of the range when opening the door

of a hot even. Let hot air or steam escape before you remove or
replace food in the oven,
Keep Oven Vent Ducts Unobstructed, The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the

surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.

, Placement of Oven Racks. Always place oven racks in desired

location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with

both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove al! utensils from the rack
before moving.

, Do not use the broiler pan without its insert. The broiler pan and

its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.

, Do not cover the broiler insert with aluminum foil Exposed fat

and grease could ignite.

, Protective Liners--Do not use aluminum foil to line the oven

bottom. Only use aluminum foil as recommended in this manual.
improper installation of these liners may result in risk of electric
shock, or fire.

_MPORTANT _NSTRUCT_ONS FOR CLEANING
YOUR RANGE

Clean the range regulaHy to keep aH parts free of grease that
could catch fire. Pay particular attention to the area underneath

each surface element. Do not allow grease to accumulate.
Kitchen cmeaners and aerosols--Always follow the

manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite

causing damage and injury.
Clean Ventilating Hoods Frequently--Grease should not be

allowed to accumulate on the hood or filter. Fol!ow
manufacturer's instructions for cleaning.

CO_L COOK TOP MODELS

Make Sure Reflector Pans or Drip Bowls Are in Pmace--Absence
of these pans or bowls during cooking may subject wiring or

components underneath to damage.
Protective Liners--Do not use aluminum foil to line surface unit

drip bowls, or reflector pans. Only use aluminum foi! as
recommended in this manual, improper installation of these
liners may result in risk of electric shock, or fire. Improper
installation of these liners may result in risk of electric shock, or

fire.

_MPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act
requires the Governor of California to publish a list of substances
known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential
exposure to such substances.

The EJement ON _ndicator Light

The Coil Cook Top range is equipped with a surface control light that will glow on your range--

i_ iIIII_iiiii!_i!_i!_Q i_iiiii!_i!_i!_i!_i!_i!_i

the Element ON indicator light. The Element ON indicator light (all models) located on the
control panel, will glow when any surface element isturned ON. A quick glance at this light after
cooking is an easy check to be sure all surface controls are turned OFF.

Oven Vent Location

For models equipped with coil surface elements, the oven vent is located under the left
_'ear surface element. When the oven is on, warm air flows through the left rear
element. This venting isnecessary for proper air circulation inthe oven and good baking

results. DO NOT BLOCK THE OVEN VENT.

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERA TINS THE OVEN). Always use oven
mitts when using the oven.

Removing & Replacing Oven Racks

To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides on
the oven walls. Tilt the front of the rack upward and slide the rack back into place.

/
