Frigidaire CFEF2425LWC, CFEF2425LWA, CFEF2425LSC, CFEF2425LSB, CFEF2425LSA Owner’s Manual
...Page 1
LE OF CONTE
16
..........:6 @_
InstallationInstructions.......................................9 CaPe&
Before Setting Surface Controls ............................ 11
Setting Surface Controls ...................................... 15
www,frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
_4
Page 2
Product Registration
Register Your Product
ThePRODUCT
REGISTRATION CARD
should be filled in completely,
signed and returned to
Electrolux Major Appliances.
Serial Plate Location
Congratulations on your purchase of a new appliance!
At Electrolux Major Appliances, we are very proud of
our product and are completely committed to providing
you with the best service possible. Your satisfaction isour
number one priority.
We know you'll enjoy your new appliance and Thank You
for choosing our product. We hope you consider us for
future purchases.
PLEASE CAREFULLY READ AND SAVE THESE
INSTRUCTIONS
This Use & Care Manual contains general operating
instructions for your appliance and feature information
for several models. Your product may not have
all the described features. The graphics shown are
representative. The graphics on your appliance may not
look exactly like those shown. These instructions are not
meant to cover every possible condition and situation
that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance.
; Please record your model and serial numbers
below for future reference,
Model Number:
ii
Serial Number:
ii
Purchase Date:
Please attach sales receipt here for future reference.
© 2009 Electrolux Canada Corp,
All rights reserved
Printed in United States
Page 3
Read all instructions before using this appliance.
Save these instructions for future reference.
DEFINITIONS
A This isthe safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safely
messages that follow this symbol to avoid possible injury
or death,
This symbol will help alert you to situations
that may cause serious bodily harm, death or
This symbol will help alert you to situations that
may cause bodily injury or property damage.
IMPORTANT indicates instaflation, operation or
maintenance information which is important but not
hazard-related,
and in Canada with CSA C22.1 PART l=latest
edition and local code requirements. Install only
per installation instructions provided in the literature
package for this range.
Ask your dealer to recommend a qualified technician
and an authorized repair service. Know how to
disconnect the electrical power to the appliance at the
circuit breaker or fuse box in case of an emergency.
• User Servicing. Do not repair or replace any
part of the appliance unless specifically
recommended in the manuals. All other servicing
should be done only by a qualified technician to
reduce the risk of persona! injury and damage to the
appliance.
e Never modify or alter the construction of an
appEance by removing leveling legs, panels, wire
covers, anti=tip brackets/screws, or any other
part of the product.
Stepping, leaning, sitting or pulEng down on the
door or the drawer of this appliance can result
; =
in serious injuries and also cause damage to the
appliance. Do not allow children to climb or play around
the appliance. The weight of a child on an open door may
causethe appliance to tip, resulting inserious burns or other
injury. An open drawer when hot may cause burns.
o All appliance can Lip.
• Injury to persons could result.
• Install anti=tip bracketpacked with
your appliance.
• See Installation Instructions.
To reduce the risk of tipping, the
appliance must be secured by properly
installed anti=tip bracket provided
with the unit. Refer to the Installation
Instructions for proper anti=tip
bracket installation.
• Remove all tape and packaging wrap before using
the appliance. Discard the carton and plastic
bags after unpacking the appliance. Use recycling
facility where available. Never allow childrento play
with packaging material. Do not remove the wiring label
and other literature attached to the appliance. Do not
remove model/serial number plate.
• Proper Installation. Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance in the United States
with the National Electrical Code ANSI/NFPA No.
70=latest edition, and local code requirements,
o Storage in or on Appliance. Flammable materials
should not be stored in an oven, near surface
burners or in the warm & serve drawer (if
equipped). This includes paper, plastic and cloth
items, such as cookbooks, plastic ware and towels, as
well as flammable liquids. Do not store explosives, such
as aerosol cans, on or near the appliance. Flammable
materials may explode and result in fire or property
damage.
Do not store items of interest to children in the
cabinets above the appliance. Children climbing on
the cooktop to reach items could be seriously injured.
• Do not leave children alone. Children should not
be left alone or unattended in the area where an
appEance is in use. They should never be allowed to
sit or stand on any part of the appliance.
Page 4
• DO NOT TOUCH SURFACE UNITS, AREAS NEAR
THESE UNITS, OVEN HEATING ELEMENTS OR
INTERIOR SURFACES OF THE OVEN OR WARMER
DRAWER (if equipped). Both surface units and oven
heating elements may be hot even though they are
dark in color. Areas near surface units may become
hot enough to cause burns. During and after use, do
not touch, or let clothing or other flammable materials
touch these areas until they have had sufficient time
to cool. Among these areas are the cooktop, surfaces
facing the cooktop, the oven vent openings and
surfaces near these openings, oven door and window.
• Wear Proper Apparel. Loose=fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
NEVER use your appliance as a space heater to
heat or warm the room.
• Do Not Use Water or Flour on Grease Fires.
Smother the fire with a pan lid, or use baking
soda, a dry chemical or foam=type extinguisher.
• When heating fat or grease, watch it closely, Fat
or grease may catch fire if allowed to become too hot.
• Use Only Dry Pot holders. Hoist or damp pot
holders on hot surfaces may result in burns from
steam, Do not let the pot holders touch hot surface
units. Do not use a towel or other bulky cloth instead of
a pot holder.
= Do Not Heat Unopened Food Containers. Buildup
of pressure may cause the container to burst and
result in injury.
• Remove the oven door from any unused
appliance if it is to be stored or discarded.
Do not attempt to operate the appliance during a
power failure. If the power fails, always turn off
the unit. If the unit is not turned off and the power
resumes, the appliance will not operate and an error
message will be displayed. Once the power resumes,
reset the clock and the oven function.
Electronic controllers can be damaged by cold
temperatures. When you use your appliance for
the first time, or if it has not been used for a long
period of time, make sure that it has been exposed
to a temperature above 00C/32°F for at least 3
hours before connecting it to the power supply.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
®
Know which knob controls each surface heating
unit.
• Use Proper Pan SizemThis appliance is equipped
with one or more surface units of different sizes. Select
utensils having flat bottoms large enough to cover the
surface unit. The use of undersized utensils will expose
a portion of surface heating to direct contact and may
result in ignition of clothing. Proper relationship of
utensil to the surface will also improve efficiency.
- Utensil Handles Should Be Turned Inward
and Should Not Extend Over Adjacent Surface
Units--To reduce the risk of burns, ignition of
flammable materials, and spillage due to unintentiona!
contact with the utensil. The handle of the utensil
should be positioned so that it is turned inward, and
does not extend over adjacent surface unit.
- Do not use Searing Grill on the cooktop--The
Searing grill is not designed for use on the cooktop.
Doing so may result in a fire.
- Never Leave Surface Units Unattended--Boilovers
cause smoking and greasy spillovers that may ignite, or
a pan that has boiled dry may melt.
- Protective Liners--Do not use aluminum foil to line
oven bottom or any other part of the appliance. Only
use aluminum as recommended for baking if used as a
cover placed on the food. Any other used of protective
liners or aluminum foil may result in a risk of electric
shock or fire or a short circuit.
• Glazed Cooking Utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cooktop service without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations for cooktop use.
- Do Not Use Decorative Surface Burner Covers.
If an element is accidentally turned on, the decorative
cover will become hot and possibly melt. Burns will
occur if the hot covers are touched. Damage may also
be done to the cooktop.
Page 5
FOR GLASS COOKTOP ONLY
• Do Not Clean or Operate a Broken Cooktop-- If
cooktop should break, cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualified technician
immediately.
• Clean Cooktop Glass with Caution-- If a wet
sponge or cloth is used to wipe spills on a hot cooking
area, be careful to avoid a steam burn. Some cleaners
can produce harmful fumes if applied to a hot surface.
• Do not place hot cookware on cold cooktop
glass-- This cold cause glass to break.
• Avoid Scratching the Cooktop Glass with Sharp
Objects.
IMPORTANT SAFETY INSTRUCTIONS FOR
USING YOUR OVEN
• Use Care When Opening Oven Door--Stand to the
side of the appliance when opening the door/drawer of
a hot appliance. Let hot air or steam escape before you
remove or replace food in the oven/drawer.
• Keep Oven Vent Ducts Unobstructed. The oven is
vented at the front above the oven door. Touching the
surfaces in this area when the oven is operating may
cause severe burns. Also, do not place plastic or heat=
sensitive items on or near the oven vent. These items
could melt or ignite.
NEVER cover any slots, holes or passages in
the oven bottom or cover an entire rack with
materials such as aluminum foil. Doing so blocks
air flow through the oven and may cause carbon
monoxide poisoning. Aluminum foil linings may trap
heat, causing a fire hazard.
• Placement of Oven Racks, Always place oven racks
in desired location while appliance iscool. Remove all
utensils from the rack before removing rack. If rack
must be moved while oven is hot, use extreme caution.
Use pot holders and grasp the rack with both hands to
reposition. Do not let pot holders contact the hot oven
element or interior of the oven.
= Do not use a broiler pan without its insert. Broiler
pan and grid allow dripping fat to drain and be kept
away from the high heat of the broiler.
* Do not cover the broiler grid or oven bottom
with aluminum foil. Exposed fat and grease could
ignite.
Do not touch a hot oven light bulb with a damp
cloth. Doing so could cause the bulb to break.
Disconnect the appliance or shut off the power to the
appliance before removing and replacing the bulb.
IIvIPORTANT SAFETY INSTRUCTIONS FOR
CLEANING YOUR OVEN
• Clean the appliance regularly to keep all parts
free of grease that could catch fire. Exhaust fan
ventilation hoods and grease filters should be kept
clean. Do not allow grease to accumulate. Greasy
deposits in the fan could catch fire. Refer to the hood
manufacturer's instructionsfor cleaning.
• Cleaners/Aerosols--Always follow the manufacturer's
recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing
damage and/or injury.
SELF=CLEANING OVEN ONLY
• Clean in the self-deaning cycle only the parts of
the appliance listed in this Owner's Guide. Before
using the selFdeaning cycle of the appliance, remove
all utensils stored in the appliance.
• Do not clean the oven door gasket. The door
gasket is essential for a good seal. Care should be
taken not to rub, damage or move the gasket.
o De not use oven cleaners. No oven cleaner or oven
liner protective coating of any kind should be used in or
around any part of the appliance.
o Remove oven racks, Oven racks color will change if
left in the oven during a selFcleaning cycle.
The health of some birds is extremely sensitive to the
fumes given off during the self-clean cycle of any wall
oven: Hove birds to another well ventilated room:...................................
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California
to publish a list of substances known to the state to
cause cancer, birth defects or other reproductive harm,
and requires businesses to warn customers of potential
exposure to such substances,
Page 6
Your Range Features:
Element On/Off
indicator light
Oven temperature
knob
Element control knobs
Oven selector knob
Electric outlet
6" left
coil element
6" left
coil element
cooktop
Manual cleaning
oven interior
lllll!!ilill\\\\
Oven On/Off indicatorlight
Oven light switch
6" right rear coil
element
8" right front
coil element
Broil element
Interior oven
light
Adjustable
interior oven
rack(s)
Steel handle
Steel oven door
with window
Storage drawer =
Page 7
Your Range Features,"
Electronic oven control
-- Element control knobs
Element On/Off
indicator light
Electric outlet
6" left rear
coil element
6" left front
coil element_
Porcel_
cooktop
Self-clean door latch
SelFcleaning
oven interior
i1111111 I!i111111I!!I!!III!iIIIll\\\\\
I
E_
JJ
ght light switch
light switch
6" right rear coil
element
8" right front
coil element
Broil element
Interior oven
light
/,
i
Adjustable
interior oven
rack(s)
Glassovendoor _ : _
with window _ _ _ :_
Storage drawer ®
Steel handle
//
Page 8
Your Range Features:
The features shown for
your appliance may vary
according to model type &
color.
Night
Electronic oven control
with kitchen timer
Element control knobs
Element On/Off
indicator light
Electric outlet
6" left rear
coil element
6" left front
coil element
Porcelain --
cooktop
Self-clean door latch
SelFcleaning
oven interior
Hot surface
indicator light
-- Night light switch
Oven light switch
6" right rear coil
element
8" right front
coil element
Broil element
Interior oven
light
Adjustable
interior oven
Storage drawer =
This model is also available in stainless steel color,
Page 9
]:nstallation and service must be performed
by a qualified technician,
Save for the local electrical inspector's use,
Read and save these instructions for future
reference.
Clearances and Dimensions
a. Provide adequate clearances between the range and
adjacent combustible surface (1.3cm (1/2") to the
cabinet side walls and the rear wall).
b. LocationJCheck location where the range will be
installed. Check for proper electrical supply and the
stability of floor.
c. Dimensions that are shown must be used. Given
dimensions provide minimum clearance. Contact
surface must be solid and level.
FRONT
VIEW
61 cm
24"
76.2 cm (30")
Minimum_ t
Minimum to 1.3cm _1
wall on either (1/2") _ 45..7cm Minimum to
side of range. / (; ) either sideof range.
. cabinets on
To eliminate the risk of burns or fire
by reaching over heated surface
units, cabinet storage space located
above the surface units should be
avoided. If cabinet storage is to be
provided, the risk can be reduced by
installing a range hood that projects
horizontally a minimum of 12.7
cm (5") beyond the bottom of the
cabinets.
SIDE
VIEW
li:!!:!:i:_:i:i:i:i:i:!:i:i:!8!:ii:!i!i
4:_3 cm4_
13") v
r cabinets above
range top.
Maximum depth r-
iyiJiiii!ii!i!i!iiiii!!i!i!i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!i!i!!iiiiiiiiiiiiiiiiiii
!_!_!i!_!_!_i_i!_!i!_!_!_!_!_!!i_!_!_!_!i_!_!_!_!_i_i_i_i_i_i_i
_!_!i:i:i_!i_!:iii_iiii_i_i_iiii_ii_ii_ii_i_ii_iiiiiiiiiii_iiiiiiii!i!i!i!i!ii!¸
!_!_:_!_!_:!!_!_!_!!!_!_!_!_:_!_!_!_i:_::i_:_:!:i::_i_:_F!:_:!:_:::_:_:i:_:
_i_i_ii_ii_iii_i_i_iiiii!i_iii_iiiii_i_i_iii_iii_iiiiiiiii!i_iii_iiii_i_!i!!!!_
!!i!!!:!!!i:!:!:!:!:i:i:2:1:i:i:::i:i:i:i:[:i:i::i:i:i:i:::i:::i:i:!i::::::
_i?i_i_i_i[i___i1i__ii_i____i

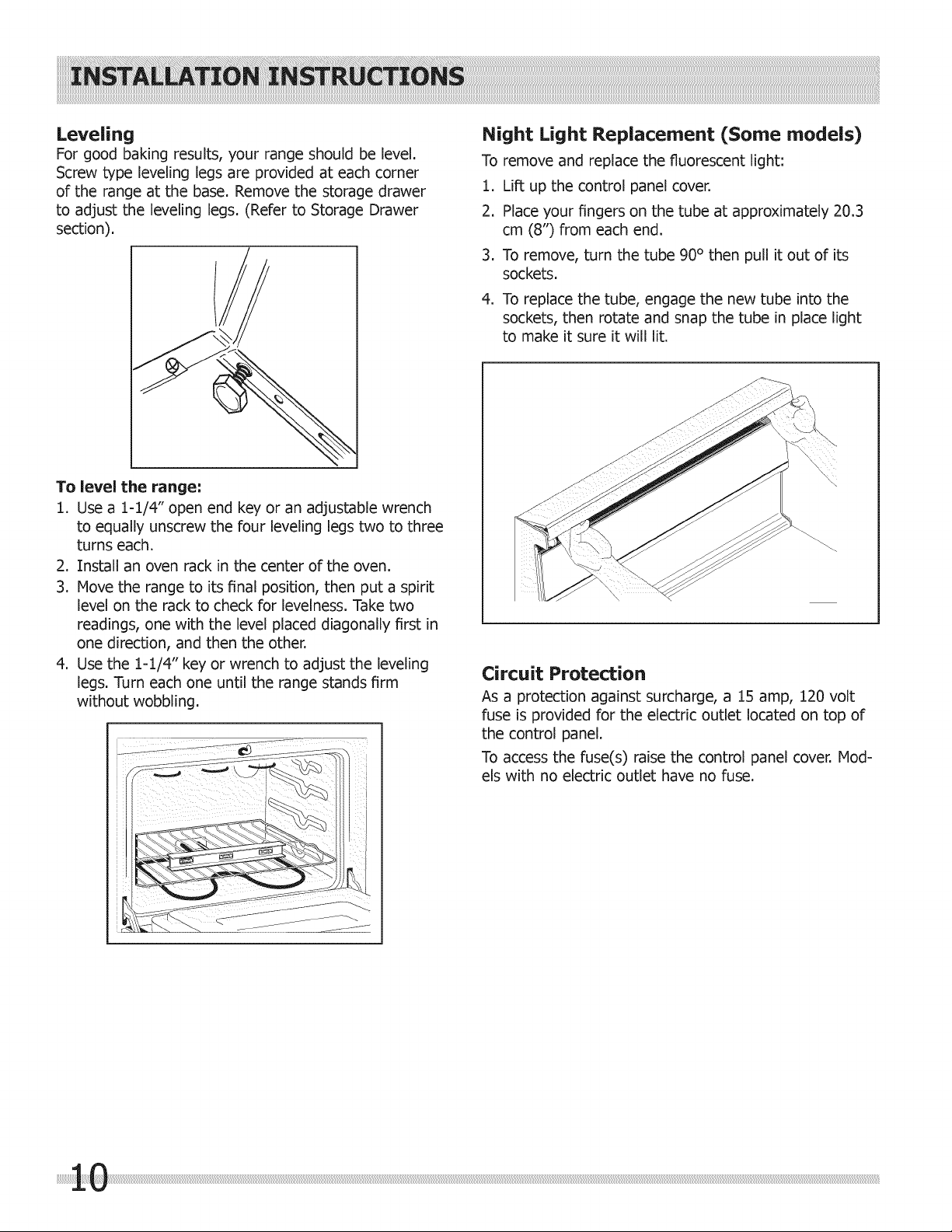

Leveling
For good baking results, your range should be level.
Screw type leveling legs are provided at each corner
of the range at the base. Remove the storage drawer
to adjust the leveling legs. (Refer to Storage Drawer
section).
To level the range:
1. Use a 1-1/4" open end key or an adjustable wrench
to equally unscrew the four leveling legs two to three
turns each.
2. Install an oven rack in the center of the oven.
3. Move the range to its final position, then put a spirit
level on the rack to check for levelness. Take two
readings, one with the level placed diagonally first in
one direction, and then the other.
4. Use the 1-1/4" key or wrench to adjust the leveling
legs. Turn each one until the range stands firm
without wobbling.
Night Light Replacement (Some models)
To remove and replace the fluorescent light:
1. Lift up the control panel cover.
2. Place your fingers on the tube at approximately 20.3
cm (8") from each end.
3. To remove, turn the tube 90° then pull it out of its
sockets.
4. To replace the tube, engage the new tube into the
sockets, then rotate and snap the tube in place light
to make it sure it will lit.
Circuit Protection
As a protection against surcharge, a 15 amp, 120 volt
fuse is provided for the electric outlet located on top of
the control panel.
To access the fuse(s) raise the control panel cover. Mod-
els with no electric outlet have no fuse.
Page 11
Using proper cookware
The size and type of cookware used will influence the
setting needed for best cooking results. Be sure to follow
the recommendations for using proper cookware as
illustrated in Figures 1 & 2.
Cookware should have flat bottoms that make good
contact with the entire surface heating element (Figure
1). Check for flatness by rotating a ruler across the
bottom of the cookware (Figure 2).
CORRECT INCORRECT
t t
o Cur_,edand warped pan
bottoms.
• Fiatbottomandstraight
sides,
• Tight fitting lids,
• Weight of handledoesnottilt
pan.Paniswellbalanced.
÷1
e Panoverhangselementby
morethan one-halfinch.
® Pansizesmatchthe amount
of foodto bepreparedand
the sizeof thesurface
element.
• Madeofa materialthat
÷1 I_
• Pan is smallerthan element.
conductsheatwell.
• Easy to clean.
• Always match pot diameter
to elementsurfacediameter.
• Heaw handle tilts pan.
Figure 1
Cool{ware material types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom. The most popular materials available are:
Aluminum- Excellent heat conductor. Some types
of food will cause it to darken (Anodized aluminum
cookware resists staining & pitting). If aluminum pans
slide across the ceramic glass cooktop, they may leave
metal marks which will resemble scratches. Remove
these marks immediately.
Copper- Excellent heat conductor but discolors easily. Nay
leave metal marks on ceramic glass (see Aluminum above).
Stainless steel- Slow heat conductor with uneven cooking
results. :Is durable, easy to clean and resists staining.
Cast iron- A poor heat conductor however will retain
heat very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
Porcelain-enamel on metal- Heating characteristics
will vary depending on base material. Porcelain-enamel
coating must be smooth to avoid scratching ceramic
cooktops.
Glass- Slow heat conductor. Not recommended for
ceramic cooktop surfaces because it may scratch the
glass.
Figure 2
Page 12
Specialty Pans & Trivets
Wokswith fiat bottoms suitable for use on your cooktop
are available in most cookshop or hardware stores.
Round-bottomed woks (with a support ring that does
not extend beyond the heating element) may also be
used. The metal ring was designed to support the wok
safely when it is filled with large amounts of liquids (soup
making) or fat (frying).
DO NOT use two elements (if the cooktop is not
equipped with bridge element) to heat one large pan
such as a roaster or griddle, or allow cooking utensils
to boil dry. The bottom surface of the pan in either of
these situations could cause discoloring or crazing of
the porcelain enamel range surface, and damage to the
surface elements and/or damage to the drip pans (if
equipped).
Canning Tips & Information
1. Use tested recipes and follow instructions carefully.
Check with your local Cooperative Agricultural
Extension Service or a manufacturer of glass jars for
the latest canning information.
2. Use fiat-bottomed canners only. Heat is spread more
evenly when the bottom surface is fiat.
3. Center canner on the burner grate.
4. Start with hot water and a high heat setting to
reduce the time it takes to bring the water to a boil;
then reduce the heat setting as low as possible to
maintain a constant boil.
5. It is best to can small amounts and light loads.
Wire trivets- Do not use wire trivets. Cookware bottoms
must be in direct contact with the surface elements.
DO NOT use a wok if it is equipped with a metal ring
that extends beyond the surface element. Because
this ring traps heat, the surface element and cooktop
surface could be damaged.
For glass smoothtop models,
only fiat bottomed woks
(without support rings) may
be used.
Canning can generate large amounts of steam. Use
extreme caution to prevent burns. Always raise the lid
to vent steam away from you.
Prevent damage to cooktop and burner grates:
1. Do not use water bath or pressure canners that
extend more than one inch beyond the edge of the
2. Do not leave water bath or pressure canners on
high heat for an extended amount of time.
3. Alternate surface units between each batch to
allow the units and surrounding surfaces to coo!
down. Try to avoid canning on the same burner
unit all day.
Safe canning requires that harmful micro-organisms are
destroyed and the jars are sealed completely. When
canning in a water bath canner, a gentle but steady boil
....must be maintained continuous!yfor the required time- .........
Page 13
Ceramic Glass Cooktop (model C only)
The ceramic cooktop has radiant surface elements
located below the surface of the glass, The design of
the ceramic cooktop outlines the area of the surface
element underneath. Make sure the diameter of the
pan matches the diameter of the element outline on the
cooktop.
Heat is transferred up through the surface of the cooktop
to the cookware. Only fiat-bottom cookware should
be used. The type and size of cookware, the number
of surface elements in use and their settings are all
factors that will affect the amount of heat that will
spread to areas beyond the surface elements. The areas
surrounding the elements may become hot enough to
cause burns,
The cooktop should not be used as a cutting board or
work surface.
Dropping heavy or hard objects on the cooktop may crack it.
Panswith rough bottoms may scratch the cooktop surface.
Placing foods directly on the smoothtop surface
(without cooking utensil) is not recommended as
difficult cleaning will result and foods may smoke and
cause a potential fire hazard.
Never use the griddle or similar cooking sheet on the
About the Radiant Surface Elements
The element temperature rises gradually and evenly.
As the temperature rises, the element will glow red. To
maintain the selected setting, the element will cycle ON
and OFF. The heating element retains enough heat to
provide a uniform and consistent heat during the OFF
cycle. For efficient cooking, turn OFF the element several
minutes before cooking iscomplete. This will allow
residual heat to complete the cooking process.
Types of the heating elements used
Your cooktop is equipped with radiant surface radiant
elements with different wattage ratings. The ability to
heat food quicker and in larger volumes increases as the
element wattage increases.
Due to the high intensity of heat generated by the
surface elements, the glass surface will turn green
when the element will be turned off. This phenomenon
is normal and the glass will come back to its original
white color after it has completely cooled down. (White
Radiant elements have a limiter that allows the element
to cycle ON and OFF, even at the HTsetting. This
helps to prevent damage to the ceramic smooth top.
Cycling at the HTsetting is normal and can occur if the
Please read detailed instructionsforceramic glass
cooktop cleaning in the General Care 8=Cleaning
section and Before You Call checklistsection of this
Use and Care Guide: ...............................................................................................................................................................................................
Do not allow aluminum foil, or ANY material that
can melt to make contact with the ceramic glass
cooktop, If these items melt on the cooktop they will
damage the ceramic cooktop.
cookware is too small for the radiant element or if the
cookware bottom is not fiat.
Be sure to read detailed instructions for ceramic glass
cooktop cleaning in the General Care 8=Cleaning
section and Before You Call checklist section of this
Use and Care Guide.
Page 14
Element ON
Your appliance can be equipped with two different types
of radiant surface control indicator lights that will glow
on the backguard = the Element On indicator light and the
hot surface indicator lights.
The element ON indicator lights are located on the
contro! panel (Figure 1) between the two element control
knobs and will glow when a surface element isturned
ON.
on
element ON
indicator light
3
Element ON indicator light location,
OFF
to hi
4
med
OFF
Lo ......... .....
4
6
med
Figure 1
8
7
hi
8
7
Hot surface indicator light
(Model C only)
The hot surface indicator light is located on the control
panel (Figure 2) between the two right element control
knobs and will glow when any surface cooking area heats
up and will remain on until the glass cooktop has cooled
to a MODERATE level.
OFF
8
/7
4 6
med
OFF
4
med
Figure 2 = Hodel C only
Hot surface indicator light location,
surface
hi
hot surface
indicator
light
The "Hot Surface" indicator lights will glow when the
element isturned on and will continue to glow after the
contro! knob is turned to the "OFF" position. It will glow
until the heating surface area has cooled sufficiently.
The glass surface may still be hot and burns may
occur if the glass surface istouched before the indicator
light has turned OFF.The message may remain on even
though the controls are turned OFF.
Page 15
Surface cooking settings
use the chart to determine the correct setting for the type
of food you are preparing.
Note" The size and type of cookware used will influence
the setting needed for best cooking results.
Setting
NED HIGH (5-8) Continue a rapid boil, fry, deep fat fry.
NED LOW (2-4) Keep foods cooking, poach, slew.
Type of Cooking
Operating the Surface Elements
To Operate the Surface Elements
i. Place correctly sized cookware on the surface
element.
2. Push in and turn the surface contro! knob in either
direction to the desired setting (Figure 1).
3. Turn the knob to adjust the seLLingif desired. Start
most cooking operations on a higher setting and then
turn to a lower seLLingto finish cooking. Each surface
element provides a constant amount of heat at each
setting. Ceramic Glass Cooktop Only: A glowing
red surface healing area extending beyond the
bottom edge of the cookware indicates the cookware
istoo small for the surface heating area.
4. When cooking has completed, turn the surface
control knob to OFF before removing the
cookware.
Do not place plastic items such as salt and pepper
shakers, spoon holders or plastic wrappings on
cooktop when it is in use, These items could melt or
ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the surface elements.
OFF
hi
2 8
3 7
4 6
rned
Figure 1 =Control knob shown is typical only.
See Recommended Setting for Surface Element table.
Page 16
Oven vent location
Each oven has its own vent as shown below (Figure
1). When the oven is on, warm air is released through
the vent. This venting is necessary for proper air
circulation in the oven and good baking results. DO NOT
BLOCK OVEN VENT. Never close off the openings with
aluminium foil or any other material.
Oven vent location on
porcelain cookto
Oven vent location on
ceramic glass cooktop
Arranging oven racks
ALWAYSARRANGE OVEN RACKSWHEN THE OVEN IS
COOL (PRIOR TO OPERATING THE OVEN). Always use
oven miLLswhen using the oven.
To remove an oven rack, pull the rack forward until it
stops. Lift up front of rack and slide out (Figure 4).
To replace an oven rack, fit the rack onto the guides
on the oven walls. Tilt the front of the rack upward and
slide the rack back into place.
Figure 4
Recommended rack positions
Figure 1
Some models are equipped with a blower
which runs in baking and self=denning mode
to keep all internal components at a cool
temperature. The blower may keep running
even if the oven has been turned OFF, until the
components have cooled down.
Air circulation in the oven
If using 1 rack (Figure 2), place in center of oven. If using
multiple racks (Figure 3), stagger cookware as shown.
For best air circulation and baking results allow 2-4"
(5-10 cm) around the cookware for proper air circulation
and be sure pans and cookware do not touch each other,
the oven door, sides or back of the oven cavity. The hot
air must circulate around the pans and cookware in the
oven for even heat to reach around the food.
Figure 2 =Single Oven Rack
Broiling meats, chickenor fish
Using a single rack
Frozenpies,angelfood cake,yeast,bread,
1or 2casseroles,smallcutsof meat or
poultry
2or3
1 or2
Figure 3 = Multiple Oven Racks
Always use caution when removing food from the oven.
Page 17
Selector Control Knob
OFF
Temperature Control Knob
OFF
br0i[
gritter
bake
cuire
Baking
To Set the Controls for Normal Baking:
1. Arrange oven racks while the oven is still coo!.
2. Turn the Selector Contro! Knob to the Bake position.
3. Turn the Temperature Control Knob to the desired oven
temperature. When the oven isfirst turned on, the oven
indicator light on the control panel will glow.
4. Preheat the oven for 10 to !2 minutes before baking.
Preheating is not necessary when roasting or cooking
casseroles.When the desired temperature is reached, the
oven indicator light will go out. The light will then go on
and off as the element cycles on and off to maintain the
desired temperature.
5. When baking isfinished, turn the Temperature and Selector
knobs to the OFFposition.
Broil
stop
position
550
29O
500
260
450
230
200°F
95°C
250
120
300
150
400 350
205 175
Broiling
To Set the Controls for Broiling=
1. Arrange oven racks while the oven is still cool. For rare
meats, position the broiler pan (available via mail order)
closer to the element (upper position). For well-done
foods such as chicken, lobster tails or thick cuts of meat,
position the pan further from the element (to a lower
position).
2. Turn the Selector Control Knob to the Broil position.
3. Turn the Temperature Control Knob to Broil or a lower
temperature if desired. To sear rare steaks, allow the
element to become red-hot (about 2 minutes) before
placing food in the oven. When the oven is first turned
on, the oven indicator light on the control panel will
glow.
4. Placethe grid on the broiler pan (available via mail order),
and then placethe meat on the grid. DONOTusethe broiler
pan without the grid or cover the grid with aluminum foil.
The exposed fat could ignite.
5. Placethe pan on the oven rack. Leavethe door openat the
broil stop position while broiling. The door will stay in this
position without closing.
6. Broil on one side until food is browned; turn and cook on
the second side. Seasonand serve. Note= Always pull the
rack out to the stop position before turning or removing
food.
7. When broiling isfinished, turn the Temperature and Selector
knobs to the OFF position.
Should an oven fire occur, leave the oven door closed
and turn off the control knobs. If the fire continues,
throw baking soda on the fire or use a fire extinguisher.
DO NOT put water or flour on the fire. Flour may be
explosive.
Page 18
Control pad features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN, For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each
feature and function follow later in this Use & Care Guide,
The oven function will not work if the time of day clock is not set.
0
_,_ bake time
bake ,- broi[ ,_
temps
m oven four
m preheat pr6
door locked
0 r_ortever_ou]Ll6
1, Clock pad--Use to set the time of day.
2. Bake time pad--Use to enter the length of the
baking time.
3, Timer on=off pad--Use to set or cancel the Timer.
The Timer does not start or stop cooking.
4, Start time pad--Used to set the desired start time
for baking. Can be used with BAKE TIME to program
a delayed bake cycle.
5, Oven, preheat 8=door locked lights= The "oven"
light will glow each time the oven unit turns on
maintain the set oven temperature. The "Preheat"
light will glow when the oven is first set to operate,
or if the desired temperature is reset higher than the
actual oven temperature. The "Door Locked" light will
flash until the door locks when the self=clean cycle is
in use. It glows constantly after the door locks.
THE OVEN CAN BE PROGRAMMED TO
Bake normally, Time Bake, Delayed Bake, Broil, Self-Clean
Note" Push buttons or pads may be shaped differently.
FOR A SILENT CONTROL PANEL
When choosing a function, a beep will be heard each
time a pad is pushed. If desired, the controls can be
programmed for silent operation. Push and hold START
TIME pad. After 7 seconds, the control will beep once.
This will block the controls from sounding when a pad is
pushed. To return the sound, push and hold START TIME
pad again for 7 seconds until 1 beep is heard.
°
6. Up arrow pad=Used along with the function pads
to select oven temperature, time of day and minute
timer.
7. Bake pad--Use to select the bake cooking feature.
8, Feature indicator lights--These light to show
which feature is in use.
9. Broil pad--Use to select the broil cooking feature.
10. Down arrow pad=Used along with the function
pads to select oven temperature, time of day and
minute timer.
:[:[. Clear off pad=Use to cancel any oven feature
previously entered except the time of day and minute
timer.
:[2. Clean Pad=Used to select the self-cleaning cycle,
TEMPERATURE CONVERSION (Fahrenheit/Celsius)
The electronic oven control is set to operate in °F
(Fahrenheit) when shipped from the factory. The oven can
be programmed for any temperature from 170°F to 550°F
(77°C to 287°C).
To change the temperature to °C (Celsius) or from °C
to °F (control should not be in a Bake or Clean mode):
1. Push BROIL pad. "- - - " appears in the display.
2. Push and hold the UP ARROW pad until "HI"
appears in the display.
3. Push and hold BROIL pad until °F or °C appears in
the display.
4. Push UP or DOWN ARROW pad to change °F to °C
or °C to °E
5. TOaccept the change, wait 6 seconds.
Page 19
The oven function will not work if the time of day dock
is not set.
TO SET THE CLOCK
When the range is first plugged in, or when the power
supply to the appliance has been interrupted, the display
will flash "12:00".
1. Push CLOCK pad.
2. Within 5 seconds, push and hold the UP or DOWN
ARROW pad until the correct time of day appears in
the display.
Note: The clock cannot be changed during any timed
bake or selFdean cycle.
TO SET THE MINUTE TIMER
i. Push TIMERON/OFF pad.
2. Push the UP ARROW pad to increase the time in
one minute increments. Push and hold the UP AR-
ROW pad to increase the time in 10 minute incre-
ments. The timer can be set for any amount of time
from i minute to 11 hours and 59 minutes.
Note: If you push the DOWN ARROW pad first, the
timer will advance to 11 hours and 59 minutes.
3. The display shows the timer count down in minutes
until one minute remains. The display will count
down in seconds.
4. When the set time has run out, the timer will beep
3 times. It will continue to beep 3 times every 60
seconds until the TIMER ON/OFF pad is pushed.
The minute timer does not start or stop cooking. It serves
as an extra timer in the kitchen that will beep when the set
time has run out. The minute timer can be used alone or
during any of the other oven functions. When the minute
timer is in use with any other mode, the minute timer will
be shown in the display. To view other functions, push
the function pad for that mode.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, push and
hold the UPor DOWN ARROW pad to increase or decrease
the time.
To turn the time of day display OFF or ON in the display
press and hold the CLOCK pad for 8 seconds (the control
will beep once) and then release. This feature does not
remove the set time of day from the memory of the
control. When the display is turned OFFthe time of day
will reappear for a few seconds any time the CLOCK
pad is touched.
TO SET CONTROL FOR CONTINUOUS BAKE
OR 12 HOUR ENERGY SAVING
The oven control has a built-in 12 Hour Energy Saving
feature that will shut off the oven if the control is left on
for more than 11 hours and 59 minutes. The oven can
be programmed to override this feature for continuous
baking.
To set control for continuous baking:
1. Push and hold TIMER ON/OFF pad down for 5
seconds until tone is heard, "-- -- hr" will appear in
display for continuous cooking. The current time of
day will return to the display.
2. To cancel the Continuous Bake Function, push TIMER
ON/OFF pad and hold for 5 seconds until tone is
heard. "12hr" will appear in display indicating that
the control has returned to the 12 Hour Energy
Saving feature.
TO SET CONTROL FOR OVEN LOCKOUT
The control can be programmed to lock the oven door
and inactivate the oven controls.
To Set Control for Oven Lockout feature:
1. Push the CLEAR OFF pad and hold for 3 seconds.
"Loc" will appear in display, the "Door Locked"
indicator light will flash and the motor driven door
lock will begin to close automatically. DO NOT open
oven door while the indicator light is flashing. Allow
about 15 seconds for the oven door to lock. Once
the oven door is locked, the current time of day will
appear in the display.
2. To cancel the lockout feature, push CLEAR OFF pad
and hold for 3 seconds. The control will unlock the
oven door and resume normal operation.
To Cancel the Minute Timer before the set time has
run out: Push TIMER ON/OFF pad.
If a control pad is pressed while the Oven Door/Control
Lockout mode, "Loc" will appear in the display until
the contro! pad is released. But it does not disable the
clock, kitchen timer and the interior oven lights.
Page 20
TO SET OR CHANGE THE TEMPERATURE
FOR NORMAL BAKING
The oven can be programmed to bake at any temperature
from 170°F to 550°F (77°C to 287°C).
- If using a Searing Grill (available by mail order), preheat
the grill for 5 to 10 minutes before placing your meat.
- DO NOT use the broil pan without the insert. DO NOT
cover the broil pan insert with foil, The exposed
grease could catch fire.
Accessories available via the enclosed brochure:
The oven control has a built-in energy saving feature
that will shut off the oven if the control is left on for
more than 11 hours 59 minutes. ....
To Set the Controls for Normal Baking:
1. Push BAKE pad." " appears in the display.
2. Within 5 seconds, push the UP or DOWN ARROW
pad. The display will show "350°F (177%)." By holding
the UP or DOWN ARROW pad, the temperature can
then be adjusted in 5°F (1°C) increments.
3. As soon as the UP or DOWN ARROW pad is released,
the oven will begin heating to the selected temperature.
When the oven temperature reaches the desired baking
temperature, the control will beep 3 times and the
Preheat light will turn off.
4, To cancel the baking function, push the CLEAR OFF pad,
To Change the Oven Temperature after Baking has
started:
1. If you are using the minute timer, push the BAKE pad
and make sure the bake temperature is displayed.
2. Push the UP or DOWN ARROW pad to increase or
decrease the set temperature.
SETTING BROIL
This mode is best for meats, fish and poultry up to 1"
thick. Broiling is a method of cooking tender cuts of meat
by direct heat under the broil element of the oven. The
high heat cooks quickly and gives a rich, brown outer ap-
pearance. The BROIL pad controls the Broil feature. An
optional Searing Grill, Broiler Pan and Insert are available
via the enclosed accessories brochure (Figure 1 & 2). The
optional broil pan and broil pan insert used together allow
dripping grease to drain and be kept away from the high
heat of the oven broiler.
Broiling Tips:
-For optimum browning, preheat the broil element for 5
minutes.
-Broil one side until the food is browned; turn and cook
on the second side. Season and serve.
-Always pull the rack out to the "stop" position before
turning or removing food.
-Always use the broiler pan and its cover when broiling.
It allows the dripping grease to be kept away from the
high heat of the broil element (see Figure 1).
-For best broiling results, broil with the oven door in the
broil stop position (see Figure 3).
Broiler
Searin
Broile _ Broiler Pan
Pan _ & Insert
Figure i Figure 2
To set the Broil:
1. Arrange oven rack while oven is still cool.
2. Push the BROIL pad.
3. Push and hold the UP or DOWN ARROW pad until the
desired broil setting level appears in the display. Push
UP ARROW pad for HI broil or the DOWN ARROW
pad for LO broil. Most foods can be boiled at the HI
broil setting. Select the LO broil setting to avoid excess
browning or drying of foods that should be cooked to
the well-done stage.
4. Placegrid on the broiler pan, then place the food on the
grid. DO NOTusethe broiler pan without the grid or cover
the grid with aluminum foil. The exposed fat could ignite.
5. Place the pan on the oven rack. Open the oven door to
the broil stop position when broiling (Figure 3).
6. Broil on one side until food is browned; turn and cook
on the second side. Note: Always pull the rack out to
stop position before turning or removing food.
7. When broiling is finished, push the CLEAR OFF pad.
I
Broil Stop
Position
Figure 3
/
Should an oven fire occur, close the oven door
and turn off the oven. If the fire continues, use a
fire extinguisher. DO NOT put water or flour on
the fire. Flour may be explosive.
Page 21
TO SETTHE BAKETIHE FEATURE
The BAKE TIME and START TIME controls operate the
Timed Bake Feature. The automatic timer will turn the
oven on and off at the times you select in advance. The
oven can be programmed to start immediately and shut
off automatically or to begin baking at a later time with
an automatic shut off.
To Program the Oven to Begin Baking Immediately
and To Shut Off Automatically:
1. Be sure that the dock shows the correct time of day.
2. Place the food in the oven and push the BAKE pad.
3. Within 5 seconds, push the UP or DOWN ARROW pad.
The display will show "350°F (177°C)." By holding the
UP or DOWN ARROW pad, the temperature can then
be adjusted in 5°F (1°C) increments.
4. Push the BAKE TIHE pad. "0:00" will flash in the display.
5. Push the UPor DOWN ARROW pad until the desired
amount of baking time appears in the display.
To Program Oven for a Delayed Start Time and to
Shut=Off Automatically:
1. Be sure that the dock shows the correct time of day.
2. Place the food in the oven and push the BAKE pad.
3. Within 5 seconds, push the UP or DOWN ARROW pad.
The display will show "350°F (177°C). '' By holding the
UP or DOWN ARROW pad, the temperature can then
be adjusted in 5°F (1°C) increments.
4. Push the BAKE T]:HE pad. "0:00" will flash inthe display.
5. Push the UP or DOWN ARROW pad until the desired
amount of baking time appears.
6. Push the START T:][HE pad.
7. Push the UP or DOWN ARROW pad until the
desired start time appears in the display.
8. Once the controls are set, the control calculates when
baking will stop.
Once the Controls are Set:
1. The oven will come on and begin heating to the
selected baking temperature.
2. The oven temperature (or time of day) will show in
the display.
When the Set Bake Time Runs Out:
1. "END" will appear in the display window and the oven
will shut off automatically.
2. The control will beep 3 times every 60 seconds until
the CLEAR OFF pad is pushed.
Use caution when using the automatic timer.
Use the automatic timer when cooking cured or
frozen meats and most fruits and vegetables,
Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should
not stand in the oven for more than :[ hour
before cooking begins, and should be removed
promptly when cooking is completed.
RECALIBRATTNG YOUR OVEN TEHPERATURE
The temperature in the oven has been set at the factory.
When first using the oven, be sure to follow recipe times
and temperatures. If you think the oven is too hot or too
cool, the temperature in the oven can be adjusted. Before
adjusting, test a recipe by using a temperature setting
that is higher or lower than recommended temperature.
The baking results should help you to decide how much
of an adjustment is needed.
To Adjust Oven Temperature:
1. Push the BAKE pad.
2. Set the temperature to 550°F (287°C) by pushing
and holding the UPARROW pad.
3. Within 2 seconds, push and hold the BAKEpad until
the special 2 digit display appears. Release the BAKE
pad. The display now indicates the amount of de-
grees offset between the original factory temperature
setting and the current temperature setting. If the
oven control has the original factory calibration, the
display will read "00."
4. The temperature can now be adjusted up or down
35°F (19°C), in 5°F (1°C) steps by pushing and
holding the UP or DOWN ARROW pad. Adjust until
the desired amount of degrees offset appears in the
display. When lowering the oven temperature, a mi-
nus sign (-) will appear before the number to indicate
that the oven will be cooler by the displayed amount
of degrees.
5. When you have made the desired adjustment, push
the CLEAR OFF pad to go back to the time of day
display.
To Change the Oven Temperature or Bake Time
after Baking has started:
1. Push the function pad you want to change.
2. Push the UP or DOWN ARROW pad to adjust the
setting.
The adjustment made will not change the seIFcleaning
Page 22
SELF-CLEANING
A self-cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which
eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
• DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.
DO NOT clean the oven door gasket. The woven
material of the oven door gasket is essential for a
good seal. Care should be taken not to rub, damage
or remove the gasket.
• DO NOT use any cleaning materials on the oven
door gasket. Doing so could cause damage.
• Remove the broiler pan and insert, all utensUs
and ANY ALUNINUN FOIL. These items cannot
withstand high cleaning temperatures and will melt.
• Completely remove ALL OVEN RACKS and
ANY ACCESSORIES. If the oven racks are not
removed, they will lose their special coating
properties and will no longer slide in and out
of the oven cavity effortlessly.
• Remove any excessive spUlovers in the oven
cavity before starting the Self-Cleaning cycle. To
clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when
ii
subjected to high temperatures. DO NOT allow food
ii
spills with a high sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may leave a dull spot
even after cleaning.
ii
® Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
ii
the front center of the oven bottom. These areas heat
ii
sufficiently to burn soil on. Clean with soap and water.
What to Expect during Cleaning
While the oven isinoperation, the oven heals to temperatures
much higher than those used in normal cooking. Sounds
of metal expansion and contraction are normal. Odor is
also normal as the food soil is being removed. Smoke may
appear through the oven vent.
If heavy spillovers are not wiped up before cleaning, they
may flame and cause more smoke and odor than usual. This
is normal and safe and should not cause alarm. If available,
use an exhaust fan during the self-cleaning cycle.
To avoid possible burns use care when opening the
oven door after the SelFCleaning cycle. Stand to the
side of the oven when opening the door to allow hot air
or steam to escape.
During the Self-Cleaning cycle, the outside of the range
can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
The health of some birds is extremely sensitive to the
fumes given off during the Self-Cleaning cycle of any
range. Move birds to another well-ventilated room.
DO NOT line the oven walls, racks, bottom or any
other part of the range with aluminum foil. Doing
so will destroy heat distribution, produce poor baking
results and cause permanent damage to the oven
interior (aluminum foil will melt to the interior surface
of the oven).
DO NOT force the oven door open. This can damage
the automatic door locking system. Use caution when
opening the door after the Self-Cleaning cycle is
HOT.
DO HAND
CLEAN DOOR
See additional cleaning information for the oven door in
the General Care & Cleaning section: ..........................................................................................................
DO HAND
CLEAN FRAME
DO NOT HAND
CLEAN OVEN
DOOR GASKET
Page 23
SELF-CLEANING
To Start the Self=Clean Cycle
*We recommend a 2 hour self-clean cycle for light soils,
and a 3 hour cycle for average to heavy soils (to assure
satisfactory results).
To Set the Controls for a Self=Clean Cycle:
1. Be sure the clock shows the correct time of day.
2. Push the CLEAN pad. ". - -" appears in the display.
3. Push the UPARROW pad until "3:00" appears in the
display for a 3 hour cycle, or push the DOWN ARROW
pad until "2:00" appears in the display for a 2 hour
cycle.
4. As soon as the UP or DOWN ARROW pad is released,
"CLn" appears in the display.
5. As soon as the controls are set, the motor driven
lock will begin to dose automatically and the "Door
Locked" indicator light will flash. DO NOT open the
door while the light is flashing (it takes about 15
seconds for the lock to close).
6. The "Door Locked" light will glow until the cleaning
cycle iscompleted or cancelled, and the oven
temperature has cooled.
When the Self=Clean Cycle is Completed:
1. The time of day will appear in the display window
and the "Door Locked" light will continue to glow.
2. Once the oven has cooled down for about 1 hour and
the "Door Locked" light has gone out, the oven door
can be opened.
Stopping or Interrupting a Self=Cleaning Cycle
If it becomes necessary to stop or interrupt a self=
cleaning cycle due to excessive smoke or fire:
1. Push the CLEAR OFF pad.
2. Once the oven has cooled down for about 1 hour and
the "Door Locked" light has gone out, the oven door
can be opened.
3. Correct the condition which caused the smoking.
4. Restart the self-clean cycle once all conditions have
been corrected.
Use care when opening the oven door after self-clean-
ing cycle. Stand to the side of the oven when opening
the door to allow hot air or steam to escape.
DO NOT force the oven door open. This can damage
the automatic door locking system. Use caution when
opening the door after the self-cleaning cycle iscom-
pleted. The oven may still be VERY HOT.
FAILURE MODES
All failure modes give a visual and audible alarm. When
display shows F10 (temperature runaway), F30 (oven
sensor circuit fault) or F90 (motor door lock fault), the
electronic oven control has detected a fault condition.
Note that code and push the CLEAR OFF pad to clean
the display and stop the beeping. Reprogram the oven. If
fault recurs, push CLEAR OFF pad, disconnect the ap-
pliance to prevent damage and contact an authorized
servicer.
Page 24
Cleaning various parts of your appliance
Before cleaning any part of the appliance, be sure all controls are turned OFF and the appliance is COOL. REMOVE
SPILLOVERS AND HEAVYSOILING AS SOON AS POSSIBLE. REGULARCLEANING WILL REDUCE THE NUMBER OF
MAJOR CLEANING LATER.
Aluminum (trim pieces) & Use hot, soapy water and a cloth. Dry with a clean cloth.
Vinyl
Glass, Painted and Plastic Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
Body Parts, Control Knobs & vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
Decorative Trim Pieces soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray
liquids directly on the control pad and display area. Do not use large amounts of
water on the control panel - excess water on the control area may cause damage to
the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or
paper towels - they will damage the finish. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,
line up the fiat sides of both the knob and the shaft; then push the knob into place.
Control Panel Before cleaning the control panel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to the
appliance. To replace knobs after cleaning, line up the fiat sides of both the knob and
the shaft; then push the knob into place.
Porcelain Enamel Clean broiler pan and insert (some models) in the dishwasher and dry upon removal.
Cooktop Surface, Below If soils are not removed, follow the cooktop cleaning instructions below.
Cooktop, Broiler Pan & Insert Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
some models), Door Liner, ::[:1solution of clear water and ammonia. If necessary, cover difficult spots with an
Oven Bottom ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, then scrub with a soap-filled scouring pad. Rinse and wipe dry with a
clean cloth. Remove all cleaners or the porcelain may become damaged during future
heating. DO NOT use spray oven cleaners on the cooktop.
Stainless Steel (some models) Cleaners made especially for stainless steel as Stainless Steel Magic, or other similar
Cooktop Surface cleaners are recommended. Always follow the manufacturer's instructions. Be sure to
rinse the cleaners as bluish stains may occur during heating and cannot be removed.
Oven Racks Remove racks. See "To remove and to replace an oven rack" under Oven vent(s) and
ii
Oven Door Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse
racks. Use a mild, abrasive cleaner, following manufacturer's instructions. Rinse with
clean water and dry. After cleaning the racks, rub the sides of the racks with wax
paper or a cloth containing a small amount of baby oil or salad oil (this will make the
racks glide easier into the rack positions).
-..... _t immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter
o hand the door vents. DO NOT use oven cleaners, cleaning powders or any harsh abrasive
n frame cleaning materials on the outside of the oven door.
_'<_f _ clean oven
NOThand material, on Self-Cleaning models, which is essential for a good seal. Care should be
well. You may use a glass cleaner on the outside glass of the oven door. DO NOT
DONOTcieantheovendoorgasketlTheo endoo gasketismadeofawoven
_and _door gasket taken not to rub, damage or remove this gasket.
Page 25
Porcelain enamel oven Cleaning (model A)
Adhere to the following cleaning precautions:
- Allow the oven to cool before cleaning.
• Wear rubber gloves when cleaning the appliance
manually.
Remove spillovers and heavy soils as soon as pos =
sible. Regular cleanings will reduce the number of
future major cleanings.
Ammonia must be rinsed before operating the
oven. Provide adequate ventilation.
Porcelain has a smooth finish and is a type of glass fused
to metal. Oven cleaners can be used on all interior oven
surfaces.
General Cleaning
Remove soils using hot, soapy water. Do not allow food
spills with a high sugar or acid content (such as milk,
tomatoes, saukerkraut, fruit juices or pie filling) to remain
on the surface as they may cause a dull spot even after
cleaning.
To Remove Heavy Soil
1. Allow a dish of ammonia to sit in the oven overnight
or for several hours with the oven door closed. Clean
softened spots using hot, soapy water. Rinse well with
water and a clean cloth.
2. If soil remains, use a soap=filled scouring pad or a
nonabrasive cleaner. If necessary, use an oven cleaner
following manufacturer's instructions. DO NOT mix
ammonia with other cleaners.
Adhere to the following precautions when
using oven cleaners:
1. DO NOT spray on the electrical controls or switches
because it could cause a short circuit and result in
sparking or fire.
2. DO NOT allow a film from the cleaner to build up on
the temperature sensing bulb located at the top left
rear corner of the oven; it could cause the oven to
heat improperly. Carefully wipe the bulb clean after
each oven cleaning, being careful not to move the
bulb. A change in its position could affect how the
oven bakes. Avoid bending the bulb and capillary
tube.
3. DO NOT spray any cleaner on the oven door trim or
gasket, handles or any exterior surfaces of the range,
wood or painted surfaces. The cleaner can damage
these surfaces.
To Clean the Oven Bottom
Clean using hot, soapy water, a mild abrasive cleanser, a
soap-filled abrasive pad or oven cleaner following oven
cleaner manufacturer's instructions.
DO NOT line the oven walls, bottom, racks or any other
part of the appliance with aluminum foil. Doing so will
destroy heat distribution, produce poor baking results and
cause permanent damage to the oven interior (aluminum
foil will melt to the interior surface of the oven).
Cleaning the Regular Oven
Make sure the oven is cool and that all control knobs are
at OFF position. Cleaning the oven is a lot easier when
the door is removed.
1. Remove the oven door; see under To Remove and
Replace the Oven Door in this Owner's Guide.
2. Empty the oven including the racks.
3. You can wash your broiler pan, grid and racks in the
kitchen sink.
4. Clean oven lining thoroughly with soap and a wet
cloth and wipe with a dry cloth.
To remove burned-on fat on oven walls, moisten soiled
parts with household ammonia, using a wet cloth. Follow
suggested manufacturer's cleaning method. (Do not
remove the oven door when using ammonia.)
Complete cleaning with a
damp cloth and use a fine
steel wool scouring agent if
necessary.
The lower element can
be moved up for cleaning
purposes.
5. Replace racks in the oven.
Reinstall oven door.
Page 26
Surface Elements and Drip Bowls
Surface elements can be unplugged and removed to
make cleaning the drip pans easier. The surface elements
clean themselves when they are turned on. Food
spilled on a hot element will burn off. Food spilled on a
coo! element may be cleaned with a damp cloth--any
remaining soil will burn off the next time the element is
used. Never immerse a surface element in water.
To Remove the Surface Elements and Drip Bowls
1. Lift up edge of surface element across from terminal
end. Lift just enough to clear edge of the drip bowl.
2. Gently slide the surface element out of the terminal
plug.
3. Lift the drip bowl up and out.
To Replace Drip Bowls and Surface Elements
1. Slide the terminal end on the element through the
opening in the drip bowl.
2. Align the element support to rest on the rim inside
the drip bowl. If your drip bowl is equipped with a
hold down clip, align the element support opposite
the terminal end with the slot in the hold down clip,
and snap into place.
3. After the element is positioned in the drip bowl, line
up the terminal end with the terminal plug as shown.
4. Hold the surface element and drip bowl together as
level as possible and firmly push the terminal end
into the terminal plug. Make sure element terminal
isseated properly into terminal plug. Make sure the
surface element is level to reduce the hazard of pans
sliding off the element.
Be sure the range is cool before removing elements or
drip bowls. Be careful not to bend terminal ends when
replacing elements after cleaning.
Hold Su
Down
Terminal End
Plug
To Clean Drip Bowls
Wash in hot, soapy water or in the dishwasher. Rinse
and dry while still warm. Hard to remove, burned on soil
can be removed by soaking the drip bowls for about 20
minutes in a lightly diluted liquid cleanser or a solution
of ammonia and water (1/2 cup ammonia to 1 gallon
of water). A nylon scrubber may be used after soaking.
DO NOT use abrasive cleaners or steel wool, as they will
scratch the surface. Always rinse with clean water and
polish dry with a soft cloth.
To remove and replace storage drawer
Use the storage drawer for storing cooking utensils. The
drawer can de removed to facilitate cleaning under the
range. Use care when handling the drawer.
Removing and Replacing Storage Drawer
To remove the drawer:
1. Pull empty drawer out to the roller guide stop.
2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:
1. Insert the rear end of the drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Push the drawer in until it stops, then lift to allow the
rollers to clear the roller guide stop, and push in.
Storage
Drawer
Relier
Guide
Front
Frame
Page 27
Porcelain enamel cooktop cleaning
instructions (Models A & B only)
Do not use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can
Before cleaning the surface cooktop, be sure the controls
are turned to OFF and the cooktop is coo!.
DO NOT use commercial oven cleaners on the
exterior surfaces including cooktop and door frame.
Correct and consistent cleaning isessential to maintaining
your porcelain enamel cooktop. If food spills and grease
spatters are not removed, they may burn onto the surface
of the cooktop and cause permanent discoloration,
Daily Cleaning
For normal soil:
1. Allow cooktop surface to coo!.
2. Wipe off spills and spatters using a clean paper towel
or a clean cloth with warm, soapy water.
3. If needed, use a soapy steel wool pad or other mild
household cleaners.
4. Be sure to rinse off the cleaners or the porcelain may
become damaged during future heating.
For heavy, burned=on soil"
1. Allow cooktop surface to coo!.
2. Use a soap filledscouring pad with warm water or cover
heavily soiled spots with a solution of dear water and
ammonia. Scour gently. Rinse and wipe dry with a clean cloth.
3. If any soil remains, apply a few drops of a
recommended cooktop cleaning cream on the spots
and rub gently using a clean damp cloth or scouring
pad. Buff with a dry cloth until all soil and cream are
removed. Frequent cleaning with the cooktop cleaning
cream leaves a protective coating which helps in
preventing scratches and abrasions.
Ceramic glass cooktop cleaning &
maintenance (ModelC only)
Consistent and proper cleaning is essential to
maintaining your Ceramic glass cooktop,
Prior to using your cooktop for the
first time, apply the recommended
CERAMA BRYTE® Cleaning Creme
to the ceramic surface. Clean and
buff with a non abrasive cloth or
pad. This will make cleaning easier
when soiled from cooking. The
special cooktop cleaning cream
leaves a protective finish on the
glass to help prevent scratches and
abrasions.
Sliding aluminum or copper clad
bottom pans on the cooktop can cause metal markings
on the cooktop surface. These marks should be removed
immediately after the cooktop has cooled using the
cooktop cleaning cream. Metal marks can become
permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough
bottoms can mark or scratch the cooktop surface. Do
not slide anything metal or glass across the cooktop.
Do not use your cooktop as a cutting board or work
surface in the kitchen. Do not cook foods directly on the
cooktop surface without a pan. Do not drop heavy or
hard objects on the glass cooktop, or they may crack it.
CERAMICcOOKTOP
CLEANER
\ J
J
For sugary spillovers:
Sugary spills can chemically damage your cooktop
surface. Therefore, you must begin cleaning the spills
while the cooktop is still hot. Use caution when following
the steps below.
1. Turn off all surface units and remove all pans immediately.
2. Wearing an oven mitt, wipe up carefully or move hot spills
away from the element area with a clean damp cloth.
3. Allow the cooktop to cool. Follow the instructions
above for heavy, burned-on soil.
COOKTOP CLEANING / POLISHING CREAM can be
purchased through authorized service centers or major
department stores.
Page 28
Cleaning recommendations for the
ceramic glass cooktop (Hodel C only)
Before cleaning the cooktop, be sure the controls are
turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can
chemically damage the ceramic glass surface.
For light to moderate soih
Apply a few drops of CookTop® Cleaning Creme directly
to the cooktop. Use a paper towel or use a non-
abrasive plastic type no-scratch pad to dean the
entire cooktop surface. Make sure the cooktop is cleaned
thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly
to the soiled area. Rub the soiled area using a non=
abrasive plastic type no=scratch pad, applying pressure
as needed. Do not use the pad you use to clean the
cooktop for any other purpose.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if
spilled or melted onto the ceramic cooktop surface.
Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately, After
turning the surface elements OFF, use a razor blade
scraper or a metal spatula with a mitt and scrape the soil
from the hot surface (as illustrated). Allow the cooktop to
cool, and use the same method for heavy or burned on
soils.
Do not use the following on the ceramic glass
cooktop:
• Do not use abrasive cleaners and scouring pads,
such as metal and some nylon pads, They may
scratch the cooktop, making it more difficult to
clean,
®
Do not use harsh cleaners, such as chlorine
bleach, ammonia or oven cleaners, as they may
etch or discolor the cooktop,
®
Do not use dirty sponges, cloths or paper
towels, as they can leave soil or lint on the
cooktop which can burn and cause Special
Caution for Aluminum Foil and Aluminum
Cooking Utensils
Damage to the ceramic glass cooktop may occur if you
use an abrasive type scratch pad. Only use cleaning
products that have been specifically designed for
ceramic glass cooktop.
If soils remain, carefully scrape soils with a metal razor
blade scraper, holding scraper at a 30 degree angle to the
surface. Remove loosened soils, then apply a few drops
of cleaning cream and buff surface clean.
®
Aluminum foil
Use of aluminum foil will damage the cooktop. Do not
use under any circumstances.
®
Aluminum utensils
Since the melting point of aluminum is much lower
than that of other metals, care must be taken when
aluminum pots or pans are used. Pans that boil dry
may permanently damage cooktop by breaking, fusing
to, or marking it.
Page 29
Care and cleaning of stainless steel
Some models are equipped with stainless steel exterior
parts. Special care and cleaning are required for
maintaining the appearance of stainless parts. Refer to
the General Care 8=Cleaning table for detailed cleaning
instructions.
Removing and replacing the lift-off oven
door
The door is heavy. Forsafe, temporary storage, lay the
door flat with the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor -
See Figure 1).
2. Pull the door hinge locks on both left and right
door hinges down from the oven frame completely
towards the oven door (See Figure 2). A tool such as
a small flat-blade screwdriver may be required.
3. Firmlygrasp both sides of oven door along the door
sides (Do not use the oven door handle - See Figure3).
4. Close the door to the broil stop position (the oven
door will stop into this position just before fully
closing).
5. With the oven door in the broil stop position, lift the
oven door hinge arms over the roller pins located on
each side of the oven frame (See Figure 4-).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle - See Figure 3).
2. Holding the oven door at the same angle as the
removal position, seat the hook of the hinge arm over
the roller pins located on each side of the oven door
frame (See Figure 4). The hook of the hinge arms
must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with floor - See
Figure 1).
4. Push the door hinge locks up towards and into the
oven frame on both left and right oven door hinges
(See Figure 2) to the locked position.
5. Close the oven door.
Door Hinge locations
with oven door fully open
Figure 2
Figure 1
/
/
Oven door
Figure 3 Figure 4
Special door care instructions = Most oven
doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are
fully in place.
2. Do not hit the glass with pots, pans, or any other ob-
ject.
3. Scratching, hitting, jarring or stressing the glass may
weaken its structure causing an increased risk of
breakage at a later time.
Changing oven light
Be sure the oven is unplugged and all parts are COOL
before replacing the oven light bulb. Do not turn
the oven light on during a selffdeaning cycle. High
temperature will reduce lamp life.
On some models an interior oven light will turn on
automatically when the oven is opened. The oven light
may be turned on when the door is closed by using the
oven light switch located on the Electronic Oven control.
The oven light bulb is covered with a glass shield held
in place by a wire holder. THIS GLASS SHIELD MUST
ALWAYS BE IN PLACEWHEN THE OVEN IS IN USE.
BESUREovE.isCOOL
To
Replace the Light Bulb:
:[.
Turn the power off at the main source.
2.
Wear a leather-faced glove for protection against
possible broken glass.
3.
Replace bulb with a 40 Watt
appliance bulb only.
4,
For self-cleaning oven, press
wire holder to one side to
release glass shield, change
bulb and be sure to replace
glass shield.
Page 30
Oven baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned
appliance,
Baking Causes Corrections
Problems
i!
Cookies and
biscuits burn on
the bottom,
o Cookies and biscuits put into
the oven before the preheating
time is completed.
Oven rack overcrowded.
Dark pan absorbs heat too fast.
Allow oven to preheat to the selected temperature
before placing food in oven.
Choose pan sizes that will permit 5.1cm to 10.2cm
(2" to 4") of air space on all sides when placed in
the oven.
Use a medium-weight aluminum baking sheet,
Cakes too dark on
top or bottom,
Cakes put into the oven before
preheating time is completed,
Rack position too high or low.
Oven too hot.
Allow oven to preheat to the selected temperature
before placing food in the oven.
Use proper rack position for baking needs.
Set oven temperature 25°F/12°C lower than
recommended.
Cakes not done in
the center,
Oven too hot.
• Incorrect pan size,
Pan not centered in oven,
Set oven temperature 25°F/12°C lower than
recommended.
• Use pan size suggested in recipe.
Use proper rack position and place pan so there is
5.1cm to 10.2cm (2" to 4') of space on all sides of
pan.
Cakes not level. • Range not level. • Place a marked glass measuring cup filled with water
on the center of the oven rack, If the water level
is uneven, refer to the installation instructions for
leveling the range.
Pan too close to oven wall or
rack overcrowded,
Pan warped,
• Be sure to allow 5.1cm to 10.2cm (2" to 4") of
clearance on all sides of each pan in the oven,
Do not use pans that are dented or warped,
Foods not done
when cooking time
is u _,
u
Oven too cool.
Oven overcrowded.
Oven door opened too
frequently,
Set oven temperature 25°F/12°C higher than
suggested and bake for the recommended time.
Be sure to remove all pans from the oven except the
ones to be used for baking.
Open oven door only after shortest recommended
baking time,
Page 31
Beforeyou call for service, review this list. It may save you time and expense. The list includes common
occurrences that are not the result of defective workmanship or materials in this appliance.
Range is not level, Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the rack is level. When range is level, cooktop may
appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range. If floor is
sagging or slopping, contact a carpenter to correct the situation.
.....Kitchen cabinet misaiignment may make iange appear to be unievei: Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
appliance easily. Contact builder or installer to make appliance accessible.
Appliance must .................................................
be accessible for Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.
service.
Entire range or oven Make sure cord/plug is plugged tightly into outlet.
does not operate, Service wiring is not complete. Call an authorized servicer.
Electrical power outage. Check house lights to be sure. Call your local electric company for
service.
Oven control beeps Electronic control has detected a fault condition. Press CLEAR to clear the display and stop
and displays any F beeping. Reprogram oven. If fault recurs, record fault number. Press CLEAR and call an
code error (ex,: FIO) authorized servicer for assistance. ...........................................
Oven light does not Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.
work. ...........................................................................................................
: Electrical power outage. Check house lights to be sure. Call your local electric companyfor service.
Surface unit does No power to the appliance. Check steps under "Entire Range or Oven Does Not Operate" in
not heat. this Before you Call checklist.
Incorrect control setting. Make sure the correct control is on for the surface unit to be used.
Surface units too Incorrect control setting. Make sure the correct control is on for the surface unit to be used.
hot or not hot Lightweight or warped pans used. Use only fiat, evenly balanced, medium or heavyweight
enough, cookware. Flat pans heat better than warped pans. Cookware materials and weight of the
material affect heating. Heavy-and medium- weight pans heat evenly. Because lightweight
pans heat unevenly, foods may burn easily.
Hetalmarks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on
cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks.
"Cooktop Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.
Scratches or Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be
abrasions on sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not
cooktop surface, affect cooking and will become less visible with time. .................
ii
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"Cooktop Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.
Cookware with rough bottom has been used. Use smooth, fiat-bottomed cookware.
Brown streaks or Boilovers are cooked onto surface. Use razor blade scraper to remove soil. "Cooktop
specks. Cleaning - Ceramic Glass Cooktop Models section under General Cleaning.
ii
Page 32
Areas of Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
discoloration with cream. Use cookware with clean, dry bottoms.
metallic sheen,
Poor baking results, Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the
set temperature before placing food in the oven. Try adjusting the recipes' recommended
temperature or baking time. If you feel the oven is too hot or coo!, see "Adjusting Your
Oven Temperature" section in the Electronic Oven Control Guide.
Fan noise during A cooling fan may automatically turn on and off to cool internal parts. It is normal, and the
cooking operation, fan may continue to run even after oven is turned off.
Flames inside oven Excessive spillovers in oven. Set self-dean cycle for a longer cleaning time.
or smoking from Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts of
vent,
Oven smokes Control(s) not set properly. Follow instructions under "Setting Oven Controls".
excessively during Make sure oven is 0pened t0 BrOil stop POsitiOn: ........................................................................................................................................................................................................
broiling ..........................
Self-cleaning cycle Contro!(s) not set properly. Follow instructions under "Oven Cleaning" in the Electronic Oven
does not work, Control Guide.
Soil not completely Set Self-Clean cycle for a longer cleaning time.
removed after self- Failureto clean bosom frontl top of oven or door areas outside oven seal, These areas
cleaning cycle,
Drip bowls are Foodswith acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion.
pitting or rusting, Remove and wash drip bowls as soon as :)ossible after a spillover. ....
Drip bowls turning Bottom surface of cookware extends beyond surface elements and touches cooktop surface.
color or distorted This can cause high enough temperatures to discolor the drip bowls. DO NOT use cookware
out of shape, of this type. Pan sizes should be matched to the size of the element. Re )lacement drip
grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle.
If flames or excessive smoke are present, stop the self-clean cycle and follow the steps
under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven Control
Guide.
Meat too close to the element. Reposition the rack to provide proper clearance between the
meat and the element. Preheat broil element. Preheat broil element for searing.
Grid on broiler :)an wrong side up and grease not draining. Always place grid on the broiler
pan with ribs up and slots down to allow grease to drip into :)an.
Grease has built up on oven surfaces. Regular cleaning is necessar' when broiling
frequently. Old grease or food spatters cause excessive smoking.
Control(s) not set properly. Follow instructions under "Oven Cleaning" in the Electronic Oven
Control Guide.
Self-cleaning cycle was interrupted. Stop time must be 2 to 4 hours past the start time.
Follow steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven
Control Guide.
are not in the Self-Cleaning area, but get hot enou(ih to burn on food residue. Clean these
areas before starting the Self-Clean cycle. Burned-on residue may be cleaned with a stiff
nylon brush and water or n 'ion scrubber. Be careful not to damage the oven gasket.
Normal environment. Houses alone sea coast are exposed to salt air. Protect bowls as much
as possible from direct exposure to salt a=r.
Page 33
Page 34
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux
will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed outside the
USAor Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for
appliances not in ordinary household use or used other than in accordance with the provided
instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumable, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIES WARRANTIES; LIMITATION OF REMEDIES
Customer's sole and exclusive remedy under this limited warranty shall be product repair or
replacement as provided herein. Claims based on implied warranties, including warranties of
merchantability or fitness for particular purpose, are limited to one year or the shortest period
allowed by law, but not less than one year. Electrolux shall not be liable for consequential or
incidental damages such as property damage and incidental expenses resulting from any breach
of this written limited warranty or any implied warranty. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, or limitations on the duration of
implied warranties, so these limitations or exclusions may not imply to you. This written warranty
gives you specific legal rights. You may also have other rights that vary from state to state.
If YOU
Need
Service
ii
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service isperformed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained contacting Electrolux at the addresses or phone numbers
below.
This warranty only applies in the USAand Canada. In the USA, your appliance is warranted by Electrolux Major
Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.
ii
Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifications as described or illustrated are subject to change without notice.
USA
:1.,800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Electrolux
Canada
:L800.265,8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
LSV 3E4
Page 35
LE OF CONTE
16
..........:6 @_
InstallationInstructions.......................................9 CaPe&
Before Setting Surface Controls ............................ 11
Setting Surface Controls ...................................... 15
www,frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
_4
Page 36
Product Registration
Register Your Product
ThePRODUCT
REGISTRATION CARD
should be filled in completely,
signed and returned to
Electrolux Major Appliances.
Serial Plate Location
Congratulations on your purchase of a new appliance!
At Electrolux Major Appliances, we are very proud of
our product and are completely committed to providing
you with the best service possible. Your satisfaction isour
number one priority.
We know you'll enjoy your new appliance and Thank You
for choosing our product. We hope you consider us for
future purchases.
PLEASE CAREFULLY READ AND SAVE THESE
INSTRUCTIONS
This Use & Care Manual contains general operating
instructions for your appliance and feature information
for several models. Your product may not have
all the described features. The graphics shown are
representative. The graphics on your appliance may not
look exactly like those shown. These instructions are not
meant to cover every possible condition and situation
that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance.
; Please record your model and serial numbers
below for future reference,
Model Number:
ii
Serial Number:
ii
Purchase Date:
Please attach sales receipt here for future reference.
© 2009 Electrolux Canada Corp,
All rights reserved
Printed in United States
Page 37
Read all instructions before using this appliance.
Save these instructions for future reference.
DEFINITIONS
A This isthe safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safely
messages that follow this symbol to avoid possible injury
or death,
This symbol will help alert you to situations
that may cause serious bodily harm, death or
This symbol will help alert you to situations that
may cause bodily injury or property damage.
IMPORTANT indicates instaflation, operation or
maintenance information which is important but not
hazard-related,
and in Canada with CSA C22.1 PART l=latest
edition and local code requirements. Install only
per installation instructions provided in the literature
package for this range.
Ask your dealer to recommend a qualified technician
and an authorized repair service. Know how to
disconnect the electrical power to the appliance at the
circuit breaker or fuse box in case of an emergency.
• User Servicing. Do not repair or replace any
part of the appliance unless specifically
recommended in the manuals. All other servicing
should be done only by a qualified technician to
reduce the risk of persona! injury and damage to the
appliance.
e Never modify or alter the construction of an
appEance by removing leveling legs, panels, wire
covers, anti=tip brackets/screws, or any other
part of the product.
Stepping, leaning, sitting or pulEng down on the
door or the drawer of this appliance can result
; =
in serious injuries and also cause damage to the
appliance. Do not allow children to climb or play around
the appliance. The weight of a child on an open door may
causethe appliance to tip, resulting inserious burns or other
injury. An open drawer when hot may cause burns.
o All appliance can Lip.
• Injury to persons could result.
• Install anti=tip bracketpacked with
your appliance.
• See Installation Instructions.
To reduce the risk of tipping, the
appliance must be secured by properly
installed anti=tip bracket provided
with the unit. Refer to the Installation
Instructions for proper anti=tip
bracket installation.
• Remove all tape and packaging wrap before using
the appliance. Discard the carton and plastic
bags after unpacking the appliance. Use recycling
facility where available. Never allow childrento play
with packaging material. Do not remove the wiring label
and other literature attached to the appliance. Do not
remove model/serial number plate.
• Proper Installation. Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance in the United States
with the National Electrical Code ANSI/NFPA No.
70=latest edition, and local code requirements,
o Storage in or on Appliance. Flammable materials
should not be stored in an oven, near surface
burners or in the warm & serve drawer (if
equipped). This includes paper, plastic and cloth
items, such as cookbooks, plastic ware and towels, as
well as flammable liquids. Do not store explosives, such
as aerosol cans, on or near the appliance. Flammable
materials may explode and result in fire or property
damage.
Do not store items of interest to children in the
cabinets above the appliance. Children climbing on
the cooktop to reach items could be seriously injured.
• Do not leave children alone. Children should not
be left alone or unattended in the area where an
appEance is in use. They should never be allowed to
sit or stand on any part of the appliance.
Page 38
• DO NOT TOUCH SURFACE UNITS, AREAS NEAR
THESE UNITS, OVEN HEATING ELEMENTS OR
INTERIOR SURFACES OF THE OVEN OR WARMER
DRAWER (if equipped). Both surface units and oven
heating elements may be hot even though they are
dark in color. Areas near surface units may become
hot enough to cause burns. During and after use, do
not touch, or let clothing or other flammable materials
touch these areas until they have had sufficient time
to cool. Among these areas are the cooktop, surfaces
facing the cooktop, the oven vent openings and
surfaces near these openings, oven door and window.
• Wear Proper Apparel. Loose=fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
NEVER use your appliance as a space heater to
heat or warm the room.
• Do Not Use Water or Flour on Grease Fires.
Smother the fire with a pan lid, or use baking
soda, a dry chemical or foam=type extinguisher.
• When heating fat or grease, watch it closely, Fat
or grease may catch fire if allowed to become too hot.
• Use Only Dry Pot holders. Hoist or damp pot
holders on hot surfaces may result in burns from
steam, Do not let the pot holders touch hot surface
units. Do not use a towel or other bulky cloth instead of
a pot holder.
= Do Not Heat Unopened Food Containers. Buildup
of pressure may cause the container to burst and
result in injury.
• Remove the oven door from any unused
appliance if it is to be stored or discarded.
Do not attempt to operate the appliance during a
power failure. If the power fails, always turn off
the unit. If the unit is not turned off and the power
resumes, the appliance will not operate and an error
message will be displayed. Once the power resumes,
reset the clock and the oven function.
Electronic controllers can be damaged by cold
temperatures. When you use your appliance for
the first time, or if it has not been used for a long
period of time, make sure that it has been exposed
to a temperature above 00C/32°F for at least 3
hours before connecting it to the power supply.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
®
Know which knob controls each surface heating
unit.
• Use Proper Pan SizemThis appliance is equipped
with one or more surface units of different sizes. Select
utensils having flat bottoms large enough to cover the
surface unit. The use of undersized utensils will expose
a portion of surface heating to direct contact and may
result in ignition of clothing. Proper relationship of
utensil to the surface will also improve efficiency.
- Utensil Handles Should Be Turned Inward
and Should Not Extend Over Adjacent Surface
Units--To reduce the risk of burns, ignition of
flammable materials, and spillage due to unintentiona!
contact with the utensil. The handle of the utensil
should be positioned so that it is turned inward, and
does not extend over adjacent surface unit.
- Do not use Searing Grill on the cooktop--The
Searing grill is not designed for use on the cooktop.
Doing so may result in a fire.
- Never Leave Surface Units Unattended--Boilovers
cause smoking and greasy spillovers that may ignite, or
a pan that has boiled dry may melt.
- Protective Liners--Do not use aluminum foil to line
oven bottom or any other part of the appliance. Only
use aluminum as recommended for baking if used as a
cover placed on the food. Any other used of protective
liners or aluminum foil may result in a risk of electric
shock or fire or a short circuit.
• Glazed Cooking Utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cooktop service without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations for cooktop use.
- Do Not Use Decorative Surface Burner Covers.
If an element is accidentally turned on, the decorative
cover will become hot and possibly melt. Burns will
occur if the hot covers are touched. Damage may also
be done to the cooktop.
Page 39
FOR GLASS COOKTOP ONLY
• Do Not Clean or Operate a Broken Cooktop-- If
cooktop should break, cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualified technician
immediately.
• Clean Cooktop Glass with Caution-- If a wet
sponge or cloth is used to wipe spills on a hot cooking
area, be careful to avoid a steam burn. Some cleaners
can produce harmful fumes if applied to a hot surface.
• Do not place hot cookware on cold cooktop
glass-- This cold cause glass to break.
• Avoid Scratching the Cooktop Glass with Sharp
Objects.
IMPORTANT SAFETY INSTRUCTIONS FOR
USING YOUR OVEN
• Use Care When Opening Oven Door--Stand to the
side of the appliance when opening the door/drawer of
a hot appliance. Let hot air or steam escape before you
remove or replace food in the oven/drawer.
• Keep Oven Vent Ducts Unobstructed. The oven is
vented at the front above the oven door. Touching the
surfaces in this area when the oven is operating may
cause severe burns. Also, do not place plastic or heat=
sensitive items on or near the oven vent. These items
could melt or ignite.
NEVER cover any slots, holes or passages in
the oven bottom or cover an entire rack with
materials such as aluminum foil. Doing so blocks
air flow through the oven and may cause carbon
monoxide poisoning. Aluminum foil linings may trap
heat, causing a fire hazard.
• Placement of Oven Racks, Always place oven racks
in desired location while appliance iscool. Remove all
utensils from the rack before removing rack. If rack
must be moved while oven is hot, use extreme caution.
Use pot holders and grasp the rack with both hands to
reposition. Do not let pot holders contact the hot oven
element or interior of the oven.
= Do not use a broiler pan without its insert. Broiler
pan and grid allow dripping fat to drain and be kept
away from the high heat of the broiler.
* Do not cover the broiler grid or oven bottom
with aluminum foil. Exposed fat and grease could
ignite.
Do not touch a hot oven light bulb with a damp
cloth. Doing so could cause the bulb to break.
Disconnect the appliance or shut off the power to the
appliance before removing and replacing the bulb.
IIvIPORTANT SAFETY INSTRUCTIONS FOR
CLEANING YOUR OVEN
• Clean the appliance regularly to keep all parts
free of grease that could catch fire. Exhaust fan
ventilation hoods and grease filters should be kept
clean. Do not allow grease to accumulate. Greasy
deposits in the fan could catch fire. Refer to the hood
manufacturer's instructionsfor cleaning.
• Cleaners/Aerosols--Always follow the manufacturer's
recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing
damage and/or injury.
SELF=CLEANING OVEN ONLY
• Clean in the self-deaning cycle only the parts of
the appliance listed in this Owner's Guide. Before
using the selFdeaning cycle of the appliance, remove
all utensils stored in the appliance.
• Do not clean the oven door gasket. The door
gasket is essential for a good seal. Care should be
taken not to rub, damage or move the gasket.
o De not use oven cleaners. No oven cleaner or oven
liner protective coating of any kind should be used in or
around any part of the appliance.
o Remove oven racks, Oven racks color will change if
left in the oven during a selFcleaning cycle.
The health of some birds is extremely sensitive to the
fumes given off during the self-clean cycle of any wall
oven: Hove birds to another well ventilated room:...................................
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California
to publish a list of substances known to the state to
cause cancer, birth defects or other reproductive harm,
and requires businesses to warn customers of potential
exposure to such substances,
Page 40
Your Range Features:
Element On/Off
indicator light
Oven temperature
knob
Element control knobs
Oven selector knob
Electric outlet
6" left
coil element
6" left
coil element
cooktop
Manual cleaning
oven interior
lllll!!ilill\\\\
Oven On/Off indicatorlight
Oven light switch
6" right rear coil
element
8" right front
coil element
Broil element
Interior oven
light
Adjustable
interior oven
rack(s)
Steel handle
Steel oven door
with window
Storage drawer =
Page 41
Your Range Features,"
Electronic oven control
-- Element control knobs
Element On/Off
indicator light
Electric outlet
6" left rear
coil element
6" left front
coil element_
Porcel_
cooktop
Self-clean door latch
SelFcleaning
oven interior
i1111111 I!i111111I!!I!!III!iIIIll\\\\\
I
E_
JJ
ght light switch
light switch
6" right rear coil
element
8" right front
coil element
Broil element
Interior oven
light
/,
i
Adjustable
interior oven
rack(s)
Glassovendoor _ : _
with window _ _ _ :_
Storage drawer ®
Steel handle
//
Page 42
Your Range Features:
The features shown for
your appliance may vary
according to model type &
color.
Night
Electronic oven control
with kitchen timer
Element control knobs
Element On/Off
indicator light
Electric outlet
6" left rear
coil element
6" left front
coil element
Porcelain --
cooktop
Self-clean door latch
SelFcleaning
oven interior
Hot surface
indicator light
-- Night light switch
Oven light switch
6" right rear coil
element
8" right front
coil element
Broil element
Interior oven
light
Adjustable
interior oven
Storage drawer =
This model is also available in stainless steel color,
Page 43
]:nstallation and service must be performed
by a qualified technician,
Save for the local electrical inspector's use,
Read and save these instructions for future
reference.
Clearances and Dimensions
a. Provide adequate clearances between the range and
adjacent combustible surface (1.3cm (1/2") to the
cabinet side walls and the rear wall).
b. LocationJCheck location where the range will be
installed. Check for proper electrical supply and the
stability of floor.
c. Dimensions that are shown must be used. Given
dimensions provide minimum clearance. Contact
surface must be solid and level.
FRONT
VIEW
61 cm
24"
76.2 cm (30")
Minimum_ t
Minimum to 1.3cm _1
wall on either (1/2") _ 45..7cm Minimum to
side of range. / (; ) either sideof range.
. cabinets on
To eliminate the risk of burns or fire
by reaching over heated surface
units, cabinet storage space located
above the surface units should be
avoided. If cabinet storage is to be
provided, the risk can be reduced by
installing a range hood that projects
horizontally a minimum of 12.7
cm (5") beyond the bottom of the
cabinets.
SIDE
VIEW
li:!!:!:i:_:i:i:i:i:i:!:i:i:!8!:ii:!i!i
4:_3 cm4_
13") v
r cabinets above
range top.
Maximum depth r-
iyiJiiii!ii!i!i!iiiii!!i!i!i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!i!i!!iiiiiiiiiiiiiiiiiii
!_!_!i!_!_!_i_i!_!i!_!_!_!_!_!!i_!_!_!_!i_!_!_!_!_i_i_i_i_i_i_i
_!_!i:i:i_!i_!:iii_iiii_i_i_iiii_ii_ii_ii_i_ii_iiiiiiiiiii_iiiiiiii!i!i!i!i!ii!¸
!_!_:_!_!_:!!_!_!_!!!_!_!_!_:_!_!_!_i:_::i_:_:!:i::_i_:_F!:_:!:_:::_:_:i:_:
_i_i_ii_ii_iii_i_i_iiiii!i_iii_iiiii_i_i_iii_iii_iiiiiiiii!i_iii_iiii_i_!i!!!!_
!!i!!!:!!!i:!:!:!:!:i:i:2:1:i:i:::i:i:i:i:[:i:i::i:i:i:i:::i:::i:i:!i::::::
_i?i_i_i_i[i___i1i__ii_i____i
Leveling
For good baking results, your range should be level.
Screw type leveling legs are provided at each corner
of the range at the base. Remove the storage drawer
to adjust the leveling legs. (Refer to Storage Drawer
section).
To level the range:
1. Use a 1-1/4" open end key or an adjustable wrench
to equally unscrew the four leveling legs two to three
turns each.
2. Install an oven rack in the center of the oven.
3. Move the range to its final position, then put a spirit
level on the rack to check for levelness. Take two
readings, one with the level placed diagonally first in
one direction, and then the other.
4. Use the 1-1/4" key or wrench to adjust the leveling
legs. Turn each one until the range stands firm
without wobbling.
Night Light Replacement (Some models)
To remove and replace the fluorescent light:
1. Lift up the control panel cover.
2. Place your fingers on the tube at approximately 20.3
cm (8") from each end.
3. To remove, turn the tube 90° then pull it out of its
sockets.
4. To replace the tube, engage the new tube into the
sockets, then rotate and snap the tube in place light
to make it sure it will lit.
Circuit Protection
As a protection against surcharge, a 15 amp, 120 volt
fuse is provided for the electric outlet located on top of
the control panel.
To access the fuse(s) raise the control panel cover. Mod-
els with no electric outlet have no fuse.
Page 45
Using proper cookware
The size and type of cookware used will influence the
setting needed for best cooking results. Be sure to follow
the recommendations for using proper cookware as
illustrated in Figures 1 & 2.
Cookware should have flat bottoms that make good
contact with the entire surface heating element (Figure
1). Check for flatness by rotating a ruler across the
bottom of the cookware (Figure 2).
CORRECT INCORRECT
t t
o Cur_,edand warped pan
bottoms.
• Fiatbottomandstraight
sides,
• Tight fitting lids,
• Weight of handledoesnottilt
pan.Paniswellbalanced.
÷1
e Panoverhangselementby
morethan one-halfinch.
® Pansizesmatchthe amount
of foodto bepreparedand
the sizeof thesurface
element.
• Madeofa materialthat
÷1 I_
• Pan is smallerthan element.
conductsheatwell.
• Easy to clean.
• Always match pot diameter
to elementsurfacediameter.
• Heaw handle tilts pan.
Figure 1
Cool{ware material types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom. The most popular materials available are:
Aluminum- Excellent heat conductor. Some types
of food will cause it to darken (Anodized aluminum
cookware resists staining & pitting). If aluminum pans
slide across the ceramic glass cooktop, they may leave
metal marks which will resemble scratches. Remove
these marks immediately.
Copper- Excellent heat conductor but discolors easily. Nay
leave metal marks on ceramic glass (see Aluminum above).
Stainless steel- Slow heat conductor with uneven cooking
results. :Is durable, easy to clean and resists staining.
Cast iron- A poor heat conductor however will retain
heat very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
Porcelain-enamel on metal- Heating characteristics
will vary depending on base material. Porcelain-enamel
coating must be smooth to avoid scratching ceramic
cooktops.
Glass- Slow heat conductor. Not recommended for
ceramic cooktop surfaces because it may scratch the
glass.
Figure 2
Page 46
Specialty Pans & Trivets
Wokswith fiat bottoms suitable for use on your cooktop
are available in most cookshop or hardware stores.
Round-bottomed woks (with a support ring that does
not extend beyond the heating element) may also be
used. The metal ring was designed to support the wok
safely when it is filled with large amounts of liquids (soup
making) or fat (frying).
DO NOT use two elements (if the cooktop is not
equipped with bridge element) to heat one large pan
such as a roaster or griddle, or allow cooking utensils
to boil dry. The bottom surface of the pan in either of
these situations could cause discoloring or crazing of
the porcelain enamel range surface, and damage to the
surface elements and/or damage to the drip pans (if
equipped).
Canning Tips & Information
1. Use tested recipes and follow instructions carefully.
Check with your local Cooperative Agricultural
Extension Service or a manufacturer of glass jars for
the latest canning information.
2. Use fiat-bottomed canners only. Heat is spread more
evenly when the bottom surface is fiat.
3. Center canner on the burner grate.
4. Start with hot water and a high heat setting to
reduce the time it takes to bring the water to a boil;
then reduce the heat setting as low as possible to
maintain a constant boil.
5. It is best to can small amounts and light loads.
Wire trivets- Do not use wire trivets. Cookware bottoms
must be in direct contact with the surface elements.
DO NOT use a wok if it is equipped with a metal ring
that extends beyond the surface element. Because
this ring traps heat, the surface element and cooktop
surface could be damaged.
For glass smoothtop models,
only fiat bottomed woks
(without support rings) may
be used.
Canning can generate large amounts of steam. Use
extreme caution to prevent burns. Always raise the lid
to vent steam away from you.
Prevent damage to cooktop and burner grates:
1. Do not use water bath or pressure canners that
extend more than one inch beyond the edge of the
2. Do not leave water bath or pressure canners on
high heat for an extended amount of time.
3. Alternate surface units between each batch to
allow the units and surrounding surfaces to coo!
down. Try to avoid canning on the same burner
unit all day.
Safe canning requires that harmful micro-organisms are
destroyed and the jars are sealed completely. When
canning in a water bath canner, a gentle but steady boil
....must be maintained continuous!yfor the required time- .........
Page 47
Ceramic Glass Cooktop (model C only)
The ceramic cooktop has radiant surface elements
located below the surface of the glass, The design of
the ceramic cooktop outlines the area of the surface
element underneath. Make sure the diameter of the
pan matches the diameter of the element outline on the
cooktop.
Heat is transferred up through the surface of the cooktop
to the cookware. Only fiat-bottom cookware should
be used. The type and size of cookware, the number
of surface elements in use and their settings are all
factors that will affect the amount of heat that will
spread to areas beyond the surface elements. The areas
surrounding the elements may become hot enough to
cause burns,
The cooktop should not be used as a cutting board or
work surface.
Dropping heavy or hard objects on the cooktop may crack it.
Panswith rough bottoms may scratch the cooktop surface.
Placing foods directly on the smoothtop surface
(without cooking utensil) is not recommended as
difficult cleaning will result and foods may smoke and
cause a potential fire hazard.
Never use the griddle or similar cooking sheet on the
About the Radiant Surface Elements
The element temperature rises gradually and evenly.
As the temperature rises, the element will glow red. To
maintain the selected setting, the element will cycle ON
and OFF. The heating element retains enough heat to
provide a uniform and consistent heat during the OFF
cycle. For efficient cooking, turn OFF the element several
minutes before cooking iscomplete. This will allow
residual heat to complete the cooking process.
Types of the heating elements used
Your cooktop is equipped with radiant surface radiant
elements with different wattage ratings. The ability to
heat food quicker and in larger volumes increases as the
element wattage increases.
Due to the high intensity of heat generated by the
surface elements, the glass surface will turn green
when the element will be turned off. This phenomenon
is normal and the glass will come back to its original
white color after it has completely cooled down. (White
Radiant elements have a limiter that allows the element
to cycle ON and OFF, even at the HTsetting. This
helps to prevent damage to the ceramic smooth top.
Cycling at the HTsetting is normal and can occur if the
Please read detailed instructionsforceramic glass
cooktop cleaning in the General Care 8=Cleaning
section and Before You Call checklistsection of this
Use and Care Guide: ...............................................................................................................................................................................................
Do not allow aluminum foil, or ANY material that
can melt to make contact with the ceramic glass
cooktop, If these items melt on the cooktop they will
damage the ceramic cooktop.
cookware is too small for the radiant element or if the
cookware bottom is not fiat.
Be sure to read detailed instructions for ceramic glass
cooktop cleaning in the General Care 8=Cleaning
section and Before You Call checklist section of this
Use and Care Guide.
Page 48
Element ON
Your appliance can be equipped with two different types
of radiant surface control indicator lights that will glow
on the backguard = the Element On indicator light and the
hot surface indicator lights.
The element ON indicator lights are located on the
contro! panel (Figure 1) between the two element control
knobs and will glow when a surface element isturned
ON.
on
element ON
indicator light
3
Element ON indicator light location,
OFF
to hi
4
med
OFF
Lo ......... .....
4
6
med
Figure 1
8
7
hi
8
7
Hot surface indicator light
(Model C only)
The hot surface indicator light is located on the control
panel (Figure 2) between the two right element control
knobs and will glow when any surface cooking area heats
up and will remain on until the glass cooktop has cooled
to a MODERATE level.
OFF
8
/7
4 6
med
OFF
4
med
Figure 2 = Hodel C only
Hot surface indicator light location,
surface
hi
hot surface
indicator
light
The "Hot Surface" indicator lights will glow when the
element isturned on and will continue to glow after the
contro! knob is turned to the "OFF" position. It will glow
until the heating surface area has cooled sufficiently.
The glass surface may still be hot and burns may
occur if the glass surface istouched before the indicator
light has turned OFF.The message may remain on even
though the controls are turned OFF.
Page 49
Surface cooking settings
use the chart to determine the correct setting for the type
of food you are preparing.
Note" The size and type of cookware used will influence
the setting needed for best cooking results.
Setting
NED HIGH (5-8) Continue a rapid boil, fry, deep fat fry.
NED LOW (2-4) Keep foods cooking, poach, slew.
Type of Cooking
Operating the Surface Elements
To Operate the Surface Elements
i. Place correctly sized cookware on the surface
element.
2. Push in and turn the surface contro! knob in either
direction to the desired setting (Figure 1).
3. Turn the knob to adjust the seLLingif desired. Start
most cooking operations on a higher setting and then
turn to a lower seLLingto finish cooking. Each surface
element provides a constant amount of heat at each
setting. Ceramic Glass Cooktop Only: A glowing
red surface healing area extending beyond the
bottom edge of the cookware indicates the cookware
istoo small for the surface heating area.
4. When cooking has completed, turn the surface
control knob to OFF before removing the
cookware.
Do not place plastic items such as salt and pepper
shakers, spoon holders or plastic wrappings on
cooktop when it is in use, These items could melt or
ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the surface elements.
OFF
hi
2 8
3 7
4 6
rned
Figure 1 =Control knob shown is typical only.
See Recommended Setting for Surface Element table.
Page 50
Oven vent location
Each oven has its own vent as shown below (Figure
1). When the oven is on, warm air is released through
the vent. This venting is necessary for proper air
circulation in the oven and good baking results. DO NOT
BLOCK OVEN VENT. Never close off the openings with
aluminium foil or any other material.
Oven vent location on
porcelain cookto
Oven vent location on
ceramic glass cooktop
Arranging oven racks
ALWAYSARRANGE OVEN RACKSWHEN THE OVEN IS
COOL (PRIOR TO OPERATING THE OVEN). Always use
oven miLLswhen using the oven.
To remove an oven rack, pull the rack forward until it
stops. Lift up front of rack and slide out (Figure 4).
To replace an oven rack, fit the rack onto the guides
on the oven walls. Tilt the front of the rack upward and
slide the rack back into place.
Figure 4
Recommended rack positions
Figure 1
Some models are equipped with a blower
which runs in baking and self=denning mode
to keep all internal components at a cool
temperature. The blower may keep running
even if the oven has been turned OFF, until the
components have cooled down.
Air circulation in the oven
If using 1 rack (Figure 2), place in center of oven. If using
multiple racks (Figure 3), stagger cookware as shown.
For best air circulation and baking results allow 2-4"
(5-10 cm) around the cookware for proper air circulation
and be sure pans and cookware do not touch each other,
the oven door, sides or back of the oven cavity. The hot
air must circulate around the pans and cookware in the
oven for even heat to reach around the food.
Figure 2 =Single Oven Rack
Broiling meats, chickenor fish
Using a single rack
Frozenpies,angelfood cake,yeast,bread,
1or 2casseroles,smallcutsof meat or
poultry
2or3
1 or2
Figure 3 = Multiple Oven Racks
Always use caution when removing food from the oven.
Page 51
Selector Control Knob
OFF
Temperature Control Knob
OFF
br0i[
gritter
bake
cuire
Baking
To Set the Controls for Normal Baking:
1. Arrange oven racks while the oven is still coo!.
2. Turn the Selector Contro! Knob to the Bake position.
3. Turn the Temperature Control Knob to the desired oven
temperature. When the oven isfirst turned on, the oven
indicator light on the control panel will glow.
4. Preheat the oven for 10 to !2 minutes before baking.
Preheating is not necessary when roasting or cooking
casseroles.When the desired temperature is reached, the
oven indicator light will go out. The light will then go on
and off as the element cycles on and off to maintain the
desired temperature.
5. When baking isfinished, turn the Temperature and Selector
knobs to the OFFposition.
Broil
stop
position
550
29O
500
260
450
230
200°F
95°C
250
120
300
150
400 350
205 175
Broiling
To Set the Controls for Broiling=
1. Arrange oven racks while the oven is still cool. For rare
meats, position the broiler pan (available via mail order)
closer to the element (upper position). For well-done
foods such as chicken, lobster tails or thick cuts of meat,
position the pan further from the element (to a lower
position).
2. Turn the Selector Control Knob to the Broil position.
3. Turn the Temperature Control Knob to Broil or a lower
temperature if desired. To sear rare steaks, allow the
element to become red-hot (about 2 minutes) before
placing food in the oven. When the oven is first turned
on, the oven indicator light on the control panel will
glow.
4. Placethe grid on the broiler pan (available via mail order),
and then placethe meat on the grid. DONOTusethe broiler
pan without the grid or cover the grid with aluminum foil.
The exposed fat could ignite.
5. Placethe pan on the oven rack. Leavethe door openat the
broil stop position while broiling. The door will stay in this
position without closing.
6. Broil on one side until food is browned; turn and cook on
the second side. Seasonand serve. Note= Always pull the
rack out to the stop position before turning or removing
food.
7. When broiling isfinished, turn the Temperature and Selector
knobs to the OFF position.
Should an oven fire occur, leave the oven door closed
and turn off the control knobs. If the fire continues,
throw baking soda on the fire or use a fire extinguisher.
DO NOT put water or flour on the fire. Flour may be
explosive.
Page 52
Control pad features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN, For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each
feature and function follow later in this Use & Care Guide,
The oven function will not work if the time of day clock is not set.
0
_,_ bake time
bake ,- broi[ ,_
temps
m oven four
m preheat pr6
door locked
0 r_ortever_ou]Ll6
1, Clock pad--Use to set the time of day.
2. Bake time pad--Use to enter the length of the
baking time.
3, Timer on=off pad--Use to set or cancel the Timer.
The Timer does not start or stop cooking.
4, Start time pad--Used to set the desired start time
for baking. Can be used with BAKE TIME to program
a delayed bake cycle.
5, Oven, preheat 8=door locked lights= The "oven"
light will glow each time the oven unit turns on
maintain the set oven temperature. The "Preheat"
light will glow when the oven is first set to operate,
or if the desired temperature is reset higher than the
actual oven temperature. The "Door Locked" light will
flash until the door locks when the self=clean cycle is
in use. It glows constantly after the door locks.
THE OVEN CAN BE PROGRAMMED TO
Bake normally, Time Bake, Delayed Bake, Broil, Self-Clean
Note" Push buttons or pads may be shaped differently.
FOR A SILENT CONTROL PANEL
When choosing a function, a beep will be heard each
time a pad is pushed. If desired, the controls can be
programmed for silent operation. Push and hold START
TIME pad. After 7 seconds, the control will beep once.
This will block the controls from sounding when a pad is
pushed. To return the sound, push and hold START TIME
pad again for 7 seconds until 1 beep is heard.
°
6. Up arrow pad=Used along with the function pads
to select oven temperature, time of day and minute
timer.
7. Bake pad--Use to select the bake cooking feature.
8, Feature indicator lights--These light to show
which feature is in use.
9. Broil pad--Use to select the broil cooking feature.
10. Down arrow pad=Used along with the function
pads to select oven temperature, time of day and
minute timer.
:[:[. Clear off pad=Use to cancel any oven feature
previously entered except the time of day and minute
timer.
:[2. Clean Pad=Used to select the self-cleaning cycle,
TEMPERATURE CONVERSION (Fahrenheit/Celsius)
The electronic oven control is set to operate in °F
(Fahrenheit) when shipped from the factory. The oven can
be programmed for any temperature from 170°F to 550°F
(77°C to 287°C).
To change the temperature to °C (Celsius) or from °C
to °F (control should not be in a Bake or Clean mode):
1. Push BROIL pad. "- - - " appears in the display.
2. Push and hold the UP ARROW pad until "HI"
appears in the display.
3. Push and hold BROIL pad until °F or °C appears in
the display.
4. Push UP or DOWN ARROW pad to change °F to °C
or °C to °E
5. TOaccept the change, wait 6 seconds.
Page 53
The oven function will not work if the time of day dock
is not set.
TO SET THE CLOCK
When the range is first plugged in, or when the power
supply to the appliance has been interrupted, the display
will flash "12:00".
1. Push CLOCK pad.
2. Within 5 seconds, push and hold the UP or DOWN
ARROW pad until the correct time of day appears in
the display.
Note: The clock cannot be changed during any timed
bake or selFdean cycle.
TO SET THE MINUTE TIMER
i. Push TIMERON/OFF pad.
2. Push the UP ARROW pad to increase the time in
one minute increments. Push and hold the UP AR-
ROW pad to increase the time in 10 minute incre-
ments. The timer can be set for any amount of time
from i minute to 11 hours and 59 minutes.
Note: If you push the DOWN ARROW pad first, the
timer will advance to 11 hours and 59 minutes.
3. The display shows the timer count down in minutes
until one minute remains. The display will count
down in seconds.
4. When the set time has run out, the timer will beep
3 times. It will continue to beep 3 times every 60
seconds until the TIMER ON/OFF pad is pushed.
The minute timer does not start or stop cooking. It serves
as an extra timer in the kitchen that will beep when the set
time has run out. The minute timer can be used alone or
during any of the other oven functions. When the minute
timer is in use with any other mode, the minute timer will
be shown in the display. To view other functions, push
the function pad for that mode.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, push and
hold the UPor DOWN ARROW pad to increase or decrease
the time.
To turn the time of day display OFF or ON in the display
press and hold the CLOCK pad for 8 seconds (the control
will beep once) and then release. This feature does not
remove the set time of day from the memory of the
control. When the display is turned OFFthe time of day
will reappear for a few seconds any time the CLOCK
pad is touched.
TO SET CONTROL FOR CONTINUOUS BAKE
OR 12 HOUR ENERGY SAVING
The oven control has a built-in 12 Hour Energy Saving
feature that will shut off the oven if the control is left on
for more than 11 hours and 59 minutes. The oven can
be programmed to override this feature for continuous
baking.
To set control for continuous baking:
1. Push and hold TIMER ON/OFF pad down for 5
seconds until tone is heard, "-- -- hr" will appear in
display for continuous cooking. The current time of
day will return to the display.
2. To cancel the Continuous Bake Function, push TIMER
ON/OFF pad and hold for 5 seconds until tone is
heard. "12hr" will appear in display indicating that
the control has returned to the 12 Hour Energy
Saving feature.
TO SET CONTROL FOR OVEN LOCKOUT
The control can be programmed to lock the oven door
and inactivate the oven controls.
To Set Control for Oven Lockout feature:
1. Push the CLEAR OFF pad and hold for 3 seconds.
"Loc" will appear in display, the "Door Locked"
indicator light will flash and the motor driven door
lock will begin to close automatically. DO NOT open
oven door while the indicator light is flashing. Allow
about 15 seconds for the oven door to lock. Once
the oven door is locked, the current time of day will
appear in the display.
2. To cancel the lockout feature, push CLEAR OFF pad
and hold for 3 seconds. The control will unlock the
oven door and resume normal operation.
To Cancel the Minute Timer before the set time has
run out: Push TIMER ON/OFF pad.
If a control pad is pressed while the Oven Door/Control
Lockout mode, "Loc" will appear in the display until
the contro! pad is released. But it does not disable the
clock, kitchen timer and the interior oven lights.
Page 54
TO SET OR CHANGE THE TEMPERATURE
FOR NORMAL BAKING
The oven can be programmed to bake at any temperature
from 170°F to 550°F (77°C to 287°C).
- If using a Searing Grill (available by mail order), preheat
the grill for 5 to 10 minutes before placing your meat.
- DO NOT use the broil pan without the insert. DO NOT
cover the broil pan insert with foil, The exposed
grease could catch fire.
Accessories available via the enclosed brochure:
The oven control has a built-in energy saving feature
that will shut off the oven if the control is left on for
more than 11 hours 59 minutes. ....
To Set the Controls for Normal Baking:
1. Push BAKE pad." " appears in the display.
2. Within 5 seconds, push the UP or DOWN ARROW
pad. The display will show "350°F (177%)." By holding
the UP or DOWN ARROW pad, the temperature can
then be adjusted in 5°F (1°C) increments.
3. As soon as the UP or DOWN ARROW pad is released,
the oven will begin heating to the selected temperature.
When the oven temperature reaches the desired baking
temperature, the control will beep 3 times and the
Preheat light will turn off.
4, To cancel the baking function, push the CLEAR OFF pad,
To Change the Oven Temperature after Baking has
started:
1. If you are using the minute timer, push the BAKE pad
and make sure the bake temperature is displayed.
2. Push the UP or DOWN ARROW pad to increase or
decrease the set temperature.
SETTING BROIL
This mode is best for meats, fish and poultry up to 1"
thick. Broiling is a method of cooking tender cuts of meat
by direct heat under the broil element of the oven. The
high heat cooks quickly and gives a rich, brown outer ap-
pearance. The BROIL pad controls the Broil feature. An
optional Searing Grill, Broiler Pan and Insert are available
via the enclosed accessories brochure (Figure 1 & 2). The
optional broil pan and broil pan insert used together allow
dripping grease to drain and be kept away from the high
heat of the oven broiler.
Broiling Tips:
-For optimum browning, preheat the broil element for 5
minutes.
-Broil one side until the food is browned; turn and cook
on the second side. Season and serve.
-Always pull the rack out to the "stop" position before
turning or removing food.
-Always use the broiler pan and its cover when broiling.
It allows the dripping grease to be kept away from the
high heat of the broil element (see Figure 1).
-For best broiling results, broil with the oven door in the
broil stop position (see Figure 3).
Broiler
Searin
Broile _ Broiler Pan
Pan _ & Insert
Figure i Figure 2
To set the Broil:
1. Arrange oven rack while oven is still cool.
2. Push the BROIL pad.
3. Push and hold the UP or DOWN ARROW pad until the
desired broil setting level appears in the display. Push
UP ARROW pad for HI broil or the DOWN ARROW
pad for LO broil. Most foods can be boiled at the HI
broil setting. Select the LO broil setting to avoid excess
browning or drying of foods that should be cooked to
the well-done stage.
4. Placegrid on the broiler pan, then place the food on the
grid. DO NOTusethe broiler pan without the grid or cover
the grid with aluminum foil. The exposed fat could ignite.
5. Place the pan on the oven rack. Open the oven door to
the broil stop position when broiling (Figure 3).
6. Broil on one side until food is browned; turn and cook
on the second side. Note: Always pull the rack out to
stop position before turning or removing food.
7. When broiling is finished, push the CLEAR OFF pad.
I
Broil Stop
Position
Figure 3
/
Should an oven fire occur, close the oven door
and turn off the oven. If the fire continues, use a
fire extinguisher. DO NOT put water or flour on
the fire. Flour may be explosive.
Page 55
TO SETTHE BAKETIHE FEATURE
The BAKE TIME and START TIME controls operate the
Timed Bake Feature. The automatic timer will turn the
oven on and off at the times you select in advance. The
oven can be programmed to start immediately and shut
off automatically or to begin baking at a later time with
an automatic shut off.
To Program the Oven to Begin Baking Immediately
and To Shut Off Automatically:
1. Be sure that the dock shows the correct time of day.
2. Place the food in the oven and push the BAKE pad.
3. Within 5 seconds, push the UP or DOWN ARROW pad.
The display will show "350°F (177°C)." By holding the
UP or DOWN ARROW pad, the temperature can then
be adjusted in 5°F (1°C) increments.
4. Push the BAKE TIHE pad. "0:00" will flash in the display.
5. Push the UPor DOWN ARROW pad until the desired
amount of baking time appears in the display.
To Program Oven for a Delayed Start Time and to
Shut=Off Automatically:
1. Be sure that the dock shows the correct time of day.
2. Place the food in the oven and push the BAKE pad.
3. Within 5 seconds, push the UP or DOWN ARROW pad.
The display will show "350°F (177°C). '' By holding the
UP or DOWN ARROW pad, the temperature can then
be adjusted in 5°F (1°C) increments.
4. Push the BAKE T]:HE pad. "0:00" will flash inthe display.
5. Push the UP or DOWN ARROW pad until the desired
amount of baking time appears.
6. Push the START T:][HE pad.
7. Push the UP or DOWN ARROW pad until the
desired start time appears in the display.
8. Once the controls are set, the control calculates when
baking will stop.
Once the Controls are Set:
1. The oven will come on and begin heating to the
selected baking temperature.
2. The oven temperature (or time of day) will show in
the display.
When the Set Bake Time Runs Out:
1. "END" will appear in the display window and the oven
will shut off automatically.
2. The control will beep 3 times every 60 seconds until
the CLEAR OFF pad is pushed.
Use caution when using the automatic timer.
Use the automatic timer when cooking cured or
frozen meats and most fruits and vegetables,
Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should
not stand in the oven for more than :[ hour
before cooking begins, and should be removed
promptly when cooking is completed.
RECALIBRATTNG YOUR OVEN TEHPERATURE
The temperature in the oven has been set at the factory.
When first using the oven, be sure to follow recipe times
and temperatures. If you think the oven is too hot or too
cool, the temperature in the oven can be adjusted. Before
adjusting, test a recipe by using a temperature setting
that is higher or lower than recommended temperature.
The baking results should help you to decide how much
of an adjustment is needed.
To Adjust Oven Temperature:
1. Push the BAKE pad.
2. Set the temperature to 550°F (287°C) by pushing
and holding the UPARROW pad.
3. Within 2 seconds, push and hold the BAKEpad until
the special 2 digit display appears. Release the BAKE
pad. The display now indicates the amount of de-
grees offset between the original factory temperature
setting and the current temperature setting. If the
oven control has the original factory calibration, the
display will read "00."
4. The temperature can now be adjusted up or down
35°F (19°C), in 5°F (1°C) steps by pushing and
holding the UP or DOWN ARROW pad. Adjust until
the desired amount of degrees offset appears in the
display. When lowering the oven temperature, a mi-
nus sign (-) will appear before the number to indicate
that the oven will be cooler by the displayed amount
of degrees.
5. When you have made the desired adjustment, push
the CLEAR OFF pad to go back to the time of day
display.
To Change the Oven Temperature or Bake Time
after Baking has started:
1. Push the function pad you want to change.
2. Push the UP or DOWN ARROW pad to adjust the
setting.
The adjustment made will not change the seIFcleaning
Page 56
SELF-CLEANING
A self-cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which
eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
• DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.
DO NOT clean the oven door gasket. The woven
material of the oven door gasket is essential for a
good seal. Care should be taken not to rub, damage
or remove the gasket.
• DO NOT use any cleaning materials on the oven
door gasket. Doing so could cause damage.
• Remove the broiler pan and insert, all utensUs
and ANY ALUNINUN FOIL. These items cannot
withstand high cleaning temperatures and will melt.
• Completely remove ALL OVEN RACKS and
ANY ACCESSORIES. If the oven racks are not
removed, they will lose their special coating
properties and will no longer slide in and out
of the oven cavity effortlessly.
• Remove any excessive spUlovers in the oven
cavity before starting the Self-Cleaning cycle. To
clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when
ii
subjected to high temperatures. DO NOT allow food
ii
spills with a high sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may leave a dull spot
even after cleaning.
ii
® Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
ii
the front center of the oven bottom. These areas heat
ii
sufficiently to burn soil on. Clean with soap and water.
What to Expect during Cleaning
While the oven isinoperation, the oven heals to temperatures
much higher than those used in normal cooking. Sounds
of metal expansion and contraction are normal. Odor is
also normal as the food soil is being removed. Smoke may
appear through the oven vent.
If heavy spillovers are not wiped up before cleaning, they
may flame and cause more smoke and odor than usual. This
is normal and safe and should not cause alarm. If available,
use an exhaust fan during the self-cleaning cycle.
To avoid possible burns use care when opening the
oven door after the SelFCleaning cycle. Stand to the
side of the oven when opening the door to allow hot air
or steam to escape.
During the Self-Cleaning cycle, the outside of the range
can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
The health of some birds is extremely sensitive to the
fumes given off during the Self-Cleaning cycle of any
range. Move birds to another well-ventilated room.
DO NOT line the oven walls, racks, bottom or any
other part of the range with aluminum foil. Doing
so will destroy heat distribution, produce poor baking
results and cause permanent damage to the oven
interior (aluminum foil will melt to the interior surface
of the oven).
DO NOT force the oven door open. This can damage
the automatic door locking system. Use caution when
opening the door after the Self-Cleaning cycle is
HOT.
DO HAND
CLEAN DOOR
See additional cleaning information for the oven door in
the General Care & Cleaning section: ..........................................................................................................
DO HAND
CLEAN FRAME
DO NOT HAND
CLEAN OVEN
DOOR GASKET
Page 57
SELF-CLEANING
To Start the Self=Clean Cycle
*We recommend a 2 hour self-clean cycle for light soils,
and a 3 hour cycle for average to heavy soils (to assure
satisfactory results).
To Set the Controls for a Self=Clean Cycle:
1. Be sure the clock shows the correct time of day.
2. Push the CLEAN pad. ". - -" appears in the display.
3. Push the UPARROW pad until "3:00" appears in the
display for a 3 hour cycle, or push the DOWN ARROW
pad until "2:00" appears in the display for a 2 hour
cycle.
4. As soon as the UP or DOWN ARROW pad is released,
"CLn" appears in the display.
5. As soon as the controls are set, the motor driven
lock will begin to dose automatically and the "Door
Locked" indicator light will flash. DO NOT open the
door while the light is flashing (it takes about 15
seconds for the lock to close).
6. The "Door Locked" light will glow until the cleaning
cycle iscompleted or cancelled, and the oven
temperature has cooled.
When the Self=Clean Cycle is Completed:
1. The time of day will appear in the display window
and the "Door Locked" light will continue to glow.
2. Once the oven has cooled down for about 1 hour and
the "Door Locked" light has gone out, the oven door
can be opened.
Stopping or Interrupting a Self=Cleaning Cycle
If it becomes necessary to stop or interrupt a self=
cleaning cycle due to excessive smoke or fire:
1. Push the CLEAR OFF pad.
2. Once the oven has cooled down for about 1 hour and
the "Door Locked" light has gone out, the oven door
can be opened.
3. Correct the condition which caused the smoking.
4. Restart the self-clean cycle once all conditions have
been corrected.
Use care when opening the oven door after self-clean-
ing cycle. Stand to the side of the oven when opening
the door to allow hot air or steam to escape.
DO NOT force the oven door open. This can damage
the automatic door locking system. Use caution when
opening the door after the self-cleaning cycle iscom-
pleted. The oven may still be VERY HOT.
FAILURE MODES
All failure modes give a visual and audible alarm. When
display shows F10 (temperature runaway), F30 (oven
sensor circuit fault) or F90 (motor door lock fault), the
electronic oven control has detected a fault condition.
Note that code and push the CLEAR OFF pad to clean
the display and stop the beeping. Reprogram the oven. If
fault recurs, push CLEAR OFF pad, disconnect the ap-
pliance to prevent damage and contact an authorized
servicer.
Page 58
Cleaning various parts of your appliance
Before cleaning any part of the appliance, be sure all controls are turned OFF and the appliance is COOL. REMOVE
SPILLOVERS AND HEAVYSOILING AS SOON AS POSSIBLE. REGULARCLEANING WILL REDUCE THE NUMBER OF
MAJOR CLEANING LATER.
Aluminum (trim pieces) & Use hot, soapy water and a cloth. Dry with a clean cloth.
Vinyl
Glass, Painted and Plastic Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
Body Parts, Control Knobs & vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
Decorative Trim Pieces soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray
liquids directly on the control pad and display area. Do not use large amounts of
water on the control panel - excess water on the control area may cause damage to
the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or
paper towels - they will damage the finish. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,
line up the fiat sides of both the knob and the shaft; then push the knob into place.
Control Panel Before cleaning the control panel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to the
appliance. To replace knobs after cleaning, line up the fiat sides of both the knob and
the shaft; then push the knob into place.
Porcelain Enamel Clean broiler pan and insert (some models) in the dishwasher and dry upon removal.
Cooktop Surface, Below If soils are not removed, follow the cooktop cleaning instructions below.
Cooktop, Broiler Pan & Insert Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
some models), Door Liner, ::[:1solution of clear water and ammonia. If necessary, cover difficult spots with an
Oven Bottom ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, then scrub with a soap-filled scouring pad. Rinse and wipe dry with a
clean cloth. Remove all cleaners or the porcelain may become damaged during future
heating. DO NOT use spray oven cleaners on the cooktop.
Stainless Steel (some models) Cleaners made especially for stainless steel as Stainless Steel Magic, or other similar
Cooktop Surface cleaners are recommended. Always follow the manufacturer's instructions. Be sure to
rinse the cleaners as bluish stains may occur during heating and cannot be removed.
Oven Racks Remove racks. See "To remove and to replace an oven rack" under Oven vent(s) and
ii
Oven Door Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse
racks. Use a mild, abrasive cleaner, following manufacturer's instructions. Rinse with
clean water and dry. After cleaning the racks, rub the sides of the racks with wax
paper or a cloth containing a small amount of baby oil or salad oil (this will make the
racks glide easier into the rack positions).
-..... _t immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter
o hand the door vents. DO NOT use oven cleaners, cleaning powders or any harsh abrasive
n frame cleaning materials on the outside of the oven door.
_'<_f _ clean oven
NOThand material, on Self-Cleaning models, which is essential for a good seal. Care should be
well. You may use a glass cleaner on the outside glass of the oven door. DO NOT
DONOTcieantheovendoorgasketlTheo endoo gasketismadeofawoven
_and _door gasket taken not to rub, damage or remove this gasket.
Page 59
Porcelain enamel oven Cleaning (model A)
Adhere to the following cleaning precautions:
- Allow the oven to cool before cleaning.
• Wear rubber gloves when cleaning the appliance
manually.
Remove spillovers and heavy soils as soon as pos =
sible. Regular cleanings will reduce the number of
future major cleanings.
Ammonia must be rinsed before operating the
oven. Provide adequate ventilation.
Porcelain has a smooth finish and is a type of glass fused
to metal. Oven cleaners can be used on all interior oven
surfaces.
General Cleaning
Remove soils using hot, soapy water. Do not allow food
spills with a high sugar or acid content (such as milk,
tomatoes, saukerkraut, fruit juices or pie filling) to remain
on the surface as they may cause a dull spot even after
cleaning.
To Remove Heavy Soil
1. Allow a dish of ammonia to sit in the oven overnight
or for several hours with the oven door closed. Clean
softened spots using hot, soapy water. Rinse well with
water and a clean cloth.
2. If soil remains, use a soap=filled scouring pad or a
nonabrasive cleaner. If necessary, use an oven cleaner
following manufacturer's instructions. DO NOT mix
ammonia with other cleaners.
Adhere to the following precautions when
using oven cleaners:
1. DO NOT spray on the electrical controls or switches
because it could cause a short circuit and result in
sparking or fire.
2. DO NOT allow a film from the cleaner to build up on
the temperature sensing bulb located at the top left
rear corner of the oven; it could cause the oven to
heat improperly. Carefully wipe the bulb clean after
each oven cleaning, being careful not to move the
bulb. A change in its position could affect how the
oven bakes. Avoid bending the bulb and capillary
tube.
3. DO NOT spray any cleaner on the oven door trim or
gasket, handles or any exterior surfaces of the range,
wood or painted surfaces. The cleaner can damage
these surfaces.
To Clean the Oven Bottom
Clean using hot, soapy water, a mild abrasive cleanser, a
soap-filled abrasive pad or oven cleaner following oven
cleaner manufacturer's instructions.
DO NOT line the oven walls, bottom, racks or any other
part of the appliance with aluminum foil. Doing so will
destroy heat distribution, produce poor baking results and
cause permanent damage to the oven interior (aluminum
foil will melt to the interior surface of the oven).
Cleaning the Regular Oven
Make sure the oven is cool and that all control knobs are
at OFF position. Cleaning the oven is a lot easier when
the door is removed.
1. Remove the oven door; see under To Remove and
Replace the Oven Door in this Owner's Guide.
2. Empty the oven including the racks.
3. You can wash your broiler pan, grid and racks in the
kitchen sink.
4. Clean oven lining thoroughly with soap and a wet
cloth and wipe with a dry cloth.
To remove burned-on fat on oven walls, moisten soiled
parts with household ammonia, using a wet cloth. Follow
suggested manufacturer's cleaning method. (Do not
remove the oven door when using ammonia.)
Complete cleaning with a
damp cloth and use a fine
steel wool scouring agent if
necessary.
The lower element can
be moved up for cleaning
purposes.
5. Replace racks in the oven.
Reinstall oven door.
Page 60
Surface Elements and Drip Bowls
Surface elements can be unplugged and removed to
make cleaning the drip pans easier. The surface elements
clean themselves when they are turned on. Food
spilled on a hot element will burn off. Food spilled on a
coo! element may be cleaned with a damp cloth--any
remaining soil will burn off the next time the element is
used. Never immerse a surface element in water.
To Remove the Surface Elements and Drip Bowls
1. Lift up edge of surface element across from terminal
end. Lift just enough to clear edge of the drip bowl.
2. Gently slide the surface element out of the terminal
plug.
3. Lift the drip bowl up and out.
To Replace Drip Bowls and Surface Elements
1. Slide the terminal end on the element through the
opening in the drip bowl.
2. Align the element support to rest on the rim inside
the drip bowl. If your drip bowl is equipped with a
hold down clip, align the element support opposite
the terminal end with the slot in the hold down clip,
and snap into place.
3. After the element is positioned in the drip bowl, line
up the terminal end with the terminal plug as shown.
4. Hold the surface element and drip bowl together as
level as possible and firmly push the terminal end
into the terminal plug. Make sure element terminal
isseated properly into terminal plug. Make sure the
surface element is level to reduce the hazard of pans
sliding off the element.
Be sure the range is cool before removing elements or
drip bowls. Be careful not to bend terminal ends when
replacing elements after cleaning.
Hold Su
Down
Terminal End
Plug
To Clean Drip Bowls
Wash in hot, soapy water or in the dishwasher. Rinse
and dry while still warm. Hard to remove, burned on soil
can be removed by soaking the drip bowls for about 20
minutes in a lightly diluted liquid cleanser or a solution
of ammonia and water (1/2 cup ammonia to 1 gallon
of water). A nylon scrubber may be used after soaking.
DO NOT use abrasive cleaners or steel wool, as they will
scratch the surface. Always rinse with clean water and
polish dry with a soft cloth.
To remove and replace storage drawer
Use the storage drawer for storing cooking utensils. The
drawer can de removed to facilitate cleaning under the
range. Use care when handling the drawer.
Removing and Replacing Storage Drawer
To remove the drawer:
1. Pull empty drawer out to the roller guide stop.
2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:
1. Insert the rear end of the drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Push the drawer in until it stops, then lift to allow the
rollers to clear the roller guide stop, and push in.
Storage
Drawer
Relier
Guide
Front
Frame
Page 61
Porcelain enamel cooktop cleaning
instructions (Models A & B only)
Do not use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can
Before cleaning the surface cooktop, be sure the controls
are turned to OFF and the cooktop is coo!.
DO NOT use commercial oven cleaners on the
exterior surfaces including cooktop and door frame.
Correct and consistent cleaning isessential to maintaining
your porcelain enamel cooktop. If food spills and grease
spatters are not removed, they may burn onto the surface
of the cooktop and cause permanent discoloration,
Daily Cleaning
For normal soil:
1. Allow cooktop surface to coo!.
2. Wipe off spills and spatters using a clean paper towel
or a clean cloth with warm, soapy water.
3. If needed, use a soapy steel wool pad or other mild
household cleaners.
4. Be sure to rinse off the cleaners or the porcelain may
become damaged during future heating.
For heavy, burned=on soil"
1. Allow cooktop surface to coo!.
2. Use a soap filledscouring pad with warm water or cover
heavily soiled spots with a solution of dear water and
ammonia. Scour gently. Rinse and wipe dry with a clean cloth.
3. If any soil remains, apply a few drops of a
recommended cooktop cleaning cream on the spots
and rub gently using a clean damp cloth or scouring
pad. Buff with a dry cloth until all soil and cream are
removed. Frequent cleaning with the cooktop cleaning
cream leaves a protective coating which helps in
preventing scratches and abrasions.
Ceramic glass cooktop cleaning &
maintenance (ModelC only)
Consistent and proper cleaning is essential to
maintaining your Ceramic glass cooktop,
Prior to using your cooktop for the
first time, apply the recommended
CERAMA BRYTE® Cleaning Creme
to the ceramic surface. Clean and
buff with a non abrasive cloth or
pad. This will make cleaning easier
when soiled from cooking. The
special cooktop cleaning cream
leaves a protective finish on the
glass to help prevent scratches and
abrasions.
Sliding aluminum or copper clad
bottom pans on the cooktop can cause metal markings
on the cooktop surface. These marks should be removed
immediately after the cooktop has cooled using the
cooktop cleaning cream. Metal marks can become
permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough
bottoms can mark or scratch the cooktop surface. Do
not slide anything metal or glass across the cooktop.
Do not use your cooktop as a cutting board or work
surface in the kitchen. Do not cook foods directly on the
cooktop surface without a pan. Do not drop heavy or
hard objects on the glass cooktop, or they may crack it.
CERAMICcOOKTOP
CLEANER
\ J
J
For sugary spillovers:
Sugary spills can chemically damage your cooktop
surface. Therefore, you must begin cleaning the spills
while the cooktop is still hot. Use caution when following
the steps below.
1. Turn off all surface units and remove all pans immediately.
2. Wearing an oven mitt, wipe up carefully or move hot spills
away from the element area with a clean damp cloth.
3. Allow the cooktop to cool. Follow the instructions
above for heavy, burned-on soil.
COOKTOP CLEANING / POLISHING CREAM can be
purchased through authorized service centers or major
department stores.
Page 62
Cleaning recommendations for the
ceramic glass cooktop (Hodel C only)
Before cleaning the cooktop, be sure the controls are
turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can
chemically damage the ceramic glass surface.
For light to moderate soih
Apply a few drops of CookTop® Cleaning Creme directly
to the cooktop. Use a paper towel or use a non-
abrasive plastic type no-scratch pad to dean the
entire cooktop surface. Make sure the cooktop is cleaned
thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly
to the soiled area. Rub the soiled area using a non=
abrasive plastic type no=scratch pad, applying pressure
as needed. Do not use the pad you use to clean the
cooktop for any other purpose.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if
spilled or melted onto the ceramic cooktop surface.
Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately, After
turning the surface elements OFF, use a razor blade
scraper or a metal spatula with a mitt and scrape the soil
from the hot surface (as illustrated). Allow the cooktop to
cool, and use the same method for heavy or burned on
soils.
Do not use the following on the ceramic glass
cooktop:
• Do not use abrasive cleaners and scouring pads,
such as metal and some nylon pads, They may
scratch the cooktop, making it more difficult to
clean,
®
Do not use harsh cleaners, such as chlorine
bleach, ammonia or oven cleaners, as they may
etch or discolor the cooktop,
®
Do not use dirty sponges, cloths or paper
towels, as they can leave soil or lint on the
cooktop which can burn and cause Special
Caution for Aluminum Foil and Aluminum
Cooking Utensils
Damage to the ceramic glass cooktop may occur if you
use an abrasive type scratch pad. Only use cleaning
products that have been specifically designed for
ceramic glass cooktop.
If soils remain, carefully scrape soils with a metal razor
blade scraper, holding scraper at a 30 degree angle to the
surface. Remove loosened soils, then apply a few drops
of cleaning cream and buff surface clean.
®
Aluminum foil
Use of aluminum foil will damage the cooktop. Do not
use under any circumstances.
®
Aluminum utensils
Since the melting point of aluminum is much lower
than that of other metals, care must be taken when
aluminum pots or pans are used. Pans that boil dry
may permanently damage cooktop by breaking, fusing
to, or marking it.
Page 63
Care and cleaning of stainless steel
Some models are equipped with stainless steel exterior
parts. Special care and cleaning are required for
maintaining the appearance of stainless parts. Refer to
the General Care 8=Cleaning table for detailed cleaning
instructions.
Removing and replacing the lift-off oven
door
The door is heavy. Forsafe, temporary storage, lay the
door flat with the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor -
See Figure 1).
2. Pull the door hinge locks on both left and right
door hinges down from the oven frame completely
towards the oven door (See Figure 2). A tool such as
a small flat-blade screwdriver may be required.
3. Firmlygrasp both sides of oven door along the door
sides (Do not use the oven door handle - See Figure3).
4. Close the door to the broil stop position (the oven
door will stop into this position just before fully
closing).
5. With the oven door in the broil stop position, lift the
oven door hinge arms over the roller pins located on
each side of the oven frame (See Figure 4-).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle - See Figure 3).
2. Holding the oven door at the same angle as the
removal position, seat the hook of the hinge arm over
the roller pins located on each side of the oven door
frame (See Figure 4). The hook of the hinge arms
must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with floor - See
Figure 1).
4. Push the door hinge locks up towards and into the
oven frame on both left and right oven door hinges
(See Figure 2) to the locked position.
5. Close the oven door.
Door Hinge locations
with oven door fully open
Figure 2
Figure 1
/
/
Oven door
Figure 3 Figure 4
Special door care instructions = Most oven
doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are
fully in place.
2. Do not hit the glass with pots, pans, or any other ob-
ject.
3. Scratching, hitting, jarring or stressing the glass may
weaken its structure causing an increased risk of
breakage at a later time.
Changing oven light
Be sure the oven is unplugged and all parts are COOL
before replacing the oven light bulb. Do not turn
the oven light on during a selffdeaning cycle. High
temperature will reduce lamp life.
On some models an interior oven light will turn on
automatically when the oven is opened. The oven light
may be turned on when the door is closed by using the
oven light switch located on the Electronic Oven control.
The oven light bulb is covered with a glass shield held
in place by a wire holder. THIS GLASS SHIELD MUST
ALWAYS BE IN PLACEWHEN THE OVEN IS IN USE.
BESUREovE.isCOOL
To
Replace the Light Bulb:
:[.
Turn the power off at the main source.
2.
Wear a leather-faced glove for protection against
possible broken glass.
3.
Replace bulb with a 40 Watt
appliance bulb only.
4,
For self-cleaning oven, press
wire holder to one side to
release glass shield, change
bulb and be sure to replace
glass shield.
Page 64
Oven baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned
appliance,
Baking Causes Corrections
Problems
i!
Cookies and
biscuits burn on
the bottom,
o Cookies and biscuits put into
the oven before the preheating
time is completed.
Oven rack overcrowded.
Dark pan absorbs heat too fast.
Allow oven to preheat to the selected temperature
before placing food in oven.
Choose pan sizes that will permit 5.1cm to 10.2cm
(2" to 4") of air space on all sides when placed in
the oven.
Use a medium-weight aluminum baking sheet,
Cakes too dark on
top or bottom,
Cakes put into the oven before
preheating time is completed,
Rack position too high or low.
Oven too hot.
Allow oven to preheat to the selected temperature
before placing food in the oven.
Use proper rack position for baking needs.
Set oven temperature 25°F/12°C lower than
recommended.
Cakes not done in
the center,
Oven too hot.
• Incorrect pan size,
Pan not centered in oven,
Set oven temperature 25°F/12°C lower than
recommended.
• Use pan size suggested in recipe.
Use proper rack position and place pan so there is
5.1cm to 10.2cm (2" to 4') of space on all sides of
pan.
Cakes not level. • Range not level. • Place a marked glass measuring cup filled with water
on the center of the oven rack, If the water level
is uneven, refer to the installation instructions for
leveling the range.
Pan too close to oven wall or
rack overcrowded,
Pan warped,
• Be sure to allow 5.1cm to 10.2cm (2" to 4") of
clearance on all sides of each pan in the oven,
Do not use pans that are dented or warped,
Foods not done
when cooking time
is u _,
u
Oven too cool.
Oven overcrowded.
Oven door opened too
frequently,
Set oven temperature 25°F/12°C higher than
suggested and bake for the recommended time.
Be sure to remove all pans from the oven except the
ones to be used for baking.
Open oven door only after shortest recommended
baking time,
Page 65
Beforeyou call for service, review this list. It may save you time and expense. The list includes common
occurrences that are not the result of defective workmanship or materials in this appliance.
Range is not level, Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the rack is level. When range is level, cooktop may
appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range. If floor is
sagging or slopping, contact a carpenter to correct the situation.
.....Kitchen cabinet misaiignment may make iange appear to be unievei: Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
appliance easily. Contact builder or installer to make appliance accessible.
Appliance must .................................................
be accessible for Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.
service.
Entire range or oven Make sure cord/plug is plugged tightly into outlet.
does not operate, Service wiring is not complete. Call an authorized servicer.
Electrical power outage. Check house lights to be sure. Call your local electric company for
service.
Oven control beeps Electronic control has detected a fault condition. Press CLEAR to clear the display and stop
and displays any F beeping. Reprogram oven. If fault recurs, record fault number. Press CLEAR and call an
code error (ex,: FIO) authorized servicer for assistance. ...........................................
Oven light does not Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.
work. ...........................................................................................................
: Electrical power outage. Check house lights to be sure. Call your local electric companyfor service.
Surface unit does No power to the appliance. Check steps under "Entire Range or Oven Does Not Operate" in
not heat. this Before you Call checklist.
Incorrect control setting. Make sure the correct control is on for the surface unit to be used.
Surface units too Incorrect control setting. Make sure the correct control is on for the surface unit to be used.
hot or not hot Lightweight or warped pans used. Use only fiat, evenly balanced, medium or heavyweight
enough, cookware. Flat pans heat better than warped pans. Cookware materials and weight of the
material affect heating. Heavy-and medium- weight pans heat evenly. Because lightweight
pans heat unevenly, foods may burn easily.
Hetalmarks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on
cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks.
"Cooktop Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.
Scratches or Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be
abrasions on sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not
cooktop surface, affect cooking and will become less visible with time. .................
ii
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"Cooktop Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.
Cookware with rough bottom has been used. Use smooth, fiat-bottomed cookware.
Brown streaks or Boilovers are cooked onto surface. Use razor blade scraper to remove soil. "Cooktop
specks. Cleaning - Ceramic Glass Cooktop Models section under General Cleaning.
ii
Page 66
Areas of Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
discoloration with cream. Use cookware with clean, dry bottoms.
metallic sheen,
Poor baking results, Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the
set temperature before placing food in the oven. Try adjusting the recipes' recommended
temperature or baking time. If you feel the oven is too hot or coo!, see "Adjusting Your
Oven Temperature" section in the Electronic Oven Control Guide.
Fan noise during A cooling fan may automatically turn on and off to cool internal parts. It is normal, and the
cooking operation, fan may continue to run even after oven is turned off.
Flames inside oven Excessive spillovers in oven. Set self-dean cycle for a longer cleaning time.
or smoking from Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts of
vent,
Oven smokes Control(s) not set properly. Follow instructions under "Setting Oven Controls".
excessively during Make sure oven is 0pened t0 BrOil stop POsitiOn: ........................................................................................................................................................................................................
broiling ..........................
Self-cleaning cycle Contro!(s) not set properly. Follow instructions under "Oven Cleaning" in the Electronic Oven
does not work, Control Guide.
Soil not completely Set Self-Clean cycle for a longer cleaning time.
removed after self- Failureto clean bosom frontl top of oven or door areas outside oven seal, These areas
cleaning cycle,
Drip bowls are Foodswith acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion.
pitting or rusting, Remove and wash drip bowls as soon as :)ossible after a spillover. ....
Drip bowls turning Bottom surface of cookware extends beyond surface elements and touches cooktop surface.
color or distorted This can cause high enough temperatures to discolor the drip bowls. DO NOT use cookware
out of shape, of this type. Pan sizes should be matched to the size of the element. Re )lacement drip
grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle.
If flames or excessive smoke are present, stop the self-clean cycle and follow the steps
under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven Control
Guide.
Meat too close to the element. Reposition the rack to provide proper clearance between the
meat and the element. Preheat broil element. Preheat broil element for searing.
Grid on broiler :)an wrong side up and grease not draining. Always place grid on the broiler
pan with ribs up and slots down to allow grease to drip into :)an.
Grease has built up on oven surfaces. Regular cleaning is necessar' when broiling
frequently. Old grease or food spatters cause excessive smoking.
Control(s) not set properly. Follow instructions under "Oven Cleaning" in the Electronic Oven
Control Guide.
Self-cleaning cycle was interrupted. Stop time must be 2 to 4 hours past the start time.
Follow steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven
Control Guide.
are not in the Self-Cleaning area, but get hot enou(ih to burn on food residue. Clean these
areas before starting the Self-Clean cycle. Burned-on residue may be cleaned with a stiff
nylon brush and water or n 'ion scrubber. Be careful not to damage the oven gasket.
Normal environment. Houses alone sea coast are exposed to salt air. Protect bowls as much
as possible from direct exposure to salt a=r.
Page 67
Page 68
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux
will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed outside the
USAor Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for
appliances not in ordinary household use or used other than in accordance with the provided
instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumable, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIES WARRANTIES; LIMITATION OF REMEDIES
Customer's sole and exclusive remedy under this limited warranty shall be product repair or
replacement as provided herein. Claims based on implied warranties, including warranties of
merchantability or fitness for particular purpose, are limited to one year or the shortest period
allowed by law, but not less than one year. Electrolux shall not be liable for consequential or
incidental damages such as property damage and incidental expenses resulting from any breach
of this written limited warranty or any implied warranty. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, or limitations on the duration of
implied warranties, so these limitations or exclusions may not imply to you. This written warranty
gives you specific legal rights. You may also have other rights that vary from state to state.
If YOU
Need
Service
ii
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service isperformed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained contacting Electrolux at the addresses or phone numbers
below.
This warranty only applies in the USAand Canada. In the USA, your appliance is warranted by Electrolux Major
Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.
ii
Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifications as described or illustrated are subject to change without notice.
USA
:1.,800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Electrolux
Canada
:L800.265,8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
LSV 3E4
Loading...
