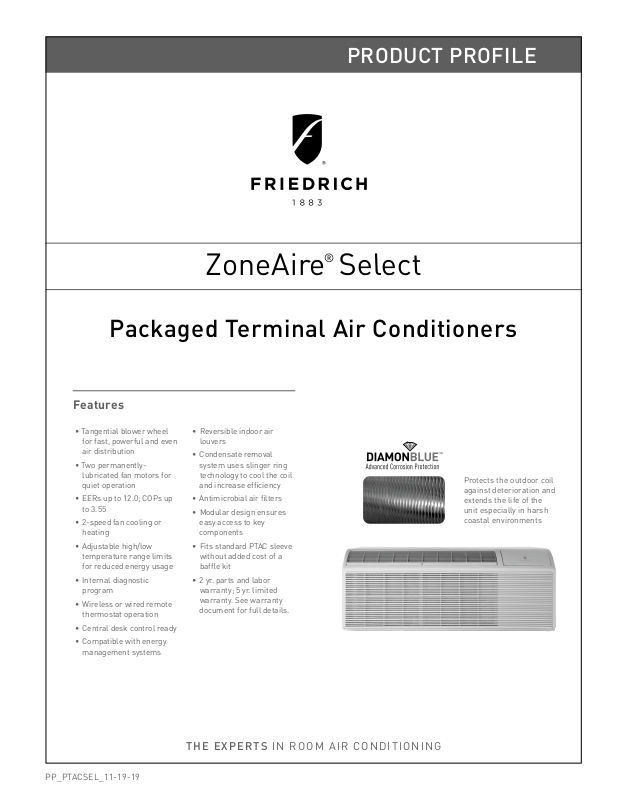

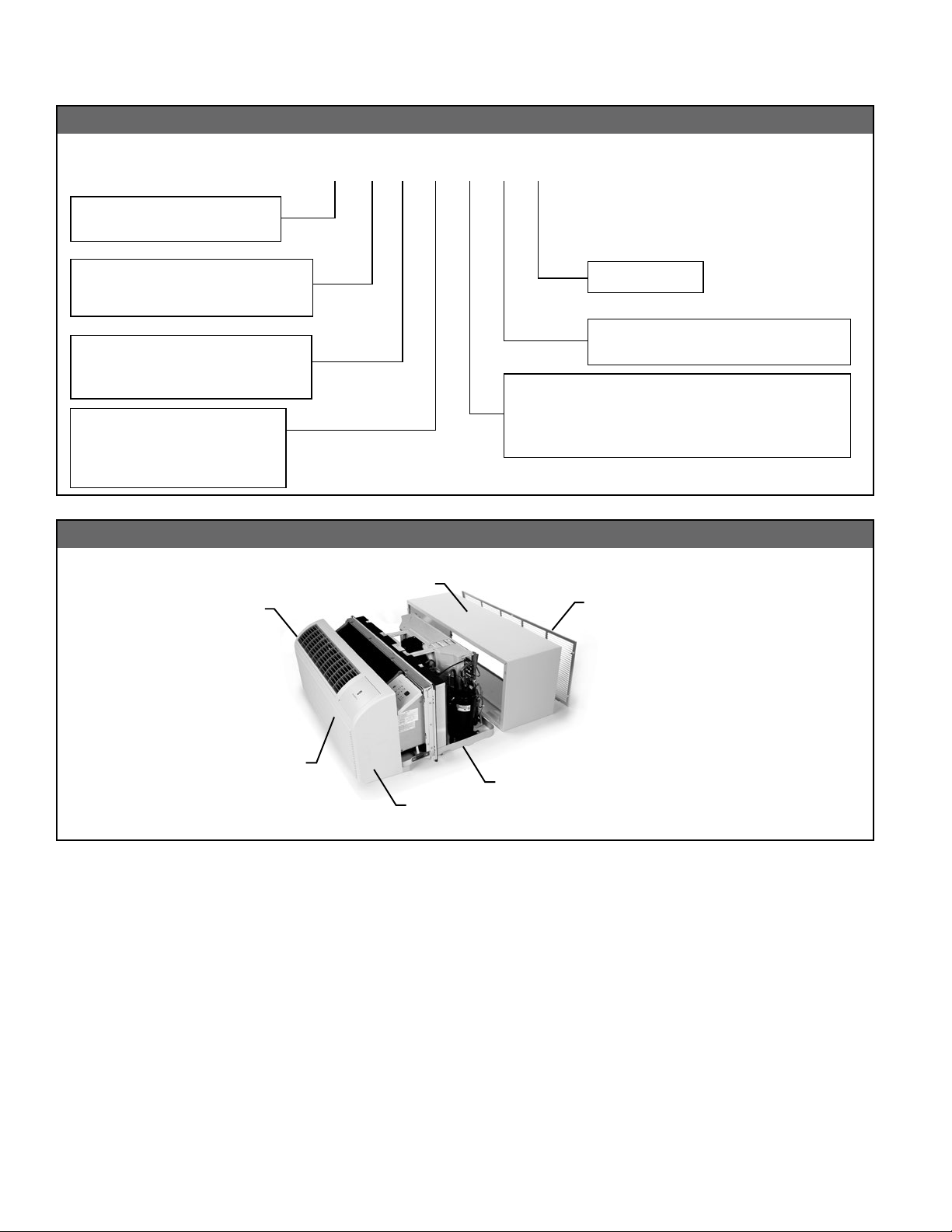

Friedrich PZH12K3SB, PZE15K5SB Specifications

PRODUCT PROFILE
®
ZoneAire
Select
Packaged Terminal Air Conditioners
Features
• Tangential blower wheel for fast, powerful and even air distribution
• Two permanently­lubricated fan motors for quiet operation
• EERs up to 12.0; COPs up to 3.55
• 2-speed fan cooling or heating
• Adjustable high/low temperature range limits for reduced energy usage
• Internal diagnostic program

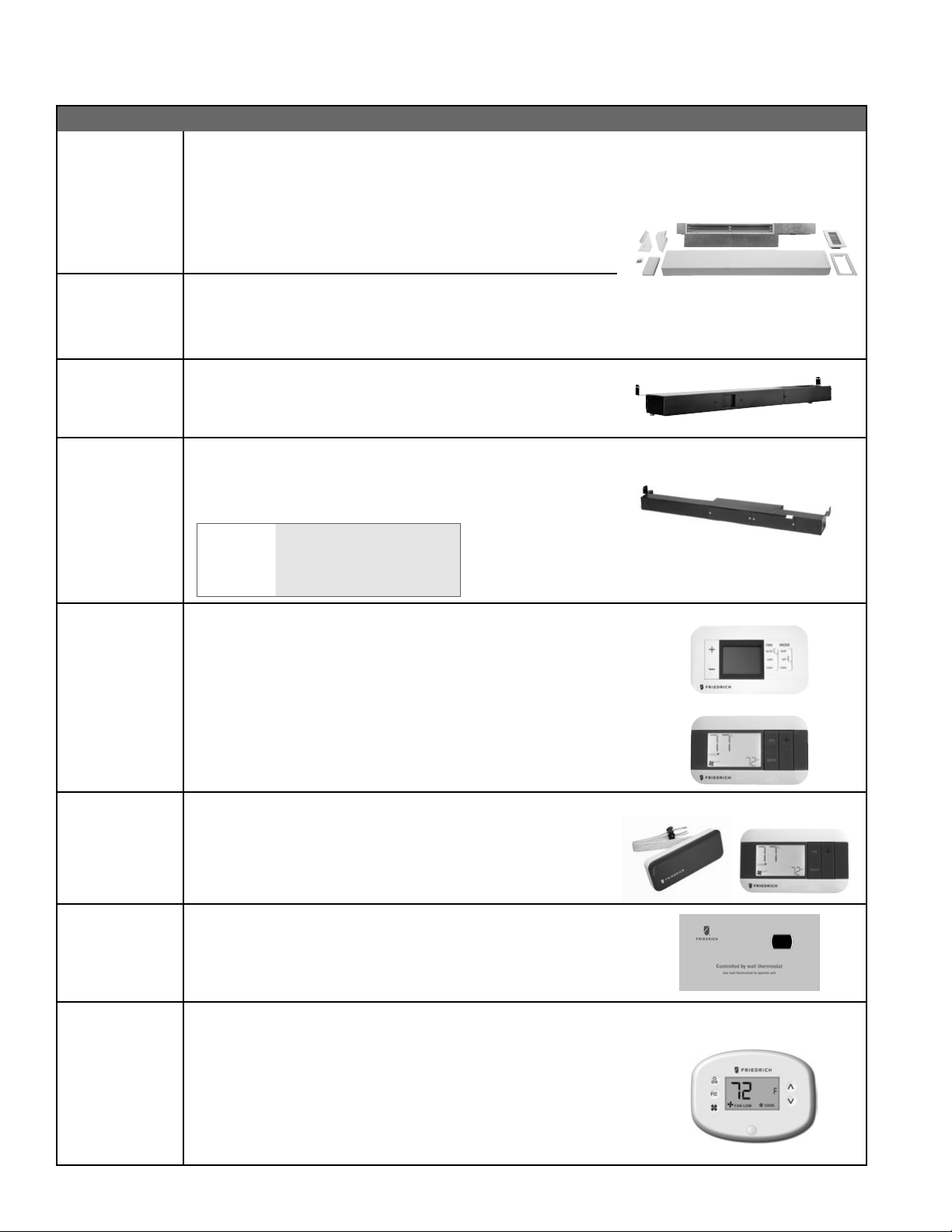

• Wireless or wired remote thermostat operation
• Central desk control ready
• Compatible with energy management systems
• Reversible indoor air louvers
• Condensate removal system uses slinger ring technology to cool the coil
and increase efciency
Antimicrobial air lters
• Modular design ensures easy access to key components

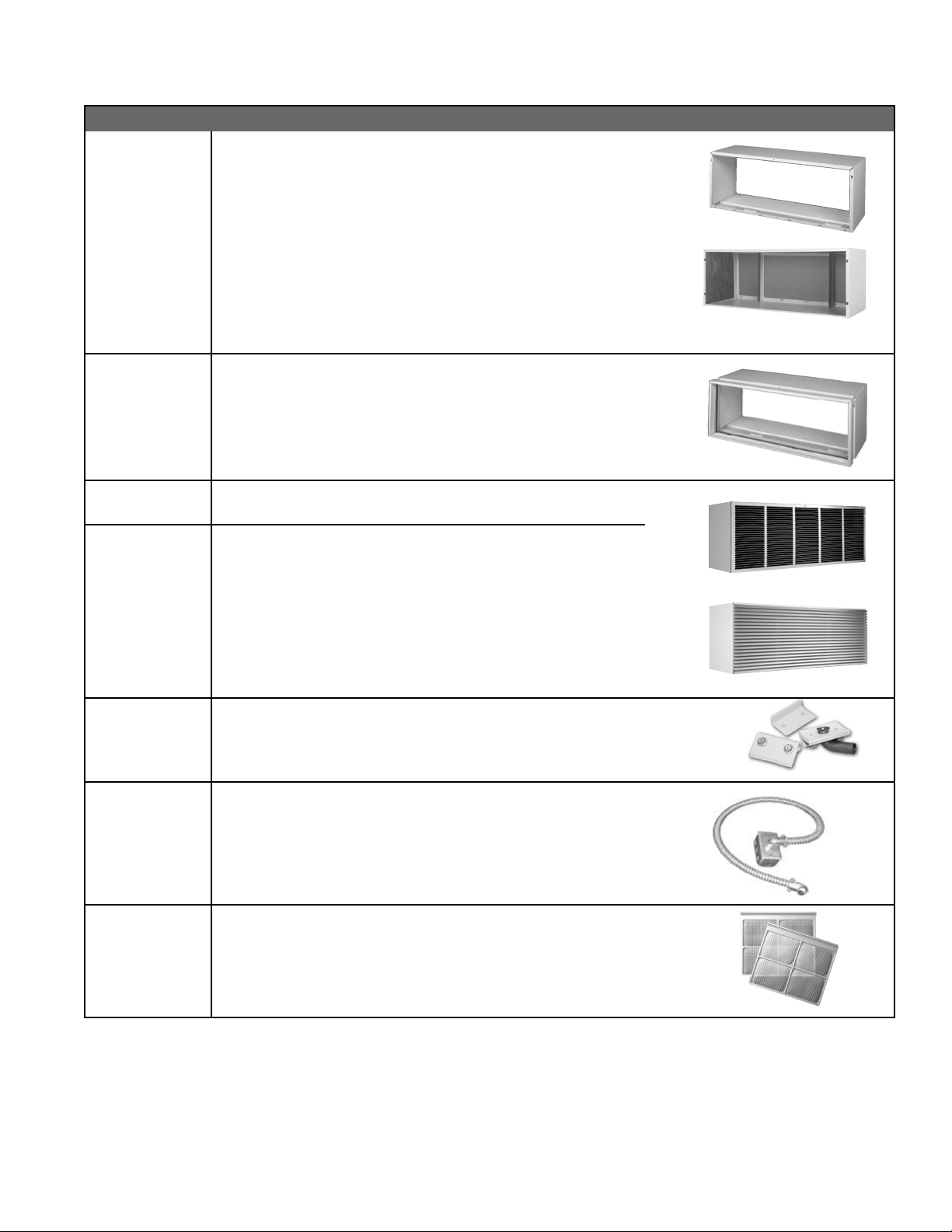

• Fits standard PTAC sleeve without added cost of a
bafe kit
• 2 yr. parts and labor warranty; 5 yr. limited warranty. See warranty document for full details.
Protects the outdoor coil against deterioration and extends the life of the unit especially in harsh coastal environments
PP_PTACSEL_11-19-19
THE EXPERTS IN ROOM AIR CONDITIONING
PRODUCT FEATURES
DIGITAL TEMPERATURE READOUT
ONE-TOUCH OPERATION
INDIVIDUAL MODE & FAN CONTROL BUTTONS
QUIET START/STOP FAN DEL AY
REMOTE THERMOSTAT OPERATION
INTERNAL DIAGNOSTIC PROGRAM
By digitally monitoring the desired room temperature, the room is controlled more precisely than conventional systems. The large, easy-to-read LED display can show either the setpoint or actual room temperature as selected by owner.
When the unit is powered o󰀨, the unit can be returned directly to heating or cooling mode by pressing the
‘Heat’ or ‘Cool’ buttons without the confusing power up sequence of some controls. One-touch control
takes the guesswork out of unit control, delivering a more enjoyable experience and eliminating front-desk calls.
By having separate control buttons and indicators for both fan and mode settings, the Friedrich digital control eliminates the confusion of previous digital PTACs. The accurate temperature setting provides greater guest comfort than other systems.
The fan start and stop delays prevent abrupt changes in room acoustics due to the compressor energizing
or stopping immediately. Upon call for cooling or heating, the unit fan will run for ve seconds prior to energizing the compressor. Also, the fan-o󰀨 delay allows for “free cooling” by utilizing the already cool
indoor coil to its maximum capacity by running for 30 seconds after the compressor.
Some applications require the use of a wall-mounted thermostat. All new Friedrich PTACs may be switched from unit control to remote thermostat control easily without the need to order a special model or accessory kit.
The Friedrich digital PTAC features a self-diagnostic program that can alert maintenance to component
failures or operating problems. The internal diagnostic program saves properties valuable time when diagnosing running problems.
SERVICE ERROR CODE STORAGE
ELECTRONIC TEMPERATURE LIMITING
ROOM FREEZE PROTECTION
RANDOM COMPRESSOR RESTART
CONDENSATE REMOVAL SYSTEM
All Friedrich PTAC units have self-diagnostic features that will store trouble codes in the case of an event.
Storing the codes allows the property to see the trouble codes at a future time after the condition may have corrected.
By limiting the operating range, the property can save energy by eliminating “max cool” or “max heat”
situations common with older uncontrolled systems. The new electronic control allows owners to set operating ranges for both heating and cooling independently of one another.
When the PTAC senses that the indoor room temperature has fallen to 40°F, the unit will cycle on the fan (high) and the electric strip heat to raise the room temperature to 46
feature works regardless of the mode selected and can be turned o󰀨. The control will also store the Room
Freeze cycle in the service code memory for retrieval at a later date. This feature ensures that unoccupied
rooms do not reach freezing levels where damage can occur to plumbing and xtures.
Multiple compressors starting at once can often cause electrical overloads and premature unit failure.
The random restart delay eliminates multiple units from starting at once following a power outage or initial
power up. The compressor delay will range from 180 to 240 seconds.
Condenser fan utilizes slinger ring technology to pick up condensate from the base pan and disperse it on
to the condenser coil where it evaporates. This helps to cool the coil and increase the energy e󰀩ciency
of the unit.
°
F, and then cycle o󰀨 again. This
2
PRODUCT FEATURES
DIGITAL DEFROST
THERMOSTAT
INSTANT HEAT HEAT PUMP MODE
EVEN HEAT MONITORING
SEPAR ATE HEAT/COOL FAN CYCLE CONTROL
EMERGENCY HEAT OVERRIDE
CENTR AL DESK CONTROL READY
INDOOR COIL FROST SENSOR
The PZ-Series uses a digital thermostat to accurately monitor the outdoor coil conditions to allow the
heat pump to run whenever conditions are correct. Running the PTAC in heat pump mode saves energy
and reduces operating costs. The digital thermostat allows maximization of heat pump run time.
Heat pump models will automatically run the electric heater to quickly bring the room up to temperature when initially energized, then return to heat pump mode. This ensures that the room is brought up to temperature quickly without the usual delay associated with heat pump units.
The digital control monitors indoor conditions, ensuring room temperature is within 5°F of the setpoint. If
needed, the unit will briey cycle the electric heater to maintain temperature. This feature preserves the
e󰀩ciency benets of a heat pump while ensuring guest comfort.
The owner may choose between fan cycling or fan continuous mode based on property preference. (Note:
Even heat monitoring and quiet star t/stop fan delay only operate in fan cycle mode) Fan continuous mode is
used to keep constant airow circulation in the room during all times the unit is ‘ON’. Fan cycle will conserve
energy by only operating the fan while the compressor or electric heater is operating.
fan cycling condition independently between heating and cooling mode will increase user comfort by allowing the choice of only constantly circulating air in the summer or winter time (unlike other PTAC brands that only allow one selection).
In the event of a compressor failure in heat pump mode, the compressor may be locked out to provide heat through the resistance heater. This feature ensures that even in the unlikely event of a compressor failure, the room temperature can be maintained until the compressor can be serviced.
All Friedrich digital PTACs have low voltage terminals ready to connect a central desk control energy
management system. Controlling the unit from a remote location like the front desk can reduce energy usage and requires no additional accessories on the PTAC unit.
The frost sensor protects the compressor from damage in the event that airow is reduced or low outdoor
temperatures cause the indoor coil to freeze. When the indoor coil reaches 30°F, the compressor is disabled and the fan continues to operate based on demand. Once the coil temperature returns to 45°F, the compressor returns to operation.
The ability to set the
ULTRAQUIET
AIR SYSTEM
HIGH EFFICIENCY
DUAL MOTOR
ROTARY COMPRESSOR
TOP-MOUNTED ANTIMICROBIAL AIR FILTERS
FILTERED FRESH
AIR INTAKE
R-410A REFRIGERANT
The PZ-Series units feature an indoor fan system design that reduces sound levels without lowering
airow or preventing proper air circulation.
The Friedrich PTAC has been engineered so that all functional systems are optimized so that they work
together to deliver the highest possible per formance.
The dual-motor design means that the indoor motor can run at slower speeds which reduces sound
levels indoors.
High e󰀩ciency rotary compressors are used on all Friedrich PTACs to maximize durability and e󰀩ciency.
All Friedrich PTAC return air lters feature an antimicrobial element that has proven to prevent mold and
bacterial growth in laboratory testing. PDXFTB replacement lter kits feature the same antimicrobial agent. All lters are washable, reusable and easily accessed from the top of the unit without the removal
of the front cover.
Friedrich PTAC units are capable of introducing up to 75 CFM of outside air into the conditioned space.
The outdoor air passes through a washable mesh screen to prevent debris from entering the airstream.
Friedrich PTAC units use environmentally-friendly refrigerant.
3
CHASSIS SPECIFICATIONS
LISTED
PZE Series with Electric Heat
Model PZE07K3SB-A PZE09K3SB-A PZE12K3SB-A PZE15K5SB-A
PERFORMANCE DATA: Cooling Btu 7200/6800 9600/9400 12000/11800 14500/14300 Cooling Watts 600/565 815/800 1050/1035 1420/1400 Energy Efcient Ratio, EER 12.0 11.8/11.8 11.4/11.4 10.2/10.2 Heater Size (kW) 3.6 3.6 3.6 5.0 Moisture Removal (pints/hr.) 0.7 1.2 2.1 3.0 Sensible Heat Ratio 87% 82% 77% 72% ELECTRICAL DATA: Voltage(1 PHASE, 60 Hz) 230/208 230/208 230/208 230/208 Volt Range 253-187 253-187 253-187 253-187 Current (Amps) 2.6/2.7 3.5/3.8 4.5/5.0 6.2/6.7 Power Factor 0.99 0.99 0.96 0.99 Compressor LRA 13.0 20.0 28.5 34.5 Compressor RLA 2.5 3.3 5.3 6.4 Outdoor Fan Motor, HP 0.07 0.07 0.07 0.09 AIRFLOW DATA:
Indoor CFM, HIGH 335 400 470 470 Indoor CFM, LOW 250 250 360 360

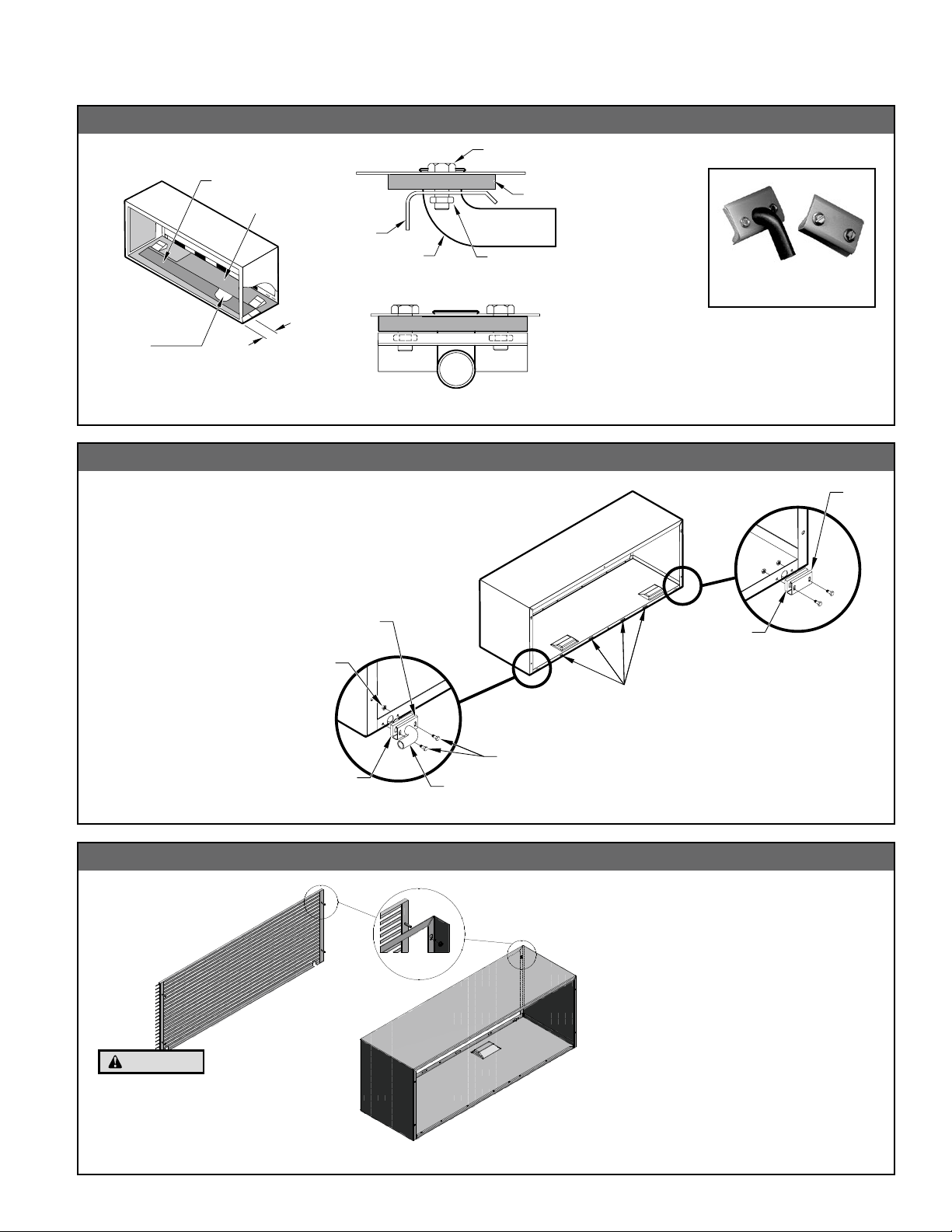

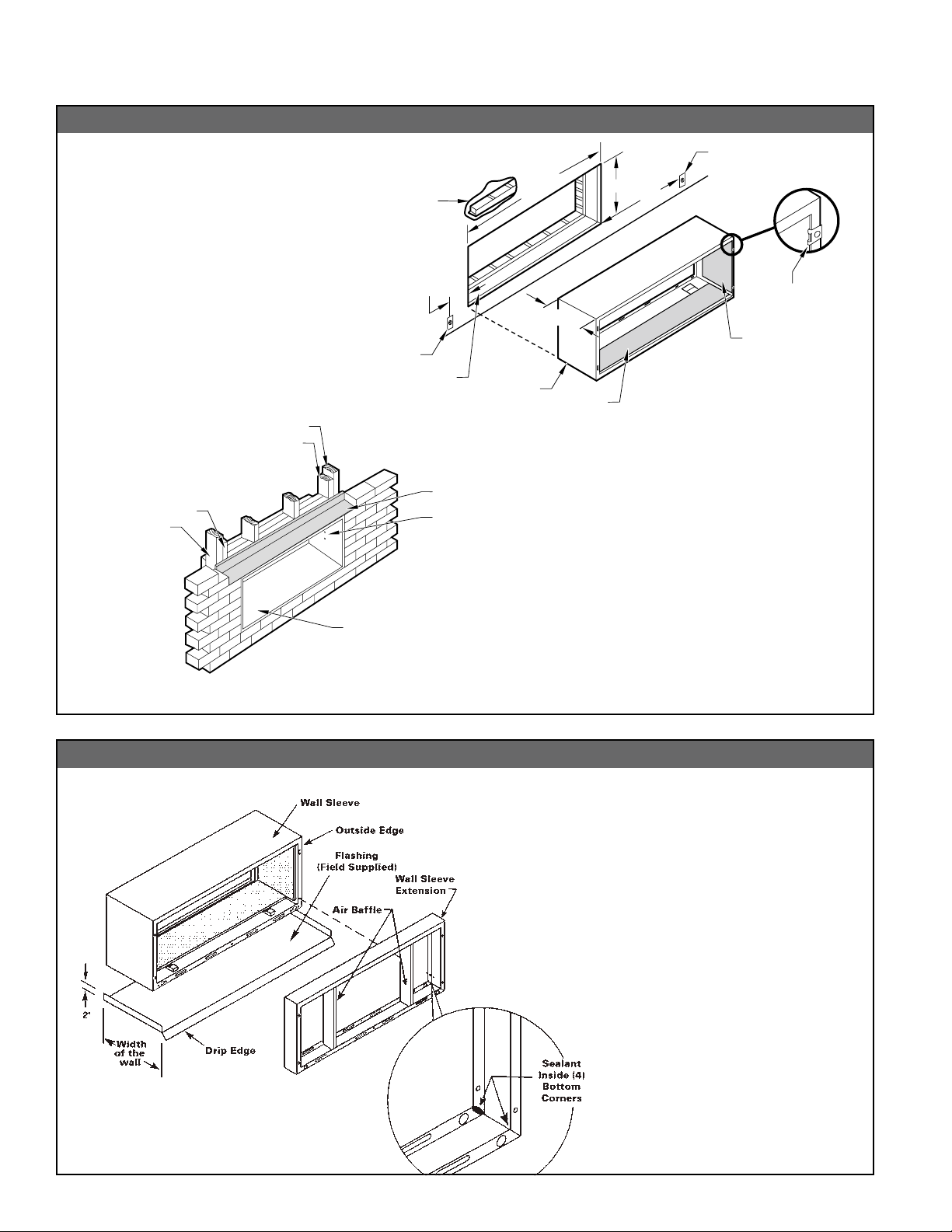

Vent CFM 75 75 75 75 PHYSICAL DATA: Sleeve Dimensions (H x W x D) Dimensions with Front (H x W x D) 16" x 42" x 21" (all models) Cut Out Dimensions (H x W x D)
16" x 42" x 13
16
Net Weight (lbs.) 104 108 113 115 Shipping Weight (lbs.) 126 110 135 137 R-410A Charge (oz.) 29.98 32.10 30.69 34.22 Dimensions with Packaging (inches) 19
" x 45" x 25" (all models)
3/4" (all models)
1/4" x 42 1/4" (all models)
PZH Series Heat Pump
Model PZH07K3SB-A PZH09K3SB-A PZH12K3SB-A PZH15K5SB-A
PERFORMANCE DATA: Cooling Btu 7200/6800 9600/9400 12000/11800 14500/14300 Cooling Watts 600/565 815/800 1050/1035 1420/1400 Energy Efcient Ratio, EER 12.0/12.0 11.8/11.8 11.4/11.4 10.2/10.2 Reverse Heating Btu 6400/6300 8500/8200 11000/10800 13600/13200 Heating Watts 530/520 710/685 930/920 1180/1150 COP 3.55/3.54 3.51/3.51 3.47/3.44 3.38/3.36 Moisture Removal (pints/hr.) 0.7 1.2 2.1 3.0 Sensible Heat Ratio 87% 82% 77% 72% ELECTRICAL DATA: Voltage(1 PHASE, 60 Hz) 230/208 230/208 230/208 230/208 Volt Range 253-187 253-187 253-187 253-187 Current (Amps) 2.6/2.7 3.5/3.8 4.5/5.0 6.2/6.7
Reverse Heat. Amps 2.3/2.5 3.0/3.3 4.0/4.4 5.1/5.5 Power Factor 0.99 0.99 0.96 0.99 Compressor LRA 13.0 20.0 28.5 34.5 Compressor RLA 2.5 3.3 5.3 6.4 Outdoor Fan Motor, HP 0.07 0.07 0.07 0.09 AIRFLOW DATA:
Indoor CFM, HIGH 335 400 470 470 Indoor CFM, LOW 250 250 360 360
Vent CFM 75 75 75 75 PHYSICAL DATA: Sleeve Dimensions (H x W x D)
Dimensions with Front (H x W x D)
Cut Out Dimensions (H x W x D)
16" x 42" x 13
16" x 42" x 21" (all models) 16
Net Weight (lbs.) 105 109 114 116
Shipping Weight (lbs.) 127 131 136 138
R-410A Charge (oz.) 29.98 32.10 30.69 34.22
Dimensions with Packaging (inches) 19
" x 45" x 25" (all models)
Operating range 0°-115°F. Due to continuing research in new energy-saving technology, specifications are subject to change without notice.
3
/4" (all models)
1
/4" x 42 1/4" (all models)
Receptacles and Fuse Types
Voltage 230V Amps Heater Size
20 30
3.6 kW 5.0 kW
Receptacles
NEMA# Receptacle NEMA# Plug
6-20R 6-30R
6-20P 6-30P
4
COOLING & HEATING PERFORMANCE
PZE 230V - Extended Cooling Performance
75 85 95 105 110
72 67 62 72 67 62 72 67 62 72 67 62 72 67 62
9055 8709 8062 8624 8131 7500 8285 7700 6815 7762 6892 6075 6907 5944 5251
0.53 0.72 0.96 0.54 0.74 0.98 0.54 0.77 0.99 0.55 0.81 0.99 0.58 0.87 0.99
10584 10179 9423 10080 9504 8766 9684 9000 7965 9072 8055 7101 8073 6948 6138
0.49 0.66 0.89 0.50 0.69 0.91 0.50 0.71 0.91 0.51 0.75 0.92 0.54 0.80 0.91
14112 13572 12564 13440 12672 11688 12912 12000 10620 12096 10740 9468 10764 9264 8184
0.49 0.66 0.89 0.50 0.69 0.91 0.50 0.71 0.91 0.51 0.75 0.92 0.54 0.80 0.91
17640 16965 15705 16800 15840 14610 16140 15000 13275 15120 13425 11835 13455 11580 10230
0.47 0.63 0.85 0.48 0.66 0.87 0.48 0.68 0.87 0.49 0.72 0.88 0.51 0.77 0.87
PZE07
PZE09
PZE12
PZE15
Btu WATTS 522 531 536 569 575 582 640 640 640 692 691 693 755 755 758 AMPS 2.3 2.3 2.4 2.5 2.5 2.5 2.8 2.86 2.8 3.0 3.0 3.0 3.3 3.3 3.3
SHR
Btu WATTS 653 663 670 711 718 727 800 800 800 865 864 866 943 943 947 AMPS 3.1 3.1 3.1 3.3 3.3 3.3 3.7 3.7 3.7 4.0 4.0 4.0 4.3 4.3 4.4
SHR
Btu WATTS 914 928 939 996 1006 1018 1120 1120 1120 1211 1210 1213 1320 1320 1326 AMPS 4.2 4.2 4.3 4.5 4.6 4.6 5.1 5.1 5.1 5.5 5.5 5.5 6.0 6.0 6.0
SHR
Btu WATTS 1248 1268 1282 1360 1374 1391 1530 1530 1530 1654 1652 1657 1804 1804 1812 AMPS 5.5 5.6 5.6 6.0 6.0 6.0 6.7 6.7 6.7 7.2 7.2 7.2 7.9 7.9 7.9
SHR
PZH 230V - Extended Cooling Performance
75 85 95 105 110
72 67 62 72 67 62 72 67 62 72 67 62 72 67 62
9055 8709 8062 8624 8131 7500 8285 7700 6815 7762 6892 6075 6907 5944 5251
0.53 0.72 0.96 0.54 0.74 0.98 0.54 0.77 0.99 0.55 0.81 0.99 0.58 0.87 0.99
10584 10179 9423 10080 9504 8766 9684 9000 7965 9072 8055 7101 8073 6948 6138
0.49 0.66 0.89 0.50 0.69 0.91 0.50 0.71 0.91 0.51 0.75 0.92 0.54 0.8 0.91
14112 13572 12564 13440 12672 11688 12912 12000 10620 12096 10740 9468 10764 9264 8184
0.49 0.66 0.89 0.50 0.69 0.91 0.50 0.71 0.91 0.51 0.75 0.92 0.54 0.80 0.91
17052 16400 15182 16240 15312 14123 15602 14500 12833 14616 12978 11441 13007 111 94 9889
0.48 0.65 0.88 0.49 0.68 0.89 0.49 0.70 0.90 0.50 0.74 0.90 0.53 0.79 0.90
PZH07
PZH09
PZH12
PZH15
Btu WATTS 522 531 536 569 575 582 640 640 640 692 691 693 755 755 758 AMPS 2.3 2.3 2.4 2.5 2.5 2.5 2.8 2.8 2.8 .03 3.0 3.0 3.3 3.3 3.3
SHR
Btu WATTS 653 663 670 711 718 727 800 800 800 AMPS 3.1 3.1 3.1 3.3 3.3 3.3 3.7 3.7 3.7 4.0 4.0 4.0 4.3 4.3 4.4
SHR
Btu WATTS 914 928 939 996 1006 1018 1120 1120 1120 1211 1210 1213 1320 1320 1326 AMPS 4.2 4.2 4.3 4.5 4.6 4.6 5.1 5.1 5.1 5.5 5.5 5.5 6.0 6.0 6.0
SHR
Btu WATTS 1208 1227 1240 1316 1329 1345 1480 1480 1480 1600 1598 1603 1745 1745 1752 AMPS 5.4 5.5 5.5 5.9 5.9 5.9 6.5 6.6 6.6 7.1 7.1 7.1 7.7 7.7 7.7
SHR
OUTDOOR DRY BULB TEMP. (DEGREES F AT 40% R.H.)
INDOOR WET BULB TEMP. (DEGREES F AT 80 F D.B.)
OUTDOOR DRY BULB TEMP. (DEGREES F AT 40% R.H.)
INDOOR WET BULB TEMP. (DEGREES F AT 80 F D.B.)
RATING POINT
ARI 310/380
865 864 866 943 943 947
RATING POINT
ARI 310/380
Extended Heating Performance
37 42 47 52 57
5250 5540 6300 6900 7620
2.3 2.4 2.4 2.5 2.6
6005 6399 8100 8647 9245
3.3 3.3 3.4 3.4 3.5
7726 8531 10700 11278 12234
4 4.1 4.5 4.7 4.9
10530 10850 13300 14550 15940
5.3 5.4 5.8 6.1 6.3
PZH07
PZH09
PZH12
PZH15
Btu
WATTS 509 518 540 549 580
AMPS
Btu
WATTS 647 656 720 725 735
AMPS
Btu
WATTS 883 917 1010 1039 1073
AMPS
Btu
WATTS 1197 1212 1300 1377 1439
AMPS
OUTDOOR DRY BULB TEMP. (DEGREES F)
RATING POINT
ARI 310/380
5
