KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
P/N9309278028-02
OPERATING MANUAL
MODE D’EMPLOI
MANUAL DE FUNCIONAMIENTO
COOLING MODEL
ROOM AIR CONDITIONER
WALL MOUNTED TYPE
Indoor Unit
MW09C1E
MW12C1E
Outdoor Unit
MR09C1E
MR12C1E
Friedrich Air Conditioning Co.
÷ Refer to the fold-out page on the cover.
Fig. 6
Fig. 8
Fig. 7
OPERATION
SWING
TIMER
7
6
5
1
4
8
Fig. 5
Fig. 1
Fig. 2
Fig. 3
Fig. 4
^
$
#
@
%
0
-
9
!
=
~
3
SLEEP TIMER
MASTER
CONTROL
SET
TEMP.
SET
TIME
FAN
CONTROL
START/STOP
SWING
LOUVER
CLOCK
CLOCK TIMER RESET
AM
PM
PM
OFF
ON
HM
COOL
DRY
FAN
AUTO
HIGH
MED
LOW
QUIET
AUTO
F
SLEEP
ON
OFF
LOW HIGH
ACL
OPEN
&
*
(
)
_
+
£
¡
¢
∞
§
•
º
ª–
Ÿ
⁄
¤
≠
¶
AIR FLOW
DIRECTION
™
En-1
CONTENTS
SAFETY PRECAUTIONS .................................... En-1
FEATURES AND FUNCTIONS ........................... En-4
NAME OF PARTS ............................................... En-5
PREPARATION.................................................... En-6
OPERATION ........................................................ En-7
TIMER OPERATION............................................ En-9
SLEEP TIMER OPERATION.............................. En-10
ADJUSTING THE DIRECTION OF
AIR CIRCULATION ........................................... En-11
SWING OPERATION ........................................ En-12
MANUAL AUTO OPERATION ......................... En-12
CLEANING AND CARE..................................... En-13
TROUBLESHOOTING ....................................... En-16
OPERATING TIPS ............................................. En-17
SAFETY PRECAUTIONS
WARNING
This mark indicates procedures which, if improperly performed, might possibly result in personal harm to the user, or damage to property.
CAUTION
¶ Before using the appliance, read these “SAFETY PRECAUTIONS” thoroughly and operate in the correct way.
¶ The instructions in this section all relate to safety; be sure to maintain save operating conditions.
¶ “CAUTION” and “WARNING” have the following meanings in these instructions:
WARNING
Do not attempt to install this air conditioner by yourself.
¶ Consult authorized service personnel for all installations.
Consult authorized service personnel for any repairs.
¶ Do not attempt to remove parts, or service the unit yourself, since you may be
exposed to dangerous electrical shock. This appliance contains no user-serviceable
parts.
When moving, consult authorized service personnel for
disconnection and installation of the unit.
This mark indicates procedures which, if improperly performed, might lead to the death or
serious injury of the user.
Safety Symbols
% The triangular symbol indicates WARNING, CAUTION and DANGER items.
This symbol indicates prohibited operations. The prohibited action is indicated both within the symbol,
and in nearby explanations.
¶ This symbol indicates instructions regarding operations which are to be performed by the user.

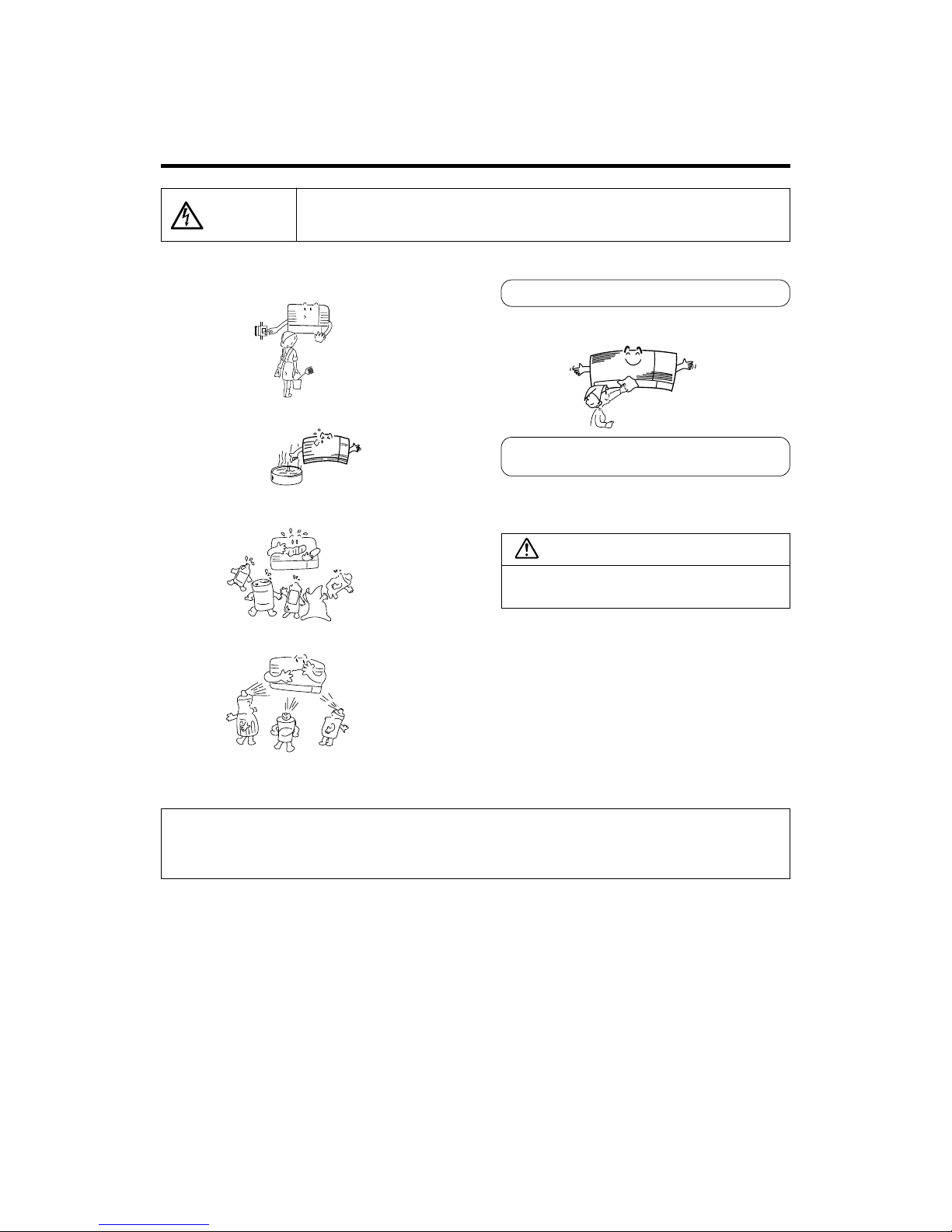

En-2
Do not stay in direct cooling airflow for long periods.
¶ Excessive direct exposure to chilled air could be bad for your health.
¶ Be especially careful when going to bed, and in rooms where infants, aged, or sick
people are staying.
Do not insert fingers or objects into the outlet port or intake grilles.
¶ A fan operates at high speed inside the unit, and personal injury could result.
¶ Be particularly careful regarding small children.
WARNING
PRECAUTIONS
In the event of a malfunction (burning smell, etc.), immediately
stop operation, disconnect the power, and consult authorized
service personnel.
¶ Continuing to operate the unit under such conditions could lead to hazard of fire or
electrical shock.
Do not climb on, or place objects on, the
air conditioner.
¶ Personal injury could result from a falling object, or if
the unit tips over.
Do not set flower vases or water containers on top of air conditioners.
¶ Water leaking inside the unit could damage electrical
insulation, leading to danger of electrical shock.
Do not direct air flow at fireplaces or heating apparatuses.
¶ Direct air blowing on fires could result in improper
combustion or fire.
Do not place animals or plants in the direct
path of the air flow.
Do not hang on or cover the air conditioner.
Be careful to provide adequate ventilation
particularly when using the unit in combination with other heating apparatus.
¶ Insufficient ventilation could lead to oxygen starva-
tion.
Do not expose the air conditioner directly
to water.
¶ Electrical insulation could be damaged, resulting in
electrical shock.
Do not operate the air conditioner with
wet hands.
¶ Electrical shock could result.
CAUTION
En-3
PRECAUTIONS
CAUTION
Check the condition of the installation for
damage.
¶ After lengthy use, arrange for visit by authorized ser-
vice personnel to check installation condition.
Always turn off power whenever cleaning
the air conditioner or changing the air filter.
¶ A fan operates at high speed inside the unit, and per-
sonal injury could result.
Turn off power source when not using the
unit for extended periods.
Take precautions to prevent infants from
accidentally swallowing batteries.
Do not drink the water drained from the
air conditioner.
Do not use in applications involving the
storage of foods, plants or animals,
precision equipment, or art works.
¶ The quality of the stored items may deteriorate.
Take out the batteries from the remote
control unit when not using for a long
time.
¶ Take out the batteries to prevent troubles caused by
battery liquid leakage.
¶ If leaking battery fluid comes in contact with your
skin, eyes, or mouth, immediately wash with copious
amounts of water, and consult your physician.
Install the indoor unit and remote control
unit at least one meter from any television
sets or radio.
¶ Signal radiation could be induced into the system to
give erroneous operation.
Always operate with the air filter installed.
¶ Operating the unit without the air filter could cause
excessive dirt to collect on internal parts, leading to
malfunction.
When installing the indoor unit and
outdoor unit, take precautions to prevent
access by infants.
¶ Unexpected accidents could occur.
Do not use inflammable gases near the air
conditioner.
Avoid installing the air conditioner near a
fireplace or other heating apparatus.
¶ Exposure to excessive heat could result in deforma-
tion of the outer case.
Do not block or cover the intake grille and
outlet port.
¶ Obstructing the ports will reduce operating efficiency,
leading to improper operation and possible damage.
Do not touch the heat exchanger radiator
fins.
¶ Personal injury could result.
¶ Be particularly careful when cleaning.
¶ Bending or damage to the fins will affect the effi-
ciency of the unit.
Be sure to attach the intake grille securely.
En-4
FEATURES AND FUNCTIONS
AUTOMATIC OPERATION
Merely press the START/STOP button, and the unit will begin automatic operation in either the Heating, Cooling, Dry,
or Monitor modes as appropriate, in accordance with the
thermostat setting and the actual temperature of the room.

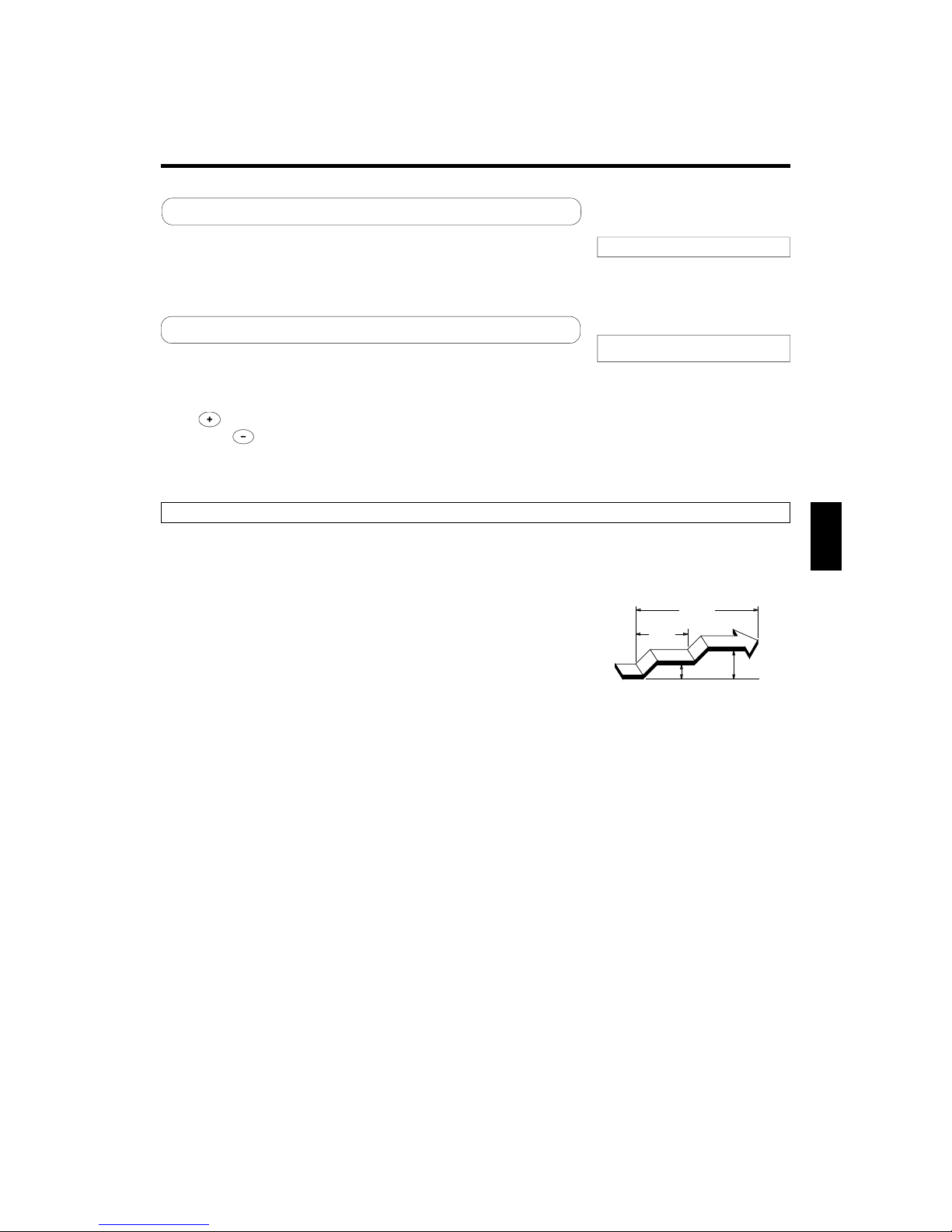

SLEEP TIMER
When the SLEEP timer button is pressed during cooling
mode, the thermostat setting is gradually raised during the
period of operation. When the set time is reached, the unit
automatically turns off.

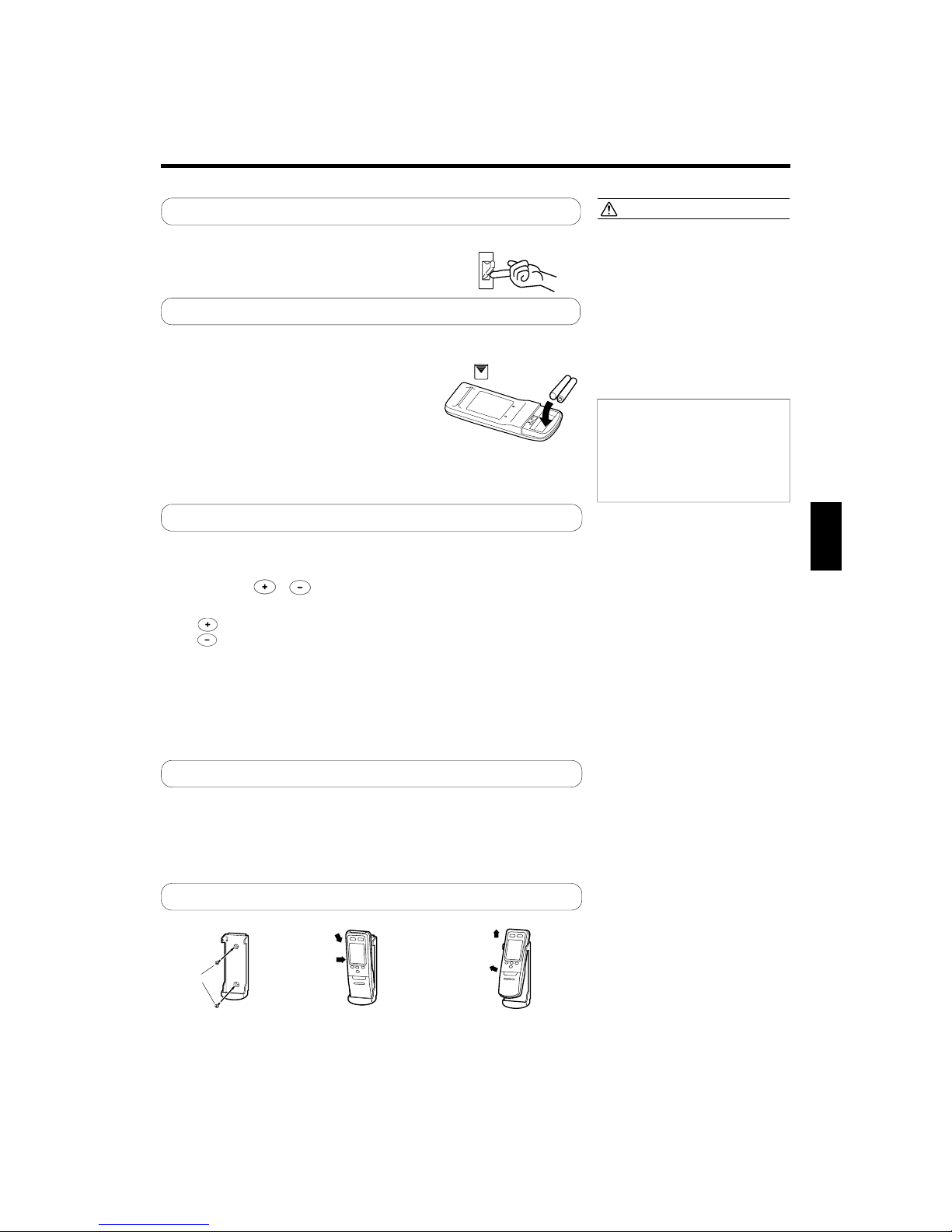

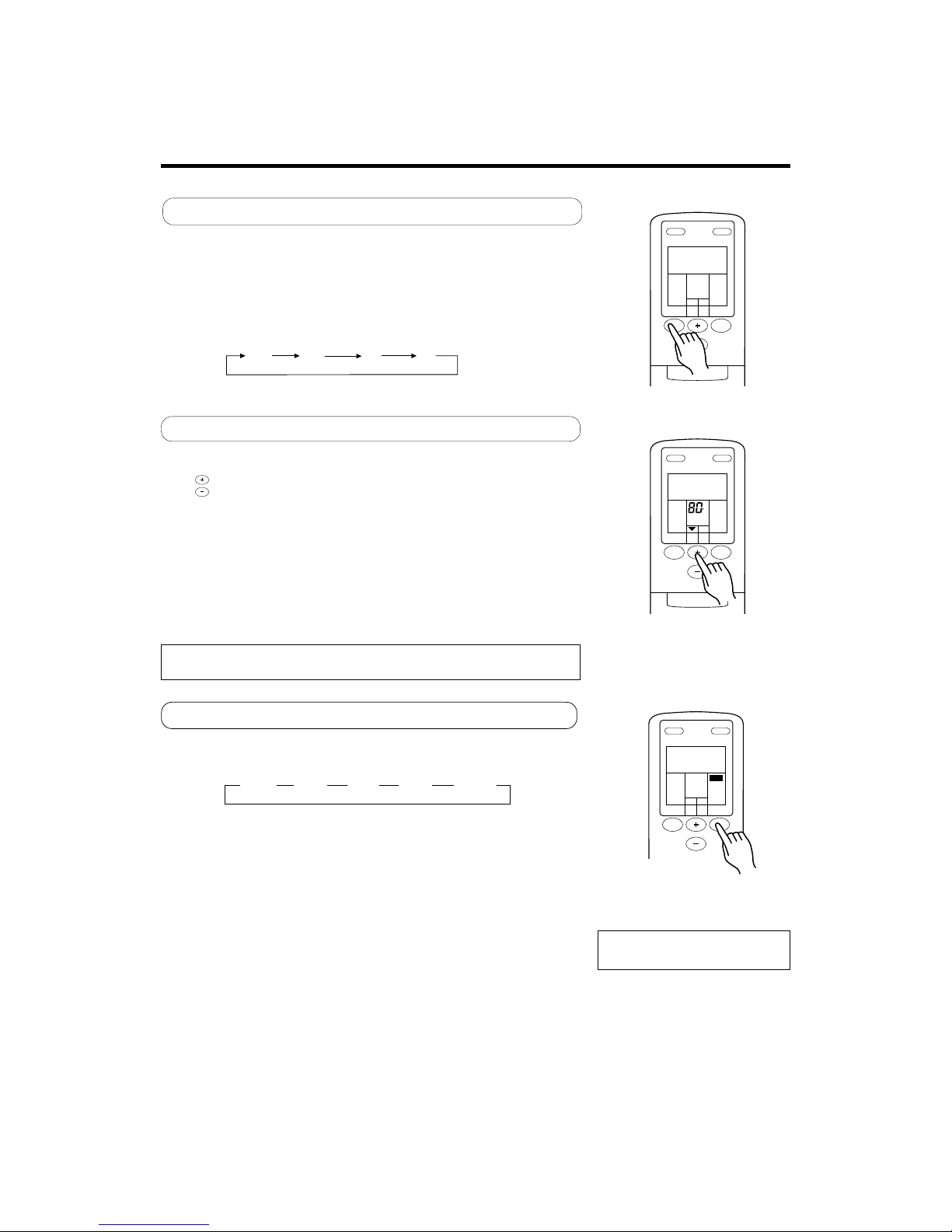

WIRELESS REMOTE CONTROL UNIT
The WIRELESS REMOTE CONTROL UNIT allows convenient
control of air conditioner operation.

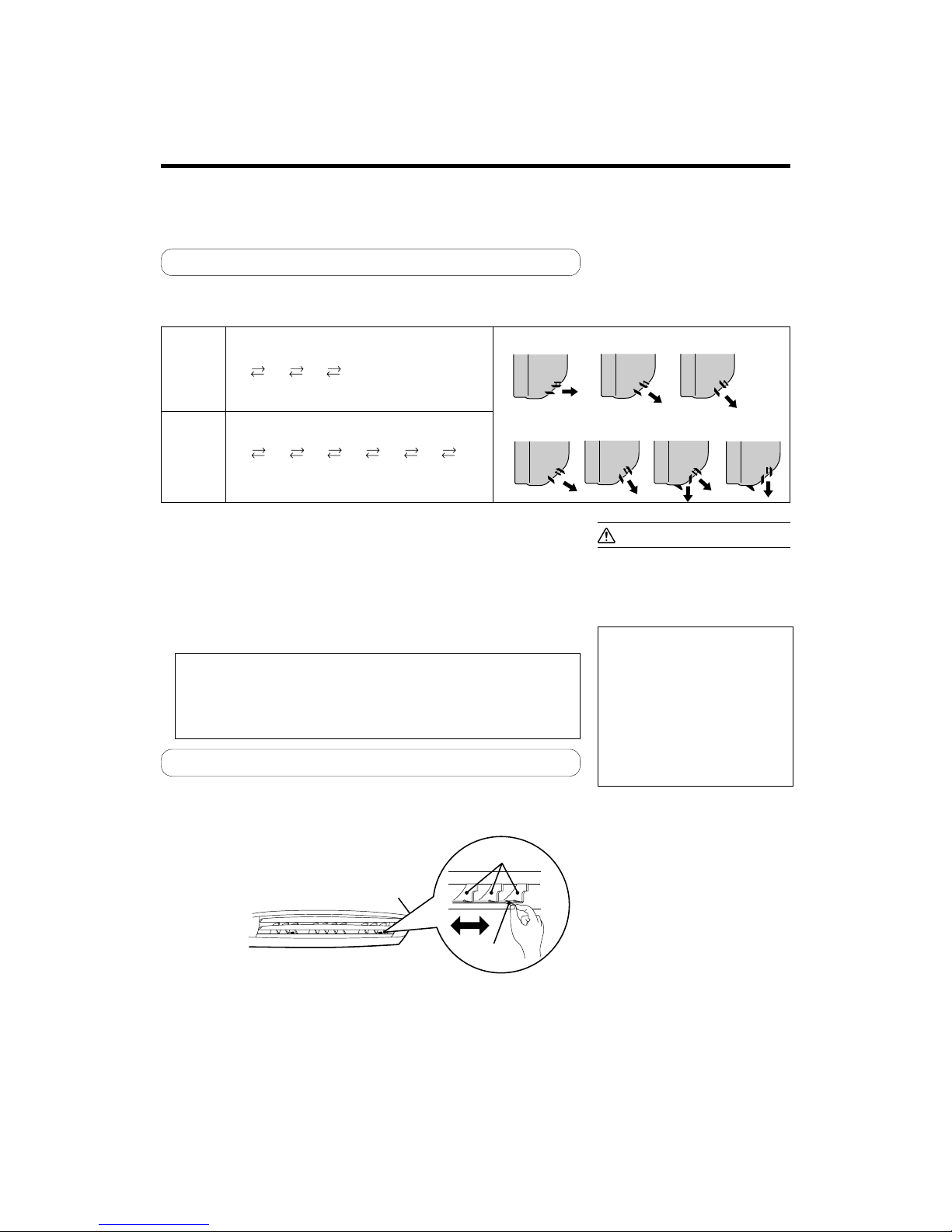

SWING OPERATION
The Air Flow Direction Louvers swings automatically up
and down so that the air speeds to every nook and corner
of your room.

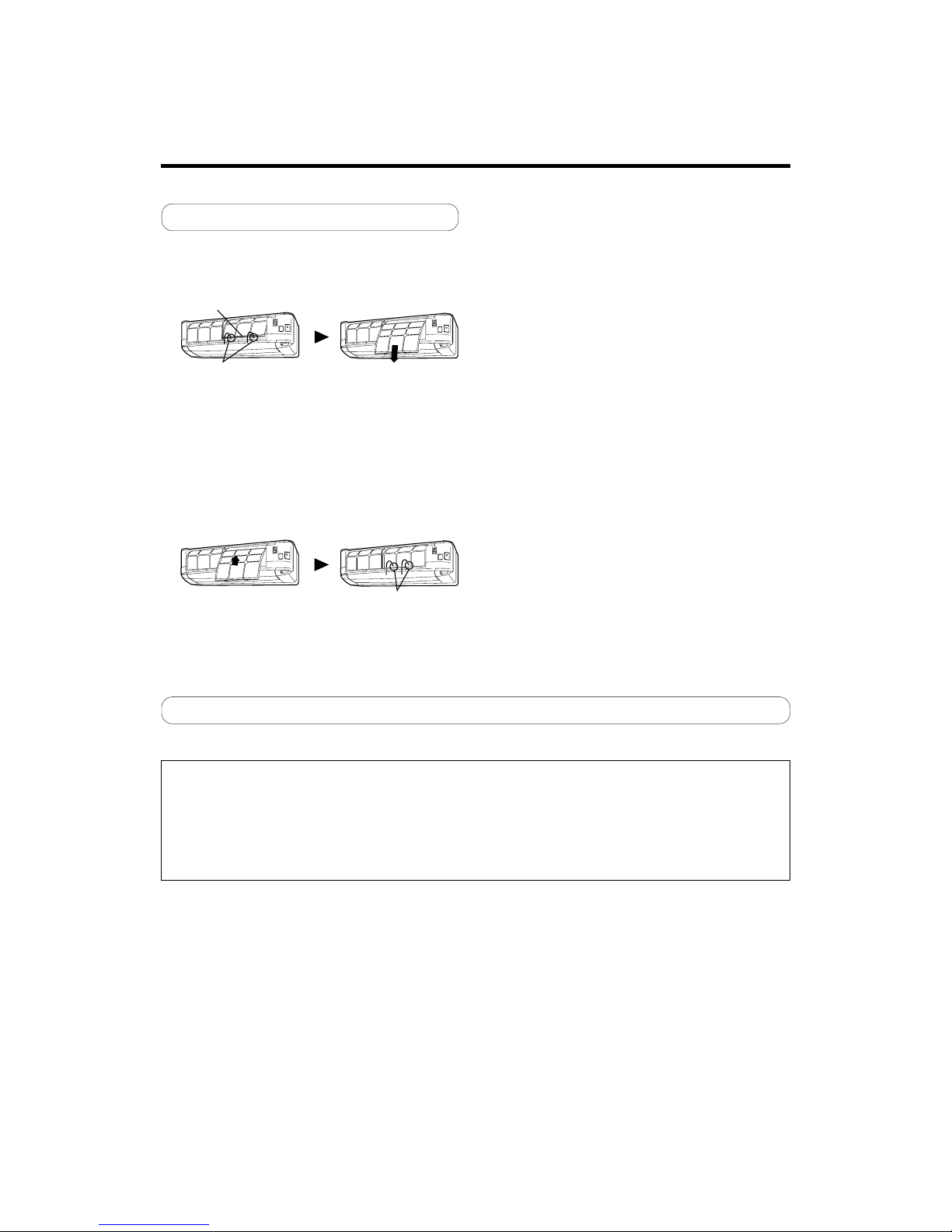

REMOVABLE INTAKE GRILLE
The indoor unit's INTAKE GRILLE can be removed for easy
cleaning and maintenance.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth,
thus allowing cleaner use and easier care.

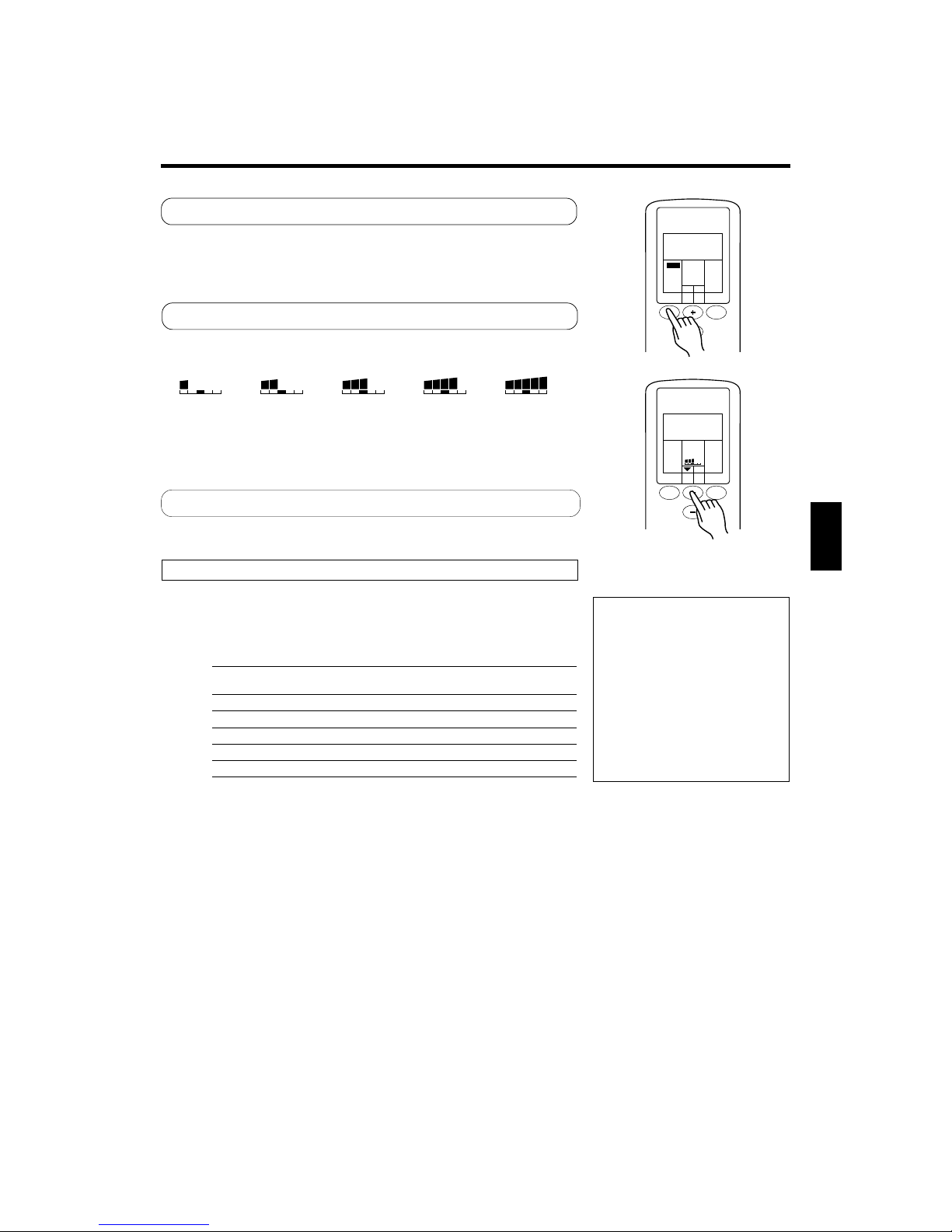

SUPER QUIET OPERATION
When the FAN CONTROL button is used to select QUIET,
the unit begins super-quiet operation; the indoor unit's
airflow is reduced for quieter operation.
