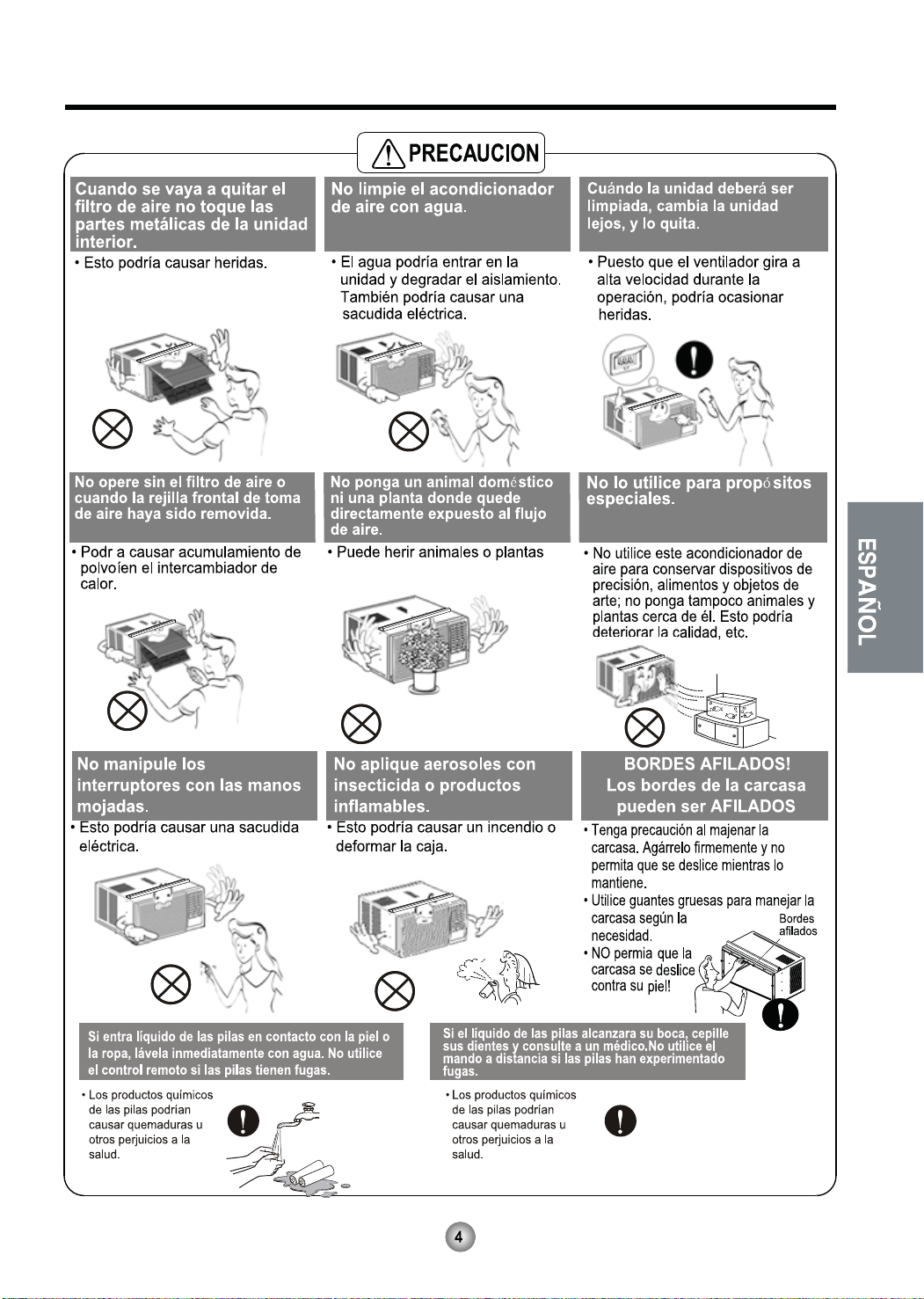

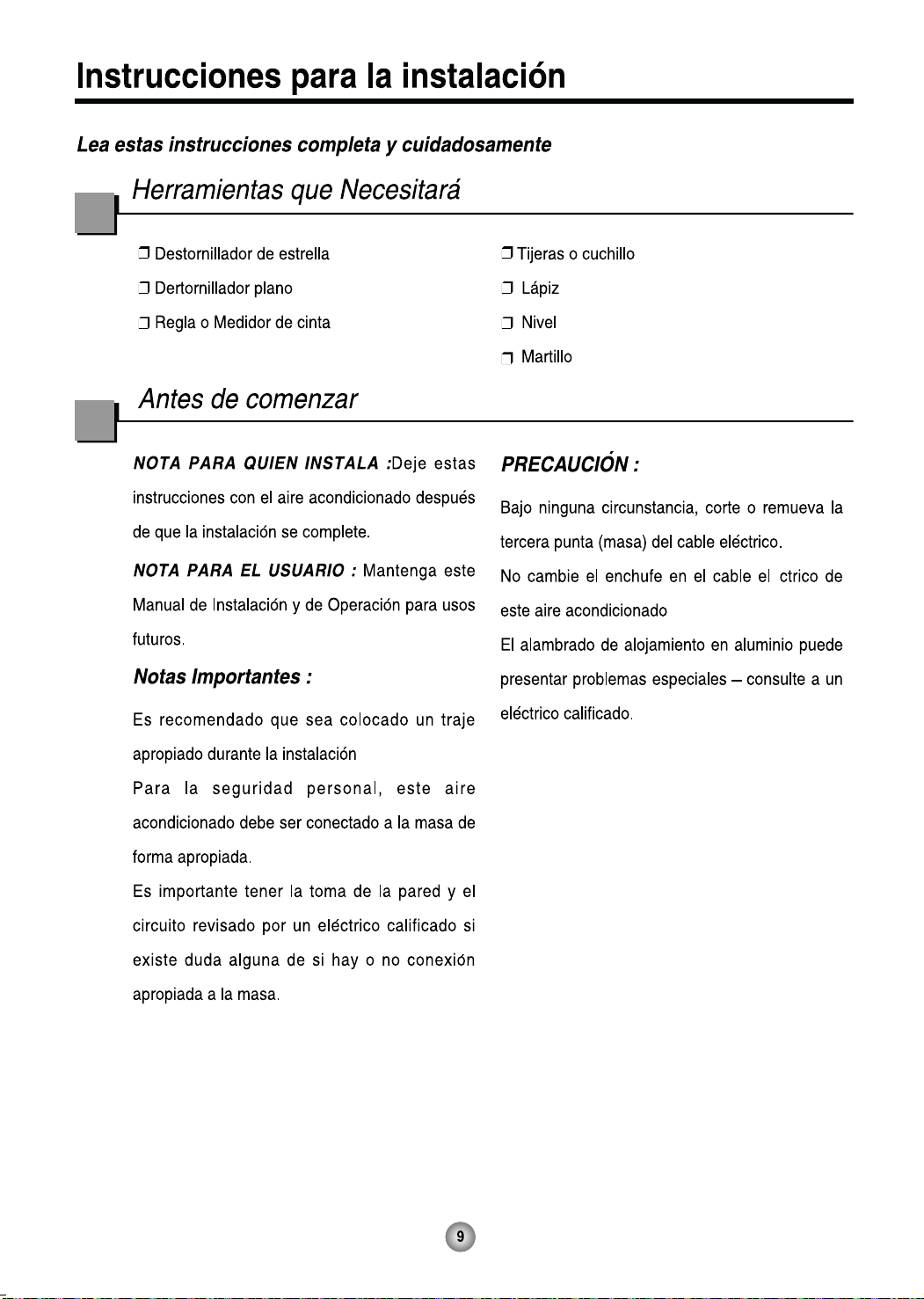

Left frame
curtain
Frame guide(2)
Window locking
bracket
bracket
Sill
(2)
Support bracket(2)
Foam strip
(Plain-Back)
Foam-PE
(Adhesive-Backed)
Drain joint pipe
Right frame
curtain
Type A (11)
Type B (7)
Type C (5) Type D (2)
Carriage Bolt (2) Lock Nut (4)
3.
3
4
4
3
10
4
44
1. Open the window.Mark a line on the center of
the window stool between the side window stop
moldings.
Loosely attach the sill bracket to the support
bracket using the carriage bolt and the lock nut.
Sill
Bracket
Carriage
Bolt
(M-Screw)
Support
Bracket
Lock nut
Fig. 5
2. Attach the sill bracket to the window sill using
the screws (Type B).
Carefully place the cabinet on the window stool
and align the center mark on the bottom front
with the center line marked window stool.
3. Using the M-screw and the lock nut, attach the
support bracket to the cabinet track hole.Use
the first track hole after the sill bracket on the
outer edge of the window sill.Tighten the
carriage bolt and the lock nut. Be sure the
cabinet slants outward.

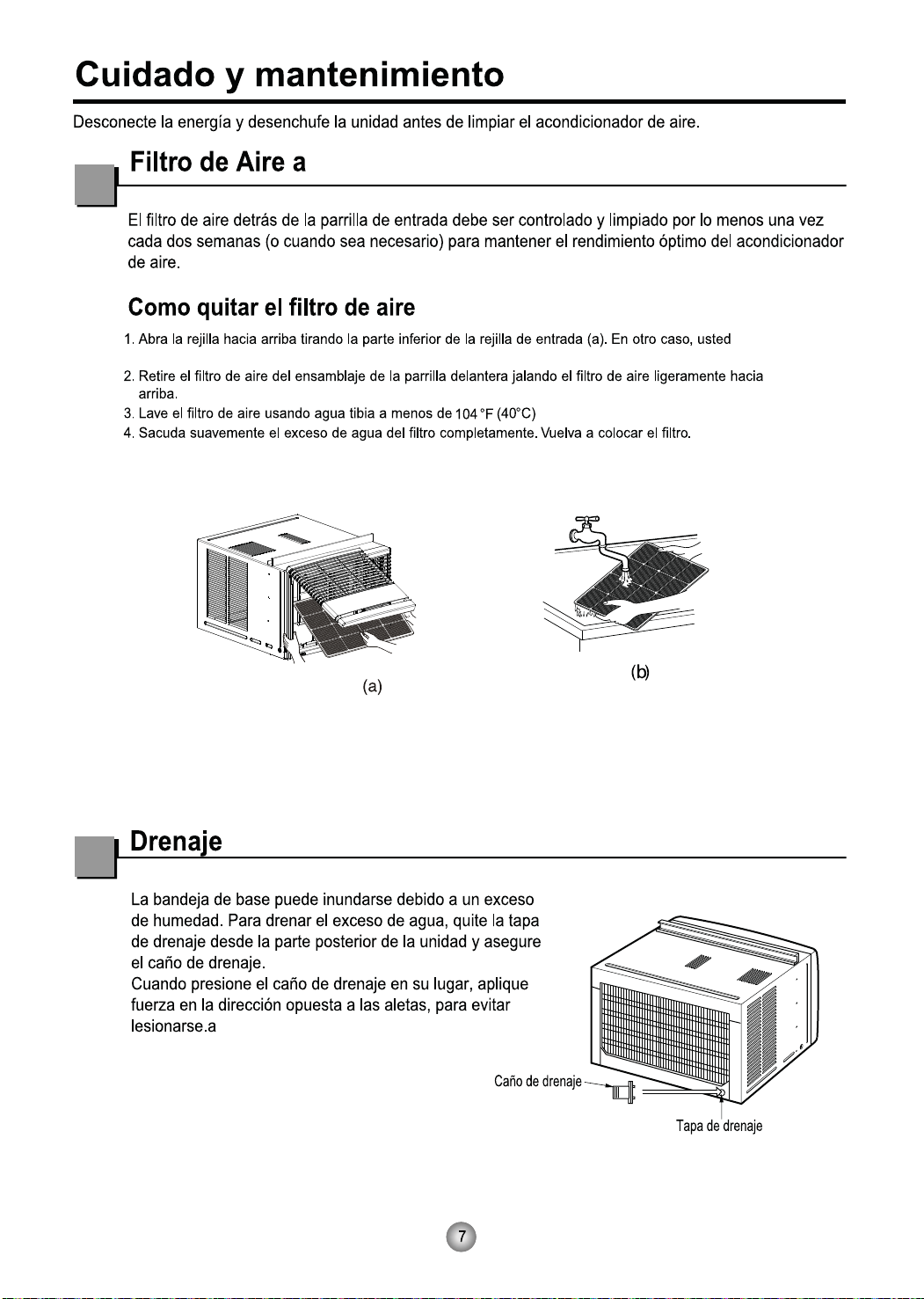

Do not drill a hole in the bottom pan.The unit is
designed to operate with approximately 1/2" of
water in bottom pan.
4. Pull the bottom window sash down behind the
Top retainer bar until they meet.
NOTICE
1. Do not pull the window sash down so tightly
that the movement of Frame curtain is
restricted. Attach the cabinet to the window
stool by driving the screws (Type B) through
the cabinet into window stool.
2.The cabinet should be installed with a very
slight tilt downward toward the outside.
Cabinet
Track hole
Support
Bracket
Carriage bolt
and lock nut
Top
retainer
bar
Window sash
Foam-PE
Cabinet
Frame curtain
Top retainer bar
Foam-PE
Machine screw(Type D)
and lock nut
Outer edge
of window
sill
Screw(Type B)
Sill bracket
Front angle
Window stool
Fig. 6
Fig. 7
Fig. 8
Sash track
13
Screw(Type B)
Front Angle
Fig. 9
3.
Pull each Frame curtain fully to each window sash
track, and pull the bottom window sash down behind
the Top retainer bar until it meets.
4.
Attach each Frame curtain the window sash by
using screws (Type C.) (See Fig.10)
5.
Slide the unit into the cabinet.(See Fig. 11)
For security purpose, reinstall screws(Type A) at
cabinet's sides.
Cut the Foam-strip to the proper length and insert
6.
between the upper window sash and the lower
window sash.(See Fig. 12)
7.
Attach the Window locking bracket with a screw
(Type C.) (See Fig. 13)
Screw
Screw(Type C)
Power Cord
Screw (Type A)
Foam-Strip
Window locking
bracket
ENGLISH
Fig. 10
Fig. 11
Fig. 12
Attach the front grille to the cabinet by inserting the
8.
tabs on the grille into the tabs on the front of the
cabinet. Push the grille in until it snaps into
place.(See Fig.14)
9.
Lift the inlet grille and secure it with a screw (Type
A) through the front grille.(See Fig. 14)
Window installation of room air conditioner is now
10.
completed. See ELECTRICAL DATA for attaching
er cord to electrical outlet.
pow
Fig. 13
Fig. 14
Fig. 15
