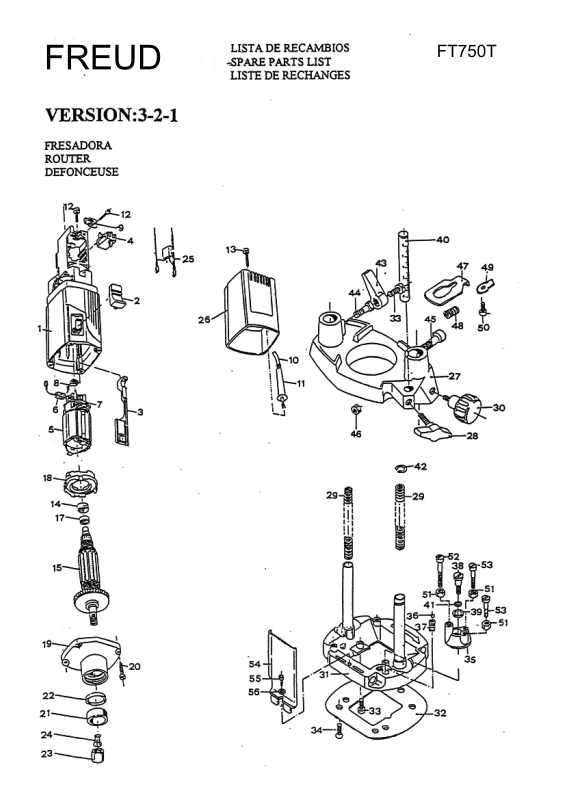

* FREUD * FRESADORA TUPI * MILLING ATTACHMENT * FRAISEUSE *
LISTA DE RECAMBIOS / SPARE PARTS LIST / LISTE DE PIECES DETACHEES
FT750T
VERSION: 3-2-1
POS. |
CODIGO |
VERS |
DENOMINACION |
PART NAME |
DENOMINATION |
1A |
13433.1032 |
V-3-2 |
Grup.cubierta motor |
motor cover |
Couvercle moteur |
1B |
13432.1032 |
V-1 |
Cubierta motor |
motor cover |
Couvercle moteur |
2A |
13432.4021 |
V-3-2 |
Mando interruptor |
Switch control |
Controle interrupteur |
2B |
13431.4021 |
V-1 |
Mando interruptor |
Switch control |
Controle interrupteur |
3A |
13432.4201 |
V-3-2 |
Palanca interruptor |
Switch lever |
Levier interrupteur |
3B |
13431.4201 |
V-1 |
Palanca interruptor |
Switch lever |
Levier interrupteur |
4 |
76325.5021 |
|
Interruptor |
Switch |
Interrupteur |
5A |
13434,9123 |
V-3 |
Estator 230V. |
Field 230V. |
Stator 230V |
5B |
13445..9023 |
V-2-1 |
Estator 230V. |
Field 230V. |
Stator 230V |
5C |
13445.9021 |
V-2-1 |
Estator 120v |
Field 120V |
Stator 120v |
6A |
13017.9071 |
V-3-2 |
Escobilla |
carbon brush |
Balai |
6B |
13006.9071 |
V-1 |
Escobilla |
carbon brush |
Balai |
7A |
13434.9114 |
V-3 |
Portaescobillas |
brush holder |
Porte-balai |
7B |
13432.9111 |
V-2 |
Portaescobillas |
brush holder |
Porte-balai |
7C |
13431,9111 |
V-1 |
Portaescobillas |
brush holder |
Porte-balai |
8 |
13431.2251 |
|
Muelle escobilla |
Brush spring |
Ressort balai |
9 |
13413.4231 |
|
Brida fijar cable |
Cable fastening clamp |
Bride |
10A |
76755.0107 |
|
Cable red EU |
Power cord EU |
Câble prise courant |
10B |
76767.0105 |
|
Cable red UK |
Power cord UK |
Cable prise courant UK |
11 |
13431.4181 |
|
Manguito |
Sleeve |
Manchon |
12 |
84480.0027 |
|
Tornillo 3,5x14TP |
Screw 3,5x14TP |
Tornillo 3,5x14TP |
13 |
84480.0050 |
|
Tornillo 4x20 TP |
Screw 4x20 TP |
Vis 4x20 TP |
14 |
13013.1601 |
|
Anillo goma |
Rubber ring |
Bague cautchouc |
15A |
13604.9031 |
|
Inducido 120V |
Armature 120V |
Induit 120V |
15B |
13604.9033 |
|
Inducido 230V |
Armature 230V |
Induit 230V |
17 |
71206.0702 |
|
Rodamiento 607 ZZ |
Ball bearing 607 ZZ |
Roulement 607 ZZ |
18 |
13431.2611 |
|
Guia aire |
Air guide |
Guide d'air |
19 |
13604.1013 |
|
Cabezal |
Gear box |
Carter |
20 |
84480.0051 |
|
Tornillo 4-4,5x22 TP |
Screw 4-4,5x22 TP |
Vis 4-4,5x22 TP |
21 |
13604.3381 |
|
Tapagrasas delantero |
Grease seal |
Scellé graisse |
22 |
13604.3371 |
|
Tapagrasas rodamiento |
Bearing rease seal |
Scellé graisse roulement |
23 |
13604.7412 |
|
Tuerca pinza |
Forcep nut |
Écrou pince |
24A |
13604.7431 |
|
Pinza 6mm. |
Forcep 6mm. |
Pince 6mm. |
24B |
13604.7433 |
|
Pinza 8mm. |
Forcep 8mm. |
Pince 8mm. |
25 |
13432.9081 |
|
Grupo condensador |
Condenser group |
Grupe condensateur |
26A |
13431.1061 |
|
Casquete azul |
Blue cover |
Couvercle blue |
26B |
13431.1063 |
|
Casquete verde |
Green cover |
Couvercle vert |
27 |
13604.5542 |
|
Cuerpo soporte |
Support body |
Corps support |
28 |
13601.3972 |
|
Palomilla M6x13 |
Winged screw |
Vis à oreilles M6x13 |
29 |
75700.1652 |
|
Muelle |
Spring |
Ressort |
30 |
13260.5632 |
|
Puño |
Grip |
Poignée |
31 |
13604.9751 |
|
Base columnas |
Columns & base |
Base et colonnes |
32 |
13602.5531 |
|
Placa base |
Support plate |
Plaque appui |
33 |
84600.1283 |
|
Tornillo M5x10 DIN 85 |
Screw M5x10 DIN 85 |
Vis M5x10 DIN 85 |
34 |
84760.5248 |
|
Tornillo M4x8 DIN 965 |
Sccrew M4x8 DIN 965 |
Vis M4x8 DIN 965 |
35 |
13603.9291 |
|
Tope apoyo |
Support stop |
Butée retention |
36 |
71390.0233 |
|
Bola 6 DIN 5401 |
Ball 6 DIN 5401 |
Boule 6 DIN 5401 |
37 |
75700.0351 |
|
Muelle |
Spring |
Ressort |
38 |
84410.5283 |
|
Tornillo |
Screw |
Vis |
39 |
87080.0611 |
|
Arandela |
Washer |
Rondelle |
40 |
13604.5521 |
|
Tope regla |
Ruler stop |
Butée règle |
41 |
74210.0620 |
|
Anillo junta OR6x2 |
Joint ring OR6x2 |
Bague joint OR6x2 |
42 |
87510.1016 |
|
Anillo seg 16 DIN471 |
Safety ring 16 DIN471 |
Bague securité 16 DIN471 |
43 |
13602.1231 |
|
Palanca bloqueo |
Blocking lever |
Levier blocage |
44 |
13604.6241 |
|
Tornillo fijar columna |
Fixing screw |
Vis fixation |
45 |
84200.9338 |
|
Tornillo M6x35 DIN912 |
Screw M6x35 DIN912 |
Vis M6x35 DIN912 |
46 |
86020.1060 |
|
Tuerca M6 DIN 934 |
Nut M6 DIN 934 |
Nut M6 DIN 934 |
47 |
13604.5691 |
|
Sujetador |
Support set |
Support |
48 |
75700.0450 |
|
Muelle |
Spring |
Ressort |
49 |
13604.6831 |
|
Brida retención |
Clamp |
Bride |
50 |
84907.1248 |
|
Tornillo M4x8 DIN 7500c |
Screw M4x8 DIN 7500c |
Vis M4x8 DIN 7500c |
51 |
86020.1050 |
|
Tuerca M5 DIN934 |
Nut M5 DIN934 |
Écrou M5 DIN934 |
52 |
84200.9297 |
|
Tornillo M5x30 DIN912 |
Screw M5x30 DIN912 |
Vis M5x30 DIN912 |
53 |
84200.9291 |
|
Tornillo M5x18 DIN912 |
Screw M5x18 DIN912 |
Vis M5x18 DIN912 |
54 |
13602.1211 |
|
Protección transparente |
Transparent guard |
Protection transparent |
55 |
84430.5248 |
|
Torniillo M4x8Pz |
Screw M4x8Pz |
Vis M4x8Pz |
56 |
87301.1040 |
|
Arandela 4 DIN137 |
Washer 4 DIN137 |
Rondelle 4 DIN137 |
57 |
84480.0032 |
|
Tornillo CL89Z 3,6x25 Zng |
Screww CL89Z 3,6x25 ZNg |
Vis CL89Z 3,6x25 Zng |
58 |
13432.1861 |
|
Obturador lado colector |
Obturating ring |
Joint obturateur |
59 |
10460.5221 |
|
Llave 17mm |
Key 17mm |
Cle 17mm |
