FVN6224-UNS
TORINO
INSTALLATION GUIDE
Mirror
31 1/2"
27 7/8"
5 7/8"
19 5/8"
24"
Vanity Front Vanity Back
3/4"
18 1/8"
27 1/8"
10 1/8"
9 1/4"
20 1/8"
3 1/2"
33 3/4"
20 7/8"
17 3/4"
23 3/4"
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
3 1/2"
PAGE 1
Page 3
TOOLS FOR ASSEMBLY
#2
MIRROR INSTALLATION
1/8" Drill bit
wall
wall
wall
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
wall
PAGE 2
Page 4
DRAWER REMOVAL & INSTALLATION
REMOVAL INSTALLATION
1
2
3
1
2
1
Install legs
2
Remove drawer
Install cabinet
3
IMPORTANT:
3
Consult an expert for the proper
screws/bolts to use when attaching
to various wall constructions.
Screws provided do not attach to all
wall construction types.
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 3
Page 5
4
Install top panel
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 4
Page 6

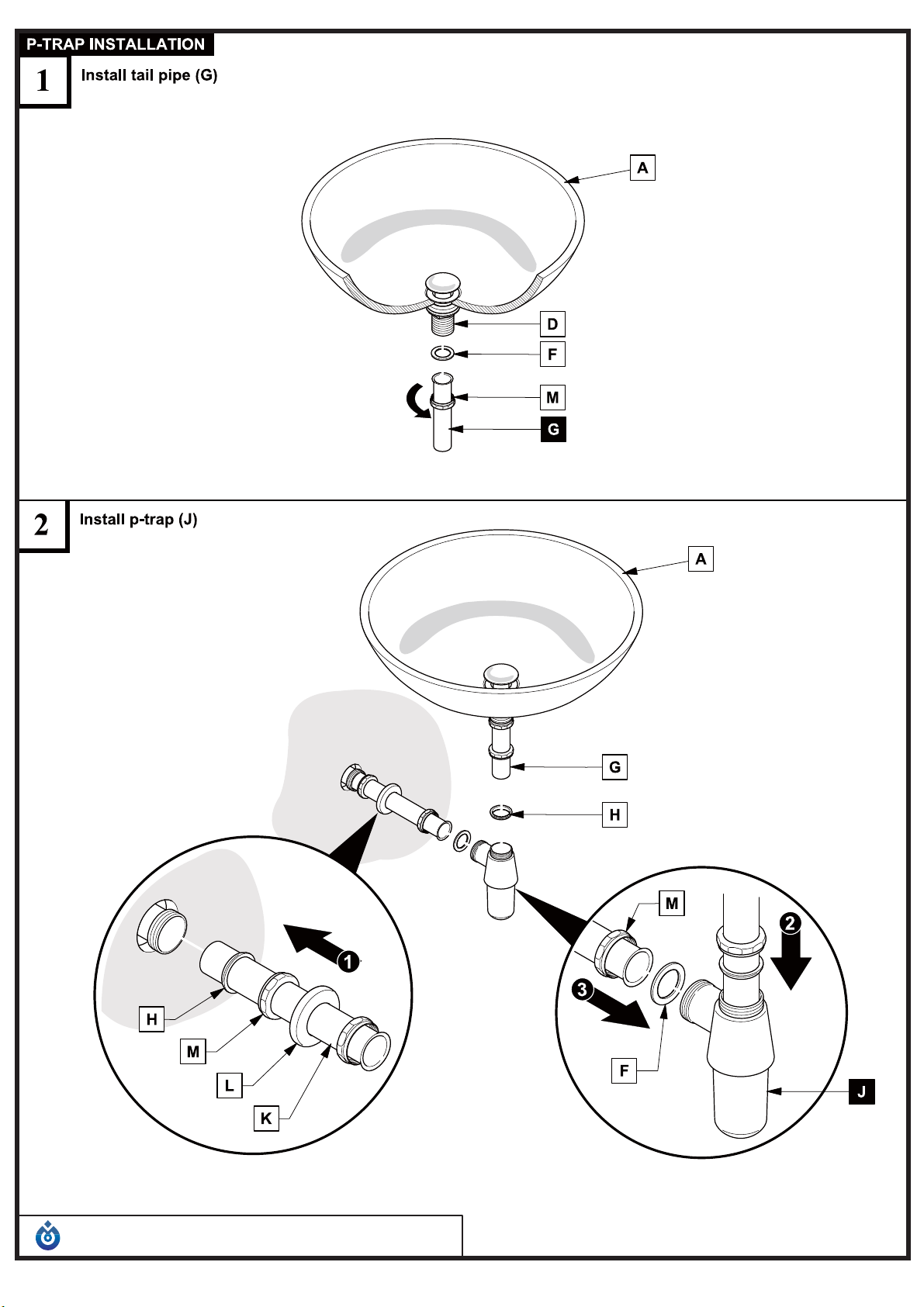

Mounting
Ring
Ring
Drain Pipe
Sink
Pop-up
Silicon
Washer
Silicon
Washer
Brass
Nut
Rubber
Washer
Tail
Pipe
Rubber
Washer
Rubber
Washer
P-Trap
FOR SINKS WITHOUT OVERFLOW FOR SINKS WITH OVERFLOW
PAGE 5
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
Page 7
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 6
