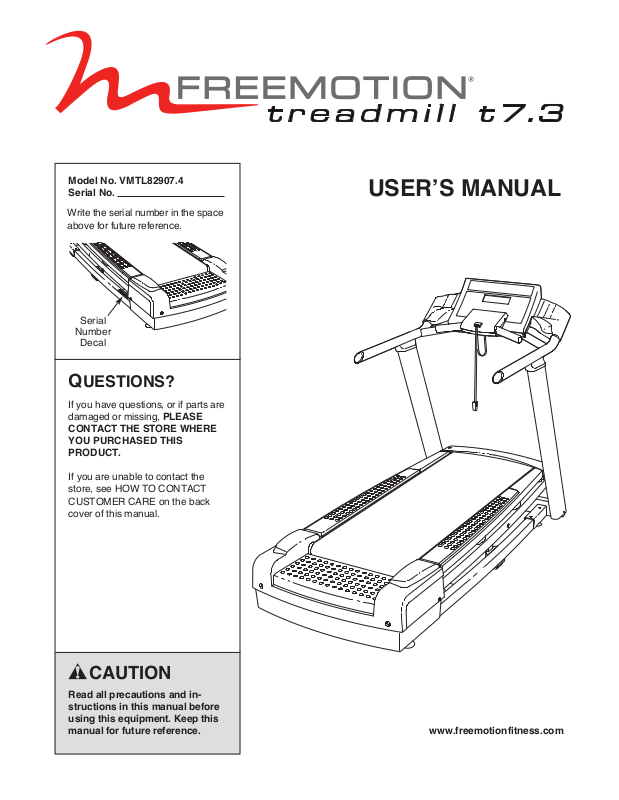

FreeMotion VMTL829074 Owner's Manual

Download

Page 1

Model No. VMTL82907.4 Serial No.

Write the serial number in the space above for future reference.

Serial

Number

Decal

QUESTIONS?

If you have questions, or if parts are damaged or missing, PLEASE

CONTACT THE STORE WHERE YOU PURCHASED THIS PRODUCT.

USERʼS MANUAL

If you are unable to contact the store, see HOW TO CONTACT CUSTOMER CARE on the back cover of this manual.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

www.freemotionfitness.com

Page 2

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

PREVENTIVE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

SIX-MONTH PREVENTIVE MAINTENANCE RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

HOW TO CONTACT CUSTOMER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If

a decal is missing or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decals may

not be shown at actual size.

Note: There is one decal on each side.

FREEMOTION is a registered trademark of ICON IP, Inc.

Page 3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and in-

tructions in this manual and all warnings on your treadmill before using your treadmill. FREEMO-

s TION FITNESS assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure that all users of the treadmill are adequately informed of all warnings and precautions.

3. Use the treadmill only as described in this manual.

4. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

5. Keep the treadmill indoors, away from moisture and dust. Do not place the treadmill in a garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

7. Do not operate the treadmill until it is properly assembled (see ASSEMBLY on page 6).

8. Inspect and properly tighten all parts of the treadmill regularly.

9. Keep children under the age of 12 and pets away from the treadmill at all times.

clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always

wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

12. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. To purchase a surge suppressor, please see the back cover of this manual and order part number 146148, or see your local electronics store.

13. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

14. Keep the power cord and the surge suppressor away from heated surfaces.

15. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged or if the treadmill is not working properly. (See TROUBLESHOOTING on page 25 if the treadmill is not working properly.)

16. Read, understand, and test the emergency stop procedure before using the treadmill (see page 12).

10. The treadmill should not be used by persons weighing more than 350 lbs. (159 kg). Do not allow more than one person on the treadmill at a time.

11. Wear appropriate exercise clothes when using the treadmill. Do not wear loose

17. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

18. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

Page 4

19. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and move the reset/off circuit

reaker to the “off” position when the tread-

b mill is not in use. (See the drawing on page 5 for the location of the reset/off circuit breaker.)

20. Do not change the incline of the treadmill by placing objects under it.

DANGER: Always unplug the power

23. cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures de-

cribed in this manual. Servicing other than

s the procedures in this manual should be performed by an authorized service representative only.

21. Never insert or drop any object into any opening on the treadmill.

22. Make sure to perform all maintenance procedures outlined in this manual. Failure to do so will void the warranty and may result in damage to the treadmill.

SAVE THESE INSTRUCTIONS

24. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

Page 5

BEFORE YOU BEGIN

Congratulations for selecting the revolutionary FREEMOTION®t7.3 treadmill. The t7.3 treadmill offers an impressive array of features designed to help you

chieve your fitness goals in the convenience and pri-

a vacy of your home.

For your benefit, read this manual carefully before using the treadmill. If you have questions after read-

ing this manual, please see the back cover of this

Accessory Tray

Handrail

Walking Belt

Foot Rail

manual. To help us assist you, note the product model number and serial number before contacting us. The model number and serial number are found on the ser-

al number decal. The location of the serial number

i decal is shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Console

Key/Clip

Roller

Adjustment

Bolts

Reset/Off Circuit Breaker

Power Cord

Platform Cushion

Page 6

ASSEMBLY

1/2" Jamnut (5)–4

1/2" Star

Washer (7)–4

3/8" Star

Washer (9)–4

3/8" Nut (42)–2

3/8" Wheel

Washer (57)–2

5/16" Star

Washer (8)–4

5/16" x 1" Bolt (2)–8

3/8" x 2" Bolt (3)–4

1/2" x 3 1/4" Bolt (1)–4

3/8" x 2 1/2" Wheel

Bolt (34)–2

ssembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

A dispose of the packing materials until assembly is completed. Assembly can be completed using a 7/32" hex key and an adjustable wrench .

ote: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping,

N some lubricant may be transferred to the top of the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses shows the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached to one of the parts to be assembled. Extra hardware may be included. To avoid damaging plastic parts, do not use power tools for assembly.

Page 7

1. Note: The Wheels (91) may be preattached. If they are not, complete this step.

ith the help of a second person, carefully raise

W the Uprights (96) and insert a Wheel (91) into

he bottom of each Upright. Be careful not to

pinch the 55" Wire Harness (48).

Attach each Wheel (91) with a 3/8" x 2 1/2" Wheel Bolt (34), a 3/8" Wheel Washer (57), and a 3/8" Nut (42) (only one side is shown). Do not

overtighten the Nuts; the Wheels must turn freely.

2. Place the Uprights (96) near the front of the Base Frame (75). Have a second person tip the Uprights back so that they roll on the Wheels (91) as shown.

Connect the 80" Wire Harness (46) in the Base Frame (75) to the 55" Wire Harness (48) in the right Upright (96). See the inset drawing. The

connectors should slide together easily and snap into place. If they do not, turn one con- nector and try again. IF THE CONNECTORS ARE NOT INSERTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON. Be careful not to pinch your fingers or the wire harnesses.

3. Gently pull up on the 55" Wire Harness (48) while a second person rolls the Uprights (96) toward the Base Frame (75). Align the holes in the Uprights above the holes in the Base Frame. Lower the Uprights onto the Base Frame. Be

careful not to pinch your fingers or the wire harnesses. Make sure to keep the holes aligned.

Holes

Page 8

4. Tighten four 1/2" x 3 1/4" Bolts (1) with four 1/2" Star Washers (7) and four 1/2" Jamnuts (5) (only two of each are shown) into the Uprights

96) and the Base Frame (75). Start all four

(

Bolts before tightening any of them.

4. Note: The Upright Brackets (98, 99) may be

preattached. If they are not, complete this step.

Press the Left Upright Bracket (99) onto the left Upright (96). Attach the Left Upright Bracket with two 3/8" x 2" Bolts (3) and two 3/8" Star Washers (9).

Insert the 55" Wire Harness (48) through the Right Upright Bracket (98). Press the Right Upright Bracket onto the right Upright (96). Be

careful not to pinch the wires.

Attach the Right Upright Bracket (98) with two 3/8" x 2" Bolts (3) and two 3/8" Star Washers (9).

5. Have a second person hold the Handrail (100) near the Upright Brackets (98, 99).

Connect the 55" Wire Harness (48) in the Right Upright Bracket (98) to the 35" Wire Harness (47). See the inset drawing in step 2. The

Attach the Handrail (100) to the Upright Brackets (98, 99) with four 5/16" x 1" Bolts (2) and four 5/16" Star Washers (8). Start all four

Bolts before tightening any of them. Be careful not to pinch the wires.

100

Page 9

6. Attach the Front Roller Cover (68) with four 5/16" x 1" Bolts (2).

7. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or carpet, place a mat beneath the treadmill.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, unplug the power cord.

Due to the size and weight of the treadmill, moving it requires two or three persons. Hold the metal frame firmly in the location shown at the right. CAUTION: To decrease the possibility of damage to the treadmill or of injury, do not lift the frame by the plastic front cover or by the handrail. Carefully roll the treadmill on

the wheels to the desired location and then lower it to the level position. CAUTION: To reduce the risk of injury,

use extreme caution while moving the treadmill. Do not attempt to move the treadmill over uneven surfaces.

After the treadmill is placed in the location where it will be used, make sure that the leveling feet and the base pads rest firmly on the floor (only one side is shown). If the treadmill rocks even slightly, turn one of the leveling feet clockwise or counterclockwise until the rocking motion is eliminated.

Frame

Wheels

Leveling

Foot

Base

Pad

Leveling Foot

Page 10

TREADMILL OPERATION

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply

substances other than the included walking belt lu-

ricant to the walking belt or the walking platform.

b Silicone spray and other substances will deteriorate the walking belt and cause excessive wear.

DANGER: Improper connection

of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your homeʼs power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, please see the back cover of this manual and order part number 146148, or see your local electronics store.

an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

MPORTANT: The treadmill is not compatible with

I GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Grounded Outlet

Grounded Outlet Box

Adapter

Grounding Plug

Surge Suppressor

Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having

Lug

Metal Screw

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

Page 11

SPEED

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effective and enjoyable. When you use the manual mode of the console, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display continuous exercise feedback.

In addition, the console features eleven personal trainer workouts. Each preset workout automatically controls the speed and incline of the treadmill as it guides you through an effective workout.

The console also offers nine interactive trainer workouts that allow you to customize your workout. The interactive trainer workouts include three heart rate workouts that control the speed and incline of the treadmill to keep your heart rate near the target heart rate settings. In addition, three fitness test workouts measure your fitness level or your VO

2 max.

The console also features the new iFIT Interactive Workout system. The iFIT system is compatible with iFIT Interactive Workout Cards containing workout programs designed to help you achieve specific fitness goals. For example, lose unwanted pounds with the Weight Loss program, or train for a long-distance run with the Marathon program. iFIT programs automatically control the treadmill. To purchase iFit cards,

please see the back cover of this manual or go to www.iFit.com. iFit cards are also available at select stores.

To turn on the power, follow the steps beginning on page 12. To use the manual mode, see page 12. To use a personal trainer workout, see page 14. To use a manual control workout, see page 15. To use a fitness test workout, see page 16. To use a heart rate workout, see page 17. To use an iFIT workout,

see page 18. To use the maintenance mode, see page 19.

Page 12

HOW TO TURN ON THE POWER

HOW TO USE THE MANUAL MODE

IMPORTANT: If the treadmill has been exposed to

old temperatures, allow it to warm to room tem-

c perature before turning on the power. If you do not

o this, the console displays or other electrical

d components may become damaged.

Plug in the power cord (see page 10). Next, locate the reset/off circuit breaker on the treadmill frame near the power cord. Make sure that the circuit breaker is in the “reset” position.

Next, stand on the foot rails of the treadmill. Locate the clip attached to the key (see the drawing at the right), and slide the clip securely onto the waistband of your clothes. Then, insert the key into the console. After a moment, the displays will light. IM-

PORTANT: In an emergency situation, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

IMPORTANT: If there is a sheet of clear plastic on the face of the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes while using the treadmill. The first time the treadmill is used, observe the alignment of the walking belt, and center the walking belt if necessary (see page 26).

Note: The console may be able display speed and distance in either miles or kilometers. For simplicity, all instructions in this section refer to miles.

Reset

Position

Key

Clip

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Each time the key is inserted, the manual mode will be selected. If you have selected a workout, press any of the workout buttons repeatedly until zeros appear in the display.

3. Start the walking belt and adjust the speed.

To start the walking belt, press the Start/Stop button, the Speed increase button, or one of the Quick Touch speed buttons numbered 1 to 12. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons next to the Start/Stop button. Each time you press a button, the speed setting will change; if you hold down a button, the speed setting will change in larger increments. After you press one of the speed buttons, press the Enter button or press the speed button again to confirm the speed.

To stop or restart the walking belt, press the Start/Stop button.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the Incline increase or decrease button. Each time you press one of the buttons, the incline will gradually change until it reaches the selected incline setting.

Page 13

5. Select a display mode and monitor your progress with the display.

• Your exercise intensity in METs. One MET is the amount of energy you use while resting.

hen the manual

W mode is selected,

he console offers

t seven display modes. The display mode that you select will determine which workout information is shown. Press the Display button repeatedly to select the desired display mode.

As you walk or run on the treadmill, the display can show the following workout information:

• The elapsed time.

• The distance that you have walked or run.

• The speed of the walking belt.

• The incline level of the treadmill.

• The approximate number of calories you have burned.

• The approximate number of calories burned per hour.

Your power output in watts.

•

egardless of which display mode you select, the

R speed or incline setting will appear in the display for a few seconds each time you change the setting.

As you switch between workouts and the manual mode, the console will keep track of the total distance that you have walked or run and the approximate number of calories you have burned. You can keep your totals even when you switch to a new workout. To reset the console, press the Clear button.

6. When you are finished exercising, remove the key from the console.

Step onto the foot rails, press the Stop button, remove the key from the console, and put the key in a secure place.

When you are finished using the treadmill, switch the reset/off circuit breaker to the “off” position and unplug the power cord. IMPORTANT: If you do

not do this, the treadmillʼs electrical components may wear prematurely.

• Your walking or running pace, in minutes per mile or minutes per kilometer.

Page 14

HOW TO USE A PERSONAL TRAINER WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

2. Select one of the personal trainer workouts.

To select a personal trainer workout, press the Random Workouts button, the Interval Workouts button, or the Terrain Workouts button repeatedly until the name of the desired workout appears in the display. Random workouts use preset random speed and incline settings. Interval workouts use speed settings to provide a personalized workout. Terrain workouts use speed and incline settings to simulate an actual walking experience.

When a workout is selected, the display will show the name, the maximum incline setting, the maximum speed setting and the duration of the workout. The display will also show a profile of the speed settings of the workout.

Press the Enter button to select the desired workout. Select your age, your weight, and the workout duration using the Increase and Decrease buttons next to the Enter button. Press the Enter button after each selection. Note: To use the Interval workouts, you must also enter your minimum and maximum speed settings using the Quick Touch Speed buttons or the Increase and Decrease buttons.

3. Press the Start/Stop button to start the workout.

A moment after you press the Start/Stop button, the treadmill will automatically adjust to the first speed and incline settings of the workout. Hold the handrails and begin walking.

Each workout is divided into segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed and/or incline setting may be programmed for consecutive segments.

During the workout, the profile will show your progress. The

lashing segment of

f the profile repre-

ents the current

s segment of the workout. The height of the flashing segment indicates the speed setting for the current segment. At the end of each segment, the next segment of the profile will begin to flash and the speed and incline settings will appear in the display to alert you.

The workout will continue in this way until the last segment of the profile flashes in the display and the last segment ends. The walking belt will then slow to a stop.

If the speed or incline setting is too high or too low at any time during the workout, you can manually override the setting by pressing the Speed or Incline buttons; however, when the next segment

of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment. Note: If you use an

Interval workout, the incline will not adjust automatically.

To stop or restart the workout at any time, press the Start/Stop button.

4. Select a display mode and monitor your progress with the display.

The console offers three display modes. The display mode that you select will determine which workout information is shown. Press the Display button repeatedly to select the desired display mode.

The display can show a profile of the workout, the time remaining in the workout, the distance you have walked or run, the approximate number of calories you have burned, your exercise intensity in METs, the speed of the walking belt, the incline of the treadmill, the approximate number of calories burned per hour, and your power output in watts.

5. When you are finished exercising, remove the key from the console.

See step 6 on page 13.

Current Segment

Page 15

HOW TO USE A MANUAL CONTROL WORKOUT

3. Press the Start/Stop button to start the workout.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

2. Select one of the manual control workouts.

To select a manual control workout, press the Manual Control button repeatedly until the Manual Time, the Manual Distance, or the Manual Calories workout appears in the display.

The display will show the name of the workout, the maximum speed setting of the workout and the time, distance, or calorie goal.

Press the Enter button to select the desired workout. Select your age and then your weight using the Increase and Decrease buttons next to the Enter button. Then enter your time, distance, or calorie goal. Press the Enter button after each

selection.

A moment after you press the Start/Stop button,

he treadmill will begin moving. Hold the handrails

t and begin walking.

During the workout, the profile will show the speed setting of the treadmill. As you exercise, change the speed and incline of the treadmill as desired by pressing the Speed and Incline increase and decrease buttons next to the Start/Stop button.

The workout will continue until you reach your time, distance, or calorie goal. The walking belt will then slow to a stop.

To stop or restart the workout at any time, press the Start/Stop button.

4. Select a display mode and monitor your progress with the display.

See step 4 on page 14.

5. When you are finished exercising, remove the key from the console.

See step 6 on page 13.

Page 16

HOW TO USE A FITNESS TEST WORKOUT

4. Press the Start/Stop button to start the workout.

The fitness test workouts measure your relative fitness

evel. For the most accurate results, use a fitness test

l workout when you are not feeling tired, when you have

ot eaten for at least two hours, and when you have not

n exercised for at least 24 hours.

The treadmill features three fitness workouts. The Ebbeling Fitness Test measures VO

2 max, or aerobic

capacity, and lasts 9 minutes. The Gerkin Fitness Test also measures VO2 max. The Gerkin Fitness Test begins with a three-minute warm-up period and ends after 14 minutes or when you reach a certain heart rate. The FreeMotion Fitness Test measures your fitness level on a scale of 1 to 10. The FreeMotion Fitness Test ends after 28 minutes or when you reach a certain heart rate.

1. Put on a Polar®-compatible chest pulse sensor (not included).

You must wear a chest pulse sensor to use a fitness test. No chest pulse sensor is included.

2. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 12.

3. Select a fitness test workout.

To select a fitness test workout, press the Fitness Tests button repeatedly until the name of the desired fitness test appears in the display.

Press the Enter button to select the desired workout. Select your age and then your weight using the Increase and Decrease buttons next to the Enter button. Press the Enter button after each selection. Note: To use the Ebbeling Fitness Test, you must also enter your gender.

A moment after you press the Start/Stop button,

he treadmill will automatically adjust to the first

t speed and incline settings of the fitness test. Begin

alking on the treadmill. Note: For the most accu-

w rate results, do not hold the handrails during a fitness test workout.

During the workout, the speed and incline of the treadmill will periodically change. The speed setting or the incline setting will appear in the display to alert you before each change. IMPORTANT:

The Speed and Incline buttons will not function during a fitness test workout.

Note: If you press the Start/Stop button during the fitness test, the fitness test will end.

When the workout ends, the walking belt will slow to a stop and your fitness level or VO

2 max will ap-

pear in the display.

If your pulse is not detected during the workout, CHECK HEART RATE MONITOR will appear in the display and the speed of the treadmill may automatically decrease. If your pulse is still not detected, the fitness test will be aborted.

5. Select a display mode and monitor your progress with the display.

See step 4 on page 14. Note: The fitness tests will also display your fitness level.

6. When you are finished exercising, remove the key from the console.

See step 6 on page 13.

Page 17

HOW TO USE A HEART RATE WORKOUT

CAUTION: If you have heart prob-

lems, or if you are over 60 years of age and have been inactive, do not use the pulse workouts. If you are taking medication regularly,

onsult your physician to find out whether the

c medication will affect your exercise heart rate.

1. Put on a Polar®-compatible chest pulse sensor (not included).

You must wear a chest pulse sensor to use a heart rate workout. No chest pulse sensor is in-

cluded.

2. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

12.

The heart rate workouts are divided into several one-minute segments. One target heart rate setting is programmed for each segment. The same target

eart rate setting may be programmed for consec-

h utive segments. For a shorter workout, simply stop

he workout before it ends.

During all heart rate workouts, the console will regularly compare your heart rate to the target heart rate setting. If your heart rate is too far below or above the target heart rate setting for the current segment, the speed of the walking belt will automatically increase or decrease to bring your heart rate closer to the target heart rate setting.

If the speed or incline setting is too high or too low at any time during the workout, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to the target heart rate setting, the speed of the treadmill may automatically change to bring your heart rate closer to the target heart rate setting.

3. Select one of the heart rate workouts.

To select a heart rate workout, press the Heart Rate Control button repeatedly until the desired workout appears in the display. Press the Enter button to select the desired workout.

Select your age and then your weight using the Increase and Decrease buttons next to the Enter button. Press the Enter button after each selec- tion. Note: To use the constant heart rate and variable heart rate workouts, you must also enter your target maximum heart rate. If the target maximum heart rate setting is changed, the intensity level of the entire workout will change.

4. Press the Start/Stop button to start the workout.

A moment after the Start/Stop button is pressed, the treadmill will automatically adjust to the first speed and incline settings of the workout. Hold the handrails and begin walking.

To stop or restart the workout at any time, press the Start/Stop button. When you restart the workout, the walking belt will begin to move. When the console compares your heart rate to the target heart rate setting, the speed and/or incline of the treadmill may automatically change to bring your heart rate closer to the target heart rate setting.

5. Select a display mode and monitor your progress with the display.

See step 4 on page 14.

6. When you are finished exercising, remove the key from the console.

See step 6 on page 13.

Page 18

HOW TO USE AN IFIT WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

At the end of each one-minute segment, the speed and incline settings for the next segment will appear in the display and a series of tones will sound to

lert you. If a different speed and/or incline setting

a is programmed for the next segment, three tones

ill sound.

2. Insert an iFIT card and select a workout.

To use an iFIT workout, insert an iFIT card into the iFIT slot on the back of the console; make sure that the iFIT card is oriented so the missing corner is facing downward and is inserted into the iFIT slot.

iFIT Slot

iFIT Card

Next, select an iFIT workout by pressing the Increase and Decrease buttons next to the Enter button. When an iFIT workout is selected, the display will show the name of the workout, the maximum incline setting and the maximum speed setting of the workout, and the workout time.

Each iFIT workout is divided into several oneminute segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed and/or incline setting may be programmed for consecutive segments.

If the speed or incline setting for the current segment is too high or too low, you can manually override the setting by pressing the Speed or Incline buttons; however, when the next segment be-

gins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop button. To restart the workout, press the Start button or the Speed increase button. The walking belt will begin to move. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

4. Select a display mode and monitor your progress with the display.

See step 4 on page 14.

5. When you are finished exercising, remove the key from the console.

See step 6 on page 13.

CAUTION: Always remove iFIT cards from the iFIT slot when you are not using them.

3. Press the Start/Stop button to start the workout.

A moment after you press the button, the treadmill will automatically adjust to the first speed and incline settings of the workout. Hold the handrails and begin walking.

Page 19

HOW TO USE THE MAINTENANCE MODE

The console has a maintenance mode that keeps track

f the total number of hours that the treadmill has been

o operated and the total distance that the walking belt

as moved. The maintenance mode also allows you to

h adjust the maximum workout time, the pause timeout, and the sleep timeout. You can also select the desired language and disable or enable the safety key.

1. Select the maintenance mode.

To select the maintenance mode, hold down the Clear button and the Enter button for three seconds.

Press the Display button to move between screens. Press the Back button to return to a previous screen. To change the settings, press the Increase and Decrease buttons next to the Enter button.

2. Set user preferences.

When you select the maintenance mode, the display will show the total number of hours and the total number of miles (or kilometers) that the walking belt has moved. Press the Display button to move to the next screen.

Next, press the Display button to move the cursor to the pause timeout. Set the pause timeout, if desired. The pause timeout begins when the walking

elt stops. When the pause timeout ends, the dis-

b play will return to the main screen and your dis-

ance and calories count will be reset.

Press the Display button to move the cursor to the sleep timeout. Set the sleep timeout, if desired. The sleep timeout begins when the display returns to the main screen. When the sleep timeout ends, the incline will lower to the lowest setting and the screen saver will appear.

Press the Display button to move to the next screen. You may be able to select one of five languages for the displays. If desired, select a language for the displays.

3. Enable or disable the safety key.

If desired, disable or enable the safety key. When the safety key is enabled, the key must be inserted into the console for the treadmill to turn on. To disable the safety key, push the Increase or Decrease button. Note: To disable or enable the safety key, you must remove the key from the console before you enter the maintenance mode. For best results, operate the treadmill with the safety key enabled.

If desired, set the maximum workout time for the Random, Interval, Terrain, Manual Time, and Heart Rate workouts using the Increase and Decrease buttons.

To exit the maintenance mode at any time, remove the key from the console.

Page 20

PREVENTIVE MAINTENANCE

Regular maintenance is necessary for optimal performance and long life of the treadmill. Please read and follow

ll instructions below. If the treadmill is not maintained as described, components may wear excessively,

the treadmill may be damaged, and the warranty will be voided. If you have questions about maintenance,

lease see the back cover of this manual. CAUTION: Make sure to remove the key and unplug the power

p cord before performing any maintenance procedures.

WEEKLY MAINTENANCE

1. Unplug the power cord. Inspect and properly tighten all external parts of the treadmill.

2. Apply a mild multi-purpose cleaner to a 100% cotton cloth and remove any dust and grime from the handrails, upright, foot rails, frame, and motor hood. In addition, wipe the walking platform along the sides of the walking belt. Do not wipe under the walking belt. Apply a small amount of mild multi-purpose cleaner to a 100% cotton cloth and wipe the console and the screens. Do not spray cleaner directly onto the treadmill or use

ammonia or acid-based cleaners.

3. Make sure that the walking belt is centered and properly tightened. If it is centered and runs smoothly, do not make any adjustments. If the walking belt needs to be adjusted, see pages 25 and 26.

MONTHLY MAINTENANCE

1. Unplug the power cord. Remove the two 1/4" x 3/4" Bolts (23) and the two 1/2" x 1" Bolts (37) attaching the Motor Hood (82), and lift off the Motor Hood.

2. Using a hand-held vacuum, clean the area under the Motor Hood (not shown). Be careful to avoid touching any com- ponents. Check the Drive Belt (45) for wear and cracks. If the Drive Belt needs to be replaced, please see the front cover of this manual.

3. Plug in the power cord and insert the key into the console. Press the Start/Stop button. IMPORTANT: Be

careful to avoid injury; keep your hands away from moving parts and make sure that your clothes cannot become caught in moving parts. While the walking belt is moving, check the treadmill for unusual noises or odors. If any of these problems exist, please see the front cover of this manual. Remove the key and unplug the power cord. Reattach the Motor Hood (82) with the two 1/4" x 3/4" Bolts (23) and the two 1/2"

x 1" Bolts (37).

Page 21

LUBRICATING THE WALKING BELT

When the treadmill is used regularly, lubricate the walking belt approximately every 200 hours. If additional lubri-

ant is needed, see the front cover of this manual.

o lubricate the walking belt, remove the key from the console

T and unplug the power cord. Pull the left and right edges of the walking belt toward the rear roller, until the seam of the walking belt is above the rear roller. Avoid pinching your fingers.

Open one tube of belt lubricant. Lift the right edge of the walking belt. Apply one half of the lubricant to the walking platform in a zigzag pattern as shown. Apply the lubricant as close to the center of the walking platform as possible, but leave an unlubri-

cated strip about 2 in. (5 cm) wide beneath the right edge of the walking belt. Lift the left edge of the walking belt and apply

the other half of the lubricant in the same way. Then, firmly rub the top of the walking belt to transfer the lubricant from the walking platform to the walking belt.

Pull the edges of the walking belt toward the rear roller, until the seam of the walking belt is above the front roller. Repeat the steps above with a second tube of lubricant.

REPLACING THE WALKING BELT

When the walking belt becomes worn, it should be replaced. The walking belt will need to be replaced after every 10,000 to 15,000 miles (16,000 to 24,000 kilometers). See the Service Manual for replacement instructions. Please see the back cover of this manual to order a new walking belt.

Seam

REPLACING THE WALKING PLATFORM

When both sides of the walking platform become worn, the walking platform should be replaced. The walking platform will need to be replaced after every 20,000 to 30,000 miles (32,000 to 48,000 kilometers). Please see the back cover of this manual to order a new walking platform. Follow the instructions below to replace the walking platform.

TURNING THE WALKING PLATFORM

Both sides of the walking platform are designed to be used as walking surfaces. Inspect the walking platform periodically for wear. If there is any wood showing through the phenolic coating, or if the surface is damaged, the walking platform should be turned over. The walking platform will need to be turned over and the walking belt replaced (see above) after every 10,000 to 15,000 miles (16,000 to 24,000 kilometers). Follow the instructions below to turn over the walking platform.

1. Remove the key and unplug the power cord.

Remove the four 5/16" x 1" Bolts (2) and the Front Roller Cover (68). Remove the two 5/16" x 4 3/8" Bolts (29) and the two 5/16" Star Washers (54).

Page 22

2. Remove the Left and Right Foot

Rail Covers (58, 70). Remove the #12 x 1" Screws (20) and the Left

nd Right Foot Rails (59, 71).

emove the 1/4" x 1 1/2" Bolts

R (111), the 3/8" x 1 3/4" Bolts (112), and the 3/8" Platform Nuts (113).

Remove the #10 x 1 1/2" Screws (21) and the Roller Guards (74).

Lift the Front Roller (67) and slide it out of the Walking Belt (64).

113

112

113

111

20 71

111

3. Note: Be very careful to avoid

chipping or damaging the phenolic coating on the Walking Platform (63). Lift the Walking

Platform and the Walking Belt (64) to the position shown by the dotted lines. Slide the Walking Platform out of the Walking Belt, turn it, and then slide it back into the Walking Belt. Note: If you are replacing the Walking Platform, slide the new Walking Platform into the Walking Belt.

Lay down the Walking Platform (63) and the Walking Belt (64). Slide the Front Roller (67) back into the Walking Belt.

Page 23

4. See step 1. Reattach the 5/16" x 4 3/8" Bolts (29) and the 5/16" Star Washers (54). Make sure that the walk-

ing belt is centered. Do not fully tighten the Bolts; the Bolts should only be tight enough to remove the slack from the walking belt.

5. See step 2. Reattach the Roller Guards (74), the Walking Platform (63), the Foot Rails (59, 71), and the Foot

ail Covers (58, 70).

6. See step 1. Reattach the Front Roller Cover (68). Make sure that the Walking Belt (64) is centered on the

Front Roller (67). Then, partially tighten the 5/16" x 4 3/8" Bolts (29) until the Walking Belt cannot be pushed to the left or right on the Front Roller. Make sure to turn both Bolts the same number of times.

7. The tension of the Walking Belt (64) now needs to be ad-

justed. Turn each 5/16" x 4 3/8" Bolt (29) four times. Center the Walking Belt if necessary (see page 26). Then, step onto the Foot Rails (59, 71), insert the key into the console, and press the Start/Stop button. Hold the handrails and gently press one foot against the moving Walking Belt. If the Walking Belt stops moving, remove the key from the console and turn each Bolt one more time. Continue to test the tension of the Walking Belt until the Walking Belt no longer slips. Make sure to keep the Walking Belt centered. If the Front

Roller (67) stops moving, do not further tighten the Bolts; please see the back cover of this manual.

IMPORTANT: The ideal tension is just enough to prevent the walking belt from slipping. This will maximize the life of the walking belt, the roller, and the drive system. Overtightening the walking belt can lead to premature walking belt failure and excess wear to the bearings and drive components.

Page 24

SIX-MONTH PREVENTIVE MAINTENANCE RECORD

Photocopy this form and use it to record the preventive maintenance performed on the treadmill. Each copy of the

orm can be used for six months (26 weeks). When maintenance is performed, write the date in the appropriate

f spaces. Make sure to perform each maintenance procedure as described on pages 20 to 23. If the proce-

ures are not performed as described, components may wear excessively, the treadmill may be damaged,

d and the warranty will be voided.

Week1

Week2

Week3

Week4

Week5

Week6

Week7

Week8

Week9

Week10

Week11

Week12

Weekly Maintenance

Inspect and tighten all external parts of the treadmill.

/ /

/ / / /

Clean the treadmill.

/ /

Check the walking belt for proper tension and alignment.

/ /

Monthly Maintenance

Remove the motor hood and vacuum the motor compartment.

Check the motor belt for cracks and other wear.

/ / / / / /

Check the motor for arcing; check for noises or odors.

Week13

Week14

Week15

Week16

Week17

Week18

Week19

Week20

Week21

Week22

Week23

Week24

Week25

Week26

Walking Platform Turned/Replaced Walking Belt Replaced

/ / / /

/ /

/ / / / / /

/ / / /

/ / / / / /

/ / / /

/ /

Page 25

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the back cover of this manual.

PROBLEM: The power does not turn on

OLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. IMPORTANT: The treadmill is not

compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the reset/off circuit breaker located on the

treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.

PROBLEM:The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait

for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five

minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the power still turns off during use, see the back cover of this manual.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.

b. If the walking belt is overtightened, performance

may decrease and the walking belt may be damaged. If the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. If adjustments need to be made, first re- move the key and unplug the power cord. Using a 7/32" hex key, turn both 5/16" x 4 3/8" bolts counterclockwise 1/4 of a turn. Then, plug in the power cord, insert the key, and use the treadmill for a few minutes. Be careful to keep the walking belt centered. Repeat until the walking belt is properly tightened. Note: To tighten the walking belt, see step c on page 26.

Tripped Position

5/16" x 4 3/8" Bolts

Reset

Position

2 to 3 in.

c. If the walking belt still slows when walked on, see the back cover of this manual.

Page 26

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt has shifted to the right,

emove the key and unplug the power cord.

Using a 7/32" hex key, turn the 5/16" x 4 3/8"

olts in the directions shown, 1/4 of a turn each.

b Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and use the treadmill for a few minutes. Repeat until the walking belt is centered.

b. If the walking belt has shifted to the left, re-

move the key and unplug the power cord.

Using a 7/32" hex key, turn the 5/16" x 4 3/8" bolts in the directions shown, 1/4 of a turn each. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and use the treadmill for a few minutes. Repeat until the walking belt is centered.

c. If the walking belt slips when walked on, re-

move the key and unplug the power cord.

Using a 7/32" hex key, turn both 5/16" x 4 3/8" bolts clockwise 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. The center of the walking belt should just touch the walking platform. Make sure to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. Note: As you tighten the bolts, the front roller will move. If the front roller stops moving, do not

further tighten the bolts; please see the front cover of this manual.

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. The incline system may need to be calibrated. To initiate the calibration routine, turn the power

switch off, wait 5 seconds and then turn the power switch back on. During the calibration routine, the treadmill will automatically travel to the highest incline level and then return to the initial level.

b. If the incline system still does not function properly, please see the back cover of this manual.

Page 27

EXERCISE GUIDELINES

WARNING: Before beginning any

xercise program, consult your physician.

e This is especially important for persons over the age of 35 or persons with pre-existing health problems.

body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming up—Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise–never hold your breath.

Cooling down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

Page 28

PART LIST—Model No. VMTL82907.4 R0809A

To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.

Key No. Qty. Description Key No. Qty. Description

1 285/16" x 1" Bolt 343/8" x 2" Bolt 41Left Accessory Tray 541/2" Jamnut 641/4" U-nut 741/2" Star Washer 845/16" Star Washer

943/8" Star Washer 10 4 Roller Bracket Screw 11 4 1/4" x 3/4" Bolt 12 1 Console 13 1 Power Cord Ground Wire 14 1 Motor Ground Wire 15 8 #8 x 1/2" Screw 16 1 Electrical Board Ground Wire 17 10 #8 x 3/4" Screw 18 17 #8 x 1/2" Belly Pan Screw 19 2 #6 x 1/4" Screw 20 10 #12 x 1" Screw 21 2 #10 x 1 1/2" Screw 22 2 #10 x 3/4" Screw 23 2 1/4" x 3/4" Bolt 24 2 Motor Bolt 25 4 1/4" x 1/2" Bolt 26 1 1/4" x 2" Bolt 27 2 1/4" x 3/4" Belt Guide Bolt 28 2 Upper Handrail Endcap 29 2 5/16" x 4 3/8" Bolt 30 4 3/8" x 1" Motor Bolt 31 2 3/4" x 1/2" Bolt 32 2 3/8" x 1" Bolt 33 4 3/8" x 1 1/2" Bolt 34 2 3/8" x 2 1/2" Wheel Bolt 35 2 3/8" x 5" Bolt 36 1 1/2" x 3" Bolt 37 2 1/2" x 1" Bolt 38 2 3/4" Flat Washer 39 2 Frame Pin 40 2 1/4" Speed Sensor Nut 41 2 #8 Nut 42 2 3/8" Nut 43 1 Clevis Pin 44 1 1/4" Nut 45 1 Drive Belt 46 1 80" Wire Harness 47 1 35" Wire Harness 48 1 55" Wire Harness 49 1 Console Back 50 1 Cotter Pin

4 1/2" x 3 1/4" Bolt

1 1 Key/Clip

5 52 4 Motor Washer 53 4 1/5" Star Washer 54 2 5/16" Star Washer 55 4 3/8" Star Washer 56 1 Front Belly Pan 57 2 3/8" Wheel Washer 58 1 Left Foot Rail Cover w/Adhesive 59 1 Left Foot Rail 60 4 Platform Cushion 61 2 Belt Guide 62 2 Front Isolator 63 1 Walking Platform 64 1 Walking Belt 65 1 Left Roller Bracket 66 1 Right Roller Bracket 67 1 Front Roller 68 1 Front Roller Cover 69 1 Frame 70 1 Right Foot Rail Cover w/Adhesive 71 1 Right Foot Rail 72 2 Frame Bushing 73 1 Rear Roller 74 2 Roller Guard 75 1 Base Frame 76 2 Base Pad 77 4 Leveling Foot 78 1 Link Arm 79 1 Lift Frame 80 1 Incline Motor 81 1 Hood Cover w/Adhesive 82 1 Motor Hood 83 1 Controller 84 1 Magnet 85 2 Hand Grip 86 1 Small Console 87 1 Power Cord 88 1 Dust Cover 89 1 Belly Pan 90 1 Power Cord Grommet 91 2 Wheel 92 1 Reset/Off Circuit Breaker 93 1 1/2" Nut 94 1 Drive Motor Isolator 95 1 Drive Motor 96 1 Upright 97 1 1/4" Roller Star Washer 98 1 Right Upright Bracket 99 1 Left Upright Bracket

100 1 Handrail

Page 29

Key No. Qty. Description Key No. Qty. Description

101 6 Accessory Tray Screw 102 1 Speed Sensor 103 3 1/4" x 1/2" Bracket Bolt

04 1 Hand Grip Bracket

1 105 1 Console Cover 106 2 Caution Decal 107 1 Cable Tie 108 1 Cable Tie Screw 109 4 Link Arm Bushing 110 2 #10 U-nut 111 2 1/4" x 1 1/2" Bolt 112 2 3/8" 1 3/4" Bolt 113 2 3/8" Platform Nut 114 2 #10 Star Washer 115 2 #8 x 3/4" Ground Screw

116 5 #8 Lock Nut 117 7 8" Cable Tie 118 1 Wire Tie

19 1 #10 x 3/4" Wire Tie Screw

1 120 4 3/8" Flat Washer 121 5 #8 x 1/2" Console Cover Screw 122 2 5/16" x 1 3/4" Bolt 123 1 Right Accessory Tray 124 2 Lower Handrail Endcap 125 2 Lift Frame Bushing 126 2 3/8" Lock Nut

*–Userʼs Manual

*These parts are not illustrated. Specifications are subject to change without notice.

Page 30

110

111

112

113

EXPLODED DRAWING A—Model No. VMTL82907.4 R0809A

Page 31

106

125

108

107

126

109

125

126

EXPLODED DRAWING B—Model No. VMTL82907.4 R0809A

Page 32

102

120

114

116

115

116

117

118

119

120

122

115

EXPLODED DRAWING C—Model No. VMTL82907.4 R0809A

Page 33

100

123

124

101

EXPLODED DRAWING D—Model No. VMTL82907.4 R0809A

Page 34

EXPLODED DRAWING E—Model No. VMTL82907.4 R0809A

104

103

121

105

121

Page 35

LIMITED WARRANTY

FreeMotion Fitness warrants this product to be free from defects in workmanship and material under normal use and service conditions. The warranty period commences on the invoice date of purchase. Any parts repaired or replaced during this warranty period will be warranted for the remainder of the original warranty period.

WARRANTY PERIODS AND COVERAGE

Residential This product when used in a residential setting is warranted for the following periods: Frame: Lifetime Motor: 10 years Parts: 10 years Labor: 2 years

CONDITIONS AND LIMITATIONS

The following will void the warranty on this product:

1. This warranty only applies to the original owner and is non-transferable.

2. Any misuse, abuse, or improper service.

3. Users who weigh more than 350 lbs. (159 kg).

4. Damage caused by moving the product or improper storage, including moving or storing the product on its side.

5. Use or storage of the product outdoors or in highhumidity environments including spa and pool areas.

6. Damage caused by improper wiring or insufficient electrical current.

7. Use in a commercial or institutional setting of any kind.

2. Pick-up, delivery, or freight charges involved with a repair.

3. Any problem as a result of improper assembly or delivery.

WHAT TO DO IF SERVICE IS REQUIRED

FreeMotion Fitness warranty service may be obtained by contacting the authorized dealer from which you purchased your equipment. Make sure to retain your original invoice and serial number information. If this product experiences a failure under the warranty terms set forth, FreeMotion Fitness shall provide at their option repair, replacement, or refund of the purchase price. FreeMotion Fitness compensates service providers for warranty trips within their service area. You may be charged additionally for service calls beyond this service area.

FreeMotion Fitness is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, cost of removal, installation or other consequential damages. Some states do not allow the exclusion or limitation of consequential damages. Accordingly, the above limitation may not apply to you. This warranty gives you specific rights and you may have other rights which vary from state to state.

TO CONTACT FREEMOTION FITNESS

See HOW TO CONTACT CUSTOMER CARE on the back cover of this manual.

This warranty shall not apply to the following:

1. Cosmetic items including grips, seats, decals, and labels.

Page 36

HOW TO CONTACT CUSTOMER CARE

f you have questions after reading this manual, or if parts are damaged or missing, please contact the store

I where you purchased this product. If you are unable to contact the store, contact Customer Care at one of the phone numbers or addresses listed below. Please note the model number, serial number, and name of the

product (see the front cover of this manual) before contacting Customer Care. If you are ordering re-

lacement parts, please also note the key number and description of each part (see the PART LIST and

p the EXPLODED DRAWING near the end of this manual).

Inside the US, call toll-free: 1-866-799-8946, Mon.–Fri. 8 a.m.–5 p.m. MT Outside the US, call: +1-719-533-2911

US Email: fmfvmcustomerservice@freemotionfitness.com International Email: intlcustomercare@freemotionfitness.com

Write: FreeMotion Fitness, 1500 S. 1000 W., Logan, UT 84321-9813
