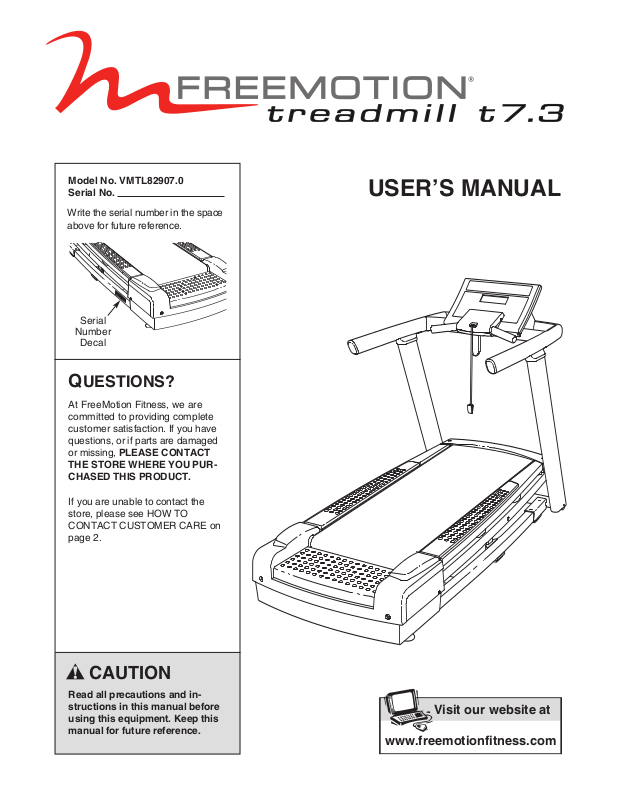

FreeMotion VMTL829070 Owner's Manual
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.freemotionfitness.com
Model No. VMTL82907.0
Serial No.
Write the serial number in the space
above for future reference.
Serial
Number
Decal
QUESTIONS?
At FreeMotion Fitness, we are
committed to providing complete
customer satisfaction. If you have
questions, or if parts are damaged
or missing, PLEASE CONTACT
THE STORE WHERE YOU PURCHASED THIS PRODUCT.
USER’S MANUAL
If you are unable to contact the
store, please see HOW TO
CONTACT CUSTOMER CARE
page 2.
CAUTION
Read all precautions and instructions in this manual before
using this equipment. Keep this
manual for future reference.
on
TABLE OF CONTENTS
How to Contact Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SECTION 1
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
How to Move the Treadmill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
SECTION 2
Treadmill Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
SECTION 3
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Six-month Preventive Maintenance Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
SECTION 4

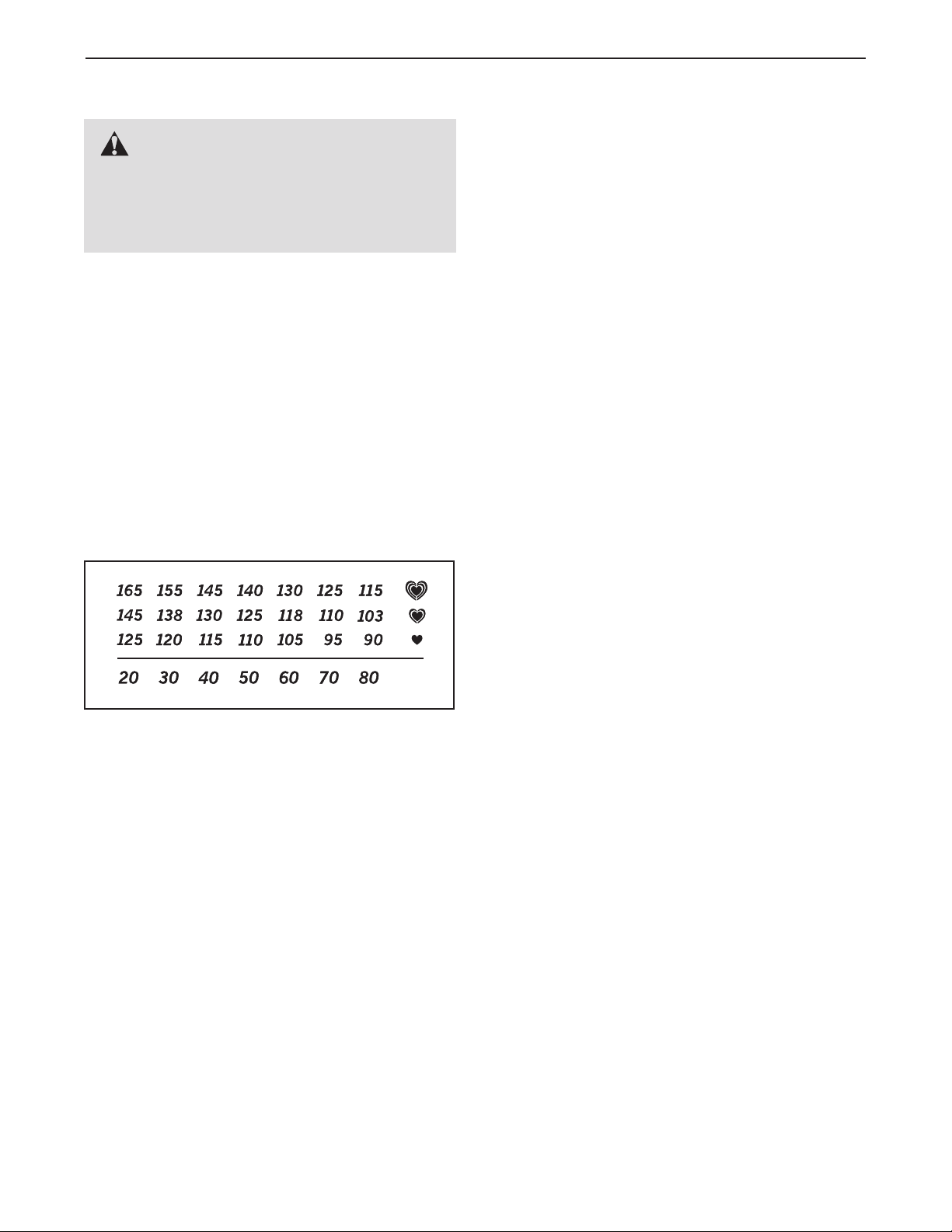

Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SECTION 5
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

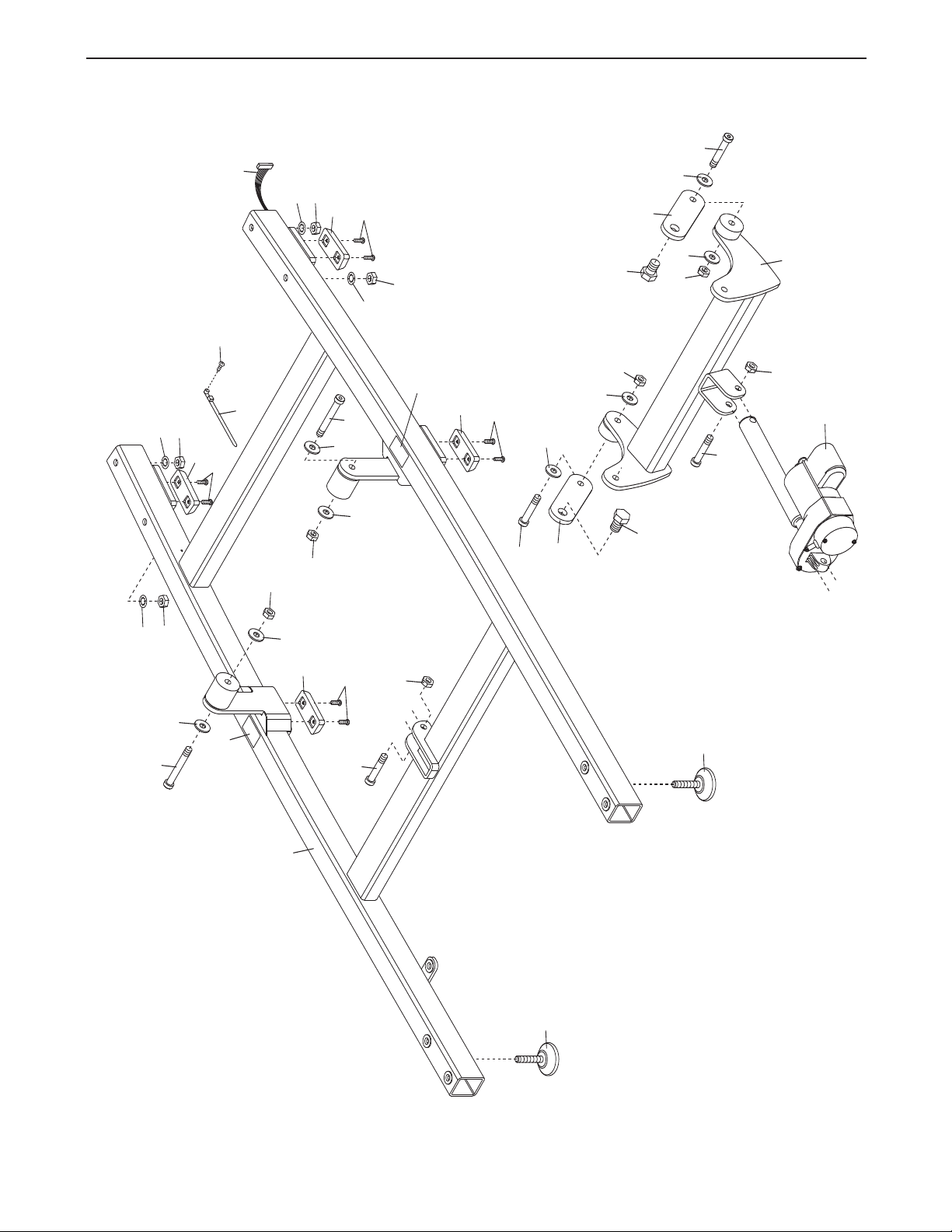

Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
FREEMOTION is a registered trademark of ICON IP, Inc.
1
HOW TO CONTACT CUSTOMER CARE
If you have questions after reading this manual, if you require assistance, or if you need to order replacement
parts, please contact Customer Care at the address or phone number listed below. Please be prepared to provide the following information:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
When ordering replacement parts, please also provide the KEY NUMBER and DESCRIPTION of the part(s) (see
the PART LIST and the EXPLODED DRAWING near the end of this manual).
Call
Toll-free in the US: 1-866-799-8946, Mon.–Fri. 8 a.m.–5 p.m. MST
Direct: 1-719-533-2900
International: +1-719-533-2911
Email
US: fmfvmcustomerservice@freemotionfitness.com
International: intlcustomercare@freemotionfitness.com
Write
FreeMotion Fitness
1096 Elkton Drive Suite 600
Colorado Springs, CO 80907
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. FREEMO-
s
TION FITNESS assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described in this
manual.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not place the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Do not operate the treadmill until it is properly assembled (see ASSEMBLY on page 7).
8. Inspect and properly tighten all parts of the
treadmill regularly.
9. Keep children under the age of 12 and pets
away from the treadmill at all times.
10. The treadmill should not be used by persons
weighing more than 350 lbs. (159 kg). Do not
allow more than one person on the treadmill
at a time.
11. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
12. When connecting the power cord (see page
11), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable
of carrying 15 or more amps. No other appliance should be on the same circuit. Do not
use an extension cord.
13. Use only a single-outlet surge suppressor
that meets all the specifications described on
page 11. To purchase a surge suppressor,
contact the store where you purchased this
product, or see your local electronics store. If
you are unable to contact a store, please see
HOW TO CONTACT CUSTOMER CARE on
page 2 and order part number 146148.
14. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
15. Keep the power cord and the surge suppressor away from heated surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 25 if the treadmill is
not working properly.)
Read, understand, and test the emergency
17.
stop procedure before using the treadmill (see
page 13).
18. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
19. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
3
20. Never leave the treadmill unattended while it is
unning. Always remove the key, unplug the
r
power cord, and move the reset/off circuit
breaker to the “off” position when the treadmill is not in use. (See the drawing on page 6
or the location of the reset/off circuit breaker.)
f
21. Do not change the incline of the treadmill by
placing objects under it.
22. Never insert or drop any object into any
opening on the treadmill.
23. Make sure to perform all maintenance proce-
dures outlined in this manual. Failure to do
so will void the warranty and may result in
damage to the treadmill.
SAVE THESE INSTRUCTIONS
DANGER: Always unplug the power
24.
ord immediately after use, before cleaning
c
the treadmill, and before performing the
maintenance and adjustment procedures described in this manual. Servicing other than
the procedures in this manual should be per-
ormed by an authorized service representa-
f
tive only.
25. The treadmill is intended for in-home use
only. Do not use the treadmill in a commercial, rental, or institutional setting.
4
WARNING DECAL PLACEMENT
The decal shown at the right
has been applied in the indi-
ated locations.If a decal is
c
missing or illegible, please
see the front cover of this
manual and request a free
replacement decal. Apply
the decal in the location
shown.
not be shown at actual size.
Note: The decal may
Note: There is one decal on
each side.
5
BEFORE YOU BEGIN
Congratulations for selecting the revolutionary
FREEMOTION®t7.3 treadmill. The t7.3 treadmill offers
an impressive array of features designed to help you
chieve your fitness goals in the convenience and pri-
a
vacy of your home.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Accessory Tray
Handrail
Walking Belt
Foot Rail
ing this manual, please see the front cover of this manual. To help us assist you, note the product model
number and serial number before contacting us. The
odel number and the location of the serial number
m
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console

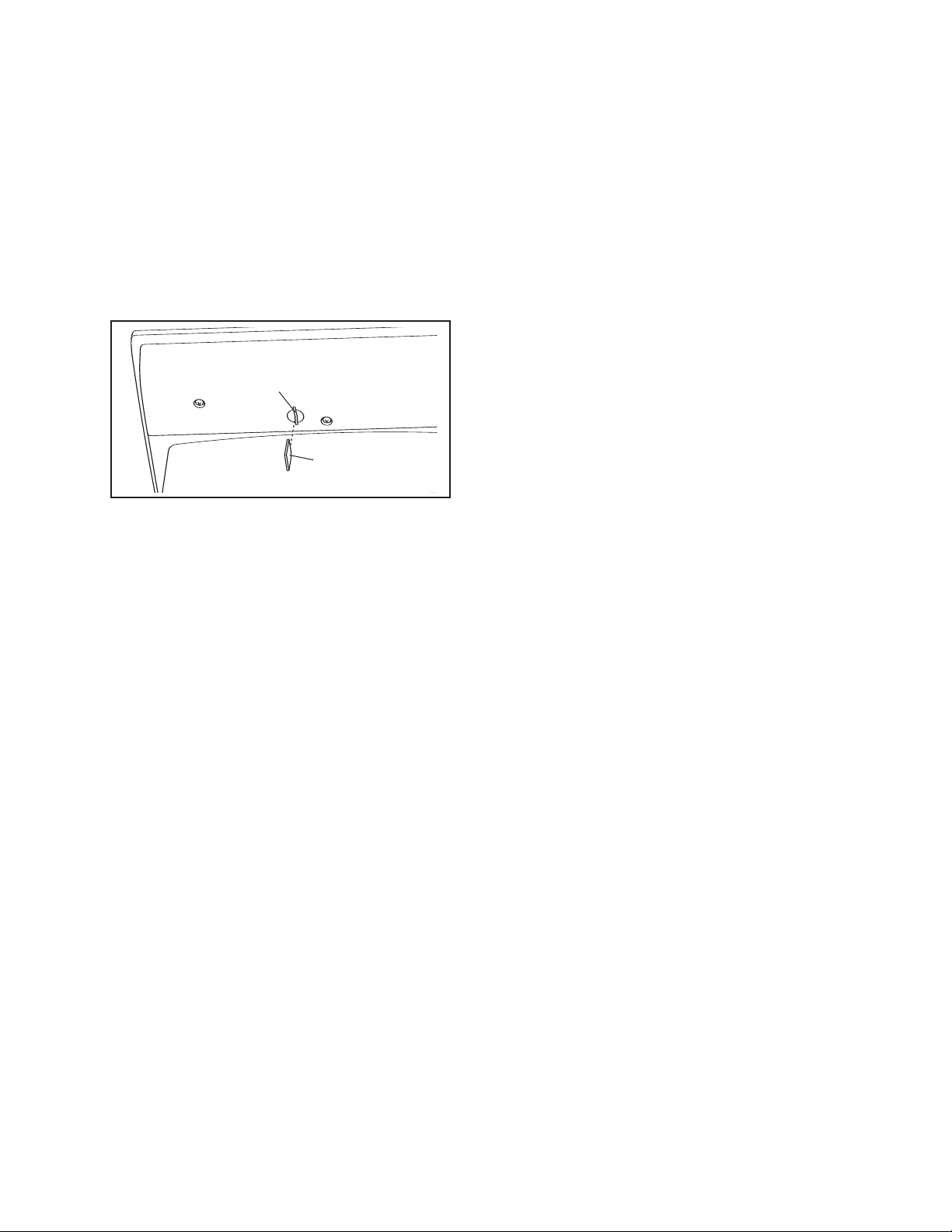

Key/Clip
Roller
Adjustment
Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
6
ASSEMBLY
1/2” Screw (119)–1
Cable Tie Screw (108)–1
5/16” Star
Washer (48)–4
3
1/2” Bolt (64)–2
1/2" Jamnut (5)–4
1/2" Star
Washer (7)–4
1/4" Star
Washer (8)–4
3/8" Star
Washer (9)–4
3/8" Nut (42)–2
3/8" Wheel
Washer (57)–2
3/8" x 2" Bolt (3)–2
1/2" x 3 1/4" Bolt (1)–4
1/4" x 1" Bolt (2)–4
3/8" x 2 1/2" Wheel
Bolt (34)–4
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly can be completed using the included
hex key and your own adjustable wrench .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
mall amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
s
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
shows the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-
tached to one of the parts to be assembled. Extra hardware may be included. To avoid damaging plastic
parts, do not use power tools for assembly.
7
1. Place the Uprights (96) near the front of the
Base Frame (75) as shown.
1
Connect the 55" Wire Harness (48) in the right
pright (96) to the 80" Wire Harness (46) in the
U
Base Frame (75). See the inset drawing. The
connectors should slide easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT INSERTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
2. Next, slide the Uprights (96) onto the Base
Frame (75), and align the holes in the Uprights
with the holes in the Base Frame.
not to pinch the wires.
Tighten four 1/2" x 3 1/4" Bolts (1) with four 1/2"
Star Washers (7) and four 1/2" Jamnuts (5)
(only two of each are shown) into the Uprights
(96) and the Base Frame (75). Start all four
Bolts before tightening any of them.
Be careful
96
48
46
75
2
48
46
96
75
1
1
7
5
8
ote: The Wheels (91) may be preattached. If
3.N
they are not, complete this step.
With the help of a second person, carefully raise
he Uprights (96) and insert a Wheel (91) into
t
the bottom of each Upright.
Attach each Wheel (91) with a 3/8" x 2 1/2"
Wheel Bolt (34), a 3/8" Wheel Washer (57), and
a 3/8" Nut (42) (only one side is shown).
overtighten the Nuts; the Wheels must turn
freely.
Do not
3
6
9
2
4
57
34
91
4. Note: The Upright Brackets (98, 99) may be
preattached. If they are not, complete this
step.
Press the Left Upright Bracket (99) onto the left
Upright (96). Attach the Left Upright Bracket with
two 3/8" x 2" Bolts (3) and two 3/8" Star
Washers (9).
Insert the 55" Wire Harness (48) through the
Right Upright Bracket (98). Press the Right
Upright Bracket onto the right Upright (96). Be
careful not to pinch the wires.
Attach the Right Upright Bracket (98) with two
3/8" x 2" Bolts (3) and two 3/8" Star Washers (9).
4
3
99
9
3
96
9
48
98
9
5. Have a second person hold the Handrail (100)
50"
near the Upright Brackets (98, 99).
Connect the 55" Wire Harness (48) in the Right
pright Bracket (98) to the 35" Wire Harness
U
(47). See the inset drawing in step 1. The con-
nectors should slide easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT INSERTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
Attach the Handrail (100) to the Upright
Brackets (98, 99) with four 1/4" x 1" Bolts (2)
and four 1/4" Star Washers (8).
Bolts before tightening any of them. Be careful not to pinch the wires.
6. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or carpet, place a mat beneath the treadmill.
Start all four
5
8
8
99
2
2
100
48
98
2
47
8
2
HOW TO MOVE THE TREADMILL
Before moving the treadmill, unplug the power cord.
Due to the size and weight of the treadmill, moving it
requires two or three persons. Hold the metal frame
firmly in the location shown at the right. CAUTION:
To decrease the possibility of damage to the treadmill
or of injury, do not lift the frame by the plastic front
cover or by the handrail.
the wheels to the desired location and then lower it to the
level position.
use extreme caution while moving the treadmill. Do
not attempt to move the treadmill over uneven surfaces.
After the treadmill is placed in the location where it will
be used, make sure that both leveling feet and the base
pads rest firmly on the floor (only one side is shown). If
the treadmill rocks even slightly, turn one of the leveling
feet clockwise or counterclockwise until the rocking mo
tion is eliminated.
CAUTION: To reduce the risk of injury,
Carefully roll the treadmill on
-
Frame
Wheels
10
Leveling
Foot
Base
Pads
TREADMILL OPERATION
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply
ubstances other than the included walking belt lu-
s
ricant to the walking belt or the walking platform.
b
Silicone spray and other substances will deteriorate the walking belt and cause excessive wear.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, contact the store where you purchased this product,
see your local electronics store. If you are unable to
contact a store, please see HOW TO CONTACT
CUSTOMER CARE on page 2 and order part number 146148.
or
esistance for electric current to reduce the risk of elec-
r
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
nd plug the surge suppressor into an appropriate
a
utlet that is properly installed and grounded in
o
accordance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate, or stop unexpect
edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least
If it should malfunc
-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw.
covers are not grounded. Contact a qualified elec
-
trician to determine if the outlet box cover is
grounded before using an adapter.
1
1
Some 2-pole receptacle outlet box
-
Loading...
