Model No. FMEX82910.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, please
see HOW TO CONTACT
CUSTOMER CARE on the back
cover of this manual.
USER’S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
www.freemotionfitness.com
TABLE OF CONTENTS
310696
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
HOW TO CONTACT CUSTOMER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

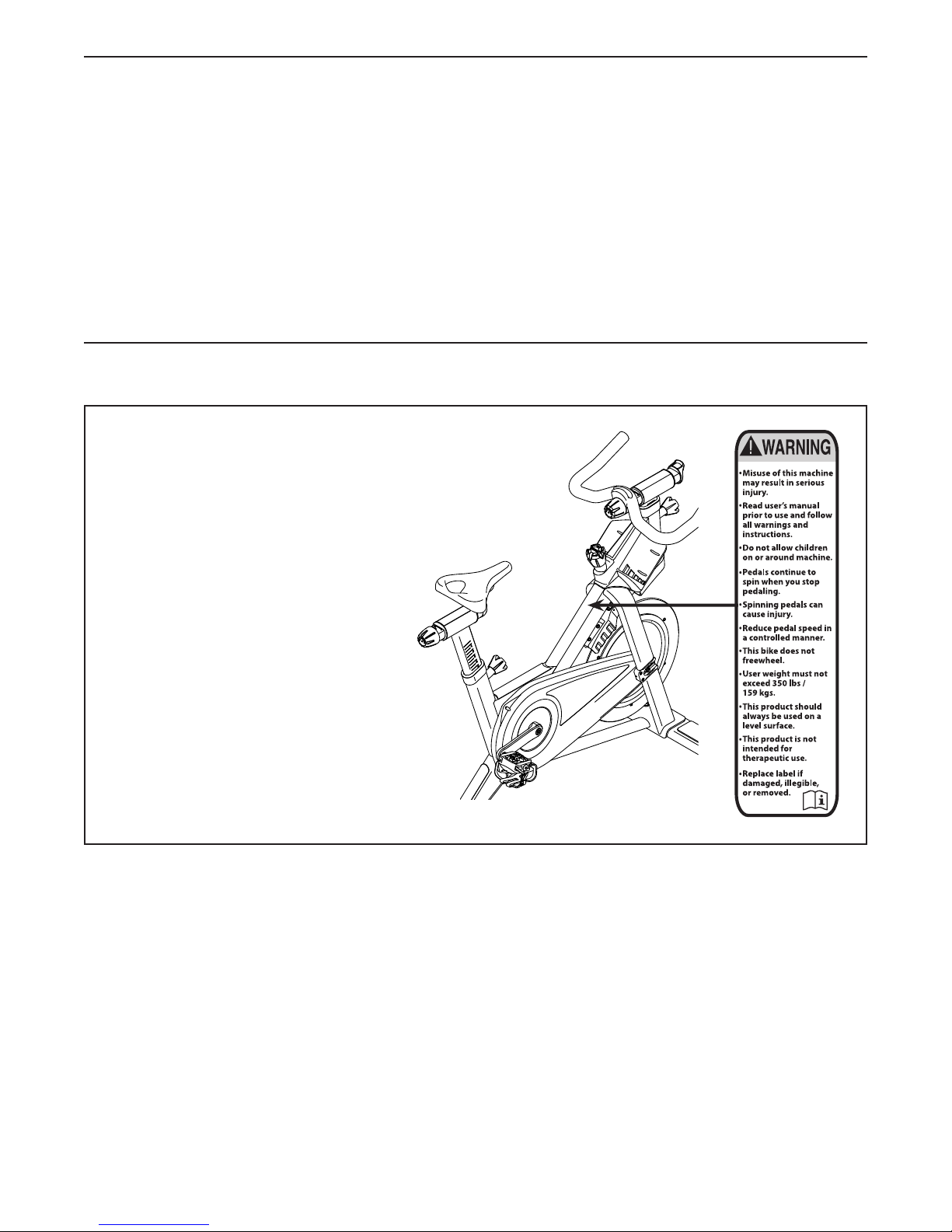

WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is miss-
ing or illegible, see the back cover
of this manual and request a free
replacement decal. Apply the decal
in the location shown. Warning decals
in other languages are included. Apply
the warning decals on top of the English
warnings in the indicated location(s) if
desired. Note: The decal(s) may not be
shown at actual size.
FREEMOTION is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
FreeMotion Fitness assumes no responsibility for personal injury or property damage sustained by
or through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are adequately informed of all precautions.
4. The exercise bike is intended for use in a
supervised environment only.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 350 lbs.
(159 kg).
11. Always keep your back straight while using
the exercise bike; do not arch your back.
12. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
13. To stop the flywheel quickly, press the resistance knob downward.
14. When the exercise bike is not in use, tighten
the resistance knob completely to prevent
the flywheel from moving.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the new FREEMOTION®
S11.9 exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The S11.9 exercise bike provides
a selection of features designed to make your workouts
more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
Slider Knob
Resistance Knob
Seat
reading this manual, please see the back cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Post Knob
Handlebar
Accessory Tray
Flywheel
Slider Knob
Pedal/Strap
Leveling Foot
Post Knob
Wheel
Leveling Foot
4
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• If a part is not in the hardware kit, check to see if it
has been preassembled. To avoid damaging parts,
do not use power tools for assembly.
1. Attach the Front Stabilizer (8) to the Frame (1)
with two M10 x 50mm Button Patch Bolts (73),
four M10 Washers (67), and two M10 Locknuts
(74).
• Assembly requires the following tools (not
included):
one adjustable wrench
one 6 mm hex key
Assembly may be easier if you have a socket set
or a set of ratchet wrenches. To avoid damaging
parts, do not use power tools.
1
73
67
67
1
8
74
5
2. Attach the Rear Stabilizer (7) to the Frame (1)
with two M10 x 50mm Button Patch Bolts (73),
four M10 Washers (67), and two M10 Locknuts
(74).
2
73
67
1
7
67
3. Orient the Handlebar Post (2) as shown.
Loosen the Post Knob (32) on the front of the
Frame (1) and pull it outward. Then, insert the
Handlebar Post (2) into the Frame.
Move the Handlebar Post (2) upward or down-
ward to the desired position, release the Post
Knob (32) into an adjustment hole in the
Handlebar Post, and then tighten the Post
Knob. Make sure that the Post Knob is firmly
engaged in an adjustment hole.
74
3
2
Holes
1
32
6
4. Identify the Right Pedal (15), which is marked
with an “R.”
Using an adjustable wrench, firmly tighten
the Right Pedal (15) and a Pedal Washer (87)
clockwise into the Right Crank Arm (14).
Tighten the Left Pedal (not shown) and a Pedal
Washer (not shown) counterclockwise into the
Left Crank Arm (not shown).
4
14
87
15
5. Place the exercise bike in the location where
it will be used. Tip: Place a mat beneath the
exercise bike to protect the floor.
Make sure that all four Leveling Feet (29) are in
contact with the floor.
If the Leveling Feet (29) are not in contact with
the floor, loosen or tighten the Leveling Feet on
the Rear and Front Stabilizers (7, 8) until all four
Leveling Feet contact the floor.
5
8
7
29
29
29
6. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly is
completed, some extra parts may be left over.
7
HOW TO USE THE EXERCISE BIKE
HOW TO ADJUST THE SEAT
You can adjust the angle of the seat to the position that
is most comfortable. You can also slide your seat forward or backward to increase your comfort or to adjust
the distance to the handlebar.
To adjust the seat,
first loosen the hex
nuts on the seat
clamp a few turns.
Next, tilt the seat
upward or downward
or slide the seat forward or backward to
the desired position.
Then, retighten the
hex nuts.
HOW TO ADJUST THE SEAT CARRIAGE
To adjust the position
of the seat carriage,
loosen the slider
knob, move the seat
carriage forward
or backward to the
desired position, and
then firmly tighten the
slider knob.
Seat
Clamp
Carriage
Seat
Hex
Nuts
Seat
Slider
Knob
HOW TO ADJUST THE HANDLEBAR
To adjust the position of the handlebar,
loosen the slider
knob, move the
handlebar forward
or backward to the
desired position, and
then firmly tighten the
slider knob.
HOW TO ADJUST THE HANDLEBAR POST
To adjust the handlebar post, first loosen
the post knob and
pull it outward. Then,
move the handlebar post upward or
downward, release
the post knob into
an adjustment hole
in the handlebar
post, and firmly
tighten the post knob.
Make sure that the post knob is engaged in an
adjustment hole. IMPORTANT: Do not adjust the
handlebar post beyond the stop mark on the
handlebar post.
Handlebar
Slider
Knob
Post
Knob
Handlebar
Post
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat
post, first loosen the
post knob and pull it
outward. Then, move
the seat post upward
or downward, release
the post knob into
an adjustment hole
in the seat post, and
firmly tighten the post
knob. Make sure that the post knob is engaged in
an adjustment hole. IMPORTANT: Do not adjust the
seat post beyond the stop mark on the seat post.
Seat
Post
Post
Knob
8
HOW TO USE THE PEDALS
HOW TO LEVEL THE EXERCISE BIKE
To use the toe cage side of the pedals (see the drawing on page 4), insert your shoes into the toe cages
and pull the ends of the toe straps. To adjust the toe
straps, press and hold the tabs on the buckles, adjust
the toe straps to the desired position, and then release
the tabs.
To use the clip-in side of the pedals, you must wear
cycling shoes. To clip into the pedals, press the cleats
on your cycling shoes firmly into the slots in the pedals
until they snap into place. To unclip from the pedals,
twist your cycling shoes outward from the pedals.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the resistance of the pedals,
turn the resistance
knob clockwise;
to decrease the
resistance, turn the
resistance knob
counterclockwise.
To stop the flywheel, push the resistance knob
downward. The flywheel should quickly come to a
complete stop.
Resistance
Knob
If the exercise bike rocks slightly on your floor during
use, turn one or both of the leveling feet on the front or
rear stabilizer (see the drawing on page 4) until the
rocking motion is eliminated.
HOW TO MAINTAIN THE EXERCISE BIKE
Inspect and tighten all parts of the exercise bike regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent.
For maximum performance and safety, replace the
pedals every year. To purchase pedals, see the back
cover of this manual.
IMPORTANT: To avoid damage to the exercise bike
and to prevent injury to the user, use only manufacturer-supplied pedals. Other pedals may not be
designed for use in fitness clubs or indoor cycling
studios and may be dangerous.
IMPORTANT: When the exercise bike is not in use,
tighten the resistance knob completely.
9
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. FMEX82910.0 R0611A
1 1 Frame
2 1 Handlebar Post
3 1 Handlebar
4 1 Seat Post
5 1 Seat Carriage
6 1 Seat
7 1 Rear Stabilizer
8 1 Front Stabilizer
9 1 Flywheel
10 1 Accessory Tray
11 1 Resistance Cover
12 1 Resistance Arm
13 1 Eddy Magnet
14 1 Right Crank Arm
15 1 Right Pedal
16 1 Left Crank Arm
17 1 Left Pedal
18 1 Bottom Bracket
19 1 Outer Shield
20 1 Chain
21 1 Inner Shield
22 1 Sensor Cover
23 1 Seat Post Selector
24 1 Handlebar Post Selector
25 2 Front Frame Bushing
26 2 Rear Frame Bushing
27 4 Stabilizer Cap
28 2 Wheel
29 4 Leveling Foot
30 2 Pin Assembly
31 2 20mm x 25mm Washer
32 2 Post Knob
33 2 Slider Knob
34 1 Resistance Knob
35 2 Knob Cap
36 2 Wedge Cap
37 2 M8 x 30mm Washer
38 2 Adjustment Rod
39 4 Ring Cap
40 1 Handlebar Retainer
41 1 Handlebar Cap
42 2 Upper Wedge
43 2 Lower Wedge
44 2 Sleeve
45 2 Post Shield
46 2 Cap Bushing
47 2 Medium E-clip
48 1 Sensor Magnet
49 1 Resistance Block
50 2 M22 Sleeve Nut
51 2 M22 x 30mm Washer
52 2 Large E-clip
53 2 11mm x 20mm Washer
54 1 Block Pin
55 2 Small E-clip
56 1 M3 x 6mm Flat Head Patch Screw
57 2 M5 Washer
58 2 M5 Star Washer
59 2 M5 x 10mm Button Screw
60 12 M4 x 8mm Button Patch Screw
61 1 M8 x 51mm x M6 Shoulder Bolt
62 1 M6 x 18mm Hex Screw
63 1 M6 Locknut
64 10 M4 x 20mm Socket Screw
65 2 M5 x 30mm Set Screw
66 2 3/8" Nut
67 10 M10 Washer
68 8 M4 x 10mm Flat Head Patch Screw
69 2 M5 x 16mm Socket Patch Screw
70 4 M5 x 16mm Flat Head Patch Screw
71 2 M4 x 8mm Cap Screw
72 2 M4 x 20mm Flat Head Patch Screw
73 4 M10 x 50mm Button Patch Bolt
74 4 M10 Locknut
75 8 M4 x 10mm Cap Screw
76 2 M6 x 40mm Button Patch Bolt
77 4 M6 Washer
78 2 M6 Nut
79 5 M4 x 7mm Socket Screw
80 1 Sensor Cover Screw
81 2 Crank Screw
82 2 Resistance Bushing
83 1 Brake Pad
84 2 Post Knob Cap
85 1 Tension Spring
86 4 M4 Washer
87 2 Pedal Washer
88 1 Knob Spring
89 2 Rear Stabilizer Cover
90 1 Left Front Stabilizer Cover
91 1 Right Front Stabilizer Cover
* – User’s Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
10
EXPLODED DRAWING
Model No. FMEX82910.0 R0611A
81
69
35
17
27
75
60
16
35
33
29
7
69
37
4
36
45
87
18
89
33
26
47
60
60
74
37
46
42
67
67
73
1
38
71
36
68
70
88
29
70
39
43
34
25
31
23
89
47
60
50
68
30
46
39
51
14
87
3
38
32
44
64
75
86
72
27
84
27
6
63
62
48
15
76
8
90
29
44
5
64
65
81
10
77
75
61
74
86
28
67
45
77
31
64
67
29
22
78
91
68
80
30
39
73
26
52
41
53
9
51
50
64
49
60
56
19
82
54
64
13
20
67
55
66
83
79
40
39
25
76
59
24
58
66
57
68
43
85
70
59
12
67
52
55
57
64
71
42
2
84
72
32
11
79
21
79
77
28
77
27
75
11
HOW TO CONTACT CUSTOMER CARE
If you have questions after reading this manual, or if parts are damaged or missing, please contact Customer
Care at the phone numbers or addresses listed below. Please note the model number, serial number, and
name of the product (see the front cover of this manual) before contacting Customer Care. If you are
ordering replacement parts, please also note the key number and description of each part (see the PART
LIST and the EXPLODED DRAWING near the end of this manual).
In the United States and Canada
Call: 1-800-201-2109, Mon.–Fri. 8 a.m.–5 p.m. MT
Write:
FreeMotion Fitness
1500 South 1000 West
Logan, UT 84321-9813
United States
Outside the United States and Canada
Call: 001-435-786-3521
Email: intlcustomercare@freemotionfitness.com
Part No. 311930 R0611A Printed in Taiwan © 2011 ICON IP, Inc.
Loading...
