Freedom Polaris Buffet Assembly Instruction

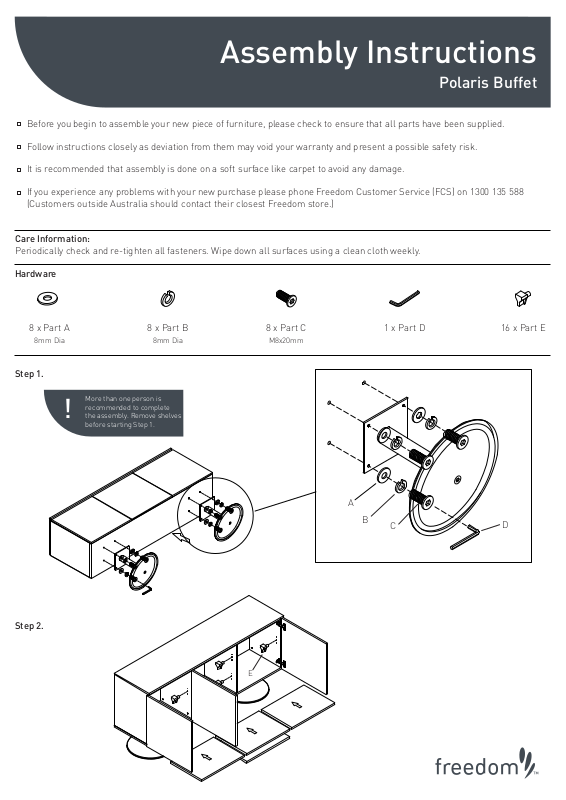

Assembly Instructions
Polaris Buffet
Before you begin to assemble your new piece of furniture, please check to ensure that all parts have been supplied.
Follow instructions closely as deviation from them may void your warranty and present a possible safety risk.
It is recommended that assembly is done on a soft surface like carpet to avoid any damage.
If you experience any problems with your new purchase please phone Freedom Customer Service (FCS) on 1300 135 588
(Customers outside Australia should contact their closest Freedom store.)
Care Information:
Periodically check and re-tighten all fasteners. Wipe down all surfaces using a clean cloth weekly.
Hardware
8 x Part A
8mm Dia
Step 1.
More than one person is
recommended to complete
!
the assembly. Remove shelves
before starting Step 1.
8 x Part B
8mm Dia
8 x Part C
M8x20mm
1 x Part D 16 x Part E
A
B
C
D
Step 2.
E
Assembly Instructions
Assembly Instructions
Hinge Adjustment
Follow instructions closely as deviation from them may void your warranty and present a possible safety risk.
If you experience any problems with your new purchase please phone Freedom Customer Service (FCS) on
1300 135 588 (Customers outside Australia should contact their closest Freedom store.)
Lateral Movement
DoorCarcass
Screw "A"
What it looks like
- The door will not be flush with the vertical
panel.
Hinge Adjustment
Vertical Movement
DoorCarcass
Screw "C"
Screw "C"
How to fix it
- To move the door towards or away from the horizontal
panels, loosen Screws "C". Adjust the door and then
tighten Screws "C".
What it looks like
- The door will not be flush with the side panel.
Screw "B"
How to fix it
- To move the door towards the centre of the unit,
loosen Screw "A". Adjust the door and then tighten Screw
"B".
- To move the door away from the centre of the unit, loosen
Screw "B". Adjust the door and then tighten Screw "A".
Horizontal Movement
What it looks like
- The door will appear to far or too close from
the front edge of the side panel.
DoorCarcass
Screw "A"
How to fix it
- To move the door towards or away from the unit, loosen
Screw "A". Adjust the door forwards or backwards until
there is an even gap between the door and the front edge
of the side panel.
- Tighten Screw "A" once the adjustment has been made.
Page 1
Page 2
