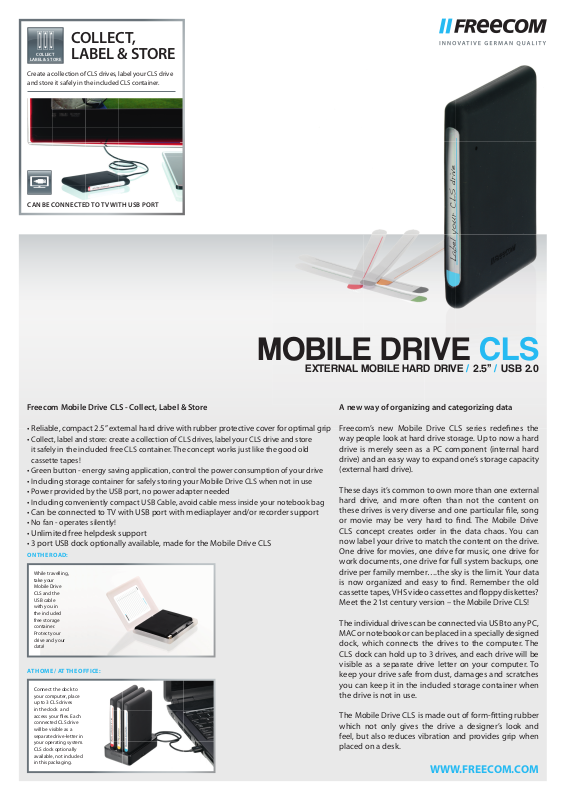

Freecom MOBILE DRIVE CLS DATASHEET

COLLECT,

COLLECT

LABEL & STORE

Create a collection of CLS drives, label your CLS drive
and store it safely in the included CLS container.

CAN BE CONNEC TED TO TV WITH USB PORT

LABEL & STORE

MOBILE DRIVE CLS

EXTERNAL MOBILE HARD DRIVE / 2.5” / USB 2.0

Freecom Mobile Drive CLS - Collect, Label & Store

• Reliable, compact 2.5” external hard drive with rubber protective cover for optimal grip

•

Collect, label and store: create a collection of CLS drives, label your CLS drive and store

it safely in the included free CLS container. The concept works just like the good old
cassette tapes!

• Green button - energy saving application, control the power consumption of your drive

• Including storage container for safely storing your Mobile Drive CLS when not in use

• Power provided by the USB port, no power adapter needed

• Including conveniently compact USB Cable, avoid cable mess inside your notebook bag

• Can be connected to TV with USB port with mediaplayer and/or recorder support

•

No fan - operates silently!

• Unlimited free helpdesk support

• 3 port USB dock optionally available, made for the Mobile Drive CLS

ON THE ROAD :

While travelling,
take your
Mobile Drive

CLS and the

USB cable
with you in

the included

free storage

container.
Protect your
drive and your

data!

AT HOME / AT THE OFFIC E:

Connect the dock to
your computer, place
up to 3 CLS drives
in the dock and
access your fi les. Each

connected CLS drive

will be visible as a
separate drive-letter in
your operating system.
CLS dock optionally

available, not included

in this packaging.

A new way of organizing and categorizing data

Freecom’s new Mobile Drive CLS series redefi nes the
way people look at hard drive storage. Up to now a hard
drive is merely seen as a PC component (internal hard
drive) and an easy way to expand one’s storage capacity
(external hard drive).

These days it’s common to own more than one external
hard drive, and more often than not the content on
these drives is very diverse and one particular fi le, song
or movie may be very hard to fi nd. The Mobile Drive
CLS concept creates order in the data chaos. You can
now label your drive to match the content on the drive.
One drive for movies, one drive for music, one drive for
work documents, one drive for full system backups, one
drive per family member….the sky is the limit. Your data
is now organized and easy to fi nd. Remember the old
cassette tapes, VHS video cassettes and fl oppy diskettes?
Meet the 21st century version – the Mobile Drive CLS!

The individual drives can be connected via USB to any PC,
MAC or notebook or can be placed in a specially designed
dock, which connects the drives to the computer. The
CLS dock can hold up to 3 drives, and each drive will be
visible as a separate drive letter on your computer. To
keep your drive safe from dust, damages and scratches
you can keep it in the included storage container when

the drive is not in use.

The Mobile Drive CLS is made out of form-fi tting rubber
which not only gives the drive a designer’s look and
feel, but also reduces vibration and provides grip when
placed on a desk.

WWW.FREECOM.COM

PRODUCT SPECIFICATIONS FREECOM MOBILE DRIVE CLS:

HARD DRIVE CAPACITY: 250GB, 320GB, 500GB, 640GB
HARD DRIVE TYPE: 2.5” SATA, low noise, low power consumption
INTERFACE: USB 2.0
DATA TRANSFER RATE: max. 480Mbit/s (USB 2.0)
POWER REQUIREMENTS: powered by computer through USB port.

No adapter needed

DIMENSIONS: 10.9 x 7.9 x 1.3 cm
WEIGHT: 155 g

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature: 10º C / 35º C
Storage temperature: -20º C / 70º C
Gradient temperature: 20°C / hour (max.)
Humidity Operating temperature: 8 - 80% (non condensing)

MINIMUM SYSTEM REQUIREMENTS FOR DRIVE AND COMPLEMENTARY
SOFTWARE:
PC: Intel or AMD CPU, 1.6GHz or higher, 512MB RAM, 2GB free hard drive space,

available USB port (3.0*/2.0/1.1), Windows XP SP2/Vista/7
MAC: Power PC G5 or Intel Mac, 512MB RAM, 2GB free hard drive space, available USB
port (2.0/1.1), Mac OS X v. 10.4 or higher

MOBILE DRIVE CLS

*When connected to a USB 3.0 port, the maximum data transfer speed is limited to USB 2.0
specifi cation

OPTIONALLY AVAILABLE:

Dock (3 ports) for Mobile Drive CLS

PACKAGE INCLUDES:

USB DOCK: designed for Freecom Mobile Drive CLS
NUMBER OF DOCKING PORTS: 3
NUMBER OF HOST PORTS: 1, for connecting other USB devices
INTERFACE: USB 2.0
POWER REQUIREMENTS: power adapter 5V/2A

• Freecom Mobile Drive CLS

• Labels (8 pcs)

• Storage container (including index label)

• USB connection cable

• Green button software

• Quick install guide

DIMENSIONS: 9.6 x 6.2 x 2 cm
WEIGHT: 60 g

Mobile Drive CLS 250GB 320GB 500GB 640GB CLS Dock 3 ports

Art.-Nr. EU/UK 35237 35238 35239 35240 35246

EAN-Code EU/UK 4021801352378 4021801352385 4021801352392 4021801352408 4021801352460

Colour Black Black Black Black Black

Tested to comply with

FCC standards for

home and offi ce use

• Free unlimited helpdesk support

• Two years manufacturers warranty

WWW.FREECOM.COM

REV1026/01072010/PWCN
