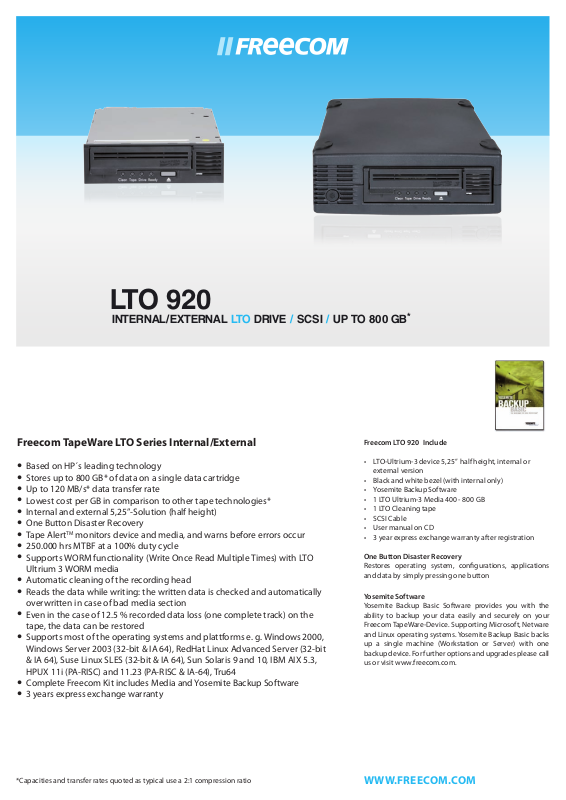

Freecom LTO-920 DATASHEET
LTO 920
INTERNAL/ExTERNAL LTO DRIVE / SCSI / up TO 800 GB
*
Freecom TapeWare LTO Series Internal/External
Based on HP´s leading technology
•
Stores up to 800 GB* of data on a single data cartridge
•
Up to 120 MB/s* data transfer rate
•
Lowest cost per GB in comparison to other tape technologies*
•
Internal and external 5,25”-Solution (half height)
•
One Button Disaster Recovery
•
Tape AlertTM monitors device and media, and warns before errors occur
•
250.000 hrs MTBF at a 100% duty cycle
•
Supports WORM functionality (Write Once Read Multiple Times) with LTO
•
Ultrium 3 WORM media
Automatic cleaning of the recording head
•
Reads the data while writing: the written data is checked and automatically
•
overwritten in case of bad media section
Even in the case of 12.5 % recorded data loss (one complete track) on the
•
tape, the data can be restored
Supports most of the operating systems and plattforms e. g. Windows 2000,
•
Windows Server 2003 (32-bit & IA 64), RedHat Linux Advanced Server (32-bit
& IA 64), Suse Linux SLES (32-bit & IA 64), Sun Solaris 9 and 10, IBM AIX 5.3,
HPUX 11i (PA-RISC) and 11.23 (PA-RISC & IA-64), Tru64
Complete Freecom Kit includes Media and Yosemite Backup Software
•
3 years express exchange warranty
•
Freecom LTO 920 Include
• LTO-Ultrium-3 device 5,25” half height, internal or
external version
• Black and white bezel (with internal only)
• Yosemite Backup Software
• 1 LTO Ultrium-3 Media 400 - 800 GB
• 1 LTO Cleaning tape
• SCSI Cable
• User manual on CD
• 3 year express exchange warranty after registration
One Button Disaster Recovery
Restores operating system, congurations, applications
and data by simply pressing one button
Yosemite Software
Yosemite Backup Basic Software provides you with the
ability to backup your data easily and securely on your
Freecom TapeWare-Device. Supporting Microsoft, Netware
and Linux operating systems. Yosemite Backup Basic backs
up a single machine (Workstation or Server) with one
backup device. For further options and upgrades please call
us or visit www.freecom.com.
*Capacities and transfer rates quoted as typical use a 2:1 compression ratio
WWW.FREECOM.COM
PRODUCT SPECIFICATIONS FREECOM INTERNAL/EXTERNAL DLT 920:
AVAILABLE DEVICE LTO 920
PERFORMANCE 60/ 120* MB/s with LTO Ultrium 3 Media
30/ 60* MB/s with LTO Ultrium 2 Media
20/ 40* MB/s with LTO Ultrium 1 Media
CAPACITY
NATIVE
COMPRESSED
400 GB,
800* GB with LTO Ultrium 3 Media
INTERFACE Ultra 320 SCSI wide (LVD) / tested with LSI Logic and Adaptec
FORM FACTOR 5.25”, half height
RELIABILITY
MTBF 250.000 hours at permanent use (100% duty cycle)
RECORDING FORMAT Ultrium Generation 3
DATA ACCESS TIME 53 sec. from beginning of tape (average)
BUFFER SIZE 128 MB
HARDWARE DATA COMPRESSION LTO-DC (Enhanced ALDC)
HARD ERROR RATE 1 x 10
-17
LOADING MECHANISM Electronical loading of the media, precision ejection
1
COMPATIBILITY LTO Ultrium 1
, LTO Ultrium 2
WORMCOMPATIBILITY LTO Ultrium 3 WORM
1, 2
1, 2
, LTO Ultrium 3
1, 2
(write one time, read multiple times)
POWER CONSUMPTION Standby 13 W
Operation (avarage) 20 W
Operation (maximum) 33 W
ENVIROMENTAL CONDITIONS TEMPERATURE -40°C (-40° F) to 66° C (151° F) (stocking)
10° C (50° F) bis 35° C (95° F) (operation)
HUMIDITY RANGE Stocking: 10% to 95% (relative humidity, non condensing)
Operation: 20% to 80% (relative humidity, non condensing)
DIMENSIONS H X W X D
INTERNAL
EXTERNAL
41 x 145 x 206 mm (1.6 x 5.7 x 8.1 inch)
120 x 218 x 297 mm (4.72 x 8.58 x 11.69 inch)
WEIGHT
INTERNAL
EXTERNAL
2,17 kg (76.54 ounce)
5,48 kg (193.30 ounce)
MEDIA CAPACITY 100/ 200* GB (LTO-1), 200/ 400* GB (LTO-2), 400/ 800* GB (LTO3)
CERTIFICATIONS CSA, TÜV,CE, FCC, NOM,VCCI, C-Tick, RRL, BSMI, GOSH, CB, RoHs, WEEE
*Capacities and transfer rates quoted as typical use a 2:1 compression ratio
1 read, 2 write
Ref. MM/DB/28-08-2006
Freecom LTO 920i Freecom LTO 920es
Art. No. EU 28303 28304
EAN code EU
Capacity 400 - 800 GB 400 - 800 G
4021801283030 4021801283047
