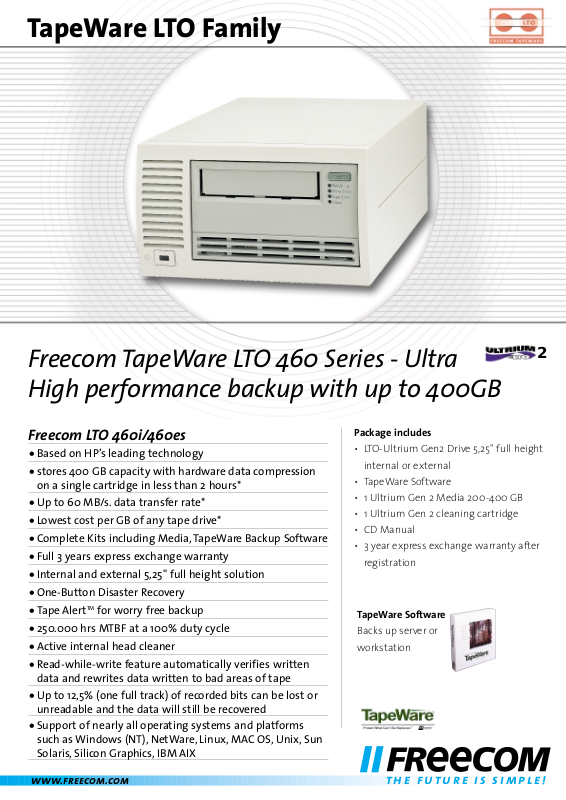

Freecom LTO-460 DATASHEET
Freecom LTO 460i/460es
•
Based on HP’s leading technology
•
stores 400 GB capacity with hardware data compression
on a single cartridge in less than 2 hours*
•
Up to 60 MB/s. data transfer rate*
•
Lowest cost per GB of any tape drive*
•
Complete Kits including Media, TapeWare Backup Software
•
Full 3 years express exchange warranty
•
Internal and external 5,25" full height solution
•
One-Button Disaster Recovery
•
Tape AlertTMfor worry free backup
•
250.000 hrs MTBF at a 100% duty cycle
•
Active internal head cleaner
•
Read-while-write feature automatically verifies written
data and rewrites data written to bad areas of tape
•
Up to 12,5% (one full track) of recorded bits can be lost or
unreadable and the data will still be recovered
•
Support of nearly all operating systems and platforms
such as Windows (NT), NetWare, Linux, MAC OS, Unix, Sun
Solaris, Silicon Graphics, IBM AIX
TapeWare Software
Backs up server or
workstation
Package includes
• LTO-Ultrium Gen2 Drive 5,25" full height
internal or external
• TapeWare Software
• 1 Ultrium Gen 2 Media 200-400 GB
• 1 Ultrium Gen 2 cleaning cartridge
• CD Manual
• 3 year express exchange warranty after
registration
TapeWare LTO Family
Freecom TapeWare LTO 460 Series - Ultra
High performance backup with up to 400GB
www.freecom.com
the future is simple!
2
Freecom TapeWare LTO FH
Capacity
200 GB native, 400 GB with hardware data compression*
Recording Format Ultrium Generation 2
Data access time 52 sec. from beginning of media (average)
Tape Speed 5,45m/Sec
Interface Ultra 3 SCSI (LVD)
Buffer size 64 MB
Hardware data compression LTO-DC (enhanced ALDC)
Form Factor 5,25", full height
Reliability MTBF 250.000 hours at a 100%duty cycle
Hard Error Rate 10
-17
Loading Mechanism Powered load with precision eject
Power Requirements Standby w/o Cartridge 5W,
Standby with Cartridge 12W,
Operating Average 30W,
Operating Peak 50 W
Temperature range 41º to 104º F (100º to 400º C) (operating)
-40º to 151º F (-400º to 660º C) (storage)
Humidity range 20 to 80% at 79ºF (260º C) (wet bulb) (operating)
10 to 95% at 79ºF (260º C) (wet bulb) (storage)
Dimensions (h x w x d) Internal: 82,5 x 146 x 203 mm (3.25 x 5.75 x 8.0 inch)
External: 118 x 208 x 292 mm (4.63 x 8.19 x 11.5 inch)
Weight External: 5,5 kg ( 12.1 lb) / Internal: 2,1 kg (4.6 lb)
Cartridge Capacities 100/200 GB (LTO GEN 1) and 200/ 400GB*
Certifications CSA Certified, TUV, CE, C-Tick, RRL, BCIQ (planned applications)
FC TapeWare LTO 460i FC TapeWare LTO 460es
Art. No. EU/UK 19920 19932
EAN Code EU/UK 4021801199201 4021801199324
Capacity 200-400 GB 200-400 GB
*Capacities and transfer rates quoted as typical use a 2:1 compression ratio
www.freecom.com
the future is simple!
ref. MM/DS/12-12-2002
