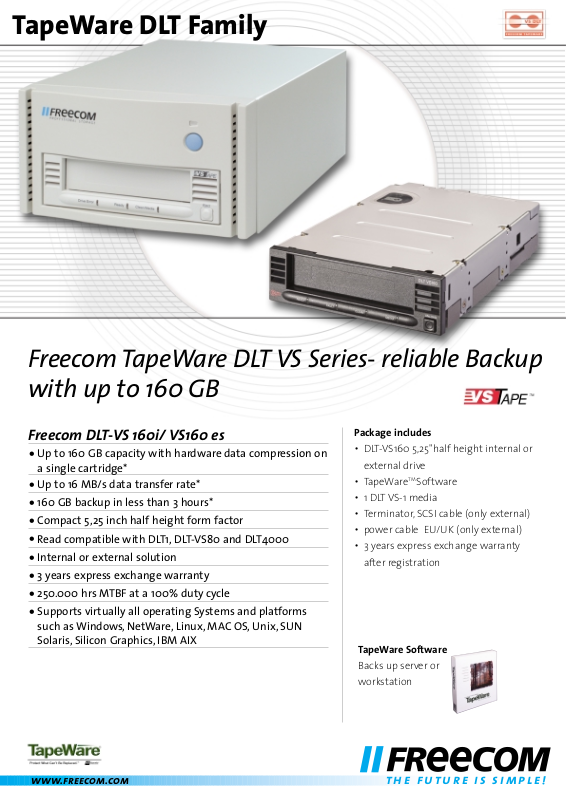

Freecom DLT-VS160ES, DLT-VS160I DATASHEET

TapeWare Software

Backs up server or

workstation

Package includes

• DLT-VS160 5,25"half height internal or

external drive

• TapeWare

TM

Software

• 1 DLT VS-1 media

• Terminator, SCSI cable (only external)

• power cable EU/UK (only external)

• 3 years express exchange warranty

after registration

Freecom DLT-VS 160i/ VS160 es

•

Up to 160 GB capacity with hardware data compression on
a single cartridge*

•

Up to 16 MB/s data transfer rate*

•

160 GB backup in less than 3 hours*

•

Compact 5,25 inch half height form factor

•

Read compatible with DLT1, DLT-VS80 and DLT4000

•

Internal or external solution

•

3 years express exchange warranty

•

250.000 hrs MTBF at a 100% duty cycle

•

Supports virtually all operating Systems and platforms
such as Windows, NetWare, Linux, MAC OS, Unix, SUN
Solaris, Silicon Graphics, IBM AIX

TapeWare DLT Family

Freecom TapeWare DLT VS Series- reliable Backup
with up to 160 GB

www.freecom.com

the future is simple!

Freecom TapeWare DLT VS-160

Capacity

80 GB native /160 GB compressed*

Data Transfer Rate 8MB/sec.– 16 MB/sec.compressed*

Backup rate 160 MB/s (synchronus)

Avarage file access time 90 seconds (from BOT)

Interface 16-bit Ultra 160 SCSI-3 LVD

Recording Format 285 tracks

Recording Density 175K bits per inch

Track Density 570 tracks per inch

Data Compression DLZ

MTBF Up to 250.000 hours at 100% duty cycle

Average Head Life 30.000 tape motion hours

Uncorrected Error Rate 1 X 10

17

bits read

Undetected error rate 1 X 10

17

bits read

Write verification Read while write

DLTape VS1 Media: 80 GB native capacity

Read compatibility DLT1, DLT-VS80

Dimensions (H x W x D) Internal model : 41.7 x 146.05 x 216.14 mm (1.62 x 5.75 x 8.5 inch)

External model :115 x 197 x 310 mm (3.9 in X 7.8 in X 12.2 inch)

Weight Internal:1.36 kg (3.00 lbs), external: 3.5 kg (7.70 lbs)

Voltage + 5 volts, +12 volts

Power Consumption less than 14 Watts (avarage read/write operation)

Power supply Line voltage 100-240 VAC,line frequency 50-60 Hz

Temperature 10 °to 40 ° C (50 °to 104 °F)

Non-Condensing humidity 20% to 80 %

Altitude 30.000 feet (9140 m)

FC TapeWare DLT-VS 160i FC TapeWare DLT-VS 160i FC TapeWare DLT-VS 160es

Art. No. EU/UK 20384 23049 20385

EAN Code EU/UK 4021801203847 402180123049? 4021801203854
Capacity 80-160 GB 80-160 GB 80-160 GB
Color Grey Black Grey

* Capacities and transfer rates assume 2 : 1 data compression. Actual compression may differ because compression varies with data type.

www.freecom.com

the future is simple!

ref. MM/DS/04-05-2004
