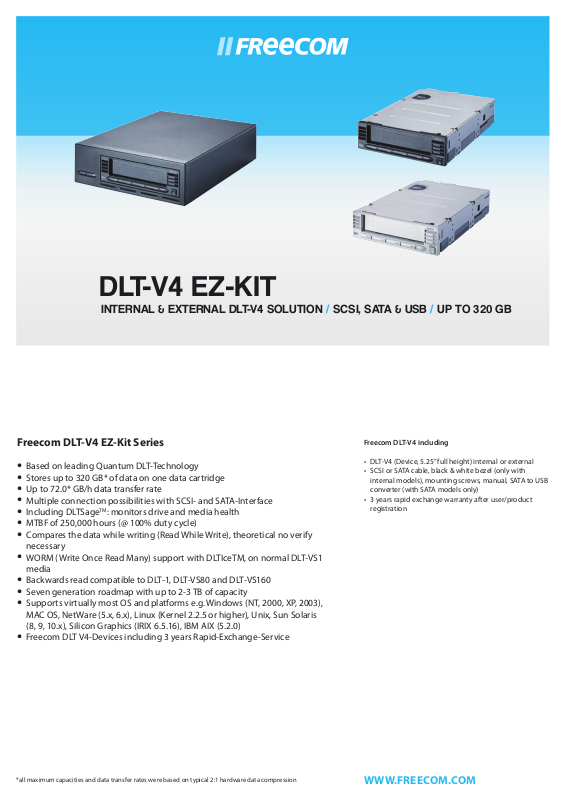

DLT-V4 EZ-KiT
iNTERNaL & ExTERNaL DLT-V4 soLuTioN / sCsi, saTa & usB / up To 320 GB
Freecom DLT-V4 EZ-Kit Series
Based on leading Quantum DLT-Technology
•
Stores up to 320 GB* of data on one data cartridge
•
Up to 72.0* GB/h data transfer rate
•
Multiple connection possibilities with SCSI- and SATA-Interface
•
Including DLTSageTM: monitors drive and media health
•
MTBF of 250,000 hours (@ 100% duty cycle)
•
Compares the data while writing (Read While Write), theoretical no verify
•
necessary
WORM (Write Once Read Many) support with DLTIceTM, on normal DLT-VS1
•
media
Backwards read compatible to DLT-1, DLT-VS80 and DLT-VS160
•
Seven generation roadmap with up to 2-3 TB of capacity
•
Supports virtually most OS and platforms e.g. Windows (NT, 2000, XP, 2003),
•
MAC OS, NetWare (5.x, 6.x), Linux (Kernel 2.2.5 or higher), Unix, Sun Solaris
(8, 9, 10.x), Silicon Graphics (IRIX 6.5.16), IBM AIX (5.2.0)
Freecom DLT V4-Devices including 3 years Rapid-Exchange-Service
•
Freecom DLT-V4 including
• DLT-V4 (Device, 5.25” full height) internal or external
• SCSI or SATA cable, black & white bezel (only with
internal models), mounting screws, manual, SATA to USB
converter (with SATA models only)
• 3 years rapid exchange warranty after user/product
registration
*all maximum capacities and data transfer rates were based on typical 2:1 hardware data compression
WWW.FREECOM.COM
Page 2
PRODUCT SPECIFICATIONS FREECOM DLTV4 EZKIT:
AVAILABLE DEVICES DLTV4
CAPACITY
NATIVE
COMPRESSED
160 GB
320 GB*
DATA TRANSFER RATE
NATIVE
COMPRESSED
10.0 MB/s, 36.0 GB/h
20.0* MB/s, 72.0* GB/h
AVERAGE SPEED
CARTRIDGE LOAD TIME
ACCESS TIME
READ/ WRITE TAPE SPEED
SEARCH TAPE SPEED
120 sec. From BOT (formatted tape)
80 sec.
118 ips (inch per sec)
130 ips (inch per sec)
INTERFACE SCSI Ultra 160/ LVD or SATA 1.0 or USB 2.0 (with SATA to USB adapter)
BUFFER SIZE 32 MB
FORM FACTOR 5.25”, half height
RELIABILITY
MTBF
UNCORRECTABLE ERROR RATE
COMPATIBILITY DLT-1 1, DLT-VS80 1, DLT-VS160 1, DLT-V4
250,000 hours @ 100% duty cycle
-17
1 in 10
Bits
1,2
POWER CONSUMPTION +5V & +12V, typical (SCSI) < 14 W, max. 16 W
ENVIRONMENTAL REQUIREMENTS
TEMPERATURE
STOCKING
OPERATION
-40° C to 66° C (-40° to 151° F)
10° C to 40° C (50° to 104° F)
HUMIDITY
STOCKING
OPERATION
10% to 95%, non condensing
20% to 80%, non condensing
ALTITUDE -152.4 meter to 9,144 meter (-500 ft to 30,000 ft)
PHYSICAL DIMENSION H X W X D
INTERNAL
ENTERNAL
4.22 x 14.76 x 22.53 cm (1.66 x 5.81 x 8.87 inches)
66.30 x 21.21 x 27.25 cm (2.61 x 8.35 x 10.73 inches)
WEIGHT
INTERNAL
ENTERNAL
1.36 kg (3.0 lb)
3.63 kg (8.0 lb)
MEDIA CAPACITY DLT-VS1 Media, 160 GB without, 320 GB with compression
CERTIFICATIONS FCC part 15 Class B (ANSI C63.4: 1992, CISPR22: 1997) & EMC Directive
(89/336/EEC) & EN55022: 1998, Class B &CISPR 22: 1997, Class B &
VCCI Class B & CNS 13438 & AS/NZS 3548 & ICES – 0003; Low Voltage
Directive (73/23/EEC) & UL 1959: 1995 & CSA C22.2 #950 & EN 60950/
A11: 1997 & IEC 60950/ A4: 1996; 2002/ 95/ EC & 2002/ 96/ EC (RoHS
and WEEE)
*all maximum capacities and data transfer rates were based on typical 2:1 hardware data compression
1
= read, 2 = write
Ref. MM/DB/22-01-2007
FC DLT-V4i EZ-Kit SCSI FC DLT-V4i EZ-Kit SATA FC DLT-V4es EZ-Kit SCSI FC DLT-V4es EZ-Kit
Art. No. EU/UK 26354 26355 26356 28927
EAN Code EU/UK
Capacity 160/ 320* GB 160/ 320* GB 160/ 320* GB 160/ 320* GB
4021801263544 4021801263544 4021801263568 4021801289278
SATA/ USB
