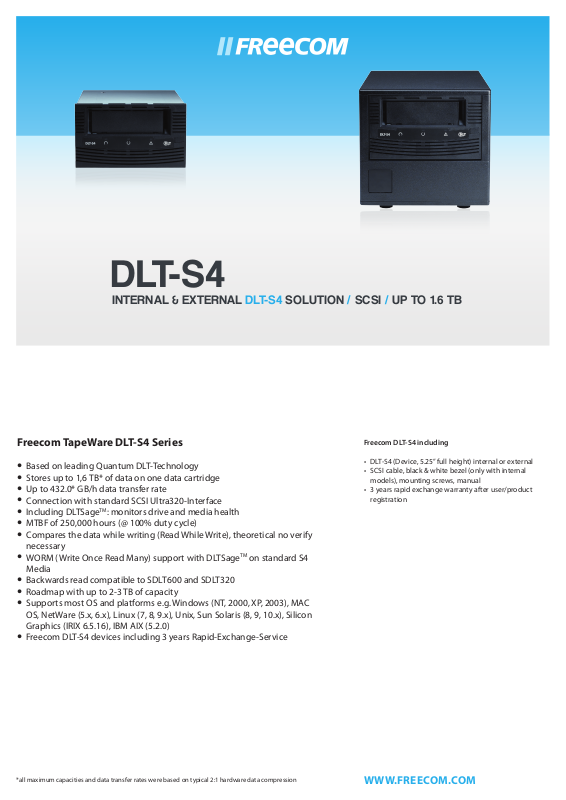

Freecom DLT-S4 DATASHEET
DLT-S4
INTERNal & external DLT-S4 SOLUTION / SCSI / up to 1.6 TB
Freecom TapeWare DLT-S4 Series
Based on leading Quantum DLT-Technology
•
Stores up to 1,6 TB* of data on one data cartridge
•
Up to 432.0* GB/h data transfer rate
•
Connection with standard SCSI Ultra320-Interface
•
Including DLTSageTM: monitors drive and media health
•
MTBF of 250,000 hours (@ 100% duty cycle)
•
Compares the data while writing (Read While Write), theoretical no verify
•
necessary
WORM (Write Once Read Many) support with DLTSageTM on standard S4
•
Media
Backwards read compatible to SDLT600 and SDLT320
•
Roadmap with up to 2-3 TB of capacity
•
Supports most OS and platforms e.g. Windows (NT, 2000, XP, 2003), MAC
•
OS, NetWare (5.x, 6.x), Linux (7, 8, 9.x), Unix, Sun Solaris (8, 9, 10.x), Silicon
Graphics (IRIX 6.5.16), IBM AIX (5.2.0)
Freecom DLT-S4 devices including 3 years Rapid-Exchange-Service
•
Freecom DLT-S4 including
• DLT-S4 (Device, 5.25” full height) internal or external
• SCSI cable, black & white bezel (only with internal
models), mounting screws, manual
• 3 years rapid exchange warranty after user/product
registration
*all maximum capacities and data transfer rates were based on typical 2:1 hardware data compression
WWW.FREECOM.COM
PRODUCT SPECIFICATIONS FREECOM TAPEWARE DLTS4:
AVAILABLE DEVICES DLTS4
CAPACITY
NATIVE
COMPRESSED
800 GB
1.6* TB (1,600 GB)
DATA TRANSFER RATE
NATIVE
COMPRESSED
60.0 MB/s, 216.0 GB/h
120.0* MB/s, 432.0* GB/h
AVERAGE SPEED
CARTRIDGE LOAD TIME
ACCESS TIME
20 sec. From BOT (formatted tape)
70 sec.
INTERFACE SCSI Ultra 320
BUFFER SIZE 256 MB
FORM FACTOR 5.25”, full height
RELIABILITY
MTBF
UNCORRECTABLE ERROR RATE
COMPATIBILITY SDLT320 1, SDLT600 1, DLT-S4
250,000 hours @ 100% duty cycle
-17
1 in 10
Bits
1,2
POWER CONSUMPTION +5V & +12V, typical (SCSI) 30 W typical streaming/writing
ENVIRONMENTAL REQUIREMENTS
TEMPERATURE
STOCKING
OPERATION
-40° C to 66° C (-40° to 151° F)
10° C to 40° C (50° to 104° F)
HUMIDITY
STOCKING
OPERATION
10% to 95%, non condensing
20% to 80%, non condensing
ALTITUDE -152.4 meter to 9,144 meter (-500 ft to 30,000 ft)
PHYSICAL DIMENSION H X W X D
INTERNAL
ENTERNAL
85.73 x 148.3 x 203.7 mm (3.37 x 5.84 x 8.02 inches)
66.30 x 21.21 x 27.25 cm (2.61 x 8.35 x 10.73 inches)
WEIGHT
INTERNAL
ENTERNAL
1.36 kg (3.0 lb)
3.63 kg (8.0 lb)
MEDIA CAPACITY DLT S4 Media: 800 GB uncompressed, 1,6* TB compressed
MEDIA ARCHIVE STORAGE
> 30 years
CERTIFICATIONS FCC part 15 Class B (ANSI C63.4: 1992, CISPR22: 1997) & EMC Directive
(89/336/EEC) & EN55022: 1998, Class B &CISPR 22: 1997, Class B &
VCCI Class B & CNS 13438 & AS/NZS 3548 & ICES – 0003; Low Voltage
Directive (73/23/EEC) & UL 1959: 1995 & CSA C22.2 #950 & EN 60950/
A11: 1997 & IEC 60950/ A4: 1996; 2002/ 95/ EC & 2002/ 96/ EC (RoHS
and WEEE)
*all maximum capacities and data transfer rates were based on typical 2:1 hardware data compression
1
= read, 2 = write
FC TapeWare DLT-S4i SCSI FC TapeWare DLT-S4es SCSI
Art. No. EU/UK 27439 27440
EAN Code EU/UK
Capacity 800/1600* GB 800/1600* GB
4021801274397 4021801274403
Ref. MM/DB/16-03-2006
