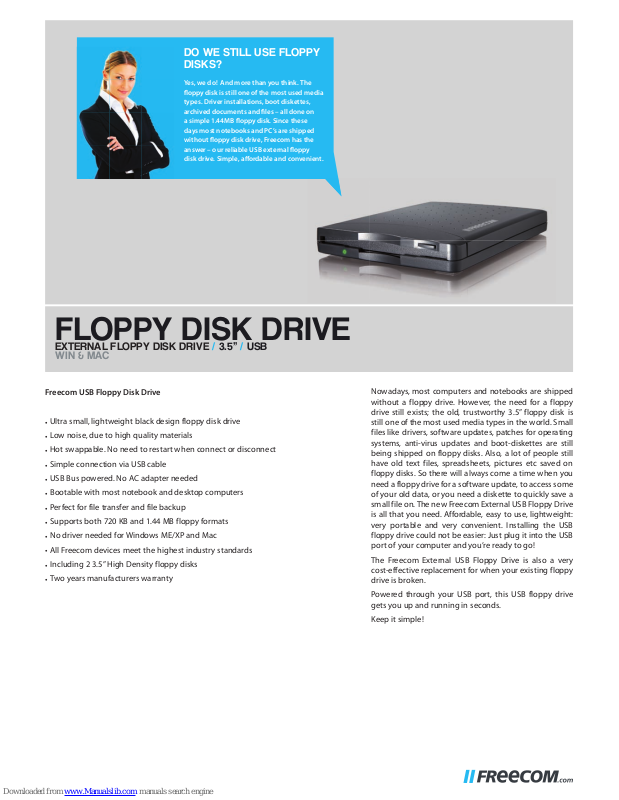

Freecom 22767 Datasheet

FLOPPY DISK DRIVE

EXTERNAL FLOPPY DISK DRIVE / 3.5” / USB

WIN & MAC

DO WE STILL USE FLOPPY
DISKS?

Yes, we do! And more than you think. The
fl oppy disk is still one of the most used media
types. Driver installations, boot diskettes,
archived documents and fi les – all done on
a simple 1.44MB fl oppy disk. Since these
days most notebooks and PC’s are shipped
without fl oppy disk drive, Freecom has the
answer – our reliable USB external fl oppy
disk drive. Simple, aff ordable and convenient.

Freecom USB Floppy Disk Drive

•

Ultra small, lightweight black design floppy disk drive

•

Low noise, due to high quality materials

•

Hot swappable. No need to restart when connect or disconnect

•

Simple connection via USB cable

•

USB Bus powered. No AC adapter needed

•

Bootable with most notebook and desktop computers

•

Perfect for file transfer and file backup

•

Supports both 720 KB and 1.44 MB floppy formats

•

No driver needed for Windows ME/XP and Mac

•

All Freecom devices meet the highest industry standards

•

Including 2 3.5” High Density floppy disks

•

Two years manufacturers warranty

Nowadays, most computers and notebooks are shipped
without a floppy drive. However, the need for a floppy
drive still exists; the old, trustworthy 3.5” floppy disk is
still one of the most used media types in the world. Small
files like drivers, software updates, patches for operating
systems, anti-virus updates and boot-diskettes are still
being shipped on floppy disks. Also, a lot of people still
have old text files, spreadsheets, pictures etc saved on
floppy disks. So there will always come a time when you
need a floppy drive for a software update, to access some
of your old data, or you need a diskette to quickly save a
small file on. The new Freecom External USB Floppy Drive
is all that you need. Affordable, easy to use, lightweight:
very portable and very convenient. Installing the USB
floppy drive could not be easier: Just plug it into the USB
port of your computer and you’re ready to go!

The Freecom External USB Floppy Drive is also a very
cost-effective replacement for when your existing floppy
drive is broken.

Powered through your USB port, this USB floppy drive
gets you up and running in seconds.

Keep it simple!

PRODUCT SPECIFICATIONS FREECOM FLOPPY DISK DRIVE:

PRODUCT SPECIFICATIONS: Portable external USB Floppy Disk Drive
STORAGE CAPACITY: 720 kB/1.44 MB

MEDIA STANDARDS:

3.5” Floppy Disks, double sided high-density, double sided density

INTERFACE: USB 1.1 (12 Mbit/s)
PERFORMANCE: Spindle speed: 300 U/min
SHOCK: 5G max., non-operating: 100G max.
SAFETY STANDARDS: UL standard, CS A standard, TÜV standard, CE standard
WEIGHT: 280g / 9.88 Ounce
DIMENSIONS: 17 x 103 x 142 mm / 0.67 x 4.05 x 5.59 inch
MTBF: 30000 P.O.H.

ENVIRONMENTAL SPECIFICATIONS:

Operating 10°C to 35°C
Storage -20°C to 60°C
Gradient 20°C/hour (max.)
Humidity Operating 8 - 80% (noncondensing)

POWER REQUIREMENTS: Bus-powered (no AC adapter needed)

SYSTEM REQUIREMENTS:

Any PC with a free USB port, running Windows 98SE, Windows 2000, Windows ME,
Windows XP, Windows Vista or Mac OS 9/10.x

PACKAGE INCLUDES:

•

Freecom USB Floppy Disk Drive

•

Two 3.5” floppy disks

•

Freecom Driver (Windows ‘98/2000) and manual on CD

•

Quick Install Guide

•

2 Years manufacturers warranty

Floppy Disk Drive

Art. No. EU 22767

EAN Code EU 4021801227676

Colour Black

FLOPPY DISK DRIVE

Tested to comply with
FCC standards for
home and offi ce use

PRODUCT AWARDS:

Ref. MM/PW/02-09-2008

• Read/Write/Format Read/Write x Not Working

Compatibility Table Freecom USB Floppy Disk Drive

Floppy Windows Macintosh

XP 2000 ME 98/98SE 9.x 10.x

1.44MB (2HD)
Windows

. . . . . .

1.25MB (2HD)
Windows

.

x x

720KB (2DD)
Windows

. . . . .

1.44MB (2HD)
Macintosh

x x x x

.
