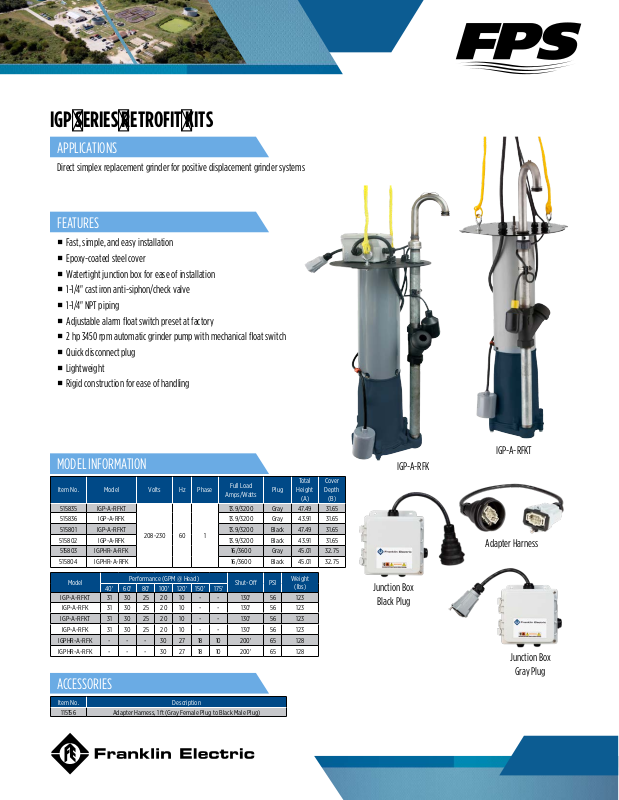

IGP SERIES RETROFIT KITS
APPLICATIONS
Direct simplex replacement grinder for positive displacement grinder systems
FEATURES
Fast, simple, and easy installation
Epoxy-coated steel cover
Watertight junction box for ease of installation
1-1/4" cast iron anti-siphon/check valve
1-1/4" NPT piping
Adjustable alarm float switch preset at factory
2 hp 3450 rpm automatic grinder pump with mechanical float switch
Quick disconnect plug
Lightweight
Rigid construction for ease of handling
MODEL INFORMATION
Item No. Model Volts Hz Phase
515835 IGP-A-RFKT
515836 IGP-A-RFK 13.9/3200 Gray 43.91 31.65
515801 IGP-A-RFKT 13.9/3200 Black 4 7.49 31.65
515802 IGP-A-RFK 13.9/3200 Black 43.91 31.65
515803 IGPHR-A-RFK 16/3600 Gray 45.01 32.75
515804 IGPHR-A-RFK 16/3600 Black 45.01 32.75
Model
IGP-A-RFKT 31 30 25 20 10 - - 130' 56 123
IGP-A-RFK 31 30 25 20 10 - - 130' 56 123
IGP-A-RFKT 31 30 25 20 10 - - 130' 56 123
IGP-A-RFK 31 30 25 20 10 - - 130' 56 123
IGPHR-A-RFK - - - 30 27 18 10 200' 65 128
IGPHR-A-RFK - - - 30 27 18 10 200' 65 128
40' 60' 80' 100' 120' 150' 175'
208-230 60 1
Performance (GPM @ Head)
Full Load
Amps/Watts
13.9/3200 Gray 47. 49 31.65
Shut-O PSI
Plug
Total
Height
(A)
Weight
(lbs)
ACCESSORIES
Item No. Description
115156 Adapter Harness, 1 ft (Gray Female Plug to Black Male Plug)
IGP-A-RFKT
IGP-A-RFK
Cover
Depth
(B)
Adapter Harness
Junction Box
Black Plug
Junction Box
Gray Plug
Page 2

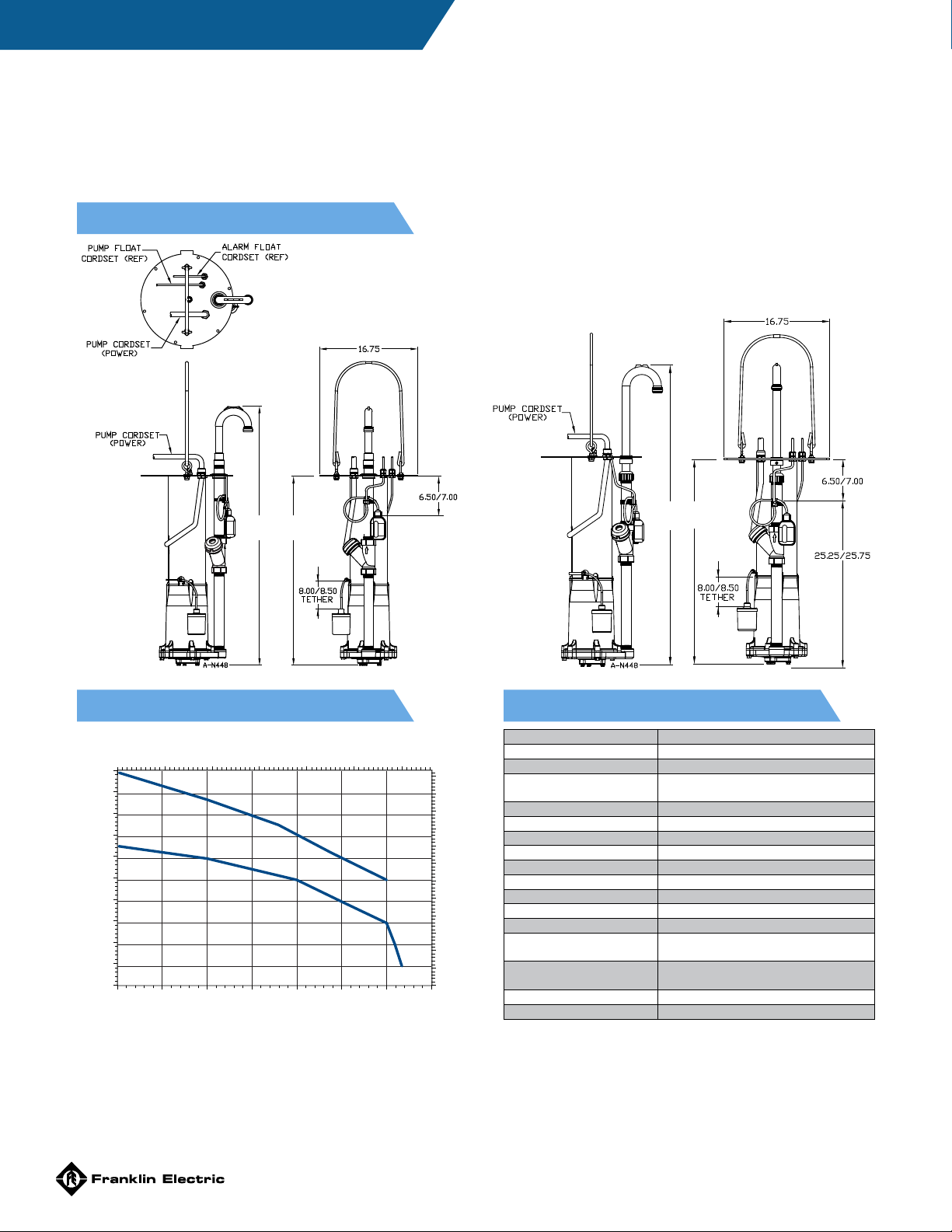

IGP SERIES RETROFIT KITS
Total Dynamic Head in Feet
Flow/Capacity in Liters Per Minute
DIMENSIONS
B
BA
A
PERFORMANCE CONSTRUCTION
Discharge 1.25" Vertical
0 12010080604020
200
180
160
140
120
100
80
60
40
20
0
0 105 2015 3025 35
IGPHR-A-RFK
IGP-A-RFK
60
55
50
45
40
35
30
25
20
15
10
Total Dynamic Head in Meters
5
0
Flow/Capacity in US Gallons Per Minute
Motor Cover Cast iron with epoxy coating
Motor Cover O-Ring Nitrile
Motor Design
Single-phase, capacitor start,
capacitor run
Insulation Class F
Overload Protection Internal, on winding thermal protector
Motor Shaft AISI 300 Series stainless steel
Ball Bearing-Upper Single row ball, 6203
Ball Bearing-Lower Single row ball, 6306
Seal Housing Cast iron with epoxy coating
Mechanical Seal Carbon/ceramic
Volute Cast iron with epoxy coating
Impeller Brass
Rotating Cutter
Stationary Cutter
AISI 440C stainless steel, throughhardened to Rockwell 55-60C
AISI 440C stainless steel, hardened to
Rockwell 55-60C
External Hardware 300 Series stainless steel
Power Cable Type SOOW/or SOW 14/3 AWG
