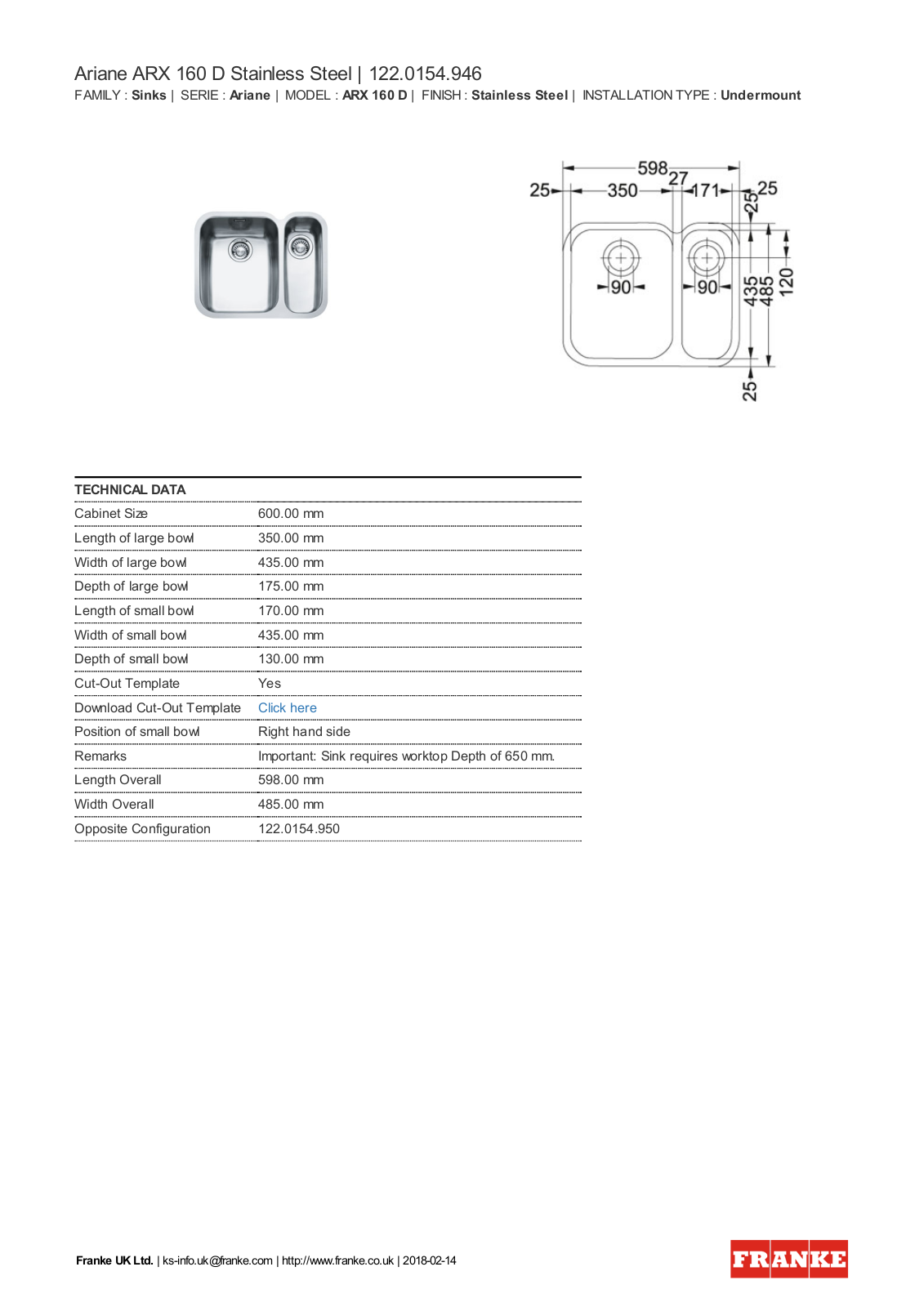

Franke ARX160DSBR Specifications Sheet
Ariane ARX 160 D Stainless Steel | 122.0154.946
FAMILY : Sinks | SERIE : Ariane | MODEL : ARX 160 D | FINISH : Stainle ss Steel | INSTALLATION TYPE : Undermount
TECHNICAL DATA
Cabinet Size 600.00 mm
Length of large bowl 350.00 mm
Width of large bowl 435.00 mm
Depth of large bowl 175.00 mm
Length of small bowl 170.00 mm
Width of small bowl 435.00 mm
Depth of small bowl 130.00 mm
Cut-Out Template Yes
Download Cut-Out Template Click here
Position of small bowl Right hand side
Remarks Important: Sink requires worktop Depth of 650 mm.
Length Overall 598.00 mm
Width Overall 485.00 mm
Opposite Configuration 122.0154.950
Franke UK Ltd. | ks-info.uk@franke.com | http://www.franke.co.uk | 2018-02-14

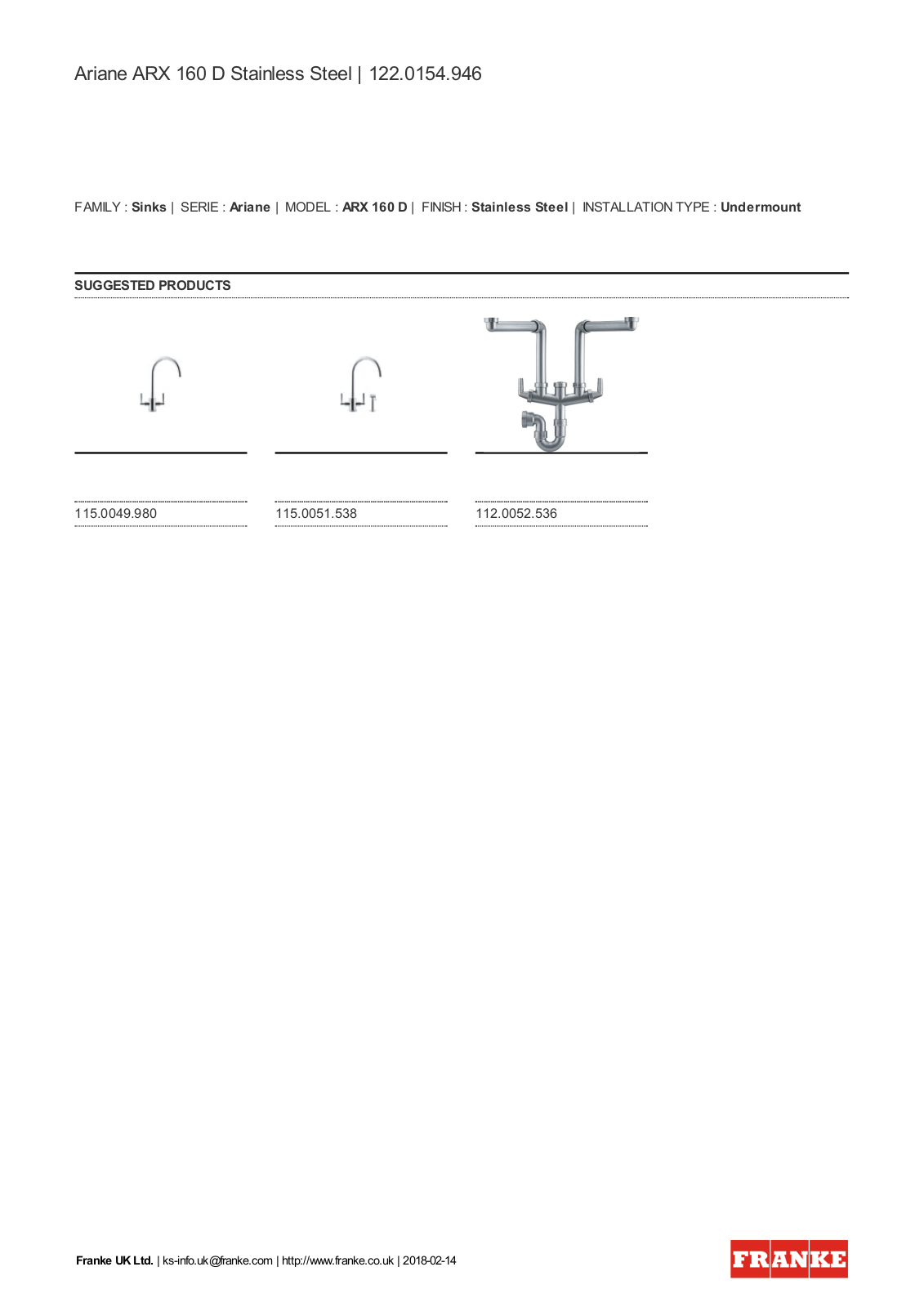

Ariane ARX 160 D Stainless Steel | 122.0154.946
FAMILY : Sinks | SERIE : Ariane | MODEL : ARX 160 D | FINISH : Stainle ss Steel | INSTALLATION TYPE : Undermount
SUGGESTED PRODUCTS
115.0049.980 115.0051.538 112.0052.536
Franke UK Ltd. | ks-info.uk@franke.com | http://www.franke.co.uk | 2018-02-14
