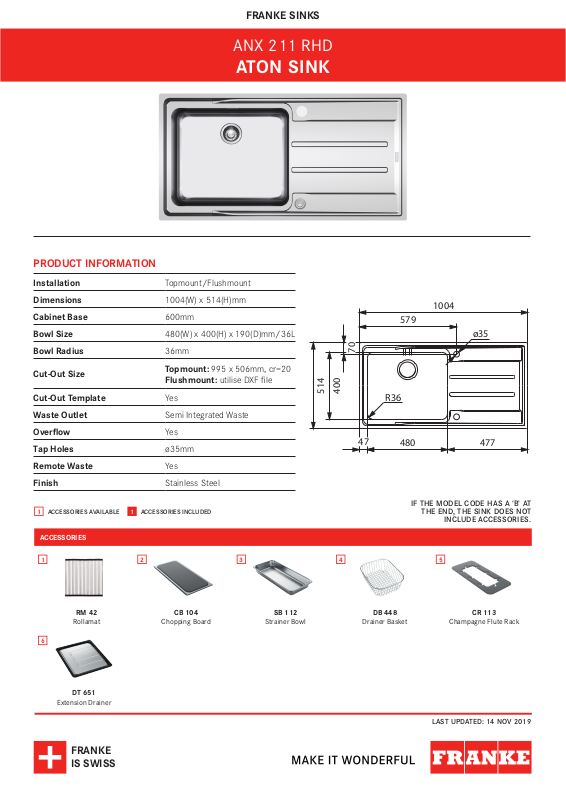

Franke ANX211RHD Specifications Sheet

1 2

1 2

6 7

2 3

3 4

1 2

1 2

1 2

PRODUCT INFORMATION

FRANKE SINKS

ANX 211 RHD

ATON SINK

Installation

Dimensions

Cabinet Base

Bowl Size

Bowl Radius

Cut-Out Size

Cut-Out Template

Waste Outlet

Overflow

Tap Holes

Remote Waste

Finish

ACCESSORIES AVAILABLE ACCESSORIES INCLUDED

ACCESSORIES

Topmount/Flushmount

1004(W) x 514(H)mm

600mm

480(W) x 400(H) x 190(D)mm/36L

36mm

Topmount: 995 x 506mm, cr=20
Flushmount: utilise DXF file

Yes

Semi Integrated Waste

Yes

ø35mm

Yes

Stainless Steel

514

400

70

47

1004

579

ø35

R36

477480

IF THE MODEL CODE HAS A ‘B’ AT

THE END, THE SINK DOES NOT

INCLUDE ACCESSORIES.

RM 42

Rollamat

DT 651

Extension Drainer

FRANKE
IS SWISS

CB 104

Chopping Board

SB 112

Strainer Bowl

DB 448

Drainer Basket

CR 113

Champagne Flute Rack

LAST UPDATED: 14 NOV 2019
