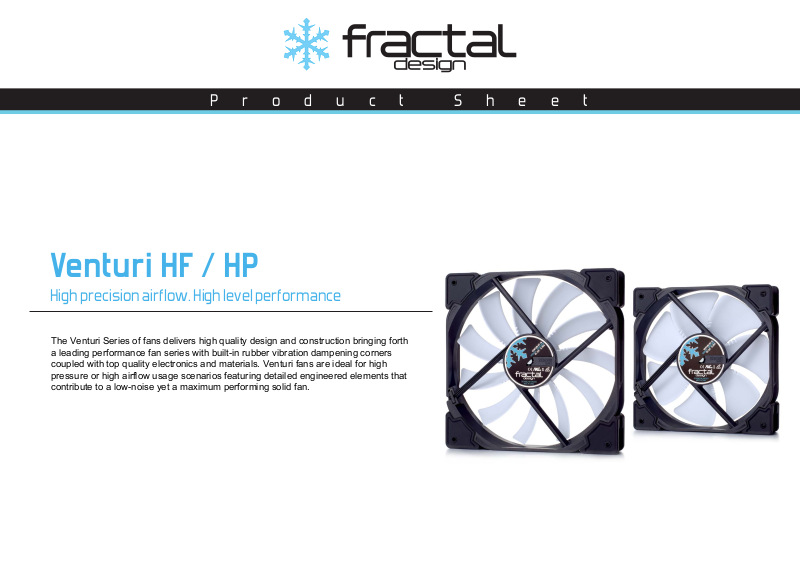

Fractal Design HF-12, HP-12 PWM, HF-14, HP-14 PWM User Manual

Produc t Sheet

Venturi HF / HP

High precision airflow. High level performance

The Venturi Series of fans delivers high quality design and construction bringing forth
a leading performance fan series with built-in rubber vibration dampening corners
coupled with top quality electronics and materials. Venturi fans are ideal for high
pressure or high airflow usage scenarios featuring detailed engineered elements that
contribute to a low-noise yet a maximum performing solid fan.

Produc t Sheet

Key features

● Featuring true FDB-bearings, providing silent operation coupled with a long lifespan

● Equipped with a counter-balanced magnet that reduces the axial tension on the bearing

● Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber

● Dense, sturdy construction, made from high grade glass fiber reinforced thermoplastic polymer

● Fan geometry is optimized for high pressure, delivering high performance results in high restriction usage scenarios, such as in use with large dense

heatsinks or water cooling radiators.

● Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the
motherboard can control the fan speed based on the CPU temperature. (HP PWM Version only)

● Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence.

● Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts

● The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation

● Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller

● 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw
spacing). This enables the use of 140mm fans on many CPU coolers.

● Available in 120mm and 140mm fan sizes

● Available in two color combinations, Black blades, black corners, dark grey ("Gunmetal") frame and White blades, black corners, black frame

Produc t Sheet

General specifications

Specification

Size [mm]

Colors available

Screw hole pattern

Connector

Bearing

Number of blades

Rotational speed [RPM]

Acoustical noise [dB (A)]

Maximum air flow [CFM]

Maximum air flow [m 3 /h]

Maximum pressure [mm H 2O]

Actual input power [W]

Maximum rated input current [A]

Nominal input voltage [V]

Minimum startup voltage [V]

Low (0-20%) PWM speed

Low PWM Static pressure

Low PWM Air flow

Low PWM Noise level

• HF-12

• 120x120x25mm

• Black blades, black corners,

dark grey ("Gunmetal") frame

• White blades, black corners, black frame

• 105x105mm

• 3-pin fan header

• FDB

• 9

• 1400

• 25.3

• 83.4

• 141.7

• 1.22

• 1.3

• 0.2

• 12V

• 4V

• HP-12 PWM

• 120x120x25mm

• Black blades, black corners,

dark grey ("Gunmetal") frame

• White blades, black corners, black frame

• 105x105mm

• 4-pin fan header

• FDB

• 7

• 1800

• 31.7

• 61.4

• 104.3

• 2.3

• 1.0

• 0.2

• 12V

• 6V

• 400 RPM

• 0.45 mm H2O

• 15.4 CFM

• 26.2 m3/h

• < 10 dB (A)
