Foxtel STU 720if Operating Instructions Manual
STU 720if
OPERATING INSTRUCTIONS
1
Contents
About This Manual ............................................................. 2
Safety ................................................................................. 2
Preface ................................................................................ 3
Digital Satellite Services .................................................... 3
Conditional Access ........................................................... 3
Smart Card .......................................................................... 3
Inserting the Smart Card ................................................ 3
Digital Satellite Equipment ................................................ 4
Digital Satellite STU ........................................................... 4
Display ................................................................................. 4
Front Panel Keys .................................................................. 4
Rear Panel Connections ....................................................... 4
Remote Control Unit ........................................................... 5
Replacing Batteries in the RCU ............................................. 5
Getting Started .................................................................... 6
Setting-up the System .......................................................... 6
Switching on the STU at the Mains ....................................... 6
Tuning your TV ..................................................................... 6
Standby and Normal Modes .................................................. 6
Installation Options ............................................................ 7
Introduction ........................................................................... 7
Hints to Quality TV System Configurations ........................... 7
STU, TV (using SCART or RF Interface) ............................... 7
STU, TV (SCART or RF Interfaces), Hi-Fi ............................. 8
STU, VCR, TV, Hi-Fi ............................................................. 9
STU, VCR, TV, Hi-Fi (using RCA Connectors) ..................... 10
Bouquet Selection .............................................................. 11
Selecting Specific Services ................................................... 11
Selecting Services Directly ................................................... 11
Stepping through Services .................................................... 11
Stepping using the Remote Control ...................................... 11
Stepping using the STU Front Panel Keys ............................ 12
Selecting Specific Services from the EPG ............................ 12
Selecting Services from the Information Bar ......................... 12
Controlling the Show .......................................................... 12
Adjusting the Volume using the RCU Keys ........................... 12
Adjusting the Volume using the STU Keys ............................ 12
Mute ..................................................................................... 12
Displaying Subtitles or Teletext ............................................. 12
Subtitles ............................................................................... 12
Teletext ................................................................................ 12
Clock .................................................................................... 13
Selecting Soundtracks .......................................................... 13
Power Reset ......................................................................... 13
Electronic Programme Guide ............................................. 13
Using the EPG ..................................................................... 13
OpenTV Information Bar ..................................................... 14
Reminders ........................................................................... 14
Programme Blocking .......................................................... 14
Menu Navigation Route ...................................................... 15
Using Menus ....................................................................... 16
Language Selection .............................................................. 16
Language Options in Guide and Menu .................................. 16
Soundtrack Options .............................................................. 16
Program Blocking Options........................................................ 17
Blocking Options ................................................................. 17
Change PIN code for Blocking ............................................ 17
Information Display Period ...................................................... 18
Local Time................................................................................ 18
Mailbox ................................................................................... 18
Over The Air Software Download............................................... 18
Troubleshooting .................................................................. 18
Specifications ..................................................................... 22
Hotlines ............................................................................... 23
Notes ................................................................................... 23
Macrovision......................................................................... 23
OPERATING INSTRUCTIONS STU 720if
2
ABOUT THIS MANUAL
This manual is a guide on how to use the UEC STU (Set Top Unit)
720 satellite receiver/decoder supplied by FOXTEL.
The Digital Satellite STU Equipment
This section provides an overview of the FOXTEL Set Top Unit
(STU) Equipment. It contains diagrams and tables of the STU and
Remote Control Unit.
Getting Started
This section explains the basic operation of the STU, from
switching it on to tuning your TV to receive the satellite
programmes.
STU Connections
This section deals with the various domestic installation
configurations available and illustrates optional connections for
your TV, VCR and Hi-Fi.
Controlling the Show
This section shows you how to use the various controls to
provide you with the optimum viewing and listening experience.
Using the On-screen Menus
The menu system enables you to set functions in the STU so that
you can customise its features to suit your viewing needs.
Troubleshooting
This section contains a troubleshooting guide and explains how
FOXTEL can provide you with technical assistance.
SAFETY
This STU exceeds International Safety Standards but you must
exercise care when using it. Please read the following
recommended safety precautions carefully, and exercise care at
all times when connecting or disconnecting any of FOXTEL’S
equipment from a power source.
MAINS SUPPLY: 192-288 V (220/240 V) AC 50 Hz.
LIQUIDS: Keep liquids away from the STU.
CLEANING: Before cleaning, disconnect the STU from the wall
socket. Use a cloth lightly dampened with water (no solvents) to
clean the exterior.
VENTILATION: Do not block the STU ventilation holes. Ensure that
free airflow is maintained around the STU. NEVER stand the STU
on soft furnishings or carpets. Do not use or store the STU
where it is exposed to direct sunlight, or near a heater. Never
stack other electronic equipment on top of the STU.
ATTACHMENTS: Do not use any attachment that is not
recommended by the manufacturer, as it may cause a hazard or
damage the equipment.
CONNECTION TO THE SATELLITE DISH LOW NOISE BLOCK
(LNB): The LNB connector cable has a voltage on its centre core.
It is therefore recommended that the STU is disconnected from the
mains power before connecting or disconnecting this cable.
FAILURE TO DO SO COULD DAMAGE THE LNB AND/OR GIVE A
MILD SHOCK.
SERVICING: Do not attempt to service this product yourself. Any
attempt to do so will be against your terms and agreements.
Refer all servicing needs to FOXTEL 131 999.
STU 720if
OPERATING INSTRUCTIONS
3
PREFACE
The manual provides:
Important safety precautions; please study them.
Overview material; read only those parts that interest you.
It is not necessary to study the manual from cover to cover
before using the STU.
Step-by-step instructions on how to use the STU.
Step-by-step instructions on how to install the STU and
connect it to basic sound and TV systems. It is beyond the
scope of this manual to include all of the possible
configurations or installation procedures.
Troubleshooting guide to assist you if you have difficulty
with operating the STU correctly, or if technical problems
occur.
The operation of the STU can be upgraded using over-the-air
signals. This manual and the menus downloaded in the STU are
therefore subject to change at any time.
This document and the information contained herein are the
subject of copyright and intellectual property rights under
international convention. All rights are reserved. No part of this
document may be reproduced, stored in a retrieval system or
transmitted in any form by any means, electronic, mechanical or
optical, in a whole or in part, without the prior written permission
of UEC Technologies (Pty) Ltd, the Manufacturer.
DIGITAL SATELLITE SERVICES
The STU has been designed to receive and process digital signals
transmitted from orbiting satellites. The satellites act as mirrors in
the transmission process, beaming the FOXTEL’s signals back to
your satellite dish.
In addition to the digital TV and audio signals, satellite signals also
contain data that the STU extracts, processes and stores. This
provides up-to-date text information on the content and status of
the various services at the touch of a button.
CONDITIONAL ACCESS
Smart Card
You were supplied with a FOXTEL Smart Card when you
subscribed. The Smart Card looks similar to a credit card and is
inserted into the slot behind the right-hand front flap of the STU.
Inserting the Smart Card
The Smart Card is the key to unlocking the subscribed services in
the STU. The STU will not unscramble scrambled TV or audio
services if the card is not inserted or is incorrectly inserted.
Inserting the Smart Card into the STU allows instant access to
the subscribed services.
To insert the Smart Card, follow the instructions carefully.
1 Open the right hand flap on the front of the STU (see
figure). Swing the flap downwards to expose the card
slot.
2 Hold the Smart Card horizontally with the logo on top and
the arrows pointed towards the slot. Insert the Card fully
into the slot.
3 Close the flap.
I
R
D
E
T
O
I
M
P
O
R
T
A
N
T
1
D
o
n
o
t
b
e
n
d
v
i
e
w
i
n
g
c
a
r
d
2
D
o
n
o
t
r
e
m
o
v
e
a
n
d
r
e
n
i
s
e
r
t
u
n
n
e
c
e
s
s
a
r
i
l
y
3
N
e
v
e
r
s
u
b
m
e
r
g
e
c
a
r
d
i
n
l
i
q
u
i
d
o
r
u
s
e
c
l
e
a
n
i
n
g
f
l
u
i
d
s
o
n
i
t
OPERATING INSTRUCTIONS STU 720if
4
DIGITAL SATELLITE EQUIPMENT
Digital Satellite STU
The STU combines a high quality MPEG-2 and DVB compliant
satellite receiver, with a sophisticated decoder in one package.
The STU provides all that you need to exploit the exciting new
satellite services that are now available.
DISPLAY
REAR PANEL CONNECTIONS
FRONT PANEL KEYS
Republic of South Africa
WARNING ! Hig h Voltage
DANGER! Do not open
Unauthorised openi ng
renders warranty inval id
Protect against m oisture
TERRESTRIAL
ANTENNA
CONNECTOR
TO TV/VCR
SCART CONNECTOR
(TO VCR)
AUDIO TO MONO
AMPLIFIER
(TV OR VCR)
V
IDEO TO
NON-SCART INPUT
(TV OR VCR)
SATELLITE
DISH CONNECTOR
SCART CONNECTOR
(TO TV)
S-VIDEO
CONNECTOR
(TO TV)
AUDIO TO
HI-FI
FIXED STEREO
AUDIO OUTPUT
(FOR RECORDING)
TO EXT.
MODEM
COMMS
PORT
TO SECOND DECODER
IF CONNECTED TO
SAME TV
MAINS INPUT
N4078
/ P/ V
Y
G
R
Y
G
R
Y
G R
Y
GR
Y
GR
Y
GR
Y
GR
Y GR
Green dot:DSD in Standby
mode
Service number 1 7
selected
Green light:Audio service
selected
Three flashing bars
and red light:Service not found
or signal poor
quality
Download in
progress,
Steady yellow light
Green dot flashes
when RCU keys are
pressed
Yellow light:Mail message
waiting
Menu selected
Y
G R
Y
G
R
Red light:Error Indication
Rotating bar:Searching for
service
information
STU 720if
OPERATING INSTRUCTIONS
5
REMOTE CONTROL UNIT (RCU)
Inserting/changing the batteries
- Never leave flat batteries in the remote control
- Only Insert
AAA
size batt eries
- Make sure batteries ar e correctly positioned, or
remote will not work
Puts the decoder into
standby or takes it out
of standby (page 6)
When pressed and held
displays the UHF tuning
channel on decoder and
TV (page 6)
When pressed, displays
the last viewed FOXTEL
programme
and
arrow keys
Move the highlights up or down
the screen when a menu or
FOXTEL TV/Radio guide is
displayed (pages 13, 14 & 16)
and arrow keys
Switches options in menus
(page 16)
Removes the TV/Radio guide
or information from the screen
and redisplays the last
FOXTEL programme you
were watching (page 13)
Displays the local time
and date on the TV
(page 12)
Displays a programme
information bar on the
screen for 5 seconds.
When pressed again,
displays extended event
information (page 14)
Selects the electronic
programme guide (EPG)
which displays all the
available FOXTEL TV and
Radio programmes
(page 13)
Selects a programme
when the EPG and selects
highlighted Options or values
in menus.
Saves any changed settings
in menus (pages 13 and 16)
in
Displays the Main Menu, or,
If a menu is already displayed,
returns to the last viewed
Foxtel programme (page 16)
OPERATING INSTRUCTIONS STU 720if
6
GETTING STARTED
Setting-up the System
Switching on the STU at the Mains
When you first switch on the STU at the mains, it goes through a
power-up sequence, during which various indications are
displayed on the STU display and TV screen, then displays
service number 1 on the front panel display.
NOTE: If the TV is not tuned to the channel
chosen to view the satellite services, the
sequence is still the same, but the TV will
not display the scanning screen or the TV
programme. To tune the TV to the STU
services, re-tune the TV as per Tuning
Your TV.
If your TV has been tuned to accept the
STU services, but your smart card has not
been inserted into the STU, an error
message will appear on your TV screen on
completion of the sequence.
If your STU was in standby mode with the mains power switch
off, it will display a 24 hour clock when mains power is restored.
Press to restore the signal.
It is strongly recommended that the STU is not switched
off at the mains as this will prevent proper operation of
the STU, INCLUDING OVER-THE-AIR SOFTWARE UPGRADES.
Tuning your TV
If your TV is not tuned to the STU viewing channel, you will not be
able to view the satellite services. Your VCR, STU and TV can
also interfere with each other unless they are tuned in correctly.
The output of the STU can be tuned over the whole UHF band
using the following recommended method:
1 Connect the satellite dish and terrestrial antenna.
2 On the TV, select any unused channel on which you wish to
view your satellite programmes. Once selected, all your
satellite services will be viewed on this channel, selection of
the service being made using the RCU.
3 Press and hold UHF on the RCU until UHF is displayed on the
STU display. Tune your TV set to receive the STU test signal
display (see following figure).
A Channel number (initially 38) will be displayed on the STU front
panel display. Press UHF on the RCU to remove the test signal.
Check that any noise from the STU does not interfere with signals
received on the VCR. Check all tuned channels on the TV for
interference.
4 If any interference is noticed, change the UHF channel
number as follows:
Press and hold the UHF button on the RCU to display UHF on
the STU display and the UHF test screen on the TV.
Change the channel number to 2 more or 2 less than the
existing number (36 or 40) by pressing or twice on the
RCU. Press OK to save. The following will happen as soon as
or is pressed:
a. The TV display is lost because the TV is not tuned to the
new channel.
b. The new channel number is displayed on the front panel
of the STU.
On the TV, retune the channel allocated to the STU until the
STU test pattern is clearly visible.
Repeat step 4 until interference on all channels is eliminated.
NOTE: After changes have been made, the STU must
not be switched off for at least 3 minutes to
allow for the new setting to be saved.
If interference is still present, it is
recommended that good quality screened
cables (preferably double screened) are used
for interconnecting all other equipment to the
STU.
Standby and Normal Modes
The STU does not have a mains power on/off switch and it is
recommended that, for normal viewing, it remains connected to
the mains after installation.
When the STU is not in use, it should be switched to the standby
mode using the symbol on the front panel or on the RCU.
The standby mode is indicated by a 24 hour clock display on the
STU display panel. To use the STU after the initial installation:
1 Switch on the TV and any other equipment included in the
system.
2 Select the channel on the TV that you have allocated for
viewing the satellite services.
3 If the STU is in the standby mode, press on either the
RCU or STU front panel, to return to the normal viewing mode.
A service number will be displayed on the front panel
indicator.
4 You will be returned to your last selected TV or Music &
Radio channel.
5 If you wish to select TV programming, press TV on the RCU.
6 If you wish to select the Music & Radio Services, press the
key on the RCU, or TV/ on the STU front panel. If
subscribed to, an audio service will be heard, and the audio
programme information box will be displayed on the TV. A
green indicator on the front panel display is lluminated while
38
597.25
UHF Channel
UHF Fr equenc y
Press OK to save
Press EXIT to can cel
STU 720if
OPERATING INSTRUCTIONS
7
the STU is in the Music & Radio mode.
TV Services are restored by pressing TV on the RCU, or TV on
the STU front panel.
NOTE: When switching from normal to standby then
back to normal, the STU automatically returns
to the previously selected service.
7 The STU is set up to the local default settings by the
manufacturer. If it becomes necessary to change the installation
parameters call FOXTEL on 131 999.
The STU is now ready for normal use.
INSTALLATION OPTIONS
Introduction
There are several ways of connecting the STU to an existing
entertainment system.
The following more common examples enable you to view satellite
services and terrestrial channels, record and playback from a
VCR and listen to CD quality stereo sound on a Hi-Fi.
Consult FOXTEL for assistance in setting up an audio/video
configuration best suited to your requirements.
Hints to Quality TV System Configurations
• Where possible, connect cables via audio/video outputs/
inputs (SCART or AV) instead of RF connectors.
• Use an appropriate, correctly installed satellite dish system.
• Use high quality stereo TV and Hi-Fi equipment.
• Use high quality screened cables.
NOTE: When Video and Audio connectors (AV) are used,
it may be necessary to select a Video mode (AV)
on the VCR and TV in place of a TV mode.

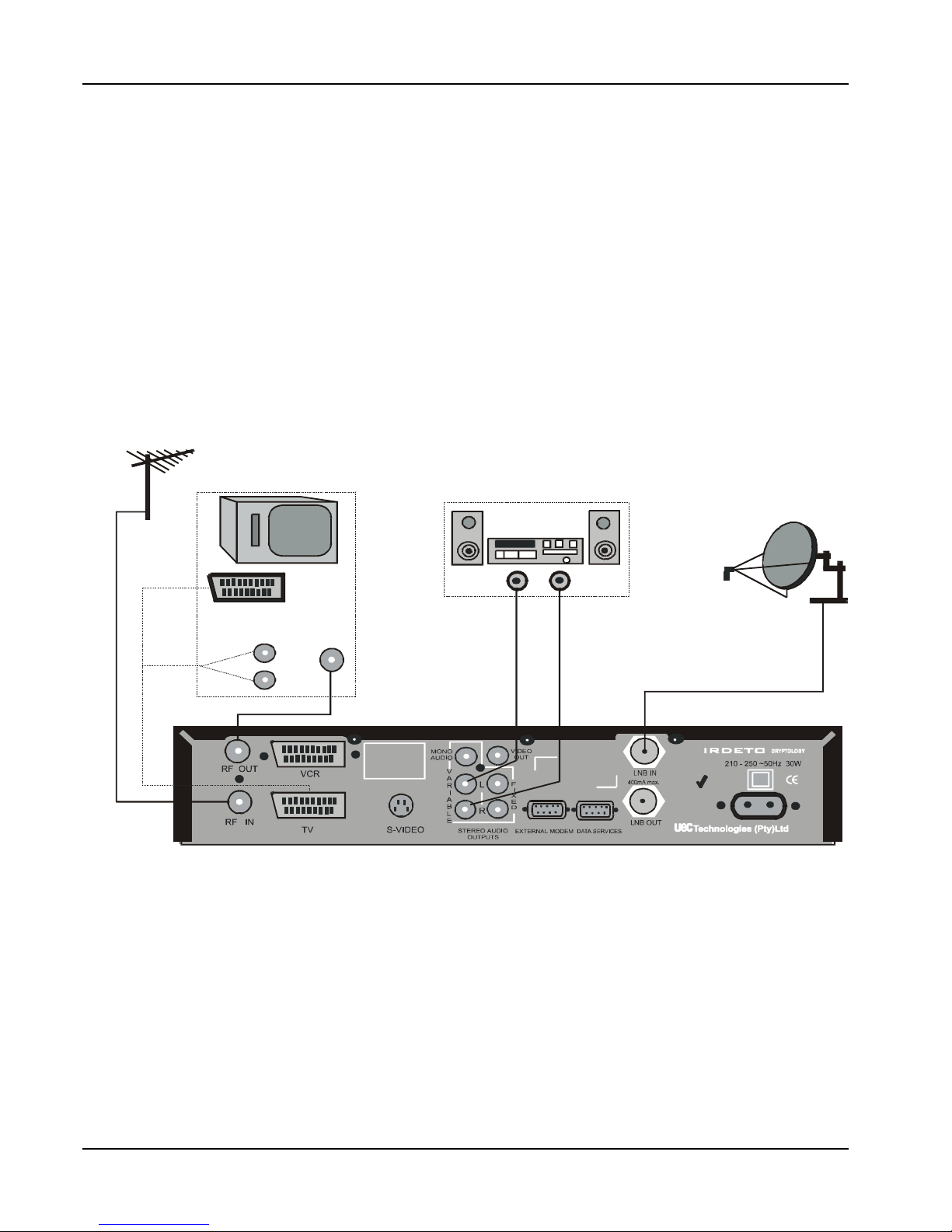

STU, TV (using SCART or RF Interface)
NOTE: As the LNB connection cable carries a small
voltage on its centre connector, it is
recommended that the mains supply to the
STU is switched off before connecting or
disconnecting the LNB cable.
1 Connect the terrestrial antenna connector to the RF IN socket
on the STU.
The following instruction applies if your TV has a SCART
connector.
2 If using a SCART-to-SCART cable (not supplied), connect
theTV SCART socket on the STU to the SCART socket on the
TV.
OR
Using a SCART to RCA connector (not supplied), connect the
TV SCART to the A V connectors on your TV. If only one audio
socket is available on your TV, the mono audio connector
should be used.
3 If required, use an RF signal flylead to connect the RF OUT
socket on the STU to the RF IN socket on the TV.
4 Connect the coaxial cable connector from the LNB on the
satellite dish into the socket marked LNB IN on the STU. The
connector on the coaxial cable should be turned until it is finger
tight.
5 If your TV has a S Video connector, connect to S VHS
connector on the decoder. Also, connect Mono Audio on
decoder to Audio In on the TV, or variable audio if you have a
stereo TV.
Republic of South Africa
WARNING! High Voltage
DANGER! Do not open
Unauthorised opening
renders warranty invalid
Protect against moisture
REAR PANEL
VIDEO IN
A
UDIO IN
A
V CONNECTIONS
SC
A
RT TO SCART
S VIDEO
RF IN
NOTE: CONNECT EITHER RF IN TO RF OUT
OR RCA TO RCA
N4078
