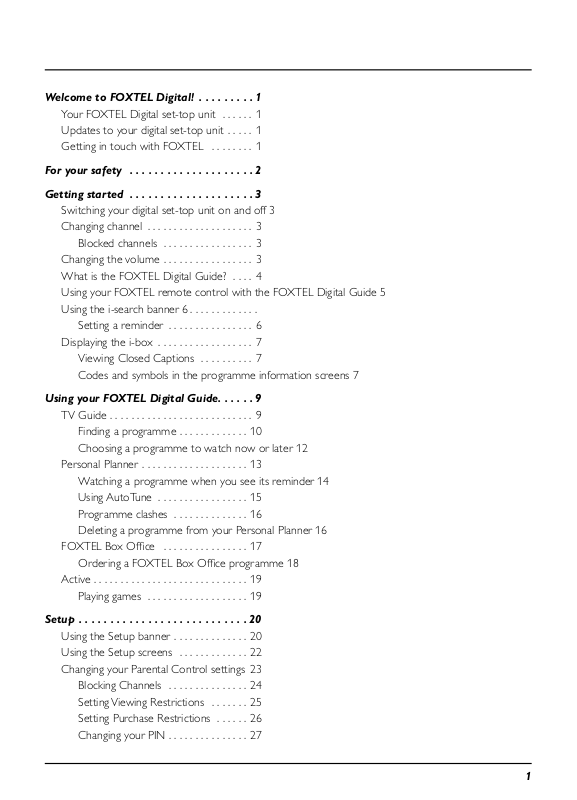

Welcome to FOXTEL Digital! . . . . . . . . . 1
Your FOXTEL Digital set-top unit . . . . . . 1
Updates to your digital set-top unit . . . . . 1
Getting in touch with FOXTEL . . . . . . . . 1
For your safety . . . . . . . . . . . . . . . . . . . . 2
Getting started . . . . . . . . . . . . . . . . . . . . 3
Switching your digital set-top unit on and off 3
Changing channel . . . . . . . . . . . . . . . . . . . . 3
Blocked channels . . . . . . . . . . . . . . . . . 3
Changing the volume . . . . . . . . . . . . . . . . . 3
What is the FOXTEL Digital Guide? . . . . 4
Using your FOXTEL remote control with the FOXTEL Digital Guide 5
Using the i-search banner 6 . . . . . . . . . . . . .
Setting a reminder . . . . . . . . . . . . . . . . 6
Displaying the i-box . . . . . . . . . . . . . . . . . . 7
Viewing Closed Captions . . . . . . . . . . 7
Codes and symbols in the programme information screens 7
Using your FOXTEL Digital Guide. . . . . . 9
TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Finding a programme . . . . . . . . . . . . . 10
Choosing a programme to watch now or later 12
Per sonal Planner . . . . . . . . . . . . . . . . . . . . 13

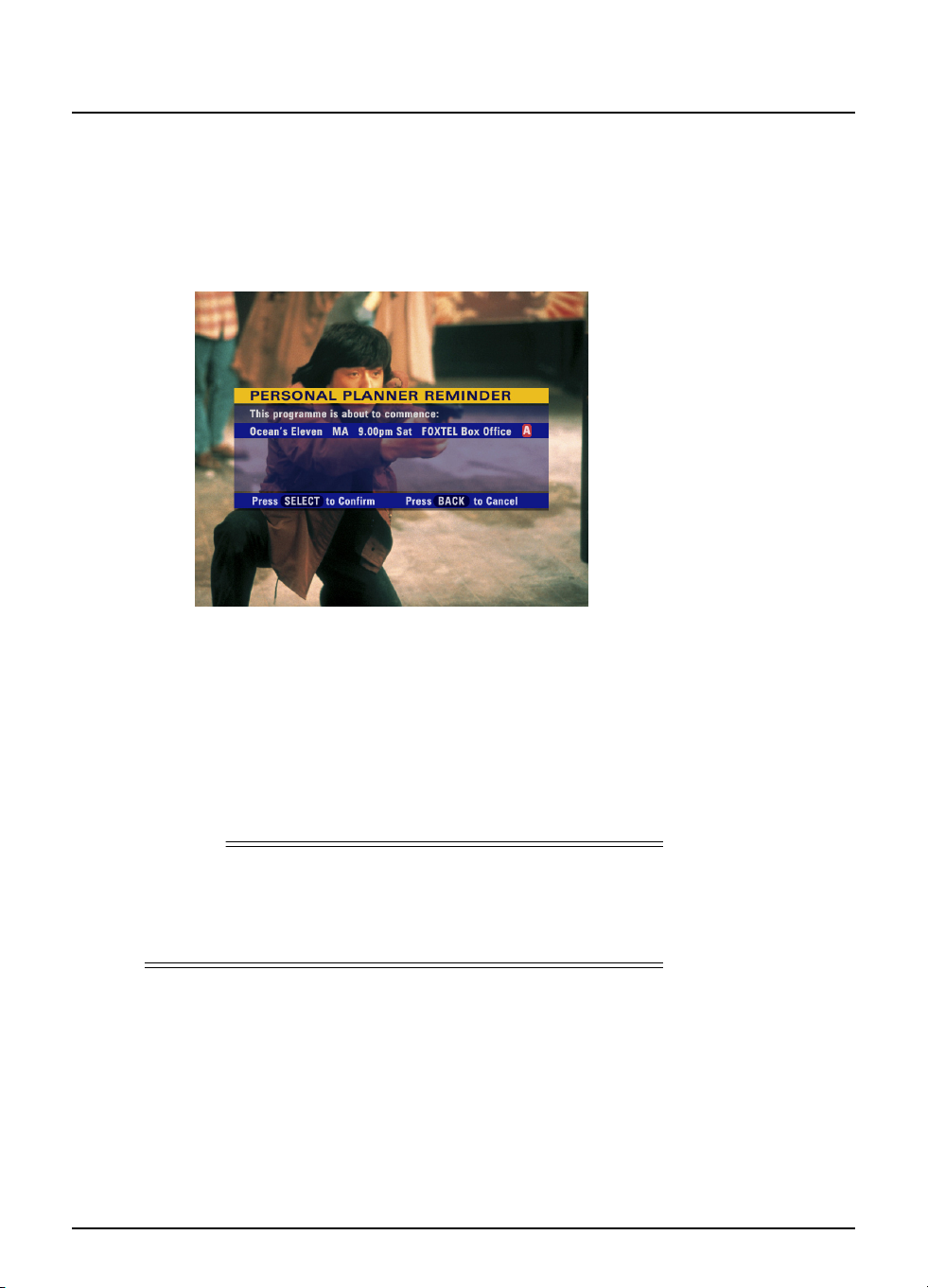

Watching a programme when you see its reminder 14
Using AutoTune . . . . . . . . . . . . . . . . . 15
Programme clashes . . . . . . . . . . . . . . 16
Deleting a programme from your Personal Planner 16
FOXTEL Box Office . . . . . . . . . . . . . . . . 17
Ordering a FOXTEL Box Office programme 18
Active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Playing games . . . . . . . . . . . . . . . . . . . 19
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the Setup banner . . . . . . . . . . . . . . 20
Using the Setup screens . . . . . . . . . . . . . 22
Changing your Parental Control settings 23
Blocking Channels . . . . . . . . . . . . . . . 24

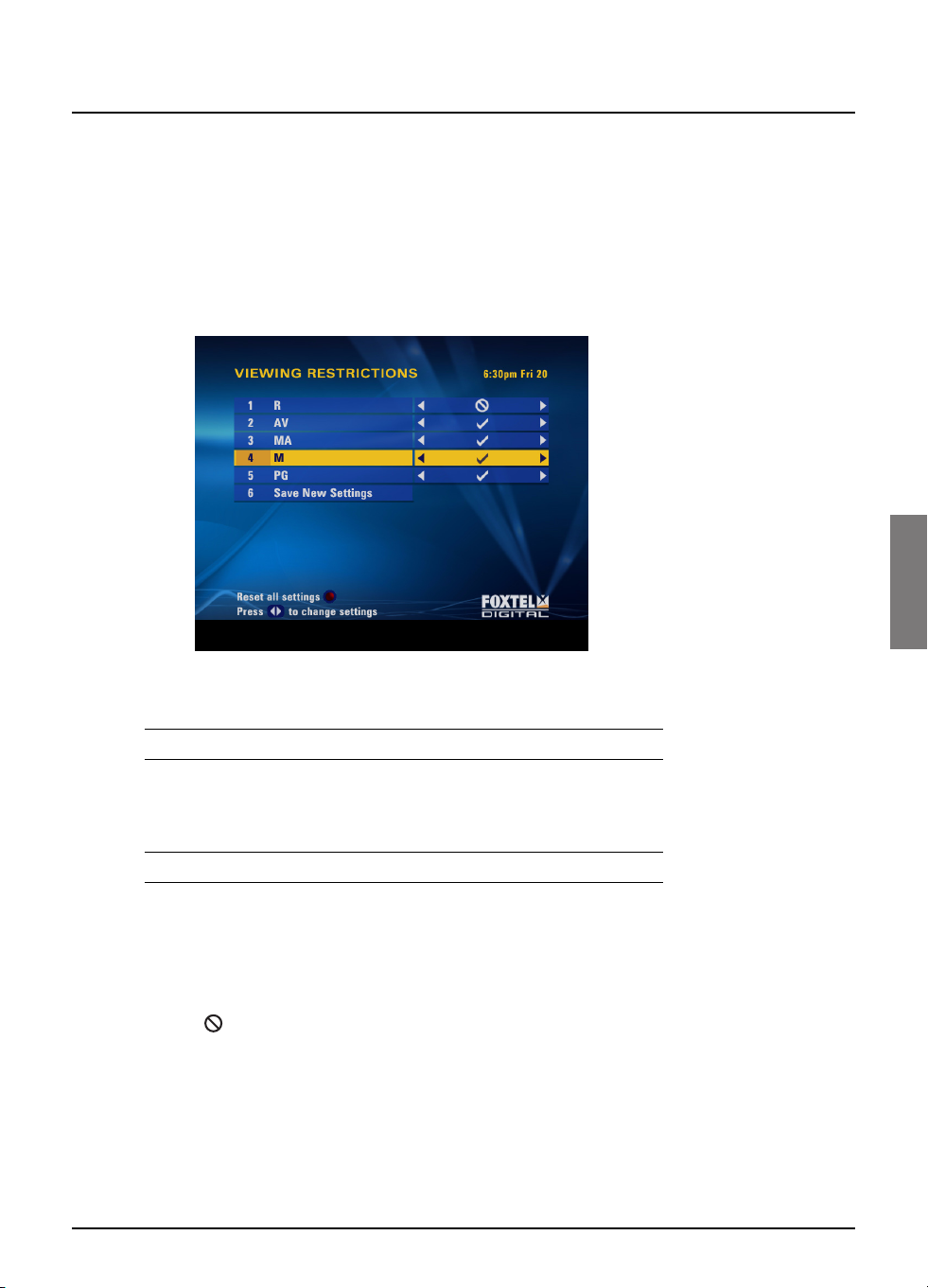

Setting Viewing Restrictions . . . . . . . 25
Setting Purchase Restrictions . . . . . . 26
Changing your PIN . . . . . . . . . . . . . . . 27
1
2
Changing your Personal Planner settings 28
Using the System Settings . . . . . . . . . . . . 29
Picture Settings . . . . . . . . . . . . . . . . . . 30
Audio and Language Settings . . . . . . 31
System Details . . . . . . . . . . . . . . . . . . 31
Signal Test . . . . . . . . . . . . . . . . . . . . . . 31
System Test . . . . . . . . . . . . . . . . . . . . . 31
Extra information . . . . . . . . . . . . . . . . . 32
Recording a digital programme . . . . . . . 32
Using AV mode to watch a video recording 32
Looking after your FOXTEL Smar tcard 33
Replacing the batteries in your remote control 34
Your FOXTEL Digital set-top unit . . . . 35
Front panel . . . . . . . . . . . . . . . . . . . . . . . . 35
Rear and side view 36

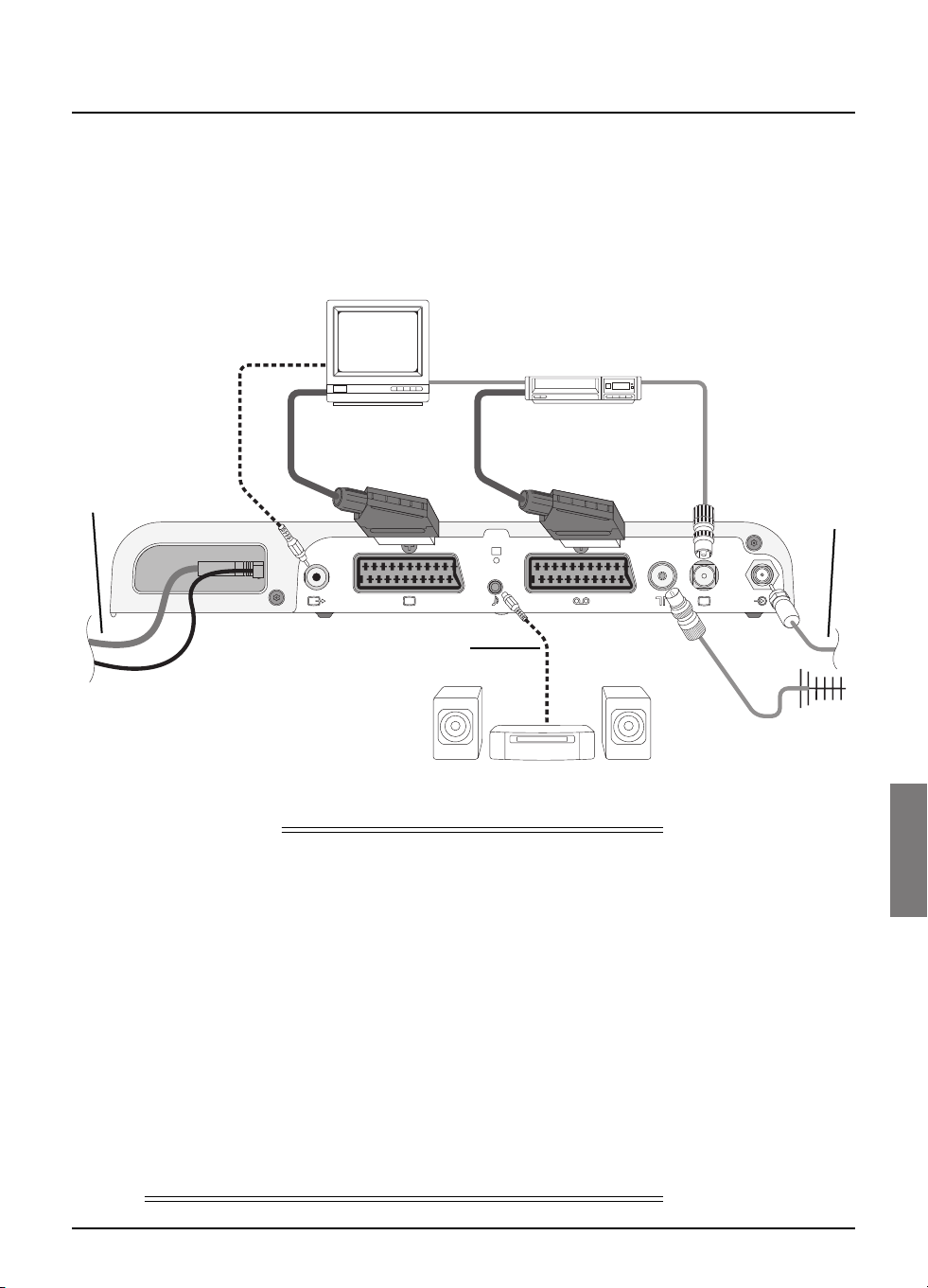

Connections to your digital set-top unit 37
Solving problems . . . . . . . . . . . . . . . . . . 38
Using Help . . . . . . . . . . . . . . . . . . . . . . . . 38
On-screen messages . . . . . . . . . . . . . . . . 39
General problems . . . . . . . . . . . . . . . . . . 42
Specification . . . . . . . . . . . . . . . . . . . . . 44
Glossary . . . . . . . . . . . . . . . . . . . . . . . . 45
1
Welcome to FOXTEL Digital!
Thank you for choosing FOXTEL Digital. This User Guide provides you
with easy to understand instructions on how to use your FOXTEL
Digital set-top unit and remote control.
❖
Your FOXTEL Digital set-top unit
Your FOXTEL Digital set-top unit receives digital information via cable
or satellite, decodes this information and sends it to your TV.
Updates to your digital set-top unit
❖
From time to time, your digital set-top unit may be updated. Updates
will usually occur automatically. You should not unplug your digital settop unit from the power point, as this may affect the installation, and
the availability of any updates which may occur.
Updates provide enhanced features; and new screens may become
available. Although any new screens may look a little different from
those described in this User Guide, you will be able to use the same
techniques (e.g. highlight and select) to navigate around the screens.
Getting in touch with FOXTEL
❖
If you have any questions about your new FOXTEL service, please
call FOXTEL on 131999 (7:30am - 11pm AEST).
WELCOME
✔
✘
✘
✔
✘
✘
✘
✘
For your safety
Your digital set-top unit has been manufactured to meet international
safety standards. To obtain the best results and operate the digital settop unit safely it is important that you read the safety instructions
below.
If you have any doubts about the installation, operation or safety of your
digital set-top unit, please consult FOXTEL .
WARNING!
Remember that contact with 240 V AC power can be lethal
or can cause a severe electric shock. To avoid this risk:
Never remove the top cover from your digital set-top
unit as there are high-voltage live parts inside. There
are no user-serviceable parts inside your digital settop unit.
Make sure that all electrical connections are safe and
secure.
Do not connect any of your equipment (digital set-top
unit, TV, video recorder etc.) to the power supply until
you have properly connected all the other leads.
Disconnect your digital set-top unit from the power
supply (by disconnecting its power lead from the
power point on the wall) before you disconnect any
other equipment from its rear panel.
Never push anything into the holes, slots or other
openings of the digital set-top unit case (except your
FOXTEL Smartcard into its correct slot).
CAUTION!
To ensure a free flow of air around the digital set-top unit, allow
at least 5cm of space above and around the digital set-top unit.
Never stand your digital set-top unit on soft furnishings or
carpets. Do not cover any ventilation slots.
Do not place your digital set-top unit in an unventilated cabinet
or on top of a unit which emits heat (e.g. a TV).
If the digital set-top unit is placed with other items of audio/video
equipment in a cabinet, make sure all items have sufficient space
all around them, to allow ventilation and prevent overheating.
Do not stack items of audio/video equipment in a crowded
space.
Do not use or store your digital set-top unit in hot, cold, damp
or dusty places.
Do not put anything on your digital set-top unit which might
melt, drip or spill into it. Never stand objects filled with liquids,
such as vases, on top of your digital set-top unit.
Never place naked flame sources, such as lighted candles, on top
of your digital set-top unit.
2
Using your FOXTEL Digital set-top unit
Getting started
❖
Switching your digital set-top unit on and off
Whenever you are not using your digital set-top unit you should put it
into standby. You should not unplug it at the power point.
◆
To put your digital set-top unit into standby, press S .
The standby light on the front panel shines red.
◆
To take your digital set-top unit out of standby and switch it on,
press FOXTEL (or S again).
The standby light on the front panel shines green.
Note
You can also press tv guide , box office , active or planner to take
your digital set-top unit out of standby.
❖
Changing channel
You can change the channel by using:
◆
the ch + and ch - buttons;
◆
the back button, to return to the previous channel you were
watching;
◆
the number buttons (channel numbers are always three digits,
for example 108); or
◆
one of the on-screen methods described in the following
sections.
When you change channel, a banner (the i-search banner ) displays
briefly to show information about the channel. It automatically
disappears after a few moments, or you can press back to remove it
immediately.
For more information about the i-search banner, see page 6.
GETTING STARTED
Blocked channels
Sometimes you might change channel to a blocked channel or
programme. This means the channel or programme has been
restricted by your settings in Parental Restrictions, so you will not be
permitted to view it simply by changing channel to it.
To unblock the channel or programme, you will need to enter your
PIN. For more information, see page 23.
❖
Changing the volume
◆
To change the volume, press vol + or vol - .
◆
To turn the sound on or off, press mute .
3
Getting started
❖
What is the FOXTEL Digital Guide?
The FOXTEL Digital Guide helps you to experience the most out of
FOXTEL Digital. It is an easy-to-use on-screen guide to your FOXTEL
Digital service. All of the FOXTEL Digital Guide features are controlled
by using your FOXTEL remote control. The FOXTEL Digital Guide
allows you to:
◆
see on-screen TV programme listings for up to seven days via
the TV guide;
◆
order FOXTEL Box Office movies, sports and events;
◆
set reminders for future programmes using the Personal Planner;
◆
access a range of Active Services, such as games you can play
using your remote control.
4
Using your FOXTEL Digital set-top unit
Getting started
❖
Using your FOXTEL remote control with the FOXTEL Digital Guide
Whichever section of the FOXTEL Digital Guide you are looking at,
you always use your remote control in the same way.
◆
To display any section of the FOXTEL Digital Guide, press the
corresponding button on your remote control, for example, to
display FOXTEL Box Office, press box office .
◆
Use the arrows to move the highlight around the screen, then
to choose the highlighted item, press select .
◆
On many of the FOXTEL Digital Guide screens, you use the
colour buttons to choose options or change the display. When
a colour button is displayed next to an option, press the same
colour button on your FOXTEL Remote Control to choose that
option.
GETTING STARTED
◆
Press the number buttons to enter numbers on the screen. You
can also use the number buttons as a short-cut, whenever a
numbered list is shown.
You can use the number buttons to write the letters and
symbols marked on the buttons onto the screen. Press the
button once for the first letter, and again for the next letter, until
the letter you want is displayed (similar to sending text messages
with your mobile phone).
◆
To see information about a highlighted programme, press i .
◆
To remove any screen, without saving any changes, and go back
to the previous FOXTEL Digital Guide screen, press back.
◆ When full screens of listings are displayed, you can press ch +
and ch - to ‘page up’ and ‘page down’ a full screen of listings.
◆ To return to the digital channel you were last watching, press
FOXTEL.
5
Getting started
Reminder
symbol
❖ Using the i-search banner
You can display the i-search banner to find out:
◆ what is showing on any channel, now and later on;
◆ more about a programme you are interested in.
While the i-search banner is displayed, you can continue to watch the
current channel.
◆ To display the i-search banner, press i (or select).
◆ To see the programmes showing on different channels, press U
or D to scroll through the channels.
◆ To see what programmes are on at different times, for up to the
next six hours, on the channel listed in the i-search banner, press
R or L to scroll through the times.
◆ To display the i-box (see page 7), press i again.
◆ If you see a programme you want to watch, press select.
If the programme is on now, your FOXTEL Digital set-top unit
tunes to it automatically. If it is on at a later time, your digital settop unit sets a reminder for you - see page 6.
◆ To remove the i-search banner without changing channel, press
FOXTEL, or wait a few moments - it disappears automatically.
Setting a reminder
◆ If you see a programme in the i-search banner that you want to
watch, but it is on at a later time, press select.
The programme is added to your Personal Planner (see page 13) and
your digital set-top unit sets a reminder for you. An asterisk symbol
(see right) displays on the i-search banner, next to the programme, to
show you the programme has been added to your Personal Planner.
When the programme is about to start, a message displays to let you
know the programme you selected is about to start.
6
Using your FOXTEL Digital set-top unit
Getting started
❖ Displaying the i-box
While the i-search banner is displayed, you can view the i-box, which
gives extra information about the programme listed in the i-search
banner.
◆ While the i-search banner is displayed (see page 6), to view the
i-box, press i.
GETTING STARTED
The i-box includes a programme synopsis (summary) and codes and
symbols which provide you with additional information about the
programme. These are explained on page 7.
◆ To remove the i-box, press i again.
Viewing Closed Captions
Closed Captions are a transcription of the audio soundtrack, displayed
on-screen. If Closed Captions are available you can choose whether
you wish to see them or not - (see page 20 or page 30). The Closed
Captions symbol (see below and page 8) displays on the i-search
banner and i-box when Closed Captions are available.
Codes and symbols in the programme information screens
The i-search banner, i-box, FOXTEL TV Guide and Box Office (see
later sections in this User Guide) may include symbols and codes giving
particular information about programmes.
The list on page 8 provides an explanation of these symbols and codes.
7
Getting started
Symbol / Code: Explanation:
The start and finish times of the programme.
Classification symbol (see below for classification
codes).
The programme is shown in widescreen format.
Closed captions are available for this programme. (For
more information about Closed Captions, see pages 20
and 30.)
Subtitles are available for this programme.
Dolby Digital 5.1 or Dolby Surround. If your TV has
Dolby Digital decoding capabilities, you will experience
enhanced sound on this programme.
Indicates that a reminder has been set for the
programme.
Classification codes
P Suitable for pre-school children.
C Suitable for children.
G General, suitable for all audiences.
PG Parental guidance is recommended as to the suitability
M Recommended for viewers aged 15 years or over.
MA Suitable only for viewers aged 15 or over - children
AV Suitable for adult viewers only - violent content.
R Suitable only for adult viewers aged 18 and over.
Content codes
a Adult themes
dDrugs
h Horror
l Strong language
m Medical procedures
n Nudity
s Sexual scenes
v Violence
of the programme for children under 15.
under 15 are not permitted to watch MA programmes
unless in the company of a parent or adult guardian.
8
Using your FOXTEL Digital set-top unit
Using your FOXTEL Digital Guide
❖ TV Guide
The TV Guide provides you with a listing of all programmes available
on all channels for the next seven days, making it easy to find the
programmes you want to watch.
◆ To see your TV Guide, press tv guide on your FOXTEL remote
control.
FOXTEL DIGITAL GUIDE
TV listings are displayed as follows:
◆ All Channels - all programmes on all channels for today and
the week ahead, listed by channel number.
◆ Channels 9, 7,10, ABC, SBS - Open Broadcaster channels
included with your digital channels.
◆ Entertainment, Movies, Sport, News &
Documentaries, Kids & Family, Music & Radio and
Special Interest - programmes for the next seven days, in the
categories shown, listed by channel number.
◆ Programmes By Time - programmes on all channels, sor ted
into the categories above, listed by start time.
9
Using your FOXTEL Digital Guide
Finding a programme
There are a number of ways to search for a programme. You can
search by full listings, category or time.
Searching by All Channels
◆ To choose a programme from the full listings, press tv guide on
your FOXTEL remote control, highlight ‘All Channels’ then press
select. The All Channels screen displays.
10
The start times and the day are shown at the top of the listings.
◆
To see what programmes are on at different times, press R or L.
◆
To move through the list of channels, press U or D.
◆ You can use the page up (red) and page down (green) buttons
on your remote control to see the previous or next section of
the channel listing.
◆ Use the +24 hours (yellow) and -24 hours (blue) buttons on
your remote control to move forward and backwards by 24
hours through the listings.
◆ To display the i-box (see page 7), press i.
◆ To remove the All Channels listing, press back or FOXTEL.
Searching by Category
If you know what type of programme you want to watch, you can
search by a category, such as Spor t.
◆ To choose a programme by category, press tv guide, highlight a
category then press select. The listings screen for that category
displays.
You use this screen in the same way as the All Channels screen.
Using your FOXTEL Digital set-top unit
Using your FOXTEL Digital Guide
Searching by Time
If you want to see a list of all the programmes showing at a particular
time, you can search by programme time.
◆ To choose a programme by time, press tv guide, highlight
‘Programmes By Time’ then press select.
The Programmes By Time screen displays.
FOXTEL DIGITAL GUIDE
◆ Highlight one of the categories listed, then press select.
The listings screen for that category displays, with the programmes
listed in the order they are showing.
◆
To move through the list of programmes, press U or D.
◆ On some screens you can choose to view by sub-category. Press
a colour button (shown at the bottom of the screen) to choose
the sub-category you want.
◆ Different sub-categories may be available. Press L or R to view
all the available sub-categories.
11
Using your FOXTEL Digital Guide
Choosing a programme to watch now or later
◆ When you see a programme you want to watch, highlight it then
press select.
If the programme is on now, your digital set-top unit tunes to it
immediately.
If the programme is on later, your digital set-top unit sets a reminder
for you and it is added to your Personal Planner (unless there is a clash
- see page 16). For more information about your Personal Planner, see
page 13.
Some programmes may be ‘FOXTEL Box Office’ programmes, which
means you need to order the programme before you can watch it. If
this is the case, you will see a message with the programme details and
purchase price. For more information see page 18.
If you choose a programme that is on a channel to which you do not
currently subscribe, a message will display to explain how you can
include the channel in your subscription.
12
Using your FOXTEL Digital set-top unit
Using your FOXTEL Digital Guide
Auto Tune
symbol
❖ Personal Planner
The Personal Planner lists all the programmes for which you have set
a reminder, and shows you a reminder when a selected programme is
about to start.
Whenever you set a reminder (by highlighting a future programme in
the i-search banner, TV Guide or Box Office), the reminder is
automatically added to your Personal Planner (unless there is a clash see page 16).
◆ To view the Personal Planner, press planner on your remote
control.
FOXTEL DIGITAL GUIDE
Your Personal Planner provides the following information about the
listed programmes:
◆ The name of the programme and the channel it is on;
◆ The start time (and day for programmes not on today);
◆ The classification code (if available);
◆ The ‘AutoTune’ symbol (see right), if AutoTune is selected (see
page 15).
You can display the i-box to see extra information about a highlighted
programme:
1. Press i to display the i-box.
2. To remove the i-box, press i again.
Note
The maximum number of reminders you can set is 50.
13
Using your FOXTEL Digital Guide
Watching a programme when you see its reminder
One minute before a programme listed in your Personal Planner is due
to start, your Personal Planner displays a reminder message on your TV
screen.
◆ To watch the programme, press select.
◆ To carry on watching the programme you are already watching,
without changing channel, press back.
If a programme’s start time is changed, your Personal Planner is
automatically updated, so that you still see the reminder when the
programme is about to start. However, if programme start time
changes by more than six hours, the programme will be removed from
your Personal Planner and you will need to set a new reminder.
Notes
In order for reminders to be displayed, your digital set-top unit must
be switched on and you must be watching FOXTEL.
You can change the settings for when the reminder displays and how
long it displays for (see page 28).
14
Using your FOXTEL Digital set-top unit
Using your FOXTEL Digital Guide
Auto Tune
symbol
Using AutoTune
AutoTune allows your digital set-top unit to change channel
automatically to programmes in your Personal Planner when they are
due to start.
◆ To select a programme for AutoTune, highlight the programme
in your Personal Planner then press the red button.
A letter ‘A’ (see right) appears next to the programme to show that it
is selected for AutoTune.
A reminder message appears one minute before the programme
starts. When this reminder appears you have the chance to cancel the
AutoTune if you wish, by pressing back.
If you do not press back, y our digital set-top unit automatically tunes
to the programme when it starts.
◆ If you wish to remove the AutoTune setting from a programme
in your Personal Planner, highlight the programme then press the
red button.
Notes
AutoTune may not be available for programmes such as Box Office
programmes.
If you have any Parental Control blocks or restrictions set up (see
page 23), make sure that the programme selected for AutoTune will
not be affected by the level of control you have set. If it is, you will
need to switch off your Parental Control blocks/restrictions in order
to allow AutoTune of the programme.
FOXTEL DIGITAL GUIDE
15
Using your FOXTEL Digital Guide
Programme clashes
If a programme you have selected for a reminder is on at the same time
as another reminder you have previously selected, a message will
appear asking you what you want to do.
◆ To keep both programmes in your Personal Planner, press
select.
◆ To cancel the programme you have just selected, but keep the
previously-set reminder, press back.
16
Deleting a programme from your Personal Planner
If you wish to remove a programme from your Personal Planner, you
can do so as follows:
1. Highlight the programme, then press the yellow colour button.
A message appears asking you to confirm the deletion.
2. Press select. (If you change your mind you can press back to
cancel the deletion and redisplay your Personal Planner.)
Using your FOXTEL Digital set-top unit
Using your FOXTEL Digital Guide
❖ FOXTEL Box Office
You can use your remote control to order movies, sports and events
through the FOXTEL Box Office.
◆ To look at the FOXTEL Box Office screen, press box office.
The FOXTEL Box Office listings are displayed as follows:
◆ Now Showing - movies on now or starting within the next
three hours.
◆ New Releases - the latest movies and programmes available
on FOXTEL Box Office.
◆ Sessions - movies and programmes showing over the next
seven days.
◆ Movies A - Z - movies listed in alphabetical order.
◆ FBO Preview - Trailers for some of the movies and
programmes currently available on FOXTEL Box Office.
◆ Sports & Events; Adult - Box Office programmes in these
categories.
FOXTEL DIGITAL GUIDE
Note
When you first use your digital set-top unit, you may not see the all of
the options described above.
The screen will soon be updated to the one shown.
17
Using your FOXTEL Digital Guide
Ordering a FOXTEL Box Office programme
You can order a FOXTEL Box Office programme as follows:
1. From the FOXTEL Box Office screen, choose a FOXTEL Box
Office listings screen, (highlight your choice then press select).
2. Use the arrows to highlight a programme, then press select.
Information about the FOXTEL Box Office programme you have
selected will then be displayed, including the star t time, channel and
purchase price.
3. If there is more than one start time available, use the arrows to
select the start time you want, then press select.
(If you wish to choose a different programme, press back to
view more choices, then choose a different programme and
press select.)
4. When you have decided on your programme and star t time, to
continue with the purchase, press select.
If you have used Parental Control (see page 23) to set viewing or
purchase restrictions, you may need to enter your PIN.
5. If you need to enter your PIN, use the number buttons to
enter it.
If the FOXTEL Box Office programme is about to star t, your digital settop unit tunes to it.
If the FOXTEL Box Office programme is at a later time, it is added to
your Personal Planner and a reminder will appear when it is about to
start.
If you do not tune to the FOXTEL Box Office programme during its
screening, you will not be charged for it.
Notes
18
As an alternative to using the Box Office listings, you can use the TV
Guide (see page 9) or i-search banner (see page 6) to choose a
FOXTEL Box Office programme. Press select to choose the
programme and then follow the instructions above starting from step
3.
To order FOXTEL Box Office programmes, your digital set-top unit
must be connected to your telephone line. This will have occurred as
part of your FOXTEL Digital installation process.
Using your FOXTEL Digital set-top unit
Using your FOXTEL Digital Guide
❖ Active
Active allows you to:
◆ play games;
◆ use interactive services, when these are available;
◆ display the Setup screens.
The Setup screens are described in the next section - see page 22.
Playing games
You can use your FOXTEL remote control to play games provided by
FOXTEL.
1. To play games, press active.
The Active screen displays.
FOXTEL DIGITAL GUIDE
2. Highlight ‘Games’, then press select.
3. Follow the on-screen instructions.
4. When you have finished playing games, press FOXTEL to
return to watching FOXTEL Digital.
19
Setup
❖ Using the Setup banner
You use the Setup banner to make temporar y changes to the way your
digital set-top unit works with your TV. Theses settings are:
◆ Programme Display - to set how programmes transmitted in
different formats display on your TV;
◆ Closed Captions; - to set whether you want these to appear
in your current viewing session;
◆ Languages - to change the preferred language for the current
programme, if more than one language is available.
You also use the Setup banner to display the System Setup screens (see
page 22), which allow you to make permanent changes to all your
digital set-top unit settings.
You use the Setup banner as follows:
1. From a digital TV programme, press setup on your remote
control.
The Setup banner displays.
20
1. Press U or D to highlight the item you want to change.
2. Press L or R to select the setting you want. The settings for the
Programme Display are explained on page 21.
3. Press FOXTEL to redisplay the TV picture, which is now using
the new setting(s).
Note
The changes you make on the Setup banner are temporary changes. If
you want to change the settings permanently, use the System Settings
screens (see page 29).
Using your FOXTEL Digital set-top unit
Setup
16:9 Programme Display
This setting controls how widescreen (16:9) programmes display on a
‘standard’ (4:3) TV. This item is only available if your TV Type is standard
(4:3) (see page 30).
Centre Cut The centre portion only of any widescreen (16:9)
14:9 You see a wider por tion of a widescreen (16:9)
Letter Box The whole of any widescreen transmissions will display,
4:3 Programme Display
This setting controls how ‘standard’ 4:3 programmes display on a
widescreen (16:9) TV. This item is only available if your TV Type is
widescreen (16:9) (see page 30).
Pillar Box The whole of the picture displays, as if it were on a
transmissions will display.
transmission than with ‘centre cut-out’, but you do not see
the entire picture. The picture does not fill the screen.
but black bars will appear at the top and bottom of the
screen.
SETUP
standard TV, with black bars at either side of the picture.
14:9 The picture displays slightly enlarged, so it fills more of the
screen, but is slightly cropped at the top and bottom.
Note: some programmes are transmitted in a 14:9 format,
with black borders included at the top and bottom. In this
case, only the transmitted borders are cropped so you do
not lose any of the TV picture.
Stretch The whole of the picture displays, stretched sideways to fill
your TV screen.
Note
When you first use your digital set-top unit, you may not see the
Setup banner straight away. Instead, you may see a different screen,
which is a combination of the Setup banner and the Setup screen (see
page 22). However, you use the items available on this screen in the
same way as described here.
The Setup banner and screen will soon be updated to those
described in this User Guide.
21
Setup
❖ Using the Setup screens
You use the Setup screens to:
◆ change your Parental Control settings, to restrict the viewing
and/or purchase of certain programmes, channels and Box
Office programmes;
◆ change your Personal Planner settings;
◆ look at on-screen help on using your FOXTEL service;
◆ change or view the System Settings.
You can display the Setup screens as follows:
1. From a digital TV programme, press setup on your remote
control.
The Setup banner displays, (see page 20).
2. Highlight ‘System Setup’ then press select.
The Setup screen is displayed.
22
Using your FOXTEL Digital set-top unit
Setup
❖ Changing your Parental Control settings
You use the Parental Control screens to:
◆ block channels;
◆ set viewing restrictions by classification category;
◆ set purchase restrictions, to control whether the PIN is needed
to purchase Box Office programmes;
◆ change your PIN.
Using your PIN
To use the Parental Control screens, you must enter your four-digit
PIN.
When you first use your digital set-top unit, your PIN is ‘1234’. In order
to make your PIN secret, you should change it to a different number
that you find easy to remember (see page 27).
Remember to keep your PIN secret.
Displaying the Parental control screen
You change your Parental Control settings as follows:
1. On the Setup screen, highlight ‘Parental Control’ and then press
select.
2. Use the number buttons to enter your PIN.
If you enter the correct PIN, the Parental Control screen displays.
SETUP
The items on this screen are explained on the following pages.
23
Setup
Blocking Channels
The Blocked Channels screen lets you block certain channels.
Whenever you are watching FOXTEL Digital, in order to a view a
blocked channel, you must enter your PIN.
1. From the Parental Control screen, highlight ‘Blocked Channels’,
The Blocked Channels screen displays.
then press select.
24
◆ A ✔ symbol next to the channel name indicates that the channel
is not blocked.
◆ A symbol next to the channel name indicates that it is
blocked.
2. From the list of channels, use U or D to highlight a channel you
want to block or unblock, then press L or R to select the
setting you want.
3. Repeat step 2 to block or unblock all the channels you want.
4. You can also unblock all the channels at once by pressing the
yellow button.
5. When you have finished selecting channels to block or unblock,
press back.
Using your FOXTEL Digital set-top unit
Setup
Setting Viewing Restrictions
The Viewing Restrictions screen lets you select the classification
categories you want to restrict, so that those who do not know your
PIN cannot watch programmes broadcast at a restricted classification.
1. From the Parental Control screen, highlight ‘Viewing
The Viewing Restrictions screen displays.
Restrictions’, then press select.
SETUP
The classification categories you can restrict are explained below:
R For adult viewers aged 18 and over.
AV For adult viewers only - violent content.
MA For viewers aged 15 or over - children under 15
are not permitted to watch MA programmes
unless in the company of a parent or adult
guardian.
M Recommended for viewers aged 15 years or over.
PG Parental guidance is recommended as to the
suitability of the film for children under 15.
◆ A ✔ symbol next to the classification category indicates that it is
not restricted.
◆ A symbol next to the classification category indicates that it
is restricted.
If you restrict a classification category, this means that whenever a
programme is broadcast with that classification, you must enter your
PIN before you can watch it.
When you restrict a classification category, all the classification
categories above it are automatically restricted.
25
Setup
2. To restrict a classification categor y, use U and D to highlight it,
3. Repeat step 2 to make all the changes you want.
4. To save your changes, highlight ‘Save New Settings’ then press
Notes
If you press the red button to reset all the settings, the settings will
change to the standard settings.
The standard setting is that any programme broadcast with the ‘R’
classification will be restricted, but you can remove this restriction if
you wish by following the steps above.
Viewing restrictions work only if the broadcaster provides
classification category information. FOXTEL is not responsible for
channels providing incorrect classification information.
Setting Purchase Restrictions
The Purchase Restrictions screen lets you choose whether or not you
need to enter your PIN to purchase a programme.
1. From the Parental Control screen, highlight ‘Purchase
The Purchase Restrictions screen displays.
then press L or R to select the symbol. To remove the
restriction, press L or R to select the ✔ symbol.
select, or to cancel, press back.
Restrictions’ then press select.
26
2. On the ‘Purchase by PIN’ item, press L or R to select the
setting you want - ‘On’ or ‘Off ’.
If you select ‘On’, you must enter your PIN to purchase a programme.
3. To save your changes, highlight ‘Save New Settings’ then press
select, or to cancel, press back.
Using your FOXTEL Digital set-top unit
Setup
Changing your PIN
You can change the PIN code to a secret four-digit number which you
find easy to remember.
1. From the Parental Control screen, highlight ‘Change PIN’ then
The New Pin screen displays.
press select.
SETUP
(While the New Pin screen is displayed, if you change your mind
and do not wish to change your PIN, press back to cancel your
changes.)
2. Use the number buttons to enter a new 4-digit PIN of your
choice. If you make a mistake, you can press L to delete a digit.
The New Pin screen displays again.
3. Enter your new 4-digit PIN again.
A message displays to confirm you have changed your PIN.
If you need further assistance with changing your PIN, call FOXTEL on
131999.
27
Setup
❖ Changing your Personal Planner settings
You use this screen to change the display of your reminders for
programmes in your Personal Planner (see page 13). There are two
settings:
◆ Reminder Advanced Time - the length of time before a
programme starts that its reminder appears; and
◆ Reminder Timeout - how long the reminder displays for.
You can change your Personal Planner settings as follows:
1. On the Setup screen, highlight ‘Personal Planner Settings’ and
then press select.
28
2. Use U or D to highlight the item you want to change.
3. Use L or R to select the setting you want: 30, 60 or 90
seconds.
4. To confirm any changes, highlight ‘Save New Settings’ then press
select, or to cancel, press back.
Using your FOXTEL Digital set-top unit
Setup
❖ Using the System Settings
You shouldn’t normally need to change your System Settings as your
digital set-top unit should have been correctly set up when it was
installed.
However, the System Settings screens can be useful if, for example,
you buy a new TV and you want to make sure your digital set-top unit
makes the best use of the new TV’s features.
1. To use the System Settings screens, press setup on your
remote control.
2. Highlight ‘System Setup’, then press select.
3. Highlight ‘System Settings’, then press select.
The System Settings screen displays on your TV.
SETUP
4. To display one of the Settings screens, highlight it and press
select.
The details of each screen are described in the following sections:
29
Setup
Picture Settings
The standard (default) setting for each item is marked with *.
To confirm any changes, highlight ‘Save New Settings’ then press
select, or to cancel, press back.
If you press the ‘Reset all settings’ (red) button, the settings will change
to the standard settings (NOT the settings made by your installer).
Item Settings Comments
Aspect ratio control By TV,
TV Type
(Only available if the
Aspect ratio control has
been set to ‘By STU’.)
16:9 Programme
Display
(Setting for how
widescreen (16:9)
programmes display on
a standard (4:3) TV only available if the TV
Type has been set to
4:3)
4:3 Programme
Display
(Setting for how
standard (4:3)
programmes display on
a widescreen (16:9) TV
- only available if the TV
Type has been set to
16:9)
By STU *
4:3 * Setting for ‘standard’ (4:3) TVs.
16:9 Setting for ‘widescreen’ (16:9) TVs.
Centre Cut * The centre portion only of any widescreen (16:9) transmissions will
14:9 You see a wider por tion of a widescreen (16:9) transmission than with
Letter Box The whole of any widescreen transmissions will display on a standard
Pillar Box * The whole of the picture displays, as if it were on a standard TV, with
14:9 The picture displays slightly enlarged, so it fills more of the screen, but is
Stretch The whole of the picture displays, stretched sideways to fill your TV
For most TVs you should set this to ‘By STU’ (by set-top unit), then
select your TV Type and Programme Display preference.
‘By TV’ allows your TV to control how the picture is displayed, provided
that your TV is capable of controlling the picture, and that your digital
set-top unit is connected to your TV via a SCART to SCART lead.
display on a standard (4:3) TV.
‘centre cut-out’, but you do not see the entire picture. The picture does
not fill the screen.
(4:3) TV, but the picture does not fill the screen.
black bars at either side of the picture.
slightly cropped at the top and bottom. Note: some programmes are
transmitted in a 14:9 format, with black borders included at the top and
bottom. In this case, only the transmitted borders are cropped so you
do not lose any of the TV picture.
screen.
Video output PAL* If your system is connected via RF leads, you should select this setting.
RGB If your system is connected via SCART to SCART leads, you should
S-Video For improved picture quality to S-Video equipment, such as a video
Banner timeout 1 sec, 5 secs*,
10 secs
Closed Captions On, Off * Select whether or not you want Closed Captions to be displayed when
30
select this setting for a better quality picture.
recorder, you may wish to select this setting.
Select your preferred setting for the length of time that the i-search
banner displays on-screen when you change channel.
they are available.
Using your FOXTEL Digital set-top unit
Setup
Audio and Language Settings
The standard (default) setting for each item is marked with *.
To confirm any changes, highlight ‘Save New Settings’ then press
select, or to cancel, press back.
If you press the ‘Reset all settings’ (red) button, the settings will change
to the standard settings (NOT the settings made by your installer).
Item Settings Comments
Audio output Stereo *, Mono Controls the audio output on the SCART lead.
Background music On *, Off Controls whether or not music will play while
you look at your FOXTEL Digital Guide.
Incorrect PIN signal On *, Off Controls whether or not a ‘beep’ noise will
sound if you enter an incorrect PIN.
SPDIF Output AC3 *, MPEG Controls the digital-optical audio output on the
combined audio connector. Select AC3 if your
equipment has Dolby Digital decoding
capabilities. Note - Dolby Digital is only available
on some programmes. If Dolby Digital is not
available, the digital-optical audio output will be
MPEG.
Preferred Language – Choose your preferred language for
programmes or channels where more than one
language is available
System Details
To see details of your digital set-top unit, including your digital set-top
unit model number, manufacturer and your FOXTEL Smartcard
number.
Signal Test
To see the quality of the signal your digital set-top unit is receiving from
the satellite or cable input.
System Test
To check that your digital set-top unit is properly connected to your
telephone line.
SETUP
31
Extra information
❖ Recording a digital programme
If you have a video recorder you can use it to record digital
programmes from your digital set-top unit.
1. Make sure your digital set-top unit is switched on and tuned to
the channel you wish to record.
You can also set reminders and use AutoTune (see page 15) to
set your digital set-top unit to change channel automatically to
the digital programme(s) you want to record.
2. Set your video recorder correctly to record at the appropriate
time(s), making sure that your video recorder is set to record its
FOXTEL channel, or if your digital set-top unit is connected to
your video recorder via a SCART lead, making sure your video
recorder is set to record its appropriate AV channel.
For further information about your video recorder, refer to your video
recorder’s User Guide.
Notes
You cannot watch one FOXTEL channel while you record a different
FOXTEL channel. If you use your FOXTEL remote control to change
channel while you are recording, your video recorder will record the
channel change.
Your video recorder must be correctly connected to your digital settop unit.
Some programmes are copy-protected and may not play back
correctly if you record them.
32
Using AV mode to watch a video recording
You use the ‘AV mode' to pass through the video from the video
recorder to the TV and display it on the TV screen, allowing you to
watch a video with a single button press.
1. To use ‘AV mode, press av on your FOXTEL remote control.
2. To return to viewing FOXTEL, press FOXTEL.
Note
To use AV mode, your digital set-top unit must be connected to your
TV and video recorder via SCART to SCART leads.
Using your FOXTEL Digital set-top unit
Extra information
❖ Looking after your FOXTEL Smartcard
✘ Do not remove and re-insert your FOXTEL Smartcard
unnecessarily.
✘ Do not bend your FOXTEL Smar tcard.
✘ Do not put your FOXTEL Smar tcard in liquids or use cleaning
fluids on it.
✔ Keep your FOXTEL Smar tcard away from children and pets.
✔ Always use your FOXTEL Smartcard in your FOXTEL Digital
set-top unit. It will not work in any other digital set-top unit.
EXTRA INFORMATION
33
Extra information
low-battery
symbol
❖
Replacing the batteries in your remote control
When the batteries in your remote control are running low, the
following message will appear on your TV screen.
To remove the message, press back, then make sure you replace the
batteries as soon as possible. You may also see a ‘low battery’ symbol
in the i-search banner (see right).
To replace the batteries, insert two AA batteries as follows:
1. Push the catch at the bottom of the remote control battery
cover up, then lift off the cover.
2. Remove the old batteries.
3. Insert the new batteries. Be sure to match the + and – marks on
the batteries to their respective marks inside the batter y
compartment.
4. Replace the battery cover, by inserting the tabs at the top of the
cover first, then pushing the cover into place.
✘ Don’t leave flat batteries in your remote control.
✔ Replace both batteries at the same time.
✔ Dispose of flat batteries in an environmentally-friendly way.
34
Using your FOXTEL Digital set-top unit
Your FOXTEL Digital set-top unit
❖ Front panel
smartcard slot
To insert your
FOXTEL Smartcard
remote control sensor
Window that receives the
signal from your remote
control (do not block)
smartcard
standby light
Lights up red when your digital set-top
unit is in standby
Lights up green when your digital set-
top unit is out of standby (switched on)
Lights up orange if your digital set-top
unit is on but is not receiving a signal
ir receive light
Flashes red when your digital set-top
unit receives a signal from your remote
control
message light
Lights up yellow when there is a
message waiting.
Flashes yellow when it is an important
message
online light
Lights up green when your digital
set-top unit is online (using your
telephone line)
Flashes when your digital set-top unit is
sending or receiving information
standby
ir receive
S button
To switch your digital
set-top unit into or
out of standby
message
online
back button
To remove a screen and go back
to the previous screen
L, R, U and D buttons
While you are looking at
screens - to move the
highlight and change what is
displayed on screen
While you are watching TV -
U and D change the channel
select button
To confirm a choice or make
a selection
tv guide button
To display the TV
guide
tv guide
back
select
ok
DIGITAL SET-TOP UNIT
35
Your FOXTEL Digital set-top unit
❖ Rear and side view
An example of how your digital set-top unit may be connected up is
shown on page 37.
Phono (RCA) connector
To connect to the ‘video in’ phono
connector on your TV, video
recorder or home cinema
power in
To connect to the power supply
Always disconnect the plug from
power supply before you remove
the power connector from
your digital set-top unit
telephone line in
To connect the telephone lead
TV SCART
To connect to your TV
(usually via a FOXTEL supplied
lead, for example SCART to
SCART or SCART to phono)
Video recorder SCART
To connect to your video
recorder (usually via a FOXTEL
supplied lead, for example
SCART to SCART or SCART to
phono)
signal in
To connect the
satellite or cable
signal input
USB connector
For future use
RS232 connector
For future use
Opening for leads
to the side panel
36
To connect the lead
from your TV aerial
3.5 mm combined digital-optical and
analogue-stereo audio connector
To connect to either a digital-optical or an analoguestereo audio input on your home cinema, TV, video
recorder or stereo sound equipment
You can use this dual-purpose connector to connect
to various audio inputs - please consult your electrical
retailer for more details of the leads available
Using your FOXTEL Digital set-top unit
Aerial in
TV (RF) out
To connect an RF lead
to your TV (or video
recorder)
Your FOXTEL Digital set-top unit
❖ Connections to your digital set-top unit
The diagram below shows how your digital set-top unit may be
connected up. Other connection set-ups are possible.
The dotted lines show alternative connections, for example if you want
to connect to a home cinema.
TV
Mains lead
Telephone lead
WARNINGS
Always disconnect your digital set-top unit from the power supply
before you connect it to (or disconnect it from) any other equipment.
The only way to disconnect your digital set-top unit from the power supply
is to remove the power lead. Your digital set-top unit must therefore be
installed near to the power point, which should be easily accessible.
The supplied power lead has a 2-way connector at one end and a
plug at the other. You should always insert the 2-way connector into
your digital set-top unit before you insert the plug into the power
supply.
Do not connect the plug to the power supply until you have made
ALL the other connections.
Your digital set-top unit operates with a 240 V AC, 50Hz power supply.
Do not connect it to a DC power supply.
If you are in any doubt about the power lead, its plug or its connection,
consult a qualified electrician.
Phono
lead
SCART lead
Digital-optical or
stereo-analogue
audio lead
RF lead
Home cinema or stereo
Video recorder
SCART lead
sound equipment
RF lead
Lead from
your satellite
or cable
signal input
RF lead
Te r restrial
TV aerial
DIGITAL SET-TOP UNIT
37
Solving problems
❖ Using Help
For more information on using your FOXTEL Digital set-top unit, you can use the on-screen Help.
1. To display the on-screen Help, press help.
2. Use the arrows on your remote control to select what you want to look at, then press
select.
3. When you have finished looking at the Help, press FOXTEL.
38
Using your FOXTEL Digital set-top unit
Solving problems
❖ On-screen messages
If one of the following messages appears on your TV screen, make a note of the number that
appears with the message (for example, F01). If you need to call your service provider (e.g.
FOXTEL or TELSTRA) for assistance, please have the number handy so they can help you as
quickly as possible.
Problem Possible cause Suggested solution
Please insert your
Smartcard.
There is a Smartcard
error. Please ensure
your FOXTEL
Smartcard is correctly
inserted. Call 131999
for assistance.
Insert your new
FOXTEL Smartcard.
Call your service
provider for
assistance.
This Smartcard is not
authorised. Please call
your service provider
for assistance.
There is a Smartcard
error. Please call your
service provider for
assistance.
There is no FOXTEL
Smartcard in the
Smartcard slot in your
digital set-top unit.
Your digital set-top
unit cannot recognise
your FOXTEL
Smartcard.
Your old FOXTEL
Smartcard is no longer
valid.
Your FOXTEL
Smartcard is not
authorised.
Your FOXTEL
Smartcard has
developed a problem.
Insert your FOXTEL Smar tcard into the Smartcard
slot.
Check it is the correct FOXTEL Smartcard. Check
it is in the right way up. Check that your card is not
damaged.
If the problem continues, call FOXTEL on 131999
for assistance.
You should have received a new FOXTEL
Smartcard through the post.
Remove your old FOXTEL Smartcard and insert
your new FOXTEL Smar tcard.
Call your service provider’s telephone number to
get your FOXTEL Smar tcard authorised.
Check it is the correct FOXTEL Smartcard.
Check it is in the right way up.
Check that your card is not damaged.
If the problem continues, call FOXTEL on 131999.
There is a problem
with your FOXTEL
Smartcard. Please call
your service provider
for assistance.
This is the wrong
Smartcard for this
box. Please insert the
correct FOXTEL
Smartcard. Call your
service provider for
assistance.
Your FOXTEL
Smartcard has
developed a problem.
You have more than
one digital set-top unit
and have put the
wrong FOXTEL
Smartcard in this
digital set-top unit.
Please call FOXTEL on 131999 for assistance.
Insert the right FOXTEL Smartcard for this digital
set-top unit.
If the problem continues, call FOXTEL on 131999.
SOLVING PROBLEMS
39
Solving problems
Problem Possible cause Suggested solution
The current
Smartcard is not a
FOXTEL card. Insert
your FOXTEL
Smartcard. Call your
service provider for
assistance.
This programme is not
available.
This programme will
not be available until...
You cannot purchase
this programme at the
moment.
You cannot purchase
this programme.
Your entitlement for
this programme has
not yet arrived. Please
wait or re-select later.
You have put the
wrong Smartcard in
your FOXTEL Digital
set-top unit.
This programme is not
currently available.
The programme will
not be available until
the date and time
shown on the screen.
You cannot buy this
programme now.
A problem occurred
while you were trying
to purchase the
programme.
Your authorisation
may take a few
minutes to arrive.
Insert the right FOXTEL Smartcard for this digital
set-top unit.
If the problem continues, call FOXTEL on 131999.
You will not be able to watch this programme.
If the problem continues, call your service provider.
Please try again at the time shown.
You may be able to buy it later.
Please call your service provider for assistance.
Wait a minute or two then try again. If the problem
continues, call your service provider.
This programme has
already started. Please
check the TV Guide
for the next showing
There is insufficient
credit left on your
Smartcard.
There is insufficient
space left on your
Smartcard. Call your
service provider for
assistance.
40
The programme has
already started.
There is not enough
credit left on your
FOXTEL Smartcard to
buy this programme.
There is not enough
capacity on your
FOXTEL Smartcard to
store the information
for this programme.
Check the listings to find out when it is next on.
Call your service provider so you can order this
programme.
Call your service provider so you can order this
programme.
Using your FOXTEL Digital set-top unit
Solving problems
Problem Possible cause Suggested solution
Initialising new
FOXTEL smartcard.
Please wait.
Authorising new
FOXTEL Smartcard.
Please wait.
Failed authorisation.
Please call your service
provider for
assistance.
To receive this
channel please call
131999 to upgrade
your subscription.
You cannot purchase
this programme.
Please call 131999
for assistance.
You have only just
inserted your new
FOXTEL Smartcard
into your digital settop unit and your
service provider is still
checking your card.
You have only just
inserted your new
FOXTEL Smartcard
into your digital settop unit and your
service provider is still
authorising your card.
There is a problem
with your FOXTEL
Smartcard.
The programme or
channel is not included
in your subscription.
You cannot buy this
programme with your
remote control.
Initialisation and authorisation may take up to 5
minutes. Please wait. If the problem continues, call
FOXTEL on 131999.
Initialisation and authorisation may take up to 5
minutes. Please wait. If the problem continues, call
FOXTEL on 131999.
Please call your service provider.
Please call your service provider to upgrade your
subscription.
Please call your service provider for assistance
purchasing this programme.
Ensure that an
operating telephone
line is connected.
Press select to
continue or press back
to cancel
The batteries in your
remote need
changing. Insert new
batteries within 10
minutes of removing
the old set.
Your digital set-top
unit is not connected
to an operating
telephone line.
The batteries in your
remote control are
low and need
replacing.
Check that the telephone lead between your digital
set-top unit and the telephone point is properly
plugged in. Always switch your digital set-top unit
off at the power supply before plugging or
unplugging any other equipment.
Replace the batteries in your remote control as
soon as possible.
SOLVING PROBLEMS
41
Solving problems
❖ General problems
* Before you check connections between your equipment, make sure you disconnect all your equipment from
the power supply. When you have finished checking and making connections, safely reconnect all the equipment
to the power supply (see page 37).
Problem Possible cause Suggested solution
Your digital set-top
unit doesn’t seem to
be working, and
there are no lights on
the front panel.
Your digital set-top
unit doesn’t seem to
be working, and the
front-panel standby
light is red.
Your digital set-top
unit doesn’t seem to
be working, and the
front-panel standby
light is green.
Your digital set-top
unit is not receiving
power.
Your digital set-top
unit is in standby.
Your digital set-top
unit is not correctly
connected to your
other equipment, or
your other equipment
is not correctly set up.
Your TV is not
switched to show
digital channels.
Make sure that the power lead is properly plugged
in and that the power supply is switched on.
Check that the power point has power (try plugging
in a lamp).
Press S on the front panel, or FOXTEL on your
remote control.
Check that all the connections are properly made.*
Check that your TV is plugged into the power
supply and that it is switched on.
If you are using video recorder loopthrough, check
that your video recorder is plugged into the power
supply and in the correct state (switched off or on)
for video recorder loopthrough to work (check
your video recorder’s User Guide).
If your digital set-top unit is connected to your TV
via a SCART lead or phono lead, try selecting the
appropriate AV channel on your TV.
If your digital set-top unit is connected to your TV
via an RF lead only, try selecting the appropriate
‘channel for digital TV’. If you do not have a ‘channel
for digital TV’, contact your FOXTEL provider for
advice.
Your digital set-top
unit doesn’t seem to
be working, and the
front-panel standby
light is orange.
42
There is a problem
with the signal.
Check that the satellite/cable lead is correctly
connected to your digital set-top unit.*
Check that nothing is blocking your satellite dish (if
you have one), for example a tree or high building.
There may be a temporary problem with the
reception, caused, for example, by bad weather; try
again later. If the problem continues, contact your
FOXTEL provider.
Using your FOXTEL Digital set-top unit
Solving problems
Problem Possible cause Suggested solution
Your remote control
isn’t working.
You’ve forgotten
your PIN.
You can’t use your
FOXTEL remote
control to change
channel.
You are having
difficulties using a
FOXTEL interactive
feature, such as
Active or Box Office.
Something is between
the remote control
and your digital set-top
unit.
The batteries are flat
or inserted the wrong
way round.
Your digital set-top
unit may be in ‘av
mode’ (see page 32).
There may be a
problem with your
telephone line.
Make sure you point your remote control directly at
your digital set-top unit and that nothing is between
it and your digital set-top unit. The ir receive light
on your digital set-top unit’s front panel should flash
each time you press a remote control button.
Check the batteries and replace them if necessary.
Call your FOXTEL provider for advice.
If you want to watch digital TV, press FOXTEL on
your remote control to put your digital set-top unit
Check that the telephone lead between your digital
set-top unit and the telephone point is properly
plugged in. (Always switch your digital set-top unit
off at the power supply before plugging or
unplugging any other equipment.)
Check that the telephone line is working by picking
up your telephone and listening for the tone.
43
SOLVING PROBLEMS
Specification
Due to continued product improvement, this specification may change without notice.
General
Operating voltage: 240V AC ± 15%; 50Hz
Power consumption: Cable set-top unit - 15 W (max.);
Weight: 1.35kg
Dimensions (W x H x D): 295mm x 41 mm x 235mm
UHF modulator: CCIR PAL System B;
Operating temperature range: 0°C to +40°C
Storage temperature range: –20°C to +60°C
Rear and side panel connectors
MAINS INPUT: IEC 320 2-pin reversible
TELEPHONE LINE: RJ11
USB: Single USB (1.1) Type A
RS232: Serial connector 9-way D type
Satellite set-top unit - 25 W (max.)
Ch 21 to 69 (factory setting is 41)
VIDEO OUT: Phono (RCA) composite video out
TV SCART: SCART (composite video out; RGB out; S-Video out)
COMBINED AUDIO OUT: 3.5mm connector ; combined analogue-stereo
and mini digital-optical audio output
VIDEO RECORDER SCART: SCART (composite video out; S-Video out)
AERIAL IN: IEC 169-2 female
RF OUT: IEC 169-2 male
CABLE/SATELLITE SIGNAL IN: IEC 169-24 F-type female
The product complies with the following safety standards:
The EMC (Electro-Magnetic Compatibility) specification of the product is as follows:
The product complies with the following Telecoms standard:
FOXTEL Terms and Conditions are available on the FOXTEL website at www.foxtel.tv
You can also obtain a copy by calling 131999.
- AS/NZS 60950
- AS/NZS 60065
- AS/NZS CISPR 13
- AS/NZS CISPR 22
- AS/ACIF S002
44
Using your FOXTEL Digital set-top unit
Glossary
4:3 The standard shape of TVs and programme transmissions.
14:9 A display option for TV programmes. It is slightly wider than 4:3 but not as
16:9 The widescreen shape of TVs and programme transmissions. The
Standard - 4:3 programme on a 4:3 TV
wide as 16:9.
14:9 programme on a 4:3 TV 14:9 programme on a 16:9 TV
Widescreen symbol (see right) displays on the i-search banner when
a programme is transmitted in a widescreen format.
Widescreen - 16:9 programme on a 16:9 TV
AC3 Enhanced Dolby Digital sound. If you have used a digital-optical lead to
connect your set-top unit to audio equipment with Dolby Digital decoding
capabilities, you can select this option for enhanced sound. (see page 31)
Closed Captions A transcription of the audio soundtrack displayed on-screen. You can
turn Closed Captions ‘On’ or ‘Off ’ (see page 30). The Closed
Captions symbol (see right) displays on the i-search banner when
Closed Captions are available.
i-box An information box which gives extra information about a programme listed
in the i-search banner, TV Guide, FOXTEL Box Office or Personal Planner.
i-search banner The channel and programme information banner that displays when you
change channel or press select while you are watching FOXTEL Digital.
Letterbox A description of how widescreen (16:9) programmes display on a standard
(4:3) TV.
The whole of the widescreen transmission displays, but black bars will
appear at the top and bottom of the screen.
Letterbox - 16:9 programme on a 4:3 TV
MPEG Standard digital-optical audio from your set-top unit’s combined audio
connector.
GLOSSARY
45
Glossary
Pillarbox A description of how standard (4:3) programmes display on a widescreen
PIN Personal Identification Number used to restrict access to certain areas of
RF lead The type of lead you use to connect your
SCART lead The type of lead you use to connect your
S/P-DIF ‘Sony/Philips Digital Interface’ - the optical-digital audio connection that is the
STU An abbreviation for set-top unit.
Subtitles Text on your TV screen that is a transcript or translation of the
(16:9) TV.
The whole of the picture displays, as if it were on a standard TV, with black
bars at either side of the picture.
Pillarbox - 4:3 programme on a 16:9 TV
your FOXTEL service.
equipment via the RF connectors (see the
diagram, right).
equipment via the SCART connectors (see
the diagram, right).
digital element of your set-top unit’s combined audio connector.
programme’s audio soundtrack., usually used for foreign-language
programmes. The Subtitles symbol (see right) displays on the i-search
banner when subtitles are available. Subtitles appear automatically. You
cannot choose whether they appear or not.
46
Using your FOXTEL Digital set-top unit
Notes
47
Notes
48
Using your FOXTEL Digital set-top unit
Loading...
