FOXCONN T77H121050 Users Manual

Notebook

User's Manual

Disclaimer:

This manual is the intellectual property of our company. However, we reserve the

right to change product speciﬁcations without notice. Information in this document

may change without notice. And our company assumes no liability for damages

incurred directly or indirectly from errors, omissions or discrepancies between the

computer and the manual.

Trademark:

All trademarks are the property of their respective owners.

Version:

User’s Manual V1.1 for Notebook.

P/N: 3A22xxx00-000-G

Symbol description:

Indicating a potential risk of hardware damage or physical injury may exist, and

tells you how to avoid problems.

Refers tips and additional information that can help you to use product better.

WEEE:

The use of this symbol indicates that this product may not be treated as household

waste. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could other-

wise be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local city ofﬁce, your

household waste disposal service or the shop where you purchased this product.

All trade names are registered trademarks of respective manufacturers listed.

All images are for reference only, please refer to the physical product for speciﬁc features.

Safety Precautions

The following safety precautions will increase the life of the Notebook. Please follow

allprecautions and instructions. Except as described in the manual, refer all servicing

to qualiﬁed personal.

■ Do not place on uneven or unstable work surfaces. Seek servicing if the casing

has been damaged.

■ Do not expose to dirty or dusty environment. And Do not operate during a gas

leak.

■ Do not leave the Notebook on your lap or any part of the body to prevent dis-

comfort or injury from heat exposure.

■ Do not press or touch the display screen. Do not place together with small items

that may scratch or enter the Notebook.

■ The Notebook should only be used in environment with ambient temperature

between 0

■ Do not place or drop objects on top.

■ Do not expose to or use near liquidscrainscmoisture or strong magnetic or

electrical ﬁelds.

■ Do not carry or cover a Notebook that is powered on with any materials that will

reduce air circulation such as a carrying bag.

■ Do not throw the Notebook in municipal waste. Check local regulations for dis-

posal of electronic products.

■ Wipe the Notebook using a clean cellulose sponge or chamois cloth dampened

with a solution of nonabrasive detergent and a few drops of warm water and

remove any extra moisture with a dry cloth.

■ Risk of explosion if battery is replaced by an incorrect type. Dispose of used bat-

teries according to the instructions.

■ Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a ﬁre. They may explode. Check with local codes for possible

special disposal instructions.

C(32oF) and 40oC(104oF).

FCC Regulations:

■ This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

■ This device has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiated radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modiﬁcations not expressly approved by the party responsible for

compliance could void the user‘s authority to operate the equipment.

■ The antenna(s) used for this transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

RF Exposure Information (SAR)

This device meets the government’s requirements for exposure to radio waves.

This device is designed and manufactured not to exceed the emission limits for

exposure to radio frequency (RF) energy set by the Federal Communications

Commission of the U.S. Government.

The exposure standard for wireless devices employs a unit of measurement known

as the Speciﬁc Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.

*Tests for SAR are conducted using standard operating positions accepted by the FCC

with the device transmitting at its highest certiﬁed power level in all tested frequency

bands. Although the SAR is determined at the highest certiﬁed power level, the actual

SAR level of the device while operating can be well below the maximum value. This is

because the device is designed to operate at multiple power levels so as to use only

the poser required to reach the network. In general, the closer you are to a wireless

base station antenna, the lower the power output.

The highest SAR value for the device as reported to the FCC when tested for worn

on the body, as described in this user guide, is 0.011 W/kg for WLAN Body SAR.

(Body-worn measurements differ among device models, depending upon available

accessories and FCC requirements.)

While there may be differences between the SAR levels of various devices and at

various positions, they all meet the government requirement.

The FCC has granted an Equipment Authorization for this device with all reported

SAR levels evaluated as in compliance with the FCC RF exposure guidelines.

SAR information on this device is on ﬁle with the FCC and can be found under the

Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: WXC-

T77H121050.

This Transmitter has been demonstrated co-location compliance requirements

with Bluetooth transmitter. This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter. This equipment complies with FCC

RF radiation exposure limits set forth for an uncontrolled environment. This device was

tested for typical laptop operations with the device contacted directly to the human

body to the back side of the notebook computer. To maintain compliance with FCC RF

exposure compliance requirements, avoid direct contact to the transmitting antenna

during transmitting.

WiFi Speciﬁcation

Wireless LAN Standards IEEE 802.11g standard and EWC draft standard

Operating Frequency 2.400 – 2.497 GHz

802.11g: 54Mbps with fall back of 36, 48, 24, 18, 12, 9, 6Mbps.

802.11b: 11g with fall back rates of 11, 5.5, 2, and 1Mbps

WLAN Data Rate

Transmitter Output Power

802.11n: EWC: HT40:135Mbps with fall back of 121.5, 108, 81,54,

40.5,27, 13.5 HT20:65Mbps with fall back of

58.5,52,39,26,19.5,13,6.5

802.11b 17dBm+/-2 dBm for all data rate

802.11g 6-24Mbps:+17dBm+/-2dB 36Mbps:+17dBm+/-2dB 48Mbps:+17dBm+/-2dB

54Mbps:+16dBm+/-2dB

802.11n HT20 2GHz MCS 0: 17dBm+/-2dB MCS 1: 17dBm+/-2dB MCS 2: 17dBm+/-2dB MCS 3: 17dBm+/-2dB MCS 4: 17dBm+/-2dB MCS 5: 17dBm+/-2dB MCS 6: 16dBm+/-2dB

MCS 7: 15dBm+/-2dB

802.11n HT40 2GHz MCS 0: 14dBm+/-2dB MCS 1: 14dBm+/-2dB MCS 2: 14dBm+/-2dB MCS 3: 14dBm+/-2dB MCS 4: 14dBm+/-2dB MCS 5: 14dBm+/-2dB MCS 6: 13dBm+/-2dB MCS 7: 12dBm+/-2dB

802.11g: 64QAM (54Mbps, 48Mbps), 16QAM (36Mbps, 24Mbps), QPSK (18Mbps, 12Mbps), BPSK (9Mbps, 6Mbps)

Modulation Schemes

802.11b: CCK (11 Mbps, 5.5Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) EWC: 64QAM(MCS5, MCS6, MCS7) 16QAM(MCS3, MCS4) QPSK(MCS1,MCS2) BPSK(MCS0)

Bluetooth Speciﬁcation

Radio Technology FHSS

Operating Frequency 2.402GHz ~ 2.480GHz

Channel Numbers 79 channels with 1MHz BW

Transmitter Output Power -6~4dBm output power for BT class 2 operation

Coverage 10m (Varies depending on operating environment)

Receiver Sensitivity -75dBm, BER<0.1%

Maximum Receiver Signal -10dBm

Operating Voltage 3.3V+/-0.3V

Operating temp: 0 °C to +70 °C (+32 °F to +158 °F)

Working Temperature

Interface USB2.0 with 8 pin narrow pitch connector

Non-operating temp: -10 °C to +75°C (+14 °F to

+167 °F)

Table of Contents

Chapter 1 Introduction to Your Notebook

External Appearance .................................................................................... 2

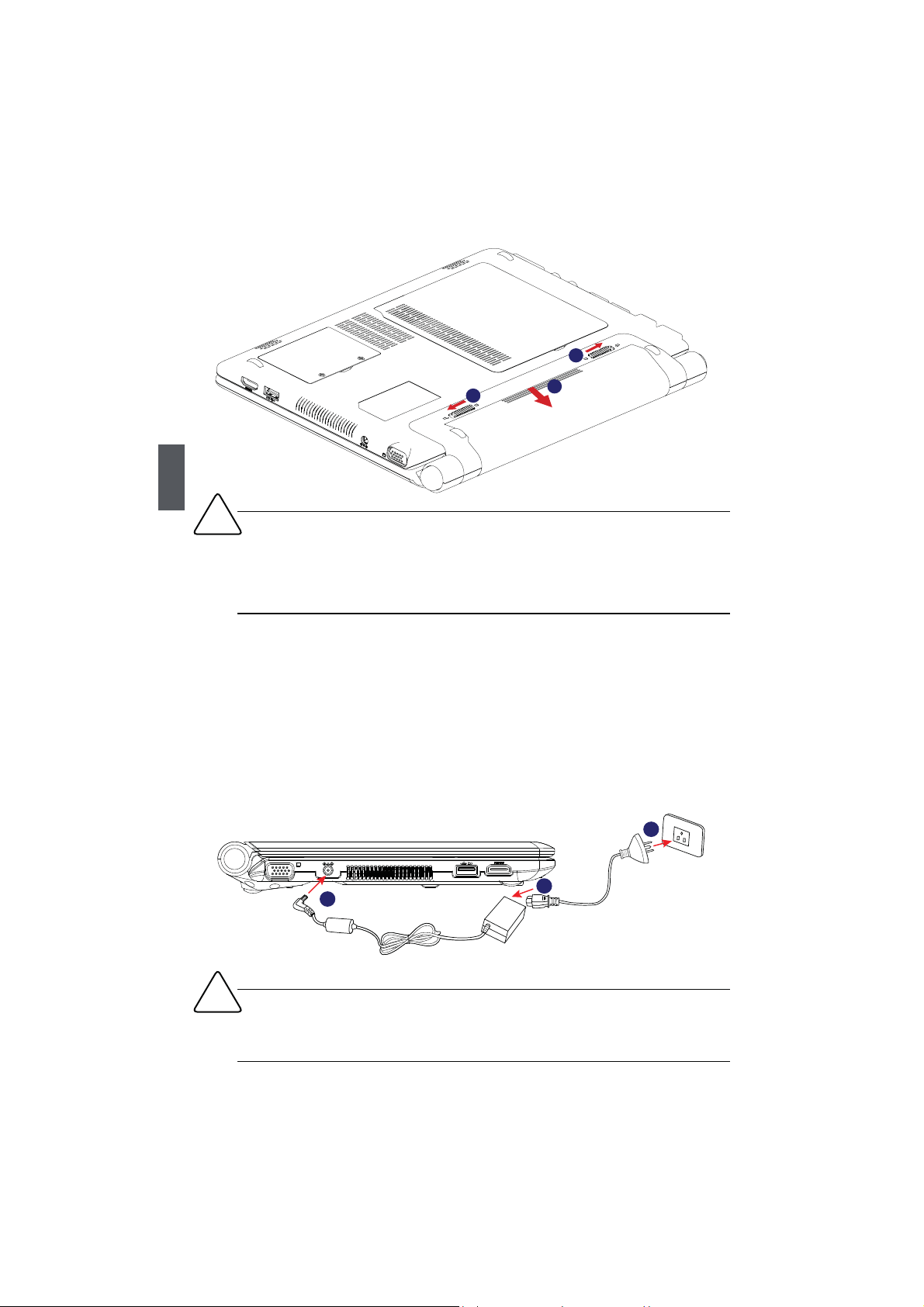

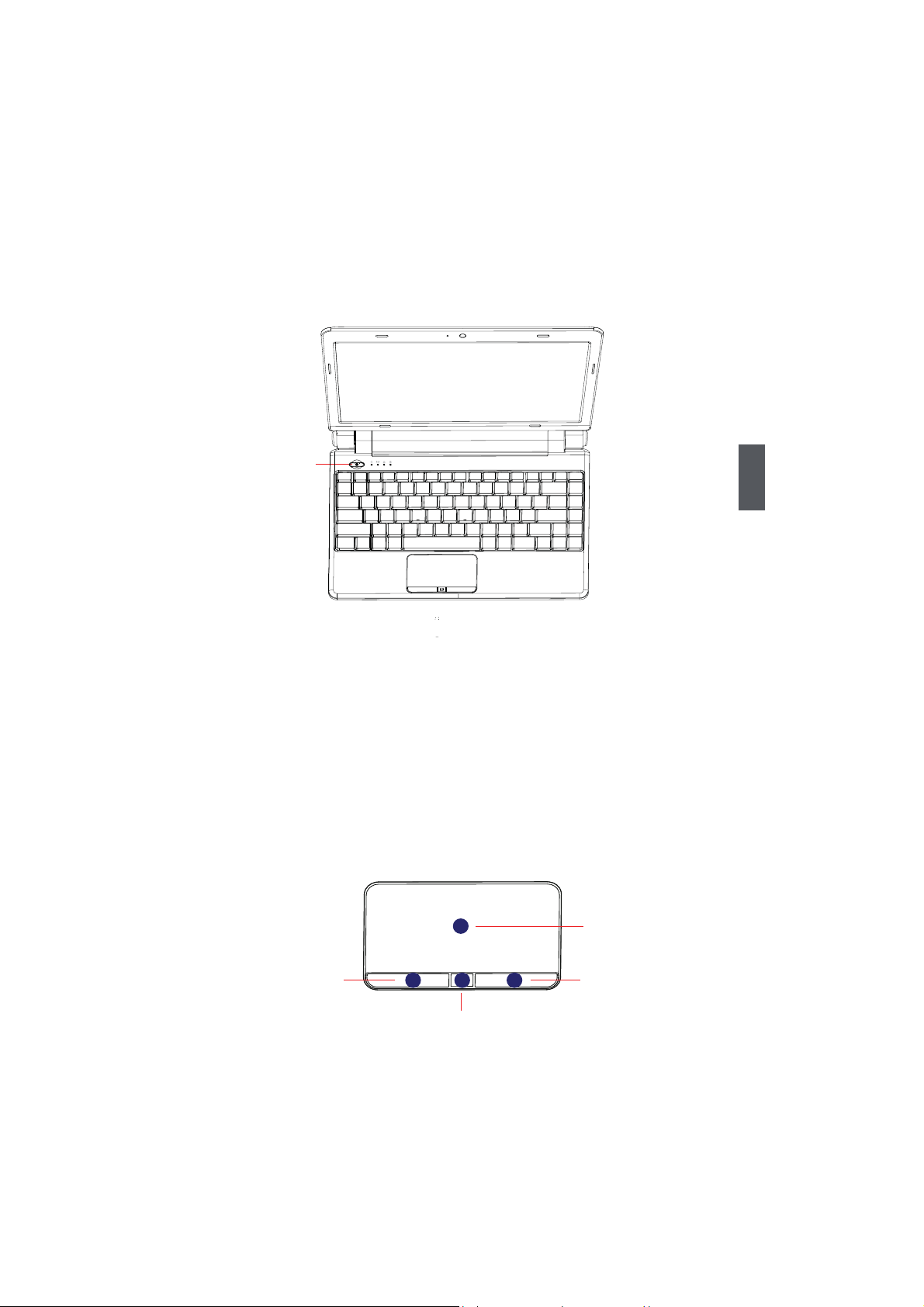

Setting Up Your Computer............................................................................ 7

Touchpad Usage .......................................................................................... 9

Special Function Keys ................................................................................ 11

Conﬁguring a Wireless Network Connection .............................................. 11

Conﬁguring a Bluetooth Connection........................................................... 12

Chapter 2 Install Windows XP in Notebook

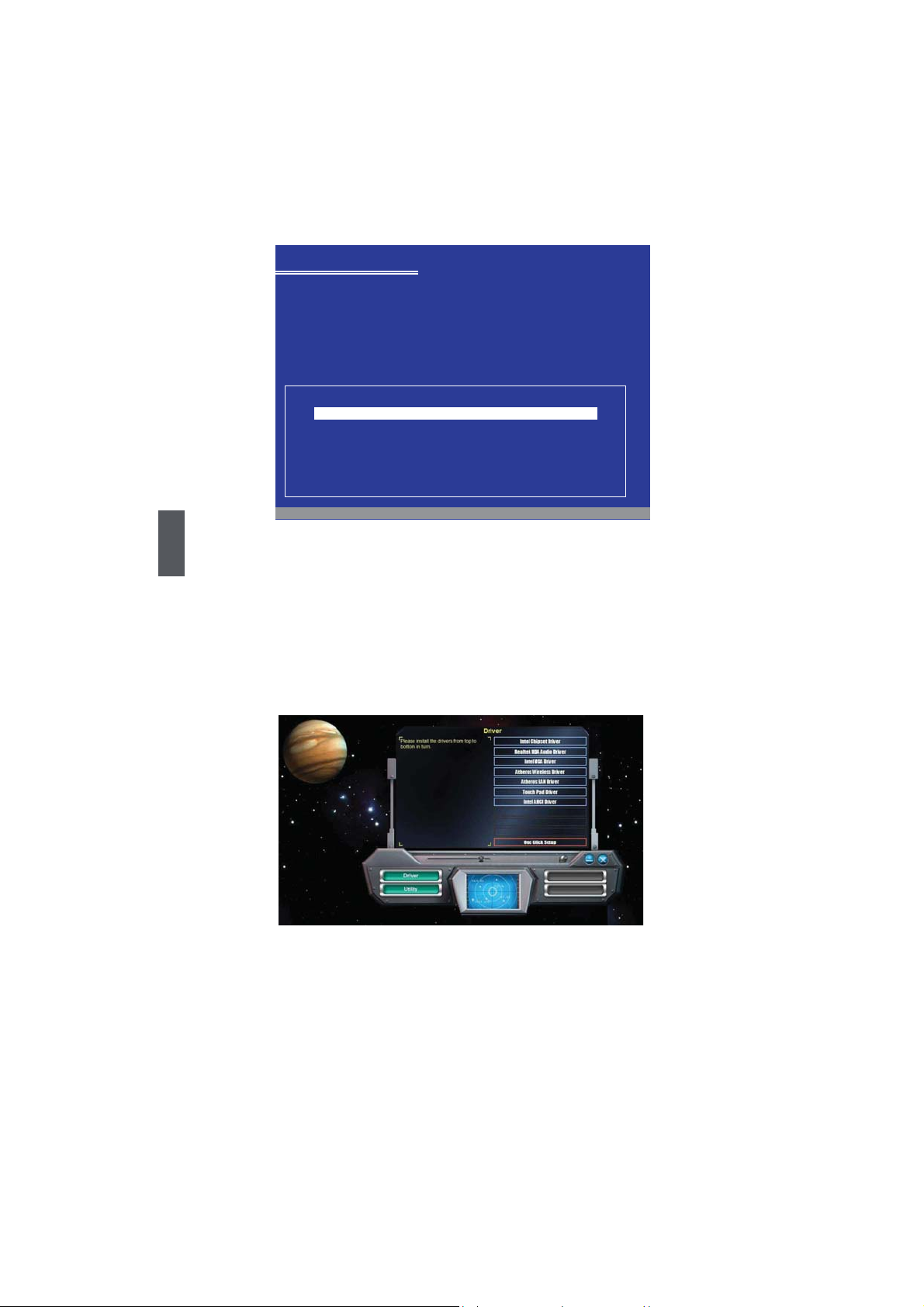

Install Windows XP system in AHCI mode ................................................. 14

Install Windows XP system in IDE mode ..................................................21

Chapter 3 Install Windows 7 in Notebook

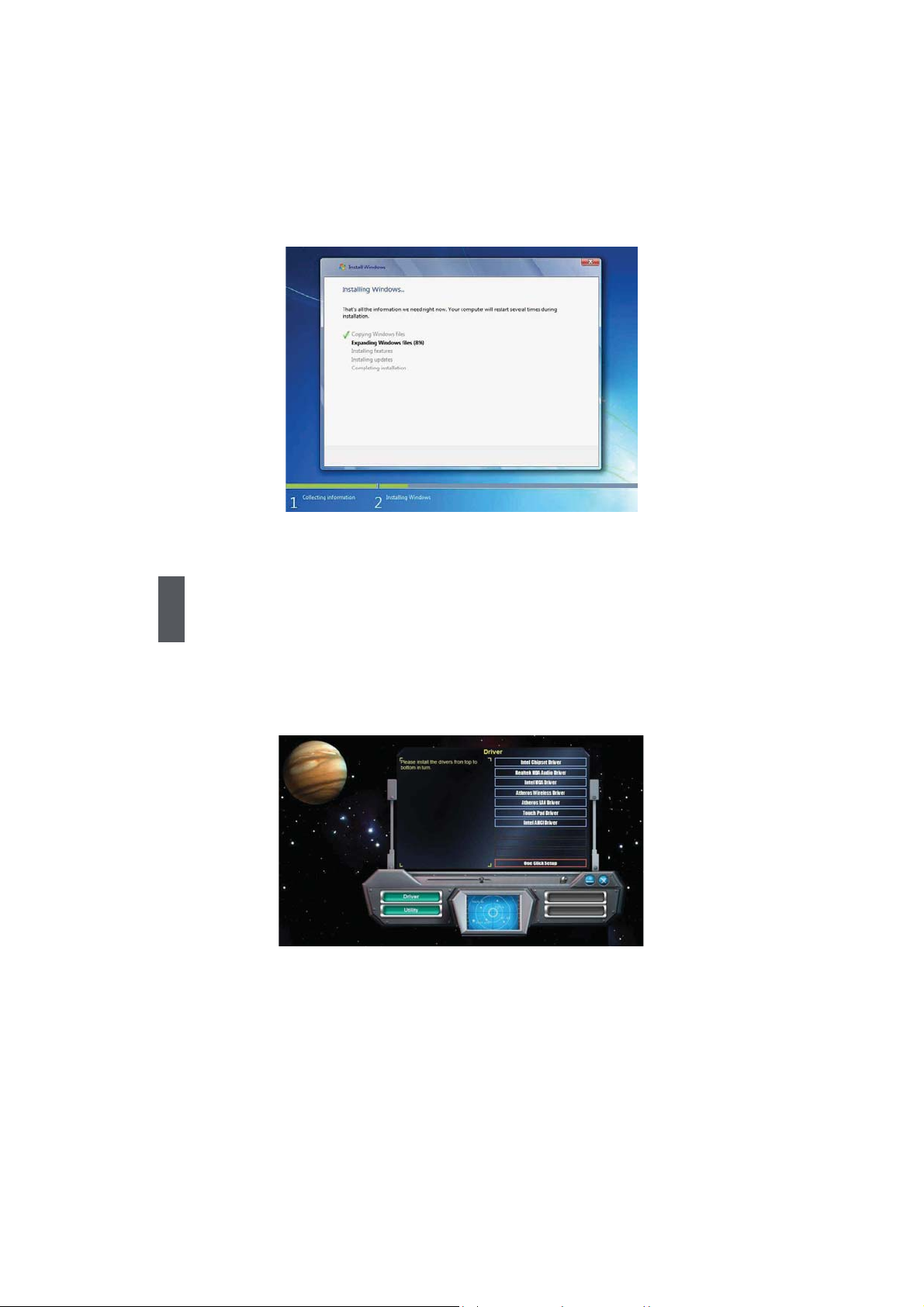

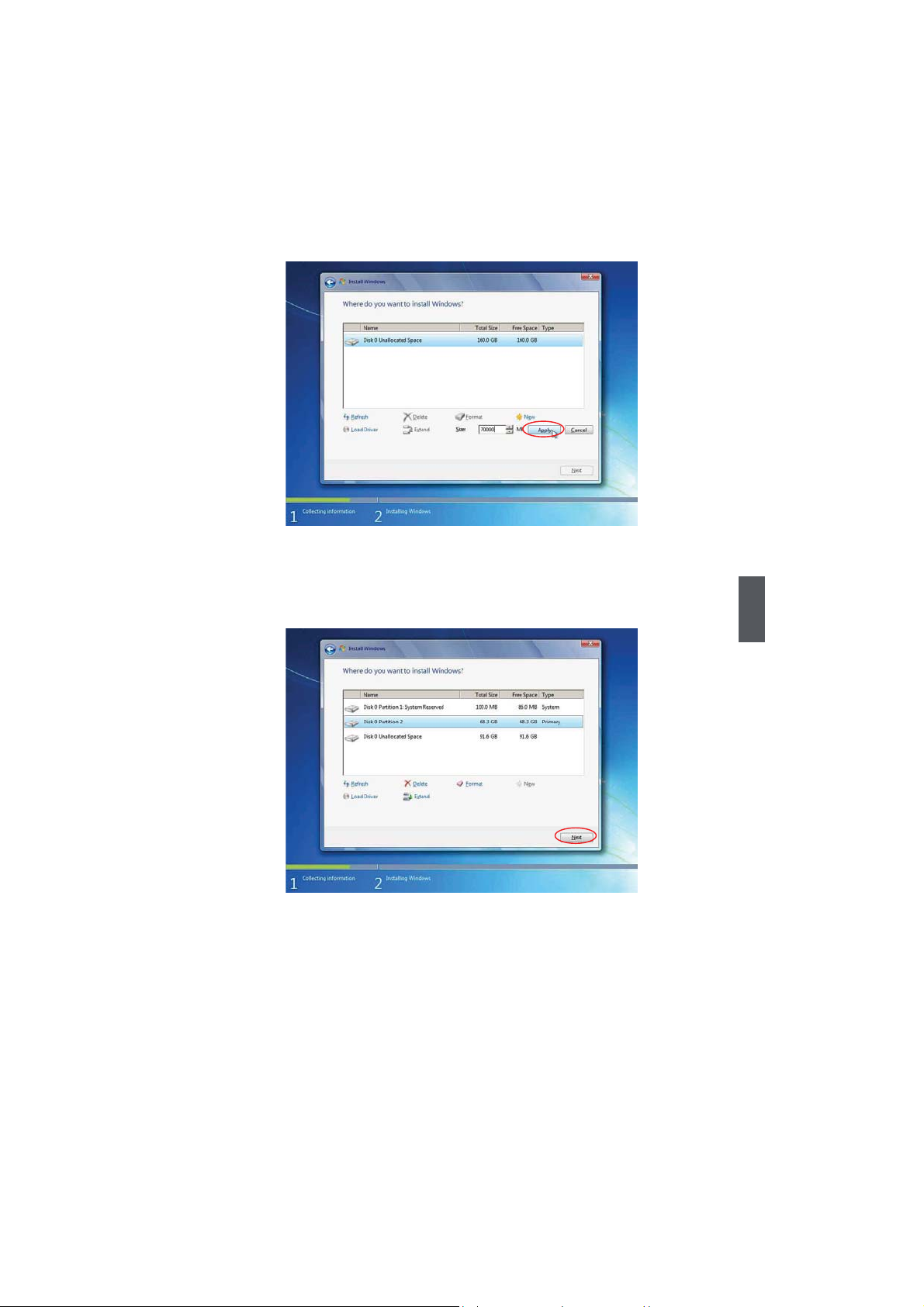

Setting BIOS and Install a new Windows 7 system.................................... 25

Install Drivers in Windows 7 ....................................................................... 28

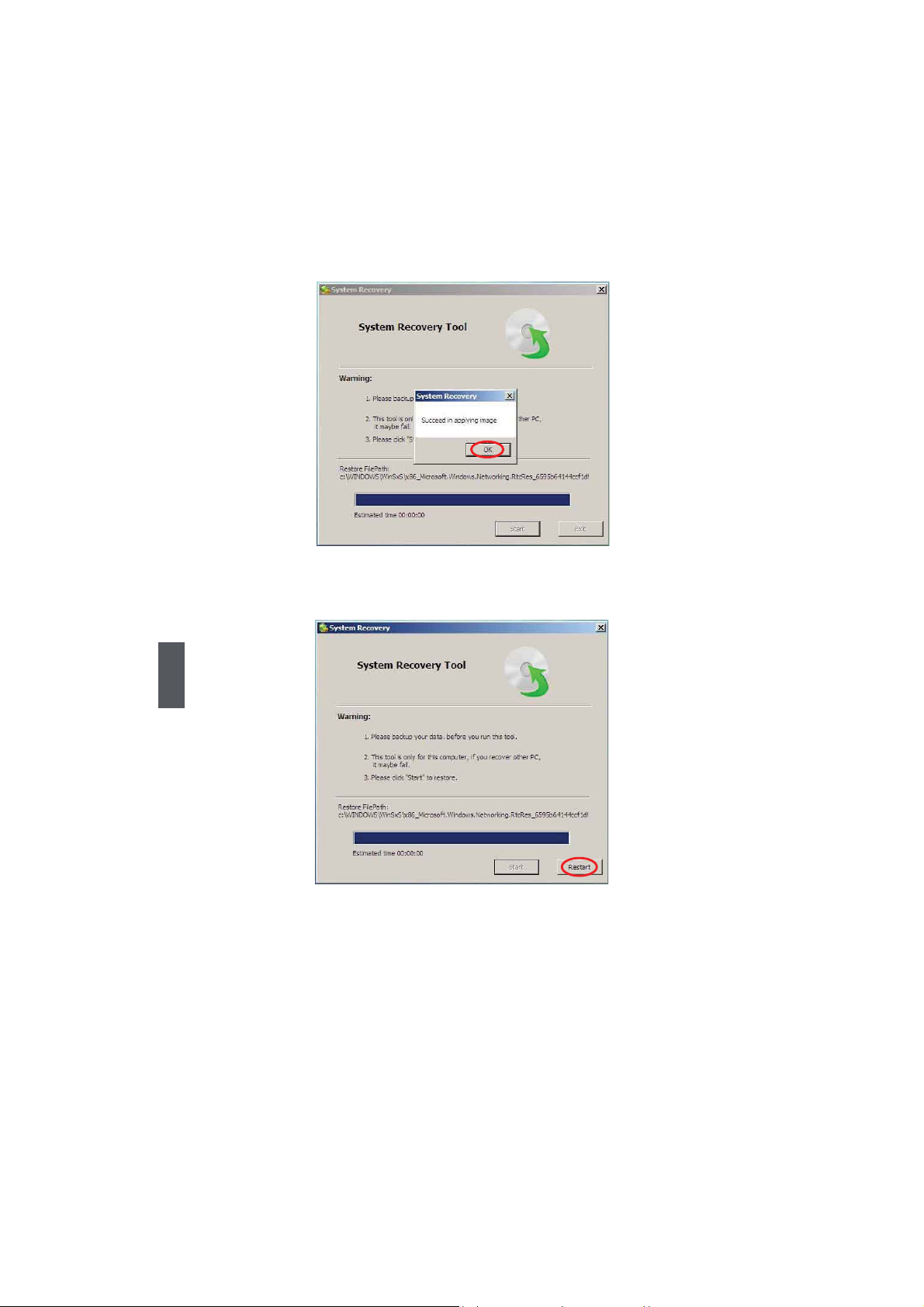

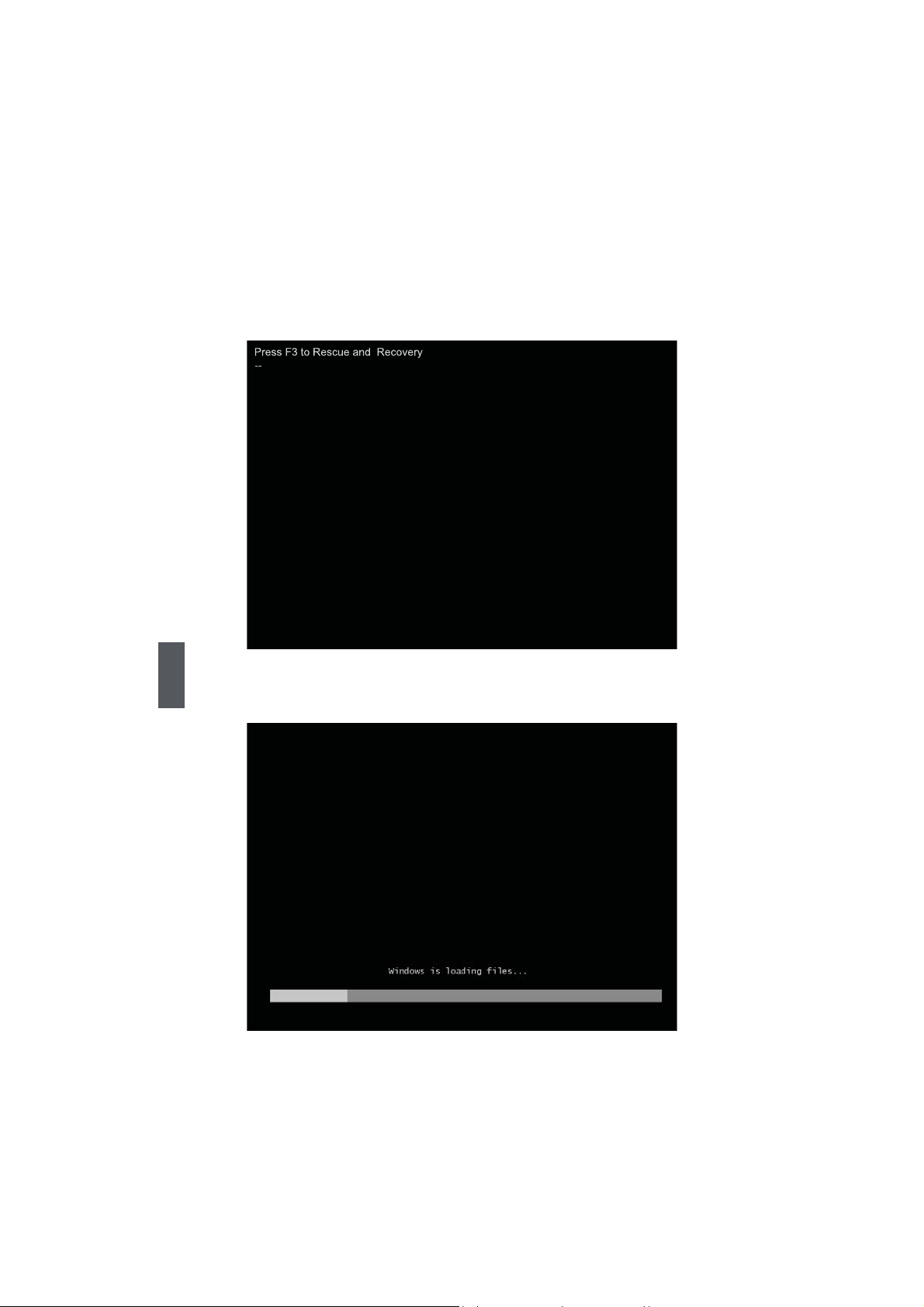

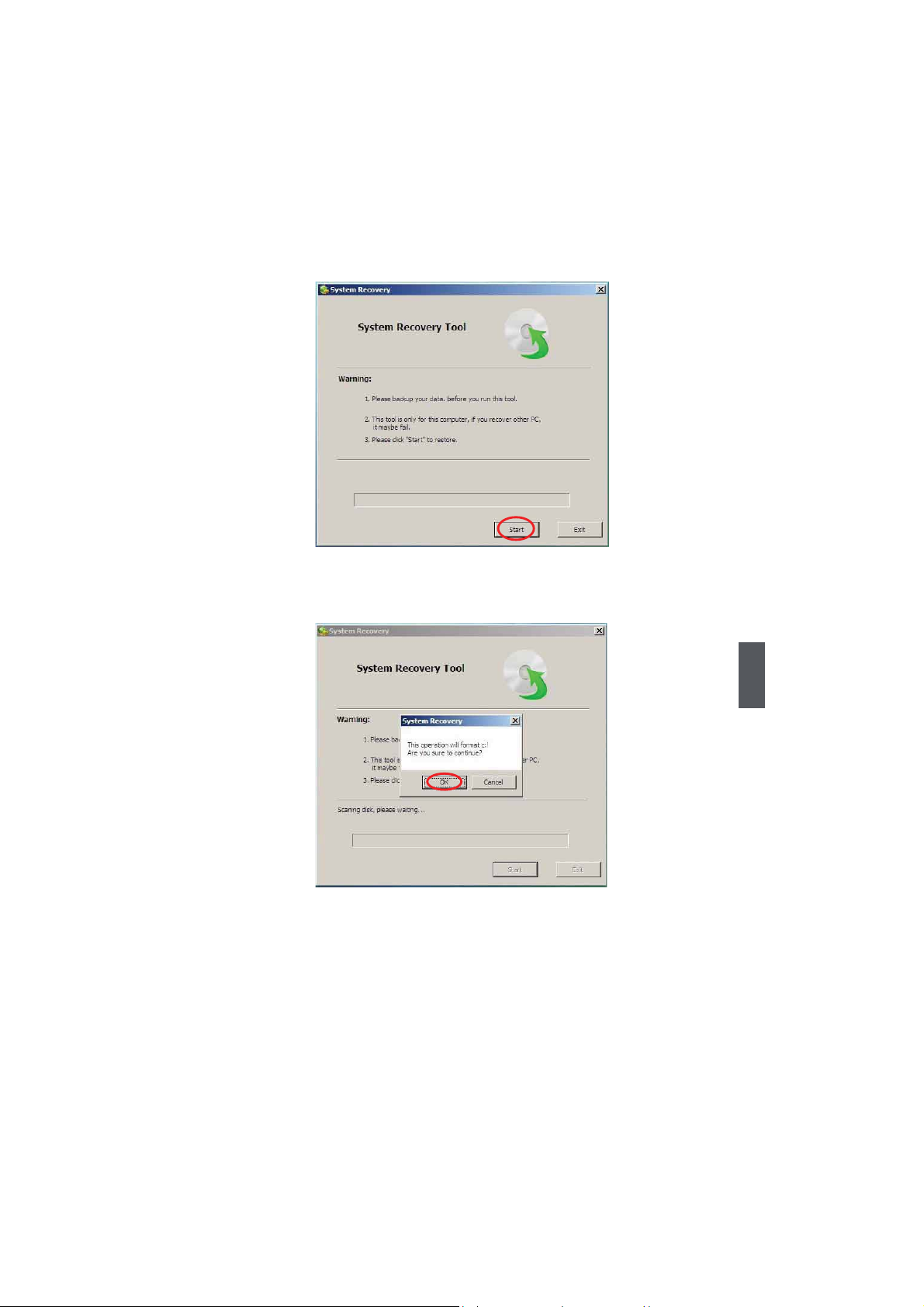

Chapter 4 Recovery of Windows XP and Windows 7 System .............. 30

Chapter 5 Introduction to the Linux System

Overview .................................................................................................... 34

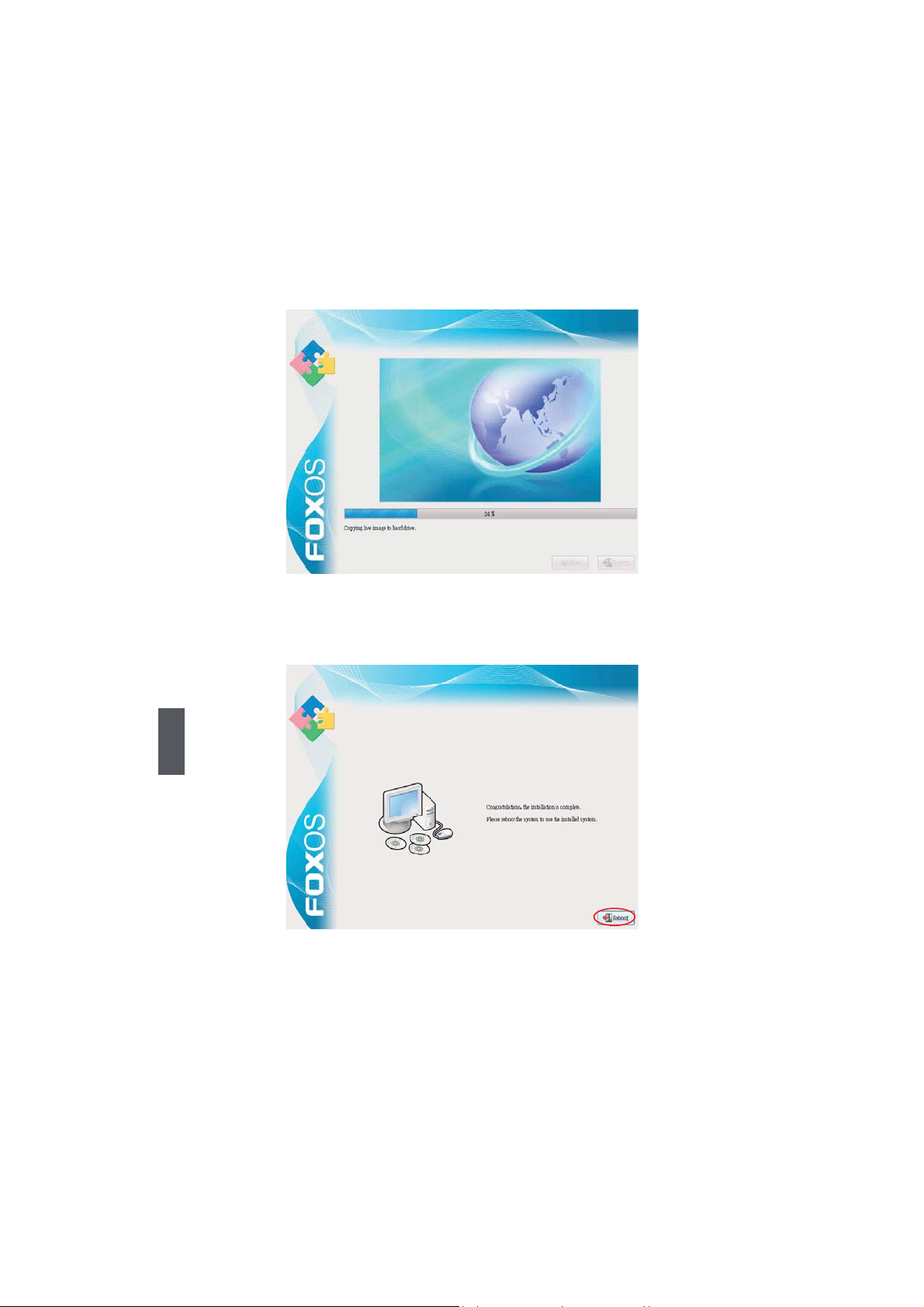

Recovery of Linux system .......................................................................... 35

Notebook

Introduction to Your

Notebook

■ External Appearance

■ Setting Up Your Computer

■ Touchpad Usage

■ Special Function Keys

■ Conﬁguring a Wireless Network Connection

■ Conﬁguring a Bluetooth Connection

1-1 External Appearance

Refer to the diagram below to identify the components on every side of the Notebook.

1. Top View

Your Notebook keyboard may vary depending on the country/region of purchase.

No. Item Description

1 Web Camera Records videos or take photos

2 LCD LED backlight panel

3 Power Button Button for turning the computer's power on/off

● Glowing blue when the Notebook power is turned

on.

● Blinking blue when the Notebook is entering

suspend mode.

From left to right:

a. HDD

● Blinking blue when data is written to or read from

the hard disk drive.

b. Wireless LAN

● The indicator glows blue when wireless LAN func-

tion is enabled.

● The indicator is off when wireless LAN function is

4 Status Indicators

5 Keyboard

6 Touchpad

7 Left Touchpad Button Works the same way as the left mouse button

8 Touchpad Lock Button Press the button to lock or unlock the touchpad

9 Right Touchpad Button Works the same way as the right mouse button

disabled.

c. Caps Lock

● Glowing blue when the keyboard is in Caps-lock

mode.

d. Battery

● Glowing blue when the battery is being charged.

● Blinking blue when the battery is in low battery

status.

● The indicator goes out when the battery is fully

charged.

Input device used for controlling the Notebook's

various functions

Works the same way as a mouse and is used for

controlling the computer cursor

2. Rear View

No. Item Description

1 Battery Pack

SIM Card Slot

(Optional)

Replaceable battery pack that serves as Notebook's power

supply

To insert the SIM card into the slot and make sure that the gold

pins of SIM card are downward.

Please do not insert or pull out the SIM card when power-on, otherwise the data

may lose or the card would be damaged.

3. Bottom View

No. Item Description

1 Battery Lock Slide inwards to lock the battery in place. Slide outwards to

unlock battery.

2 Battery Pack Replaceable battery pack. Serves as the Notebook's power

supply

3 Battery Latch Push outwards to release battery for removal

4 Hard Disk Cover The Hard Disk Cover protects the internal hardware. Open

to exchange device

5 Memory Cover The cover is to protect the memory from damage. Open to

exchange device

When the computer is running or charging, heat is produced inside the Notebook and

transferred to the back of the chassis by the heat dissipation system for cooling. The

transformer may also produce a lot of heat during normal use as well. The Notebook

and its transformer should therefore not be placed in the lap or on any other body part

for prolonged periods during use. Also avoid placing the Notebook on a soft surface

(e.g. sofa) as it might block the heat vents and interfere with cooling.

4. Left View

No. Item Description

1 VGA Port Connects to an external display

2 Power Port Connects to the external power supply

3 Vent Notebook's cooling vent

4 USB Port Connects to USB 2.0 device

5 HDMI Port The HDMI(High-Deﬁnition Multimedia Interface)

5. Right View

1 2 3 4 5 6 7

2 3 4 5

provides an all-digital audio/video interface to

transmit the uncompressed audio/video signals and

is HDCP compliant. Connect the HDMI audio/video

device to the port.

No. Item Description

1 Memory Card Slot Supports MMC/SD/MS memory cards

2 Headphone Connects to external headphone

3 Microphone Connects to external microphone

4 USB Port Connects to USB 2.0 device

5 USB Port Connects to USB 2.0 device

6 Anti-Theft Lock Slot Attach a Kensington security system or a

compatible lock to secure your Notebook

7 Network Port Standard RJ-45 network port

+ 32 hidden pages
