Foxconn RAINS-DIS Schematics

5

4

3

2

1

Schematics Page Index (Title / Revision / Change Date)

Date

Title of Schematics Page

Page

01

Schematics Page Index

02

Block Diagram

03

ARD (DMI,PEG,FDI)

04

D D

C C

B B

ARD (CLK,MISC,JTAG)

05

ARD (DDR3)

06

ARD (POWER)

07

ARD (GRAPHICS POWER)

08

ARD (GND)

09

ARD (RESERVED)

10

PCH (HDA,JTAG,SAT)

11

PCH (PCI-E,SMBUS,CLK)

12

PCH (DMI,FDI,GPIO)

13

PCH (LVDS,DDI)

14

PCH (PCI,USB,NVRAM)

15

PCH (GPIO,VSS_NCTF,RSVD)

16

PCH (POWER) 1/2

17

PCH (POWER) 2/2

18

PCH (VSS)

19

CLOCK GEN

20

DDR3(SO-DIMM_0) 1/2

21

DDR3(SO-DIMM_1) 2/2

22

CRT

23

LVDS

24

HDMI

25

EC+KBC(ITE8518)

26

EC SPI ROM & DEBUG PORT

27

REALTEK LAN

28

Audio (CODEC)

29

SATA HDD/ODD

30

FAN/Accelerometer/Thermal

31

WLAN

32

CARD READER

33

MB TO DB CONN

34

HOLE & BOSS

35

AUDIO (Jack Mute) 2/2

Project Code & Schematics Subject:

Rains Main Board_10L

Rev.

PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV

10'11'22

10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22

Title of Schematics Page

Page

36

VGA (PCI-E) 1/6

37

VGA (STRAP) 2/6

38

VGA (IO) 3/6

39

VGA (Memory BUS) 4/6

40

VGA (LVDS) 5/6

41

VGA (POWER) 6/6

42

VRAM (DDR3) 1/4

43

VRAM (DDR3) 2/4

44

VRAM (DDR3) 3/4

45

VRAM (DDR3) 4/4

46

VRAM (BYPASS) 1/2

47

VRAM (BYPASS) 2/2

48

VGA (BACO)

49

Power History (1)

50

PWR_Power Design Diagram

51

PWR_DCIN

52

PWR_Battery Conn.

53

PWR_Charger

54

PWR_+5V/+3V/+12V

55

PWR_+1_05V

56

PWR_+1_5V/+0_75V/1.8V

57

PWR_VHCORE

58

PWR_GFXCORE

59

PWR_AT VDD/PEX_VDD

60

PWR_Others power plane

61

History (1)

62

History (2)

63

History (3)

64

DB_POWER BUTTON

65

BTB Conn& LED& Hole/Boss

66

USB 3.0 Controller (1.1V)

67

USB3.0 PORT x2

68
69
70

Rev.

PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV
PV

Date

10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22
10'11'22

P. Leader

Check by

Design by

PCB P/N:

A A

LED DB P/N:

P/B DB P/N:

5

4

3

2

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

Index page

Index page

Index page

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

Monday, January 31, 2011 14:12:46

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

1 63

Sheet of

1 63

Sheet of

1 63

0.1

0.1

0.1

5

www.schematic-x.blogspot.com

4

3

2

Rains Capella Platform+ AMD Whistler M2 Discrete Graphic

1

D D

64Mx16
DDR3

P42 ~ P47

VRAMx8

GPU
AMD/ATi
Whistler
M2 package
29x29mm

P36 ~ P41

(PCIEx8)

LVDS/eDP
Conn.

P23

CRT
Conn.

P22

C C

P24

HDMI
Conn.

Int. Speaker x2

Digi Mic
(on webcam)

P28

Combo Jack

Audio DB

CODEC
IDT_92HD80

Headphone Jack

B B

RJ45
Conn.

P27

A A

CK505
SLG8SP587V

P.19

5

Transformer
LANKOM
LG-2425P-1

P32

X,TAL

14.318MHZ

WLAN (HALF SIZE) / BT

P27

Giga LAN
Realtek
RTL8111E

HDD

P29

ODD

P29

P27

4

Arrandale Processor
(TPD:35W)

4C/2C
Cache

PCH &
SYS

P3 ~ P9

DMI

PCH - Ibex Peak-M

DISPLAY

HDA

BGA-1071
25 mm X 27 mm

PCIe

P10 ~ P18

SPI

P25

SATA

EC ROM
512KB

P26

DDR3
2CH

GT&
MEDIA

(989-pin rPGA socket)

37.5 mm X 37.5 mm

FDI

(USB x 14)

(PCIE x 8)

(SATA x 6)

Embedded
Controller

ITE 8518

SPI

3

LPC

KBMX

PS/2

1066/
1333 MHZ

1066/
1333 MHZ

USB2.0

PCIe

BIOS ROM
4MB

DEBUG
CONN
30PIN

Keyboard

Touch PAD

SO-DIMM 0
1333 MHZ
DDR(III)

P20

SO-DIMM 1
1333 MHZ
DDR(III)

P21

P10

P26

P25

P25

2

Thermal sensor
EMC1422

Accelerometer
ST Micro
HP302DLTR8-MBD

Audio DB USB 2.0

WEBCAM

P31

WLAN for BT

P31

Cardreader
Realtek
RTS5209-GR

USB 3.0 DB

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

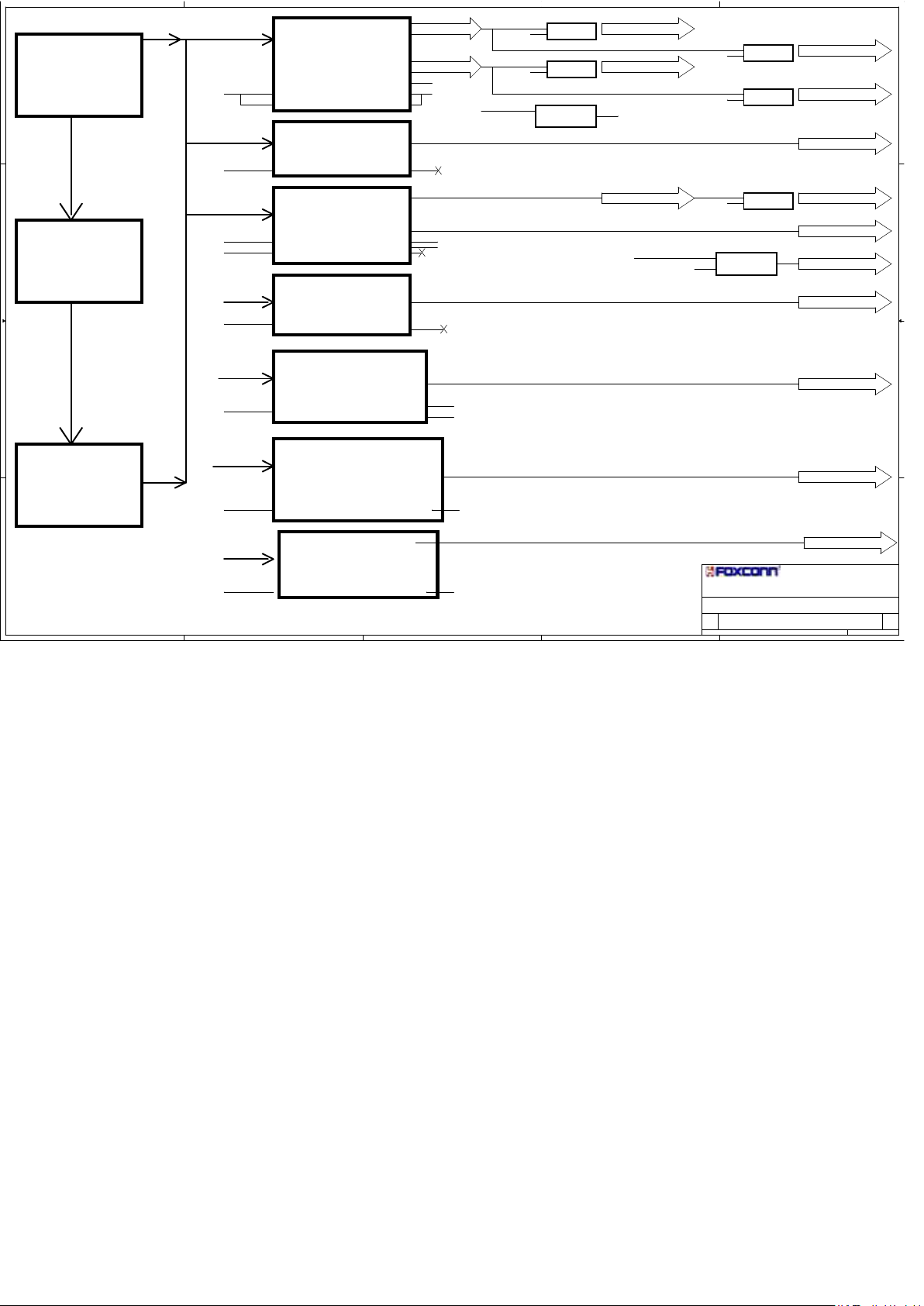

BLOCK DIAGRAM

BLOCK DIAGRAM

BLOCK DIAGRAM

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

P30

P30

SD

P32

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

0.1

0.1

Sheet of

2 63

Sheet of

2 63

Sheet of

2 63

0.1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

P34

1

2

3

4

5

6

7

8

A A

DMI_TXN[3:0]12

DMI_TXP[3:0]12

DMI_RXN[3:0]12

DMI_RXP[3:0]12

FDI_TXN012

B B

C C

D D

FDI_TXN112
FDI_TXN212

FDI_TXN312
FDI_TXN412

FDI_TXN512
FDI_TXN612

FDI_TXN712

FDI_TXP012

FDI_TXP112
FDI_TXP212

FDI_TXP312
FDI_TXP412

FDI_TXP512
FDI_TXP612

FDI_TXP712

FDI_FSYNC012

FDI_FSYNC112

FDI_INT12

FDI_LSYNC012

FDI_LSYNC112

For Disable Arrandale Graphic
In addition, FDI_RXN_[7:0] and FDI_RXP_[7:0] can be left floating on the PCH.
FDI_TX[7:0] and FDI_TX#[7:0] can be left floating on the Arrandale. The
GFX_IMON,FDI_FSYNC[0], FDI_FSYNC[1], FDI_LSYNC[0], FDI_LSYNC[1], and FDI_INT
signals on the Arrandale side s hould be tied to GND (through 1-k
FDI_FSYNC[0], FDI_FSYNC[1], FDI_LSYNC[0], FDI_LSYNC[1] can be ganged together with
one resistor.

1

DMI_TXN0
DMI_TXN1

DMI_TXN2
DMI_TXN3

DMI_TXP0

DMI_TXP1

DMI_TXP2

DMI_TXP3

DMI_RXN0

DMI_RXN1

DMI_RXN2

DMI_RXN3

DMI_RXP0

DMI_RXP1

DMI_RXP2

DMI_RXP3

FDI_TXN0

FDI_TXN1

FDI_TXN2
FDI_TXN3

FDI_TXN4

FDI_TXN5

FDI_TXN6

FDI_TXN7

FDI_TXP0

FDI_TXP1

FDI_TXP2

FDI_TXP3

FDI_TXP4

FDI_TXP5

FDI_TXP6
FDI_TXP7

FDI_FSYNC0

FDI_FSYNC1

FDI_INT

FDI_LSYNC0

FDI_LSYNC1

U25A

U25A

A24

DMI_RX#[0]

C23

DMI_RX#[1]

B22

DMI_RX#[2]

A21

DMI_RX#[3]

B24

DMI_RX[0]

D23

DMI_RX[1]

B23

DMI_RX[2]

A22

DMI_RX[3]

D24

DMI_TX#[0]

G24

DMI_TX#[1]

F23

DMI_TX#[2]

H23

DMI_TX#[3]

D25

DMI_TX[0]

F24

DMI_TX[1]

E23

DMI_TX[2]

G23

DMI_TX[3]

E22

FDI_TX#[0]

D21

FDI_TX#[1]

D19

FDI_TX#[2]

D18

FDI_TX#[3]

G21

FDI_TX#[4]

E19

FDI_TX#[5]

F21

FDI_TX#[6]

G18

FDI_TX#[7]

D22

FDI_TX[0]

C21

FDI_TX[1]

D20

FDI_TX[2]

C18

FDI_TX[3]

G22

FDI_TX[4]

E20

FDI_TX[5]

F20

FDI_TX[6]

G19

FDI_TX[7]

F17

FDI_FSYNC[0]

E17

FDI_FSYNC[1]

C17

FDI_INT

F18

FDI_LSYNC[0]

D17

FDI_LSYNC[1]

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

2

PEG_RCOMPO

PEG_RBIAS

PEG_RX#[0]

PEG_RX#[1]
PEG_RX#[2]

DMI Intel(R) FDI

DMI Intel(R) FDI

PEG_RX#[3]
PEG_RX#[4]

PEG_RX#[5]
PEG_RX#[6]

PEG_RX#[7]
PEG_RX#[8]

PEG_RX#[9]

PEG_RX#[10]

PEG_RX#[11]
PEG_RX#[12]

PEG_RX#[13]
PEG_RX#[14]

PEG_RX#[15]

PEG_RX[0]

PEG_RX[1]
PEG_RX[2]

PEG_RX[3]
PEG_RX[4]

PEG_RX[5]
PEG_RX[6]

PEG_RX[7]
PEG_RX[8]

PEG_RX[9]

PEG_RX[10]

PEG_RX[11]
PEG_RX[12]

PEG_RX[13]
PEG_RX[14]

PEG_RX[15]

PEG_TX#[0]

PEG_TX#[1]
PEG_TX#[2]

PEG_TX#[3]
PEG_TX#[4]

PEG_TX#[5]
PEG_TX#[6]

PEG_TX#[7]
PEG_TX#[8]

PEG_TX#[9]

PEG_TX#[10]

PEG_TX#[11]
PEG_TX#[12]

PEG_TX#[13]
PEG_TX#[14]

PEG_TX#[15]

PCI EXPRESS -- GRAPHICS

PCI EXPRESS -- GRAPHICS

PEG_TX[0]

PEG_TX[1]
PEG_TX[2]

PEG_TX[3]
PEG_TX[4]

PEG_TX[5]
PEG_TX[6]

PEG_TX[7]
PEG_TX[8]

PEG_TX[9]

PEG_TX[10]

PEG_TX[11]
PEG_TX[12]

PEG_TX[13]
PEG_TX[14]

PEG_TX[15]

 ∮∮∮∮

3

PEG_RBIAS

A25

PEG_RXN0

K35

PEG_RXN1

J34

PEG_RXN2

J33

PEG_RXN3

G35

PEG_RXN4

G32

PEG_RXN5

F34

PEG_RXN6

F31

PEG_RXN7

D35
E33

C33
D32

B32
C31

B28
B30

A31

PEG_RXP0

J35

PEG_RXP1

H34

PEG_RXP2

H33

PEG_RXP3

F35

PEG_RXP4

G33

PEG_RXP5

E34

PEG_RXP6

F32

PEG_RXP7

D34
F33

B33
D31

A32
C30

A28
B29

A30

PEG_TXN0

L33

PEG_TXN1

M35

PEG_TXN2

M33

PEG_TXN3

M30

PEG_TXN4

L31

PEG_TXN5

K32

PEG_TXN6

M29

PEG_TXN7

J31
K29

H30
H29

F29
E28

D29
D27

C26

PEG_TXP0

L34

PEG_TXP1

M34

PEG_TXP2

M32

PEG_TXP3

L30

PEG_TXP4

M31

PEG_TXP5

K31

PEG_TXP6

M28

PEG_TXP7

H31
K28

G30
G29

F28
E27

D28
C27

C25

5% resistors).

PEG_COMP

B26

PEG_ICOMPI

A26

PEG_ICOMPO

B27

R418 49.9_F 0402R418 49.9_F 0402

1 2

R417 750_F 0402R417 750_F 0402

1 2

PEG_RXN[7..0] 36

PEG_RXP[7..0] 36

4

If PCIe Graphics is not implemented,
the TX/RX pairs can be left as No Connect.

PEG_TXN0

1 2

C636 0.1U_6.3V_K 0201_X5RC636 0.1U_6.3V_K 0201_X5R

PEG_TXN1

1 2

C640 0.1U_6.3V_K 0201_X5RC640 0.1U_6.3V_K 0201_X5R

PEG_TXN2

1 2

C673 0.1U_6.3V_K 0201_X5RC673 0.1U_6.3V_K 0201_X5R

PEG_TXN3

1 2

C672 0.1U_6.3V_K 0201_X5RC672 0.1U_6.3V_K 0201_X5R

PEG_TXN4

1 2

C654 0.1U_6.3V_K 0201_X5RC654 0.1U_6.3V_K 0201_X5R

PEG_TXN5 PEG_RXN_C5

1 2

C649 0.1U_6.3V_K 0201_X5RC649 0.1U_6.3V_K 0201_X5R

PEG_TXN6

1 2

C679 0.1U_6.3V_K 0201_X5RC679 0.1U_6.3V_K 0201_X5R

PEG_TXN7

1 2

C681 0.1U_6.3V_K 0201_X5RC681 0.1U_6.3V_K 0201_X5R

PEG_TXP0

1 2

C634 0.1U_6.3V_K 0201_X5RC634 0.1U_6.3V_K 0201_X5R

PEG_TXP1

1 2

C680 0.1U_6.3V_K 0201_X5RC680 0.1U_6.3V_K 0201_X5R

PEG_TXP2

1 2

C646 0.1U_6.3V_K 0201_X5RC646 0.1U_6.3V_K 0201_X5R

PEG_TXP3

1 2

C652 0.1U_6.3V_K 0201_X5RC652 0.1U_6.3V_K 0201_X5R

PEG_TXP4

1 2

C651 0.1U_6.3V_K 0201_X5RC651 0.1U_6.3V_K 0201_X5R

PEG_TXP5

1 2

C650 0.1U_6.3V_K 0201_X5RC650 0.1U_6.3V_K 0201_X5R

PEG_TXP6

1 2

C653 0.1U_6.3V_K 0201_X5RC653 0.1U_6.3V_K 0201_X5R

PEG_TXP7

1 2

C655 0.1U_6.3V_K 0201_X5RC655 0.1U_6.3V_K 0201_X5R

5

6

PEG_RXN_C0

PEG_RXN_C1

PEG_RXN_C2

PEG_RXN_C3

PEG_RXN_C4

PEG_RXN_C6

PEG_RXN_C7

PEG_RXP_C0

PEG_RXP_C1

PEG_RXP_C2

PEG_RXP_C3

PEG_RXP_C4

PEG_RXP_C5

PEG_RXP_C6

PEG_RXP_C7

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

ARD (DMI,PEG,FDI)

ARD (DMI,PEG,FDI)

ARD (DMI,PEG,FDI)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

PEG_RXN_C[7..0] 36

PEG_RXP_C[7..0] 36

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

7

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

8

3 63

3 63

3 63

0.1

0.1

0.1

Layout Note:
Comp0,1 connect with Zo=49.9 ohm,
Comp2,3 connect with Zo=20 ohm,
In order to minimize resistance,
use thick traces to route all
COMP signals, use 10-mils
(0.254-mm) wide trace for
routing less than 500 mils (12.7
mm), or 20-mils (0.508-mm)
wide trace for routing between
500 mils (12.7 mm) and

D D

1000 mils (25.4 mm). Keep 20-mils
(0.508-mm) spacing to
any other signals in order to
minimize crosstalk.

C C

B B

5

R465 20_F 0402R465 20_F 0402

1 2

R466 20_F 0402R466 20_F 0402

1 2

R106 49.9_F 0402R106 49.9_F 0402

1 2

R460 49.9_F 0402R460 49.9_F 0402

1 2

CPU_DET#25

21

21

TP93520MIL TP93520MIL

H_PECI

PROCHOT#

PM_THRMTRIP#_1

H_CPURST#_R

H_PM_SYNC

SYS_AGENT_PWROK

CPUPWRGD_R

PM_DRAM_PWRGD

VTTPWRGOOD

TAPPWRGOOD

1

BUF_PLT_RST#_R

12

R148

R148
750_F

750_F

0402

0402

H_PECI15

PROCHOT#57

PM_THRMTRIP#15,25

H_PM_SYNC12

H_CPUPWRGD15

BUF_PLT_RST#14,25,26,31

PGP1

PGP1

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP2

PGP2
POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP3

PGP3

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PM_DRAM_PWRGD12

R149

R149

1 2

1.5K_F 0402

1.5K_F 0402

21

For Intel S3 Power Reduction issue

+1.5VRUN

12

R6032

R6032
NC_1.1K_F

NC_1.1K_F

0402

A A

0402

PM_DRAM_PWRGD

12

0402

0402

750_F

750_F
R6035

R6035

5

12

C1808

C1808

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

R6034

R6034

12

1.5K_F0402

1.5K_F0402

74AHC1G08GW

74AHC1G08GW

+3VALW

4

12

R6033

R6033
10K_J

10K_J

U83

U83

0402

0402

53

1

2

RUN_PWRGD 12,25,48,55,56

COMP3

COMP2

COMP1

COMP0

SKTOCC#

H_CATERR#

4

AT23

AT24

G16

AT26

AH24

AK14

AT15

AN26

AK15

AP26

AL15

AN14

AN27

AK13

AM15

AM26

AL14

RUN_PWRGD12,25,48,55,56

H_CATERR#

H_CPURST#_R

4

U25B

U25B

COMP3

COMP2

COMP1

COMP0

SKTOCC#

CATERR#

PECI

PROCHOT#

THERMTRIP#

RESET_OBS#

PM_SYNC

VCCPWRGOOD_1

VCCPWRGOOD_0

SM_DRAMPWROK

VTTPWRGOOD

TAPPWRGOOD

RSTIN#

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

+1_05V_VTT

1 2

MISC THERMAL

MISC THERMAL

CLOCKS

CLOCKS

DDR3

DDR3

PWR MANAGEMENT

PWR MANAGEMENT

JTAG & BPM

JTAG & BPM

+3VRUN

12

R201

R201
10K_J

10K_J

0402

0402

RUN_PWRGD

12

R194

R194

R173

R173
NC_68_J

NC_68_J

49.9_F

49.9_F

0402

0402

0402

0402

DPLL_REF_SSCLK

DPLL_REF_SSCLK#

SM_DRAMRST#

PM_EXT_TS#[0]

PM_EXT_TS#[1]

MISC

MISC

+3VRUN

U82

U82

53

1

4

2

74AHC1G08GW

74AHC1G08GW

BCLK#

BCLK_ITP

BCLK_ITP#

PEG_CLK

PEG_CLK#

SM_RCOMP[0]

SM_RCOMP[1]
SM_RCOMP[2]

PRDY#

PREQ#

TRST#

TDI_M

TDO_M

BPM#[0]

BPM#[1]
BPM#[2]

BPM#[3]
BPM#[4]

BPM#[5]
BPM#[6]

BPM#[7]

12

C374

C374

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

VTTPW_R

BCLK

DBR#

TCK

TMS

TDO

3

ARD_BCLK

A16

ARD_BCLK#

B16

BCLK_ITP

AR30

BCLK_ITP#

AT30

CLK_EXP_P_R

E16

CLK_EXP_N_R

D16

CLK_DP_P_R

A18

CLK_DP_N_R

A17

DDR3_DRAMRST#_Q

F6

SM_RCOMP0

AL1

SM_RCOMP1

AM1

SM_RCOMP2

AN1

AN15

AP15

XDP_PRDY#

AT28

XDP_PREQ#

AP27

XDP_TCLK

AN28

XDP_TMS

AP28

XDP_TRST#

AT27

XDP_TDI_R

AT29

TDI

XDP_TDO_R

AR27

XDP_TDI_M

AR29

XDP_TDO_M

AP29

XDP_DBRESET#

AN25

BPM#0

AJ22

BPM#1

AK22

BPM#2

AK24

BPM#3

AJ24

BPM#4

AJ25

BPM#5

AH22

BPM#6

AK23

BPM#7

AH23

R197 2K_F 0402R197 2K_F 0402

1 2

3

PGP4 POWER_CLOSE_GAP_0402PGP4 POWER_CLOSE_GAP_0402

21

21

PGP5 POWER_CLOSE_GAP_0402PGP5 POWER_CLOSE_GAP_0402

1

20MIL

20MIL
TP924

TP924

1

20MIL

20MIL

TP925

TP925

0

0

1

4

2

3

RP22

0404_4P2RRP22

1 2

1 2

1 2

PM_EXTTS#0

PM_EXTTS#1

20MIL

20MIL

+3VRUN

R6019

R6019
NC_51_J

NC_51_J

0402

0402

1 2

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

0404_4P2R

21

21

XDP_TDO_R

XDP_TMS
XDP_TDI_R

XDP_PREQ#
XDP_TCLK

XDP_TRST#

PGP6 POWER_CLOSE_GAP_0402PGP6 POWER_CLOSE_GAP_0402

PGP7 POWER_CLOSE_GAP_0402PGP7 POWER_CLOSE_GAP_0402

R457 100_F 0402R457 100_F 0402

R458 24.9_F 0402R458 24.9_F 0402

R459 130_F 0402R459 130_F 0402

1

TP927

TP927

1

TP928

TP928

1

TP929

TP929

1

TP930

TP930

1

TP931

TP931

1

TP932

TP932

1

TP933

TP933

1

TP934

TP934

1

TP936

TP936

VTTPWRGOOD

12

R181

R181
1K_F

1K_F

0402

0402

2

CLK_PCH_CPU_CLK 15

CLK_PCH_CPU_CLK# 15

CLK_EXP_P 11
CLK_EXP_N 11

+1_05V_VTT

12

12

R179

R179
10K_J

10K_J

0402

0402

12

R177

R177
NC_12.4K_F

NC_12.4K_F

0402

0402

CLK_DP_P_R
CLK_DP_N_R

For Disable Arrandale Graphic
DPLL_REF_SSCLK and DPLL_REF_SSCLK# can be connected to GND on
Arrandale directly if motherboard only supports discrete graphics.

12

R6020

R6020
NC_0_J

NC_0_J

0402

0402

R602251_J 0402R602251_J 0402

1 2

R6023NC_51_J 0402R6023NC_51_J 0402

1 2

R6024NC_51_J 0402R6024NC_51_J 0402

1 2

R6025NC_51_J 0402R6025NC_51_J 0402

1 2

R6026NC_51_J 0402R6026NC_51_J 0402

1 2

R602751_J 0402R602751_J 0402

12

R6021

R6021
NC_0_J

NC_0_J

0402

0402

12

For Intel S3 Power Reduction issue

R6028 NC_0_J 0402R6028 NC_0_J 0402

1 2

2N7002W

2N7002W

S

DDR3_DRAMRST#_Q

12

R6030

R6030
100K_J

100K_J

0402

0402

S

G

G

RST_GATE15

2

CLK_DP_P 11

CLK_DP_N 11

R178

R178
10K_J

10K_J

0402

0402

+1_05V_VTT

Q93

Q93

1

PM_EXTTS#0 20,21

PM_EXTTS#1 21

OVT_EC#25,30

2N7002EDW

2N7002EDW

XDP_TDO_M

JTAG Mapping -Scan Chain (Default)

D

D

DDR3_DRAMRST#

32

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

XDP_TDI_M

12

0402

0402

1K_J

1K_J
R6029

R6029

C1807

C1807

1 2

0.047U_16V_K

0.047U_16V_K

0402_X7R

0402_X7R

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

ARD (CLK,MISC,JTAG)

ARD (CLK,MISC,JTAG)

ARD (CLK,MISC,JTAG)

Monday, January 31, 2011 14:12:45

Monday, January 31, 2011 14:12:45

Monday, January 31, 2011 14:12:45

1

+3VRUN

12

R200

R200

4.7K_J

4.7K_J

0402

0402

A0205

6

Q19A

Q19A

D2

D2

G2

G2

2

2N7002EDW

2N7002EDW

S2

S2

1

21

PGP8

PGP8
POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

+1.5VSUS

DDR3_DRAMRST# 20,21

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

1

Q19B

Q19B

5

+1_05V_VTT

G1

G1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

12

34

D1

D1

S1

S1

R174

R174
68_J

68_J

0402

0402

PROCHOT#

Sheet of

Sheet of

Sheet of

4 63

4 63

4 63

0.1

0.1

0.1

5

+3VSUS_U

100mA

+3VSUS_U

12

R_18

R_18

R_19

R_19

D D

C C

B B

A A

47K_J

47K_J

0402

0402

U_SPICSB

U_SPISO

U_GND

Active High

U_USB30_SMI3

10K_J

10K_J

0402

0402

1 2

U_5

U_5

1

CS#

2

SO

3

WP#

4

GND

FLASH_SOP-8P_512KBIT

FLASH_SOP-8P_512KBIT

MX25L5121EMC-20G

MX25L5121EMC-20G

U_CLK_PCIE_USB303

U_CLK_PCIE_USB30#3

U_USB30_RXP1_C3

U_USB30_RXN1_C3

U_PCIE_WAKE#3

U_USB30_CLKREQ4#3

12

8

VCC

7

NC

U_SPISCK

6

SCLK

U_SPISI

5

SI

U_USB30_TXP13

U_USB30_TXN13

U_PLT_RST#3

+3VSUS_U

U_GND

+3VSUS_U

U_GND

U_XT1

Y_1

Y_1

1 2

24MHZ_12P_50PPM

24MHZ_12P_50PPM

HOSONIC_E5FA24.0000F12D55

HOSONIC_E5FA24.0000F12D55

C_22

C_22
10P_50V_J

10P_50V_J

0402_NPO

0402_NPO

5

12

12

12

0201_X7RC_53

0201_X7R

0201_X7RC_51

0201_X7R

0.01U_6.3V_K

0.01U_6.3V_K

0.01U_6.3V_K

0.01U_6.3V_K

C_53

C_51

U_GND

R_2010K_J 0402R_2010K_J 0402

1 2

R_21 NC_100K_J 0402R_21 NC_100K_J 0402

1 2

R_22 10K_J 0402R_22 10K_J 0402

1 2

+3VSUS_U

12

12

D_1

D_1
1SS355GP

1SS355GP

12

C_6

C_6
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

U_GND

R_5 NC_0_J 0402R_5 NC_0_J 0402

1 2

U_XT2

12

R_10

R_10

100_F

100_F

0402

0402

12

C_23

C_23
10P_50V_J

10P_50V_J

0402_NPO

0402_NPO

U_GND

0201_X5RC_52

0201_X5R

0.1U_6.3V_K

0.1U_6.3V_K

C_52

R_6

R_6
10K_J

10K_J

0402

0402

U_GND

U_GND U_GND

U_PONRSTB

U_SPISCK

U_SPICSB

U_SPISI

U_SPISO

U_GND

12

C_14

C_14

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

0.01U_10V_K

0.01U_10V_K

B2

B1

D2

D1

F2

F1

H2

K1

K2

J2

J1

H1

P5

M2
N2

N1
M1

K13
K14

J13

P4

C14

N14
M14

P6

A1

A2

A3
A4

A5
A7

A9

A11
A13

A14

B3

B4
B5

B7

B9

B11

B13

B14

C1

C2
C3

C10
C11

1 2

C_21

C_21

PECLKP

PECLKN

PETXP

PETXN

PERXP

PERXN

PERSTB

PEWAKEB

PECREQB

AUXDET

PSEL

SMI

PONRSTB

SPISCK
SPICSB

SPISI
SPISO

GND_72
GND_73

GND_69

SMIB

GND_29

XT1
XT2

CSEL

GND_4

GND_5

GND_6
GND_7

GND_8
GND_9

GND_10

GND_11
GND_12

GND_13

GND_14

GND_15
GND_16

GND_17

GND_18

GND_19

GND_20

GND_21

GND_22

GND_23
GND_24

GND_25
GND_26

4

+1_05VSUS_U

600mA

12

12

12

0201_X7RC_49

0201_X7R

0201_X7RC_50

0201_X7R

0.01U_6.3V_K

0.01U_6.3V_K

C_49

C_50

U_GND

0402_X7R

0402_X7R

0402_X7R

1 2

0.01U_10V_K

0.01U_10V_K
C_3

C_3

U_GND U_GND

F3

G3

VDD33_2

VDD33_5

GND_27

GND_28

GND_30

D3

C12

C13

0402_X7R

1 2

1 2

0.01U_10V_K

0.01U_10V_K

0.01U_10V_K

0.01U_10V_K

C_12

C_12

U_GND U_GND

L14

G4

L9

L10

L13

VDD33_6

VDD33_7

VDD33_8

VDD33_9

VDD33_10

GND_32

GND_33

GND_34

GND_35

GND_31

GND_36

GND_38

GND_37

E1

E2

D4

E13

D11

D12

D13

D14

0402_X7R

0402_X7R

D10

F13

F14

VDD33_1

VDD33_3

VDD33_4

4

12

C_10

C_10

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5RC_48

0201_X5R

0402_X5R

0402_X5R

0.1U_6.3V_K

0.1U_6.3V_K

0.01U_6.3V_K

0.01U_6.3V_K

C_48

U_GND

0402_X7R

0402_X7R

0402_X7R

C_18

C_18

N4

N5

VDD33_11

GND_39

F4

E14

0402_X7R

0402_X7R

0402_X7R

1 2

1 2

0.01U_10V_K

0.01U_10V_K

0.01U_10V_K

0.01U_10V_K

0.01U_10V_K

N6

P3

VDD33_12

VDD33_13

VDD33_14

GND_42

GND_41

GND_40

F7

F6

0.01U_10V_K

C_4

C_4

C_13

C_13

U_GND U_GND

C4

C5

C6

C7

C8

D5

VDD10_1

VDD10_2

VDD10_3

VDD10_4

VDD10_7

GND_50

GND_49

GND_48

GND_47

GND_44

GND_43

GND_46

GND_45

F9

F8

G8

G7

G6

G2

G1

F12

F11

VDD10_5

GND_51

1 2

C9

VDD10_6

GND_52

G9

12

C_5

C_5

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

0402_X7R

0402_X7R

0.01U_10V_K

0.01U_10V_K

C_15

C_15

D8

D9

VDD10_8

VDD10_9

GND_54

GND_53

G13

G12

G11

3

0402_X7R

0402_X7R

1 2

0.01U_10V_K

0.01U_10V_K

C_2

C_2

U_GND U_GND

E3

E4

E11

VDD10_10

VDD10_11

VDD10_12

GND_57

GND_58

GND_59

GND_56

GND_55

H7

H8

H9

H6

3

12

C_11

C_11

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

0402_X7RC_1

0402_X7R

1 2

C_1

E12

H3

VDD10_13

GND_61

GND_60

J3

J4

H12

2

+3VSUS_U

10mA

L_1

L_1

60R-100MHZ_0805

0402_X7RC_16

0402_X7R

C_16

K4

+A3.3V_U

GND_71

GND_74

L1

0.1U_6.3V_K

0.1U_6.3V_K

D7

AVDD33_1

GND_75

L2

12

C_7

C_7

U_GND

U3TXDP2

U3TXDN2

U3RXDP2

U3RXDN2

U3TXDP1

U3TXDN1

U3RXDP1

U3RXDN1

GND_103
GND_102

GND_101

GND_100

GND_98

GND_97

GND_96

GND_95

GND_94
GND_93

GND_92
GND_91

GND_90
GND_89

GND_88

GND_87
GND_86

GND_85
GND_84

GND_83

GND_82

GND_81

GND_80

GND_79
GND_78

GND_76

L3

L4

60R-100MHZ_0805

BLM21PG600SN1D

BLM21PG600SN1D

0402_X5R

0402_X5R

1 2

C_8

0.01U_10V_K

C_8

0.01U_10V_K

P13

U_6

U_6

AVDD33_2

U2DM2

U2DP2

OCI2B

OCI1B

PPON2

PPON1

U2DM1

U2DP1

RREF

GND_2

GND_3

GND_1

GND_77

UPD720200AF1-DAP-A

UPD720200AF1-DAP-A

12

C_9

C_9

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

0402_X7RC_17

0402_X7R

1 2

1 2

0.01U_10V_K

0.01U_10V_K

0.01U_10V_K

0.01U_10V_K

C_17

U_GND

H4

H11

K11

K12

L5

L8

VDD10_14

VDD10_15

VDD10_16

VDD10_17

VDD10_18

VDD10_19

VDD10_20

GND_67

GND_68

GND_62

GND_63

GND_64

GND_65

GND_66

GND_70

J6

J7

J8

J9

K3

J11

J12

+A3.3V_U

0402_X5RC_20

0402_X5R

0402_X7RC_19

0402_X7R

12

C_20

U_GND

12

0201_X5RC_54

0201_X5R

0201_X7RC_55

0201_X7R

1 2

0.01U_10V_K

0.01U_10V_K
C_19

0.1U_6.3V_K

0.1U_6.3V_K

0.01U_6.3V_K

0.01U_6.3V_K

C_54

C_55

12

0402_X7R

0402_X7R

0.1U_6.3V_K

0.1U_6.3V_K

Check 1.05V voltage divide resistor.

U_SSTX2

B6

A6

N8

P8

B8

A8

G14

H13

H14

J14

B10

A10

N10

P10

B12

A12

P12

N12

N11

D6

P14
P11

P9

P7
P2

P1

N13

N9

N7
N3

M13
M12

M11
M10

M9

M8
M7

M6
M5

M4

M3

L12

L11

L7
L6

U_GND

U_SSTX#2

R_7

R_7

1 2

1.6K_F

1.6K_F

0402

0402

U_SSTX2 5

U_SSTX#2 5

U_USB3_DN2 5

U_USB3_DP2 5

U_SSRX2 5

U_SSRX#2 5

U_OCI1B#

U_OCI2B#

U_PPON2

U_PPON2 5

U_PPON1

U_PPON1 5

U_SSTX1

U_SSTX1 5

U_SSTX#1

U_SSTX#1 5

U_USB3_DN1 5

U_USB3_DP1 5

U_SSRX#1 5

Put close to U5
Short and broad connection to GND
Don't split R6011 into multiple resistors.

+1.5VSUS_U

C_31

C_31

10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

U_GND

U_SSRX15

1 2

12

2

+3VSUS_U

12

R_8

R_8
100K_J

100K_J

0402

0402

720mA

R_1

R_1

3.9K_F 0402

3.9K_F 0402

1 2

0_J

0_J

R_2

R_2

0603

0603

R_3

R_3
10K_F

10K_F

0402

0402

U_GND

+3VSUS_U

U_OCI1B# 5

U_1

U_1

3

VIN

5

REFEN

12

12

C_32

C_32
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

U_GND

U_GND

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

NEC USB 3.0 Controller

NEC USB 3.0 Controller

NEC USB 3.0 Controller

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

1

12

R_9

R_9
100K_J

100K_J

0402

0402

U_OCI2B# 5

+5VALW_U

1

VCNTL

6

1 2

VOUT

2

NC

GND_1

GND_2

FP6153WDGTR

FP6153WDGTR

4

7

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

1

R_4

R_4

0_J

0_J

0603

0603

U_GND

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

+1_05VSUS_U

720mA

12

C_33

C_33
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

Sheet of

Sheet of

Sheet of

4 6

4 6

4 6

0.2

0.2

0.2

5

U25C

U25C

D D

M_A_DQ[63:0]20

C C

B B

M_A_BS020
M_A_BS120

M_A_BS220

M_A_CAS#20

M_A_RAS#20

M_A_WE#20

M_A_DQ0
M_A_DQ1

M_A_DQ2

M_A_DQ3
M_A_DQ4

M_A_DQ5
M_A_DQ6

M_A_DQ7
M_A_DQ8

M_A_DQ9

M_A_DQ10

M_A_DQ11
M_A_DQ12

M_A_DQ13

M_A_DQ14

M_A_DQ15

M_A_DQ16

M_A_DQ17

M_A_DQ18

M_A_DQ19
M_A_DQ20

M_A_DQ21

M_A_DQ22

M_A_DQ23

M_A_DQ24

M_A_DQ25

M_A_DQ26

M_A_DQ27
M_A_DQ28

M_A_DQ29

M_A_DQ30

M_A_DQ31

M_A_DQ32

M_A_DQ33

M_A_DQ34
M_A_DQ35

M_A_DQ36
M_A_DQ37

M_A_DQ38
M_A_DQ39

M_A_DQ40

M_A_DQ41

M_A_DQ42

M_A_DQ43

M_A_DQ44
M_A_DQ45

M_A_DQ46
M_A_DQ47

M_A_DQ48

M_A_DQ49

M_A_DQ50
M_A_DQ51

M_A_DQ52

M_A_DQ53

M_A_DQ54

M_A_DQ55

M_A_DQ56

M_A_DQ57

M_A_DQ58
M_A_DQ59

M_A_DQ60

M_A_DQ61

M_A_DQ62

M_A_DQ63

AM10

AR11

AM12
AN12

AM13

AR14

A10

SA_DQ[0]

C10

SA_DQ[1]

C7

SA_DQ[2]

A7

SA_DQ[3]

B10

SA_DQ[4]

D10

SA_DQ[5]

E10

SA_DQ[6]

A8

SA_DQ[7]

D8

SA_DQ[8]

F10

SA_DQ[9]

E6

SA_DQ[10]

F7

SA_DQ[11]

E9

SA_DQ[12]

B7

SA_DQ[13]

E7

SA_DQ[14]

C6

SA_DQ[15]

H10

SA_DQ[16]

G8

SA_DQ[17]

K7

SA_DQ[18]

J8

SA_DQ[19]

G7

SA_DQ[20]

G10

SA_DQ[21]

J7

SA_DQ[22]

J10

SA_DQ[23]

L7

SA_DQ[24]

M6

SA_DQ[25]

M8

SA_DQ[26]

L9

SA_DQ[27]

L6

SA_DQ[28]

K8

SA_DQ[29]

N8

SA_DQ[30]

P9

SA_DQ[31]

AH5

SA_DQ[32]

AF5

SA_DQ[33]

AK6

SA_DQ[34]

AK7

SA_DQ[35]

AF6

SA_DQ[36]

AG5

SA_DQ[37]

AJ7

SA_DQ[38]

AJ6

SA_DQ[39]

AJ10

SA_DQ[40]

AJ9

SA_DQ[41]

AL10

SA_DQ[42]

AK12

SA_DQ[43]

AK8

SA_DQ[44]

AL7

SA_DQ[45]

AK11

SA_DQ[46]

AL8

SA_DQ[47]

AN8

SA_DQ[48]
SA_DQ[49]

SA_DQ[50]

AL11

SA_DQ[51]

AM9

SA_DQ[52]

AN9

SA_DQ[53]

AT11

SA_DQ[54]

AP12

SA_DQ[55]

SA_DQ[56]
SA_DQ[57]

SA_DQ[58]

AT14

SA_DQ[59]

AT12

SA_DQ[60]

AL13

SA_DQ[61]

SA_DQ[62]

AP14

SA_DQ[63]

AC3

SA_BS[0]

AB2

SA_BS[1]

U7

SA_BS[2]

AE1

SA_CAS#

AB3

SA_RAS#

AE9

SA_WE#

4

AA6

SA_CK[0]

AA7

SA_CK#[0]

P7

SA_CKE[0]

Y6

SA_CK[1]

Y5

SA_CK#[1]

P6

SA_CKE[1]

AE2

SA_CS#[0]

AE8

SA_CS#[1]

AD8

SA_ODT[0]

AF9

SA_ODT[1]

M_A_DM0

B9

SA_DM[0]
SA_DM[1]

SA_DM[2]
SA_DM[3]

SA_DM[4]
SA_DM[5]

SA_DM[6]
SA_DM[7]

SA_DQS#[0]

SA_DQS#[1]

SA_DQS#[2]

SA_DQS#[3]

SA_DQS#[4]

SA_DQS#[5]

SA_DQS#[6]

SA_DQS#[7]

SA_DQS[0]

SA_DQS[1]

SA_DQS[2]

SA_DQS[3]

SA_DQS[4]

SA_DQS[5]

SA_DQS[6]

SA_DQS[7]

DDR SYSTEM MEMORY A

DDR SYSTEM MEMORY A

SA_MA[0]
SA_MA[1]

SA_MA[2]
SA_MA[3]

SA_MA[4]
SA_MA[5]

SA_MA[6]
SA_MA[7]

SA_MA[8]
SA_MA[9]

SA_MA[10]
SA_MA[11]

SA_MA[12]
SA_MA[13]

SA_MA[14]
SA_MA[15]

M_A_DM1

D7

M_A_DM2

H7

M_A_DM3

M7

M_A_DM4

AG6

M_A_DM5

AM7

M_A_DM6

AN10

M_A_DM7

AN13

M_A_DQS#0

C9

M_A_DQS#1

F8

M_A_DQS#2

J9

M_A_DQS#3

N9

M_A_DQS#4

AH7

M_A_DQS#5

AK9

M_A_DQS#6

AP11

M_A_DQS#7

AT13

M_A_DQS0

C8

M_A_DQS1

F9

M_A_DQS2

H9

M_A_DQS3

M9

M_A_DQS4

AH8

M_A_DQS5

AK10

M_A_DQS6

AN11

M_A_DQS7

AR13

M_A_A0

Y3

M_A_A1

W1

M_A_A2

AA8

M_A_A3

AA3

M_A_A4

V1

M_A_A5

AA9

M_A_A6

V8

M_A_A7

T1

M_A_A8

Y9

M_A_A9

U6

M_A_A10

AD4

M_A_A11

T2

M_A_A12

U3

M_A_A13

AG8

M_A_A14

T3

M_A_A15

V9

M_CLK_DDR0 20

M_CLK_DDR#0 20
M_CKE0 20

M_CLK_DDR1 20

M_CLK_DDR#1 20
M_CKE1 20

M_CS#0 20
M_CS#1 20

M_ODT0 20
M_ODT1 20

M_A_A[15:0] 20

M_B_DQ[63:0]21

M_A_DM[7:0] 20

M_A_DQS#[7:0] 20

M_A_DQS[7:0] 20

3

U25D

U25D

M_B_DQ0

B5

M_B_DQ1

M_B_DQ2

M_B_DQ3
M_B_DQ4

M_B_DQ5
M_B_DQ6

M_B_DQ7
M_B_DQ8

M_B_DQ9

M_B_DQ10

M_B_DQ11
M_B_DQ12

M_B_DQ13

M_B_DQ14

M_B_DQ15

M_B_DQ16

M_B_DQ17

M_B_DQ18

M_B_DQ19
M_B_DQ20

M_B_DQ21

M_B_DQ22

M_B_DQ23

M_B_DQ24

M_B_DQ25

M_B_DQ26

M_B_DQ27
M_B_DQ28

M_B_DQ29

M_B_DQ30

M_B_DQ31

M_B_DQ32

M_B_DQ33

M_B_DQ34
M_B_DQ35

M_B_DQ36
M_B_DQ37

M_B_DQ38
M_B_DQ39

M_B_DQ40

M_B_DQ41

M_B_DQ42

M_B_DQ43

M_B_DQ44
M_B_DQ45

M_B_DQ46
M_B_DQ47

M_B_DQ48

M_B_DQ49

M_B_DQ50
M_B_DQ51

M_B_DQ52

M_B_DQ53

M_B_DQ54

M_B_DQ55

M_B_DQ56

M_B_DQ57

M_B_DQ58
M_B_DQ59

M_B_DQ60

M_B_DQ61

M_B_DQ62

M_B_DQ63

M_B_BS021

M_B_BS121
M_B_BS221

M_B_CAS#21

M_B_RAS#21

M_B_WE#21

SB_DQ[0]

A5

SB_DQ[1]

C3

SB_DQ[2]

B3

SB_DQ[3]

E4

SB_DQ[4]

A6

SB_DQ[5]

A4

SB_DQ[6]

C4

SB_DQ[7]

D1

SB_DQ[8]

D2

SB_DQ[9]

F2

SB_DQ[10]

F1

SB_DQ[11]

C2

SB_DQ[12]

F5

SB_DQ[13]

F3

SB_DQ[14]

G4

SB_DQ[15]

H6

SB_DQ[16]

G2

SB_DQ[17]

J6

SB_DQ[18]

J3

SB_DQ[19]

G1

SB_DQ[20]

G5

SB_DQ[21]

J2

SB_DQ[22]

J1

SB_DQ[23]

J5

SB_DQ[24]

K2

SB_DQ[25]

L3

SB_DQ[26]

M1

SB_DQ[27]

K5

SB_DQ[28]

K4

SB_DQ[29]

M4

SB_DQ[30]

N5

SB_DQ[31]

AF3

SB_DQ[32]

AG1

SB_DQ[33]

AJ3

SB_DQ[34]

AK1

SB_DQ[35]

AG4

SB_DQ[36]

AG3

SB_DQ[37]

AJ4

SB_DQ[38]

AH4

SB_DQ[39]

AK3

SB_DQ[40]

AK4

SB_DQ[41]

AM6

SB_DQ[42]

AN2

SB_DQ[43]

AK5

SB_DQ[44]

AK2

SB_DQ[45]

AM4

SB_DQ[46]

AM3

SB_DQ[47]

AP3

SB_DQ[48]

AN5

SB_DQ[49]

AT4

SB_DQ[50]

AN6

SB_DQ[51]

AN4

SB_DQ[52]

AN3

SB_DQ[53]

AT5

SB_DQ[54]

AT6

SB_DQ[55]

AN7

SB_DQ[56]

AP6

SB_DQ[57]

AP8

SB_DQ[58]

AT9

SB_DQ[59]

AT7

SB_DQ[60]

AP9

SB_DQ[61]

AR10

SB_DQ[62]

AT10

SB_DQ[63]

AB1

SB_BS[0]

W5

SB_BS[1]

R7

SB_BS[2]

AC5

SB_CAS#

Y7

SB_RAS#

AC6

SB_WE#

2

W8

SB_CK[0]

W9

SB_CK#[0]

M3

SB_CKE[0]

V7

SB_CK[1]

V6

SB_CK#[1]

M2

SB_CKE[1]

AB8

SB_CS#[0]

AD6

SB_CS#[1]

AC7

SB_ODT[0]

AD1

SB_ODT[1]

M_B_DM0

D4

SB_DM[0]
SB_DM[1]

SB_DM[2]
SB_DM[3]

SB_DM[4]
SB_DM[5]

SB_DM[6]
SB_DM[7]

SB_DQS#[0]

SB_DQS#[1]

SB_DQS#[2]

SB_DQS#[3]

SB_DQS#[4]

SB_DQS#[5]

SB_DQS#[6]

SB_DQS#[7]

SB_DQS[0]

SB_DQS[1]

SB_DQS[2]

SB_DQS[3]

SB_DQS[4]

SB_DQS[5]

SB_DQS[6]

SB_DQS[7]

DDR SYSTEM MEMORY - B

DDR SYSTEM MEMORY - B

SB_MA[0]
SB_MA[1]

SB_MA[2]
SB_MA[3]

SB_MA[4]
SB_MA[5]

SB_MA[6]
SB_MA[7]

SB_MA[8]
SB_MA[9]

SB_MA[10]
SB_MA[11]

SB_MA[12]
SB_MA[13]

SB_MA[14]
SB_MA[15]

M_B_DM1

E1

M_B_DM2

H3

M_B_DM3

K1

M_B_DM4

AH1

M_B_DM5

AL2

M_B_DM6

AR4

M_B_DM7

AT8

M_B_DQS#0

D5

M_B_DQS#1

F4

M_B_DQS#2

J4

M_B_DQS#3

L4

M_B_DQS#4

AH2

M_B_DQS#5

AL4

M_B_DQS#6

AR5

M_B_DQS#7

AR8

M_B_DQS0

C5

M_B_DQS1

E3

M_B_DQS2

H4

M_B_DQS3

M5

M_B_DQS4

AG2

M_B_DQS5

AL5

M_B_DQS6

AP5

M_B_DQS7

AR7

M_B_A0

U5

M_B_A1

V2

M_B_A2

T5

M_B_A3

V3

M_B_A4

R1

M_B_A5

T8

M_B_A6

R2

M_B_A7

R6

M_B_A8

R4

M_B_A9

R5

M_B_A10

AB5

M_B_A11

P3

M_B_A12

R3

M_B_A13

AF7

M_B_A14

P5

M_B_A15

N1

M_CLK_DDR2 21

M_CLK_DDR#2 21
M_CKE2 21

M_CLK_DDR3 21

M_CLK_DDR#3 21
M_CKE3 21

M_CS#2 21
M_CS#3 21

M_ODT2 21
M_ODT3 21

M_B_A[15:0] 21

1

M_B_DM[7:0] 21

M_B_DQS#[7:0] 21

M_B_DQS[7:0] 21

CPU SOCKET_989P

A A

5

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

4

3

2

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

ARD (DDR3)

ARD (DDR3)

ARD (DDR3)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

5 63

Sheet of

5 63

Sheet of

5 63

0.1

0.1

0.1

5

U_USB 3.0_VCC1

U_USB3_DP1_L

U_USB3_DN1_L

5

R_13 0_J 0402R_13 0_J 0402

R_12 NC_0_J 0402R_12 NC_0_J 0402

R_11 NC_0_J 0402R_11 NC_0_J 0402

U_USB_PWR_EN3

SI

TP_3

TP_3
tpc30t_50

tpc30t_50

TP_1

TP_1
tpc30t_50

tpc30t_50

TP_2

TP_2
tpc30t_50

tpc30t_50

U_PPON14

U_PPON24

SI

TP_6

TP_6
tpc30t_50

tpc30t_50

TP_5

TP_5
tpc30t_50

tpc30t_50

TP_4

TP_4
tpc30t_50

tpc30t_50

BFT Test Pad

U_USB 3.0_VCC1

1

1

1

BFT Test Pad

1

1

1

U_USB3_DP2_L

U_USB3_DN2_L

D D

C C

B B

A A

1 2

1 2

1 2

C_24

C_24

1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

U_GND

+5VALW_U

12

U_GND

2A

U_2

U_2

1

GND

2

VIN_1

3

VIN_2

4

EN

APL3510AXI-TRG

APL3510AXI-TRG

4

4

VOUT_3
VOUT_2

VOUT_1

8
7

6
5

OCB

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0402_X5R

0402_X5R

U_GND

2A

C_26

C_26

U_USB 3.0_VCC1

12

12

C_25

C_25
470P_50V_K

470P_50V_K

0402_X7R

0402_X7R

U_GND

PGP_3

PGP_3

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP_2

PGP_2

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

U_USB3_DP24
U_USB3_DN24

3

21

U_OCI1B# 4

21

U_OCI2B# 4

U_USB3_DP14

U_USB3_DN14

Co-lay

3

R_23

NC_90R-100MHZ_0R35

NC_90R-100MHZ_0R35

R_24

0_J

0_J

1 2

L_2

L_2

1
4

0_J

0_J

1 2

0603R_23

0603

2
3

1206

1206

12

0603R_24

0603

U_GND

U_SSTX14

U_SSTX#14

U_SSRX14

U_SSRX#14

R_25

NC_90R-100MHZ_0R35

NC_90R-100MHZ_0R35

R_26

U_SSTX24

U_SSTX#24

C_36

C_36

NC_5.6P_50V_D

NC_5.6P_50V_D

0402_NPO

0402_NPO

2

C_30 0.1U_16V_K 0402_X7RC_30 0.1U_16V_K 0402_X7R

C_29 0.1U_16V_K 0402_X7RC_29 0.1U_16V_K 0402_X7R

Co-lay

0603R_25

0603

0_J

0_J

1 2

L_3

L_3

1

2

4

3

1206

1206

0603R_26

0603

0_J

0_J

1 2

12

CAP_2

CAP_2

+

150U_6.3V_R

+

150U_6.3V_R

6TPE150MAZB

6TPE150MAZB

U_GND

C_28 0.1U_16V_K 0402_X7RC_28 0.1U_16V_K 0402_X7R

C_27 0.1U_16V_K 0402_X7RC_27 0.1U_16V_K 0402_X7R

U_USB3_DP2_L
U_USB3_DN2_L

12

C_37

C_37

NC_5.6P_50V_D

NC_5.6P_50V_D

0402_NPO

0402_NPO

U_GND

12

+

+

U_GND

2

1 2

1 2

U_USB3_DP1_L

U_USB3_DN1_L

12

C_42

C_42

NC_5.6P_50V_D

NC_5.6P_50V_D

0402_NPO

0402_NPO

U_USB 3.0_VCC1

U_SSRX#24

U_USB 3.0_VCC1

CAP_1

CAP_1

150U_6.3V_R

150U_6.3V_R

6TPE150MAZB

6TPE150MAZB

U_GNDU_GND

12

C_45

C_45

33P_25V_J

33P_25V_J

0201_NP0

0201_NP0

U_GND

1 2

1 2

U_SSRX24

12

C_41

C_41

33P_25V_J

33P_25V_J

0201_NP0

0201_NP0

U_GNDU_GND

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

USB3.0 PORT x2

USB3.0 PORT x2

USB3.0 PORT x2

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

U_SSTX1_C
U_SSTX#1_C

12

C_43

C_43

NC_5.6P_50V_D

NC_5.6P_50V_D

0402_NPO

0402_NPO

2A

12

12

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

C_46

C_46

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

12

C_40

C_40

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

C_47

C_47
470P_50V_K_B

470P_50V_K_B

0402_X7R

0402_X7R

U_GNDU_GND

U_SSTX2_C

U_SSTX#2_C

2A

12

C_39

C_39
470P_50V_K_B

470P_50V_K_B

0402_X7R

0402_X7R

U_GND

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

1

U_GND

CN_3

CN_3

9

SSTX+

8

SSTX-

7

GND

6

SSRX+

5

SSRX-

4

PGND

3

D+

2

D-

1

VBUS

U_GND

U_GND

FOX_UEA111YC-C1BEC-7H

FOX_UEA111YC-C1BEC-7H

USB3.0 CONN_9P

USB3.0 CONN_9P

CN_2

CN_2

9

SSTX+

8

SSTX-

7

GND

6

SSRX+

5

SSRX-

4

PGND

3

D+

2

D-

1

VBUS

U_GND

U_GND

FOX_UEA111YC-C1BEC-7H

FOX_UEA111YC-C1BEC-7H

USB3.0 CONN_9P

USB3.0 CONN_9P

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

10

12

PTH1

PTH3

PTH2

PTH4

11

13

U_GND

10

PTH1

PTH2

11

Sheet of

Sheet of

Sheet of

12

13

PTH3

PTH4

5 6

5 6

5 6

0.2

0.2

0.2

1

48A (SV) 18A (SV) (VTT)

VHCORE

12

12

C642

C642
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

12

C229

C229
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C213

C213
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C275

C275
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C638

C638
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C246

C246
NC_10U_10V_M

NC_10U_10V_M

0805_X5R

0805_X5R

12

C285

C285
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

VHCORE

12

VHCORE

12

VHCORE

12

VHCORE

12

VHCORE

12

VHCORE

12

C632

C632
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

C287

C287
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

47P_50V_J_N

47P_50V_J_N

C228

C228
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

C631

C631
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

C627

C627
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

C643

C643
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

C637

C637
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

A A

12

C305

C305
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C247

C247
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C2620

C2620

47P_50V_J_N

47P_50V_J_N

B B

0402_NPO

0402_NPO

12

C313

C313
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C265

C265
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

C C

D D

1

C2607

C2607

0402_NPO

0402_NPO

2

12

C626

C626
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C286

C286
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C644

C644
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

12

C306

C306
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C193

C193
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C276

C276
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C645

C645
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

2

12

C2602

C2602

47P_50V_J_N

47P_50V_J_N

0402_NPO

0402_NPO

12

C648

C648
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C2606

C2606

47P_50V_J_N

47P_50V_J_N

0402_NPO

0402_NPO

12

C633

C633
NC_10U_10V_M

NC_10U_10V_M

0805_X5R

0805_X5R

12

C214

C214
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C647

C647
NC_10U_10V_M

NC_10U_10V_M

0805_X5R

0805_X5R

For RF Noise

12

C264

C264
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

3

U25F

U25F

VHCORE +1_05V_VTT

AG35

VCC1

AG34

VCC2

AG33

VCC3

AG32

VCC4

AG31

VCC5

AG30

VCC6

AG29

VCC7

AG28

VCC8

AG27

VCC9

AG26

VCC10

AF35

VCC11

AF34

VCC12

AF33

VCC13

AF32

VCC14

AF31

VCC15

AF30

VCC16

AF29

VCC17

AF28

VCC18

AF27

VCC19

AF26

VCC20

AD35

VCC21

AD34

VCC22

AD33

VCC23

AD32

VCC24

AD31

VCC25

AD30

VCC26

AD29

VCC27

AD28

VCC28

AD27

VCC29

AD26

VCC30

AC35

VCC31

AC34

VCC32

AC33

VCC33

AC32

VCC34

AC31

VCC35

AC30

VCC36

AC29

VCC37

AC28

VCC38

AC27

VCC39

AC26

VCC40

AA35

VCC41

AA34

VCC42

AA33

VCC43

AA32

VCC44

AA31

VCC45

AA30

VCC46

AA29

VCC47

AA28

VCC48

AA27

VCC49

AA26

VCC50

Y35

VCC51

Y34

VCC52

Y33

VCC53

Y32

VCC54

Y31

VCC55

Y30

VCC56

Y29

VCC57

Y28

VCC58

Y27

VCC59

Y26

VCC60

V35

VCC61

V34

VCC62

V33

VCC63

V32

VCC64

V31

VCC65

V30

VCC66

V29

VCC67

V28

VCC68

V27

VCC69

V26

VCC70

U35

VCC71

U34

VCC72

U33

VCC73

U32

VCC74

U31

VCC75

U30

VCC76

U29

VCC77

U28

VCC78

U27

VCC79

U26

VCC80

R35

VCC81

R34

VCC82

R33

VCC83

R32

VCC84

R31

VCC85

R30

VCC86

R29

VCC87

R28

VCC88

R27

VCC89

R26

VCC90

P35

VCC91

P34

VCC92

P33

VCC93

P32

VCC94

P31

VCC95

P30

VCC96

P29

VCC97

P28

VCC98

P27

VCC99

P26

VCC100

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

3

4

1.1V RAIL POWER

1.1V RAIL POWER

CPU CORE SUPPLY

CPU CORE SUPPLY

POWER

POWER

PROC_DPRSLPVR

CPU VIDS

CPU VIDS

VSS_SENSE_VTT

SENSE LINES

SENSE LINES

4

VTT0_1
VTT0_2

VTT0_3
VTT0_4

VTT0_5
VTT0_6

VTT0_7
VTT0_8

VTT0_9

VTT0_10

VTT0_11
VTT0_12

VTT0_13
VTT0_14

VTT0_15
VTT0_16

VTT0_17
VTT0_18

VTT0_19
VTT0_20

VTT0_21
VTT0_22

VTT0_23
VTT0_24

VTT0_25
VTT0_26

VTT0_27
VTT0_28

VTT0_29
VTT0_30

VTT0_31
VTT0_32

VTT0_33
VTT0_34

VTT0_35
VTT0_36

VTT0_37
VTT0_38

VTT0_39
VTT0_40

VTT0_41
VTT0_42

VTT0_43

VTT0_44

VTT_SELECT

ISENSE

VCC_SENSE

VSS_SENSE

VTT_SENSE

VID[0]

VID[1]
VID[2]

VID[3]
VID[4]

VID[5]
VID[6]

5

AH14
AH12

AH11
AH10

J14
J13

H14
H12

G14
G13

G12
G11

F14
F13

F12
F11

E14
E12

D14
D13

D12
D11

C14
C13

C12
C11

B14
B12

A14
A13

A12
A11

AF10
AE10

AC10
AB10

Y10
W10

U10
T10

J12
J11

J16

J15

PSI#

AN33

PSI#

AK35

AK33
AK34

AL35
AL33

AM33
AM35

AM34

VTT_SELECT

G15

AN35

VCCSENSE

AJ34

VSSSENSE

AJ35

B15

VSS_SENSE_VTT

A15

12

C267

C267
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C111

C111
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

12

C266

C266
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

VID0 57
VID1 57

VID2 57
VID3 57

VID4 57
VID5 57

VID6 57

PM_DPRSLPVR 57

1

20MIL

20MIL

TP937

TP937

IMVP_IMON 57

VTT_SENSE 55

VSS_SENSE_VTT 55

5

12

C121

C121
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C562

C562
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

18A (SV) (VTT)

12

C271

C271
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

6

12

C257

C257
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

6

C110

C110
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

7

12

C547

C547
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C544

C544
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

VHCORE

12

R446

R446

100_F

100_F

0402

0402

12

R445

R445

100_F

100_F

0402

0402

12

12

C574

C574

C120

C120

10U_10V_M

10U_10V_M

10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

+1_05V_VTT

12

12

+1_05V_VTT

VCCSENSE 57
VSSSENSE 57

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Page Modified:

Page Modified:

Page Modified:

C548

C548

C543

C543

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

+1_05V_VTT

12

R405

R405

NC_1K_F

NC_1K_F

0402

0402

PSI#

12

R399

R399
1K_F

1K_F

0402

0402

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

ARD (POWER)

ARD (POWER)

ARD (POWER)

Monday, January 31, 2011 14:12:44

Monday, January 31, 2011 14:12:44

Monday, January 31, 2011 14:12:44

7

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

Sheet of

Sheet of

Sheet of

8

6 63

6 63

6 63

0.1

0.1

0.1

1

+GFXCORE

A A

C810

C810

NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

B B

Max Current for Integrated Graphics RailI CCMAX_VAXG----22A

12

C803

C803
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

12

C1588

C1588
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

12

12

12

18A (SV) (VTT)

+1_05V_VTT

C C

C804

C804
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

C1590

C1590
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

+1_05V_VTT

12

C805

C805
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C1591

C1591
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

12

C269

C269
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

2

12

12

C806

C806

C807

C807

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

12

12

C1602

C1602

C1592

C1592

12P_50V_J

12P_50V_J

12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

0402_NPO

0402_NPO

12

C268

C268
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

12

C124

C124

C117

C117

NC_22U_6.3V_M

NC_22U_6.3V_M

NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

12

C808

C808
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C1603

C1603
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

12

C555

C555
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C109

C109
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

3

12

C809

C809
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C541

C541
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C576

C576
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

4

U25G

U25G

AT21

VAXG1

AT19

VAXG2

AT18

VAXG3

AT16

VAXG4

AR21

VAXG5

AR19

VAXG6

AR18

VAXG7

AR16

VAXG8

AP21

VAXG9

AP19

VAXG10

AP18

VAXG11

AP16

VAXG12

AN21

VAXG13

AN19

VAXG14

AN18

VAXG15

AN16

VAXG16

AM21

VAXG17

AM19

VAXG18

AM18

VAXG19

AM16

VAXG20

AL21

VAXG21

AL19

VAXG22

AL18

VAXG23

AL16

VAXG24

AK21

VAXG25

AK19

VAXG26

AK18

VAXG27

AK16

VAXG28

AJ21

VAXG29

AJ19

VAXG30

AJ18

VAXG31

AJ16

VAXG32

AH21

VAXG33

AH19

VAXG34

AH18

VAXG35

AH16

VAXG36

J24

VTT1_45

J23

VTT1_46

H25

VTT1_47

K26

VTT1_48

J27

VTT1_49

J26

VTT1_50

J25

VTT1_51

H27

VTT1_52

G28

VTT1_53

G27

VTT1_54

G26

VTT1_55

F26

VTT1_56

E26

VTT1_57

E25

VTT1_58

GRAPHICS

GRAPHICS

FDI PEG & DMI

FDI PEG & DMI

SENSE

SENSE

GRAPHICS VIDs

GRAPHICS VIDs

POWER

POWER

5

For Disable Arrandale Graphic
VAXG_SENSE and VSSAXG_SENSE on Arrandale can be left as no connect.

R724 0_J 0402R724 0_J 0402

1 2

AR22

VAXG_SENSE

VSSAXG_SENSE

LINES

LINES

GFX_VID[0]
GFX_VID[1]

GFX_VID[2]
GFX_VID[3]

GFX_VID[4]
GFX_VID[5]

GFX_VID[6]

GFX_VR_EN

GFX_DPRSLPVR

GFX_IMON

VDDQ1
VDDQ2

VDDQ3
VDDQ4

VDDQ5
VDDQ6

VDDQ7
VDDQ8

VDDQ9

VDDQ10

VDDQ11
VDDQ12

VDDQ13
VDDQ14

VDDQ15
VDDQ16

VDDQ17
VDDQ18

DDR3 - 1.5V RAILS

DDR3 - 1.5V RAILS

VTT0_59
VTT0_60

VTT0_61
VTT0_62

VTT1_63

VTT1_64
VTT1_65

1.1V1.8V

1.1V1.8V

VTT1_66
VTT1_67

VTT1_68

VCCPLL1
VCCPLL2

VCCPLL3

AT22

AM22
AP22

AN22
AP23

AM23
AP24

AN24

AR25

AT25
AM24

AJ1
AF1

AE7
AE4

AC1
AB7

AB4
Y1

W7
W4

U1
T7

T4
P1

N7
N4

L1
H1

P10
N10

L10
K10

J22

J20
J18

H21
H20

H19

L26
L27

M26

R725 0_J 0402R725 0_J 0402

1 2

12

C366

C366
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

12

C212

C212
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

12

C204

C204
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

C533

C533
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

GFX_VID0 58

GFX_VID1 58

GFX_VID2 58

GFX_VID3 58
GFX_VID4 58

GFX_VID5 58
GFX_VID6 58

GFX_VR_EN 58
GFX_DPRSLPVR 58

GFX_IMON 58

C367

C367
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

12

C542

C542
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

12

12

C102

C102
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

6

12

C226

C226
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

C118

C118
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

GFX_VCC_SENSE 58

GFX_VSS_SENSE 58

3A (VDDQ)

12

C137

C137
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

12

C273

C273
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C274

C274
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C99

C99

2.2U_10V_M

2.2U_10V_M

0603_X5R

0603_X5R

12

C368

C368
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

+1_05V_VTT

C550

C550

4.7U_10V_K

4.7U_10V_K

0805_X5R

0805_X5R

7

12

12

C135

C135

C365

C365

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

18A (SV) (VTT)

+1_05V_VTT

PGP9

PGP9

12

C567

C567
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

21

power_close_gap_0805_ns

power_close_gap_0805_ns

1 2

12

GFX_VR_EN

R23

R23

4.7K_J

4.7K_J

0402

0402

C277

C277
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

+1.8VRUN

8

+1.5VRUN

12

CAP2

CAP2

330U_2.5V_M

330U_2.5V_M

+

+

3.5x2.8x1.9

3.5x2.8x1.9

1.35A (VCCPLL)

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

D D

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

ARD (GRAPHICS POWER)

ARD (GRAPHICS POWER)

ARD (GRAPHICS POWER)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

1

2

3

4

5

6

Monday, January 31, 2011 14:12:41

7

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

Sheet of

7 63

Sheet of

7 63

Sheet of

7 63

0.1

0.1

0.1

1

A A

B B

C C

D D

1

2

2

U25H

U25H

AT20

VSS1

AT17

VSS2

AR31

VSS3

AR28

VSS4

AR26

VSS5

AR24

VSS6

AR23

VSS7

AR20

VSS8

AR17

VSS9

AR15

VSS10

AR12

VSS11

AR9

VSS12

AR6

VSS13

AR3

VSS14

AP20

VSS15

AP17

VSS16

AP13

VSS17

AP10

VSS18

AP7

VSS19

AP4

VSS20

AP2

VSS21

AN34

VSS22

AN31

VSS23

AN23

VSS24

AN20

VSS25

AN17

VSS26

AM29

VSS27

AM27

VSS28

AM25

VSS29

AM20

VSS30

AM17

VSS31

AM14

VSS32

AM11

VSS33

AM8

VSS34

AM5

VSS35

AM2

VSS36

AL34

VSS37

AL31

VSS38

AL23

VSS39

AL20

VSS40

AL17

VSS41

AL12

VSS42

AL9

VSS43

AL6

VSS44

AL3

VSS45

AK29

VSS46

AK27

VSS47

AK25

VSS48

AK20

VSS49

AK17

VSS50

AJ31

VSS51

AJ23

VSS52

AJ20

VSS53

AJ17

VSS54

AJ14

VSS55

AJ11

VSS56

AJ8

VSS57

AJ5

VSS58

AJ2

VSS59

AH35

VSS60

AH34

VSS61

AH33

VSS62

AH32

VSS63

AH31

VSS64

AH30

VSS65

AH29

VSS66

AH28

VSS67

AH27

VSS68

AH26

VSS69

AH20

VSS70

AH17

VSS71

AH13

VSS72

AH9

VSS73

AH6

VSS74

AH3

VSS75

AG10

VSS76

AF8

VSS77

AF4

VSS78

AF2

VSS79

AE35

VSS80

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

VSS

VSS

3

AE34

VSS81

AE33

VSS82

AE32

VSS83

AE31

VSS84

AE30

VSS85

AE29

VSS86

AE28

VSS87

AE27

VSS88

AE26

VSS89

AE6

VSS90

AD10

VSS91

AC8

VSS92

AC4

VSS93

AC2

VSS94

AB35

VSS95

AB34

VSS96

AB33

VSS97

AB32

VSS98

AB31

VSS99

AB30

VSS100

AB29

VSS101

AB28

VSS102

AB27

VSS103

AB26

VSS104

AB6

VSS105

AA10

VSS106

Y8

VSS107

Y4

VSS108

Y2

VSS109

W35

VSS110

W34

VSS111

W33

VSS112

W32

VSS113

W31

VSS114

W30

VSS115

W29

VSS116

W28

VSS117

W27

VSS118

W26

VSS119

W6

VSS120

V10

VSS121

U8

VSS122

U4

VSS123

U2

VSS124

T35

VSS125

T34

VSS126

T33

VSS127

T32

VSS128

T31

VSS129

T30

VSS130

T29

VSS131

T28

VSS132

T27

VSS133

T26

VSS134

T6

VSS135

R10

VSS136

P8

VSS137

P4

VSS138

P2

VSS139

N35

VSS140

N34

VSS141

N33

VSS142

N32

VSS143

N31

VSS144

N30

VSS145

N29

VSS146

N28

VSS147

N27

VSS148

N26

VSS149

N6

VSS150

M10

VSS151

L35

VSS152

L32

VSS153

L29

VSS154

L8

VSS155

L5

VSS156

L2

VSS157

K34

VSS158

K33

VSS159

K30

VSS160

3

4

4

5

U25I

U25I

K27

VSS161

K9

VSS162

K6

VSS163

K3

VSS164

J32

VSS165

J30

VSS166

J21

VSS167

J19

VSS168

H35

VSS169

H32

VSS170

H28

VSS171

H26

VSS172

H24

VSS173

H22

VSS174

H18

VSS175

H15

VSS176

H13

VSS177

H11

VSS178

H8

VSS179

H5

VSS180

H2

VSS181

G34

VSS182

G31

VSS183

G20

VSS184

G9

VSS185

G6

VSS186

G3

VSS187

F30

VSS188

F27

VSS189

F25

VSS190

F22

VSS191

F19

VSS192

F16

VSS193

E35

VSS194

E32

VSS195

E29

VSS196

E24

VSS197

E21

VSS198

E18

VSS199

E13

VSS200

E11

VSS201

E8

VSS202

E5

VSS203

E2

VSS204

D33

VSS205

D30

VSS206

D26

VSS207

D9

VSS208

D6

VSS209

D3

VSS210

C34

VSS211

C32

VSS212

C29

VSS213

C28

VSS214

C24

VSS215

C22

VSS216

C20

VSS217

C19

VSS218

C16

VSS219

B31

VSS220

B25

VSS221

B21

VSS222

B18

VSS223

B17

VSS224

B13

VSS225

B11

VSS226

B8

VSS227

B6

VSS228

B4

VSS229

A29

VSS230

A27

VSS231

A23

VSS232

A9

VSS233

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

5

VSS

VSS

NCTF

NCTF

6

VSS_NCTF1
VSS_NCTF2

VSS_NCTF3
VSS_NCTF4

VSS_NCTF5
VSS_NCTF6

VSS_NCTF7

6

TP_MCP_VSS_NCTF1

AT35

TP_MCP_VSS_NCTF2

AT1

AR34
B34

B2

TP_MCP_VSS_NCTF6

B1

TP_MCP_VSS_NCTF7

A35

7

1

20MIL

20MIL

TP939

TP939

1

20MIL

20MIL

TP940

TP940

1

20MIL

20MIL

TP941

TP941

1

20MIL

20MIL

TP942

TP942

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

ARD (GND)

ARD (GND)

ARD (GND)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

7

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

Sheet of

Sheet of

Sheet of

8

8 63

8 63

8 63

0.1

0.1

0.1

PCI Express Configuration Select
CFG0 1 : Single PEG
0 : Bifurcation enable

3393727 The VIL Voltage DC Specification for CFG[0] Pin is in Violation of the
EDS Value by a Large Amount
The Clarksfield EDS Vol1 documents the CFG[1:0] pins for PCI Express Port
Bifurcation, the straps may not work correctly when using a pull down resistor
of value other than 250 Ohms to drive a value of zero on the CFG[0] pin. When
left floating a value of one is sensed and there is no impact in this case.

D D

C C

B B

A A

5

CFG[1:0] - PCI Express* Port Bifucation:

11 = 1 x16 PEG



10 = 2 x8 PEG



CFG0 CFG1

R402

12

R167

R167
NC_3.01K_F

NC_3.01K_F

0402

0402

12

R168

R168
NC_3.01K_F

NC_3.01K_F

0402

0402

1 2

R402
NC_1K_F

NC_1K_F

0402

0402

R401

R401
1K_F

1K_F

0402

0402

1 2

CFG3 PCI Express Static Lane Reversal
CFG3 1 : Normal Operation
0 : Lane Numbers Reversed
15 ->0 , 14-> 1 , ...

CFG4 Display Port Presence
CFG4 1 : Disabled ; No Physical Display Port
attached to Embedded Display Port
0 : Enable ; An external Display Port device
is connected to the Embedded Display Port

2611030 PCI Express Interface May Not Meet PCI Express 2.0 Jitter
Specifications

Intel has determined that the workaround (3.01K pull down to Vss on
signal CFG[7]) is not robust. Intel recommends not implementing this
workaround at this time (CFG[7] should not be pulled down).
Intel recommends not to test for PCI-E Express 2.0 Jitter specification
compliance for the affected steppings.

5

CFG3

CFG4

4

20MIL

20MIL

TP963

TP963

20MIL

20MIL

TP964

TP964

20MIL

20MIL

TP965

TP965

20MIL

20MIL

TP1102

TP1102

20MIL

20MIL

TP966

TP966

20MIL

20MIL

TP967

TP967

20MIL

20MIL

TP968

TP968

20MIL

20MIL

TP969

TP969

20MIL

20MIL

TP970

TP970

20MIL

20MIL

TP971

TP971

20MIL

20MIL

TP972

TP972

20MIL

20MIL

TP973

TP973

20MIL

20MIL

TP974

TP974

20MIL

20MIL

TP975

TP975

20MIL

20MIL

TP976

TP976

20MIL

20MIL

TP977

1 2

1 2

TP977

R415 0_J 0402R415 0_J 0402

R416 0_J 0402R416 0_J 0402

4

3

U25E

U25E

AP25

RSVD1

AL25

RSVD2

AL24

RSVD3

AL22

RSVD4

AJ33

RSVD5

AG9

RSVD6

M27

RSVD7

L28

RSVD8

J17

RSVD9

H17

RSVD10

G25

RSVD11

G17

RSVD12

E31

RSVD13

E30

RSVD14

CFG0

AM30

3

CFG[0]

AM28

CFG[1]

AP31

CFG[2]

AL32

CFG[3]

AL30

CFG[4]

AM31

CFG[5]

AN29

CFG[6]

AM32

CFG[7]

AK32

CFG[8]

AK31

CFG[9]

AK28

CFG[10]

AJ28

CFG[11]

AN30

CFG[12]

AN32

CFG[13]

AJ32

CFG[14]

AJ29

CFG[15]

AJ30

CFG[16]

AK30

CFG[17]

H16

RSVD_TP_86

B19

RSVD15

A19

RSVD16

A20

RSVD17

B20

RSVD18

U9

RSVD19

T9

RSVD20

AC9

RSVD21

AB9

RSVD22

C1

RSVD_NCTF_23

A3

RSVD_NCTF_24

J29

RSVD26

J28

RSVD27

A34

RSVD_NCTF_28

A33

RSVD_NCTF_29

C35

RSVD_NCTF_30

B35

RSVD_NCTF_31

CPU SOCKET_989P

CPU SOCKET_989P

FOX_PZ98927-3641-01F

FOX_PZ98927-3641-01F

CFG1

1

CFG3
CFG4

1

1

CFG7

1

1

1

1

1

1

1

1

1

1

1

1

1

RSVD_NCTF_37

RSVD_NCTF_40

RSVD_NCTF_41

RSVD_NCTF_42

RSVD_NCTF_43

RSVD_NCTF_54
RSVD_NCTF_55

RSVD_NCTF_56
RSVD_NCTF_57

RSVD_TP_59

RSVD_TP_60

RESERVED

RESERVED

RSVD_TP_66

RSVD_TP_67
RSVD_TP_68

RSVD_TP_69

RSVD_TP_70

RSVD_TP_71
RSVD_TP_72

RSVD_TP_73

RSVD_TP_74

RSVD_TP_75

RSVD_TP_76

RSVD_TP_77
RSVD_TP_78

RSVD_TP_79

RSVD_TP_80

RSVD_TP_81
RSVD_TP_82

RSVD_TP_83

RSVD_TP_84

RSVD_TP_85

RSVD32

RSVD33

RSVD34
RSVD35

RSVD36

RSVD38

RSVD39

RSVD45

RSVD46
RSVD47

RSVD48
RSVD49

RSVD50
RSVD51

RSVD52
RSVD53

RSVD58

RSVD62
RSVD63

RSVD64
RSVD65

2

AJ13

AJ12

AH25
AK26

AL26

AR2

AJ26

AJ27

AP1

AT2

AT3

AR1

AL28

AL29
AP30

AP32
AL27

AT31
AT32

AP33
AR33

AT33
AT34

AP35
AR35

AR32

E15

F15
A2

KEY

D15
C15

AJ15
AH15

AA5

AA4
R8

AD3

AD2

AA2
AA1

R9

AG7

AE3

V4

V5
N2

AD5

AD7

W3
W2

N3

AE5

AD9

AP34

VSS

12

VSS (AP34) can be left NC is

R188

R188

CRB implementation; EDS/DG

0_J

0_J

recommendation to GND

0402

0402

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

ARD (RESERVED)

ARD (RESERVED)

ARD (RESERVED)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

2

Monday, January 31, 2011 14:12:42

1

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

9 63

Sheet of

9 63

Sheet of

9 63

0.1

0.1

0.1

5

RTCRST#

VccRTC

18~25mS

+ECVCC

D D

CN25

CN25

2

SMDFIX2

SMDFIX2

IHDA_BITCLK

IHDA_SDATAO

IHDA_RESET#

1

SMDFIX1

SMDFIX1

3 4

R550 33_J 0402R550 33_J 0402

1 2

12

C1809

C1809
NC_33P_50V_J

NC_33P_50V_J

0402_NPO

0402_NPO

R551 33_J 0402R551 33_J 0402

1 2

R549 33_J 0402R549 33_J 0402

1 2

HDA_CODEC_SYNC28

VCC0

12

R481

R481

3.3K_J

3.3K_J

0402

0402

VCC0

12

C669

C669

4.7U_10V_K

4.7U_10V_K

0805_X5R

0805_X5R

HEADER CONN_2P

HEADER CONN_2P

FOX_HS6202E-LH

FOX_HS6202E-LH

C C

B B

A A

VCCRTC

D6

D6

1

12

C482

C482

3

1U_6.3V_M

BAT54C-7-F

BAT54C-7-F

5

12

R343

R343
1M_J

1M_J

0402

0402

12

C1810

C1810
NC_0.1U_16V_M

NC_0.1U_16V_M

0402_X5R

0402_X5R

For EMI

HDA_CODEC_SDATAOUT 28

HDA_CODEC_RST# 28

R347 33_J 0402

R347 33_J 0402

R6038 15_F 0402

R6038 15_F 0402

12

C2622

C2622

NC_47P_50V_J_N

NC_47P_50V_J_N

0402_NPO

0402_NPO

1U_6.3V_M

0402_X5R

0402_X5R

R342

R342

1 2

20K_F

20K_F

0402

0402

Stuff for No-reboot
Low=Default
High=No-reboot

HDA_CODEC_BITCLK 28

1

2

1

2

SPI_PROTECT25,26

2

12

R326

R326
510_F

510_F

0402

0402

RTC2RTC1

12

R327

R327
510_F

510_F

0402

0402

SPI0_MISO_R SPI_MISO_L

12

C671

C671
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

12

1 2

20K_J

20K_J

0402

0402

HDA_SPKR

IHDA_SYNC

KDS_1TJS125BJ4A421P

KDS_1TJS125BJ4A421P

21

C492

C492
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

R344

R344

+3VRUN

12

HDA_DOCK_RST#

+3VRUN

12

U19 SPI ROM-0

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

12

R107

R107

NC_10K_J

NC_10K_J

0402

0402

The traces inside this
block should be wider.

1 2

1 2

JP1

JP1
OPEN_JUMP_OPEN2

OPEN_JUMP_OPEN2

12

C722

C722
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

R315

R315
NC_10K_J

NC_10K_J

0402

0402

+3VALW

12

R6036

R6036
10K_J

10K_J

0402

0402

12

R348

R348

R291

R291

NC_1K_J

NC_1K_J

0402

0402

51_J

51_J

0402

0402

VCC0

21

PGP13

PGP13

12

32

Q15

Q15

1

G

G

NC_2N7002W

NC_2N7002W

C736

C736
15P_50V_J

15P_50V_J

0402_NPO

0402_NPO

RTC_32KX1

1

2

Y632.768KHZ_12.5P_10PPM

Y632.768KHZ_12.5P_10PPM

6 mils

3

4

C735

C735

R555 0_J 0402R555 0_J 0402

15P_50V_J

15P_50V_J

0402_NPO

0402_NPO

SRTCRST#

SM_INTRUDER#

R554 330K_F 0402R554 330K_F 0402

VCCRTC

HDA_SPKR28

HDA_CODEC_SDATAIN028

20MIL

20MIL

TP1000

TP1000

20MIL

20MIL

TP1002

TP1002

20MIL

20MIL

TP1003

TP1003

20MIL

20MIL

TP1004

TP1004

20MIL

20MIL

TP1005

TP1005

20MIL

20MIL

TP1006

TP1006

20MIL

20MIL

TP1007

TP1007

20MIL

20MIL

TP1008

TP1008

20MIL

20MIL

TP1009

TP1009

JTAG_TCK

+3VRUN VCC0

R244

R244

3.3K_J

3.3K_J

SPI0_CS#

0402

0402

SPI0_MISO_R

WP#0

D

D

S

S

U98 Normal Support - 32Mbit
(13-W25032B-7000)

4

R556

R556
10M_J

10M_J

0402

0402

1 2

RTC_32KX2RTC_32KX2_R

12

RTCRST#

1 2

IHDA_BITCLK

IHDA_SYNC

HDA_SPKR

IHDA_RESET#

1

20MIL

20MIL

TP1001

TP1001

TP_HDA_SDIN3

1

IHDA_SDATAO

HDA_DOCK_EN#

HDA_DOCK_RST#

1

JTAG_TCK

1

JTAG_TMS

1

JTAG_TDI

1

JTAG_TDO

1

JTAG_RST#

1

SPI0_CLK

SPI_ROM_CS0#

1

SPI0_MOSI

SPI_MISO_L

PGP12

PGP12

21

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

D31

D31

21

NC_SD103AWS

NC_SD103AWS

U19

U19

1

CS#

2

DO/IO1

HOLD#/IO3

3

WP#/IO2

4

GND

DI/IO0

FLASH_SOIC-8P_32MB

FLASH_SOIC-8P_32MB

W25Q32BVSSIG

W25Q32BVSSIG

4

INTVRMEN

1

VCC

CLK

8
7

6
5

U38A

U38A

B13

RTCX1

D13

RTCX2

C14

RTCRST#

D17

SRTCRST#

A16

INTRUDER#

A14

INTVRMEN

A30

HDA_BCLK

D29

HDA_SYNC

P1

SPKR

C30

HDA_RST#

G30

HDA_SDIN0

F30

HDA_SDIN1

E32

HDA_SDIN2

F32

HDA_SDIN3

B29

HDA_SDO

H32

HDA_DOCK_EN# / GPIO33

J30

HDA_DOCK_RST# / GPIO13

M3

JTAG_TCK

K3

JTAG_TMS

K1

JTAG_TDI

J2

JTAG_TDO

J4

JTAG_RST#

BA2

SPI_CLK

AV3

SPI_CS0#

AY3

SPI_CS1#

AY1

SPI_MOSI

AV1

SPI_MISO

Ibexpeak-M

Ibexpeak-M

null

null

PGP14

PGP14

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

1

HOLD0#

SPI0_CLK

SPI0_MOSIHOLD0#

12

C1604

C1604
NC_12P_50V_J

NC_12P_50V_J

0402_NPO

0402_NPO

3

INT_SERIRQ

R271 10K_J 0402R271 10K_J 0402

1 2

SATA0GP

R273 10K_J 0402R273 10K_J 0402

1 2

SATA1GP

R270 10K_J 0402

R270 10K_J 0402

1

LPC_AD0

R349 33_J 0402R349 33_J 0402

1 2

D33

FWH0 / LAD0

R350 33_J 0402

R350 33_J 0402

1

2

B33

FWH1 / LAD1

R351 33_J 0402R351 33_J 0402

1 2

C32

FWH2 / LAD2

R352 33_J 0402

R352 33_J 0402

A32

1

LPC_FRAME#

C34

LPC_DRQ#0

A34

1

F34

INT_SERIRQ

AB9

AK7

AK6
AK11

AK9

AH6

AH5
AH9

AH8

AF11

AF9
AF7

AF6

AH3

AH1
AF3

AF1

AD9

AD8
AD6

AD5

AD3

AD1
AB3

AB1

VCC_SATA

AF16

AF15

T3

SATA0GP

Y9

SATA1GP

V1

2

20MIL

20MIL

TP999

TP999

SATA_RXN0
SATA_RXP0

SATA_TXN0_PCH

SATA_TXP0_PCH

SATA_RXN1
SATA_RXP1

SATA_TXN1

SATA_TXP1

Non-Support

Non-Support

R267 37.4_F 0402R267 37.4_F 0402

1 2

+3VRUN

3

FWH3 / LAD3

FWH4 / LFRAME#

LDRQ0#

LDRQ1# / GPIO23

RTCIHDA

LPC

RTCIHDA

LPC

SERIRQ

SATA0RXN

SATA0RXP
SATA0TXN

SATA0TXP

SATA1RXN

SATA1RXP
SATA1TXN

SATA1TXP

SATA2RXN

SATA2RXP
SATA2TXN

SATA2TXP

SATA3RXN

SATA3RXP
SATA3TXN

SATA3TXP

SATA4RXN

SATA4RXP
SATA4TXN

SATA

SATA

SATA4TXP

SATA5RXN

SATA5RXP
SATA5TXN

SATA5TXP

SATAICOMPO

SATAICOMPI

SATALED#

SATA0GP / GPIO21

SATA1GP / GPIO19

SPI JTAG

SPI JTAG

VCC0

2

LPC_AD0 25,26,31

LPC_AD1

LPC_AD1 25,26,31

LPC_AD2

LPC_AD2 25,26,31

LPC_AD3

LPC_AD3 25,26,31

LPC_FRAME# 25,26,31

LPC_DRQ#0 26

INT_SERIRQ 25,26

C712 0.01U_10V_K 0402_X7RC712 0.01U_10V_K 0402_X7R

1 2

C710 0.01U_10V_K 0402_X7RC710 0.01U_10V_K 0402_X7R

1 2

SATA_RXN1 29

SATA_RXP1 29

SATA_TXN1 29
SATA_TXP1 29

12

R6037

R6037
10K_J

10K_J

0402

0402

SATA_LED# 33

+1.05V_VCC_SATA

12

0402

0402

0402

0402

100K_J

100K_J

100K_J

100K_J

R6041

R6041

R6042

R6042

TP1120 tpc30t_50

TP1120 tpc30t_50

SI

SATA_RXN0 29
SATA_RXP0 29

SATA_TXN0 29
SATA_TXP0 29

12

0402

0402

100K_J

100K_J

R6043

R6043

BFT Test Pad

SPI0_MOSI

SPI0_CLK

SPI0_CS#

12

2

+3VRUN

2

[HDA_DOCK_EN#/GPIO33]

Low (0) Flash Descriptor Sec urity will be o verridden. Als o, when



this signals is sampled on the rising edge of PWROK then it will also
disable Intel ME and its features.
High (1) Secur ity measure de fined in the Fl ash Descriptor will be



enabled

FW_HW25

EXTERNAL SPI0 ROM INTERFACE(FOR U98)

MB_FLASH0_EN15

CARD_INSERT0

SPI_ROM_CS0#

12

R490

R490
NC_10K_J

NC_10K_J

0402

0402

RTC1

1

2

R162

R162
100_J

100_J

0402

0402

1 2

+ECVCC

SPI0_CLK

SPI0_MOSI
SPI0_MISO_R

SPI_ROM_CS0#

MB_FLASH0_EN

CARD_INSERT0

+ECVCC

12

R163

R163

NC_4.7K_J

NC_4.7K_J

0402

0402

1

1
2

3
4

5
6

7
8

9

10

11
12

13 14

53

1

2

U35

U35
NC_MC74HC1G32DTT1G

NC_MC74HC1G32DTT1G

R6040 0_J 0402R6040 0_J 0402

1 2

+3VRUN

12

R161

R161

1K_J

1K_J

0402

0402

32

Q13

Q13

D

D

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

G

G

S

S

2N7002W

2N7002W

null

null

CN13

CN13

NC_FPC CONN_12P

NC_FPC CONN_12P

FOX_GB5RF120-1203-7H

FOX_GB5RF120-1203-7H

SMDFIX2

SMDFIX2

SMDFIX1

SMDFIX1

+ECVCC

12

C691

C691
NC_0.1U_16V_Y

NC_0.1U_16V_Y

0402_Y5V

0402_Y5V

SPI0_CS#

4

PGP10

PGP10

1

HDA_DOCK_EN#

21

12

R1613

R1613

NC_1K_J

NC_1K_J

0402

0402

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PCH (HDA,JTAG,SAT)

PCH (HDA,JTAG,SAT)

PCH (HDA,JTAG,SAT)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Page Modified:

Page Modified:

Page Modified:

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

10 63

Sheet of

10 63

Sheet of

10 63

0.1

0.1

0.1

1

2

3

4

5

6

7

8

U38B

PCI-E Port Table

Port

Function

A A

GbE LAN

Port1

Port2

NC

WLAN

Port3

Cardreader

Port4

Port5

USB3.0

Port6

NC

Port7

Non-Support

Port8

Non-Support

B B

LAN_RXN327

LAN_RXP327

LAN_TXN327

LAN_TXP327

20MIL

20MIL

TP1035

TP1035

20MIL

20MIL

TP1032

TP1032

20MIL

20MIL

TP1034

TP1034

20MIL

20MIL

TP1033

TP1033

WLAN_RXN131
WLAN_RXP131

WLAN_TXN131
WLAN_TXP131

CR_RXN832

CR_RXP832

CR_TXN832
CR_TXP832

USB30_RXN133

USB30_RXP133

USB30_TXN133

USB30_TXP133

20MIL

20MIL

TP1011

TP1011

20MIL

20MIL

TP1012

TP1012

20MIL

20MIL

TP1010

TP1010

20MIL

20MIL

TP1013

TP1013

C414 0.1U_6.3V_K 0402_X5RC414 0.1U_6.3V_K 0402_X5R

1 2

C415 0.1U_6.3V_K 0402_X5RC415 0.1U_6.3V_K 0402_X5R

1 2

1

1

1

1

C693 0.1U_6.3V_K 0402_X5RC693 0.1U_6.3V_K 0402_X5R

1 2

C694 0.1U_6.3V_K 0402_X5RC694 0.1U_6.3V_K 0402_X5R

1 2

C122 0.1U_10V_K 0402_X7RC122 0.1U_10V_K 0402_X7R

1 2

C119 0.1U_10V_K 0402_X7RC119 0.1U_10V_K 0402_X7R

1 2

C126 0.1U_10V_K 0402_X7RC126 0.1U_10V_K 0402_X7R

1 2

C144 0.1U_10V_K 0402_X7RC144 0.1U_10V_K 0402_X7R

1 2

1

1

1

1

Non-Support

LAN_TXN3_C
LAN_TXP3_C

WLAN_TXN1_C
WLAN_TXP1_C

CR_TXN8_C
CR_TXP8_C

USB30_TXN1_C

USB30_TXP1_C

Non-Support

RP3 0

RP3 0

R_PCIE_WLAN#

1

1 2

2
1

1 2

RP27 0

RP27 0

4
3

0404_4P2R

0404_4P2R

4
3

1 2

2

0404_4P2R

0404_4P2R

RP2 0

RP2 0

0404_4P2R

0404_4P2R

3
4

1
2

1
2

3

4

R_PCIE_WLAN

3

WLAN_CLK_REQ#

PCIECLKRQ1#

R_PCIE_LAN#

R_PCIE_LAN

CLK_REQ_LAN#

R_CLK_PCIE_CR#

R_CLK_PCIE_CR

CR_CLK_REQ#

RP2600404_4P2R RP2600404_4P2R

R_CLK_PCIE_USB30#

R_CLK_PCIE_USB30

USB30_CLKREQ4#

PEG_B_CLKREQ#

PCIECLKRQ3#

CLK_PCIE_WLAN#31

CLK_PCIE_WLAN31

R508 NC_10K_J 0402R508 NC_10K_J 0402

1 2

+3VSUS

R6051 10K_J 0402R6051 10K_J 0402

1 2

+3VALW

WLAN_CLK_REQ#

R504 NC_10K_J 0402R504 NC_10K_J 0402

1 2

+3VALW

R283 10K_J 0402R283 10K_J 0402

1 2

+3VRUN

CLK_REQ_LAN#

C C

R774 10K_J 0402R774 10K_J 0402

1 2

+3VALW

USB30_CLKREQ4#

R747 10K_J 0402R747 10K_J 0402

1 2

+3VALW

CR_CLK_REQ#

D D

1

WLAN_CLK_REQ# 31

CLK_REQ_LAN# 27

USB30_CLKREQ4# 33

CR_CLK_REQ# 32

2

CLK_PCIE_LAN#27

CLK_PCIE_USB30#33

CLK_PCIE_USB3033

+3VRUN

CLK_PCIE_LAN27

+3VALW

CLK_PCIE_CR#32

CLK_PCIE_CR32

+3VALW

R503 10K_J 0402R503 10K_J 0402

R6062 10K_J 0402R6062 10K_J 0402

R295 10K_J 0402R295 10K_J 0402

U38B

BG30

PERN1

BJ30

PERP1

BF29

PETN1

BH29

PETP1

AW30

PERN2

BA30

PERP2

BC30

PETN2

BD30

PETP2

AU30

PERN3

AT30

PERP3

AU32

PETN3

AV32

PETP3

BA32

PERN4

BB32

PERP4

BD32

PETN4

BE32

PETP4

BF33

PERN5

BH33

PERP5

BG32

PETN5

BJ32

PETP5

BA34

PERN6

AW34

PERP6

BC34

PETN6

BD34

PETP6

AT34

PERN7

AU34

PERP7

AU36

PETN7

AV36

PETP7

BG34

PERN8

BJ34

PERP8

BG36

PETN8

BJ36

PETP8

AK48

CLKOUT_PCIE0N

AK47

CLKOUT_PCIE0P

P9

PCIECLKRQ0# / GPIO73

AM43

CLKOUT_PCIE1N

AM45

CLKOUT_PCIE1P

U4

PCIECLKRQ1# / GPIO18

AM47

CLKOUT_PCIE2N

AM48

CLKOUT_PCIE2P

N4

PCIECLKRQ2# / GPIO20

AH42

CLKOUT_PCIE3N

AH41

CLKOUT_PCIE3P

A8

PCIECLKRQ3# / GPIO25

AM51

CLKOUT_PCIE4N

AM53

CLKOUT_PCIE4P

M9

PCIECLKRQ4# / GPIO26

AJ50

CLKOUT_PCIE5N

AJ52

CLKOUT_PCIE5P

H6

PCIECLKRQ5# / GPIO44

AK53

CLKOUT_PEG_B_N

AK51

CLKOUT_PEG_B_P

P13

PEG_B_CLKRQ# / GPIO56

Ibexpeak-M

Ibexpeak-M

null

null

4

SMBus

SMBus

PCI-E*

PCI-E*

Link

Link

Controller

Controller

PEG_A_CLKRQ# / GPIO47

PEG

PEG

CLKOUT_DP_N / CLKOUT_BCLK1_N

CLKOUT_DP_P / CLKOUT_BCLK1_P

From CLK BUFFER

From CLK BUFFER

CLKIN_SATA_N / CKSSCD_N

CLKIN_SATA_P / CKSSCD_P

CLKOUTFLEX0 / GPIO64

CLKOUTFLEX1 / GPIO65

CLKOUTFLEX2 / GPIO66

CLKOUTFLEX3 / GPIO67

Clock Flex

Clock Flex

SMBALERT# / GPIO11

SMBCLK

SMBDATA

SML0ALERT# / GPIO60

SML0CLK

SML0DATA

SML1ALERT# / GPIO74

SML1CLK / GPIO58

SML1DATA / GPIO75

CL_CLK1

CL_DATA1

CL_RST1#

CLKOUT_PEG_A_N

CLKOUT_PEG_A_P

CLKOUT_DMI_N
CLKOUT_DMI_P

CLKIN_DMI_N

CLKIN_DMI_P

CLKIN_BCLK_N

CLKIN_BCLK_P

CLKIN_DOT_96N

CLKIN_DOT_96P

REFCLK14IN

CLKIN_PCILOOPBACK

XTAL25_IN

XTAL25_OUT

XCLK_RCOMP

B9

H14

C8

J14

C6

G8

M14

E10

G12

T13

T11

T9

H1

AD43

AD45

AN4
AN2

AT1

AT3

AW24

BA24

AP3

AP1

F18

E18

AH13

AH12

P41

J42

AH51

AH53

AF38

T45

P43

T42

N50

5

WAKE_SCI#

SMB_CLK_R

SMB_DATA_R

GPIO60

SML0_CLK

SML0_DATA

LPD_SPI_INTR#

SMB_THRM_CLK

SMB_THRM_DATA

PEG_CLKREQ#

CLK_PEG#

CLK_PEG

XTAL25_IN

XTAL25_OUT

XCLK_RCOMP

WAKE_SCI# 25

PCH EEPROM/CKG/DIMM/ExpressCard

SMB_THRM_CLK 25,30,38

SMB_THRM_DATA 25,30,38

RP23 0 0404_4P2RRP23 0 0404_4P2R

1

4

2

3

CLK_EXP_N 4
CLK_EXP_P 4

CLK_DP_N 4
CLK_DP_P 4

CLK_DMI_PCH# 19
CLK_DMI_PCH 19

CLK_PCH_BCLK# 19
CLK_PCH_BCLK 19

DREFCLK# 19
DREFCLK 19

CLK_PCIE_SATA# 19
CLK_PCIE_SATA 19

REF_14M_PCH 19

CLK_PCI_FB 14

1

20MIL

20MIL

TP1036

TP1036

R6064 90.9_F 0402R6064 90.9_F 0402

DGPU_DDC_SELECT#

DGPU_DDC_SELECT#

Calpella Platfo rm Design Guide - Addendu m /
Update Rev . 1.52 (Doc #41 4044).).



XTAL_IN should be pulled to GND via a 0ohm by
default.
This pull-down resistor on XTAL_IN should only
be un-stuffed when 25MHz crystal is used.

R529 10K_J 0402R529 10K_J 0402

1 2

R523 NC_10K_J 0402R523 NC_10K_J 0402

1 2

PGP15

PGP15

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PCIE_REFCLK# 36

PCIE_REFCLK 36

+1_05V_VTT

R6112 10K_J 0402R6112 10K_J 0402

1 2



6

EC/Thermal Sensor

21

+3VALW

+3VRUN

GPIO60

R6046 10K_J 0402R6046 10K_J 0402

WAKE_SCI#

R6044 10K_J 0402R6044 10K_J 0402

LPD_SPI_INTR#

R6047 10K_J 0402R6047 10K_J 0402

SML0_CLK

R6045 2.2K_J 0402R6045 2.2K_J 0402

SML0_DATA

R6048 2.2K_J 0402R6048 2.2K_J 0402

+3VRUN

12

12

R6049

R6049

2.2K_J

2.2K_J

0402

0402

SMB_CLK_R

SMB_DATA_R

Q56

Q56

32

2N7002-7-F

2N7002-7-F

D

D

1

DGPU_PWROK 15,25,48,59

G

G

S

S

XTAL25_IN

R502

R502
1M_J

1M_J

0402

0402

XTAL25_OUT

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified:

Page Modified:

Page Modified:

7

12

R501 0_J 0402R501 0_J 0402

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

PCH (PCI-E,SMBUS,CLK)

PCH (PCI-E,SMBUS,CLK)

PCH (PCI-E,SMBUS,CLK)

Custom

Custom

Custom

Monday, January 31, 2011 14:12:47

Monday, January 31, 2011 14:12:47

Monday, January 31, 2011 14:12:47

1 2

1 2

1 2

1 2

1 2

R6050

R6050

2.2K_J

2.2K_J

0402

0402

25MHZ_12P_20PPM

25MHZ_12P_20PPM

HARMONY_X3G025000DC1H

HARMONY_X3G025000DC1H

Y4

Y4

34

1 2

12

C701

C701
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

+3VALW

SMB_CLK_R 19,20,21,30

SMB_DATA_R 19,20,21,30

12

C702

C702
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

Sheet of

11 63

Sheet of

11 63

Sheet of

11 63

8

0.1

0.1

0.1

1

A A

+1_05V_VTT

B B

2

DMI_RXN03

DMI_RXN13

DMI_RXN23

DMI_RXN33

DMI_RXP03

DMI_RXP13
DMI_RXP23

DMI_RXP33

DMI_TXN03

DMI_TXN13
DMI_TXN23

DMI_TXN33

DMI_TXP03

DMI_TXP13

DMI_TXP23

DMI_TXP33

R486 49.9_F 0402R486 49.9_F 0402

1 2

DMI_RXN0

DMI_RXN1

DMI_RXN2

DMI_RXN3

DMI_RXP0

DMI_RXP1

DMI_RXP2

DMI_RXP3

DMI_TXN0

DMI_TXN1

DMI_TXN2

DMI_TXN3

DMI_TXP0

DMI_TXP1

DMI_TXP2

DMI_TXP3

DMI_COMP

3

U38C

U38C

BC24

DMI0RXN

BJ22

DMI1RXN

AW20

DMI2RXN

BJ20

DMI3RXN

BD24

DMI0RXP

BG22

DMI1RXP

BA20

DMI2RXP

BG20

DMI3RXP

BE22

DMI0TXN

BF21

DMI1TXN

BD20

DMI2TXN

BE18

DMI3TXN

BD22

DMI0TXP

BH21

DMI1TXP

BC20

DMI2TXP

BD18

DMI3TXP

BH25

DMI_ZCOMP

BF25

DMI_IRCOMP

DMI

DMI

4

For Disable Arrandale Graphic
In addition, FDI_RXN_[7:0] and FDI_RXP_[7:0] can be left floating on the PCH.
FDI_TX[7:0] and FDI_TX#[7:0] can be left floating on the Arrandale. The
GFX_IMON,FDI_FSYNC[0], FDI_FSYNC[1], FDI_LSYNC[0], FDI_LSYNC[1], and FDI_INT
signals on the Arrandale side should be tied to GND (through 1-k

BA18

FDI_RXN0

BH17

FDI_RXN1

BD16

FDI_RXN2

BJ16

FDI_RXN3

BA16

FDI_RXN4

BE14

FDI_RXN5

BA14

FDI_RXN6

BC12

FDI_RXN7

BB18

FDI_RXP0

BF17

FDI_RXP1

BC16

FDI_RXP2

BG16

FDI_RXP3

AW16

FDI_RXP4

BD14

FDI_RXP5

BB14

FDI_RXP6

BD12

FDI_RXP7

BJ14

FDI_INT

BF13

FDI_FSYNC0

FDI

FDI

FDI_FSYNC1

FDI_LSYNC0

FDI_LSYNC1

BH13

BJ12

BG14

FDI_INT

FDI_FSYNC0

FDI_FSYNC1

FDI_LSYNC0

FDI_LSYNC1

5

FDI_TXN0 3

FDI_TXN1 3
FDI_TXN2 3

FDI_TXN3 3
FDI_TXN4 3

FDI_TXN5 3
FDI_TXN6 3

FDI_TXN7 3

FDI_TXP0 3

FDI_TXP1 3

FDI_TXP2 3
FDI_TXP3 3

FDI_TXP4 3
FDI_TXP5 3

FDI_TXP6 3
FDI_TXP7 3

FDI_INT 3

FDI_FSYNC0 3

FDI_FSYNC1 3

FDI_LSYNC0 3

FDI_LSYNC1 3

6

 ∮∮∮∮

5% resistors).

7

8

SB_RST#

SB_RST#26

IMVP_PWRGD25

R382 NC_0_J 0402R382 NC_0_J 0402

PM_DRAM_PWRGD4

SUS_PWR_ACK#25

1 2

1 2

PM_RSMRST#25

PWRBTN#25

AC_Present25

LAN_RST#

RUN_PWRGD4,25,48,55,56

C C

+3VRUN

R6066

R6066
NC_10K_J

NC_10K_J

0402

0402

1 2

MPWROK_R

R6067 NC_0_J 0402R6067 NC_0_J 0402

D D

1

PGP20

PGP20

SUS_PWR_ACK#

PWRBTN#

AC_Present

SYS_PWROK

PM_RSMRST#_R

PWROK

2

PGP16

PGP16

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP17

PGP17

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP18

PGP18

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

R558 NC_0_J 0402R558 NC_0_J 0402

1 2

R557 10K_J 0402R557 10K_J 0402

1 2

PM_RSMRST#_R

21

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

D32

D32

2

3

1

BAT54

BAT54

D10

D10

1

3

2

BAT54C-7-F

BAT54C-7-F

21

21

21

PM_BATLOW#

SYS_PWROK

PWROK

MPWROK_R

LAN_RST#

PM_RI#

T6

SYS_RESET#

M6

SYS_PWROK

B17

PWROK

K5

MEPWROK

A10

LAN_RST#

D9

DRAMPWROK

C16

RSMRST#

M1

SUS_PWR_ACK / GPIO30

P5

PWRBTN#

P7

ACPRESENT / GPIO31

A6

BATLOW# / GPIO72

F14

RI#

Ibexpeak-M

Ibexpeak-M

ALW_PWRGD 25,54

3

CLKRUN# / GPIO32

SUS_STAT# / GPIO61

SUSCLK / GPIO62

SLP_S5# / GPIO63

SLP_S4#

SLP_S3#

System Power Management

System Power Management

PMSYNCH

SLP_LAN#

4

WAKE#

SLP_M#

PCIE_WAKE#_R

J12

PM_CLKRUN#

Y1

PM_SUS_STAT#

P8

PM_S4_STATE#

F3

PM_SLP_S5#

E4

PM_SLP_S4#

H7

PM_SLP_S3#

P12

PM_SLP_ME#

K8

PM_SLP_DSW#

N2

TP23

H_PM_SYNC

BJ10

PM_SLP_LAN#

F6

PGP19

PGP19

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PM_CLKRUN# 25,26

PM_SUS_STAT# 25,26

1

TP1015

TP1015

PM_SLP_S5# 25

PM_SLP_S4# 25

PM_SLP_S3# 24,25

1

TP1017

TP1017

1

TP330

TP330

H_PM_SYNC 4

1

TP1016

TP1016

5

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

21

PCIE_WAKE# 27,31,33

6

ALW_PWRGD

PWRBTN#

RUN_PWRGD

PCIE_WAKE#_R
PM_RI#

PM_SLP_LAN#

SB_RST#

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

TP3506 tpc40t_50TP3506 tpc40t_50

1

TP3507 tpc40t_50TP3507 tpc40t_50

1

TP3508 tpc40t_50TP3508 tpc40t_50

1

SB_RST#

R533 8.2K_J 0402R533 8.2K_J 0402

PM_CLKRUN#

PM_BATLOW#

SUS_PWR_ACK#

AC_Present

PM_RSMRST#

PWROK

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

PCH (DMI,FDI,GPIO)

PCH (DMI,FDI,GPIO)

PCH (DMI,FDI,GPIO)

7

1 2

R500 8.2K_J 0402R500 8.2K_J 0402

1 2

R292 10K_J 0402R292 10K_J 0402

1 2

R307 10K_J 0402R307 10K_J 0402

1 2

R341 NC_10K_J 0402R341 NC_10K_J 0402

1 2

R337 8.2K_J 0402R337 8.2K_J 0402

1 2

R6068 8.2K_J 0402R6068 8.2K_J 0402

1 2

R513 10K_J 0402R513 10K_J 0402

1 2

R6069 NC_8.2K_J 0402R6069 NC_8.2K_J 0402

1 2

R369 10K_J 0402R369 10K_J 0402

1 2

R553 10K_J 0402R553 10K_J 0402

1 2

Rains

Rains

Rains

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

+3VRUN

+3VALW

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

12 63

Sheet of

12 63

Sheet of

12 63

8

0.1

0.1

0.1

1

A A

NC for disable LVDS

NC for disable LVDS

B B

R659 150_F 0201R659 150_F 0201

1 2

R662 150_F 0201R662 150_F 0201

1 2

R664 150_F 0201R664 150_F 0201

1 2

C C

Place resistor close to GMCH

Calpella Platform Design Guide - Addendum
/ Update Rev. 1.52 (Doc #414044).).

GM_BLUE

GM_GREEN

GM_RED

2

+3VRUN

R627 2.37K_F 0402R627 2.37K_F 0402

GM_ODD_CLKIN-23

GM_ODD_CLKIN+23

GM_ODD_RXIN0-23

GM_ODD_RXIN1-23

GM_ODD_RXIN2-23

GM_ODD_RXIN0+23
GM_ODD_RXIN1+23

GM_ODD_RXIN2+23



GM_INV_EN23

GM_LCDVCC_EN23

GM_BRADJ23

GM_DDC2CLK23

GM_DDC2DATA23

R626 10K_J 0201R626 10K_J 0201

1 2

R630 10K_J 0201R630 10K_J 0201

1 2

1 2

GM_DDCCLK22

GM_DDCDATA22

GM_HSYNC22

GM_VSYNC22



3

GM_DDC2CLK

GM_DDC2DATA

20MIL

20MIL

TP1018

TP1018

PGP21POWER_CLOSE_GAP_0402 PGP21POWER_CLOSE_GAP_0402

PGP22POWER_CLOSE_GAP_0402 PGP22POWER_CLOSE_GAP_0402

20MIL

20MIL

20MIL

20MIL

GM_BLUE22

GM_GREEN22

GM_RED22

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402
PGP23

PGP23

PGP24

PGP24

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

R6611K_F 0402R6611K_F 0402

1 2

21

21

21

21

L_CTRL_CLK
L_CTRL_DATA

LVDS_IBG

LVDS_VBG

1

LVDS_VREFH

LVDS_VREFL

TP1029

TP1029

TP1030

TP1030

GM_BLUE
GM_GREEN

GM_RED

GM_HSYNC_R

GM_VSYNC_R

CRT_IREF

4

U38D

U38D

T48

L_BKLTEN

T47

L_VDD_EN

Y48

L_BKLTCTL

AB48

L_DDC_CLK

Y45

L_DDC_DATA

AB46

L_CTRL_CLK

V48

L_CTRL_DATA

AP39

LVD_IBG

AP41

LVD_VBG

AT43

LVD_VREFH

AT42

LVD_VREFL

AV53

LVDSA_CLK#

AV51

LVDSA_CLK

BB47

BA52
AY48

AV47

BB48

BA50
AY49

AV48

AP48

AP47

AY53

AT49
AU52

AT53

1

AY51

AT48
AU50

1

AT51

AA52

AB53

AD53

V51
V53

Y53

Y51

AD48

AB51

LVDSA_DATA#0

LVDSA_DATA#1
LVDSA_DATA#2

LVDSA_DATA#3

LVDSA_DATA0

LVDSA_DATA1
LVDSA_DATA2

LVDSA_DATA3

LVDSB_CLK#

LVDSB_CLK

LVDSB_DATA#0

LVDSB_DATA#1
LVDSB_DATA#2

LVDSB_DATA#3

LVDSB_DATA0

LVDSB_DATA1
LVDSB_DATA2

LVDSB_DATA3

CRT_BLUE

CRT_GREEN

CRT_RED

CRT_DDC_CLK
CRT_DDC_DATA

CRT_HSYNC

CRT_VSYNC

DAC_IREF

CRT_IRTN

Ibexpeak-M

Ibexpeak-M

null

null

LVDS

LVDS

Digital Display Interface

Digital Display Interface

CRT

CRT

SDVO_TVCLKINN

SDVO_TVCLKINP

SDVO_STALLN

SDVO_STALLP

SDVO_INTN

SDVO_INTP

SDVO_CTRLCLK

SDVO_CTRLDATA

DDPB_AUXN

DDPB_AUXP

DDPB_HPD

DDPB_0N

DDPB_0P

DDPB_1N

DDPB_1P

DDPB_2N

DDPB_2P

DDPB_3N

DDPB_3P

DDPC_CTRLCLK

DDPC_CTRLDATA

DDPC_AUXN

DDPC_AUXP

DDPC_HPD

DDPC_0N

DDPC_0P

DDPC_1N

DDPC_1P

DDPC_2N

DDPC_2P

DDPC_3N

DDPC_3P

DDPD_CTRLCLK

DDPD_CTRLDATA

DDPD_AUXN

DDPD_AUXP

DDPD_HPD

DDPD_0N

DDPD_0P

DDPD_1N

DDPD_1P

DDPD_2N

DDPD_2P

DDPD_3N

DDPD_3P

5

BJ46

BG46

BJ48

BG48

BF45

BH45

T51
T53

BG44

BJ44

AU38

BD42

BC42

BJ42

BG42

BB40

BA40

AW38

BA38

Y49
AB49

BE44

BD44

AV40

BE40

BD40

BF41

BH41

BD38

BC38

BB36

BA36

U50
U52

BC46

BD46

AT38

BJ40

BG40

BJ38

BG38

BF37

BH37

BE36

BD36

HDMIC_CTRL_CLK

HDMIC_CTRL_DATA

DDPC_HPD

DDPC_2N

DDPC_2P
DDPC_1N

DDPC_1P

DDPC_0N

DDPC_0P

DDPC_3N

DDPC_3P

1

1

1

1

1

1

1

1

PGP26

PGP26

20MIL

20MIL

TP1019

TP1019

20MIL

20MIL

TP1020

TP1020

20MIL

20MIL

TP1021

TP1021

20MIL

20MIL

TP1022

TP1022

20MIL

20MIL

TP1023

TP1023

20MIL

20MIL

TP1024

TP1024

20MIL

20MIL

TP1025

TP1025

20MIL

20MIL

TP1026

TP1026

21

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

6

HDMIC_CTRL_CLK 24
HDMIC_CTRL_DATA 24

TMDS_B_HPD#

7

DDPC_3P

1 2

C782 0.1U_6.3V_K 0201_X5RC782 0.1U_6.3V_K 0201_X5R

DDPC_3N

1 2

C783 0.1U_6.3V_K 0201_X5RC783 0.1U_6.3V_K 0201_X5R

DDPC_2P TMDSC_DATA2

1 2

C784 0.1U_6.3V_K 0201_X5RC784 0.1U_6.3V_K 0201_X5R

DDPC_2N

1 2

C785 0.1U_6.3V_K 0201_X5RC785 0.1U_6.3V_K 0201_X5R

DDPC_1P

1 2

C786 0.1U_6.3V_K 0201_X5RC786 0.1U_6.3V_K 0201_X5R

DDPC_1N

1 2

C787 0.1U_6.3V_K 0201_X5RC787 0.1U_6.3V_K 0201_X5R

DDPC_0P

1 2

C788 0.1U_6.3V_K 0201_X5RC788 0.1U_6.3V_K 0201_X5R

DDPC_0N

1 2

C789 0.1U_6.3V_K 0201_X5RC789 0.1U_6.3V_K 0201_X5R

TMDSC_CLK

TMDSC_CLK#

TMDSC_DATA2#

TMDSC_DATA1

TMDSC_DATA1#

TMDSC_DATA0

TMDSC_DATA0#

8

TMDSC_CLK 24

TMDSC_CLK# 24

TMDSC_DATA2 24

TMDSC_DATA2# 24

TMDSC_DATA1 24

TMDSC_DATA1# 24

TMDSC_DATA0 24

TMDSC_DATA0# 24

+5VRUN

1

G

TMDS_B_HPD#

D D

1

2

3

G

PGP25

PGP25

32

D

D

S

S

12

Q58

Q58

R670

R670

BSS138_G

BSS138_G

100K_J

100K_J

0402

0402

4

21

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

SFT_HDMI_DET_3 24

5

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PCH (LVDS,DDI)

PCH (LVDS,DDI)

PCH (LVDS,DDI)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

6

Monday, January 31, 2011 14:12:42

7

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

8

13 63

13 63

13 63

0.1

0.1

0.1

+3VRUN +3VRUN

RP16

RP16

1
2

3
4

8.2K

8.2K

0804_8P4R

0804_8P4R

+3VRUN

RP13

RP13

1
2

D D

3
4

8.2K

8.2K

0804_8P4R

0804_8P4R

+3VRUN

RP14

RP14

1
2

3
4

8.2K

8.2K

0804_8P4R

0804_8P4R

+3VRUN

C C

+3VRUN

B B

A A

5

DGPU_SELECT#

8

INT_PIRQD#

7

PCI_IRDY#

6

PCI_STOP#

5

+3VRUN

PCI_REQ#3

8

INT_PIRQF#

7

INT_PIRQB#

6

PCI_REQ#0

5

PCI_PERR#

8

PCI_DEVSEL#

7

PCI_SERR#

6

PCI_LOCK#

5

R338 8.2K_J 0402R338 8.2K_J 0402

1 2

NC_10K_J

NC_10K_J

R6074

1 2

1 2

R6075 NC_10K_J 0402R6075 NC_10K_J 0402

5

RP15

RP15

1
2

3
4

8.2K

8.2K

0804_8P4R

0804_8P4R

RP17

RP17

1
2

3
4

8.2K

8.2K

0804_8P4R

0804_8P4R

PCI_GNT#3

12

R6072

R6072

NC_4.7K_J

NC_4.7K_J

0402

0402

DGPU_PWM_SELECT#

0402R6074

0402

CLK_33M_DEBUG31

INT_PIRQH#

8
7

PCI_FRAME#

6
5

INT_PIRQA#

8
7

INT_PIRQC#

6

INT_PIRQG#

5

USB30_SMI33

G_INT#30

PCLK_JIG26

CLK_KBCPCI25

CLK_PCI_FB11

PCI_TRDY#

PCI_REQ#1

PLT_RST#26,27,32,33,36

20MIL

20MIL

20MIL

20MIL

TP374

TP374

20MIL

20MIL

TP375

TP375

PGP27

PGP27

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP28

PGP28

12

R6358

R6358
10K_J

10K_J

0402

0402

1

TP1075

TP1075

PLT_RST#

R6189

R6189

NC_100K_J

NC_100K_J

20MIL

20MIL

20MIL

20MIL

0402

0402

1

1

20MIL

20MIL

PCI_SERR#25

20MIL

20MIL

TP1072

TP1072

TP1073

TP1073

R518 22_J 0402R518 22_J 0402

R687 22_J 0402R687 22_J 0402

R297 22_J 0402R297 22_J 0402

R282 22_J 0402R282 22_J 0402

U85

U85
74AHC1G08GW

74AHC1G08GW

1 2

TP1071

TP1071

TP373

TP373

4

U38E

U38E

H40

AD0

N34

AD1

C44

AD2

A38

AD3

C36

AD4

J34

AD5

A40

AD6

D45

AD7

E36

AD8

H48

AD9

E40

AD10

C40

AD11

M48

AD12

M45

AD13

F53

AD14

M40

AD15

M43

AD16

J36

AD17

INT_PIRQA#
INT_PIRQB#

INT_PIRQC#
INT_PIRQD#

PCI_REQ#0
PCI_REQ#1

DGPU_SELECT#

PCI_REQ#3

PCI_GNT#0

PCI_GNT#1

DGPU_PWM_SELECT#

PCI_GNT#3

21

INT_PIRQF#

INT_PIRQG#

INT_PIRQH#

21

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PCI_RST#

1

PCI_SERR#
PCI_PERR#

PCI_IRDY#

PCI_PAR

1

PCI_DEVSEL#

PCI_FRAME#

PCI_LOCK#

PCI_STOP#

1

PCI_TRDY#

PME#_ICH

1

PLT_RST#

CLK_PCI_JIG

CLK_33M_DEBUG_R

CLK_PCI_KBC

CLK_PCI_FB_R

+3VALW

12

C1812

C1812

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

53

1

BUF_PLT_RST#

4

2

K48
F40

C42

K46

M51

J52
K51

L34
F42

J40

G46

F44

M47
H36

J50

G42

H47
G34

G38
H51

B37
A44

F51

A46
B45

M53

F48
K45

F36

H53

B41
K53

A36
A48

K6

E44

E50

A42

H44

F46

C46

D49

D41
C48

M7

D5

N52

P53

P46
P51

P48

AD18
AD19

AD20

AD21
AD22

AD23
AD24

AD25
AD26

AD27
AD28

AD29

AD30
AD31

C/BE0#
C/BE1#

C/BE2#
C/BE3#

PIRQA#
PIRQB#

PIRQC#
PIRQD#

REQ0#

REQ1# / GPIO50
REQ2# / GPIO52

REQ3# / GPIO54

GNT0#
GNT1# / GPIO51

GNT2# / GPIO53
GNT3# / GPIO55

PIRQE# / GPIO2
PIRQF# / GPIO3

PIRQG# / GPIO4
PIRQH# / GPIO5

PCIRST#

SERR#

PERR#

IRDY#
PAR

DEVSEL#
FRAME#

PLOCK#

STOP#
TRDY#

PME#

PLTRST#

CLKOUT_PCI0
CLKOUT_PCI1

CLKOUT_PCI2
CLKOUT_PCI3

CLKOUT_PCI4

Ibexpeak-M

Ibexpeak-M

null

null

BUF_PLT_RST# 4,25,26,31

PCI

PCI

NV_DQ10 / NV_IO10
NV_DQ11 / NV_IO11

NVRAM

NVRAM

NV_DQ12 / NV_IO12
NV_DQ13 / NV_IO13

NV_DQ14 / NV_IO14
NV_DQ15 / NV_IO15

USB

USB

Buffer to reduce loading on PLT_RST#.

4

NV_CE#0

NV_CE#1
NV_CE#2

NV_CE#3

NV_DQS0
NV_DQS1

NV_DQ0 / NV_IO0
NV_DQ1 / NV_IO1

NV_DQ2 / NV_IO2
NV_DQ3 / NV_IO3

NV_DQ4 / NV_IO4
NV_DQ5 / NV_IO5

NV_DQ6 / NV_IO6
NV_DQ7 / NV_IO7

NV_DQ8 / NV_IO8
NV_DQ9 / NV_IO9

NV_ALE

NV_CLE

NV_RCOMP

NV_RB#

NV_WR#0_RE#
NV_WR#1_RE#

NV_WE#_CK0
NV_WE#_CK1

USBP0N
USBP0P

USBP1N
USBP1P

USBP2N
USBP2P

USBP3N
USBP3P

USBP4N
USBP4P

USBP5N
USBP5P

USBP6N

USBP6P

USBP7N

USBP7P
USBP8N

USBP8P
USBP9N

USBP9P

USBP10N
USBP10P

USBP11N
USBP11P

USBP12N
USBP12P

USBP13N
USBP13P

USBRBIAS#

USBRBIAS

OC0# / GPIO59
OC1# / GPIO40

OC2# / GPIO41
OC3# / GPIO42

OC4# / GPIO43

OC5# / GPIO9

OC6# / GPIO10
OC7# / GPIO14

3

AY9

BD1
AP15

BD8

AV9
BG8

AP7
AP6

AT6
AT9

BB1
AV6

BB3
BA4

BE4
BB6

BD6
BB7

BC8
BJ8

BJ6
BG6

NV_ALE

BD3

NV_CLE

AY6

NV_RCOMP

AU2

AV7

AY8
AY5

AV11
BF5

USB_PN0

H18

USB_PP0

J18

USB_PN1

A18

USB_PP1

C18

USB_PN2

N20

USB_PP2

P20

USB_PN3

J20

USB_PP3

L20

USB_PN4

F20

USB_PP4

G20

USB_PN5

A20

USB_PP5

C20

USB_PN6

M22

USB_PP6

N22

USB_PN7

B21

USB_PP7

D21

USB_PN8

H22

USB_PP8

J22

USB_PN9

E22

USB_PP9

F22

USB_PN10

A22

USB_PP10

C22

USB_PN11

G24

USB_PP11

H24

USB_PN12

L24

USB_PP12

M24

USB_PN13

A24

USB_PP13

C24

USBRBIAS

B25

D25

USB_OC#0

N16

USB_OC#1

J16

USB_OC#2

F16

USB_OC#3

L16

USB_OC#4

E14

USB_OC#5

G16

USB_OC#6

F12

USB_OC#7

T15

+3VALW

3

R552

R552

1 2

22.6_F 0402

22.6_F 0402

USB_OC#2

USB_OC#5
USB_OC#4

USB_OC#6

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

7
8

9

10

TP1043

TP1043

TP1044

TP1044

TP985

TP985

TP986

TP986

TP987

TP987

TP988

TP988

TP1040

TP1040

TP1041

TP1041

TP995

TP995

TP996

TP996

TP989

TP989

TP990

TP990

TP1037

TP1037

TP1038

TP1038

TP1045

TP1045

TP1046

TP1046

TP993

TP993

TP994

TP994

TP991

TP991

TP992

TP992

TP1014

TP1014

TP1027

TP1027

USB_OC#0 33

RP5

RP5

10K

10K

1206_10P8R

1206_10P8R

USB_PN1 33
USB_PP1 33

USB_PN2 31

USB_PP2 31

USB_PN13 23

USB_PP13 23

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

56

4
3

2
1

USB_OC#1
USB_OC#3

USB_OC#7

USB_OC#0

12

R6073

R6073

NC_32.4_F

NC_32.4_F

0402

0402

+3VALW

2

DMI Termination Voltage

Set to Vss when LOW

NV_CLE

Set to Vcc when HIGH

NV_CLE

R6070

NV_ALE

R6071

Danbury Technology
Disabled when Low
Enabled when High

NC_1K_J

NC_1K_J

1 2

1 2

NC_1K_J

NC_1K_J

1

+VCCPNAND

0402R6070

0402

0402R6071

0402

USB PORT Function

PORT-0

PORT-1

PORT-2

PORT-3

PORT-4

PORT-5

PORT-6

PORT-7

PORT-8

PORT-9

PORT-10

PORT-11

PORT-12

PORT-13

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PCH (PCI,USB,NVRAM)

PCH (PCI,USB,NVRAM)

PCH (PCI,USB,NVRAM)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

2

Monday, January 31, 2011 14:12:43

NC

External Port-1

WLAN

NC

NC

NC

Non-Support

Non-Support

NC

NC

NC

NC

NC

Camera

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

14 63

Sheet of

14 63

Sheet of

14 63

0.1

0.1

0.1

1

+3VALW

R6076 1K_J 0402R6076 1K_J 0402

1 2

R6077 10K_J 0402R6077 10K_J 0402

1 2

R6078 10K_J 0402R6078 10K_J 0402

1 2

R6079 10K_J 0402R6079 10K_J 0402

1 2

R6080 10K_J 0402R6080 10K_J 0402

1 2

R6114 10K_J 0402R6114 10K_J 0402

1 2

R6083 10K_J 0402R6083 10K_J 0402

A A

+3VRUN

B B

C C

D D

1 2

R6115 10K_J 0402R6115 10K_J 0402

1 2

R6111 10K_J 0402R6111 10K_J 0402

1 2

R6084 10K_J 0402R6084 10K_J 0402

1 2

R6081 10K_J 0402R6081 10K_J 0402

1 2

R6085 10K_J 0402R6085 10K_J 0402

1 2

R6082 10K_J 0402R6082 10K_J 0402

1 2

R6087 NC_10K_J 0402R6087 NC_10K_J 0402

1 2

R6088 10K_J 0402R6088 10K_J 0402

1 2

NC_10K_J

NC_10K_J

R6091

1 2

R6092 10K_J 0402R6092 10K_J 0402

1 2

R6093 10K_J 0402R6093 10K_J 0402

1 2

1 2

R6094 NC_10K_J 0402R6094 NC_10K_J 0402

1 2

R6095 NC_10K_J 0402R6095 NC_10K_J 0402

1 2

R6096 10K_J 0402R6096 10K_J 0402

+3VRUN

+3VRUN

R6116 10K_J 0402R6116 10K_J 0402

R6110 100K_J 0402R6110 100K_J 0402

1

GPIO15

GPIO28

GPIO12

RST_GATE
GPIO45

GPIO57

GPIO8

DGPU_HPD_INTR#

DGPU_HOLD_RST#

H_RCIN#_D

H_A20GATE_D

GPIO8

0402R6091

0402

INV_EN

MB_FLASH0_EN

GPIO27

GPIO28

G_INT_LED

R6097 10K_J 0402R6097 10K_J 0402

1 2

R6098 10K_J 0402R6098 10K_J 0402

1 2

R6099 10K_J 0402R6099 10K_J 0402

1 2

R6113 NC_10K_J 0402R6113 NC_10K_J 0402

1 2

R6100 10K_J 0402R6100 10K_J 0402

1 2

R6101 100K_J 0402R6101 100K_J 0402

1 2

R6104 10K_J 0402R6104 10K_J 0402

1 2

1 2

1 2

DGPU_HPD_INTR#24

BMBUSY#

EXTSMI#_D

STP_PCI#

DGPU_PRSNT#

DGPU_PWROK

EXTSMI#25

ID_LPC_PCI#26

ID_LPC_PCI#

RUNTIME_SCI#_D

CRIT_TEMP_REP#

DGPU_PRSNT#

GPIO48

LCDID3

DGPU_PWR_EN#

2

SYSTEM_ID125

2

RUNTIME_SCI#25

3

BAT54

BAT54

DGPU_HOLD_RST#36

DGPU_PWR_EN#48,59

CRIT_TEMP_REP#25

3

BAT54

BAT54

D48

D48

2

1

DGPU_PWROK11,25,48,59

MB_FLASH0_EN10

G_INT_LED33

PGP29

PGP29

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

RST_GATE4

3

D35

D35

2

RUNTIME_SCI#_D

1

BMBUSY#

EXTSMI#_D

RUNTIME_SCI#_D

GPIO8

GPIO12

GPIO15

MB_FLASH0_EN

INV_ENG_INT_LED

GPIO27

GPIO28

STP_PCI#

G_INT_LED

DGPU_PRSNT#

ID_LPC_PCI#

LCDID3

21

GPIO45

RST_GATE

GPIO48

CRIT_TEMP_REP#

GPIO57

3

U38F

U38F

Y3

BMBUSY# / GPIO0

C38

TACH1 / GPIO1

D37

TACH2 / GPIO6

J32

TACH3 / GPIO7

F10

GPIO8

K9

LAN_PHY_PWR_CTRL / GPIO12

T7

GPIO15

AA2

SATA4GP / GPIO16

F38

TACH0 / GPIO17

Y7

SCLOCK / GPIO22

H10

MEM_LED / GPIO24

AB12

GPIO27

V13

GPIO28

M11

STP_PCI# / GPIO34

V6

SATACLKREQ# / GPIO35

AB7

SATA2GP / GPIO36

AB13

SATA3GP / GPIO37

V3

SLOAD / GPIO38

P3

SDATAOUT0 / GPIO39

H3

PCIECLKRQ6# / GPIO45

F1

PCIECLKRQ7# / GPIO46

AB6

SDATAOUT1 / GPIO48

AA4

SATA5GP / GPIO49

F8

GPIO57

A4

VSS_NCTF_1

A49

VSS_NCTF_2

A5

VSS_NCTF_3

A50

VSS_NCTF_4

A52

VSS_NCTF_5

A53

VSS_NCTF_6

B2

VSS_NCTF_7

B4

VSS_NCTF_8

B52

VSS_NCTF_9

B53

VSS_NCTF_10

BE1

VSS_NCTF_11

BE53

VSS_NCTF_12

BF1

VSS_NCTF_13

BF53

VSS_NCTF_14

BH1

VSS_NCTF_15

BH2

VSS_NCTF_16

BH52

VSS_NCTF_17

BH53

VSS_NCTF_18

BJ1

VSS_NCTF_19

BJ2

VSS_NCTF_20

BJ4

VSS_NCTF_21

BJ49

VSS_NCTF_22

BJ5

VSS_NCTF_23

BJ50

VSS_NCTF_24

BJ52

VSS_NCTF_25

BJ53

VSS_NCTF_26

D1

VSS_NCTF_27

D2

VSS_NCTF_28

D53

VSS_NCTF_29

E1

VSS_NCTF_30

E53

VSS_NCTF_31

Ibexpeak-M

Ibexpeak-M

null

null

4

MISC

MISC

CLKOUT_BCLK0_N / CLKOUT_PCIE8N

CLKOUT_BCLK0_P / CLKOUT_PCIE8P

GPIO

GPIO

CPU

CPU

NCTF

NCTF

RSVD

RSVD

4

CLKOUT_PCIE6N

CLKOUT_PCIE6P

CLKOUT_PCIE7N
CLKOUT_PCIE7P

A20GATE

RCIN#

PROCPWRGD

THRMTRIP#

INIT3_3V#

5

AH45

AH46

AF48
AF47

U2

AM3

AM1

BG10

PECI

T1

BE10

BD10

BA22

TP1

AW22

TP2

BB22

TP3

AY45

TP4

AY46

TP5

AV43

TP6

AV45

TP7

AF13

TP8

M18

TP9

N18

TP10

AJ24

TP11

AK41

TP12

AK42

TP13

M32

TP14

N32

TP15

M30

TP16

N30

TP17

H12

TP18

AA23

TP19

AB45

NC_1

AB38

NC_2

AB42

NC_3

AB41

NC_4

T39

NC_5

P6

C10

TP24

5

H_A20GATE_D

CLK_PCH_CPU_CLK#

CLK_PCH_CPU_CLK

H_PECI

H_RCIN#_D

H_CPUPWRGD

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

TP1076

TP1076

TP1077

TP1077

TP1078

TP1078

TP1079

TP1079

TP1080

TP1080

TP1081

TP1081

TP1082

TP1082

TP1083

TP1083

TP1084

TP1084

TP1085

TP1085

TP1086

TP1086

TP1087

TP1087

TP1088

TP1088

TP1089

TP1089

TP1090

TP1090

TP1091

TP1091

TP1092

TP1092

TP1093

TP1093

TP1094

TP1094

TP1095

TP1095

TP1096

TP1096

D2

D2

3

BAT54

BAT54

CLK_PCH_CPU_CLK# 4

CLK_PCH_CPU_CLK 4

H_PECI 4

H_CPUPWRGD 4

R6090 56_J 0402R6090 56_J 0402

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

6

1 2

6

H_A20GATE 25

7

D3

D3

2

3

H_RCIN#_D

1

BAT54

BAT54

+1_05V_VTT

12

R6086

R6086
56_J

56_J

0402

0402

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PCH (GPIO,VSS_NCTF,RSVD)

PCH (GPIO,VSS_NCTF,RSVD)

PCH (GPIO,VSS_NCTF,RSVD)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:47

Page Modified:

Monday, January 31, 2011 14:12:47

Page Modified:

Monday, January 31, 2011 14:12:47

7

H_RCIN# 25

PM_THRMTRIP# 4,25

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

Sheet of

Sheet of

Sheet of

8

15 63

15 63

15 63

0.1

0.1

0.1

5

Default is use Internal VRM

For Disable Arrandale Graphic
GPIO27 floating as Internal VRM and there is no need external supply

D D

+1_05V_VTT

C C

+1_05V_VTT +1.05V_VCCA_CLK

320mA

+1_05V_VTT

L35

L35

NC_10UH_0805

NC_10UH_0805

EBLS2012-100K

EBLS2012-100K

1 2

NC_0_J 0603

NC_0_J 0603

12

C441

C441
NC_10U_6.3V_Y

NC_10U_6.3V_Y

0805_Y5V

0805_Y5V

R272

R272

R268

R268

0603

0603

1.2A

12

C1813

C1813
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C405

C405
22U_6.3V_M_B

22U_6.3V_M_B

0805_X5R

0805_X5R

12

C406

C406
22U_6.3V_M_B

22U_6.3V_M_B

0805_X5R

0805_X5R

For RF Noise

+VCCRTCEXT

C470

C470

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

3.23A (VCCIO)

+1_05V_VTT

B B

1 2

12

C1814

C1814
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

For RF Noise

+1_05V_VTT

12

C465

C465

1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

C472

C472

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

163mA

+3VRUN

357mA

+1_05V_VTT

1mA

C411

C411

4.7U_6.3V_K

4.7U_6.3V_K

1 2

0603_X5R

A A

0603_X5R

2mA

5

0_J

0_J

1 2

VCCRTC

1 2

TP_PCH_VCCDSW

1 2

196mA

68mA

69mA

+3VALW

C480

C480

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

C451

C451

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

C491

C491

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

12

C444

C444
NC_1U_6.3V_Y

NC_1U_6.3V_Y

0402_Y5V

0402_Y5V

12

C456

C456
NC_1U_6.3V_Y

NC_1U_6.3V_Y

0402_Y5V

0402_Y5V

C467

C467

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

12

C461

C461
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

12

C462

C462
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

12

C460

C460
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

C731

C731

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

4

VCCLAN

+1_05V_5V_8V_RUN

+1_05VRUN_DPLLA

+1_05VRUN_DPLLB

12

C455

C455
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

C471

C471

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

C426

C426

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

C483

C483

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

4

AP51

AP53

AF23

AF24

Y20

AD38

AD39

AD41

AF43

AF41

AF42

V39

V41

V42

Y39

Y41

Y42

V9

AU24

BB51

BB53

BD51

BD53

AH23

AJ35

AH35

AF34

AH34

AF32

V12

Y22

P18

U19

U20

U22

V15

V16

Y16

AT18

AU18

A12

U38J

U38J

VCCACLK[1]

VCCACLK[2]

VCCLAN[1]

VCCLAN[2]

DCPSUSBYP

VCCME[1]

VCCME[2]

VCCME[3]

VCCME[4]

VCCME[5]

VCCME[6]

VCCME[7]

VCCME[8]

VCCME[9]

VCCME[10]

VCCME[11]

VCCME[12]

DCPRTC

VCCVRM[3]

VCCADPLLA[1]

VCCADPLLA[2]

VCCADPLLB[1]

VCCADPLLB[2]

VCCIO[21]

VCCIO[22]

VCCIO[23]

VCCIO[2]

VCCIO[3]

VCCIO[4]

DCPSST

DCPSUS

VCCSUS3_3[29]

VCCSUS3_3[30]

VCCSUS3_3[31]

VCCSUS3_3[32]

VCC3_3[5]

VCC3_3[6]

VCC3_3[7]

V_CPU_IO[1]

V_CPU_IO[2]

VCCRTC

Ibexpeak-M

Ibexpeak-M

null

null

3

POWER

POWER

USB

Clock and Miscellaneous

Clock and Miscellaneous

PCI/GPIO/LPC

PCI/GPIO/LPC

SATA

SATA USB

CPU

CPU

RTC PCI/GPIO/LPC

RTC PCI/GPIO/LPC

HDA

HDA

VCCIO[5]

VCCIO[6]
VCCIO[7]

VCCIO[8]

VCCSUS3_3[1]

VCCSUS3_3[2]
VCCSUS3_3[3]

VCCSUS3_3[4]
VCCSUS3_3[5]

VCCSUS3_3[6]
VCCSUS3_3[7]

VCCSUS3_3[8]
VCCSUS3_3[9]

VCCSUS3_3[10]
VCCSUS3_3[11]

VCCSUS3_3[12]
VCCSUS3_3[13]

VCCSUS3_3[14]
VCCSUS3_3[15]

VCCSUS3_3[16]
VCCSUS3_3[17]

VCCSUS3_3[18]
VCCSUS3_3[19]

VCCSUS3_3[20]
VCCSUS3_3[21]

VCCSUS3_3[22]
VCCSUS3_3[23]

VCCSUS3_3[24]
VCCSUS3_3[25]

VCCSUS3_3[26]
VCCSUS3_3[27]

VCCSUS3_3[28]

VCCIO[56]

V5REF_SUS

V5REF

VCC3_3[8]

VCC3_3[9]

VCC3_3[10]

VCC3_3[11]

VCC3_3[12]

VCC3_3[13]

VCC3_3[14]

VCCSATAPLL[1]
VCCSATAPLL[2]

VCCIO[9]

VCCVRM[4]

VCCIO[10]

VCCIO[11]

VCCIO[12]

VCCIO[13]

VCCIO[14]
VCCIO[15]

VCCIO[16]

VCCIO[17]

VCCIO[18]
VCCIO[19]

VCCIO[20]

VCCME[13]
VCCME[14]

VCCME[15]
VCCME[16]

VCCSUSHDA

V24

V26
Y24

Y26

V28

U28
U26

U24
P28

P26
N28

N26
M28

M26
L28

L26
J28

J26
H28

H26
G28

G26
F28

F26
E28

E26
C28

C26
B27

A28
A26

U23

V23

F24

K49

J38

L38

M36

N36

P36

U35

AD13

AK3
AK1

AH22

AT20

AH19

AD20

AF22

AD19

AF20
AF19

AH20

AB19

AB20
AB22

AD22

AA34
Y34

Y35
AA35

L30

3

+1_05V_VTT

12

C468

C468
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

+3VALW

12

C720

C720

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

+3VALW

12

C724

C724

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

+1_05V_VTT

+3VRUN

12

C469

C469

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

+1.05V_VCCAPLL

12

C699

C699
NC_10U_6.3V_Y

NC_10U_6.3V_Y

0805_Y5V

0805_Y5V

+VCCPLLVRM

R286 0_J 0402R286 0_J 0402

1 2

R287 0_J 0402R287 0_J 0402

1 2

R288 0_J 0402R288 0_J 0402

1 2

R289 0_J 0402R289 0_J 0402

1 2

3A (VCCIO)

163mA

163mA

3A (VCCIO)

357mA

+3VRUN

12

C700

C700
NC_1U_6.3V_Y

NC_1U_6.3V_Y

0402_Y5V

0402_Y5V

+1_05V_5V_8V_RUN

R223

R223

12

0_J 0603

0_J 0603

+1_05V_VTT

2

+1_05V_VTT

10UH_0805

10UH_0805

EBLS2012-100K

EBLS2012-100K

10UH_0805

10UH_0805

EBLS2012-100K

EBLS2012-100K

+3VALW

2

1

D7

D7
BAT54

BAT54

3

R346

R346

12

12

100_F 0402

100_F 0402

C479

C479
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

357mA

12

C475

C475

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

L37

L37

NC_10UH_0805

NC_10UH_0805

EBLS2012-100K

EBLS2012-100K

+1.05V_VCC_SATA

PGP30

PGP30

2 1

12

C454

C454

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

1.85A

+VCCSUSHDA +3VALW

6mA

PGP31

PGP31

2 1

12

C474

C474

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

2

L67

L67

L66

L66

+5VALW

1U_6.3V_Y

1U_6.3V_Y

+1_05V_VTT

3A (VCCIO)

+3VRUN

0402_Y5V

0402_Y5V

+1_05VRUN_DPLLA

12

CAP6

CAP6

220U_2.5V_M

220U_2.5V_M

+

+

3.2x1.6x1.6

3.2x1.6x1.6

12

CAP7

CAP7

220U_2.5V_M

220U_2.5V_M

+

+

3.2x1.6x1.6

3.2x1.6x1.6

12

C439

C439
1U_6.3V_Y_Y

1U_6.3V_Y_Y

0402_Y5V

0402_Y5V

+1_05VRUN_DPLLB

12

C422

C422
1U_6.3V_Y_Y

1U_6.3V_Y_Y

0402_Y5V

0402_Y5V

12

R253

R253

12

NC_0_J

NC_0_J

R248

R248

0402

0402

NC_0_J

NC_0_J

0603

0603

12

R238

R238
NC_0_J

NC_0_J

0402

0402

1mA

2

1

D8

D8
BAT54

BAT54

3

12

C477

C477

31mA

+1_05V_VTT

1mA

R310

R310

12

+5VRUN

100_F 0402

100_F 0402

+3VRUN

12

C1815

C1815
NC_680P_50V_K

NC_680P_50V_K

0603_X7R

0603_X7R

For EMI

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PCH (POWER) 1/2

PCH (POWER) 1/2

PCH (POWER) 1/2

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Page Modified:

Page Modified:

Page Modified:

Rains

Rains

Rains

Monday, January 31, 2011 14:12:44

Monday, January 31, 2011 14:12:44

Monday, January 31, 2011 14:12:44

1

12

12

C1816

C1816

C1817

C1817

NC_680P_50V_K

NC_680P_50V_K

NC_680P_50V_K

NC_680P_50V_K

0603_X7R

0603_X7R

0603_X7R

0603_X7R

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

16 67

Sheet of

16 67

Sheet of

1

16 67

0.1

0.1

0.1

5

4

3

2

1

+1_05V_VTT

D D

Default is use Internal VRM

For Disable Arrandale Graphic
GPIO27 floating as Internal VRM and there is no need external supply

C C

3.23A (VCCIO)

+1_05V_VTT

For RF Noise

For RF Noise

12

C447

C447
10P_50V_J_N

10P_50V_J_N

TSC

0402_NPO

0402_NPO

+1_05V_VTT +1.05V_VCCPLL_EXP

12

12

C1818

C1818

C421

C421

10P_50V_J_N

10P_50V_J_N

10U_6.3V_Y

10U_6.3V_Y

0402_NPO

0402_NPO

0805_Y5V

0805_Y5V

12

C432

C432
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

L65

L65

NC_1UH_0805

NC_1UH_0805

EFLS2012-1R0M RDC15

EFLS2012-1R0M RDC15

12

TSC

B B

+1_05V_VTT

37mA

L80

L80

NC_1UH_0805

NC_1UH_0805

EFLS2012-1R0M RDC15

EFLS2012-1R0M RDC15

+VCCFDIPLL +1_05V_5V_8V_RUN

Default is use Internal VRM

For Disable Arrandale Graphic
GPIO27 floating as Internal VRM and there is no need external supply

A A

5

12

C822

C822
NC_10U_6.3V_Y

NC_10U_6.3V_Y

0805_Y5V

0805_Y5V

200mA

12

C446

C446
10U_6.3V_Y

10U_6.3V_Y

0805_Y5V

0805_Y5V

3.23A (VCCIO)

12

C440

C440

C427

C427

1U_6.3V_Y

1U_6.3V_Y

1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

0402_Y5V

0402_Y5V

+3VRUN

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

1.5A

12

C1819

C1819

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

PGP32

PGP32

+1_05V_VTT

4

12

C466

C466
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

C695

C695
NC_10U_6.3V_Y

NC_10U_6.3V_Y

0805_Y5V

0805_Y5V

12

C442

C442
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

357mA

21

+1_05V_VTT

AW26

AW28

AM23

AB24
AB26

AB28
AD26

AD28
AF26

AF28
AF30

AF31
AH26

AH28
AH30

AH31

AK24

AN20

AN22

AN23

AN24
AN26

AN28

AT26

AT28
AU26

AU28
AV26

AV28

BA26

BA28
BB26

BB28
BC26

BC28
BD26

BD28
BE26

BE28
BG26

BG28
BH27

AN30

AN31

AN35

AT22

AJ30

AJ31

BJ24

BJ26
BJ28

BJ18

U38G

U38G

VCCCORE[1]
VCCCORE[2]

VCCCORE[3]
VCCCORE[4]

VCCCORE[5]
VCCCORE[6]

VCCCORE[7]
VCCCORE[8]

VCCCORE[9]
VCCCORE[10]

VCCCORE[11]
VCCCORE[12]

VCCCORE[13]
VCCCORE[14]

VCCCORE[15]

VCCIO[24]

VCCAPLLEXP

VCCIO[25]

VCCIO[26]

VCCIO[27]

VCCIO[28]
VCCIO[29]

VCCIO[30]

VCCIO[31]
VCCIO[32]

VCCIO[33]

VCCIO[34]
VCCIO[35]

VCCIO[36]
VCCIO[37]

VCCIO[38]
VCCIO[39]

VCCIO[40]
VCCIO[41]

VCCIO[42]
VCCIO[43]

VCCIO[44]
VCCIO[45]

VCCIO[46]
VCCIO[47]

VCCIO[48]
VCCIO[49]

VCCIO[50]
VCCIO[51]

VCCIO[52]
VCCIO[53]

VCCIO[54]

VCCIO[55]

VCC3_3[1]

VCCVRM[1]

VCCFDIPLL

VCCIO[1]

Ibexpeak-M

Ibexpeak-M

null

null

POWER

POWER

VCC CORE

VCC CORE

PCI E*

PCI E*

FDI

FDI

VCCADAC[1]

VCCADAC[2]

VSSA_DAC[1]

CRTLVDS

CRTLVDS

VSSA_DAC[2]

VCCALVDS

VSSA_LVDS

VCCTX_LVDS[1]
VCCTX_LVDS[2]

VCCTX_LVDS[3]
VCCTX_LVDS[4]

VCC3_3[2]

VCC3_3[3]

VCC3_3[4]

HVCMOS

HVCMOS

VCCVRM[2]

VCCDMI[1]

DMI

DMI

VCCDMI[2]

VCCPNAND[1]

VCCPNAND[2]

VCCPNAND[3]

VCCPNAND[4]

VCCPNAND[5]

VCCPNAND[6]

VCCPNAND[7]

VCCPNAND[8]

VCCPNAND[9]

VCCME3_3[1]

NAND / SPI

NAND / SPI

VCCME3_3[2]

VCCME3_3[3]
VCCME3_3[4]

3

AE50

AE52

AF53

AF51

AH38

AH39

AP43
AP45

AT46
AT45

AB34

AB35

AD35

AT24

AT16

AU16

AM16

AK16

AK20

AK19

AK15

AK13

AM12

AM13

AM15

AM8
AM9

AP11
AP9

0.01U_10V_K

0.01U_10V_K

0.1U_10V_K

0.1U_10V_K

+VCCVRM

0.1U_10V_K

0.1U_10V_K

VCCME3_3

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

0402_X7R

0402_X7R

C464

C464

1 2

C452

C452

0402_X5R

0402_X5R

C484

C484

C816

C816

+3VRUN

1 2

R219

R219

0_J

0_J

0603

0603

12

+VCCPNAND

1 2

C450

C450

1 2

12

357mA

C443

C443
1U_6.3V_Y

1U_6.3V_Y

0402_Y5V

0402_Y5V

1 2

12

C823

C823

10U_6.3V_Y

22U_6.3V_M_B

22U_6.3V_M_B

0.01U_10V_K

0.01U_10V_K

+1_05V_5V_8V_RUN

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

10U_6.3V_Y

0805_Y5V

0805_Y5V

0805_X5R

0805_X5R

+VCCTX_LVDS

12

C817

C817

22U_6.3V_M_B

22U_6.3V_M_B

0402_X7R

0402_X7R

200mA

+VCCDMI +1_05V_VTT

PGP35

PGP35

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

R499

R499

1 2

NC_0_J

NC_0_J

0603

0603

PGP36

PGP36

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

+3VRUN

PGP37

PGP37

21

+3VRUN

12

R6108

R6108

NC_4.7K_J

NC_4.7K_J

0402

0402

2

C815

C815

0805_X5R

0805_X5R

21

+3VRUN

+1.8VRUN

21

+VCCA_DAC

12

12

R6106

R6106

NC_0_J

NC_0_J

0402

0402

12

C818

C818

61mA

156mA

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

L78

L78

70mA

180R-100MHZ_0603

180R-100MHZ_0603

TI160808U181

TI160808U181

+3VRUN+VCCA_LVDS

PGP34

PGP34

POWER_CLOSE_GAP_0603_ns

POWER_CLOSE_GAP_0603_ns

L81

L81

0.09UH_0805

0.09UH_0805

SWF2012CF-90NM

SWF2012CF-90NM

21

+1.8VRUN

+1_05V_5V_8V_RUN +1_05V_VTT

R228

R228

1 2

NC_0_J

NC_0_J

0603

0603

R216

R216

1 2

NC_0_J

NC_0_J

0603

0603

R215

R215

1 2

0_J

0_J

0603

0603

0.085A

+5VRUN +3VRUN_LDO

12

U44

U44

1
2

C819

C819

3

NC_1U_10V_K

NC_1U_10V_K

0402_X5R

0402_X5R

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

5

VIN

VOUT

4

NC

Rains

Rains

Rains

12

C820

C820
NC_1U_10V_K

NC_1U_10V_K

0402_X5R

0402_X5R

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

GND

SHDN#

NC_G909-330T1U

NC_G909-330T1U

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

PCH (POWER) 2/2

PCH (POWER) 2/2

PCH (POWER) 2/2

Monday, January 31, 2011 14:12:41

Monday, January 31, 2011 14:12:41

Monday, January 31, 2011 14:12:41

PGP33

PGP33

R733

R733

1 2

NC_0_J

NC_0_J

0603

0603

+1.5VRUN

+1.8VRUN

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

21

12

C821

C821
NC_0.1U_10V_K

NC_0.1U_10V_K

0402_X7R

0402_X7R

+3VRUN

+3VRUN_LDO

Sheet of

Sheet of

Sheet of

17 67

17 67

17 67

0.1

0.1

0.1

1

A A

B B

C C

D D

1

2

U38I

U38I

AY7

VSS[159]

B11

VSS[160]

B15

VSS[161]

B19

VSS[162]

B23

VSS[163]

B31

VSS[164]

B35

VSS[165]

B39

VSS[166]

B43

VSS[167]

B47

VSS[168]

B7

VSS[169]

BG12

VSS[170]

BB12

VSS[171]

BB16

VSS[172]

BB20

VSS[173]

BB24

VSS[174]

BB30

VSS[175]

BB34

VSS[176]

BB38

VSS[177]

BB42

VSS[178]

BB49

VSS[179]

BB5

VSS[180]

BC10

VSS[181]

BC14

VSS[182]

BC18

VSS[183]

BC2

VSS[184]

BC22

VSS[185]

BC32

VSS[186]

BC36

VSS[187]

BC40

VSS[188]

BC44

VSS[189]

BC52

VSS[190]

BH9

VSS[191]

BD48

VSS[192]

BD49

VSS[193]

BD5

VSS[194]

BE12

VSS[195]

BE16

VSS[196]

BE20

VSS[197]

BE24

VSS[198]

BE30

VSS[199]

BE34

VSS[200]

BE38

VSS[201]

BE42

VSS[202]

BE46

VSS[203]

BE48

VSS[204]

BE50

VSS[205]

BE6

VSS[206]

BE8

VSS[207]

BF3

VSS[208]

BF49

VSS[209]

BF51

VSS[210]

BG18

VSS[211]

BG24

VSS[212]

BG4

VSS[213]

BG50

VSS[214]

BH11

VSS[215]

BH15

VSS[216]

BH19

VSS[217]

BH23

VSS[218]

BH31

VSS[219]

BH35

VSS[220]

BH39

VSS[221]

BH43

VSS[222]

BH47

VSS[223]

BH7

VSS[224]

C12

VSS[225]

C50

VSS[226]

D51

VSS[227]

E12

VSS[228]

E16

VSS[229]

E20

VSS[230]

E24

VSS[231]

E30

VSS[232]

E34

VSS[233]

E38

VSS[234]

E42

VSS[235]

E46

VSS[236]

E48

VSS[237]

E6

VSS[238]

E8

VSS[239]

F49

VSS[240]

F5

VSS[241]

G10

VSS[242]

G14

VSS[243]

G18

VSS[244]

G2

VSS[245]

G22

VSS[246]

G32

VSS[247]

G36

VSS[248]

G40

VSS[249]

G44

VSS[250]

G52

VSS[251]

AF39

VSS[252]

H16

VSS[253]

H20

VSS[254]

H30

VSS[255]

H34

VSS[256]

H38

VSS[257]

H42

VSS[258]

Ibexpeak-M

Ibexpeak-M

null

null

2

3

VSS[259]
VSS[260]

VSS[261]

VSS[262]
VSS[263]

VSS[264]

VSS[265]
VSS[266]

VSS[267]
VSS[268]

VSS[269]
VSS[270]

VSS[271]
VSS[272]

VSS[273]
VSS[274]

VSS[275]
VSS[276]

VSS[277]
VSS[278]

VSS[279]
VSS[280]

VSS[281]
VSS[282]

VSS[283]
VSS[284]

VSS[285]
VSS[286]

VSS[287]

VSS[288]
VSS[289]

VSS[290]
VSS[291]

VSS[292]
VSS[293]

VSS[294]
VSS[295]

VSS[296]
VSS[297]

VSS[298]
VSS[299]

VSS[300]
VSS[301]

VSS[302]
VSS[303]

VSS[304]
VSS[305]

VSS[306]
VSS[307]

VSS[308]
VSS[309]

VSS[310]
VSS[311]

VSS[312]
VSS[313]

VSS[314]
VSS[315]

VSS[316]

VSS[317]

VSS[318]
VSS[319]

VSS[320]
VSS[321]

VSS[322]
VSS[323]

VSS[324]
VSS[325]

VSS[326]
VSS[327]

VSS[328]
VSS[329]

VSS[330]
VSS[331]

VSS[332]
VSS[333]

VSS[334]
VSS[335]

VSS[336]
VSS[337]

VSS[338]
VSS[339]

VSS[340]

VSS[341]

VSS[342]

VSS[343]
VSS[344]

VSS[345]

VSS[346]
VSS[347]

VSS[348]
VSS[349]

VSS[350]
VSS[351]

VSS[352]
VSS[353]

VSS[354]
VSS[355]

VSS[356]
VSS[366]

3

4

H49
H5

J24

K11
K43

K47

K7
L14

L18
L2

L22
L32

L36
L40

L52
M12

M16
M20

N38
M34

M38
M42

M46
M49

M5
M8

N24
P11

AD15

P22
P30

P32
P34

P42
P45

P47
R2

R52
T12

T41
T46

T49
T5

T8
U30

U31
U32

U34
P38

V11
P16

V19
V20

V22
V30

V31
V32

V34

V35

V38
V43

V45
V46

V47
V49

V5
V7

V8
W2

W52
Y11

Y12
Y15

Y19
Y23

Y28
Y30

Y31
Y32

Y38
Y43

Y46

P49

Y5

Y6
Y8

P24

T43
AD51

AT8
AD47

Y47
AT12

AM6
AT13

AM5
AK45

AK39
AV14

4

5

U38H

U38H

AB16

VSS[0]

AA19

VSS[1]

AA20

VSS[2]

AA22

VSS[3]

AM19

VSS[4]

AA24

VSS[5]

AA26

VSS[6]

AA28

VSS[7]

AA30

VSS[8]

AA31

VSS[9]

AA32

VSS[10]

AB11

VSS[11]

AB15

VSS[12]

AB23

VSS[13]

AB30

VSS[14]

AB31

VSS[15]

AB32

VSS[16]

AB39

VSS[17]

AB43

VSS[18]

AB47

VSS[19]

AB5

VSS[20]

AB8

VSS[21]

AC2

VSS[22]

AC52

VSS[23]

AD11

VSS[24]

AD12

VSS[25]

AD16

VSS[26]

AD23

VSS[27]

AD30

VSS[28]

AD31

VSS[29]

AD32

VSS[30]

AD34

VSS[31]

AU22

VSS[32]

AD42

VSS[33]

AD46

VSS[34]

AD49

VSS[35]

AD7

VSS[36]

AE2

VSS[37]

AE4

VSS[38]

AF12

VSS[39]

Y13

VSS[40]

AH49

VSS[41]

AU4

VSS[42]

AF35

VSS[43]

AP13

VSS[44]

AN34

VSS[45]

AF45

VSS[46]

AF46

VSS[47]

AF49

VSS[48]

AF5

VSS[49]

AF8

VSS[50]

AG2

VSS[51]

AG52

VSS[52]

AH11

VSS[53]

AH15

VSS[54]

AH16

VSS[55]

AH24

VSS[56]

AH32

VSS[57]

AV18

VSS[58]

AH43

VSS[59]

AH47

VSS[60]

AH7

VSS[61]

AJ19

VSS[62]

AJ2

VSS[63]

AJ20

VSS[64]

AJ22

VSS[65]

AJ23

VSS[66]

AJ26

VSS[67]

AJ28

VSS[68]

AJ32

VSS[69]

AJ34

VSS[70]

AT5

VSS[71]

AJ4

VSS[72]

AK12

VSS[73]

AM41

VSS[74]

AN19

VSS[75]

AK26

VSS[76]

AK22

VSS[77]

AK23

VSS[78]

AK28

VSS[79]

Ibexpeak-M

Ibexpeak-M

null

null

5

6

AK30

VSS[80]

AK31

VSS[81]

AK32

VSS[82]

AK34

VSS[83]

AK35

VSS[84]

AK38

VSS[85]

AK43

VSS[86]

AK46

VSS[87]

AK49

VSS[88]

AK5

VSS[89]

AK8

VSS[90]

AL2

VSS[91]

AL52

VSS[92]

AM11

VSS[93]

BB44

VSS[94]

AD24

VSS[95]

AM20

VSS[96]

AM22

VSS[97]

AM24

VSS[98]

AM26

VSS[99]

AM28

VSS[100]

BA42

VSS[101]

AM30

VSS[102]

AM31

VSS[103]

AM32

VSS[104]

AM34

VSS[105]

AM35

VSS[106]

AM38

VSS[107]

AM39

VSS[108]

AM42

VSS[109]

AU20

VSS[110]

AM46

VSS[111]

AV22

VSS[112]

AM49

VSS[113]

AM7

VSS[114]

AA50

VSS[115]

BB10

VSS[116]

AN32

VSS[117]

AN50

VSS[118]

AN52

VSS[119]

AP12

VSS[120]

AP42

VSS[121]

AP46

VSS[122]

AP49

VSS[123]

AP5

VSS[124]

AP8

VSS[125]

AR2

VSS[126]

AR52

VSS[127]

AT11

VSS[128]

BA12

VSS[129]

AH48

VSS[130]

AT32

VSS[131]

AT36

VSS[132]

AT41

VSS[133]

AT47

VSS[134]

AT7

VSS[135]

AV12

VSS[136]

AV16

VSS[137]

AV20

VSS[138]

AV24

VSS[139]

AV30

VSS[140]

AV34

VSS[141]

AV38

VSS[142]

AV42

VSS[143]

AV46

VSS[144]

AV49

VSS[145]

AV5

VSS[146]

AV8

VSS[147]

AW14

VSS[148]

AW18

VSS[149]

AW2

VSS[150]

BF9

VSS[151]

AW32

VSS[152]

AW36

VSS[153]

AW40

VSS[154]

AW52

VSS[155]

AY11

VSS[156]

AY43

VSS[157]

AY47

VSS[158]

6

7

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PCH (VSS)

PCH (VSS)

PCH (VSS)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

7

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

Sheet of

Sheet of

Sheet of

8

18 63

18 63

18 63

0.1

0.1

0.1

1

2

3

4

5

6

7

8

L31

L31

REF_14M_PCH 11

VDD_CLK_IO

5

+3VRUN

VDD_CLK_IO

1
2

RP10

RP10

0404_4P2R

0404_4P2R

12

1

1

0

0

4
3

IMVP_OK25,57

R473 10K_J0402 R473 10K_J0402

12

RP25 0 0404_4P2RRP25 0 0404_4P2R

1

4

2

3

12

C448

C448

C375

C375

10P_50V_J_N

10P_50V_J_N

10U_6.3V_M

10U_6.3V_M

0402_NPO

0402_NPO

0805_X5R

0805_X5R

20MIL

20MIL

TP978

TP978

20MIL

20MIL

TP979

TP979

CLK_PCH_BCLK 11

CLK_PCH_BCLK# 11

R491 NC_0_J 0402R491 NC_0_J 0402

STP_CPU#

R_XTALSSIN 38

R_XTALIN 38

6

12

12

C393

C393

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

CLK_PWRGD

12

R492

R492

100K_J

100K_J

0402

0402

09/11/17 R_XTALSSIN be Connect a stable clock source
(from clock gen SS 27MHz) to GPIO26_TCK.

12

C670

C670

C690

C690

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

+3VALW

12

C692

C692

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

53

1

VCC

VCC

NC

NC

12

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

24

U37

U37

GND

GND

74AHC1G14GW

74AHC1G14GW

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

CLOCK GEN

CLOCK GEN

CLOCK GEN

Rains

Rains

Rains

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

7

CLK_EN# 57

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

8

19 63

19 63

19 63

0.1

0.1

0.1

+3VRUN

A A

+1.5VRUN

R493 0_J 0402R493 0_J 0402

12

C696

C696
15P_50V_J

15P_50V_J

0402_NPO

0402_NPO

B B

14.318180MHZ_12P_20PPM

14.318180MHZ_12P_20PPM

HARMONY_X3G01431ADC1H

HARMONY_X3G01431ADC1H

C C

1 2

Y3

Y3

1 2

L32

L32

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505H121RDC35

EBMS100505H121RDC35

L33

L33

NC_120R-100MHZ_0402

NC_120R-100MHZ_0402

EBMS100505H121RDC35

EBMS100505H121RDC35

U123_XTALOUT

12

R494

R494
NC_10M_J

NC_10M_J

0402

0402

34

12

C697

C697
15P_50V_J

15P_50V_J

0402_NPO

0402_NPO

U123_XTALIN

20MIL

20MIL

12

C449

C449
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C401

C401
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

12

C402

C402

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

12

C408

C408

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

12

C407

C407

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

12

C403

C403

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

SMBUS Address:D2H

REF0

U123_XTALIN

28

29

30

31

33

1
2

3
4

5
6

7
8

1
2

1
2

U33

U33

THERMALPAD

VDD_USB_48
VSS_48M

DOT_96
DOT_96#

VDD_27
27MHZ

27MHZ_SS
USB_48

32

SCL

SDA

XTAL_IN

VDD_REF

REF_0/CPU_SEL

SRC_1

VSS_SRC

SATA#

SATA

VSS_27M

9

13

12

11

10

CLK_PCIE_SATA_R

CLK_PCIE_SATA#_R

CLK_DMI_PCH_R

4
3

4
3

+3V_CLK

0

0

DREFCLK11

DREFCLK#11

TP998

TP998

3
4

RP11

RP11

0404_4P2R

0404_4P2R

1

12

C687

C687
NC_22P_50V_J

NC_22P_50V_J

0402_NPO

0402_NPO

2
1

R48033_F0402 R48033_F0402

12

CLK_PCIE_SATA11

CLK_PCIE_SATA#11

CLK_DMI_PCH11

CLK_DMI_PCH#11

DOT96_OR_SRC0
DOT96#_OR_SRC0#

R_DREFSSCLK_OR_27M
R_DREFSSCLK#_OR_27M_S

RP8 0 0404_4P2RRP8 0 0404_4P2R

RP7 0 0404_4P2RRP7 0 0404_4P2R

+1_05V_VTT+3V_CLK

12

C410

C410

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

SMB_CLK_R 11,20,21,30
SMB_DATA_R 11,20,21,30

R489 33_F0402 R489 33_F0402

12

CPU_BSEL2

R488 10K_J0402 R488 10K_J0402

12

U123_XTALOUT

CLK_PWRGD

25

26

27

VDD_CPU

VSS_REF

XTAL_OUT

CPU_0

CPU_0#

VSS_CPU

CKPWRGD/PD#

CPU_1

CPU_1#

VDD_CPU_IO

VDD_SRC

CPU_STOP#

VDD_SRC_IO

SRC_1#

SLG8SP587V

SLG8SP587V

16

15

14

null

null

STP_CPU#

CLK_DMI_PCH#_R

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505H121RDC35

EBMS100505H121RDC35

+3V_CLK

24

CLK_CPU_BCLK

23

CLK_CPU_BCLK#

22
21

CLK_PCH_BCLK_R

20

CLK_PCH_BCLK#_R

19

18
17

Frequency Select Pin (FS)

CPU Power On SRC

FS

Default01133MHz

100MHz

D D

1

100MHz

2

SATA DOT96 27MHz

REF

14.318MHz27MHz96MHz100MHz

3

CPU_BSEL2

+1_05V_VTT

12

12

R6109

R6109

NC_1K_J

NC_1K_J

0402

0402

H:100 MHz
L:133 MHz

R484

R484
0_J

0_J

0402

0402

R_DREFSSCLK#_OR_27M_S
R_DREFSSCLK_OR_27M

4

1

A A

SMBus Address: A0H(W)/A1H(R)

B B

C C

D D

1

M_A_A[0..15]5

R239 10K_J 0402R239 10K_J 0402

12

R233 10K_J 0402R233 10K_J 0402

12

M_A_DM[0..7]5

M_A_DQS[0..7]5

M_A_DQS#[0..7]5

+1.5VSUS +1.5VRUN

C419 0.1U_6.3V_K 0402_X5RC419 0.1U_6.3V_K 0402_X5R

C420 0.1U_6.3V_K 0402_X5RC420 0.1U_6.3V_K 0402_X5R

C430 0.1U_6.3V_K 0402_X5RC430 0.1U_6.3V_K 0402_X5R

C431 0.1U_6.3V_K 0402_X5RC431 0.1U_6.3V_K 0402_X5R

2

CN28A

CN28A

M_A_A0

98

A0

M_A_A1

97

A1

M_A_A2

96

A2

M_A_A3

95

A3

M_A_A4

92

A4

M_A_A5

91

A5

M_A_A6

90

A6

M_A_A7

86

A7

M_A_A8

89

A8

M_A_A9

85

A9

M_A_A10

107

A10/AP

M_A_A11

84

A11

M_A_A12

83

A12/BC#

M_A_A13

119

A13

M_A_A14

80

A14

M_A_A15

78

A15

M_A_DQS0
M_A_DQS1

M_A_DQS2

M_A_DQS3
M_A_DQS4

M_A_DQS5
M_A_DQS6

M_A_DQS7
M_A_DQS#0

M_A_DQS#1

M_A_DQS#2

M_A_DQS#3

M_A_DQS#4

M_A_DQS#5

M_A_DQS#6

M_A_DQS#7

2

SA0_DIM0

SA1_DIM0

M_A_DM0
M_A_DM1

M_A_DM2

M_A_DM3
M_A_DM4

M_A_DM5

M_A_DM6

M_A_DM7

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

SOCKET_2x102P

SOCKET_2x102P

FOX_AS0A626-JARG-7H

FOX_AS0A626-JARG-7H

M_A_BS05

M_A_BS15
M_A_BS25

M_CS#05
M_CS#15

M_CLK_DDR05

M_CLK_DDR#05

M_CLK_DDR15

M_CLK_DDR#15

M_CKE05
M_CKE15

M_A_CAS#5
M_A_RAS#5

M_A_WE#5

SMB_CLK_R11,19,21,30

SMB_DATA_R11,19,21,30

M_ODT05

M_ODT15

1 2

1 2

1 2

1 2

3

M_A_DQ1

5

DQ0

M_A_DQ0

7

DQ1

M_A_DQ3

15

DQ2

M_A_DQ2

17

DQ3

M_A_DQ5

4

DQ4

M_A_DQ4

6

DQ5

M_A_DQ7

16

DQ6

M_A_DQ6

18

DQ7

M_A_DQ8

21

DQ8

M_A_DQ9

23

DQ9

M_A_DQ10

33

DQ10

M_A_DQ11

35

DQ11

M_A_DQ13

22

DQ12

M_A_DQ12

24

DQ13

M_A_DQ15

34

DQ14

M_A_DQ14

36

DQ15

M_A_DQ16

39

DQ16

M_A_DQ17

41

DQ17

M_A_DQ18

51

DQ18

M_A_DQ19

53

DQ19

M_A_DQ21

40

DQ20

M_A_DQ20

42

DQ21

M_A_DQ22

50

DQ22

M_A_DQ23

52

DQ23

M_A_DQ25

57

DQ24

M_A_DQ24

59

DQ25

M_A_DQ31

DQ26
DQ27

DQ28
DQ29

DQ30
DQ31

DQ32
DQ33

DQ34
DQ35

DQ36
DQ37

DQ38
DQ39

DQ40
DQ41

DQ42
DQ43

DQ44
DQ45

DQ46
DQ47

DQ48
DQ49

DQ50
DQ51

DQ52
DQ53

DQ54
DQ55

DQ56
DQ57

DQ58
DQ59

DQ60
DQ61

DQ62
DQ63

67

M_A_DQ30

69

M_A_DQ28

56

M_A_DQ29

58

M_A_DQ27

68

M_A_DQ26

70

M_A_DQ36

129

M_A_DQ37

131

M_A_DQ35

141

M_A_DQ34

143

M_A_DQ32

130

M_A_DQ33

132

M_A_DQ38

140

M_A_DQ39

142

M_A_DQ45

147

M_A_DQ44

149

M_A_DQ43

157

M_A_DQ42

159

M_A_DQ41

146

M_A_DQ40

148

M_A_DQ46

158

M_A_DQ47

160

M_A_DQ52

163

M_A_DQ49

165

M_A_DQ54

175

M_A_DQ55

177

M_A_DQ48

164

M_A_DQ53

166

M_A_DQ51

174

M_A_DQ50

176

M_A_DQ61

181

M_A_DQ60

183

M_A_DQ62

191

M_A_DQ63

193

M_A_DQ56

180

M_A_DQ57

182

M_A_DQ59

192

M_A_DQ58

194

DIMM_0

PM_EXTTS#04,21

DDR3_DRAMRST#4,21

DDR3_VREF

NC_330U_2.5V_K

NC_330U_2.5V_K

CAP4

CAP4

3.5x2.8x1.9

3.5x2.8x1.9

Place this cap between two DIMM

+1.5VSUS +3VRUN

C445 0.1U_6.3V_K 0402_X5RC445 0.1U_6.3V_K 0402_X5R

1 2

C453 0.1U_6.3V_K 0402_X5RC453 0.1U_6.3V_K 0402_X5R

1 2

3

4

+3VRUN

2.2U_10V_Y

2.2U_10V_Y

C116

C116

2.2U_6.3V_M

2.2U_6.3V_M

0402_X5R

0402_X5R

4

M_A_DQ[0..63] 5

12

C417

C417

0603_Y5V

0603_Y5V

NC_0_J 0402

NC_0_J 0402

1 2

M1_VREF0_DQ

12

C1820

C1820

2.2U_6.3V_M

2.2U_6.3V_M

0402_X5R

0402_X5R

DQ_VREF0

+1.5VSUS

12

+

+

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

R246

R246

R61 0_J

R61 0_J

12

12

C321

C321
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

C356

C356
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

C418

C418

12

12

C115

C115

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

12

1 2

C1821

C1821

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

12

+1.5VSUS

TS#_DIMM0

DQ_VREF0

0402

0402

C315

C315
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

+1.5VSUS

12

C283

C283

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

5

5

CN28B

CN28B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

SOCKET_2x102P

SOCKET_2x102P

FOX_AS0A626-JARG-7H

FOX_AS0A626-JARG-7H

12

C331

C331
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

C316

C316

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

12

C360

C360
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

VSS16
VSS17

VSS18
VSS19

VSS20
VSS21

VSS22
VSS23

VSS24
VSS25

VSS26
VSS27

VSS28
VSS29

VSS30
VSS31

VSS32
VSS33

VSS34
VSS35

VSS36
VSS37

VSS38
VSS39

VSS40
VSS41

VSS42
VSS43

VSS44
VSS45

VSS46
VSS47

VSS48
VSS49

VSS50

VSS51
VSS52

NPTH1
NPTH2

12

VTT1
VTT2

44
48

49
54

55
60

61
65

66
71

72
127

128
133

134
138

139
144

145
150

151
155

156
161

162
167

168
172

173
178

179
184

185
189

190

195
196

207
208

203
204

205

G1

206

G2

C309

C309

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

12

C361

C361
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

6

12

6

C310

C310

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

DDR3_VREF

(20 mil)

For ARD, M1 Path common design

Place these divider near So-DIMM0

+0.75VRUN

Place these Caps near So-DIMM0

12

12

C322

C322
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

C429

C429

C428

C428

10P_50V_J_N

10P_50V_J_N

1U_10V_K

1U_10V_K

0402_NPO

0402_NPO

0402_X5R

0402_X5R

12

C330

C330
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

DDR3 SODIMMS A CHANNLE

DDR3 SODIMMS A CHANNLE

DDR3 SODIMMS A CHANNLE

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

7

DDRDIMM_VREF

12

R185

R185
0_J

0_J

0402

0402

C364

C364

0.1U_16V_M

0.1U_16V_M

0402_X5R

0402_X5R

1 2

+1.5VSUS

R27

R27
1K_F

1K_F

0402

12

C423

C423
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

Rains

Rains

Rains

0402

R55

R55
1K_F

1K_F

0402

0402

12

C438

C438
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

M1_VREF0_DQ

12

C323

C323
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

7

+0.75VRUN

12

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

C433

C433
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

8

2A

Sheet of

20 63

Sheet of

20 63

Sheet of

20 63

0.1

0.1

0.1

1

2

3

4

5

6

7

8

M_B_A[0..15]5

A A

M_B_BS05
M_B_BS15

M_B_BS25

M_CS#25
M_CS#35

M_CLK_DDR25

M_CLK_DDR#25

M_CLK_DDR35

M_CLK_DDR#35

M_CKE25
M_CKE35

M_B_CAS#5

M_B_RAS#5

B B

+3VRUN

C C

M_B_WE#5

R231 10K_J 0402R231 10K_J 0402

R240 10K_J 0402R240 10K_J 0402

SMB_CLK_R11,19,20,30

SMB_DATA_R11,19,20,30

M_ODT25

M_ODT35

M_B_DM[0..7]5

M_B_DQS[0..7]5

M_B_DQS#[0..7]5

12

12

M_B_DM0
M_B_DM1

M_B_DM2

M_B_DM3
M_B_DM4

M_B_DM5

M_B_DM6

M_B_DM7

M_B_DQS0
M_B_DQS1

M_B_DQS2

M_B_DQS3
M_B_DQS4

M_B_DQS5
M_B_DQS6

M_B_DQS7
M_B_DQS#0

M_B_DQS#1

M_B_DQS#2

M_B_DQS#3

M_B_DQS#4

M_B_DQS#5

M_B_DQS#6

M_B_DQS#7

M_B_A0
M_B_A1

M_B_A2

M_B_A3
M_B_A4

M_B_A5
M_B_A6

M_B_A7
M_B_A8

M_B_A9

M_B_A10

M_B_A11

M_B_A12

M_B_A13

M_B_A14

M_B_A15

SA0_DIM1

SA1_DIM1

CN27A

CN27A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

SO DIMM CONN_2x102P

SO DIMM CONN_2x102P

FOX_AS0A626-N2RN-7H

FOX_AS0A626-N2RN-7H

DQ10
DQ11

DQ12
DQ13

DQ14
DQ15

DQ16
DQ17

DQ18
DQ19

DQ20
DQ21

DQ22
DQ23

DQ24
DQ25

DQ26
DQ27

DQ28
DQ29

DQ30
DQ31

DQ32
DQ33

DQ34
DQ35

DQ36
DQ37

DQ38
DQ39

DQ40
DQ41

DQ42
DQ43

DQ44
DQ45

DQ46
DQ47

DQ48
DQ49

DQ50
DQ51

DQ52
DQ53

DQ54
DQ55

DQ56
DQ57

DQ58
DQ59

DQ60
DQ61

DQ62
DQ63

M_B_DQ1

5

DQ0

M_B_DQ0

7

DQ1

M_B_DQ3

15

DQ2

M_B_DQ2

17

DQ3

M_B_DQ5

4

DQ4

M_B_DQ4

6

DQ5

M_B_DQ7

16

DQ6

M_B_DQ6

18

DQ7

M_B_DQ8

21

DQ8

M_B_DQ9

23

DQ9

M_B_DQ10

33

M_B_DQ11

35

M_B_DQ13

22

M_B_DQ12

24

M_B_DQ15

34

M_B_DQ14

36

M_B_DQ16

39

M_B_DQ17

41

M_B_DQ18

51

M_B_DQ19

53

M_B_DQ21

40

M_B_DQ20

42

M_B_DQ22

50

M_B_DQ23

52

M_B_DQ25

57

M_B_DQ24

59

M_B_DQ31

67

M_B_DQ30

69

M_B_DQ28

56

M_B_DQ29

58

M_B_DQ27

68

M_B_DQ26

70

M_B_DQ36

129

M_B_DQ37

131

141
143

130
132

140
142

147
149

157
159

146
148

158
160

163
165

175
177

164
166

174
176

181
183

191
193

180
182

192
194

M_B_DQ35

M_B_DQ34

M_B_DQ32

M_B_DQ33

M_B_DQ38
M_B_DQ39

M_B_DQ45

M_B_DQ44

M_B_DQ43

M_B_DQ42

M_B_DQ40

M_B_DQ41

M_B_DQ47

M_B_DQ46

M_B_DQ49

M_B_DQ48

M_B_DQ54

M_B_DQ55

M_B_DQ52
M_B_DQ53

M_B_DQ51

M_B_DQ50

M_B_DQ61

M_B_DQ60

M_B_DQ63

M_B_DQ62

M_B_DQ56

M_B_DQ57

M_B_DQ58

M_B_DQ59

DDR3_VREF

M_B_DQ[0..63] 5

+3VRUN

12

C409

C409

2.2U_10V_Y

2.2U_10V_Y

0603_Y5V

0603_Y5V

C113

C113

2.2U_6.3V_M

2.2U_6.3V_M

0402_X5R

0402_X5R

+1.5VSUS

12

M1_VREF1_DQ

12

DQ_VREF1

C294

C294
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

R232 NC_0_J 0402R232 NC_0_J 0402

R230 NC_0_J 0402R230 NC_0_J 0402

12

PM_EXTTS#04,20

PM_EXTTS#14

DDR3_DRAMRST#4,20

C372

C372

2.2U_6.3V_M

2.2U_6.3V_M

0402_X5R

0402_X5R

12

C416

C416

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

1 2

1 2

R66 0_J

R66 0_J

12

12

C270

C270
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

+1.5VSUS

1 2

12

C371

C371

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

C112

C112

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

+1.5VSUS

TS#_DIMM1

12

C358

C358
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

DQ_VREF1

0402

0402

CN27B

CN27B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

SO DIMM CONN_2x102P

SO DIMM CONN_2x102P

FOX_AS0A626-N2RN-7H

FOX_AS0A626-N2RN-7H

12

C339

C339
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

VSS16

VSS17
VSS18

VSS19
VSS20

VSS21
VSS22

VSS23
VSS24

VSS25
VSS26

VSS27
VSS28

VSS29
VSS30

VSS31
VSS32

VSS33
VSS34

VSS35
VSS36

VSS37
VSS38

VSS39
VSS40

VSS41
VSS42

VSS43
VSS44

VSS45
VSS46

VSS47
VSS48

VSS49
VSS50

VSS51
VSS52

VTT1
VTT2

12

C318

C318
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

44

48
49

54
55

60
61

65
66

71
72

127
128

133
134

138
139

144
145

150
151

155
156

161
162

167
168

172
173

178
179

184
185

189
190

195
196

203
204

205

G1

206

G2

12

C298

C298
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

For ARD, M1 Path common design

Place these divider near So-DIMM1

+1.5VSUS

M1_VREF1_DQ

+0.75VRUN

Place these Caps near So-DIMM1

C434

C434
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

C354

C354
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

12

12

C437

C437
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

12

C317

C317
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

12

C425

C425
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

R57

R57
1K_F

1K_F

0402

0402

R56

R56
1K_F

1K_F

0402

0402

+0.75VRUN

12

12

C435

C435
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

C436

C436
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

12

C424

C424
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

12

C308

C308
10P_50V_J_N

10P_50V_J_N

0402_NPO

D D

1

2

3

0402_NPO

4

12

C338

C338

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

12

C355

C355

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

C340

C340

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

5

12

C370

C370

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

DDR3 SODIMMS B CHANNLE

DDR3 SODIMMS B CHANNLE

DDR3 SODIMMS B CHANNLE

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

6

Monday, January 31, 2011 14:12:45

7

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

8

21 63

21 63

21 63

0.1

0.1

0.1

5

+3VRUN

12

2.2K_J

2.2K_J

12

R610

R610

R624

R624

2.2K_J

2.2K_J

0402

0402

0402

0402

R631

R631

NC_2.2K_J

NC_2.2K_J

0402

0402

+3V_DELAY

12

12

R2507

R2507
NC_2.2K_J

NC_2.2K_J

0402

0402

4

3

2

1

D D

2.2K_J

2.2K_J

HSYNC13

1 2

R1751 39_J 0402R1751 39_J 0402

C C

VSYNC14

1 2

R1752 39_J 0402R1752 39_J 0402

B B

ATI_DAC1GREEN38

R635

R635

0402

0402

ATI_DAC1RED38

GM_GREEN13

ATI_DAC1BLUE38

GM_DDCCLK

GM_DDCDATA

D_SHIFT_+5VRUN

12

12

R634

R634

2.2K_J

2.2K_J

0402

0402

CRT_DDCCLK

CRT_DDCDATA

GM_RED13

GM_BLUE13

ATI_CRT_SCL

ATI_CRT_SDA

ATI_DAC1HSYNC37,38

ATI_DAC1VSYNC37,38

GM_VSYNC13

GM_HSYNC13

GM_DDCDATA13

GM_DDCCLK13

ATI_CRT_SCL38

HSYNC13_R

12

C908

C908
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

VSYNC14_R

12

C909

C909
12P_50V_J

12P_50V_J

0402_NPO

0402_NPO

ATI_CRT_SDA38

Pin2 co-lay and close CRT conn

GM_RED

R78 0_J 0402R78 0_J 0402

1 2

ATI_DAC1RED

R79 NC_0_J 0402R79 NC_0_J 0402

1 2

GM_GREEN

R80 0_J 0402R80 0_J 0402

1 2

ATI_DAC1GREEN

R81 NC_0_J 0402R81 NC_0_J 0402

1 2

GM_BLUE

R82 0_J 0402R82 0_J 0402

1 2

ATI_DAC1BLUE

R83 NC_0_J 0402R83 NC_0_J 0402

1 2

Pin2 co-lay and close U15

R92 NC_0_J 0402R92 NC_0_J 0402

1 2

R93 NC_0_J 0402R93 NC_0_J 0402

1 2

R84 0_J 0402R84 0_J 0402

1 2

R85 0_J 0402R85 0_J 0402

1 2

R86 0_J 0402R86 0_J 0402

1 2

R90 0_J 0402R90 0_J 0402

1 2

R87 NC_0_J 0402R87 NC_0_J 0402

1 2

R91 NC_0_J 0402R91 NC_0_J 0402

1 2

L98

L98
47R-100MHZ_0603

47R-100MHZ_0603

BLM18BB470SN1D

IGPU_R

IGPU_G

IGPU_B

12

R1759

R1759
150_F

150_F

0402

0402

12

R1756

R1756
150_F

150_F

0402

0402

12

R1757

R1757
150_F

150_F

0402

0402

12

12

12

C911

C911
22P_50V_J

22P_50V_J

0402_NPO

0402_NPO

C913

C913
22P_50V_J

22P_50V_J

0402_NPO

0402_NPO

C915

C915
22P_50V_J

22P_50V_J

0402_NPO

0402_NPO

BLM18BB470SN1D

L99

L99
47R-100MHZ_0603

47R-100MHZ_0603

BLM18BB470SN1D

BLM18BB470SN1D

L100

L100
47R-100MHZ_0603

47R-100MHZ_0603

BLM18BB470SN1D

BLM18BB470SN1D

VSYNC14

VSYNC14_L

HSYNC13

HSYNC13_L

CRT_DDCDATA

CRT_DDC_DATA_5S

CRT_DDC_CLK_5S

CRT_DDCCLK

12

12

12

C912

C912
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

C914

C914
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

C916

C916
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

16
15

14
13

12
11

10

9

SYNC_OUT2
SYNC_IN2

SYNC_OUT1
SYNC_IN1

DDC_OUT2
DDC_IN2

DDC_IN1
DDC_OUT1

U15

U15

1

VCC_SYNC

2

VCC_VIDEO

3

VIDEO_1

4

VIDEO_2

5

VIDEO_3

6

GND

7

VCC_DCC

8

BYP

IP4772CZ16

IP4772CZ16

+5VRUN

D18

D18

12

B340A-13-F

B340A-13-F

VR2

VR2

NC_MLVS0603M04_VR

NC_MLVS0603M04_VR

null

null

Place close to CRT CN

+3VRUN

IGPU_B

IGPU_G

IGPU_R

12

C182

C182

0.1U_16V_Y_Y

0.1U_16V_Y_Y

0402_Y5V

0402_Y5V

D_SHIFT_+5VRUN

21

12

F3

F3
15V-0.35A_1206

15V-0.35A_1206

SMD1206P035TF/16

SMD1206P035TF/16

20MIL

20MIL

CRT CONNECTOR

12

J_RED

J_GREEN

CRT_+5VRUN

TP960

TP960

D_SHIFT_+5VRUN

12

C183

C183

0.1U_16V_Y_Y

0.1U_16V_Y_Y

0402_Y5V

0402_Y5V

C910

C910

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

1

10

+5VRUN

6
1

7
2

8
3

9
4

5

CN37

CN37

12

C181

C181

0.1U_16V_Y_Y

0.1U_16V_Y_Y

0402_Y5V

0402_Y5V

11

12

13

14

15

DSUB CONN_15P

DSUB CONN_15P

17

16

FOX_DZ11A41-SB1HD-9H

FOX_DZ11A41-SB1HD-9H

CRT_DDCDATA

HSYNC13_RJ_BLUE

VSYNC14_R

CRT_DDCCLK

A A

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

Switchable CRT

Switchable CRT

Switchable CRT

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:43

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

22 63

Sheet of

22 63

Sheet of

22 63

0.1

0.1

0.1

5

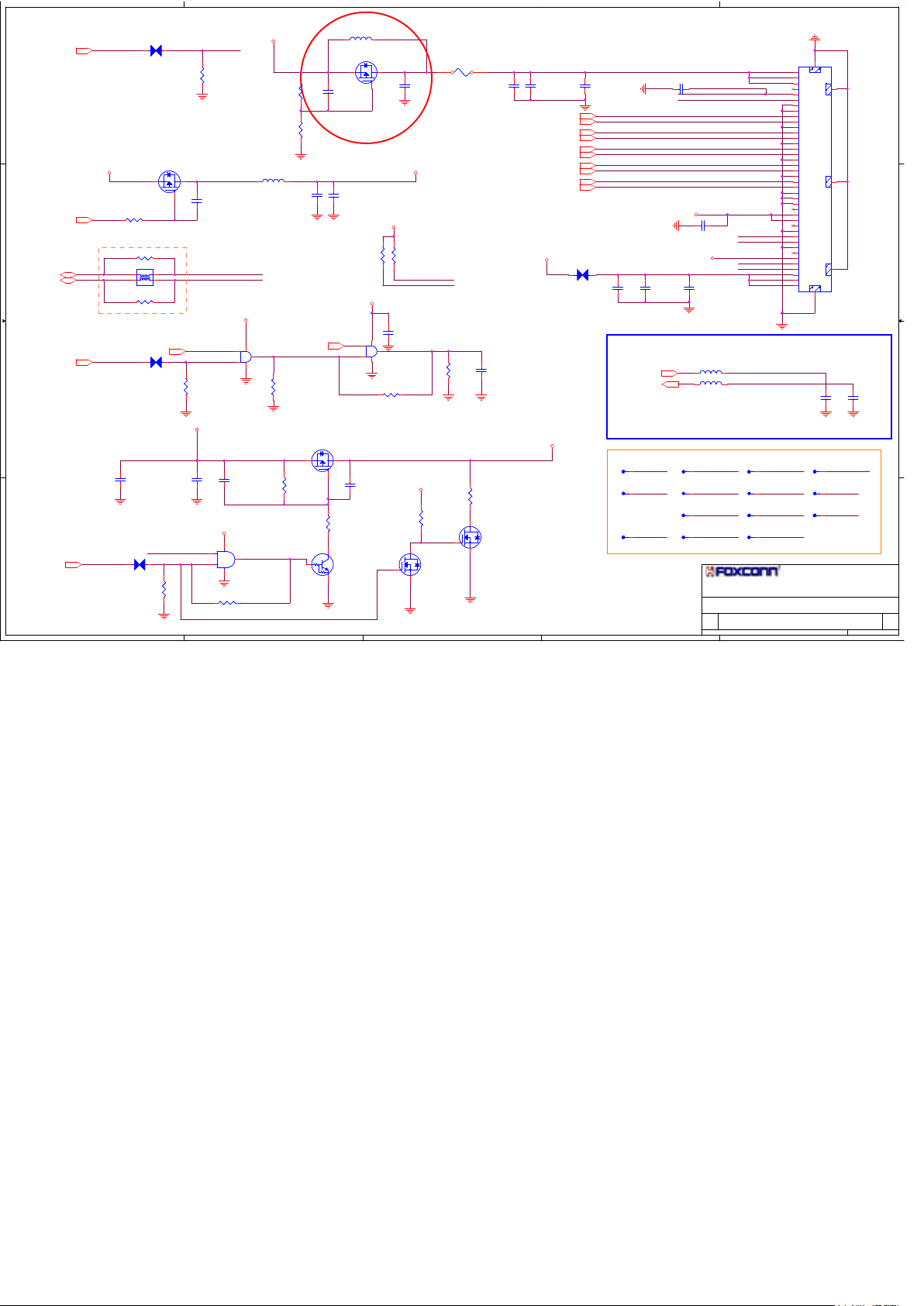

PGP38

GM_BRADJ13

D D

PGP38

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

INV_BRADJ

21

12

R43

R43
10K_J

10K_J

0402

0402

Camera Interface

D

D

12

1

LIDIN#

INV_ENABLE_MUX

1 2

+3VRUN

12

R60 0_J 0402R60 0_J 0402

500mA

C1863

C1863

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

USB13_CAM#_F

USB13_CAM_F

U86

U86
74AHC1G08GW

74AHC1G08GW

+3VRUN

1

2

1 2

1 2

3 5

Q84

+3VALW

CAMERA_OFF25

C C

USB_PN1314

USB_PP1314

GM_INV_EN13

B B

A A

GM_LCDVCC_EN13

R1830 100K_J 0402R1830 100K_J 0402

R1832 0_J 0402R1832 0_J 0402

R1833 0_J

R1833 0_J

GM_INV_EN

GM_LCDVCC_EN

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

5

Q84

PMV65XP

PMV65XP

2 3

S

S

1 2

Co-lay

12

L106

L106

4

3

1

2

NC_90R-100MHZ_0.35R

NC_90R-100MHZ_0.35R

2.0x1.2x0.9

2.0x1.2x0.9

12

LIDIN#25,33

PGP39

PGP39

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP40

PGP40

12

C37

C37
33P_50V_J

33P_50V_J

0402_NPO

0402_NPO

100K_J

100K_J

0402

0402

R331

R331

BL_OFF#

21

R309

R309

100K_J

100K_J

C26

C26

4.7U_6.3V_K

4.7U_6.3V_K

0603_X5R

0603_X5R

12

G

G

0402

0402

21

0402

0402

4

DCBATOUT

120R-100MHZ_0402

120R-100MHZ_0402

BLM15BB121SN1D

BLM15BB121SN1D

L105

L105

+3VRUN

53

1

4

2

1 2

C38

C38
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0402_X5R

0402_X5R

U24

U24

NC_MC74VHC1G08DFT2G

NC_MC74VHC1G08DFT2G

LCD_PWR_EN

4

4

C1005

C1005

10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

R16

R16
NC_10K_J

NC_10K_J

0402

0402

12

R88

R88
100K_J

100K_J

0402

0402

12

R73

R73
NC_47K_J

NC_47K_J

0402

0402

12

R74

R74
NC_47K_J

NC_47K_J

0402

0402

12

BL_OFF#25

INV_ENABLE_2

Q27

Q27

SI2301CDS-T1-GE3

SI2301CDS-T1-GE3

2 3

S

S

Q26

Q26

B

B

1

L63

12

C20

C20
NC_0.1U_25V_Y

NC_0.1U_25V_Y

0402_Y5V

0402_Y5V

12

C1006

C1006
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

U1

U1
74AHC1G08GW

74AHC1G08GW

D

D

G

G

1

12

R72

R72

68K_J

68K_J

0402

0402

C

C

E

E

PDTC144EU.115

PDTC144EU.115

2 3

600R-100MHZ_0805

600R-100MHZ_0805

ACMS201209A601 2AL63

ACMS201209A601 2A

Q28

Q28

NC_SI2303CDS-T1-GE3

NC_SI2303CDS-T1-GE3

2 3

D

S

D

S

G

G

1

+3VRUN

12

R536

R536

2.2K_J

2.2K_J

0402

0402

+3VRUN

53

1

4

2

R15 NC_0_J 0402R15 NC_0_J 0402

1 2

12

C31

C31
6800P_25V_M

6800P_25V_M

0402_X7R

0402_X7R

12

R524

R524

2.2K_J

2.2K_J

0402

0402

C24

C24

0.1U_16V_Y_Y

0.1U_16V_Y_Y

0402_Y5V

0402_Y5V

1 2

G

G

2

12

C19

C19

0.1U_25V_Y

0.1U_25V_Y

0402_Y5V

0402_Y5V

+3V_CAM

GM_DDC2CLK

GM_DDC2DATA

+3VALW

61

D

D

S

S

INV_ENABLE

12

R89

R89
100K_J

100K_J

0402

0402

Q1B

Q1B

2N7002DW-7-F

2N7002DW-7-F

null

null

3

F4

F4

1 2

32V-2A_0603

32V-2A_0603

0494002.NRHF

0494002.NRHF

12

R516

R516
10K_J

10K_J

0402

0402

G

G

5

3

Normal 465mA
Inrush 2A

12

C923

C923

33P_25V_J

33P_25V_J

0201_NP0

0201_NP0

12

C6

C6
NC_680P_50V_K

NC_680P_50V_K

0402_X7R

0402_X7R

12

R560

R560
62R_J

62R_J

0402

0402

34

D

D

Q1A

Q1A

2N7002DW-7-F

2N7002DW-7-F

null

null

S

S

2

LVDS CONNECTOR

C2621 Close to Connector

1.5A

12

C513

C513
1U_25V_M

1U_25V_M

0603_X5R

0603_X5R

GM_DDC2DATA13
GM_DDC2CLK13

GM_ODD_RXIN2+13
GM_ODD_RXIN2-13

GM_ODD_RXIN1+13
GM_ODD_RXIN1-13

GM_ODD_RXIN0+13
GM_ODD_RXIN0-13

GM_ODD_CLKIN+13
GM_ODD_CLKIN-13

LCDVCC

power_close_gap_0805

power_close_gap_0805

LCDVCC

PGP41

PGP41

12

33P_25V_J

33P_25V_J

C925

C925

0.1U_50V_K_B

0.1U_50V_K_B

0603_X7R

0603_X7R

21

12

C920

C920

0201_NP0

0201_NP0

Digital MIC

SI

GM_DDC2DATA

GM_DDC2CLK

GM_ODD_RXIN2+

GM_ODD_RXIN2-

GM_ODD_RXIN1+
GM_ODD_RXIN1-

GM_ODD_RXIN0+

GM_ODD_RXIN0-

GM_ODD_CLKIN+

GM_ODD_CLKIN-

TP1121

TP1121
tpc30t_50

tpc30t_50

TP1127

TP1127
tpc30t_50

tpc30t_50

TP1139

TP1139
tpc30t_50

tpc30t_50

BFT Test Pad

2

AC CAP placed near device side

BOARD SIDE CONN_40P

BOARD SIDE CONN_40P

FOX_GS12407-11141-9H

FOX_GS12407-11141-9H

C2621 47P_50V_J_N 0402_NPOC2621 47P_50V_J_N 0402_NPO

12

INV_BRADJ

INV_ENABLE

+3VRUN

C608

0402_X5RC608

0402_X5R

12

USB13_CAM#_F

USB13_CAM_F

DMIC_CLK_L

DMIC_DAT_L

1A

C922

C922

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

L72 120R-100MHZ_0402

L72 120R-100MHZ_0402

BLM15BB121SN1D

BLM15BB121SN1D

L71 120R-100MHZ_0402

L71 120R-100MHZ_0402

BLM15BB121SN1D

BLM15BB121SN1D

GM_DDC2CLK

GM_ODD_RXIN2+

GM_ODD_RXIN2-

GM_ODD_RXIN1+

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

SWITCH LVDS

SWITCH LVDS

SWITCH LVDS

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

12

DMIC_CLK28

DMIC_DAT28

INV_BRADJ

1

INV_ENABLE

1

GM_DDC2DATA

1

C1362

C1362

4.7U_6.3V_K

4.7U_6.3V_K

0603_X5R

0603_X5R

NC_0.1U_16V_M_B

NC_0.1U_16V_M_B

+3V_CAM

12

TP1122

TP1122
tpc30t_50

tpc30t_50

1

TP1128

TP1128
tpc30t_50

tpc30t_50

1

TP1134

TP1134
tpc30t_50

tpc30t_50

1

TP1140

TP1140
tpc30t_50

tpc30t_50

1

TP1123

TP1123
tpc30t_50

tpc30t_50

TP1129

TP1129
tpc30t_50

tpc30t_50

TP1135

TP1135
tpc30t_50

tpc30t_50

TP1141

TP1141
tpc30t_50

tpc30t_50

CN4

CN4

40
39

38
37

36
35

34
33

32
31

30
29

28
27

26
25

24
23

22
21

20
19

18
17

16
15

14
13

12
11

10

9

8
7

6
5

4
3

2
1

DMIC_CLK_L

DMIC_DAT_L

15P_25V_J

15P_25V_J

0201_C0G

0201_C0G

GM_ODD_RXIN1-

1

GM_ODD_RXIN0+

1

GM_ODD_RXIN0-

1

GM_ODD_CLKIN+

1

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

1

SMDFIX4

SMDFIX4

C732

C732

TP1124

TP1124
tpc30t_50

tpc30t_50

TP1138

TP1138
tpc30t_50

tpc30t_50

TP1144

TP1144
tpc30t_50

tpc30t_50

1

44 45

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

SMDFIX5

SMDFIX5

43

SMDFIX2SMDFIX3

SMDFIX2SMDFIX3

42

SMDFIX1

SMDFIX1

41

12

GM_ODD_CLKIN-

1

+3VRUN

1

LCDVCC

1

12

C717

C717
15P_25V_J

15P_25V_J

0201_C0G

0201_C0G

Sheet of

23 63

Sheet of

23 63

Sheet of

23 63

0.1

0.1

0.1

5

For PI3VDP411LST

(TMDS output pre-emphasis)
OC3,OC2,OC1,OC0 Configuration
0100: 0 dB, (Default Setting)

Stuff R5421,R5423,R5426,R5459
No stuff R5420,R5422,R5427,
R5425,R5428.

+3VRUN

R740 2.2K_J 0402R740 2.2K_J 0402

1 2

D D

R742 NC_2.2K_J 0402R742 NC_2.2K_J 0402

1 2

R745 2.2K_J 0402R745 2.2K_J 0402

1 2

R749 NC_2.2K_J 0402R749 NC_2.2K_J 0402

1 2

For PI3VDP411LST

(TMDS inputs equalization control)
EQ1,EQ0 Configuration
00: 3 dB, (Default Setting)
01: 6 dB,
10: 9 dB,
11: 12 dB

+3VRUN

stuff R5429,R5431,
No stuff R5432,R5434

R752 NC_2.2K_J 0402R752 NC_2.2K_J 0402

1 2

C C

R754 2.2K_J 0402R754 2.2K_J 0402

1 2

B B

For PS8101

(TMDS inputs equalization control)
OC1,OC0 Configuration
00: 8 dB,
01: 4 dB, (Default Setting)
10: 12 dB,
11: 0 dB

Stuff R5420,R5423,R5425
No stuff R5421,R5422,R5426, R5427, R5428, R5459

HDMI_PC0/OC0

R741 NC_2.2K_J 0402R741 NC_2.2K_J 0402

1 2

HDMI_PC1/OC1

R743 2.2K_J 0402R743 2.2K_J 0402

1 2

Co-lay

R744 NC_2.2K_J 0402R744 NC_2.2K_J 0402

1 2

OC2_REXT

R746 NC_499_F 0402R746 NC_499_F 0402

12

HDMI_RT_EN#/OC3

R750 2.2K_J 0603R750 2.2K_J 0603

1 2

For PS8101

stuff R5432 (For active DDC buffer)
No stuff R5429,R5431,R5434

EQ0

R753 2.2K_J 0402R753 2.2K_J 0402

1 2

EQ1

R755 NC_2.2K_J 0402R755 NC_2.2K_J 0402

1 2

R1666 0_J 0603R1666 0_J 0603

1 2

PCH_TMDS_TXC+

PCH_TMDS_TXC-

1 4

L88 NC_90R-100MHZ_0.3A_0.3R

L88 NC_90R-100MHZ_0.3A_0.3R

R1664 0_J 0603R1664 0_J 0603

1 2

R1661 0_J 0603R1661 0_J 0603

1 2

PCH_TMDS_D0+

1 4

PCH_TMDS_D0-

L87 NC_90R-100MHZ_0.3A_0.3R

L87 NC_90R-100MHZ_0.3A_0.3R

R1658 0_J 0603R1658 0_J 0603

1 2

R1657 0_J 0603R1657 0_J 0603

1 2

PCH_TMDS_D1+

PCH_TMDS_D1-

1 4

L86 NC_90R-100MHZ_0.3A_0.3R

L86 NC_90R-100MHZ_0.3A_0.3R

R1656 0_J 0603R1656 0_J 0603

1 2

R1654 0_J 0603R1654 0_J 0603

1 2

PCH_TMDS_D2+

PCH_TMDS_D2-

1 4

L85 NC_90R-100MHZ_0.3A_0.3R

L85 NC_90R-100MHZ_0.3A_0.3R

R1653 0_J 0603R1653 0_J 0603

1 2

4

Dual Mode HDMI Signals 1 -- PCH

+3VRUN +3VRUN

12

R54

R54

4.7K_J

NC_0_J

NC_0_J

R762

0402 R762

0402

PCH_HDMI_SCL

TMDS_TXC+
TMDS_TXC-

TMDS_D0+

TMDS_D0-

TMDS_D1+
TMDS_D1-

TMDS_D2+

TMDS_D2-

4.7K_J

0402

0402

12

1 2

R2418 0_J 0402R2418 0_J 0402

R2419 0_J 0402R2419 0_J 0402

+3VRUN

R739 2.2K_J 0402R739 2.2K_J 0402

12

C6455

C6455
10U_6.3V_Y

10U_6.3V_Y

0805_Y5V

0805_Y5V

R764

R764

0_J

0_J

0402

0402

1 2

1 2

1 2

OE#

HDMI_DET_3#

32

ACM2012H-900-2P-T00

ACM2012H-900-2P-T00

32

ACM2012H-900-2P-T00

ACM2012H-900-2P-T00

32

ACM2012H-900-2P-T00

ACM2012H-900-2P-T00

32

ACM2012H-900-2P-T00

ACM2012H-900-2P-T00

DGPU_HPD_INTR#

12

C6456

C6456
NC_0.01U_25V_K

NC_0.01U_25V_K

0402_X7R

0402_X7R

HDMI_SCL

HDMI_SDAPCH_HDMI_SDA

HDMI_DDC_EN

3

+3VRUN

Vih: 2V to PCH.
Vil: 0.8V to PCH.

R760

R760
10K_J

10K_J

0402

0402

1 2

Q64

Q64

1 2

32

D

D

1

G

G

2N7002-7-F

2N7002-7-F

S

S

12

C6457

C6457

0.01U_25V_K

0.01U_25V_K

0402_X7R

0402_X7R

SFT_HDMI_DET_3 13

R761

R761
0_J

0_J

0402

0402

HDMI_SCL

R736 2.2K_J

R736 2.2K_J

1 2

HDMI_SDA

R729 2.2K_J

R729 2.2K_J

1 2

+3VRUN

L149

L149
33R-100MHZ_0603

33R-100MHZ_0603

BLM18PG330SN1D

BLM18PG330SN1D

+3VRUN_HDMI

12

C6458

C6458
NC_0.1U_16V_Y

NC_0.1U_16V_Y

0402_Y5V

0402_Y5V

TMDSC_DATA213

TMDSC_DATA2#13

TMDSC_DATA113

TMDSC_DATA1#13

TMDSC_DATA013

TMDSC_DATA0#13

TMDSC_CLK13

TMDSC_CLK#13

12

C6459

C6459

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

12

C6460

C6460

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

TMDSC_DATA2

TMDSC_DATA2#

TMDSC_DATA1

TMDSC_DATA1#

TMDSC_DATA0

TMDSC_DATA0#

TMDSC_CLK

TMDSC_CLK#

+3VRUN

12

R6292

R6292

2.2K_J

2.2K_J

0402

0402

HDMIC_CTRL_DATA13

HDMIC_CTRL_CLK13

TMDS_D2+

TMDS_D2-

TMDS_D0+

TMDS_D0-

HDMI_SCL

HDMI_DET_5

0402

0402

0402

0402

37
38

39
40

41
42

43
44

45
46

47
48

49

12

R6293

R6293

2.2K_J

2.2K_J

0402

0402

CN32

CN32

1

Data2+

3

Data2-

5

TMDS Data1 Shield

7

Data0+

9

Data0-

11

TMDS Clock Shield

13

CEC

15

SCL

17

DDC/CEC Ground

19

Hot Plug Detect

20

PTH1

22

PTH3

HDMI CONN_19P

HDMI CONN_19P

FOX_QJ11A2L-NSHA-7H

FOX_QJ11A2L-NSHA-7H

3

EQ1

EQ0

36

35

34

EQ_1

GND_6

GND_9
IN_D1-

IN_D1+
VDD_6

IN_D2­IN_D2+

GND_10
IN_D3-

IN_D3+
VDD_7

IN_D4­IN_D4+

GND_11

GND_1

VDD_1

1

2

3

HDMI_PC0/OC0

HDMIC_CTRL_DATA

HDMIC_CTRL_CLK

TMDS Data2 Shield

TMDS Data0 Shield

DGPU_HPD_INTR#15

EQ_0

OC_0

BAT54

BAT54

+3VRUN_HDMI

HDMI_DDC_EN

33

32

VDD_4

OC_1

4

5

HDMI_PC1/OC1

TMDS Clock+

TMDS Clock-

D9

D9

null

null

31

DDC_EN

GND_2

6

OC2_REXT

+5V Power

HDMI_DET_5

GND_7

OC_2(REXT)

HDMI_DET_3#

Reserved

2

1

30

29

28

SCL_SINK

SDA_SINK

HPD_SINK

HPD_SOURCE#

SDA_SOURCE

SCL_SOURCE

7

8

9

Data1+
Data1-

SDA

PTH2

PTH4

+5VRUN

27

OUT_D1+

OUT_D2+

OUT_D3+

OUT_D4+

10

HDMI_RT_EN#/OC3

26

GND_8

OUT_D1-

OUT_D2-

OUT_D3-

OUT_D4-

OC_3

11

VDD_5

GND_4

VDD_2

GND_5

VDD_3

VDD_8

OE#

25

U3006

U3006

OE#

GND_3

PI3VDP411LSTZDE

PI3VDP411LSTZDE

12

2

4
6

8
10

12

14

16

18

21

23

2

R763 0_J 0402R763 0_J 0402

1 2

2N7002-7-F

2N7002-7-F

PCH_HDMI_SDA

PCH_HDMI_SCL

+3VRUN_HDMI

24

PCH_TMDS_D2+

23

PCH_TMDS_D2-

22
21

PCH_TMDS_D1+

20

PCH_TMDS_D1-

19

18

PCH_TMDS_D0+

17

PCH_TMDS_D0-

16
15

PCH_TMDS_TXC+

14

PCH_TMDS_TXC-

13

TMDS_D1+

TMDS_D1-

TMDS_TXC+

TMDS_TXC-

HDMI_SDA

1

12

32

Q65

Q65

D

D

S

S

HDMI_DET_5

12

C6450

C6450

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

PM_SLP_S3#12,25

+5VRUN

12

G

G

C855

C855

0.1U_16V_K

0.1U_16V_K

0402_X7R

0402_X7R

0402

0402

10K_J

10K_J
R751

R751

1

OE#

32

Q60

Q60

D

D

1

G

G

S

S

2N7002A-7

2N7002A-7

12

12

C6451

C6451

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

HDMI_+5VRUN

C854

C854
33P_50V_J

33P_50V_J

0402_NPO

0402_NPO

B

B

2

F2

F2

1 2

16V-0.25_1206

16V-0.25_1206

SMD1206P025TF

SMD1206P025TF

12

12

C6453

C6453

C6452

C6452

0.01U_25V_K

0.01U_25V_K

0.01U_25V_K

0.01U_25V_K

0402_X7R

0402_X7R

0402_X7R

0402_X7R

HDMI_SCL

HDMI_SDA

HDMI_DET_5

GAP8

GAP8

sparkgap_6

sparkgap_6

R1673

R1673
10K_J

10K_J

0402

0402

+5VRUN_F

D

D

Q69

Q69

PMV65XP

PMV65XP

12

1

G

G

+5VRUN_D

23

S

S

Q67

Q67

C

C

E

E

DTC144EUAGZT106

DTC144EUAGZT106

1 3

HDMI spec: +5V:4.7V min , 55mA max.

12

C6454

C6454

0.01U_25V_K

0.01U_25V_K

0402_X7R

0402_X7R

ESD

1

1

1

1

2

2

GAP9

GAP9

sparkgap_6

sparkgap_6

120R-100MHZ_0402

120R-100MHZ_0402

BLM15BD121SN1D

BLM15BD121SN1D

L89

L89

1

1

GAP10

GAP10

sparkgap_6

sparkgap_6

2

2

2

2

A A

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

HDMI

HDMI

HDMI

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Page Modified:

5

4

3

2

Page Modified:

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

24 63

24 63

24 63

0.1

0.1

0.1

1

L46

L46

120R-100MHZ_0402

120R-100MHZ_0402

+ECVCC

BLM15BB121SN1D

BLM15BB121SN1D

L47

L47

120R-100MHZ_0402

120R-100MHZ_0402

BLM15BB121SN1D

BLM15BB121SN1D

A A

B B

FAN_PWM30

RUN_PWRGD4,12,48,55,56

SMB_DATA_EC30

SMB_CLK_EC30

SPI_ROM_CLK26
SPI_ROM_CS#26

SPI_ROM_SDO26

SPI_ROM_SDI26

OCP_OC#51

Please do not place any pull-up resistor
on GPG0, GPG2, and GPG6 (Reserved
hardware strapping).

C C

+3VSUS

12

12

R495

R495

R2611

R2611

10K_J

10K_J

10K_J

10K_J

0402

0402

0402

0402

DAT_TP
CLK_TP

12

12

C2605

C2605

C2601

C2601

47P_50V_J_N

0402_NPO

0402_NPO

R6175 10K_J 0402R6175 10K_J 0402

1 2

R6179 10K_J 0402R6179 10K_J 0402

1 2

R6181 NC_10K_J 0402R6181 NC_10K_J 0402

1 2

R6183 10K_J 0402R6183 10K_J 0402

1 2

SYSTEM_ID115

47P_50V_J_N

0402_NPO

0402_NPO

1

47P_50V_J_N

47P_50V_J_N

+3VSUS

D D

+ECVCC

EC_AVCC

12

C481

C481

0.1U_16V_K

0.1U_16V_K

0402_X5R

0402_X5R

EC_AGND

LPC_AD010,26,31

LPC_AD110,26,31
LPC_AD210,26,31

LPC_AD310,26,31

BUF_PLT_RST#4,14,26,31

CLK_KBCPCI14

LPC_FRAME#10,26,31

PM_SUS_STAT#12,26

H_A20GATE15

INT_SERIRQ10,26

EXTSMI#15

RUNTIME_SCI#15

H_RCIN#15

WAKE_SCI#11

AC_Present12

PCIE_APM#31

WLAN_RF_OFF#31

PWRBTN#12

SUS_PWR_ACK#12

SUS_PWRGD56

BL_OFF#23

E51TXD26

E51RXD26

QWEBSW#33

SMART_ID51

ADAPT_OC_IINP53

PM_SLP_S3#12,24

R6173 22_J 0402R6173 22_J 0402

R6174 22_J 0402R6174 22_J 0402

CAMERA_OFF23

PM_RSMRST#12

+3VSUS

12

C2604

C2604

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

TP_LED#

12

12

C2608

C2608

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

SYSTEM ID0-2

SYSTEM_ID0

R6176 NC_100K_J 0402R6176 NC_100K_J0402

SYSTEM_ID1

R6180 NC_100K_J 0402R6180 NC_100K_J0402

SYSTEM_ID2

R6182 100K_J 0402R6182 100K_J 0402

SYSTEM_ID3

R6184 NC_100K_J 0402R6184 NC_100K_J 0402

1 2

1 2

12

C2611

C2611

0.047U_16V_K

0.047U_16V_K

0402_X7R

0402_X7R

1 2

1 2

1 2

1 2

VCCRTC

1 2

+ECVCC

12

12

C1844

C1844

C1845

C1845

10U_6.3V_M 0603_X5R

10U_6.3V_M 0603_X5R

ECRST#

TP_LED#

SUS_PWR_ACK#

SPI_ROM_CLK_R

SPI_ROM_SDO_R

SPI_ROM_SDI

KB_DET

KSO0

KSO1

KSO2

KSO3

KSO4

KSO5
KSO6

KSO7

KSO8

KSO9

KSO10
KSO11

KSO12

KSO13

KSO14

KSO15

TP CONN

CN36

CN36

C2603

C2603

0.047U_16V_K

0.047U_16V_K

0402_X7R

0402_X7R

TP_LED conn

2

R537

R537
0_J

0_J

0402

0402

0.1U_16V_K 0402_X5R

0.1U_16V_K 0402_X5R

C1840

C1840

6
5

4
3

2
1

0.1U_16V_K

0.1U_16V_K

0402_X5R

0402_X5R

12

0.1U_16V_K 0402_X5R

0.1U_16V_K 0402_X5R

7 8

SMDFIX1

SMDFIX1

4
3

2
1

SMDFIX2

SMDFIX2

C1838

C1838

SMDFIX2

SMDFIX2

SMDFIX1

SMDFIX1

56

VCCRTC_R

12

C721

C721

R542

R542
NC_0_J

NC_0_J

0402

0402

1 2

120R-100MHZ_0402

120R-100MHZ_0402

BLM15BB121SN1D

BLM15BB121SN1D

L45

L45

12

12

12

0.1U_16V_K

0.1U_16V_K

C1842

C1842

C1839

C1839

0.1U_16V_K 0402_X5R

0.1U_16V_K 0402_X5R

0.1U_16V_K 0402_X5R

0.1U_16V_K 0402_X5R

0.1U_16V_K 0402_X5R

0.1U_16V_K 0402_X5R

+3VRUN

11

26

10

LAD0/GPM0

9

VCC

LAD1/GPM1

8

LAD2/GPM2

7

LAD3/GPM3

22

LPCRST#/WUI4/GPD2

13

LPCCLK/GPM4

6

LFRAME#/GPM5

17

LPCPD#/WUI6/GPE6

126

GA20/GPB5

5

SERIRQ/GPM6

15

ECSMI#/GPD4

23

ECSCI#/GPD3

14

WRST#

4

KBRST#/GPB6

16

PWUREQ#/BBO/GPC7

119

GPC0

123

TMA0/GPB2

80

DAC4/DCD0#/GPJ4

104

DSR0#/GPG6

33

GINT/CTS0#/GPD5

88

PS2DAT1/RTS0#/GPF3

81

DAC5/RIG0#/GPJ5

87

PS2CLK1/DTR0#/GPF2

109

TXD/SOUT0/GPB1

108

RXD/SIN0/GPB0

71

ADC5/DCD1#/WUI29/GPI5

72

ADC6/DSR1#/WUI30/GPI6

73

ADC7/CTS1#/WUI31/GPI7

35

RTS1#/WUI5/GPE5

34

PWM7/RIG1#/GPA7

107

DTR1#/SBUSY/GPG1/ID7

95

WUI18/SOUT1/GPH2/SMDAT3/ID2

94

WUI17/SIN1/SMCLK3/GPH1/ID1

105

FSCK

101

FSCE#

102

EXTERNAL SERIAL FLASH

EXTERNAL SERIAL FLASH

FMOSI

103

FMISO

56

KSO16/SMOSI/GPC3

57

KSO17/SMISO/GPC5

32

PWM6/SSCK/GPA6

100

SSCE0#/GPG2

106

SPI ENABLE

SPI ENABLE

SSCE1#/GPG0

36

KSO0/PD0

37

KSO1/PD1

38

KSO2/PD2

39

KSO3/PD3

40

KSO4/PD4

41

KSO5/PD5

42

KSO6/PD6

43

KSO7/PD7

44

KSO8/ACK#

45

KSO9/BUSY

46

KSO10/PE

51

KSO11/ERR#

52

KSO12/SLCT

53

KSO13

54

KSO14

55

KSO15

KSI0/STB#

58

59

KSI1

KSI0

FPC CONN_6P

FPC CONN_6P

FOX_GB5RF060-1203-7H

FOX_GB5RF060-1203-7H

CN33

CN33

FPC_4P

FPC_4P

FOX_GB1RF040-1203-8H

FOX_GB1RF040-1203-8H

ID3 ID2

01

0 1 Rains1.1 Calpella PV

0402_X5R

0402_X5R

50

VSTBY_1

LPC

LPC

CIR

CIR

KSI1/AFD#

60

KSI2

92

VSTBY_2

KSI2/INIT#

61

KSI3

ID0ID1

C506

C506

114

VSTBY_3

KBMX

KBMX

KSI3/SLIN#

62

KSI4

121

VSTBY_4

VSTBY_5

UART port

UART port

KSI4

KSI5

KSI6

63

64

KSI5

KSI7

KSI6

1 2

KSI7

65

1 10 1 Rains1.1 Calpella MV

2

+ECVCC_L

EC_AVCC

127

3

74

83

84

VBAT

AVCC

VSTBY_6

EGCLK/WUI27/GPE3

IT8518

IT8518

VSS_1

VSS_2

1

27

49

WIRELESS_OFF#_A

Sku

3

82

20

19

98

99

97

HMISO/GPH5/ID5

HMOSI/GPH6/ID6

EGAD/WUI25/GPE1

EGCS#/WUI26/GPE2

L80LLAT/WUI7/GPE7

L80HLAT/BAO/WUI24/GPE0

GPIO

GPIO

WAKE UP

WAKE UP

RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7

VCORE

VSS_3

VSS_6

VSS_5

AVSS

VSS_4

12

75

91

122

113

VCORE_C

EC_AGND

12

C488

C488

0.1U_16V_K

0.1U_16V_K

0402_X5R

0402_X5R

+3VRUN

12

R26

R26
200_F

200_F

0402

0402

32

D

D

Q7

Q7

1

G

G

S

S

2N7002W

2N7002W

PCIE_APM#31

3

R61930_J0402 R61930_J0402

12

EC_AC_LED#_A

R61770_J0402 R61770_J0402

12

96

93

PECI/SMCLK2/WUI22/GPF6

SMDAT2/PECIRQT#/WUI23/GPF7

HSCK/GPH4/ID4

SM BUS

SM BUS

PS2CLK0/TMB0/GPF0
PS2DAT0/TMB1/GPF1

PS2CLK2/WUI20/GPF4

HSCE#/WUI19/GPH3/ID3

PS2DAT2/WUI21/GPF5

CLKRUN#/WUI16/GPH0/ID0

PS/2

PS/2

PWM

PWM

TACH1A/TMA1/GPD7

A/D D/A

A/D D/A

DAC2/TACH0B/GPJ2
DAC3/TACH1B/GPJ3

CLOCK

CLOCK

32

D

D

Q14

Q14

1

G

G

S

S

2N7002W

2N7002W

1 2

4

ALW_PWRGD 12,54

CRIT_TEMP_REP# 15

RUN_ON 56,60

IMVP_PWRGD 12

DGPU_PWROK 11,15,48,59

EC_AC_LED#_A 51

OVT_EC# 4,30

AC_OFF 53

AMP_SD# 28

PM_CLKRUN# 12,26

U91

U91

110

SMCLK0/GPB3

111

SMDAT0/GPB4

115

SMCLK1/GPC1

116

SMDAT1/GPC2

117

118

85
86

89

90

24

PWM0/GPA0

25

PWM1/GPA1

28

PWM2/GPA2

29

PWM3/GPA3

30

PWM4/GPA4

31

PWM5/GPA5

47

TACH0A/GPD6

48

120

TMRI0/WUI2/GPC4

124

TMRI1/WUI3/GPC6

125

PWRSW/GPE4

18

RI1#/WUI0/GPD0

21

RI2#/WUI1/GPD1

112

66

ADC0/GPI0

67

ADC1/GPI1

68

ADC2/GPI2

69

ADC3/GPI3

70

ADC4/WUI28/GPI4

76

TACH2/GPJ0

77

GPJ1

78
79

2

CK32KE

128

CK32K

IT8518E/AX-L

IT8518E/AX-L

null

null

For Internal Clock

+3VRUN

12

R2605

R2605
200_F

200_F

0402

0402

32

D

D

Q8

Q8

G

G

S

S

2N7002W

2N7002W

R2621

R2621

32

0_J

0_J
0402

0402

D

D

Q9

Q9

G

G

S

S

2N7002W

2N7002W

4

SMB_THRM_CLK

SMB_THRM_DATA

CLK_SMB_R

DAT_SMB_R

EC_CHAR_LED#_A

R593 0_J 0402R593 0_J 0402

1 2

CAPSLOCK_LED#_R

PWRSW#_R

SYSTEM_ID0

SYSTEM_ID1

SYSTEM_ID2
SYSTEM_ID3

R6148 0_J 0402R6148 0_J 0402

1 2

32KXCLKO

R6169

R6169

0_J

0_J

0402

0402

NC_8.2P_50V_D

NC_8.2P_50V_D

1 2

0402_NP0

0402_NP0

WIRELESS_ON#_W

WLAN_RF_OFF#

1

+3VRUN

12

1

32

D

D

S

S

+ECVCC

PWRSW#26,33

CLK_KBCPCI

R6149 100_J 0402R6149 100_J 0402

R6150 100_J 0402R6150 100_J 0402

1

POWER_LED_W 33

CPU_DET# 4

BATT_THER_ALERT# 52

ACIN_EC 53

LIDIN# 23,33

SUS_ON 56,60

PM_SLP_S5# 12

1 2

Y13

Y13
NC_32.768KHZ_12.5P_20PPM

NC_32.768KHZ_12.5P_20PPM

EPSON_MC-146

EPSON_MC-146

32KXCLKI

12

12

C1847

C1847

R30

R30

+3VRUN

10K_J

10K_J

0402

0402

12

R33

R33
10K_J

10K_J

0402

0402

Q12

Q12

1

G

G

2N7002W

2N7002W

5

R6133 4.7K_J 0402R6133 4.7K_J 0402

1 2

PWRSW#

C1841 0.1U_16V_M_B

C1841 0.1U_16V_M_B

1 2

0402_X5R

0402_X5R

12

R6136

R6136
NC_47_J

NC_47_J

0402

0402

12

C1843

C1843
NC_22P_50V_J

NC_22P_50V_J

0402_NPO

0402_NPO

SMB_THRM_CLK 11,30,38

SMB_THRM_DATA 11,30,38

CLK_SMB 52,53
DAT_SMB 52,53

20MIL

20MIL

TP981

TP981

PCI_SERR# 14

CLK_TP
DAT_TP

USB_PWR_EN 33

OVT_GFX# 38

EC_CHAR_LED#_A 51

EC_WP 10,26

R13 200_F 0402R13 200_F 0402

1 2

FAN_TACH 30

ALW_ON 54

IMVP_OK 19,57

PM_SLP_S4# 12

LAN_EN# 27

RUN_ON1 55

IMVP_VR_ON 57

FW_HW 10

R6167NC_0_J0402 R6167NC_0_J0402

12

C1855

C1855

NC_8.2P_50V_D

NC_8.2P_50V_D

0402_NP0

0402_NP0

3 4

LED_WLAN_LINK# 31

5

R6134

R6134
110_J

110_J

0402

0402

CAPSLOCK_LED#

CPU_DET#

1 2

PWRSW#_R

SMBUS Channel 2

+3VALW

12

R6139

R6139

2.2K_J

2.2K_J

0402

0402

CLK_SMB

DAT_SMB

BL_OFF#

+3VRUN

12

R302

R302
100K_J

100K_J

0402

0402

PM_THRMTRIP#4,15

ECRST#

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

32

D

D

Q502N7002W

Q502N7002W

1

G

G

S

S

FOX_GB1RF300-1253-7H

FOX_GB1RF300-1253-7H

SMB_DATA_EC
SMB_CLK_EC

12

R6140

R6140

2.2K_J

2.2K_J

0402

0402

+ECVCC

+1_05V_VTT

12

C749

C749

4

12

R2617

R2617

100K_J

100K_J

0402

0402

KB CONN

CN54

CN54

FPC CONN_30P

FPC CONN_30P

R6144

R6144

4.7K_J

4.7K_J

0402

0402

1 2

1 2

+3VRUN

6

+3VRUN

12

12

R6143

R6143

4.7K_J

4.7K_J

0402

0402

R6154

R6154
NC_10K_J

NC_10K_J

0402

0402

R6164

R6164

4.7K_J

4.7K_J

0402

0402

BUF_PLT_RST#

R6168

R6168

1 2

2.2K_J

2.2K_J

0402

0402

PM_THRMTRIP#

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

53

U45

U45

MC74HC1G32DTT1G

MC74HC1G32DTT1G

3231

SMDFIX2

SMDFIX2

SMDFIX1

SMDFIX1

6

LID Switch

LIDIN#

SMBUS Channel 1

SMB_THRM_DATA
SMB_THRM_CLK

PM_SLP_S3#
PM_SLP_S4#

PM_SLP_S5#
RUN_ON

SUS_ON
ALW_ON

RUN_ON1

USB_PWR_EN

1

G

G

Q99

Q99

PMBT3904.215

PMBT3904.215

null

null

B

B

1

12

C752

C752

1

U46

U46

2

KB_DET

30

WIRELESS_ON#_W

29

WIRELESS_OFF#_A

28
27

R6178 0_J 0402R6178 0_J 0402

26

CAPSLOCK_LED#

25

24
23

22

KSO9

21

20
19

KSO0

18
17

16

KSO5

15

KSO1

14
13

KSO2

12

KSO4

11

KSO7

10

KSO8

9

KSO6

8

KSO3

7

KSO12

6

KSO13

5

KSO14

4

KSO11

3

KSO10

2

KSO15

1

+ECVCC

12

+3VRUN

12

R6141

R6141

4.7K_J

4.7K_J

0402

0402

32

Q98

Q98

D

D

S

S

2N7002W

2N7002W

C

C

E

E

2 3

+3VRUN

53

4

MUTE_LED#_A

1 2

KSI6

KSI0

KSI1

KSI3

KSI2

KSI5
KSI4

KSI7

R6138

R6138

100K_J

100K_J

0402

0402

12

R6142

R6142

4.7K_J

4.7K_J

0402

0402

+ECVCC

A0202

74AHC1G08GW

74AHC1G08GW

1

2

1 2

R871

R871

1 2

R877

R877

12

R6170

R6170
NC_0_J

NC_0_J

0402

0402

SI

R6153 100K_J 0402R6153 100K_J 0402

1 2

R6155 100K_J 0402R6155 100K_J 0402

1 2

R6156 100K_J 0402R6156 100K_J 0402

1 2

R6158 100K_J 0402R6158 100K_J 0402

1 2

R6159 100K_J 0402R6159 100K_J 0402

1 2

R6160 100K_J 0402R6160 100K_J 0402

1 2

R6161 100K_J 0402R6161 100K_J 0402

1 2

R583 100K_J 0402R583 100K_J 0402

1 2

12

R6165

R6165
100K_F

100K_F

0402

0402

ECRST#

12

C1848

C1848
1U_10V_K

1U_10V_K

0603_X7R

0603_X7R

Q101

Q101

2N7002-7-F

2N7002-7-F

VGA_HW_SHDN 38

0_J 0402

0_J 0402

NC_0_J 0402

NC_0_J 0402

+3VRUN

7

TP1145

TP1145
tpc30t_50

tpc30t_50

CAPSLOCK_LED#

1

TP1146

TP1146
tpc30t_50

tpc30t_50

MUTE_LED#_A

1

TP1147

TP1147
tpc30t_50

tpc30t_50

KB_DET

1

TP1148

TP1148
tpc30t_50

tpc30t_50

CAPSLOCK_LED#

1

TP1149

TP1149
tpc30t_50

tpc30t_50

DAT_TP

1

TP1150

TP1150
tpc30t_50

tpc30t_50

CLK_TP

1

BFT Test Pad

SPI_ROM_CS#

QWEBSW#

PCIE_APM#

OVT_EC#

OVT_GFX#

+3VRUN

R6166

R6166
10K_J

10K_J

0402

0402

1 2

32

D

D

Q100

12

C1849

C1849
NC_0.1U_16V_K

NC_0.1U_16V_K

0402_X5R

0402_X5R

S

S

TP1153

TP1153
tpc30t_50

tpc30t_50

TP1156

TP1156
tpc30t_50

tpc30t_50

TP1159

TP1159
tpc30t_50

tpc30t_50

TP1162

TP1162
tpc30t_50

tpc30t_50

TP1165

TP1165
tpc30t_50

tpc30t_50

TP1168

TP1168
tpc30t_50

tpc30t_50

TP1171

TP1171
tpc30t_50

tpc30t_50

TP1174

TP1174
tpc30t_50

tpc30t_50

SI

MUTE_LED#_A

Q100

1

G

G

2N7002-7-F

2N7002-7-F

1

KSO15

1

KSO10

1

KSO11

1

KSO14

1

KSO13

1

KSO12

1

KSO3

1

BFT Test Pad

SYS_SHDN#

IMVP_VR_ON

RUN_ON1

SUS_PWRGD

PWRSW#

PM_SLP_S3#

PM_SLP_S4#

PM_SLP_S5#

D

D

S

S

32

G

G

1

DGPU_RST# 36

O033EN 59

12

32

D

D

S

S

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

EC+KBC(ITE8518)

EC+KBC(ITE8518)

EC+KBC(ITE8518)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Page Modified:

Page Modified:

Page Modified:

7

Rains

Rains

Rains

Wednesday, April 06, 2011 11:07:38

Wednesday, April 06, 2011 11:07:38

Wednesday, April 06, 2011 11:07:38

8

R6171 8.2K_J 0402R6171 8.2K_J 0402

1 2

R580 10K_J 0402R580 10K_J 0402

1 2

R579 10K_J 0402R579 10K_J 0402

1 2

R6151 10K_J 0402R6151 10K_J 0402

1 2

R538 10K_J 0402R538 10K_J 0402

1 2

SYS_SHDN# 30

TP3509 tpc40t_50TP3509 tpc40t_50

1

TP3510 tpc40t_50TP3510 tpc40t_50

1

TP3511 tpc40t_50TP3511 tpc40t_50

1

TP3512 tpc40t_50TP3512 tpc40t_50

1

1

TP1097 tpc40t_50TP1097 tpc40t_50

1

TP1098 tpc40t_50TP1098 tpc40t_50

1

TP1099 tpc40t_50TP1099 tpc40t_50

TP1154

TP1154
tpc30t_50

tpc30t_50

KSI0

1

TP1157

TP1157
tpc30t_50

tpc30t_50

KSO6

1

TP1160

TP1160
tpc30t_50

tpc30t_50

KSO8

1

TP1163

TP1163
tpc30t_50

tpc30t_50

KSO7

1

TP1166

TP1166
tpc30t_50

tpc30t_50

KSO4

1

TP1169

TP1169
tpc30t_50

tpc30t_50

KSO2

1

TP1172

TP1172
tpc30t_50

tpc30t_50

KSI7

1

TP1175

TP1175
tpc30t_50

tpc30t_50

KSO1

1

R12

R12
200_F

200_F

0402

0402

Q4

Q4

1

MUTE_LED_A 28

G

G

2N7002-7-F

2N7002-7-F

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

TP1155

TP1155
tpc30t_50

tpc30t_50

TP1158

TP1158
tpc30t_50

tpc30t_50

TP1161

TP1161
tpc30t_50

tpc30t_50

TP1164

TP1164
tpc30t_50

tpc30t_50

TP1167

TP1167
tpc30t_50

tpc30t_50

TP1170

TP1170
tpc30t_50

tpc30t_50

TP1173

TP1173
tpc30t_50

tpc30t_50

TP1176

TP1176
tpc30t_50

tpc30t_50

+ECVCC

+3VALW

+3VRUN

1

1

1

1

1

1

1

1

Sheet of

Sheet of

Sheet of

KSI6KSI1

KSO5

KSI4

KSI5

KSO0

KSI2

KSI3

KSO9

25 63

25 63

25 63

0.1

0.1

0.1

5

4

3

2

1

D D

PLT_RST#14,24,26,30,31,33,45

C C

EC_WP24

B B

U12

U12

1

CLK

CLR#

2

GND

VCC

3

D

Q

NC_SN74LVC1G175DCKR

NC_SN74LVC1G175DCKR

1 2

R108 NC_10K_J 0402R108 NC_10K_J 0402

12

C145

C145

NC_0.1U_16V_Y

NC_0.1U_16V_Y

0402_Y5V

0402_Y5V

6
5

4

SPI_ROM_CS#25

SPI_ROM_SDI25

SPI_ROM_SDO25
SPI_ROM_CLK25

+3VRUN

SPI_ROM_CS#

SPI_ROM_SDI

R1690 NC_100K_J 0402R1690 NC_100K_J 0402

SPI_ROM_SDO
SPI_ROM_CLK

+ECVCC

R394

R394
0_J

0_J

0402

0402

1 2

12

R1692

R1692

3.3K_J

3.3K_J

0402

0402

12

R1696

R1696
NC_1K_J

NC_1K_J

0402

0402

LPC_AD110,25,31 LPC_AD2 10,25,31

LPC_AD310,25,31

LPC_DRQ#010

PM_SUS_STAT#12,25

BUF_PLT_RST#4,14,25,31

INT_SERIRQ10,25

PWRSW#25,33

E51RXD25

E51TXD25

SB_RST#12

1 2

SPI_ROM_SDI SPI_ROM_SDI_R

R9902 0_J 0402R9902 0_J 0402

32

D

D

SPI ROM (EC Firmware) (1MBit)

Q17

Q17

1

G

G

S

S

NC_2N7002W

NC_2N7002W

SPI_PROTECT 10

+ECVCC

LPC_AD1 LPC_AD2

LPC_DRQ#0

INT_SERIRQ

+5VRUN

+ECVCC

E51RXD

E51TXD

JIG-120

R169433_F 0402R169433_F 0402

1 2

1 2

32 31

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

34 33

NC_B TO B_2x15P

NC_B TO B_2x15P

FOX_QT510306-L011-7H

FOX_QT510306-L011-7H

CN34

CN34

SPI_ROM_CS#

SPI_ROM_WP#

SMDFIX2

SMDFIX1

SMDFIX2

SMDFIX1

SMDFIX4

SMDFIX4

SMDFIX3

SMDFIX3

LPC_AD0

LPC_FRAME#LPC_AD3

PM_CLKRUN#

PCLK_FWH

PLT_RST#

U49

U49

1

CS#

2

SO

HOLD#

3

WP#

SCLK

4

GND

FLASH_SOP-8_1MB

FLASH_SOP-8_1MB

MX25L1005CMI-12G

MX25L1005CMI-12G

1

TP838

TP838

1

TP839

TP839

VCC

R395

R395

8
7

R396 0_J 0402R396 0_J 0402

6

SPI_ROM_SDO

5

SI

LPC_AD0 10,25,31

LPC_FRAME# 10,25,31

ID_LPC_PCI# 15

PM_CLKRUN# 12,25

PCLK_JIG 14

tpc40b_50

tpc40b_50

+3VRUN

PLT_RST# 14,27,32,33,36

tpc40b_50

tpc40b_50

+ECVCC

0_J

0_J

0402

0402

1 2

+ECVCC

12

12

C857

C857

R1691

R1691

0.1U_16V_Y

0.1U_16V_Y

0402

0402

0402_Y5V

0402_Y5V

1K_J

1 2

1K_J

SPI_ROM_CLK

12

C870

C870
NC_0.1U_16V_Y

NC_0.1U_16V_Y

0402_Y5V

0402_Y5V

A A

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

EC SPI ROM & DEBUG PORT

EC SPI ROM & DEBUG PORT

EC SPI ROM & DEBUG PORT

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:41

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

26 63

Sheet of

26 63

Sheet of

26 63

0.1

0.1

0.1

5

Q94

+3VALW

R2803 0_J 0603R2803 0_J 0603

1 2

D D

Close Pin36

L102

L102

REGOUT

2.2UH_0.775A_0.21R

2.2UH_0.775A_0.21R

SWF2520CF-2R2M

SWF2520CF-2R2M

70mA

4.7U_6.3V_K

4.7U_6.3V_K

0603_X5R

0603_X5R

C946

C946

Q94

PMV65XP

PMV65XP

2 3

S

S

G

G

12

D

D

1

C944

C944

1 2

NC_4.7U_6.3V_K

NC_4.7U_6.3V_K

0603_X5R

0603_X5R

R6202 100K_J 0402R6202 100K_J 0402

12

C947

C947

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

C411 must close L42

12

C951

C951

33P_50V_J

33P_50V_J

0402_NPO

0402_NPO

C C

LED_DET#_W_EESK

B B

GND_CHASSIS_LAN

A A

R6210 2.2K_F 0402R6210 2.2K_F 0402

GND_CHASSIS_LAN

C1858

C1858

NC_470P_50V_M

NC_470P_50V_M

0402_X7R

0402_X7R

LED_ACT#_A

C967 0.1U_50V_K

C967 0.1U_50V_K

1 2

C971 0.01U_50V_K

C971 0.01U_50V_K

1 2

C973 NC_1500P_2KV_K

C973 NC_1500P_2KV_K

1 2

5

12

C952

C952

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

NC_470P_50V_M

NC_470P_50V_M

1 2

1 2

1 2

0603_X7R

0603_X7R

0402_X7R

0402_X7R

1808_X7R

1808_X7R

0402_X7R

0402_X7R

10

9

1 2

R6209

R6209
470_J

470_J

0402

0402

C1859

C1859

12

B2

PTH1 PTH2

PTH1 PTH2

A2

C953

C953
NC_0.1U_10V_K

NC_0.1U_10V_K

0402_X5R

0402_X5R

WHITE

WHITE

AMBER

AMBER

C936

C936

4.7U_6.3V_K

4.7U_6.3V_K

0603_X5R

0603_X5R

1 2

300mA

12

12

C954

C954
NC_0.1U_10V_K

NC_0.1U_10V_K

0402_X5R

0402_X5R

VDD

B1

CN30

CN30

TRD0_RJ45

1
2

3
4

5
6

7

TRD3#_RJ45

8

RJ45 CONN_8P

RJ45 CONN_8P

A1

FOX_JM36111-N6CD3B-7H

FOX_JM36111-N6CD3B-7H

VDD

C970 0.1U_50V_K

C970 0.1U_50V_K

C972 0.01U_50V_K

C972 0.01U_50V_K

GND_CHASSIS_LAN

VDD

12

NC_0.1U_10V_K

NC_0.1U_10V_K

R1792 0_J 0603R1792 0_J 0603

R1793

R1793
0_J

0_J

0603

0603

12

TRD0#_RJ45

TRD1_RJ45

TRD2_RJ45

TRD2#_RJ45

TRD1#_RJ45

TRD3_RJ45

1 2

1 2

C937

C937

0402_X5R

0402_X5R

1 2

C955

C955

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

0603_X7R

0603_X7R

0402_X7R

0402_X7R

12

LAN_EN# 25

0.1U_10V_K

0.1U_10V_K

4

C938

C938

NC_0.1U_10V_K

NC_0.1U_10V_K

0402_X5R

0402_X5R

C948

C948

0402_X5R

0402_X5R

VDD1

12

C956

C956
NC_0.1U_10V_K

NC_0.1U_10V_K

0402_X5R

0402_X5R

12

R1800

R1800
75_J

75_J

0402

0402

4

12

12

R1801

R1801
75_J

75_J

0402

0402

12

12

C939

C939

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

C949

C949

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C957

C957

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

TRD1_RJ45
TRD1#_RJ45

TRD2_RJ45
TRD2#_RJ45

12

12

R1802

R1802
75_J

75_J

0402

0402

12

GND_CHASSIS_LAN

12

12

C958

C958

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

24
23

22
21

20
19

18
17

16
15

14
13

R1803

R1803
75_J

75_J

0402

0402

C965

C965
1500P_2KV_K

1500P_2KV_K

1808_X7R

1808_X7R

EVDD1

MCT1
MX1+

MX1­MCT2

MX2+
MX2-

MCT3
MX3+

MX3­MCT4

MX4+
MX4-

12

12

C940

C940

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

C950

C950
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C959

C959

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

L103

L103

TCT1
TD1+

TD1-

TCT2

TD2+

TD2-

TCT3
TD3+

TD3-

TCT4

TD4+

TD4-

1-1_350UH

1-1_350UH

LG-2413S-1

LG-2413S-1

1
2

3
4

5
6

7
8

9
10

11
12

12

C941

C941

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

MDI0+
MDI0-

MDI1+
MDI1-

MDI2+
MDI2-

MDI3+
MDI3-

3

12

C942

C942

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

3

R1789 0_J

R1789 0_J

1 2

12

0603

0603

C943

C943

4.7U_6.3V_K

4.7U_6.3V_K

0603_X5R

0603_X5R

Close Pin34.35

MDI0+
MDI0-

VDD1
MDI1+

MDI1-

VDD1

MDI2+
MDI2-

VDD1
MDI3+

MDI3-

VDD

C964

C964

0.01U_25V_K

0.01U_25V_K

0402_X7R

0402_X7R

VDD

AVDD33_REG

12

R1798

R1799

12

R1790

49

1

2

3

4
5

6

7

8

9

10
11

12

NC_1K_J

NC_1K_J

1 2

C945

C945

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

2.49K_F

2.49K_F

1 2

GND_2

MDIP0

MDIN0

AVDD10_1

MDIP1
MDIN1

AVDD10_2

MDIP2

MDIN2

AVDD10_3

MDIP3
MDIN3

AVDD33_1

0402R1798

0402

10K_J

10K_J

12

OTP function
Burn MAC in Chip
internal EEPROM

R1809

R1811

0402R1790

0402

VDD

48

AVDD33_4

DVDD10_1

13

VDD1

0402R1799

0402

1 2

1 2

2

R1805

XTAL2

R1806

R1806

NC_10M_J

NC_10M_J

0402

0402

XTAL1

C968

C968

18P_50V_J

18P_50V_J

0402_NPO

0402_NPO

VDD

RSET

LED_ACT#_A

VDD

VDD1

XTAL1

VDD

VDD1

XTAL2

47

46

45

44

43

42

41

40

39

38

37

LED0

RSET

CKXTAL2

CKXTAL1

AVDD33_3

AVDD10_4

AVDD33_2

DVDD10_3

DVDD33_2

LED1/EESK

GPO/SMBALERT

GND_1

HSIP

HSIN

REFCLK_P

REFCLK_N

EVDD10

HSOP

10K_J

10K_J

10K_J

10K_J

HSON

SMBDATA

CLKREQB

24

17

18

19

20

21

22

23

16

EVDD1

PCIE_LAN_RX#_C

PCIE_LAN_RX_C

0402R1809

0402

0402R1811

0402

2

SMBCLK

14

15

SMBCLK

SMBDATA

R1805

XTALO_R

1 2

0_J

0_J

0402

0402

12

Y8

Y8

34

1 2

12

25MHZ_12P_20PPM

25MHZ_12P_20PPM

HARMONY_X3G025000DC1H

HARMONY_X3G025000DC1H

VDD

GPO

R1791 1K_J 0402R1791 1K_J 0402

1 2

LED_DET#_W_EESK

REGOUT

VDDREG_2

VDDREG_1

ENSRWREG

LED3/EEDO

DVDD10_2

LANWAKEB

DVDD33_1
ISOLATEB

PERSTB

EEDI

EECS

1

20MIL

20MIL

TP92

TP92

U56

U56

REGOUT

36

AVDD33_REG

35

AVDD33_REG

34

ENSWREG

33

EEDI

1

32

EEDI

EEDO

1

31

EECS

1

30

EECS

VDD1

29

28

VDD

27

ISOLATEB

26

25

PLT_RST# 14,26,32,33,36

RTL8111E-VB-GR

RTL8111E-VB-GR

C960 0.1U_16V_K

C960 0.1U_16V_K

0402_X5R

0402_X5R

1 2

C961 0.1U_16V_K

C961 0.1U_16V_K

0402_X5R

0402_X5R

1 2

CLK_REQ_LAN# 11

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

REALTEK LAN

REALTEK LAN

REALTEK LAN

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

Monday, January 31, 2011 14:12:41

1

12

C969

C969
18P_50V_J

18P_50V_J

0402_NPO

0402_NPO

AVDD33_REG

12

H:Enable Switch Regulator

R1794

R1794

L:Disable Switch Regulator

0_J

0_J

0402

0402

R1795 NC_0_J

R1795 NC_0_J

1 2

20MIL

20MIL

TP89

TP89

20MIL

20MIL

TP90

TP90

20MIL

20MIL

TP91

TP91

PCIE_WAKE# 12,31,33

R1797

R1797

15K_F

15K_F

0402

0402

LAN_RXN3 11

LAN_RXP3 11

CLK_PCIE_LAN# 11
CLK_PCIE_LAN 11

LAN_TXN3 11

LAN_TXP3 11

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

0402

0402

1 2

R1796 1K_F

R1796 1K_F

Sheet of

Sheet of

Sheet of

12

0402

0402

27 63

27 63

27 63

+3VRUN

0.1

0.1

0.1

5

+3VRUN

12

C864

+3VRUN A_GND

D D

C1301

C1301

0.1U_6.3V_K

0.1U_6.3V_K

0402_X7R

0402_X7R

HDA_CODEC_BITCLK10

HDA_CODEC_SDATAIN010

HDA_CODEC_SDATAOUT10

HDA_CODEC_SYNC10

HDA_CODEC_RST#10

DMIC_CLK23
DMIC_DAT23

MUTE_LED_A25

+3VRUN

C C

12

R2913

R2913

4.7K_J

4.7K_J

0402

0402

HDA_CODEC_RST#

12

C2906

C2906

0.01U_10V_K

0.01U_10V_K

0402_X7R

0402_X7R

AMP_SD#25

B B

+AVDD +AVDD

12

R6203

R6203

560K_F

560K_F

0402

0402

12

R6207

R6207

47K_J

47K_J

0402

0402

A_GND

A A

12

Q103

Q103

2N7002-7-F

2N7002-7-F

1

G

G

MIC_R_IN_C

C862

12

12

0603_X5R C862

0603_X5R

1U_10V_K

1U_10V_K

C869 NC_10P_50V_J_N

C869 NC_10P_50V_J_N

1 2

R1698 33_F 0402R1698 33_F 0402

R6187 33_F 0402R6187 33_F 0402

1 2

SPKR_EN#

4.7U_10V_K

4.7U_10V_K

C698

1 2

+3VRUN

12

32

12

D

D

S

S

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

U92

U92

1

IN+

2

GND

3

IN-

LMV331IDCKR

LMV331IDCKR

A_GND

5

C8630.1U_6.3V_K

C8630.1U_6.3V_K

0402_X7R

0402_X7R

25mA

0402_NPO

0402_NPO

1 2

0805_X5RC698

0805_X5R

R1712

R1712
10K_J

10K_J

0402

0402

SPKR_EN#

C1302

C1302

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

C1885

C1885

A_GND

VCC+

OUT

C864
10U_6.3V_K

10U_6.3V_K

0805_X5R

0805_X5R

U50

U50

1

DVDD_CORE

25mA

9

DVDD

3

DVDD_IO

6

BITCLK

8

SDATA_IN

5

SDATA_OUT

10

SYNC

11

RESET#

2

DMIC_CLK/GPIO1

4

DMIC_0/GPIO2

46

DMIC1/GPIO0/SPDIFOUT1

48

SPDIF_OUT0

47

EAPD

35

CAP-

36

CAP+

7

DVSS

33

AVSS2_2

30

AVSS2_1

26

AVSS1

42

PVSS

49

THERMALPAD

A_GND

92HD80B1X5NLGXTA78

92HD80B1X5NLGXTA78

null

null

SPKR_EN# 35

+AVDD

12

12

R6204

R6204
10K_F

10K_F

0402

0402

Q3000

2N7002W

2N7002W

Q3000

5

4

4

60mA

27

AVDD1

38

AVDD2

39

PVDD_1

45

PVDD_2

13

SENSE_A

SENSE_B

PORTA_L(HP0)

PORTA_R(HP0)

VREFOUT_A

PORTC_L

PORTC_R

VREFOUT_C

PORTD_+L

PORTD_-L

PORTD_R-

PORTD_R+

PORTE_L

PORTE_R

PORTF_L

PORTF_R

MONO_OUT

VREFFILT

VREG(+2.5V)

SENSEA

12

R6231

R6231
10K_F

10K_F

0402

0402

32

D

D

1

12

G

G

S

S

R6205

R6205
20K_F

20K_F

0402

0402

COMBO_JACK_DET#

4

SENSEB

14

28

29

23

31

HP1_L

32

HP1_R

PCBEEP

CAP2

4.7U_6.3V_K

4.7U_6.3V_K

0603_X5R

0603_X5R

MIC_IN

19

20

24

40

41

43
44

15

16

17

18

12

25

22

21

34

V-

37

C880

C880

4.7U_6.3V_K

4.7U_6.3V_K

C879

C879

0603_X5R

0603_X5R

1 2

Place close to Audio Codec

32

Q3003

Q3003

D

D

1

G

G

S

S

2N7002A-7

2N7002A-7

A_GND

12

C858

C858

0.1U_6.3V_K

0.1U_6.3V_K

0402_X7R

0402_X7R

400mA

12

C866

C866

0.1U_6.3V_K

0.1U_6.3V_K

0402_X7R

0402_X7R

R6172 100K_F 0402R6172 100K_F 0402

1 2

HP_L 33,35
HP_R 33,35

C473 2.2U_10V_Y

C473 2.2U_10V_Y

1 2

MIC_REF

SPK-L+_L

SPK-L-_L

SPK-R-_L

SPK-R+_L

C1806

C1806

0.1U_16V_K

0.1U_16V_K

1 2

0402_X7R

0402_X7R

12

12

C881

C881

2.2U_6.3V_M

2.2U_6.3V_M

0402_X5R

0402_X5R

+AVDD

12

R3009

R3009
47K_J

47K_J

0402

0402

COMBO_JACK_DET

12

C859

C859
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

12

0603_Y5V

0603_Y5V

SPK-L+_L 33
SPK-L-_L 33

SPK-R-_L 33
SPK-R+_L 33

0.01U_25V_K

0.01U_25V_K

0402_X7R

0402_X7R

A_GND

HP_JACK_DET33

3

R6185 0_J 0603R6185 0_J 0603

1 2

C868

C868
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

A_GND

12

C1853

C1853

A_GND

12

C882

C882

0.1U_16V_K

0.1U_16V_K

0402_X7R

0402_X7R

COMBO_JACK_DET 33

3

12

C867

C867
10U_6.3V_K

10U_6.3V_K

0805_X5R

0805_X5R

MIC_R_IN_C 33

R6190

12

R6191

R6191
10K_J

10K_J

0402

0402

HP_JACK_DET

+AVDD

100K_J

100K_J

+AVDD

R1699 0_J 0603R1699 0_J 0603

12

C926

C926
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

+AVDD

12

12

A_GND

0402R6190

0402

12

+AVDD

12

R3008

R3008
10K_F

10K_F

0402

0402

+5VRUN

1 2

R6186

R6186

2.49K_F

2.49K_F

0402

0402

SENSEA

C1851

C1851
1000P_50V_K

1000P_50V_K

0402_X7R

0402_X7R

C1852

C1852

0.1U_16V_K

0.1U_16V_K

1 2

0402_X7R

0402_X7R

Q102

Q102

2N7002-7-F

2N7002-7-F

1.Put under U22.

2.If won't use resister,
you can use 80mils bridge to
connect AGND and DGND.

SENSEA

12

R3007

R3007
20K_F

20K_F

0402

0402

6

Q3002A

Q3002A

D1

D1

2

G1

G1

S1

S1

2N7002KDW

2N7002KDW

1

null

null

34

Q3002B

Q3002B

D2

D2

G2

G2

5

S2

S2

2N7002KDW

2N7002KDW

null

null

A_GND

2

+AVDD

C875

C875

2.2U_10V_M

2.2U_10V_M

0603_X5R

0603_X5R

A_GND

+AVDD

12

R6188

R6188
10K_J

10K_J

0402

0402

32

D

D

1

G

G

S

S

A_GND

COMBO_JACK_DET#

2

12

U51

U51

200mA max

1

5

IN

OUT

2

GND

0.1U_16V_K

0.1U_16V_K

0402_X7R

0402_X7R

3

4

EN

NR

12

C877

C877

TPS793475DBVR

0.01U_10V_K

0.01U_10V_K

HDA_SPKR 10

TPS793475DBVR

0402_X7R

0402_X7R

A_GND

C860 0.1U_6.3V_K

C860 0.1U_6.3V_K

1 2

0402_X7R

0402_X7R

C861 0.1U_6.3V_K

C861 0.1U_6.3V_K

1 2

0402_X7R

0402_X7R

C865 0.1U_6.3V_K

C865 0.1U_6.3V_K

1 2

0402_X7R

0402_X7R

R6192 0_J 1206R6192 0_J 1206

1 2

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

Audio (CODEC/SPEAKER) 1/2

Audio (CODEC/SPEAKER) 1/2

Audio (CODEC/SPEAKER) 1/2

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Friday, March 04, 2011 13:57:09

Page Modified:

Friday, March 04, 2011 13:57:09

Page Modified:

Friday, March 04, 2011 13:57:09

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

1

+5VRUN

12

12

C1850

C874

C874

C1850

1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

A_GND

A_GND

0.1

0.1

Sheet of

28 63

Sheet of

28 63

Sheet of

28 63

0.1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

1

2

3

4

5

6

7

8

+1.5VRUN

100mA

12

12

C723

C723

C773

C773

0.01U_10V_K

0.01U_10V_K

0.1U_10V_K

0.1U_10V_K

0402_X7R

0402_X7R

0402_X5R

0402_X5R

A A

SATA_TXP010

SATA_TXN010

SATA_RXN010

SATA_RXP010

Input Equalization setting:Internal pull down 150k ohm
A_EQ/B_EQ = LOW:For short and medium length PCB traces

B B

A_EQ/B_EQ = HIGH:For long length PCB traces

Output Pre-emphasis setting:Internal pull down 150k ohm
A_PRE/B_PRE = LOW:Pre-emphasis disabled

C709 NC_0.01U_10V_K0402_X7RC709 NC_0.01U_10V_K0402_X7R

1 2

C711 NC_0.01U_10V_K0402_X7RC711 NC_0.01U_10V_K0402_X7R

1 2

1
2

3
4

5

+1.5VRUN

A_INp
A_INn

GND_1
B_OUTn

B_OUTp

A_PRE/B_PRE = High:Pre-emphasis enabled

Output Level Boot setting:Internal pull up 150k ohm
A_BST#/B_BST# = LOW:SATAx output level 800~1200mVpp

A_BST#/B_BST# = HIGH:SATAx output level 400~700mVpp

Automatic Power Saving Enable:Internal pull down 150k ohm
AUTOPW_EN = LOW:automatic power saving disable

C C

AUTOPW_EN = HIGH:automatic power saving enable

ODD CONN

+5VRUN

12

21

C1052

C1052
33P_50V_J

33P_50V_J

0402_NPO

D D

1

0402_NPO

D27

D27

NC_B340A-13-F

NC_B340A-13-F

2

2.0A

12

+

CAP12

+

CAP12

NC_47U_10V_M

NC_47U_10V_M

3.5x2.8x1.9

3.5x2.8x1.9

3

A_EQ

A_BST#

20

19

21

A_BST#

THERMALPAD

VDD_1

EN

6

7

8

B_PRE

+1.5VRUN

+1.5VRUN

A_BST#

R1192 NC_0_J 0402R1192 NC_0_J 0402

B_BST#

R1193 NC_0_J 0402R1193 NC_0_J 0402

AUTOPW_EN

SATA_TXP110

SATA_TXN110

SATA_RXN110

SATA_RXP110

12

C1054

C1054
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

+1.5VRUN

B_EQ

AUTOPW_EN

18

17

16

U71

U71

B_EQ

A_EQ

VDD_2

A_OUTp
A_OUTn

AUTOPW_EN

GND_2

B_INn

B_INp

B_PRE

B_BST#

A_PRE

9

10

NC_PS8511ATQFN20GTR-A3

NC_PS8511ATQFN20GTR-A3

B_BST#

A_PRE

1 2

1 2

R1194 4.7K_F 0402R1194 4.7K_F 0402

12

C1051

C1051

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

SATA_TXP0_D

15

SATA_TXN0_D

14

13

SATA_RXN0_D

12

SATA_RXP0_D

11

R1190 0_J 0402R1190 0_J 0402

1 2

R1191 0_J 0402R1191 0_J 0402

1 2

R5701 4.7K_F 0402R5701 4.7K_F 0402

1 2

R5703 4.7K_F 0402R5703 4.7K_F 0402

1 2

+1.5VRUN

1 2

C1045 0.01U_10V_K 0402_X7RC1045 0.01U_10V_K 0402_X7R

1 2

C1047 0.01U_10V_K 0402_X7RC1047 0.01U_10V_K 0402_X7R

1 2

C1046 0.01U_10V_K 0402_X7RC1046 0.01U_10V_K 0402_X7R

1 2

C1048 0.01U_10V_K 0402_X7RC1048 0.01U_10V_K 0402_X7R

1 2

12

C1053

C1053

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

4

A_EQ

B_EQ

A_PRE

B_PRE

SATA_TXP1_C

SATA_TXN1_C

SATA_RXN1_C

SATA_RXP1_C

SATA_TXP0

SATA_TXN0

SATA_RXN0

SATA_RXP0

+5VRUN

21

1
2

3
4

5
6

7
8

9

10

11
12

13
14

15
16

17
18

19
20

22

C TO B CONN_20P

C TO B CONN_20P

FOX_GS12201-1011-9H

FOX_GS12201-1011-9H

5

Close near U71

R2 0_J 0402R2 0_J 0402

R3 0_J 0402R3 0_J 0402

Close near
C709 and C711

R4 0_J 0402R4 0_J 0402

R5 0_J 0402R5 0_J 0402

R6220 0_J 1206R6220 0_J 1206

1 2

TP1188

TP1188
tpc30t_50

tpc30t_50

1

TP1190

TP1190
tpc30t_50

tpc30t_50

1

BFT Test Pad

SI

CN53

CN53

23

SMDFIX1SMDFIX2

SMDFIX3

SMDFIX1SMDFIX2

SMDFIX3

24

SMDFIX4

SMDFIX4

Close near CN52

SATA_TXP0_R

1 2

1 2

SATA_TXN0_R

R6 0_J 0402R6 0_J 0402

1 2

R7 0_J 0402R7 0_J 0402

1 2

Close near C1036 and C1037

SATA_RXN0_R

1 2

1 2

SATA_RXP0_R

R8 0_J 0402R8 0_J 0402

1 2

R9 0_J 0402R9 0_J 0402

1 2

SATA HDD CONN

SATA_TXP0_D

SATA_TXN0_D

SATA_RXN0_D
SATA_RXP0_D

12

SATA_TXP0_C

SATA_TXN0_C

C1038

C1038
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

6

C1034 NC_0.01U_10V_K0402_X7RC1034 NC_0.01U_10V_K0402_X7R

1 2

C1035 NC_0.01U_10V_K0402_X7RC1035 NC_0.01U_10V_K0402_X7R

1 2

C1036 0.01U_10V_K 0402_X7RC1036 0.01U_10V_K 0402_X7R

1 2

C1037 0.01U_10V_K 0402_X7RC1037 0.01U_10V_K 0402_X7R

1 2

1.5A

C1039

C1039
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

1

1

SI

12

C1040

C1040

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

SATA_RXN0_C

SATA_RXP0_C

TP1192

TP1192
tpc30t_50

tpc30t_50

SATA_TXP1_C

1

TP1194

TP1194
tpc30t_50

tpc30t_50

SATA_TXN1_C

1

BFT Test Pad

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

12

TP1189

TP1189
tpc30t_50

tpc30t_50

TP1191

TP1191
tpc30t_50

tpc30t_50

SATA_TXP0_C

SATA_TXN0_C

SATA_RXN0_D

SATA_RXP0_D

CN52

CN52

C TO B CONN_20P

C TO B CONN_20P

FOX_GS12206-11141-9H

FOX_GS12206-11141-9H

SATA_TXP0_C

SATA_TXN0_C

SATA_RXN0_C

SATA_RXP0_C

12

C1041

C1041

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

TP1193

TP1193
tpc30t_50

tpc30t_50

1

TP1195

TP1195
tpc30t_50

tpc30t_50

1

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

SATA HDD/ODD

SATA HDD/ODD

SATA HDD/ODD

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

7

SMDFIX5

SMDFIX5

20
19

18

23

17

16
15

14
13

12

SMDFIX2SMDFIX3

SMDFIX2SMDFIX3

11

10

22

9

8
7

6
5

SMDFIX1

SMDFIX1

4
3

21

2
1

SMDFIX4

SMDFIX4

24 25

SATA_RXN1_C

SATA_RXP1_C

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

8

29 63

29 63

29 63

0.1

0.1

0.1

5

4

3

2

1

FAN

+5VRUN

500mA

12

C6446

C6446

10U_6.3V_M

10U_6.3V_M

0603_X5R

4.7K_F

4.7K_F

9

+3VRUN

FAN_PWM25

FAN_TACH25

+3VRUN

U69

U69

INT2
RES_1

INT1
GND_3

RES_2
Vdd

RES_3
RES_4

HP3DCTR

HP3DCTR

R6260

R6262

SDO/SA0

SDA/SDI/SDO

GND_1

SCL/SPC

Vdd_IO

1 2

1 2

CS

NC_2

NC_1

FAN_PWM

FAN_TACH

4.7K_F

4.7K_F

8
7

6
5

4
3

2
1

TP1215

D D

C C

B B

C463 close to Q59

TP1215
tpc30t_50

tpc30t_50

+5VRUN

1

TP1216

TP1216
tpc30t_50

tpc30t_50

FAN_PWM

1

TP1217

TP1217
tpc30t_50

tpc30t_50

FAN_TACH

1

BFT Test Pad

SI

20MIL

20MIL

TP3502

TP3502

R175 0_J 0402R175 0_J 0402

G_INT#14

+3VRUN

1 2

R176 0_J 0402R176 0_J 0402

1 2

Place under CPU socket

Accelerometer

1

10

11
12

13
14

15
16

Please Put on MB center

SMBus Address: 32H

Thermal Sensor

0603_X5R

0402R6260

0402

R6261 0_J 0402R6261 0_J 0402

0.047U_16V_K

0.047U_16V_K

0402R6262

0402

+3VRUN

12

R590

R590
10K_J

10K_J

0402

0402

R3901 NC_0_J 0402R3901 NC_0_J 0402

1 2

12

C27

C27
NC_0.1U_16V_K

NC_0.1U_16V_K

0402_X7R

0402_X7R

1 2

R4102 0_J 0402R4102 0_J 0402

C6448

C6448

0402_X7R

0402_X7R

12

C32

C32

0.1U_16V_K

0.1U_16V_K

0402_X7R

0402_X7R

place close to thermal sensor

C463

C463

NC_100P_50V_J

NC_100P_50V_J

0402_NPO

0402_NPO

A A

5

1 2

PMBT3904.215

PMBT3904.215

null

null

C

C

AT_THERMDP

B

B

Q59

Q59

1

E

E

2 3

AT_THERMDN

0402_X7R

0402_X7R

2200P_16V_K

2200P_16V_K
C667

C667

1 2

4

SYS_SHDN#25

12

R467

R467
15K_F

15K_F

0402

0402

+3VRUN

1 2

0_J

0_J

0402

0402

R462

R462

3

R_SYS_SHDN#

12

C6447

C6447

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

1 2

1 2

R3903 0_J 0402R3903 0_J 0402

R3905 NC_0_J 0402R3905 NC_0_J 0402

1 2

21

D47

D47

1N4148WT-7

1N4148WT-7

R3902 0_J 0402R3902 0_J 0402

R3904 NC_0_J 0402R3904 NC_0_J 0402

1 2

1 2

R4103 0_J 0402R4103 0_J 0402

1 2

12

C549

C549
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

R6259

R6259
0_J

0_J

0805

0805

4
3

2
1

1 2

1 2

+3VRUN

CN48

CN48

SMDFIX2

SMDFIX2

SMDFIX1

SMDFIX1

HEADER CONN_4P

HEADER CONN_4P

5 6

FOX_HS8104E-LH

FOX_HS8104E-LH

SMB_CLK_EC 25

SMB_CLK_R 11,19,20,21

W/S:10/10 (microstrip)

+3VRUN

1
2

3
4

EMC1422-1-ACZL-TR

EMC1422-1-ACZL-TR

SMBus Address: 98H

CPU/VGA Thermal-Sensor

CPU hardware shutdown temp:95 C

check CPU hardware shutdown temp

12

C668

C668

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

Place Thermal-Sensor near
DDR3 & CPU

U59

U59

VDD
DP

DN
SYS_SHDN#

SMCLK

SMDATA

ALERT#

8
7

R_OVT_EC#

6
5

GND

SMB_DATA_EC 25

SMB_DATA_R 11,19,20,21

12

12

R4710_J0402 R4710_J0402

2

R472

R472

4.7K_F

4.7K_F

0402

0402

SMB_THRM_CLK 11,25,38

SMB_THRM_DATA 11,25,38

OVT_EC# 4,25

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

FAN/Accelerometer

FAN/Accelerometer

FAN/Accelerometer

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

30 63

Sheet of

30 63

Sheet of

30 63

0.1

0.1

0.1

5

D D

4

+3VRUN

R6215 0_J 1206R6215 0_J 1206

1 2

12

C978

C978
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

C981

C981
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

3

12

C979

C979

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

+V3.3_WLAN

12

C984

C984
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

1.5A

12

C980

C980

0.1U_16V_Y

0.1U_16V_Y

0402_Y5V

0402_Y5V

2

1

+1.5VRUN

R6216 0_J 0603R6216 0_J 0603

1 2

CLK_33M_DEBUG14

C C

TP1201

TP1201
tpc30t_50

tpc30t_50

+V3.3_WLAN

1

TP1205

TP1205
tpc30t_50

tpc30t_50

WLAN_RXP1 WLAN_TXN1

1

BFT Test Pad

SI

TP1202

TP1202
tpc30t_50

tpc30t_50

WLAN_RXN1 WLAN_TXP1

1

TP1206

TP1206
tpc30t_50

tpc30t_50

USB_PP2_R

1

TP1203

TP1203
tpc30t_50

tpc30t_50

USB_PN2_R LED_WLAN_LINK#

1

TP1207

TP1207
tpc30t_50

tpc30t_50

CLK_PCIE_WLAN#

1

TP1204

TP1204
tpc30t_50

tpc30t_50

TP1208

TP1208
tpc30t_50

tpc30t_50

WLAN_CLK_REQ#

1

1

500mA

12

C986

C986
10U_10V_M

10U_10V_M

0805_X5R

0805_X5R

R591 0_J 0402R591 0_J 0402

1 2

TP1209

TP1209
tpc30t_50

tpc30t_50

TP1213

TP1213
tpc30t_50

tpc30t_50

12

1

1

C985

C985

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

BUF_PLT_RST#

PCIE_APM#

+V1.5_WLAN

12

C987

C987
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

PCIE_APM#_R1

TP1210

TP1210
tpc30t_50

tpc30t_50

TP1214

TP1214
tpc30t_50

tpc30t_50

CLK_PCIE_WLAN

1

WLAN_RF_OFF#

1

TP1211

TP1211
tpc30t_50

tpc30t_50

TP1212

TP1212
tpc30t_50

1

tpc30t_50

1

WLAN CONN.

53

CN42

R589 0_J 0402R589 0_J 0402

B B

PCIE_APM#25

A A

5

PCIE_WAKE#12,27,33

WLAN_CLK_REQ#11

CLK_PCIE_WLAN#11

CLK_PCIE_WLAN11

R1406 NC_0_J 0402R1406 NC_0_J 0402

1 2

WLAN_RXN111

WLAN_RXP111

WLAN_TXN111

WLAN_TXP111

R1405 0_J 0402R1405 0_J 0402

1 2

1 2

PCIE_APM#_R1

+V3.3_WLAN

4

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

45

47

49

51

WAKE#

BT_DATA

BT_CHCLK

CLKREQ#

GND2

REFCLK-

REFCLK+

GND3

UIM_C8

UIM_C4

GND5

PERn0

PERp0

GND7

GND8

PETn0

PETp0

GND10

GND11

+3.3VAUX3

+3.3VAUX4

GND13

RESERVED16

RESERVED17

RESERVED18

RESERVED19

+3.3VAUX1

PTH1

W_DISABLE#

+3.3VAUX2

SMB_DATA

LED_WWAN#

LED_WLAN#

LED_WPAN#

+3.3VAUX5

PTH2

54

UIM_PWR

UIM_DATA

UIM_CLK

UIM_RST#

UIM_VPP

PERST#

SMB_CLK

USB_D+

CN42

2

4

GND1

6

+1_5V1

8

10

12

14

16

18

GND4

20

22

24

26

GND6

28

+1_5V2

30

32

34

GND9

36

USB_D-

38

40

GND12

42

44

46

48

+1_5V3

50

GND14

52

MINI PCIE CONN_52P

MINI PCIE CONN_52P

FOX_AS0B256-S42U1-7H

FOX_AS0B256-S42U1-7H

3

+V3.3_WLAN

+V1.5_WLAN

USB_PN2_R

USB_PP2_R

LPC_FRAME# 10,25,26

LPC_AD3 10,25,26
LPC_AD2 10,25,26

LPC_AD1 10,25,26
LPC_AD0 10,25,26

WLAN_RF_OFF# 25

BUF_PLT_RST# 4,14,25,26

LED_WLAN_LINK# 25

Co-lay

0_J

0_J

0603 R386

0603

12

L48

L48

1

2

4

3

NC_90R-100MHZ_0R35

NC_90R-100MHZ_0R35

1206

1206

0_J

0_J

12

0603 R385

0603

2

R386

USB_PN2 14

USB_PP2 14

R385

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

WLAN MB

WLAN MB

WLAN MB

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

31 63

Sheet of

31 63

Sheet of

31 63

0.1

0.1

0.1

5

4

3

2

1

CR_EECS

CR_EESK
CR_EEDO

CR_EEDI

D D

Net ( AV12,DV12,DV12_S and DV33_18 ) need 20 mils
Net ( RREF ) need 10 mils

R10

AV12

C C

CLK_PCIE_CR11

CLK_PCIE_CR#11

CR_RXP811

CR_RXN811

1.2A

+3VRUN

R32 0_J 0603R32 0_J 0603

B B

Please put close to U58

0603R10

0603

1 2

1 2

1A

12

C682

C682
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

DV12

C1365

C656

NC_0_J

NC_0_J

1 2

CR_TXP811

CR_TXN811

C660 0.1U_10V_K 0402_X7RC660 0.1U_10V_K 0402_X7R

C661 0.1U_10V_K 0402_X7RC661 0.1U_10V_K 0402_X7R

Card_3V3

1 2

4.7U_6.3V_K

4.7U_6.3V_K

1 2

0.1U_10V_K

0.1U_10V_K

1 2

12

C662

C662

0.1U_10V_K

0.1U_10V_K

0402_X7R

0402_X7R

+3VRUN

R9932 6.2K_F 0402R9932 6.2K_F 0402

1 2

AV12

0603_X5RC1365

0603_X5R

CR_RXP8_C

CR_RXN8_C

DV12

0402_X7RC656

0402_X7R

0.1U_10V_K

0.1U_10V_K

0402_X7R

0402_X7R

R31 0_J 0603R31 0_J 0603

C639

10

11

12

C664

C664

1 2

0.1U_10V_K

0.1U_10V_K

1 2

1

HSIP

2

HSIN

3

REFCLKP

4

REFCLKN

5

AV12

6

HSOP

7

HSON

8

GND_1

9

DV12

CARD1_3V3

3V3_IN_1

CARD2_3V3

12

0402_X7RC639

0402_X7R

RREF

DV33_18

C1364

C1364

NC_4.7U_6.3V_K

NC_4.7U_6.3V_K

0603_X5R

0603_X5R

1.2A

CR_EEDI

CR_EEDO

CR_EESK

CR_EECS

41

42

43

44

45

46

47

48

EESK

RREF

XD_CD#

13

EECS

EEDO

PERST#

3V3_IN_2

CLK_REQ#

GND_2

DV33_18

16

15

14

12

GPIO/EEDI

SD_D1

SP4

SP3

SP2

SP1

20

19

18

17

40

MS_INS#

SD_D0

21

1

1

1

1

SD_CD#

39

SD_CD#

SD_CLK

22

SD_D1_R

SD_WP

38

23

SD_CLK_R

SD_D0_R

TP1304tpc20 TP1304tpc20

TP1305tpc20 TP1305tpc20

TP1306tpc20 TP1306tpc20

TP1307tpc20 TP1307tpc20

CR_CLK_REQ# 11
PLT_RST# 14,26,27,33,36

37

SP14

SP15

DV12_S

GND_3

SD_D2

SD_D3

SD_CMD

RTS5209-GR

RTS5209-GR

24

SD_D3_R

SD_CMD_R

U58

U58

36

SP13

35

SP12

34

SP11

33

SP10

32

SP9

31

SP8

30

SP7

29

SP6

28

SP5

27

26

25

R548 0_J 0402R548 0_J 0402

1 2

R563 0_J 0402R563 0_J 0402

1 2

R559 0_J 0402R559 0_J 0402

1 2

R561 0_J 0402R561 0_J 0402

1 2

R562 0_J 0402R562 0_J 0402

1 2

DV12_S

SD_D2_R

Card_3V3

C3804

C3804

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

4.7U_6.3V_K 0603_X5R

4.7U_6.3V_K 0603_X5R

C1366

C1366

1 2

0.1U_10V_K 0402_X7R

0.1U_10V_K 0402_X7R

C663

C663

1 2

R564 0_J 0402R564 0_J 0402

1 2

SD_D3

SD_CMD

SD_CLK

SD_D0

NC_5.6P_50V_D

NC_5.6P_50V_D

0402_NPO

0402_NPO

SD_D1

SD_D2

SD_D3

SD_CMD

SD_CLK

12

12

C476

C476

SD_D0

10U_6.3V_M

10U_6.3V_M

SD_D1

0603_X5R

0603_X5R

SD_WP

SD_CD#

TAITWUN_PSDBTH-09GLBS1N14H0

TAITWUN_PSDBTH-09GLBS1N14H0

SD_D2

SD_D3

Card_3V3

SD_CMD

SD_CLK

SD_D0

SD_D1

SD_WP

SD_CD#

CN43 & CN44 Co-lay

SD_D2

C496

C496

1 2

CARD READER CONN_9P

CARD READER CONN_9P

CN43

CN43

1

DAT2

2

DAT3

3

CMD

4

VSS1

5

VDD

6

CLK

7

VSS2

8

DAT0

9

DAT1

10

WP

SMDFIX1

11

CD

SMDFIX2

12

GND

NC_CARD READER CONN_9P

NC_CARD READER CONN_9P

FOX_2WX11101-1602-7H

FOX_2WX11101-1602-7H

P9

DAT2

DAT2

SMDFIX2

SMDFIX2

P1

CD/DAT3

CD/DAT3

P2

CMD

CMD

P3

VSS1

VSS1

P4

VDD

VDD

P5

CLK

CLK

P6

VSS2

VSS2

P7

DAT0

DAT0

P8

DAT1

DAT1

P10

CD

CD

P11

CD/WP(GND)

CD/WP(GND)

P12

SMDFIX1

SMDFIX1

WP

WP

13 14

13
14

CN44

CN44

Please put close to U58

A A

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

CARD READER

CARD READER

CARD READER

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:45

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

32 63

Sheet of

32 63

Sheet of

32 63

0.1

0.1

0.1

5

4

3

2

1

POWER BUTTON BOARD CONNECTOR

TP1218

TP1218
tpc30t_50

tpc30t_50

+ECVCC

SI

1

TP1219

TP1219
tpc30t_50

tpc30t_50

1

TP1220

TP1220
tpc30t_50

tpc30t_50

1

TP1221

TP1221
tpc30t_50

tpc30t_50

1

TP1223

TP1223
tpc30t_50

tpc30t_50

POWER_LED_W

1

BFT Test Pad

+5VALW

LIDIN#

PWRSW#

CN56

CN56

FPC CONN_8P

FPC CONN_8P

910

FOX_GB5RF080-1203-7H

FOX_GB5RF080-1203-7H

+ECVCC

LIDIN#23,25

PWRSW#25,26

POWER_LED_W25

QWEBSW#25

+5VALW

8

SMDFIX1

SMDFIX1

7

6
5

4
3

2

SMDFIX2

SMDFIX2

1

D D

C C

USB 2.0 POWER SWITCH

+5VALW

12

C1030

C1030

0.1U_16V_K

0.1U_16V_K

0402_X7R

0402_X7R

USB_PWR_EN25

U61

U61

1

GND

2

VIN_1

3

VIN_2

4

EN

APL3510AXI-TRG

APL3510AXI-TRG

VOUT_3
VOUT_2

VOUT_1

2A

8
7

6
5

OCB

+VCC_USB0

+VCC_USB0

1 2

USB_OC#0 14

C1029

C1029
470P_50V_K

470P_50V_K

0402_X7R

0402_X7R

AUDIO jack + USB2.0 port X1

CN7

CN7

FPC CONN_30P

FPC CONN_30P

FOX_GB5RF300-1203-7H

USB_PN114

USB_PP114

SPK-L+_L28

SPK-L-_L28

SPK-R-_L28

SPK-R+_L28

2

FOX_GB5RF300-1203-7H

+VCC_USB0

MIC_REF

+AVDD

A_GND

A_GND

A_GND

USB3.0 DB CONN

B B

USB_PWR_EN25

PLT_RST#14,26,27,32,36

PCIE_WAKE#12,27,31

USB30_CLKREQ4#11

USB30_SMI14

+5VRUN

150mA

+3VSUS

720mA

+1.5VSUS

2A

+5VALW

A A

5

3536

SMDFIX5SMDFIX2

SMDFIX5SMDFIX2

1
3

5
7

9

11

13
15

17
19

21
23

25
27

29

SMDFIX4 SMDFIX6

SMDFIX4 SMDFIX6

34

SMDFIX1

SMDFIX1

SMDFIX3

SMDFIX3

33

2

4
6

8
10

12
14

16
18

20
22

24
26

POWER_LED_W_D

28
30

B TO B CONN_2x15P

B TO B CONN_2x15P

ACES_50049-03071-001

ACES_50049-03071-001

CLK_PCIE_USB30 11
CLK_PCIE_USB30# 11

USB30_TXN1 11
USB30_TXP1 11

USB30_RXN1 11

USB30_RXP1 11

+3VRUN

32

D

D

Q4202

Q4202

2N7002A-7

2N7002A-7

S

S

4

1

G

G

G_INT_LED 15

SATA_LED# 10

POWER_LED_W 25

3

CN3

CN3

31

32

HP_JACK_DET28

COMBO_JACK_DET28

HP_L28,35

HP_R28,35

MIC_R_IN_C28

3231

SMDFIX2

SMDFIX2

30
29

28
27

26
25

24
23

22
21

20
19

18
17

16
15

14
13

12
11

10

9

8
7

6
5

4
3

2
1

SMDFIX1

SMDFIX1

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

MB TO DB CONN

MB TO DB CONN

MB TO DB CONN

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

33 63

Sheet of

33 63

Sheet of

33 63

0.1

0.1

0.1

5

4

3

2

1

H13

H13

hole_tbc156d146

hole_tbc156d146

1

1

B+B Type

H14

H14

hole_tbc256d110

hole_tbc256d110

1

1

J Type

H15

H15

hole_tbc256d110

hole_tbc256d110

1

1

H2

H2
hole_c71d71n

hole_c71d71n

1

1

H21

H21

hole_c87d87n

hole_c87d87n

1

1

Bottom SIDE

H23

H20

H20

hole_tbc256d110

hole_tbc256d110

1

1

H23

hole_tbc256d110

hole_tbc256d110

1

1

A+A Type S+V Type

H22

H3

H3

hole_tbshapec256d110

hole_tbshapec256d110

1

1

H22

hole_ts295x242bshc256do150x110

hole_ts295x242bshc256do150x110

1

1

N Type

H24

H10

H10

hole_odo146x87n

hole_odo146x87n

1

1

H24

hole_odo146x87n

hole_odo146x87n

1

1

+1_05V_VTT

C457 0.1U_6.3V_K 0402_X5RC457 0.1U_6.3V_K 0402_X5R

1 2

C458 0.1U_6.3V_K 0402_X5RC458 0.1U_6.3V_K 0402_X5R

1 2

+3VRUN

C459 0.1U_6.3V_K 0402_X5RC459 0.1U_6.3V_K 0402_X5R

1 2

+3VALW

C478 0.1U_6.3V_K 0402_X5RC478 0.1U_6.3V_K 0402_X5R

1 2

+3VRUN

+5VALW

+5VALW

B+C Type R+U Type

H8

H9

D D

H9

hole_tc256bc315d110

hole_tc256bc315d110

1

1

C+C Type

H11

H4

H4

hole_tbc315d110

hole_tbc315d110

1

1

C C

H11

hole_tbc315d110

hole_tbc315d110

1

1

H8

hole_tsh276x315bc256d110

hole_tsh276x315bc256d110

1

1

G Type

H1

H1

HOLE_TBC315D197

HOLE_TBC315D197

1

1

A_GND

L Type M Type

H5

H5

hole_tbc156d146

hole_tbc156d146

1

1

B B

TOP SIDE BOSE

H6

H6

hole_tbc156d146

hole_tbc156d146

1

1

H12

H12

hole_tbc156d146

hole_tbc156d146

1

1

Co-lay with BOSS5

BOSS3

BOSS1

BOSS1
BOSS_3.2X5.5

BOSS_3.2X5.5

1

BOSS2

BOSS2
BOSS_3.2X5.5

BOSS_3.2X5.5

1

BOSS3
BOSS_3.2X5.5

BOSS_3.2X5.5

1

BOSS4

BOSS4
BOSS_3.2X5.5

BOSS_3.2X5.5

1

BOSS5

BOSS5
BOSS_4.5x3.5

BOSS_4.5x3.5

1

BOSS6

BOSS6
BOSS_6.5x3.9

BOSS_6.5x3.9

1

H25

H25

hole_tc136bc236d126

hole_tc136bc236d126

1

1

A A

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

Hole & BOSS

Hole & BOSS

Hole & BOSS

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:43

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

34 63

Sheet of

34 63

Sheet of

34 63

0.1

0.1

0.1

A

4 4

3 3

SPKR_EN#28

R2909

R2909

NC_10K_J

NC_10K_J

0201

0201

1

G

G

+AVDD

A_GND

12

32

D

D

S

S

B

R247

R247

NC_10K_J

NC_10K_J

0201

0201

Q2902

Q2902

NC_2N7002-7-F

NC_2N7002-7-F

C

32

Q73

Q73

NC_PBSS2515E.115

NC_PBSS2515E.115

MODI6

null

null

12

MODI7

12

R241

R241

NC_10K_J

NC_10K_J

null

null

0201

0201

C

C

B

B

1

E

E

32

Q81

Q81

C

C

B

B

1

E

E

NC_PBSS2515E.115

NC_PBSS2515E.115

A_GND

HP_L 28,33

HP_R 28,33

D

E

de-pop noise schematic

2 2

1 1

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

Blank

Blank

Blank

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

A

B

C

D

Monday, January 31, 2011 14:12:42

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

E

Sheet of

35 63

Sheet of

35 63

Sheet of

35 63

0.1

0.1

0.1

5

D D

PEG_RXP_C[0..7]3

C C

B B

A A

PEG_RXN_C[0..7]3

PLT_RST#14,26,27,32,33

DGPU_HOLD_RST#15

PEG_RXP_C0

PEG_RXP_C1

PEG_RXP_C2

PEG_RXP_C3

PEG_RXP_C4

PEG_RXP_C5

PEG_RXP_C6
PEG_RXP_C7

PEG_RXN_C0

PEG_RXN_C1
PEG_RXN_C2

PEG_RXN_C3

PEG_RXN_C4

PEG_RXN_C5

PEG_RXN_C6

PEG_RXN_C7

PCIE_REFCLK11
PCIE_REFCLK#11

12

R1866

R1866

DGPU_RST#25

10K_J

10K_J

0201

0201

+3V_DELAY

U3004

U3004
74AHC1G08GW

74AHC1G08GW

53

1

4

2

PEG_RXP_C0

PEG_RXN_C0

PEG_RXP_C1

PEG_RXN_C1

PEG_RXP_C2

PEG_RXN_C2

PEG_RXP_C3

PEG_RXN_C3

PEG_RXP_C4

PEG_RXN_C4

PEG_RXP_C5

PEG_RXN_C5

PEG_RXP_C6

PEG_RXN_C6

PEG_RXP_C7

PEG_RXN_C7

R1867 0_J 0201R1867 0_J 0201

1 2

4

U62A

U62A

null

null

AA38

PCIE_RX0P

Y37

PCIE_RX0N

Y35

PCIE_RX1P

W36

PCIE_RX1N

W38

PCIE_RX2P

V37

PCIE_RX2N

V35

PCIE_RX3P

U36

PCIE_RX3N

U38

PCIE_RX4P

T37

PCIE_RX4N

T35

PCIE_RX5P

R36

PCIE_RX5N

R38

PCIE_RX6P

P37

PCIE_RX6N

P35

PCIE_RX7P

N36

PCIE_RX7N

N38

PCIE_RX8P

M37

PCIE_RX8N

M35

PCIE_RX9P

L36

PCIE_RX9N

L38

PCIE_RX10P

K37

PCIE_RX10N

K35

PCIE_RX11P

J36

PCIE_RX11N

J38

PCIE_RX12P

H37

PCIE_RX12N

H35

PCIE_RX13P

G36

PCIE_RX13N

G38

PCIE_RX14P

F37

PCIE_RX14N

F35

PCIE_RX15P

E37

PCIE_RX15N

CLOCK

CLOCK

AB35

PCIE_REFCLKP

AA36

PCIE_REFCLKN

AJ21

NC_1

AK21

NC_2

AH16

PWRGOOD

AA30

PERSTB

216-0774008

216-0774008

PCIE_TX0P
PCIE_TX0N

PCIE_TX1P
PCIE_TX1N

PCIE_TX2P
PCIE_TX2N

PCIE_TX3P
PCIE_TX3N

PCIE_TX4P
PCIE_TX4N

PCIE_TX5P
PCIE_TX5N

PCIE_TX6P
PCIE_TX6N

PCIE_TX7P
PCIE_TX7N

PCIE_TX8P
PCIE_TX8N

PCIE_TX9P
PCIE_TX9N

PCIE_TX10P
PCIE_TX10N

PCIE_TX11P
PCIE_TX11N

PCIE_TX12P
PCIE_TX12N

PCIE_TX13P
PCIE_TX13N

PCIE_TX14P
PCIE_TX14N

PCIE_TX15P
PCIE_TX15N

CALIBRATION

CALIBRATION

PCIE_CALRP

PCIE_CALRN

PCI EXPRESS INTERFACE

PCI EXPRESS INTERFACE

TXP0

Y33

TXN0

Y32

TXP1

W33

TXN1

W32

TXP2

U33

TXN2

U32

TXP3

U30

TXN3

U29

TXP4

T33

TXN4

T32

TXP5

T30

TXN5

T29

TXP6

P33

TXN6

P32

TXP7

P30

TXN7

P29

N33
N32

N30
N29

L33
L32

L30
L29

K33
K32

J33
J32

K30
K29

H33
H32

1 2

Y30

R1864 1.27K_F 0402R1864 1.27K_F 0402

R1865 2K_F 0201R1865 2K_F 0201

Y29

1 2

+1_0VPEG

3

TXN0

TXN1

TXN2

TXN3

TXN4

TXN5

TXN6

TXN7

TXP0

TXP1

TXP2

TXP3

TXP4

TXP5

TXP6

TXP7

1 2

C1055 0.1U_6.3V_K 0201_X5RC1055 0.1U_6.3V_K 0201_X5R

1 2

C1056 0.1U_6.3V_K 0201_X5RC1056 0.1U_6.3V_K 0201_X5R

1 2

C1057 0.1U_6.3V_K 0201_X5RC1057 0.1U_6.3V_K 0201_X5R

1 2

C1058 0.1U_6.3V_K 0201_X5RC1058 0.1U_6.3V_K 0201_X5R

1 2

C1059 0.1U_6.3V_K 0201_X5RC1059 0.1U_6.3V_K 0201_X5R

1 2

C1060 0.1U_6.3V_K 0201_X5RC1060 0.1U_6.3V_K 0201_X5R

1 2

C1061 0.1U_6.3V_K 0201_X5RC1061 0.1U_6.3V_K 0201_X5R

1 2

C1062 0.1U_6.3V_K 0201_X5RC1062 0.1U_6.3V_K 0201_X5R

1 2

C1063 0.1U_6.3V_K 0201_X5RC1063 0.1U_6.3V_K 0201_X5R

1 2

C1064 0.1U_6.3V_K 0201_X5RC1064 0.1U_6.3V_K 0201_X5R

1 2

C1065 0.1U_6.3V_K 0201_X5RC1065 0.1U_6.3V_K 0201_X5R

1 2

C1066 0.1U_6.3V_K 0201_X5RC1066 0.1U_6.3V_K 0201_X5R

1 2

C1067 0.1U_6.3V_K 0201_X5RC1067 0.1U_6.3V_K 0201_X5R

1 2

C1068 0.1U_6.3V_K 0201_X5RC1068 0.1U_6.3V_K 0201_X5R

1 2

C1069 0.1U_6.3V_K 0201_X5RC1069 0.1U_6.3V_K 0201_X5R

1 2

C1070 0.1U_6.3V_K 0201_X5RC1070 0.1U_6.3V_K 0201_X5R

PEG_RXN0

PEG_RXN1

PEG_RXN2

PEG_RXN3

PEG_RXN4

PEG_RXN5

PEG_RXN6

PEG_RXN7

PEG_RXP0

PEG_RXP1

PEG_RXP2

PEG_RXP3

PEG_RXP4

PEG_RXP5

PEG_RXP6

PEG_RXP7

PEG_RXN[7..0] 3

PEG_RXP[7..0] 3

2

U62F

U62F

null

null

AB39

PCIE_VSS_1

E39

PCIE_VSS_2

F34

PCIE_VSS_3

F39

PCIE_VSS_4

G33

PCIE_VSS_5

G34

PCIE_VSS_6

H31

PCIE_VSS_7

H34

PCIE_VSS_8

H39

PCIE_VSS_9

J31

PCIE_VSS_10

J34

PCIE_VSS_11

K31

PCIE_VSS_12

K34

PCIE_VSS_13

K39

PCIE_VSS_14

L31

PCIE_VSS_15

L34

PCIE_VSS_16

M34

PCIE_VSS_17

M39

PCIE_VSS_18

N31

PCIE_VSS_19

N34

PCIE_VSS_20

P31

PCIE_VSS_21

P34

PCIE_VSS_22

P39

PCIE_VSS_23

R34

PCIE_VSS_24

T31

PCIE_VSS_25

T34

PCIE_VSS_26

T39

PCIE_VSS_27

U31

PCIE_VSS_28

U34

PCIE_VSS_29

V34

PCIE_VSS_30

V39

PCIE_VSS_31

W31

PCIE_VSS_32

W34

PCIE_VSS_33

Y34

PCIE_VSS_34

Y39

PCIE_VSS_35

F15

GND_98

F17

GND_99

F19

GND_100

F21

GND_101

F23

GND_102

F25

GND_103

F27

GND_104

F29

GND_105

F31

GND_106

F33

GND_107

F7

GND_108

F9

GND_109

G2

GND_110

G6

GND_111

H9

GND_112

J2

GND_113

J27

GND_114

J6

GND_115

J8

GND_116

K14

GND_117

K7

GND_118

L11

GND_119

L17

GND_120

L2

GND_121

L22

GND_122

L24

GND_123

L6

GND_124

M17

GND_125

M22

GND_126

M24

GND_127

N16

GND_128

N18

GND_129

N2

GND_130

N21

GND_131

N23

GND_132

N26

GND_133

N6

GND_134

R15

GND_135

R17

GND_136

R2

GND_137

R20

GND_138

R22

GND_139

R24

GND_140

R27

GND_141

R6

GND_142

T11

GND_143

T13

GND_144

T16

GND_145

T18

GND_146

T21

GND_147

T23

GND_148

T26

GND_149

U15

GND_151

U17

GND_152

U2

GND_153

U20

GND_154

U22

GND_155

U24

GND_156

U27

GND_157

U6

GND_158

V11

GND_159

V16

GND_161

V18

GND_162

V21

GND_163

V23

GND_164

V26

GND_165

W2

GND_166

W6

GND_167

Y15

GND_168

Y17

GND_169

Y20

GND_170

Y22

GND_171

Y24

GND_172

Y27

GND_173

U13

GND_150

V13

GND_160

216-0774008

216-0774008

GND

GND

GND_10

GND_11

GND_12

GND_13

GND_14

GND_15

GND_16

GND_17

GND_18
GND_19

GND_20

GND_21
GND_22

GND_23
GND_24

GND_25
GND_26

GND_27
GND_28

GND_29

GND_30
GND_31

GND_32
GND_33

GND_34
GND_35

GND_36
GND_37

GND_38
GND_39

GND_40

GND_41
GND_42

GND_43
GND_44

GND_45
GND_46

GND_47
GND_48

GND_49

GND_50
GND_51

GND_52
GND_53

GND_54
GND_55

GND_56
GND_57

GND_58

GND_59
GND_60

GND_61

GND_62
GND_63

GND_64
GND_65

GND_66
GND_67

GND_68

GND_69
GND_70

GND_71
GND_72

GND_73
GND_74

GND_75
GND_76

GND_77

GND_78
GND_79

GND_80
GND_81

GND_82
GND_83

GND_84
GND_85

GND_86

GND_87
GND_88

GND_89
GND_90

GND_91
GND_92

GND_93
GND_94

GND_95
GND_96

GND_97

VSS_MECH_1

VSS_MECH_2
VSS_MECH_3

A3

GND_1

A37

GND_2

AA16

GND_3

AA18

GND_4

AA2

GND_5

AA21

GND_6

AA23

GND_7

AA26

GND_8

AA28

GND_9

AA6

AB12

AB15

AB17

AB20

AB22

AB24

AB27

AC11
AC13

AC16

AC18
AC2

AC21
AC23

AC26
AC28

AC6
AD15

AD17

AD20
AD22

AD24
AD27

AD9
AE2

AE6
AF10

AF16
AF18

AF21

AG17
AG2

AG20
AG22

AG6
AG9

AH21
AJ10

AJ11

AJ2
AJ28

AJ6
AK11

AK31
AK7

AL11
AL14

AL17

AL2
AL20

AL21

PX_EN

AL23

AL26
AL32

12

AL6

R1940

R1940

AL8

NC_0_J

NC_0_J

AM11

0402

0402

AM31

AM9

AN11
AN2

AN30
AN6

AN8
AP11

AP7
AP9

AR5

B11
B13

B15
B17

B19
B21

B23
B25

B27

B29
B31

B33
B7

B9
C1

C39
E35

E5
F11

F13

A39

1

20MIL

20MIL

TP980

TP980

AW1

1

20MIL

20MIL

TP982

TP982

AW39

1

20MIL

20MIL

TP983

TP983

1

PX_EN 48

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VGA (PCI-E) 1/6

VGA (PCI-E) 1/6

VGA (PCI-E) 1/6

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Page Modified:

5

4

3

2

Page Modified:

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:41

Monday, January 31, 2011 14:12:41

Monday, January 31, 2011 14:12:41

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

36 63

36 63

36 63

0.1

0.1

0.1

5

4

3

2

1

GPIO21 MUST BE LOW DURING PERSTB WHEN BEING USED TO CONTROL MVDDQ

PIN STRAPS

ALLOW FOR PULLUP PADS FOR THESE STRAPS AND IF THESE GPIOS ARE USED,

Strap for DDR3 VRAM
ATI_DVPDATA[3 : 0]

D D

For Wistler-Pro
0001 64Mx16 Hynix (800MHz) x8pcs
0010 64Mx16 Samsung (800MHz) x8pcs
0100 64Mx16 Hynix (900MHz)* x8pcs
1000 64Mx16 Samsung (900MHz) x8pcs
0011 128Mx16 Hynix (800MHz) x8pcs
0110 128Mx16 Samsung (800MHz) x8pcs
1100 128Mx16 Hynix (900MHz) x8pcs
1001 128Mx16 Samsung (900MHz) x8pcs

*means the schematic implemented

C C

B B

If no ROM attached, GPIO[13:12:11]
CONFIG{2:0}
controls the memory aperture size.
64MB 010
128MB 000
256MB 001
512MB 001

1 Enable HD Audio
0 Disable HD Audio

MEM_ID0

R1869 NC_10K_J 0402R1869 NC_10K_J 0402

ATI_DVPDATA038

ATI_DVPDATA138

ATI_DVPDATA238

ATI_DVPDATA338

ATI_GPIO038

ATI_GPIO138

ATI_GPIO238

ATI_GPIO538

ATI_GPIO1138

ATI_GPIO1238

ATI_GPIO1338

ATI_GPIO2238

ATI_DAC1VSYNC22,38

R1873 3K_J 0402R1873 3K_J 0402

R1874 3K_J 0402R1874 3K_J 0402

R1875 10K_J 0402R1875 10K_J 0402

R1876 NC_10K_J 0402R1876 NC_10K_J 0402

R1877 10K_J 0402R1877 10K_J 0402

R1878 NC_10K_J 0402R1878 NC_10K_J 0402

R1879 NC_10K_J 0402R1879 NC_10K_J 0402

R1882 NC_3.3K_J 0402R1882 NC_3.3K_J 0402

R1880 NC_10K_J 0402R1880 NC_10K_J 0402

MEM_ID1

R1870 NC_10K_J 0402R1870 NC_10K_J 0402

MEM_ID2

R1871 10K_J 0402R1871 10K_J 0402

MEM_ID3

R1872 NC_10K_J 0402R1872 NC_10K_J 0402

1 2

1 2

1 2

1 2

1 2

1 2

1 2

1 2

1 2

1 2

1 2

1 2

1 2

+1.8VGPU

+3V_DELAY

THEY MUST NOT CONFLICT DURING RESET

STRAPS DESCRIPTION OF DEFAULT SETTINGSPIN name

TX_DEEMPH_EN PCI Express Transmitter De-emphasis Enable

AC_BATT

PWRCNTL_0

PWRCNTL_1

CONFIG[0]
CONFIG[1]
CONFIG[2]

VIP_DEVICE_STRAP_ENA

RSVD GENERICC RESERVED

CONFIGURATION STRAPS

GPIO_0TX_PWRS_ENB

Transmitter Power Savings Enable
0: 50% Tx output swing
1: Full Tx output swing

GPIO_1

0: Tx de-emphasis disabled
1: Tx de-emphasis enabled

GPIO_5

AC (Performance mode) = 3.3 V
Battery saving mode = 0.0 V

GPIO_6

Power Control signals control the core voltage regulator.

GPIO_15

At Reset, these signals will be inputs with weak internal pull-down resistors.

GPIO_16

VBIOS can define these signals to be either 3.3-V outputs or open drain outputs.

GPIO_20

The output state (high/low) of these signals is programmable for each PowerPlay state.

GPIO_21BB_EN Voltage control signal for memory vlotage regulator:

GPIO_7BLON Controls Backlight On/Off.

Active high.
If not needed as the backlight enable signal, it can alternatively be used as a GPIO or an open drain type output.
Note: External pull-down recommended

GPIO_9VGA_DIS 0: VGA Controller capacity enabled

1: The device will not be recognized as the systemˇs VGA controller

GPIO_11

If BIOS_ROM_EN = 0, then Config[2:0] defines the primary memory aperture size.
GPIO_12
GPIO_13

GPIO_22BIOS_ROM_EN Enable external BIOS ROM device

0: Disable external BIOS ROM device

1: Enable external BIOS ROM device

V2SYNC IGNORE VIP DEVICE STRAPS (Removed on Seymour/Whistler)

H2SYNC RESERVEDRSVD

GPIO_17THERMAL_INT Thermal monitor interrupt

1) An input from an external temperature sensor (ALERTb)

GPIO_23CLKREQB Reserve

AUD[1:0]:

HSYNCAUD[1]
VSYNCAUD[0]

00 - No audio function;

01 - Audio for DisplayPort only;

10 - Audio for DisplayPort and HDMI if dongle is detected;

11 - Audio for both DisplayPort and HDMI.

HDMI must only be enabled on systems that are legally entitled.

It is the responsibility of the system designer to ensure that the system is entitled to support this feature.

RECOMMENDED SETTINGS
0= DO NOT INSTALL RESISTOR
1 = INSTALL 10K RESISTOR
X = DESIGN DEPENDANT
NA = NOT APPLICABLE

1 Enable HDMI
0 Disable HDMI

A A

5

ATI_DAC1HSYNC22,38

R1881 NC_10K_J 0402R1881 NC_10K_J 0402

1 2

4

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VGA (Strap) 2/6

VGA (Strap) 2/6

VGA (Strap) 2/6

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

3

2

Monday, January 31, 2011 14:12:46

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

37 63

Sheet of

37 63

Sheet of

37 63

0.1

0.1

0.1

1

A A

+3V_DELAY

Q3A

Q3A

5

G

G

R6283 NC_33_F 0402R6283 NC_33_F 0402

1 2

R6284 NC_33_F 0402R6284 NC_33_F 0402

1 2

R6285 NC_0_J 0402R6285 NC_0_J 0402

1 2

R6288 NC_0_J 0402R6288 NC_0_J 0402

1 2

0402_NPOC175

0402_NPO

12

0402_NPOC173

0402_NPO

1

R660

R660
NC_1M_J

NC_1M_J

0402

0402

3 4

D

D

2N7002DW-7-F

2N7002DW-7-F

+3V_DELAY

Q3B

Q3B

6 1

D

D

2N7002DW-7-F

2N7002DW-7-F

1
2

3
4

34

U3005

U3005

NC_FLASH_SOP-8_1MB

NC_FLASH_SOP-8_1MB

MX25L1005CMI-12G

MX25L1005CMI-12G

1 2

S

S

+3V_DELAY

2

G

G

S

S

CS#
SO

HOLD#

WP#
GND

R663

R663
NC_0_J 0402

NC_0_J 0402

1 2

Y10

Y10
NC_27MHZ_12P_30PPM

NC_27MHZ_12P_30PPM

HARMONY_X3G027000FC1H

HARMONY_X3G027000FC1H

SMB_THRM_DATA11,25,30

SMB_THRM_CLK11,25,30

B B

09/11/17 Connect a stable clock source
(from clock gen SS 27MHz)
to GPIO26_TCK.

+3V_DELAY +3V_DELAY

ATI_GPIO22
ATI_GPIO8

C C

NC_10P_50V_J_N

NC_10P_50V_J_N

C175

1 2

NC_10P_50V_J_N

NC_10P_50V_J_N

C173

1 2

D D

2

+3V_DELAY

12

0402

0402

10K_J

10K_J

Ball AM17:

R1907

R1907

For M96 this pin can be not used.
For M97-M2 When PWRGOOD is deasserted, the CTF

SMB_THRM_DATA_GPU

will return to its default state (high impedance)
For Park-M2 and Madison-M2:
GPIO_19_CTF has an internal latch, such
that if the pad has been operating normally,
and then the internal PWRGOOD deasserts
(because CTF was triggered), the GPIO_19 will

12

0402

0402

10K_J

10K_J
R1908

R1908

8

VCC

7

6

SCLK

5

SI

continue to drive high to keep the
VDDC regulator shut down.
Clearing this state will require power-cycling
of the VDDR3 rail.

SMB_THRM_CLK_GPU

These two can be unused on M96,M97,Madison and Park.
Ball AH26:
For M97-M2 GENERICF (no HPD function).
For Park-M2 NC.
For Madison-M2 GENERICF- can provide HPD5 function
Ball AH24:
For M97-M2 GENERICF (no HPD function).
For Park-M2 NC.
For Madison-M2 GENERICF- can provide HPD6 function

+3V_DELAY

ATI_GPIO10

R6286 NC_33_F 0402R6286 NC_33_F 0402

1 2

ATI_GPIO9

R6287 NC_33_F 0402R6287 NC_33_F 0402

1 2

L137

L137

+1.8VGPU

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L135

L135

+1_0VPEG

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

ATI_XTALINATI_XTALIN_R

+3V_DELAY

L136

+1.8VGPU

L136

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

ATI_XTALOUT

2

3

NC on Park/Robson/Seymour

PWRCNTL_059

OVT_GFX#25

VGA_HW_SHDN25

PWRCNTL_159

TP912 26MILTP912 26MIL

R1895 NC_10K_J 0201R1895 NC_10K_J 0201

1 2

R_XTALSSIN

R_XTALSSIN19

TP914

TP914

+1.8VGPU

12

R1899

R1899

499_F

499_F

0402

0402

12

R1902

R1902

249_F

249_F

0402

0402

(1.8V @ 120mA DPLL_PVDD)

12

C1236

C1236
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

(1.1V @ 300mA DPLL_VDDC)

12

12

C1229

C1229
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

R_XTALIN19

R6239 2.61K_F 0402R6239 2.61K_F 0402

1 2

(1.8V @ 20 mA On DIE Thermal Sensor)

12

C1230

C1230
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

3

NC on Park/Robson/Seymour

MEM ID

ATI_DVPDATA037
ATI_DVPDATA137

ATI_DVPDATA237
ATI_DVPDATA337

ATI_GPIO037

ATI_GPIO137
ATI_GPIO237

ATI_GPIO537

R1892 0_J 0402R1892 0_J 0402

VGA_HW_SHDN

ATI_GPIO2237

ATI_GPIO23

R1897

R1897

NC_0_J 0402

NC_0_J 0402

1 2

26MIL

26MIL

AT_VREFG

12

C1071

C1071

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1237

C1237
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1228

C1228
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

R665 100_F 0402R665 100_F 0402

1 2

12

C1231

C1231
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

20MIL

20MIL

TP961

TP961

20MIL

20MIL

TP1042

TP1042

SMB_THRM_DATA_GPU
SMB_THRM_CLK_GPU

20MIL

20MIL

TP945

TP945

ATI_GPIO1137
ATI_GPIO1237

ATI_GPIO1337

20MIL

20MIL

TP951

TP951

1 2

TP910

TP910

1

ATI_JTAG_RST

ATI_JTAG_TDI

ATI_JTAG_TMS

ATI_JTAG_TDO

1

20MIL

20MIL

TP915

TP915

20MIL

20MIL

TP916

TP916

20MIL

20MIL

TP921

TP921

20MIL

20MIL

TP947

TP947

20MIL

20MIL

TP948

TP948

20MIL

20MIL

TP949

TP949

20MIL

20MIL

TP950

TP950

TP917

TP917

12

C1238

C1238

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1227

C1227

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

R6152 0_J 0402R6152 0_J 0402

1 2

R6157 0_J 0402R6157 0_J 0402

1 2

TP946

TP946

TP944

TP944

1

1

1

ATI_GPIO22

R_XTALSSIN_R

1

1

1

1

1

1

1

26MIL

26MIL

ATI_XTALIN
ATI_XTALOUT

26MIL

26MIL

26MIL

26MIL

12

C1235

C1235

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

ATI_INV_EN

ATI_GPIO8

ATI_GPIO9

ATI_GPIO10

1

26MIL

26MIL

1

1

1

1

U62B

U62B

AR8

DVPCNTL_MVP_0

AU8

DVPCNTL_MVP_1

AP8

DVPCNTL_0

AW8

DVPCNTL_1

AR3

DVPCNTL_2

AR1

DVPCLK

AU1

DVPDATA_0

AU3

DVPDATA_1

AW3

DVPDATA_2

AP6

DVPDATA_3

AW5

DVPDATA_4

AU5

DVPDATA_5

AR6

DVPDATA_6

AW6

DVPDATA_7

AU6

DVPDATA_8

AT7

DVPDATA_9

AV7

DVPDATA_10

AN7

DVPDATA_11

AV9

DVPDATA_12

AT9

DVPDATA_13

AR10

DVPDATA_14

AW10

DVPDATA_15

AU10

DVPDATA_16

AP10

DVPDATA_17

AV11

DVPDATA_18

AT11

DVPDATA_19

AR12

DVPDATA_20

AW12

DVPDATA_21

AU12

DVPDATA_22

AP12

DVPDATA_23

AK26

SCL

AJ26

SDA

AH20

GPIO_0

AH18

GPIO_1

AN16

GPIO_2

AH23

GPIO_3_SMBDATA

AJ23

GPIO_4_SMBCLK

AH17

GPIO_5_AC_BATT

AJ17

GPIO_6

AK17

GPIO_7_BLON

AJ13

GPIO_8_ROMSO

AH15

GPIO_9_ROMSI

AJ16

GPIO_10_ROMSCK

AK16

GPIO_11

AL16

GPIO_12

AM16

GPIO_13

AM14

GPIO_14_HPD2

AM13

GPIO_15_PWRCNTL_0

AK14

GPIO_16_SSIN

AG30

GPIO_17_THERMAL_INT

AN14

GPIO_18_HPD3

AM17

GPIO_19_CTF

AL13

GPIO_20_PWRCNTL_1

AJ14

GPIO_21_BB_EN

AK13

GPIO_22_ROMCSB

AN13

GPIO_23_CLKREQB

AM23

JTAG_TRSTB

AN23

JTAG_TDI

AK23

JTAG_TCK

AL24

JTAG_TMS

AM24

JTAG_TDO

AJ19

GENERICA

AK19

GENERICB

AJ20

GENERICC

AK20

GENERICD

AJ24

GENERICE_HPD4

AH26

GENERICF

AH24

GENERICG

AK24

HPD1

AH13

VREFG

AM32

DPLL_PVDD

AN32

DPLL_PVSS

AN31

DPLL_VDDC

AV33

XTALIN

AU34

XTALOUT

AW34

XO_IN

AW35

XO_IN2

AF29

DPLUS

AG29

DMINUS

AK32

TS_FDO

AL31

NC_TS_A

AJ32

TSVDD

AJ33

TSVSS

216-0774008

216-0774008

4

MUTI GFX

MUTI GFX

I2C

I2C

GENERAL PURPOSE I/O

GENERAL PURPOSE I/O

PLL/CLOCK

PLL/CLOCK

THERMAL

THERMAL

4

DPA

DPA

DPB

DPB

DPC

DPC

DPD

DPD

DAC1

DAC1

DAC2

DAC2

DDC/AUX

DDC/AUX

TXCAP_DPA3P

TXCAM_DPA3N

TX0P_DPA2P

TX0M_DPA2N

TX1P_DPA1P

TX1M_DPA1N

TX2P_DPA0P

TX2M_DPA0N

TXCBP_DPB3P

TXCBM_DPB3N

TX3P_DPB2P

TX3M_DPB2N

TX4P_DPB1P

TX4M_DPB1N

TX5P_DPB0P

TX5M_DPB0N

TXCCP_DPC3P

TXCCM_DPC3N

TX0P_DPC2P

TX0M_DPC2N

TX1P_DPC1P

TX1M_DPC1N

TX2P_DPC0P

TX2M_DPC0N

TXCDP_DPD3P

TXCDM_DPD3N

TX3P_DPD2P

TX3M_DPD2N

TX4P_DPD1P

TX4M_DPD1N

TX5P_DPD0P

TX5M_DPD0N

AVSSQ

VDD1DI

VSS1DI

H2SYNC

V2SYNC

VDD2DI

VSS2DI

A2VDDQ

A2VSSQ

DDC1CLK

DDC1DATA

DDC2CLK

DDC2DATA

DDCCLK_AUX3P

DDCDATA_AUX3N

DDCCLK_AUX4P

DDCDATA_AUX4N

DDCCLK_AUX5P

DDCDATA_AUX5N

DDC6CLK

DDC6DATA

DDCCLK_AUX7P

DDCDATA_AUX7N

5

TXCAM_DPA0P

AU24

AV23

AT25

AR24

AU26

AV25

AT27

AR26

AR30

AT29

AV31

AU30

AR32

AT31

AT33

AU32

AU14

AV13

AT15

AR14

AU16

AV15

AT17

AR16

AU20

AT19

AT21

AR20

AU22

AV21

AT23

AR22

AD39

R

AD37

RB

AE36

G

AD35

GB

AF37

B

AE38

BB

AC36

HSYNC

AC38

VSYNC

AB34

RSET

AD34

AVDD

AE34

AC33

AC34

AC30

R2

AC31

R2B

AD30

G2

AD31

G2B

AF30

B2

AF31

B2B

AC32

C

AD32

Y

AF32

COMP

AD29

AC29

AG31

AG32

AG33

A2VDD

AD33

AF33

AA29

R2SET

AM26

AN26

AM27

AUX1P

AL27

AUX1N

AM19

AL19

AN20

AUX2P

AM20

AUX2N

AL30

AM30

AL29

AM29

AN21

AM21

AJ30

AJ31

AK30
AK29

1

TP938

TXCAM_DPA0N

TX0M_DPA0P

TX0M_DPA0N

TX0M_DPA1P

TX0M_DPA1N

TX0M_DPA2P

TX0M_DPA2N

1

1

TP938

1

TP943

TP943

1

TP956

TP956

1

TP953

TP953

1

TP954

TP954

1

TP955

TP955

1

TP952

TP952

1

TP959

TP959

20MIL

20MIL

TP957

TP957

20MIL

20MIL

TP958

TP958

DP Channel D is NC on Park, Robson and Seymour

ATI_DAC1RED

ATI_DAC1GREEN

ATI_DAC1BLUE

ATI_DAC1HSYNC 22,37
ATI_DAC1VSYNC 22,37

PLACE OR RESISTORS CLOSE TO ASIC

1 2

R1890 499_F 0402R1890 499_F 0402

R1894 NC_0_J 0402R1894 NC_0_J 0402

1 2

R1896 NC_0_J 0402R1896 NC_0_J 0402

1 2

R1898 NC_0_J 0402R1898 NC_0_J 0402

1 2

TP923

TP923

1

26MIL

26MIL

TP922

TP922

1

26MIL

26MIL

R256 NC_0_J 0402R256 NC_0_J 0402

1 2

R257 NC_0_J 0402R257 NC_0_J 0402

1 2

R254 NC_0_J 0402R254 NC_0_J 0402

1 2

R255 NC_0_J 0402R255 NC_0_J 0402

1 2

1 2

R1906 NC_715_F 0402R1906 NC_715_F 0402

TP962

TP962

1

26MIL

26MIL

TP984

TP984

1

26MIL

26MIL

R9933 51.1K_F 0402R9933 51.1K_F 0402

1 2

R9934 51.1K_F 0402R9934 51.1K_F 0402

1 2

DDCxx_AUX3x is NC on M92M2

DDCxx_AUX4x is NC on M92M2 and Park/Robson/Seymour

ATI_CRT_SCL 22
ATI_CRT_SDA 22

DDCxx_AUX7x is NC on M9x and Park/Robson/Seymour

5

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

20MIL

12

12

C1233

C1233

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1226

C1226

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

6

ATI_DAC1RED 22

ATI_DAC1GREEN 22

ATI_DAC1BLUE 22

OPTIONAL STRAP TO GROUND
FOR RB,GB,BB
SEE DAC1_RGB SHEET

(1.8V @ 70mA AVDD)

12

C1232

C1232
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

( 1.8V @ 100MA VDD1DI)

12

C1225

C1225
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1234

C1234
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

12

C1224

C1224
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

L134

L134

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L131

L131

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

7

OPTIONAL STRAP TO GROUND
FOR R2B,G2B,B2B
SEE DAC2_RGB SHEET

IF Y,C,COMP OR R2,G2,B2 ARE USED
R2B,G2B,B2B MUST BE CONNECTED
TO GROUND OR TERMINATED AT
CONNECTOR

DAC2 CAN BE TV SIGNALS (C,Y,COMP) OR SECONDARY CRT (R2,B2,G2
SIGNALS AS CONTROLLED BY AN INTERNAL MUX

ATI_DAC1RED

ATI_DAC1GREEN

ATI_DAC1BLUE

12

12

12

R1887

R1887

R1889

R1889

R1888

R1888

150_F

150_F

150_F

150_F

150_F

150_F

0402

0402

0402

0402

0402

0402

+1.8VGPU

+1.8VGPU

DAC2 is NC on Seymour/Whistler

ATI_INV_EN

R6235 NC_10K_J 0402R6235 NC_10K_J 0402

1 2

ATI_JTAG_RST

R1900 10K_J 0402R1900 10K_J 0402

1 2

R1901 10K_J 0402R1901 10K_J 0402

1 2

R1903 10K_J 0402R1903 10K_J 0402

1 2

R1905 NC_10K_J 0402R1905 NC_10K_J 0402

1 2

R1904 10K_J 0402R1904 10K_J 0402

1 2

6

ATI_JTAG_RST

ATI_JTAG_TDI

ATI_JTAG_TMS

R_XTALSSIN

+3V_DELAY

09/11/17 Add 5991 pull-down with 10K ohm to ground for the Park/Madison JTAG test block
intermittently fails to initialize correctly. Incorrect initialization may
result in a failure to boot.

+3V_DELAY

+3V_DELAY

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VGA (I/O) 3/6

VGA (I/O) 3/6

VGA (I/O) 3/6

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Monday, January 31, 2011 14:12:47

Page Modified:

Monday, January 31, 2011 14:12:47

Page Modified:

7

Monday, January 31, 2011 14:12:47

8

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

Sheet of

Sheet of

Sheet of

38 63

38 63

38 63

0.1

0.1

0.1

5

D D

U62C

U62C

DDR2

DDR2

GDDR3/GDDR5

GDDR3/GDDR5

DDR3

FBAD[0:63]42,43

C C

+1_5VRUNVGA

12

R1912

R1912

40.2_F

40.2_F

0402

0402

12

+1_5VRUNVGA

12

R913

R913

C1074

C1074

100_F

100_F

0.1U_6.3V_K

B B

0402

0402

R1913

R1913

40.2_F

40.2_F

0402

0402

R1931

R1931

100_F

100_F

0402

0402

+1_5VRUNVGA

12

12

12

0.1U_6.3V_K

0201_X5R

0201_X5R

C1077

C1077

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

R1915 243_F 0402R1915 243_F 0402

R1916 243_F 0402R1916 243_F 0402

R1917 243_F 0402R1917 243_F 0402

R1918 243_F 0402R1918 243_F 0402

R1919 243_F 0402R1919 243_F 0402

R1921 243_F 0402R1921 243_F 0402

For M97 , Broadway,Madison,
Park only

FBAD0
FBAD1

FBAD2

FBAD3
FBAD4

FBAD5

FBAD6

FBAD7

FBAD8

FBAD9

FBAD10

FBAD11

FBAD12

FBAD13

FBAD14

FBAD15

FBAD16

FBAD17

FBAD18

FBAD19

FBAD20

FBAD21

FBAD22

FBAD23

FBAD24
FBAD25

FBAD26

FBAD27

FBAD28

FBAD29

FBAD30
FBAD31

FBAD32

FBAD33
FBAD34

FBAD35

FBAD36

FBAD37

FBAD38

FBAD39

FBAD40

FBAD41

FBAD42

FBAD43

FBAD44

FBAD45

FBAD46

FBAD47

FBAD48

FBAD49

FBAD50

FBAD51

FBAD52

FBAD53

FBAD54

FBAD55

FBAD56

FBAD57

FBAD58

FBAD59

FBAD60

FBAD61

FBAD62

FBAD63

MVREFDA
MVREFSA

1 2

1 2

1 2

1 2

1 2

1 2

DDR3

C37

DQA0_0

C35

DQA0_1

A35

DQA0_2

E34

DQA0_3

G32

DQA0_4

D33

DQA0_5

F32

DQA0_6

E32

DQA0_7

D31

DQA0_8

F30

DQA0_9

C30

DQA0_10

A30

DQA0_11

F28

DQA0_12

C28

DQA0_13

A28

DQA0_14

E28

DQA0_15

D27

DQA0_16

F26

DQA0_17

C26

DQA0_18

A26

DQA0_19

F24

DQA0_20

C24

DQA0_21

A24

DQA0_22

E24

DQA0_23

C22

DQA0_24

A22

DQA0_25

F22

DQA0_26

D21

DQA0_27

A20

DQA0_28

F20

DQA0_29

D19

DQA0_30

E18

DQA0_31

C18

DQA1_0

A18

DQA1_1

F18

DQA1_2

D17

DQA1_3

A16

DQA1_4

F16

DQA1_5

D15

DQA1_6

E14

DQA1_7

F14

DQA1_8

D13

DQA1_9

F12

DQA1_10

A12

DQA1_11

D11

DQA1_12

F10

DQA1_13

A10

DQA1_14

C10

DQA1_15

G13

DQA1_16

H13

DQA1_17

J13

DQA1_18

H11

DQA1_19

G10

DQA1_20

G8

DQA1_21

K9

DQA1_22

K10

DQA1_23

G9

DQA1_24

A8

DQA1_25

C8

DQA1_26

E8

DQA1_27

A6

DQA1_28

C6

DQA1_29

E6

DQA1_30

A5

DQA1_31

L18

MVREFDA

L20

MVREFSA

L27

MEM_CALRN0

N12

MEM_CALRN1

AG12

MEM_CALRN2

M12

MEM_CALRP1

M27

MEM_CALRP0

AH12

MEM_CALRP2

216-0774008

216-0774008

4

DDR2

DDR2

GDDR5/GDDR3

GDDR5/GDDR3

DDR3

DDR3

FBA_A0

G24

MAA0_0

FBA_A1

J23

MAA0_1

FBA_A2

H24

MAA0_2

FBA_A3

J24

MAA0_3

FBA_A4

H26

MAA0_4

FBA_A5

J26

MAA0_5

FBA_A6

H21

MAA0_6

FBA_A7

G21

MAA0_7

FBA_A8

H19

MAA1_0

FBA_A9

H20

MAA1_1

FBA_A10

L13

MAA1_2

FBA_A11

G16

MAA1_3

FBA_A12

J16

MAA1_4

FBA_BA2

H16

MAA1_5

FBA_BA0

J17

MAA1_6

FBA_BA1

H17

MAA1_7

FBADQM0

A32

WCKA0_0

FBADQM1

C32

WCKA0B_0

FBADQM2

D23

WCKA0_1

FBADQM3

E22

WCKA0B_1

FBADQM4

C14

WCKA1_0

FBADQM5

A14

WCKA1B_0

FBADQM6

E10

WCKA1_1

FBADQM7

D9

WCKA1B_1

GDDR5/DDR2/GDDR3

GDDR5/DDR2/GDDR3

MEMORY INTERFACE A

MEMORY INTERFACE A

null

null

EDCA0_0
EDCA0_1

EDCA0_2
EDCA0_3

EDCA1_0
EDCA1_1

EDCA1_2
EDCA1_3

DDBIA0_0
DDBIA0_1

DDBIA0_2
DDBIA0_3

DDBIA1_0
DDBIA1_1

DDBIA1_2
DDBIA1_3

CLKA0B

CLKA1B

RASA0B
RASA1B

CASA0B
CASA1B

CSA0B_0
CSA0B_1

CSA1B_0
CSA1B_1

MAA0_8
MAA1_8

GDDR5

GDDR5

ADBIA0
ADBIA1

WEA0B
WEA1B

FBARDQS0

C34

FBARDQS1

D29

FBARDQS2

D25

FBARDQS3

E20

FBARDQS4

E16

FBARDQS5

E12

FBARDQS6

J10

FBARDQS7

D7

FBAWDQS0

A34

FBAWDQS1

E30

FBAWDQS2

E26

FBAWDQS3

C20

FBAWDQS4

C16

FBAWDQS5

C12

FBAWDQS6

J11

FBAWDQS7

F8

FBA_ODTA0

J21

FBA_ODTA1

G19

FBA_CLK0

H27

CLKA0

FBA_CLK0#

G27

FBA_CLK1

J14

CLKA1

FBA_CLK1#

H14

FBA_RASA0#

K23

FBA_RASA1#

K19

FBA_CASA0#

K20

FBA_CASA1#

K17

FBA_CSA0_0#

K24
K27

FBA_CSA1_0#

M13
K16

FBA_CKEA0

K21

CKEA0

FBA_CKEA1

J20

CKEA1

FBA_WEA0#

K26

FBA_WEA1#

L15

FBA_A13

H23
J19

FBA_BA2 42,43

FBA_BA0 42,43
FBA_BA1 42,43

FBA_ODTA0 42

FBA_ODTA1 43

FBA_A[0..12] 42,43

FBADQM[0..7] 42,43

FBARDQS[7..0] 42,43

FBAWDQS[7..0] 42,43

FBA_CLK0 42

FBA_CLK0# 42

FBA_CLK1 43

FBA_CLK1# 43

FBA_RASA0# 42

FBA_RASA1# 43

FBA_CASA0# 42

FBA_CASA1# 43

FBA_CSA0_0# 42

FBA_CSA1_0# 43

FBA_CKEA0 42

FBA_CKEA1 43

FBA_WEA0# 42

FBA_WEA1# 43

FBA_A13 42,43

3

+1_5VRUNVGA

R1925

R1925

40.2_F

40.2_F

0402

0402

R1929

R1929

100_F

100_F

0402

0402

2

U62D

U62D

DDR2

DDR2

GDDR3/GDDR5

GDDR3/GDDR5

DDR3

FBCD[63..0]44,45

+1_5VRUNVGA

12

R1911

R1911

40.2_F

40.2_F

0402

0402

12

12

R1914

R1914

C1075

C1075

100_F

100_F

0.1U_6.3V_K

0.1U_6.3V_K

0402

0402

0201_X5R

0201_X5R

12

12

12

C1078

C1078

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

+3V_DELAY

12

12

R1926

R1926

NC_1K_J

NC_1K_J

0201

0201

DDR3

FBCD0

C5

DQB0_0

FBCD1

C3

DQB0_1

FBCD2

E3

DQB0_2

FBCD3

E1

DQB0_3

FBCD4

F1

DQB0_4

FBCD5

F3

DQB0_5

FBCD6

F5

DQB0_6

FBCD7

G4

DQB0_7

FBCD8

H5

DQB0_8

FBCD9

H6

DQB0_9

FBCD10

J4

DQB0_10

FBCD11

K6

DQB0_11

FBCD12

K5

DQB0_12

FBCD13

L4

DQB0_13

FBCD14

M6

DQB0_14

FBCD15

M1

DQB0_15

FBCD16

M3

DQB0_16

FBCD17

M5

DQB0_17

FBCD18

N4

DQB0_18

FBCD19

P6

DQB0_19

FBCD20

P5

DQB0_20

FBCD21

R4

DQB0_21

FBCD22

T6

DQB0_22

FBCD23

T1

DQB0_23

FBCD24

U4

DQB0_24

FBCD25

V6

DQB0_25

FBCD26

V1

DQB0_26

FBCD27

V3

DQB0_27

FBCD28

Y6

DQB0_28

FBCD29

Y1

DQB0_29

FBCD30

Y3

DQB0_30

FBCD31

Y5

DQB0_31

FBCD32

AA4

DQB1_0

FBCD33

AB6

DQB1_1

FBCD34

AB1

DQB1_2

FBCD35

AB3

DQB1_3

FBCD36

AD6

DQB1_4

FBCD37

AD1

DQB1_5

FBCD38

AD3

DQB1_6

FBCD39

AD5

DQB1_7

FBCD40

AF1

DQB1_8

FBCD41

AF3

DQB1_9

FBCD42

AF6

DQB1_10

FBCD43

AG4

DQB1_11

FBCD44

AH5

DQB1_12

FBCD45

AH6

DQB1_13

FBCD46

AJ4

DQB1_14

FBCD47

AK3

DQB1_15

FBCD48

AF8

DQB1_16

FBCD49

AF9

DQB1_17

FBCD50

AG8

DQB1_18

FBCD51

AG7

DQB1_19

FBCD52

AK9

DQB1_20

FBCD53

AL7

DQB1_21

FBCD54

AM8

DQB1_22

FBCD55

AM7

DQB1_23

FBCD56

AK1

DQB1_24

FBCD57

AL4

DQB1_25

FBCD58

AM6

DQB1_26

FBCD59

AM1

DQB1_27

FBCD60

AN4

DQB1_28

FBCD61

AP3

DQB1_29

FBCD62

AP1

DQB1_30

FBCD63

AP5

DQB1_31

MVREFDB

Y12

MVREFDB

MVREFSB

AA12

MVREFSB

AD28

TESTEN

CLKTESTA

AK10

CLKTESTA

CLKTESTB

AL10

CLKTESTB

216-0774008

216-0774008

R1927

R1927

5.1K_F

5.1K_F

CLKTESTA

C1874

C1874

0201

0201

CLKTESTB

NC_0.1U_6.3V_K 0201_X5R

NC_0.1U_6.3V_K 0201_X5R

C1875

C1875

NC_0.1U_6.3V_K 0201_X5R

NC_0.1U_6.3V_K 0201_X5R

1 2

1 2

DDR2

DDR2

GDDR5/GDDR3

GDDR5/GDDR3

DDR3

DDR3

FBC_A0

P8

MAB0_0

FBC_A1

T9

MAB0_1

FBC_A2

P9

MAB0_2

FBC_A3

N7

MAB0_3

FBC_A4

N8

MAB0_4

FBC_A5

N9

MAB0_5

FBC_A6

U9

MAB0_6

FBC_A7

U8

MAB0_7

FBC_A8

Y9

MAB1_0

FBC_A9

W9

MAB1_1

FBC_A10

AC8

MAB1_2

FBC_A11

AC9

MAB1_3

FBC_A12

AA7

MAB1_4

FBC_BA2

AA8

MAB1_5

FBC_BA0

Y8

MAB1_6

FBC_BA1

AA9

MAB1_7

FBCDQM0

H3

WCKB0_0

FBCDQM1

H1

WCKB0B_0

FBCDQM2

T3

WCKB0_1

FBCDQM3

T5

WCKB0B_1

FBCDQM4

AE4

WCKB1_0

FBCDQM5

AF5

WCKB1B_0

FBCDQM6

AK6

WCKB1_1

FBCDQM7

AK5

WCKB1B_1

GDDR5/DDR2/GDDR3

GDDR5/DDR2/GDDR3

MEMORY INTERFACE B

MEMORY INTERFACE B

null

null

R1928

1 2

NC_51_F

NC_51_F

R1930

1 2

NC_51_F

NC_51_F

FBCRDQS0

F6

EDCB0_0

FBCRDQS1

K3

EDCB0_1

FBCRDQS2

P3

EDCB0_2

FBCRDQS3

V5

EDCB0_3

FBCRDQS4

AB5

EDCB1_0

FBCRDQS5

AH1

EDCB1_1

FBCRDQS6

AJ9

EDCB1_2

FBCRDQS7

AM5

EDCB1_3

FBCWDQS0

G7

DDBIB0_0

FBCWDQS1

K1

DDBIB0_1

FBCWDQS2

P1

DDBIB0_2

FBCWDQS3

W4

DDBIB0_3

FBCWDQS4

AC4

DDBIB1_0

FBCWDQS5

AH3

DDBIB1_1

FBCWDQS6

AJ8

DDBIB1_2

FBCWDQS7

AM3

DDBIB1_3

FBC_ODTB0

T7

ADBIB0

FBC_ODTB1

W7

ADBIB1

FBC_CLK0

L9

CLKB0

FBC_CLK0#

L8

CLKB0B

FBC_CLK1

AD8

CLKB1

FBC_CLK1#

AD7

CLKB1B

T10

RASB0B

Y10

RASB1B

W10

CASB0B

AA10

CASB1B

P10

CSB0B_0

L10

CSB0B_1

AD10

CSB1B_0

AC10

CSB1B_1

U10

CKEB0

AA11

CKEB1

N10

WEB0B

AB11

WEB1B

FBC_A13

T8

MAB0_8

W8

MAB1_8

MEM_RST#1 MEM_RST#2

GDDR5

GDDR5

AH11

DRAM_RST

0201R1928

0201

0201R1930

0201

FBC_BA2 44,45

FBC_BA0 44,45

FBC_BA1 44,45

FBC_ODTB0 44

FBC_ODTB1 45

R1920 10_J 0201R1920 10_J 0201

1 2

12

R1922

R1922

4.99K_F

4.99K_F

0402

0402

FBC_A[0..12] 44,45

FBCDQM[7..0] 44,45

FBCRDQS[7..0] 44,45

FBCWDQS[7..0] 44,45

FBC_CLK0 44

FBC_CLK0# 44

FBC_CLK1 45

FBC_CLK1# 45

FBC_RASB0# 44

FBC_RASB1# 45

FBC_CASB0# 44

FBC_CASB1# 45

FBC_CSB0_0# 44

FBC_CSB1_0# 45

FBC_CKEB0 44

FBC_CKEB1 45

FBC_WEB0# 44

FBC_WEB1# 45

FBC_A13 44,45

12

C1076

C1076
120P_50V_J

120P_50V_J

0402_NPO

0402_NPO

1

R6242

0201R6242

0201

1 2

MEM_RST# 42,43,44,45

51_F

51_F

A A

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VGA (Memory BUS) 4/6

VGA (Memory BUS) 4/6

VGA (Memory BUS) 4/6

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Page Modified:

5

4

3

2

Page Modified:

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

39 63

39 63

39 63

0.1

0.1

0.1

1

A A

2

3

4

5

6

7

8

NOTE: DPD is NA on Park, Robson and Seymour

U62H

U62H

null

R1937

1 2

1 2

R1942

null

DP A/B POWERDP C/D POWER

DP A/B POWERDP C/D POWER

AP20

DPC_VDD18_1

AP21

DPC_VDD18_2

AP13

DPC_VDD10_1

AT13

DPC_VDD10_2

AN17

DPC_VSSR_1

AP16

DPC_VSSR_2

AP17

DPC_VSSR_3

AW14

DPC_VSSR_4

AW16

DPC_VSSR_5

AP22

DPD_VDD18_1

AP23

DPD_VDD18_2

AP14

DPD_VDD10_1

AP15

DPD_VDD10_2

AN19

DPD_VSSR_1

AP18

DPD_VSSR_2

AP19

DPD_VSSR_3

AW20

DPD_VSSR_4

AW22

DPD_VSSR_5

150_F

150_F

AW18

DPCD_CALR

0201R1937

0201

DP E/F POWER

DP E/F POWER

AH34

DPE_VDD18_1

AJ34

DPE_VDD18_2

AL33

DPE_VDD10_1

AM33

DPE_VDD10_2

AN34

DPE_VSSR_1

AP39

DPE_VSSR_2

AR39

DPE_VSSR_3

AU37

DPE_VSSR_4

AF34

DPF_VDD18_1

AG34

DPF_VDD18_2

AK33

DPF_VDD10_1

AK34

DPF_VDD10_2

AF39

DPF_VSSR_1

AH39

DPF_VSSR_2

AK39

DPF_VSSR_3

AL34

DPF_VSSR_4

AM34

DPF_VSSR_5

150_F

150_F

AM39

DPEF_CALR

0201R1942

0201

216-0774008

216-0774008

DPA_VDD18_1
DPA_VDD18_2

DPA_VDD10_1
DPA_VDD10_2

DPA_VSSR_1
DPA_VSSR_2

DPA_VSSR_3
DPA_VSSR_4

DPA_VSSR_5

DPB_VDD18_1
DPB_VDD18_2

DPB_VDD10_1
DPB_VDD10_2

DPB_VSSR_1
DPB_VSSR_2

DPB_VSSR_3
DPB_VSSR_4

DPB_VSSR_5

DPAB_CALR

DP PLL POWER

DP PLL POWER

DPA_PVDD
DPA_PVSS

DPB_PVDD
DPB_PVSS

DPC_PVDD

DPC_PVSS

DPD_PVDD

DPD_PVSS

DPE_PVDD
DPE_PVSS

DPF_PVDD

DPF_PVSS

AN24

DPAB_VDD18

DPAB_VDD18

AP24

AP31

DPAB_VDD10

AP32

AN27
AP27

AP28
AW24

AW26

AP25

DPAB_VDD18

AP26

AN33

DPAB_VDD10

AP33

AN29
AP29

AP30
AW30

AW32

150_F

150_F

1 2

AW28

R1938

0201R1938

0201

AU28

DPAB_VDD18

AV27

AV29

DPAB_VDD18

AR28

AU18

DPCD_VDD18

AV17

AV19

DPCD_VDD18

AR18

AM37

DPEF_VDD18

AN38

AL38

DPEF_VDD18

AM35

DPAB_VDD10

C1196

C1196

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

C1179

C1179

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

12

C1195

C1195

NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

C1178

C1178

NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

(1.8V @ 300mA DPAB_VDD18)

12

NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

(1.0V @ 220 mA DPA_VDD10)

12

NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

C1194

C1194

C1177

C1177

12

12

L124

L124

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L119

L119

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

+1.8VGPU

+1_0VPEG

1.8V@300mA DPCD_VDD18)

L145

L145

+1.8VGPU

U62G

U62G

null

null

LVDS CONTROL

LVDS CONTROL

B B

LVTMDP

LVTMDP

216-0774008

216-0774008

C C

TXCLK =U=EVEN
TXOUT=U=EVEN
TXCLK =L=ODD
TXOUT=L=ODD

D D

VARY_BL

TXCLK_UP_DPF3P

TXCLK_UN_DPF3N

TXOUT_U0P_DPF2P

TXOUT_U0N_DPF2N

TXOUT_U1P_DPF1P

TXOUT_U1N_DPF1N

TXOUT_U2P_DPF0P

TXOUT_U2N_DPF0N

TXOUT_U3P

TXOUT_U3N

TXCLK_LP_DPE3P

TXCLK_LN_DPE3N

TXOUT_L0P_DPE2P

TXOUT_L0N_DPE2N

TXOUT_L1P_DPE1P

TXOUT_L1N_DPE1N

TXOUT_L2P_DPE0P

TXOUT_L2N_DPE0N

TXOUT_L3P

TXOUT_L3N

AK27

1

20MIL

20MIL

TP1130

AT_L_CLKIN+
AT_L_CLKIN-

AT_L_RXIN0+
AT_L_RXIN0-

AT_L_RXIN1+
AT_L_RXIN1-

AT_L_RXIN2+_R1
AT_L_RXIN2-_R1

ATI_ODD_RXIN3+
ATI_ODD_RXIN3-

TP1130

1

20MIL

20MIL

TP1126

TP1126

1

20MIL

20MIL

TP1118

TP1118

1

20MIL

20MIL

TP1117

TP1117

1

20MIL

20MIL

TP1125

TP1125

1

20MIL

20MIL

TP1114

TP1114

1

20MIL

20MIL

TP1113

TP1113

1

20MIL

20MIL

TP1119

TP1119

1

20MIL

20MIL

TP1116

TP1116

1

20MIL

20MIL

TP1115

TP1115

1

TP919TP919

1

TP920TP920

AJ27

DIGON

AK35

AL36

AJ38

AK37

AH35

AJ36

AG38

AH37

AF35

AG36

AP34

AR34

AW37

AU35

AR37

AU39

AP35

AR35

AN36

AP37

Close U62 and pin1 co-lay

+1_0VPEG

+1.8VGPU

+1_0VPEG

1.8V@150mA DPCD_VDD18 for Seymour)

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L144

L144

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L130

L130

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L133

L133

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

12

12

C1876

C1876
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

(1.0V@220mA DPCD_VDD10)

1.0V@110mA DPCD_VDD10 for Seymour)

12

12

C1879

C1879
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

DP mode

1.8V@300mA DPEF_VDD18)

LVDS mode

1.8V@440mA DPEF_VDD18)

12

12

C1215

C1215
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

DP mode

1.0V@220mA DPEF_VDD10)

LVDS mode

1.0V@240mA DPEF_VDD10)

12

C1221

C1221
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

12

NOTE: If no use, the capacitor is need to remove for cost down.

C1877

C1877
NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

C1880

C1880
NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

C1216

C1216
NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

C1222

C1222
NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

12

C1878

C1878
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1881

C1881
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1217

C1217
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0402_X5R

0402_X5R

12

C1223

C1223
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0402_X5R

0402_X5R

DPCD_VDD18

DPCD_VDD10

DPEF_VDD18

DPEF_VDD10

DPCD_VDD18

DPCD_VDD10

DPCD_VDD18

DPCD_VDD10

DPEF_VDD18

DPEF_VDD10

DPEF_VDD18

DPEF_VDD10

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VGA (LVDS) 5/6

VGA (LVDS) 5/6

VGA (LVDS) 5/6

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Page Modified:

1

2

3

4

5

6

Page Modified:

7

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

8

Sheet of

Sheet of

Sheet of

40 63

40 63

40 63

0.1

0.1

0.1

5

+1_5VRUNVGA

D D

C C

B B

12

12

C279

C279

C1093

C1093

10P_50V_J_N

10P_50V_J_N

0.1U_6.3V_K

0.1U_6.3V_K

0402_NPO

0402_NPO

0201_X5R

0201_X5R

12

C1100

C1100
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

+1.8VGPU

+3V_DELAY

Place all decoupling caps close to the ASIC and RUN
dedicated traces from ASIC pins to join the ground
plane with one VIA at the cap

M97, Broadway, Madison, Park, Capilano, Robson, Seymour
and Whistler only

L115

L115

+1.8VGPU

470R-100MHZ_1608

470R-100MHZ_1608

HCB1608KF-471T10

HCB1608KF-471T10

+1_0VPEG

VDDCORE

12

12

C1095

C1095

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

12

C1101

C1101
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

L122

L122

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L129

L129

120R-100MHZ_0402

120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

+1.8VGPU

L120

L120

+1.8VGPU

NC_120R-100MHZ_0402

NC_120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

(Park: 1.8V@75mA MPV18)

(M97, Broadway and Madison: 1.8V@150mA MPV18)

12

12

C1161

C1161
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

+1.8VGPU

470R-100MHZ_1608

470R-100MHZ_1608

HCB1608KF-471T10

HCB1608KF-471T10

L125

L125

470R-100MHZ_1608

470R-100MHZ_1608

HCB1608KF-471T10

HCB1608KF-471T10

L127

L127

NC_470R-100MHZ_1608

NC_470R-100MHZ_1608

HCB1608KF-471T10

HCB1608KF-471T10

C1094

C1094

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1102

C1102
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1189

C1189
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

120R-100MHZ_0402

120R-100MHZ_0402

C1162

C1162
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

L116

L116

VDDR1+VDDRHA

3.4A(GDDR5 VRAM)

12

C1079

C1079

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1105

C1105
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1108

C1108
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

(1.8V @ 110MA VDD_CT)

(1.8V @ 60mA VDD3)

12

C1209

C1209
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

L132

L132

EBMS100505A121 0.5A

EBMS100505A121 0.5A

(1.8V @ 40MA PCIE_PVDD)

12

(1.8V@75mA SPV18)

12

C1171

C1171
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

( 0.95V-1.1V @ 120mA SPV10)

12

4

(1.8V @ 170mA VDD4)

+1_5VRUNVGA

+1_5VRUNVGA

C1175

C1175
NC_10U_6.3V_M

NC_10U_6.3V_M

0603_X5R

0603_X5R

C1204

C1204
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

C1096

C1096

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1106

C1106
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

PCIE_VDDR

12

12

C1082

C1082
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1109

C1109
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

C1191

C1191
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

L112

L112

NC_120R-100MHZ_0402

NC_120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

L113

L113

NC_120R-100MHZ_0402

NC_120R-100MHZ_0402

EBMS100505A121 0.5A

EBMS100505A121 0.5A

12

C1176

C1176
NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

12

C1167

C1167
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1207

C1207
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1098

C1098

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

12

12

12

12

12

C1083

C1083
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1110

C1110
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

C1192

C1192
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1213

C1213
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1219

C1219
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

VDDRHA

VDDRHB

12

12

C1180

C1180
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1165

C1165

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1166

C1166

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1208

C1208

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1099

C1099

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1147

C1147
NC_1U_6.3V_M

NC_1U_6.3V_M

0402_X5R

0402_X5R

AT_VCC_SENSE59

AT_VSS_SENSE59

12

12

12

12

12

C1084

C1084
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1173

C1173
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

C1193

C1193

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1214

C1214
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1220

C1220

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1080

C1080

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

VDDRHA

VDDRHB

VDD_CT

3

U62E

U62E

null

null

MEM I/O

MEM I/O

AC7

VDDR1_1

AD11

VDDR1_2

AF7

VDDR1_3

AG10

VDDR1_4

AJ7

VDDR1_5

AK8

VDDR1_6

AL9

VDDR1_7

G11

VDDR1_8

G14

VDDR1_9

G17

VDDR1_10

G20

VDDR1_11

G23

VDDR1_12

G26

VDDR1_13

G29

VDDR1_14

H10

VDDR1_15

J7

VDDR1_16

J9

VDDR1_17

K11

VDDR1_18

K13

VDDR1_19

K8

VDDR1_20

L12

VDDR1_21

L16

VDDR1_22

L21

VDDR1_23

L23

VDDR1_24

L26

VDDR1_25

L7

VDDR1_26

M11

VDDR1_27

N11

VDDR1_28

P7

VDDR1_29

R11

VDDR1_30

U11

VDDR1_31

U7

VDDR1_32

Y11

VDDR1_33

Y7

VDDR1_34

LEVEL

LEVEL

TRANSLATION

TRANSLATION

AF26

VDD_CT_1

AF27

VDD_CT_2

AG26

VDD_CT_3

AG27

VDD_CT_4

VDD3

I/O

I/O

AF23

VDDR3_1

AF24

VDDR3_2

AG23

VDDR3_3

AG24

VDDR3_4

VDD4

AF13

VDDR4_4

AF15

VDDR4_5

AG13

VDDR4_7

AG15

VDDR4_8

AD12

VDDR4_1

AF11

VDDR4_2

AF12

VDDR4_3

AG11

VDDR4_6

M20

NC_VDDRHA

M21

NC_VSSRHA

V12

NC_VDDRHB

U12

NC_VSSRHB

PLL

PLL

AB37

PCIE_PVDD

H7

MPV18_1

H8

MPV18_2

AM10

SPV18

AN9

SPV10

AN10

SPVSS

VOLTAGE

VOLTAGE

SENESE

SENESE

AF28

FB_VDDC

AG28

FB_VDDCI

AH29

FB_GND

216-0774008

216-0774008

PCIE

PCIE

PCIE_VDDC_10

PCIE_VDDC_11
PCIE_VDDC_12

CORE

CORE

ISOLATED

ISOLATED

CORE I/O

CORE I/O

PCIE_VDDR_1
PCIE_VDDR_2

PCIE_VDDR_3
PCIE_VDDR_4

PCIE_VDDR_5
PCIE_VDDR_6

PCIE_VDDR_7
PCIE_VDDR_8

PCIE_VDDC_1

PCIE_VDDC_2
PCIE_VDDC_3

PCIE_VDDC_4
PCIE_VDDC_5

PCIE_VDDC_6
PCIE_VDDC_7

PCIE_VDDC_8
PCIE_VDDC_9

VDDC_1

VDDC_2

VDDC_3

VDDC_4

VDDC_5

VDDC_6

VDDC_7
VDDC_8

VDDC_9

VDDC_10
VDDC_11

VDDC_12

VDDC_13

VDDC_14
VDDC_15

POWER

POWER

VDDC_16

VDDC_17

VDDC_18

VDDC_19
VDDC_20

VDDC_21
VDDC_22

VDDC_23
VDDC_24

VDDC_25

VDDC_26
VDDC_27

VDDC_28

VDDC_29
VDDC_30

VDDC_31

VDDC_32

BIF_VDDC_1

VDDC_33
VDDC_34

VDDC_35
VDDC_36

VDDC_37
VDDC_38

VDDC_39
VDDC_40

BIF_VDDC_2

VDDC_41

VDDC_42
VDDC_43

VDDC_44

VDDC_45

VDDC_46
VDDC_47

VDDC_48
VDDC_49

VDDC_50
VDDC_51

VDDC_52
VDDC_53

VDDC_54

VDDC_55
VDDC_56

VDDCI_1

VDDCI_2

VDDCI_3

VDDCI_4

VDDCI_5

VDDCI_6

VDDCI_7

VDDCI_8

VDDCI_9

VDDCI_10

VDDCI_11

VDDCI_12

VDDCI_13

VDDCI_14
VDDCI_15

VDDCI_16

VDDCI_17
VDDCI_18

VDDCI_19

VDDCI_20

VDDCI_21

VDDCI_22

PCIE_VDDR

AA31
AA32

AA33
AA34

V28
W29

W30
Y31

PCIE_VDDC

G30

G31
H29

H30
J29

J30
L28

M28
N28

R28

T28
U28

AA15

AA17

AA20

AA22

AA24

AA27

AB16
AB18

AB21

AB23
AB26

AB28

AC17

AC20
AC22

AC24

AC27

AD18

AD21
AD23

AD26
AF17

AF20
AF22

AG16

AG18
AG21

AH22

AH27
AH28

M26

N24
N27

R18
R21

R23
R26

T17
T20

T22
T24

T27
U16

U18
U21

U23

U26

V17
V20

V22
V24

V27
Y16

Y18
Y21

Y23

Y26
Y28

AA13

AB13

AC12

AC15

AD13

AD16

M15

M16

M18
M23

N13

N15

N17

N20
N22

R12

R13
R16

T12

T15

V15

Y13

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

10U_6.3V_M

10U_6.3V_M

C1202

C1202

C1181

C1181

12

C1112

C1112
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1118

C1118
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1127

C1127
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

0603_X5R

0603_X5R

(1.8V @ 504mA PCIE_VDDR)

12

C1201

C1201

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

(PCIE_VDDC 1.1V @ 1100mA )

12

C1182

C1182

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

20 A

12

C1113

C1113
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1119

C1119
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1128

C1128
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1134

C1134

10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

C1141

C1141

10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

BIF_VDDC

(GDDR3/DDR3 1.12V@4A VDDCI)

(GDDR5 1.12V@16A VDDCI)

C1136

C1136

12

12

C1159

C1159
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

12

12

BIF_VDDC

12

1U_6.3V_M

1U_6.3V_M

C1087

C1087
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1120

C1120
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1092

C1092
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

0402_X5R

0402_X5R

C1183

C1183

10U_6.3V_M

10U_6.3V_M

C1150

C1150
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1200

C1200

0603_X5R

0603_X5R

C1138

C1138

12

2

12

C1199

C1199

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

12

C1184

C1184

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

12

C1114

C1114

C1088

C1088

1U_6.3V_M

1U_6.3V_M

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1121

C1121

C1122

C1122

1U_6.3V_M

1U_6.3V_M

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1129

C1129

C1130

C1130

1U_6.3V_M

1U_6.3V_M

1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

C1139

C1139

10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

R6243 0_J 0201R6243 0_J 0201

1 2

12

12

C1151

C1151
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1160

C1160
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

12

1U_6.3V_M

1U_6.3V_M

C1152

C1152
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C282

C282
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

C1187

C1187

0402_X5R

0402_X5R

12

C1197

C1197

12

C1089

C1089
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1123

C1123
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1131

C1131
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

10U_6.3V_M

10U_6.3V_M

12

12

0603_X5R

0603_X5R

VDDCORE

C1153

C1153
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1140

C1140

10U_6.3V_M

10U_6.3V_M

L123

L123

220R-100MHZ_0603

220R-100MHZ_0603

PBY160808T-221Y-N

PBY160808T-221Y-N

C1188

C1188

0603_X5R

0603_X5R

12

C1115

C1115
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1124

C1124
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1132

C1132
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

10P_50V_J_N

10P_50V_J_N

12

C1154

C1154
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

0402_NPO

0402_NPO

12

12

12

C281

C281

12

C1116

C1116
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1091

C1091
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C1133

C1133
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

12

C1155

C1155
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C280

C280
33P_25V_J

33P_25V_J

0201_NP0

0201_NP0

VDDCORE

12

+1.8VGPU

12

CAP13

CAP13

+

330U_2.5V_M

+

330U_2.5V_M

3.5x2.8x1.9

3.5x2.8x1.9

12

C1172

C1172
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

+1_0VPEG

L121

L121

120R-100MHZ_0603

120R-100MHZ_0603

ACMS160808A121 RDC05

ACMS160808A121 RDC05

12

C1157

C1157
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

1

VDDCORE

A A

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VGA (Power) 6/6

VGA (Power) 6/6

VGA (Power) 6/6

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Page Modified:

5

4

3

2

Page Modified:

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

41 63

41 63

41 63

0.1

0.1

0.1

1

2

3

4

5

6

7

8

+1_5VRUNVGA

U3007

FBA_A0

FBA_A1
FBA_A2

FBA_A3
FBA_A4

FBA_A5
FBA_A6

FBA_A7
FBA_A8

FBA_A9
FBA_A10

FBA_A11

FBA_A12

FBA_A13

FBAD11

FBAD14

FBAD10

FBAD13

FBAD9

FBAD15
FBAD8

FBAD12

FBADQM1

FBARDQS1

FBAWDQS1

FBAD6

FBAD2

FBAD7

FBAD3

FBAD5
FBAD0

FBAD4

FBAD1

FBADQM0

FBARDQS0

FBAWDQS0

U3007

J3

RAS#

K3

CAS#

L3

WE#

L2

CS#

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

K9

CKE

J7

CK

K7

CK#

J1

NC_4

L1

NC_5

J9

NC_6

L9

NC_7

T2

RESET#

K1

ODT

L8

ZQ

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

E7

DML

F3

DQSL

G3

DQSL#

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

D3

DMU

C7

DQSU

B7

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

3

VDD_9
VDD_8

VDD_7
VDD_6

VDD_5
VDD_4

VDD_3
VDD_2

VDD_1

VDDQ_9

VDDQ_8
VDDQ_7

VDDQ_6
VDDQ_5

VDDQ_4
VDDQ_3

VDDQ_2
VDDQ_1

VSSQ_9
VSSQ_8

VSSQ_7
VSSQ_6

VSSQ_5
VSSQ_4

VSSQ_3
VSSQ_2

VSSQ_1

VSS_12

VSS_11
VSS_10

VSS_9
VSS_8

VSS_7
VSS_6

VSS_5
VSS_4

VSS_3
VSS_2

VSS_1

VREFDQ

VREFCA

K2
R9

R1
N9

N1
K8

G7
D9

B2

+1_5VRUNVGA

H9

H2
F1

E9
D2

C9
C1

A8
A1

G9
G1

F9
E8

E2
D8

D1
B9

B1

T9

T1
P9

P1
M9

M1
J8

J2
G8

E1
B3

A9

VRAM_VREF_DQ1

H1

VRAM_VREF_CA1

M8

FBA_CLK0

FBA_CLK0#

12

12

4

+1_5VRUNVGA

12

R6296

R6296

4.99K_F

4.99K_F

0402

0402

12

12

R6297

R6297

C6461

0.01U_10V_K

C6461

0.01U_10V_K

4.99K_F

4.99K_F

0402

0402

R6298

R6298

56_F

56_F

0402

0402

C6462 0.01U_10V_K 0402_X7RC6462 0.01U_10V_K 0402_X7R

1 2

R6300

R6300

56_F

56_F

0402

0402

U3008

U3008

FBA_RASA0#

J3

RAS#

FBA_CASA0#

K3

CAS#

FBA_WEA0#

L3

FBA_CSA0_0#

MEM_RST#

ZQ2

12

R6295

R6295

243_F

243_F

0402

0402

0402_X7R

0402_X7R

5

6

FBA_ODTA0

FBAD[24:31]39

FBAD[16:23]39

WE#

L2

CS#

FBA_A0

N3

A0

FBA_A1

P7

A1

FBA_A2

P3

A2

FBA_A3

N2

A3

FBA_A4

P8

A4

FBA_A5

P2

A5

FBA_A6

R8

A6

FBA_A7

R2

A7

FBA_A8

T8

A8

FBA_A9

R3

A9

FBA_A10

L7

A10/AP

FBA_A11

R7

A11

FBA_A12

N7

A12/BC#

FBA_A13

T3

A13

T7

A14

M7

A15

FBA_BA0

M2

BA0

FBA_BA1

N8

BA1

FBA_BA2

M3

BA2

FBA_CKEA0

K9

CKE

FBA_CLK0

J7

CK

FBA_CLK0#

K7

CK#

J1

NC_4

L1

NC_5

J9

NC_6

L9

NC_7

T2

RESET#

K1

ODT

L8

ZQ

FBAD28

E3

DQL0

FBAD24

F7

DQL1

FBAD29

F2

DQL2

FBAD25

F8

DQL3

FBAD31

H3

DQL4

FBAD26

H8

DQL5

FBAD30

G2

DQL6

FBAD27

H7

DQL7

FBADQM3

E7

DML

FBARDQS3

F3

DQSL

FBAWDQS3

G3

DQSL#

FBAD17

D7

DQU0

FBAD21

C3

DQU1

FBAD18

C8

DQU2

FBAD22

C2

DQU3

FBAD16

A7

DQU4

FBAD20

A2

DQU5

FBAD19

B8

DQU6

FBAD23

A3

DQU7

FBADQM2

D3

DMU

FBARDQS2

C7

DQSU

FBAWDQS2

B7

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

FOXCONN

FOXCONN

FOXCONN

Title

Title

Title

VRAM(DDR)# 1/4

VRAM(DDR)# 1/4

VRAM(DDR)# 1/4

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Rains 0.1

Rains 0.1

Rains 0.1

Date: Sheet

Date: Sheet of

Date: Sheet of

7

FBA_BA039,43
FBA_BA139,43

FBA_BA239,43

FBA_CLK039

FBA_CLK0#39

12

+1_5VRUNVGA

FBA_ODTA0

ZQ1

R6294

R6294

243_F

243_F

0402

0402

12

R6299

R6299

4.99K_F

4.99K_F

0402

0402

VRAM_VREF_DQ1

12

R6301

R6301

4.99K_F

4.99K_F

0402

0402

2

FBA_RASA0#

FBA_CASA0#
FBA_WEA0#

FBA_CSA0_0#

FBA_BA0

FBA_BA1
FBA_BA2

FBA_CKEA0

FBA_CLK0
FBA_CLK0#

FBAD[8:15]39

FBAD[0:7]39

12

0402_X7RC6463

0402_X7R

0.01U_10V_K

0.01U_10V_K

C6463

MEM_RST#

FBADQM0

FBADQM1

FBADQM2

FBADQM3

FBARDQS0

FBARDQS1

FBARDQS2

FBARDQS3

FBAWDQS0

FBAWDQS1

FBAWDQS2

FBAWDQS3

FBA_RASA0#39

FBA_CASA0#39

FBA_WEA0#39

FBA_CSA0_0#39

FBA_A[0..13]39,43

FBA_CKEA039

FBA_ODTA039

A A

B B

MEM_RST#39,43,44,45

FBADQM[0..3]39

C C

FBARDQS[3..0]39

FBAWDQS[3..0]39

D D

1

+1_5VRUNVGA

K2

VDD_9

R9

VDD_8

R1

VDD_7

N9

VDD_6

N1

VDD_5

K8

VDD_4

G7

VDD_3

D9

VDD_2

B2

VDD_1

+1_5VRUNVGA

H9

VDDQ_9

H2

VDDQ_8

F1

VDDQ_7

E9

VDDQ_6

D2

VDDQ_5

C9

VDDQ_4

C1

VDDQ_3

A8

VDDQ_2

A1

VDDQ_1

G9

VSSQ_9

G1

VSSQ_8

F9

VSSQ_7

E8

VSSQ_6

E2

VSSQ_5

D8

VSSQ_4

D1

VSSQ_3

B9

VSSQ_2

B1

VSSQ_1

T9

VSS_12

T1

VSS_11

P9

VSS_10

P1

VSS_9

M9

VSS_8

M1

VSS_7

J8

VSS_6

J2

VSS_5

G8

VSS_4

E1

VSS_3

B3

VSS_2

A9

VSS_1

VRAM_VREF_DQ1

H1

VREFDQ

VRAM_VREF_CA1

M8

VREFCA

HON HAI PRECISION IND. CO., LTD.

HON HAI PRECISION IND. CO., LTD.

HON HAI PRECISION IND. CO., LTD.

CPBG - R&D Division

CPBG - R&D Division

CPBG - R&D Division

42 63Monday, January 31, 2011

42 63Monday, January 31, 2011

42 63Monday, January 31, 2011

8

of

5

FBA_CLK1#39

MEM_RST#

FBA_ODTA139

FBA_RASA1#39

FBA_CASA1#39

FBA_WEA1#39

FBA_CSA1_0#39

FBA_A[0:13]39,42

FBA_BA039,42
FBA_BA139,42

FBA_BA239,42

FBA_CLK139

FBA_BA0

FBA_BA1

FBA_BA2

FBA_CLK1

FBA_CLK1#

FBA_ODTA1

ZQ3

12

FBAD[32:39]39

R6302

R6302

243_F

243_F

0402

0402

FBAD[40:47]39

R6308

R6308

4.99K_F

4.99K_F

0402

0402

D D

5

MEM_RST#39,42,44,45

FBADQM4

FBADQM5

FBADQM6

FBADQM7

FBARDQS4

FBARDQS5

FBARDQS6

FBARDQS7

FBAWDQS4

FBAWDQS5

FBAWDQS6

FBAWDQS7

FBA_CKEA1

C C

B B

A A

FBA_CKEA139

FBADQM[4:7]39

FBARDQS[4:7]39

FBAWDQS[4:7]39

FBA_RASA1#

FBA_CASA1#
FBA_WEA1#

FBA_CSA1_0#

+1_5VRUNVGA

12

R6306

R6306

4.99K_F

4.99K_F

0402

0402

VRAM_VREF_DQ2

12

FBA_A0

FBA_A1

FBA_A2

FBA_A3

FBA_A4

FBA_A5

FBA_A6

FBA_A7

FBA_A8

FBA_A9

FBA_A10

FBA_A11

FBA_A12

FBA_A13

FBAD39

FBAD36

FBAD33

FBAD37

FBAD35

FBAD38

FBAD34

FBADQM4

FBARDQS4

FBAWDQS4

FBAD41

FBAD45

FBAD42

FBAD44

FBAD40

FBAD46

FBAD43

FBAD47

FBADQM5

FBARDQS5

FBAWDQS5

4

J3

K3

L3

L2

N3
P7

P3
N2

P8
P2

R8
R2

T8
R3

L7
R7

N7
T3

T7

M7

M2

N8

M3

K9

J7
K7

J1

L1
J9

L9

T2

K1

L8

E3

F7
F2

F8
H3

H8

G2

H7

E7

F3

G3

D7

C3
C8

C2
A7

A2
B8

A3

D3

C7

B7

4

U3009

U3009

RAS#

CAS#

WE#

CS#

A0
A1

A2
A3

A4
A5

A6
A7

A8
A9

A10/AP
A11

A12/BC#
A13

A14
A15

BA0
BA1

BA2

CKE

CK
CK#

NC_4

NC_5
NC_6

NC_7

RESET#

ODT

ZQ

DQL0

DQL1
DQL2

DQL3
DQL4

DQL5
DQL6

DQL7

DML

DQSL

DQSL#

DQU0

DQU1
DQU2

DQU3
DQU4

DQU5
DQU6

DQU7

DMU

DQSU

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

12

C6466

C6466

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

3

+1_5VRUNVGA +1_5VRUNVGA

K2

VDD_9

R9

VDD_8

R1

VDD_7

N9

VDD_6

N1

VDD_5

K8

VDD_4

G7

VDD_3

D9

VDD_2

B2

VDD_1

H9

VDDQ_9

H2

VDDQ_8

F1

VDDQ_7

E9

VDDQ_6

D2

VDDQ_5

C9

VDDQ_4

C1

VDDQ_3

A8

VDDQ_2

A1

VDDQ_1

G9

VSSQ_9

G1

VSSQ_8

F9

VSSQ_7

E8

VSSQ_6

E2

VSSQ_5

D8

VSSQ_4

D1

VSSQ_3

B9

VSSQ_2

B1

VSSQ_1

T9

VSS_12

T1

VSS_11

P9

VSS_10

P1

VSS_9

M9

VSS_8

M1

VSS_7
VSS_6

VSS_5
VSS_4

VSS_3
VSS_2

VSS_1

VREFDQ

VREFCA

J8

J2
G8

E1
B3

A9

VRAM_VREF_DQ2

H1

VRAM_VREF_CA2

M8

FBA_CLK1

FBA_CLK1#

R6305

R6305

4.99K_F

4.99K_F

0402

0402

+1_5VRUNVGA

12

R6304

R6304

4.99K_F

4.99K_F

0402

0402

12

12

C6464

C6464

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

12

R6307

R6307

56_F

56_F

0402

0402

C6465 0.01U_10V_K 0402_X7RC6465 0.01U_10V_K 0402_X7R

1 2

12

R6309

R6309

56_F

56_F

0402

0402

3

ZQ4

12

FBAD[48:55]39

R6303

R6303

243_F

243_F

0402

0402

FBAD[56:63]39

FBA_RASA1#

FBA_CASA1#

FBA_WEA1#

FBA_CSA1_0#

FBA_A0

FBA_A1

FBA_A2

FBA_A3

FBA_A4

FBA_A5

FBA_A6

FBA_A7

FBA_A8

FBA_A9

FBA_A10

FBA_A11

FBA_A12

FBA_A13

FBA_BA0
FBA_BA1

FBA_BA2

FBA_CKEA1

FBA_CLK1

FBA_CLK1#

MEM_RST#

FBA_ODTA1

FBAD48

FBAD52FBAD32

FBAD49

FBAD55

FBAD50

FBAD53

FBAD51
FBAD54

FBADQM6

FBARDQS6

FBAWDQS6

FBAD61

FBAD57

FBAD63

FBAD59
FBAD60

FBAD58

FBAD62

FBAD56

FBADQM7

FBARDQS7

FBAWDQS7

2

J3

K3

L3

L2

N3
P7

P3
N2

P8
P2

R8
R2

T8

R3

L7

R7

N7

T3

T7

M7

M2
N8

M3

K9

J7

K7

J1

L1
J9

L9

T2

K1

L8

E3

F7
F2

F8

H3

H8
G2

H7

E7

F3

G3

D7

C3
C8

C2
A7

A2
B8

A3

D3

C7

B7

2

U3010

U3010

RAS#

CAS#

WE#

CS#

A0
A1

A2
A3

A4
A5

A6
A7

A8
A9

A10/AP
A11

A12/BC#
A13

A14
A15

BA0
BA1

BA2

CKE

CK
CK#

NC_4

NC_5
NC_6

NC_7

RESET#

ODT

ZQ

DQL0

DQL1
DQL2

DQL3
DQL4

DQL5
DQL6

DQL7

DML

DQSL

DQSL#

DQU0

DQU1
DQU2

DQU3
DQU4

DQU5
DQU6

DQU7

DMU

DQSU

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

1

K2

VDD_9

R9

VDD_8

R1

VDD_7

N9

VDD_6

N1

VDD_5

K8

VDD_4

G7

VDD_3

D9

VDD_2

B2

VDD_1

+1_5VRUNVGA+1_5VRUNVGA

H9

VDDQ_9

H2

VDDQ_8

F1

VDDQ_7

E9

VDDQ_6

D2

VDDQ_5

C9

VDDQ_4

C1

VDDQ_3

A8

VDDQ_2

A1

VDDQ_1

G9

VSSQ_9

G1

VSSQ_8

F9

VSSQ_7

E8

VSSQ_6

E2

VSSQ_5

D8

VSSQ_4

D1

VSSQ_3

B9

VSSQ_2

B1

VSSQ_1

T9

VSS_12

T1

VSS_11

P9

VSS_10

P1

VSS_9

M9

VSS_8

M1

VSS_7

J8

VSS_6

J2

VSS_5

G8

VSS_4

E1

VSS_3

B3

VSS_2

A9

VSS_1

VRAM_VREF_DQ2

H1

VREFDQ

VRAM_VREF_CA2

M8

VREFCA

HON HAI PRECISION IND. CO., LTD.

HON HAI PRECISION IND. CO., LTD.

FOXCONN

FOXCONN

FOXCONN

Title

Title

Title

VRAM(DDR)# 2/4

VRAM(DDR)# 2/4

VRAM(DDR)# 2/4

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Rains 0.1

Rains 0.1

Rains 0.1

Date: Sheet

Date: Sheet of

Date: Sheet of

HON HAI PRECISION IND. CO., LTD.

CPBG - R&D Division

CPBG - R&D Division

CPBG - R&D Division

of

43 63Monday, January 31, 2011

43 63Monday, January 31, 2011

43 63Monday, January 31, 2011

1

1

2

3

4

5

6

7

8

+1_5VRUNVGA

U3011

FBC_A0

FBC_A1

FBC_A2

FBC_A3

FBC_A4

FBC_A5

FBC_A6

FBC_A7

FBC_A8

FBC_A9

FBC_A10

FBC_A11

FBC_A12

FBC_A13

FBCD26
FBCD29

FBCD24

FBCD30
FBCD27

FBCD28

FBCD25
FBCD31

FBCDQM3

FBCRDQS3

FBCWDQS3

FBCD21

FBCD18
FBCD22

FBCD16

FBCD20

FBCD17

FBCD23

FBCD19

FBCDQM2

FBCRDQS2

FBCWDQS2

U3011

J3

RAS#

K3

CAS#

L3

WE#

L2

CS#

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

K9

CKE

J7

CK

K7

CK#

J1

NC_4

L1

NC_5

J9

NC_6

L9

NC_7

T2

RESET#

K1

ODT

L8

ZQ

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

E7

DML

F3

DQSL

G3

DQSL#

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

D3

DMU

C7

DQSU

B7

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

3

+1_5VRUNVGA

R6316

R6316

4.99K_F

4.99K_F

0402

0402

VDD_9
VDD_8

VDD_7
VDD_6

VDD_5
VDD_4

VDD_3
VDD_2

VDD_1

VDDQ_9

VDDQ_8
VDDQ_7

VDDQ_6
VDDQ_5

VDDQ_4
VDDQ_3

VDDQ_2
VDDQ_1

VSSQ_9
VSSQ_8

VSSQ_7
VSSQ_6

VSSQ_5
VSSQ_4

VSSQ_3
VSSQ_2

VSSQ_1

VSS_12

VSS_11
VSS_10

VSS_9
VSS_8

VSS_7
VSS_6

VSS_5
VSS_4

VSS_3
VSS_2

VSS_1

VREFDQ

VREFCA

12

R6315

R6315

4.99K_F

4.99K_F

0402

0402

VRAM_VREF_DQ3

12

K2
R9

R1
N9

N1
K8

G7
D9

B2

+1_5VRUNVGA

H9

H2
F1

E9
D2

C9
C1

A8
A1

G9
G1

F9
E8

E2
D8

D1
B9

B1

T9

T1
P9

P1
M9

M1
J8

J2
G8

E1
B3

A9

VRAM_VREF_DQ3

H1

VRAM_VREF_CA3

M8

12

C6469

C6469

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

R6313

R6313

4.99K_F

4.99K_F

0402

0402

U3012

FBC_A0

FBC_A1

FBC_A2

FBC_A3

FBC_A4

FBC_A5

FBC_A6

FBC_A7

FBC_A8

FBC_A9

FBC_A10

FBC_A11

FBC_A12

FBC_A13

FBC_BA0
FBC_BA1

FBC_BA2

FBC_CKEB0

FBC_CLK0

FBC_CLK0#

MEM_RST#
FBC_ODTB0

ZQ6

FBCD11

FBCD12

FBCD14

FBCD8

FBCD15
FBCD9

FBCD13

FBCD10

FBCDQM1

FBCRDQS1
FBCWDQS1

FBCD2

FBCD5

FBCD1

FBCD7
FBCD0

FBCD6

FBCD3
FBCD4

FBCDQM0

FBCRDQS0
FBCWDQS0

U3012

J3

RAS#

K3

CAS#

L3

WE#

L2

CS#

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

K9

CKE

J7

CK

K7

CK#

J1

NC_4

L1

NC_5

J9

NC_6

L9

NC_7

T2

RESET#

K1

ODT

L8

ZQ

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

E7

DML

F3

DQSL

G3

DQSL#

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

D3

DMU

C7

DQSU

B7

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

FOXCONN

FOXCONN

FOXCONN

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Date: Sheet

Date: Sheet of

Date: Sheet of

FBC_RASB0#

FBC_CASB0#

FBC_WEB0#

FBC_CSB0_0#

1 2

12

FBCD[8:15]39

R6311

R6311
243_F

243_F

0402

0402

FBCD[0:7]39

6

+1_5VRUNVGA

12

R6312

R6312

4.99K_F

4.99K_F

0402

0402

12

12

C6467

C6467

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

FBC_CLK0

12

R6314

R6314

56_F

56_F

0402

0402

C6468 0.01U_10V_K 0402_X7RC6468 0.01U_10V_K 0402_X7R

12

R6317

R6317

56_F

56_F

0402

FBC_CLK0#

4

0402

5

FBC_RASB0#39

FBC_CASB0#39

FBC_WEB0#39

FBC_CSB0_0#39

FBC_CKEB0

MEM_RST#

FBCDQM0

FBCDQM1

FBCDQM2

FBCDQM3

FBCRDQS0

FBCRDQS1

FBCRDQS2

FBCRDQS3

FBCWDQS0

FBCWDQS1

FBCWDQS2

FBCWDQS3

FBC_A[0:13]39,45

FBC_ODTB039

A A

FBC_CKEB039

B B

MEM_RST#39,42,43,45

FBCDQM[0:3]39

FBCRDQS[0:3]39

C C

FBCWDQS[0:3]39

D D

1

FBC_RASB0#

FBC_CASB0#
FBC_WEB0#

FBC_CSB0_0#

FBC_BA039,45
FBC_BA139,45

FBC_BA239,45

FBC_CLK039

FBC_CLK0#39

FBC_BA0

FBC_BA1

FBC_BA2

FBC_CLK0
FBC_CLK0#

FBC_ODTB0

ZQ5

12

FBCD[24:31]39

R6310

R6310
243_F

243_F

0402

0402

FBCD[16:23]39

2

+1_5VRUNVGA

K2

VDD_9

R9

VDD_8

R1

VDD_7

N9

VDD_6

N1

VDD_5

K8

VDD_4

G7

VDD_3

D9

VDD_2

B2

VDD_1

+1_5VRUNVGA

H9

VDDQ_9

H2

VDDQ_8

F1

VDDQ_7

E9

VDDQ_6

D2

VDDQ_5

C9

VDDQ_4

C1

VDDQ_3

A8

VDDQ_2

A1

VDDQ_1

G9

VSSQ_9

G1

VSSQ_8

F9

VSSQ_7

E8

VSSQ_6

E2

VSSQ_5

D8

VSSQ_4

D1

VSSQ_3

B9

VSSQ_2

B1

VSSQ_1

T9

VSS_12

T1

VSS_11

P9

VSS_10

P1

VSS_9

M9

VSS_8

M1

VSS_7

J8

VSS_6

J2

VSS_5

G8

VSS_4

E1

VSS_3

B3

VSS_2

A9

VSS_1

VRAM_VREF_DQ3

H1

VREFDQ

VRAM_VREF_CA3

M8

VREFCA

HON HAI PRECISION IND. CO., LTD.

HON HAI PRECISION IND. CO., LTD.

HON HAI PRECISION IND. CO., LTD.

CPBG - R&D Division

CPBG - R&D Division

CPBG - R&D Division

VRAM(DDR)# 3/4

VRAM(DDR)# 3/4

VRAM(DDR)# 3/4

Rains 0.1

Rains 0.1

Rains 0.1

7

of

44 63Monday, January 31, 2011

44 63Monday, January 31, 2011

44 63Monday, January 31, 2011

8

5

4

3

2

1

+1_5VRUNVGA

U3013

U3013

FBC_RASB1#

D D

FBC_CKEB139

C C

B B

FBCDQM[4:7]39

FBCRDQS[4:7]39

FBCWDQS[7..4]39

A A

FBC_CKEB1

MEM_RST#39,42,43,44

5

FBC_CLK139

FBC_CLK1#39

FBCDQM4

FBCDQM5

FBCDQM6

FBCDQM7

FBCRDQS4

FBCRDQS5

FBCRDQS6

FBCRDQS7

FBCWDQS4

FBCWDQS5

FBCWDQS6

FBCWDQS7

FBC_ODTB139

FBC_BA039,44
FBC_BA139,44

FBC_BA239,44

R6319

R6319

FBC_CLK1#

MEM_RST#

12

FBC_CLK1

243_F

243_F

0402

0402

FBC_RASB1#39

FBC_CASB1#39

FBC_WEB1#39

FBC_CSB1_0#39

FBC_A[0:13]39,44

FBC_ODTB1

ZQ7

FBCD[39..32]39

FBCD[40:47]39

FBC_BA0

FBC_BA1

FBC_BA2

R6318

R6318

NC_243K_F

NC_243K_F

0402

0402

FBC_CASB1#

FBC_WEB1#
FBC_CSB1_0#

FBC_A0

FBC_A1

FBC_A2

FBC_A3

FBC_A4

FBC_A5

FBC_A6

FBC_A7

FBC_A8

FBC_A9

FBC_A10

FBC_A11

FBC_A12

FBC_A13

FBCD32

FBCD38

FBCD33

FBCD37

FBCD34

FBCD39

FBCD35
FBCD36

FBCDQM4

FBCRDQS4

FBCWDQS4

FBCD46
FBCD41

FBCD47

FBCD42

FBCD44

FBCD40

FBCD45
FBCD43

FBCDQM5

FBCRDQS5

FBCWDQS5

+1_5VRUNVGA

12

R6323

R6323

4.99K_F

4.99K_F

0402

0402

VRAM_VREF_DQ4

12

R6325

R6325

4.99K_F

4.99K_F

0402

0402

J3

RAS#

K3

CAS#

L3

WE#

L2

CS#

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

K9

CKE

J7

CK

K7

CK#

J1

NC_4

L1

NC_5

J9

NC_6

L9

NC_7

T2

RESET#

K1

ODT

L8

ZQ

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

E7

DML

F3

DQSL

G3

DQSL#

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

D3

DMU

C7

DQSU

B7

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

12

C6472

C6472

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

4

VDD_9
VDD_8

VDD_7
VDD_6

VDD_5
VDD_4

VDD_3
VDD_2

VDD_1

VDDQ_9

VDDQ_8
VDDQ_7

VDDQ_6
VDDQ_5

VDDQ_4
VDDQ_3

VDDQ_2
VDDQ_1

VSSQ_9
VSSQ_8

VSSQ_7
VSSQ_6

VSSQ_5
VSSQ_4

VSSQ_3
VSSQ_2

VSSQ_1

VSS_12

VSS_11
VSS_10

VSS_9
VSS_8

VSS_7
VSS_6

VSS_5
VSS_4

VSS_3
VSS_2

VSS_1

VREFDQ

VREFCA

K2
R9

R1
N9

N1
K8

G7

+1_5VRUNVGA

D9

B2

H9

H2
F1

E9
D2

C9
C1

A8
A1

G9
G1

F9
E8

E2
D8

D1
B9

B1

T9

T1
P9

P1
M9

M1
J8

J2
G8

E1
B3

A9

VRAM_VREF_DQ4

H1

VRAM_VREF_CA4

M8

4.99K_F

4.99K_F

FBC_CLK1

FBC_CLK1#

R6322

R6322

0402

0402

+1_5VRUNVGA

12

12

12

12

R6324

R6324

56_F

56_F

0402

0402

C6471 0.01U_10V_K 0402_X7RC6471 0.01U_10V_K 0402_X7R

12

R6326

R6326

56_F

56_F

0402

0402

3

R6321

R6321

4.99K_F

4.99K_F

0402

0402

C6470

C6470

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

1 2

MEM_RST#

ZQ8

FBCD[48:55]39

12

R6320

R6320

243_F

243_F

0402

0402

FBCD[56:63]39

FBC_ODTB1

FBC_RASB1#
FBC_CASB1#

FBC_WEB1#
FBC_CSB1_0#

FBC_A0

FBC_A1

FBC_A2

FBC_A3

FBC_A4

FBC_A5

FBC_A6

FBC_A7

FBC_A8

FBC_A9

FBC_A10

FBC_A11

FBC_A12

FBC_A13

FBC_BA0
FBC_BA1

FBC_BA2

FBC_CKEB1

FBC_CLK1
FBC_CLK1#

FBCD53

FBCD51

FBCD54

FBCD50

FBCD55
FBCD48

FBCD52

FBCD49

FBCDQM6

FBCRDQS6

FBCWDQS6

FBCD60

FBCD62

FBCD57

FBCD59

FBCD56

FBCD63

FBCD58

FBCD61

FBCDQM7

FBCRDQS7

FBCWDQS7

2

U3014

U3014

J3

RAS#

K3

CAS#

L3

WE#

L2

CS#

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

K9

CKE

J7

CK

K7

CK#

J1

NC_4

L1

NC_5

J9

NC_6

L9

NC_7

T2

RESET#

K1

ODT

L8

ZQ

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

E7

DML

F3

DQSL

G3

DQSL#

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

D3

DMU

C7

DQSU

B7

DQSU#

SDRAM_FBGA-96P_1GBIT

SDRAM_FBGA-96P_1GBIT

H5TQ1G63DFR-11C

H5TQ1G63DFR-11C

+1_5VRUNVGA

K2

VDD_9

R9

VDD_8

R1

VDD_7

N9

VDD_6

N1

VDD_5

K8

VDD_4

G7

VDD_3

+1_5VRUNVGA

D9

VDD_2

B2

VDD_1

H9

VDDQ_9

H2

VDDQ_8

F1

VDDQ_7

E9

VDDQ_6

D2

VDDQ_5

C9

VDDQ_4

C1

VDDQ_3

A8

VDDQ_2

A1

VDDQ_1

G9

VSSQ_9

G1

VSSQ_8

F9

VSSQ_7

E8

VSSQ_6

E2

VSSQ_5

D8

VSSQ_4

D1

VSSQ_3

B9

VSSQ_2

B1

VSSQ_1

T9

VSS_12

T1

VSS_11

P9

VSS_10

P1

VSS_9

M9

VSS_8

M1

VSS_7

J8

VSS_6

J2

VSS_5

G8

VSS_4

E1

VSS_3

B3

VSS_2

A9

VSS_1

VRAM_VREF_DQ4

H1

VREFDQ

VRAM_VREF_CA4

M8

VREFCA

HON HAI PRECISION IND. CO., LTD.

HON HAI PRECISION IND. CO., LTD.

FOXCONN

FOXCONN

FOXCONN

Title

Title

Title

VRAM(DDR)# 4/4

VRAM(DDR)# 4/4

VRAM(DDR)# 4/4

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Rains 0.1

Rains 0.1

Rains 0.1

Date: Sheet

Date: Sheet of

Date: Sheet of

HON HAI PRECISION IND. CO., LTD.

CPBG - R&D Division

CPBG - R&D Division

CPBG - R&D Division

of

45 63Monday, January 31, 2011

45 63Monday, January 31, 2011

45 63Monday, January 31, 2011

1

5

+1_5VRUNVGA

12

12

C1596

C1596
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1585

C1585

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1597

C1597
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1586

C1586

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1595

C1595
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

D D

+1_5VRUNVGA

12

C1584

C1584
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

4

Place around the VRAM U3007

12

12

C1598

C1598

C1599

C1599

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1593

C1593

C1587

C1587

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

12

C1600

C1600
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1594

C1594

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1601

C1601
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1589

C1589

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C284

C284
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C1609

C1609

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1605

C1605
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

3

+1_5VRUNVGA

12

C1170

C1170
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

2

1

+1_5VRUNVGA

12

12

C1626

C1626

C1625

C1625

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

C C

B B

A A

+1_5VRUNVGA

+1_5VRUNVGA

+1_5VRUNVGA

+1_5VRUNVGA

+1_5VRUNVGA

5

12

C1612

C1612
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1652

C1652
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1639

C1639

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1681

C1681
NC_1U_6.3V_K

NC_1U_6.3V_K

0402_X5R

0402_X5R

12

C1666

C1666

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1614

C1614

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1653

C1653
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1641

C1641

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1682

C1682
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1668

C1668

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

Place around the VRAM U3008

12

12

C1624

C1624

C1623

C1623

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1613

C1613

C1611

C1611

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

Place around the VRAM U3009

12

12

C1651

C1651

C1650

C1650

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1640

C1640

C1638

C1638

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

Place around the VRAM U3010

12

12

C1680

C1680

C1677

C1677

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1667

C1667

C1665

C1665

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

12

C1627

C1627
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1616

C1616

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1654

C1654
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1643

C1643

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1683

C1683
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1670

C1670
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

4

12

C1622

C1622
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1615

C1615

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1649

C1649
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1642

C1642

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1676

C1676
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1669

C1669

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1628

C1628
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1620

C1620

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1655

C1655
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1647

C1647

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1678

C1678
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1674

C1674

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C288

C288
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C1610

C1610

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C289

C289
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C1617

C1617
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C290

C290
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C1618

C1618

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1606

C1606
NC_1U_6.3V_K

NC_1U_6.3V_K

0402_X5R

0402_X5R

12

C1607

C1607
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1608

C1608
NC_1U_6.3V_K

NC_1U_6.3V_K

0402_X5R

0402_X5R

3

+1_5VRUNVGA

12

+1_5VRUNVGA

12

+1_5VRUNVGA

12

C1687

C1687
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

C1174

C1174
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

C1660

C1660
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

S

S

S

S
t

t

t

t
i

i

i

i

+1_5VRUNVGA

t

t

t

t

12

12

c

c

C883

C883

c

c

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

h

h

h

h
i

i

i

i

+1_5VRUNVGA

n

n

n

n
g

g

g

g

12

C885

C885
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

C

C

C

C
a

a

a

a
p

p

p

p
s

s

s

s

2

12

C884

C884

C886

C886

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

12

12

C888

C888

C889

C889

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VRAM(BYPASS) 1/2

VRAM(BYPASS) 1/2

VRAM(BYPASS) 1/2

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

12

12

12

C898

C898

C887

C887

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

12

C899

C899

C890

C890

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

46 63

Sheet of

46 63

Sheet of

46 63

0.1

0.1

0.1

5

+1_5VRUNVGA

12

12

12

C1706

C1706
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

D D

+1_5VRUNVGA

12

C1694

C1694

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1707

C1707
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1695

C1695
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

C1705

C1705
NC_1U_6.3V_K

NC_1U_6.3V_K

0402_X5R

0402_X5R

12

C1692

C1692

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

Place around the VRAM U3011

12

C1704

C1704
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1693

C1693

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1708

C1708
NC_1U_6.3V_K

NC_1U_6.3V_K

0402_X5R

0402_X5R

12

C1696

C1696

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

4

12

C1703

C1703
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1697

C1697

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1709

C1709
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1699

C1699

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C291

C291
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C1700

C1700

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1710

C1710
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

3

+1_5VRUNVGA

12

C1715

C1715
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

2

1

+1_5VRUNVGA

12

12

C1733

C1733

C1734

C1734

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

C C

B B

A A

+1_5VRUNVGA

12

C1719

C1719

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

+1_5VRUNVGA

12

C1760

C1760
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

+1_5VRUNVGA

12

C1748

C1748
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

+1_5VRUNVGA

12

C1788

C1788
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

+1_5VRUNVGA

12

C1774

C1774

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

5

12

C1721

C1721

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1761

C1761
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1749

C1749

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1790

C1790
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1776

C1776

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

Place around the VRAM U3012

12

12

C1732

C1732

C1731

C1731

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1722

C1722

C1720

C1720

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

Place around the VRAM U3013

12

12

C1758

C1758

C1759

C1759

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1746

C1746

C1747

C1747

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

Place around the VRAM U3014

12

12

C1789

C1789

C1785

C1785

NC_1U_6.3V_K

NC_1U_6.3V_K

1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

0402_X5R

0402_X5R

12

12

C1775

C1775

C1773

C1773

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

0201_X5R

0201_X5R

12

C1735

C1735
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1723

C1723

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1762

C1762
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1751

C1751

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1791

C1791
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1781

C1781

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

12

12

12

12

12

4

C1730

C1730
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

C1724

C1724

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1757

C1757
NC_1U_6.3V_K

NC_1U_6.3V_K

0402_X5R

0402_X5R

C1750

C1750

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1784

C1784
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

C1780

C1780

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1736

C1736
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1726

C1726

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1763

C1763
NC_1U_6.3V_K

NC_1U_6.3V_K

0402_X5R

0402_X5R

12

C1753

C1753
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C1786

C1786
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

12

C1778

C1778

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

C292

C292
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

12

C293

C293
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

12

C295

C295
10P_50V_J_N

10P_50V_J_N

0402_NPO

0402_NPO

12

C1701

C1701

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1702

C1702

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

C1718

C1718

0.1U_6.3V_K

0.1U_6.3V_K

0201_X5R

0201_X5R

12

12

12

C1711

C1711
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

C1712

C1712
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

C1717

C1717
1U_6.3V_K

1U_6.3V_K

0402_X5R

0402_X5R

3

+1_5VRUNVGA

12

C1741

C1741
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

+1_5VRUNVGA

12

C1783

C1783
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

+1_5VRUNVGA

12

C1794

C1794
10U_6.3V_M

10U_6.3V_M

0603_X5R

0603_X5R

S

S

S

S
t

t

t

t
i

i

i

i

+1_5VRUNVGA

t

t

t

t

12

c

c

C891

C891

c

c

NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

h

h

h

h
i

i

i

i

+1_5VRUNVGA

n

n

n

n
g

g

g

g

12

C895

C895
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

C

C

C

C
a

a

a

a
p

p

p

p
s

s

s

s

2

12

12

C893

C893
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

12

C896

C896
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VRAM(BYPASS) 2/2

VRAM(BYPASS) 2/2

VRAM(BYPASS) 2/2

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

12

C892

C892
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

C897

C897
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

C894

C894
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C902

C902
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

Rains

Rains

Rains

Monday, January 31, 2011 14:12:44

Monday, January 31, 2011 14:12:44

Monday, January 31, 2011 14:12:44

12

C900

C900
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

12

C901

C901
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

47 63

Sheet of

47 63

Sheet of

47 63

0.1

0.1

0.1

5

4

3

2

1

BACO circuit

+5VRUN

12

R6328

R6328
NC_1K_J

NC_1K_J

0402

0402

PX_EN##

PX_EN#PX_EN#

61

D

D

Q3608B

Q3608B

G

G

2

S

S

NC_2N7002DW-7-F

NC_2N7002DW-7-F

12

C6473

C6473
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

G

G

5

+5VRUN

12

R6327

R6327
NC_1K_J

NC_1K_J

0402

0402

34

Q3608A

Q3608A

D

D

S

S

NC_2N7002DW-7-F

NC_2N7002DW-7-F

Need modify for ATi request low Rds(on)

D D

C C

B B

+1_0VPEG

Q3605

Q3605

S

S

D

D

32

G

G

NC_PMV30UN

NC_PMV30UN

1

Need modify for ATi request low Rds(on)

VDD_CORE

Q3607

Q3607

S

S

D

D

32

G

G

NC_PMV30UN

NC_PMV30UN

1

PX_EN##

Q3606

Q3606

3 2

D

D

1

Q3609

Q3609

3 2

D

D

1

S

S

G

G

NC_PMV30UN

NC_PMV30UN

S

S

G

G

NC_PMV30UN

NC_PMV30UN

BIF_VDDC

R6329

R6331

PX_EN36

DGPU_PWR_EN59,60

DGPU_PWR_EN#15,59

NC_0_J

NC_0_J

1 2

NC_0_J

NC_0_J

1 2

0603R6329

0603

0402R6331

0402

VDD_CORE

NC_10K_J

NC_10K_J

1

1

0402

0402

G

G

R6330

R6330

+3VRUN

G

G

+3VRUN

12

32

D

D

S

S

12

32

D

D

Q3610

Q3610

NC_2N7002-7-F

NC_2N7002-7-F

S

S

R6333

R6333
NC_10K_J

NC_10K_J

0402

0402

DGPU_PWR_EN

Q3611

Q3611

NC_2N7002-7-F

NC_2N7002-7-F

+3VRUN

U3016

U3016

53

R6332

NC_0_J

NC_0_J

1 2

+3VRUN

53

1

2

1

4

2

NC_74AHC1G08GW

NC_74AHC1G08GW

0402R6332

0402

U3017

U3017

4

NC_74AHC1G08GW

NC_74AHC1G08GW

RUN_PWRGD4,12,25,55,56

If non-BACO function
R6903 and R7712 stuff
R7713 and U6902 NC

PX_MODE

DGPU_PWROK11,15,25,59

12

C6474

C6474
NC_0.1U_6.3V_K

NC_0.1U_6.3V_K

0201_X5R

0201_X5R

PX_MODE

DGPU_PWR_ON

1

2

+3VRUN

53

U3015

U3015

4

NC_74AHC1G08GW

NC_74AHC1G08GW

PX_MODE 59,60

Non-BACOBACO

R6903,R7712,PR387,PR256

Q7703,Q6903,Q7705,Q7706,
R7713,R27,Q7707,U7705,

A A

C7716,U7702,C7715,R7710,
Q6801,R7711,U6902

U6902

5

NC

Stuff

NC NC

4

Stuff

NC

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

VGA (BACO)

VGA (BACO)

VGA (BACO)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

3

2

Monday, January 31, 2011 14:12:43

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

48 63

Sheet of

48 63

Sheet of

48 63

0.1

0.1

0.1

5

SI Stage Power Modify
9/9
P56. PU12 Footprint Change to QFN_11P_20_118X118_TH62x95 for SMT issue

9/11
P59,P60 +5VSUS change to +5VALW for Quiescent current

9/13
P51. DC_IN connector PCN1 change to 1N-000400A-MKG0 GS73071-10272-7H

D D

9/15
P57. PL19 change to CTX17-18765-R

9/16
P60. PQ49 Footprint change to QFN_5P_26_130 X 130

9/23
P57. PR190,PR195,PR255,PR256 13.7K 0402 1% change to 19.1K 0402 1% for loadline
PR196 change to 8.06K 1% 0402 for SV(48A) IMON
P54. PR301 change to 51.1K 1% 0402 for USB Voltage Drop

9/28
P59. Del PJ27 for space issue.

9/29
P58. PR184 change to 5.36K 1% 0402 for GFX_IMON

10/4
P51. Add PJ20 close jump for test reserve
P52. Add PJ27 close jump for test reserve

10/6
P54. Add PR119,PR120,PC103,PC109 2.2ohm & 680p for EMC request

10/8
P59. PR240 change to 100K_F for sequence
P54. PR306 change to 232K for 5VALW OCP point
PR308 change to 301K for 3VALW OCP point

C C

SI2 Stage Power Modify
10/30
P53. Add PJ17,PJ32,PJ33,PJ34,PJ35 for IINP accuracy issue

PV Stage Power Modify
11/16
P59. PR241 change to 2.67K for output voltage drop

PV Stage Power Modify
11/17
P51. Del PJ20 close jump,PL1 PL2 change to stuff for EMC request
P52. Del PJ27 close jump,PL3 PL4 change to stuff for EMC request
P53. Add PC421 for acoustic issue

B B

PV Stage Power Modify
11/19
P51. PR2 change to 1.47K ohm
PR3 change to 604 ohm for LED lighting issue
PR4,PR8,PU1A,PR6,PR7,PQ1 change to no stuff

MV Stage Power Modify
12/15
P59. PR240 From vendor YEAGO to TA-I for buyer request
Add PD49 BAT54 for abnormal waveform issue

MV Stage Power Modify
12/25
Del P53.PJ2,P54.PJ18 PJ19, P56.PJ9, P59.PJ24 for L6 require

MV Stage Power Modify
12/30
P58. PC420 change to 220U/6.3V
P53. PC421 change to 47U/25V

4

3

2

1

A A

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

Power History

Power History

Power History

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:46

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

49 67

Sheet of

49 67

Sheet of

49 67

0.1

0.1

0.1

5

DCBATOUT

DCBATOUT

Adaptor

19.5V

D D

C C

90W

MAX 8731A
SMBus L2

DCBATOUT

DCBATOUT

ALW_ON

RUN_ON1

SUS_ON

RUN_ON1

Battery Charger
Switch Mode

PAGE 51

+5VALW

+1_05VRUN_EN

4

TI
TPS51125RGER
For System Power

EN1

EN2

PAGE 52

MPS
NB634EL-C285-LF-Z
For +1_8VRUN

EN_PSV

PAGE 53

RICHTEK
RT8207GQW
For DDR3

SHDN#

STDBY#

PAGE 54

VOLTERRA
VT358FCX-ADJ
For +1_05VRUN

EN_PSV

PAGE 55

LDO

PGOOD1

PGOOD2

PGOOD

VTTR

PGOOD1

PGOOD2

PGOOD

12A

+5VALW/12A

5A

+3VALW/5A

+5VALW_LDO

ALW_PWRGD

5A

15.51A

2.1A

DDRDIMM_VREF

SUS_PWRGD

4.84A

3

SUS_ON

SUS_ON

+5VALW_LDO

N-Channel
MOSFET

N-Channel
MOSFET

LDO
TPS79333

2

+5VSUS/0.18A

+3VSUS/1.38A

+ECVCC/0.032A

RUN_ON

RUN_ON

N-Channel
MOSFET

N-Channel
MOSFET

1

+5VRUN

+3VRUN/3.94A

+1_8VRUN/5A

+1_5VSUS/12.1A

RUN_ON

N-Channel
MOSFET

+1_5VRUN/8.06A

+0_75VRUN/2.1A

+1_5VRUN

RUN_ON1

LDO

RT9018B

PEX_VDD/2.21A

+1_05VRUN/6.91A

+5VALW

B B

IMVP_VR_ON CLK_EN#

Battery Pack
56Wh
85Wh

GFX_VR_EN

A A

5

+5VALW

RUN_ON_GPU

VOLTERRA
VT1312MFQX+VT1314SFCX
FOR CPU Core

SHDN#

+5VALW

VOLTERRA
VT1313MFQX+VT1313SFCX
FOR GPU

EN/PSV

VOLTERRA
VT1313MFQX+VT1317SFCX
For AT_VDD

EN

4

PAGE 57

PAGE 56

PAGE 58

CLK_EN#

PGOOD

PGOOD

36A

IMVP_PWRGD_PWMPWRGD

GFX_PWRGD

36A

RUN_GPU_PWRGD

3

VHCORE/52A

+GFXCORE/16A

AT_VDD/36A

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_Power Design Diagram

PWR_Power Design Diagram

PWR_Power Design Diagram

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

2

Monday, January 31, 2011 14:12:42

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

50 67

Sheet of

50 67

Sheet of

50 67

0.1

0.1

0.1

5

DC_JACK
Wire to Board
CONNECTOR

D D

SMDFIX2

SMDFIX2

1
2

3
4

5
6

7

SMDFIX1

SMDFIX1

PCN1

PCN1

8 9

C TO B CONN_7P

C TO B CONN_7P

FOX_GS73071-10272-7H

FOX_GS73071-10272-7H

DC Jack Pin Defination:
pin1:DC_INP (3.5A)
pin2:DC_INP (3.5A)
pin3:DC_ID (3.5A)
pin4:GND (3.5A)
pin5:GND (3.5A)
pin6:LED for AC present (3.5A)
pin7:LED for Charging (3.5A)

7A

DC_INP

DC_ID

21

PD1

PD1
NC_BZT52C6V8-7-F

NC_BZT52C6V8-7-F

12

PC2

PC2

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

4

PL1

PL1
60-100MHZ_1806

60-100MHZ_1806

BLM41PG600SN1L

BLM41PG600SN1L

PL2

PL2
60-100MHZ_1806

12

PC3

PC3
1000P_50V_K

1000P_50V_K

0402_X7R

0402_X7R

60-100MHZ_1806

BLM41PG600SN1L

BLM41PG600SN1L

3

TP1238

TP1238
tpc30t_50

tpc30t_50

DC_INP

1

TP1239

TP1239
tpc30t_50

tpc30t_50

DC_ID

1

TP1240

TP1240
tpc30t_50

tpc30t_50

AC_LED

1

TP1241

TP1241
tpc30t_50

tpc30t_50

CHAR_LED

DCIN

SI

1

BFT Test Pad

2

1

C C

B B

A A

12

PC4

PC4
NC_0.1U_50V_K

NC_0.1U_50V_K

0603_X7R

0603_X7R

AC_LED

CHAR_LED

12

PC5

PC5

0.01U_25V_M

0.01U_25V_M

0402_X7R

0402_X7R

5

12

PC6

PC6

0.01U_25V_M

0.01U_25V_M

0402_X7R

0402_X7R

+3VALW +3VALW

12

32

D

D

S

S

PR2

PR2

1.47K_F

1.47K_F

0402

0402

PQ3

PQ3

2N7002-7-F

2N7002-7-F

G

G

12

32

D

D

S

S

1

4

PR3

PR3

604_F

604_F

0402

0402

PQ2

PQ2

2N7002-7-F

2N7002-7-F

1

G

G

EC_CHAR_LED#_A 25

EC_AC_LED#_A 25

+3VALW

12

12

PR5

PR5

PR4

PR4

130K_F

130K_F

NC_75K_F

NC_75K_F

0402

0402

0402

0402

12

12

PR8

PR8

PR9

PR9

NC_120K_F

NC_120K_F

24.3K_F

24.3K_F

0402

0402

0402

0402

12

PC7

PC7

0.1U_25V_Y

0.1U_25V_Y

0402_Y5V

0402_Y5V

3

PR1

PR1

1 2

NC_0_J

NC_0_J

0402

0402

3

IN+

IN+

2

IN-

IN-

+3VALW

4 8

PU1A

PU1A

VCC

VCC

OUT

OUT

GND

GND

NC_LM393DR

NC_LM393DR

null

null

+3VALW

12

PR6

PR6

NC_10K_F

NC_10K_F

0402

0402

1

PR37

PR37
0_J

0_J

0402

0402

1 2

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_DCIN

PWR_DCIN

PWR_DCIN

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

2

Page Modified:

+3VALW

12

PR7

PR7

NC_10K_F

NC_10K_F

0402

0402

PQ1

PQ1

C

C

1

B

B

E

E

NC_MMBT2222A-7-F

NC_MMBT2222A-7-F

2 3

null

null

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

1

OCP_OC# 25

SMART_ID 25

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

51 67

Sheet of

51 67

Sheet of

51 67

0.1

0.1

0.1

5

D D

C C

DAT_SMB25,53
CLK_SMB25,53

BATT_THER_ALERT#25

B B

A A

5

4

+ECVCC

PR11 100_J 0402PR11 100_J 0402

1 2

PR12 100_J 0402PR12 100_J 0402

1 2

PR13 100_J 0402PR13 100_J 0402

1 2

4

PC9

PC9

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

12

PR10

PR10

100K_J

100K_J

0402

0402

HEARD7_SMD
HEARD7_SMC

HEARD7_THER

3

1 2

NC_BAV99LT1G

NC_BAV99LT1G

PD5

PD5

12

PC8

PC8

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

3

BT+

12

3

1 2

BAV99LT1G

BAV99LT1G
PD3

PD3

TP1242

TP1242
tpc30t_50

tpc30t_50

1

TP1243

TP1243
tpc30t_50

tpc30t_50

1

TP1244

TP1244
tpc30t_50

tpc30t_50

1

TP1245

TP1245
tpc30t_50

tpc30t_50

1

BFT Test Pad

SI

3

PL3

PL3
60-100MHZ_1806

60-100MHZ_1806

BLM41PG600SN1L

BLM41PG600SN1L

PL4

PL4
60-100MHZ_1806

60-100MHZ_1806

BLM41PG600SN1L

BLM41PG600SN1L

+3VALW

HEARD7_BT+

HEARD7_SMD

HEARD7_SMC

HEARD7_THER

3

1 2

BAV99LT1G

BAV99LT1G
PD4

PD4

2

78

PTH1

6
5

4
3

2
1

PTH1

PTH2

PTH2

PCN2

PCN2

BATTERY CONN_6P

BATTERY CONN_6P

FOX_BP12061-B54E1-9H

FOX_BP12061-B54E1-9H

2

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_Battery Conn.

PWR_Battery Conn.

PWR_Battery Conn.

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

B

B

B

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

Page Modified:

Monday, January 31, 2011 14:12:42

HEARD7_BT+

+3VALW+3VALW

1

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

52 67

Sheet of

52 67

Sheet of

52 67

0.1

0.1

0.1

5

4

3

2

1

DCIN

6A

D D

C C

B B

AC_OFF25

0.01U_25V_K

0.01U_25V_K

0603_X7R

0603_X7R

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

ADAPT_OC_IINP25

12

12

PC11

PC11

PC10

PC10

12

PR17

PR17
100K_J

100K_J

0402

0402

AC_OFF#

12

PR22

PR22

68K_J

68K_J

0402

0402

32

D

D

AC_OFF

1

G

G

PQ10

PQ10

S

S

2N7002-7-F

12

PR26

PR26
100K_J

100K_J

0402

0402

IINP :

1. The transconductance from (CSSP - CSSN) to IINP is 3mA/V.

2. V_IINP = IINPUT x PR14 x 3mA/V x PR33

2N7002-7-F

PR31

PR31
0_J

0_J

0402

0402

1 2

12

23

PQ8

PQ8

S

S

G

G

1

D

D

PMV65XP

PMV65XP

12

PR33

PR33

20K_F

20K_F

0402

0402

1 2

PC12

PC12

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

DCIN_OFF

PC29

PC29

0.1U_16V_K

0.1U_16V_K

0402_X5R

0402_X5R

12

12

PR34

PR34

10K_F

10K_F

0402

0402

1 2

1 2

3
2

1

PR18

PR18
240K_F

240K_F

0402

0402

PR24

PR24
240K_F

240K_F

0402

0402

PC30

PC30

0.01U_25V_K

0.01U_25V_K

0402_X7R

0402_X7R

D

D

S

S

CLK_SMB25,52

DAT_SMB25,52

G

G

4

M31AAGND

0.01U_25V_K

0.01U_25V_K

1 2

0402_X7R

0402_X7R

PQ4

PQ4

FDMC4435BZ

FDMC4435BZ

null

null

PC31

PC31

5

200K_F

200K_F

PR19

PR19

0402

0402

PR23

PR23

33K_F

33K_F

0402

0402

DCINPMOS

12

12

M31AAGND

PR39 0_J 0402PR39 0_J 0402

1 2

1 2

PR41 0_J 0402PR41 0_J 0402

PC32

PC32

0.01U_25V_K

0.01U_25V_K

1 2

0402_X7R

0402_X7R

12

+ECVCC

CLOSE TO EC

M31AACIN

PC16

PC16

0.01U_25V_M

0.01U_25V_M

0402_X7R

0402_X7R

ACIN_EC25

D

D

5

12

PC17

PC17
1U_25V_M

1U_25V_M

0603_X5R

0603_X5R

M31AAGND

12

PC33

PC33

1U_6.3V_M_B

1U_6.3V_M_B

0402_X5R

0402_X5R

FDMC4435BZ

FDMC4435BZ

G

G

4

12

32

D

D

S

S

12

PC26

PC26

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

PQ5

PQ5

null

null

S

S

PR20

PR20
10K_J

10K_J

0402

0402

G

G

PQ9

PQ9

2N7002-7-F

2N7002-7-F

DCINPMOS

M31AACIN

M31AACOK

M31ASCL

M31ASDA

M31AIINPM31AIINP

M31ACCV

M31ACCI

M31ACCS

M31AREF

12

PC34

PC34

0.1U_16V_K

0.1U_16V_K

0402_X5R

0402_X5R

1

M31ADAC

3
2

1

M31AACOK#

M31AACOK

1 2

PR16

PR16
100K_J

100K_J

0402

0402

22

2

13

14

11

10

9

8

6

5

4

3

7

PR40

PR40
0_J

0_J

0402

0402

1 2

DCIN

ACIN

ACOK

BATSEL

VDD

SCL

SDA

IINP

CCV

CCI

CCS

REF

DAC

PR14

PR14

0.01_0.5W_F

0.01_0.5W_F

1206

1206

1 2

PJ17

PJ17
jump_gap_close_40x50

jump_gap_close_40x50

2 1

M31ACCSP

28

CSSP

GND_2

EP

12

29

12

PR38

PR38

0402

0402

10K_F

10K_F

12

PR42

PR42

15.8K_F

15.8K_F

0402

0402

6A

PJ32

PJ32
jump_gap_close_40x50

jump_gap_close_40x50

2 1

M31ACCSN

PU2

PU2
MAX8731AETI+

MAX8731AETI+

27

M31AVCC

26

CSSN

VCC

M31ALDO

21

LDO

PC23

PC23

1U_10V_K

1U_10V_K

0603_X7R

0603_X7R

M31ABST

25

BST

M31ADHI

24

DHI

M31ALX

23

LX

M31ADLO

20

DLO

19

PGND

M31ACSIP

18

CSIP

M31ACSIN

17

CSIN

M31AFBSA M31AFBSA_BT+

15

FBSA

M31AFBSB

16

FBSB

GND_1

1

M31AAGND

M31ALDO

M31AACOK

DCBATOUT

M31ALDO

1 2

PC18

PC18

1U_10V_K

1U_10V_K

0603_X7R

0603_X7R

1 2

M31AAGND

PC24

PC24

3300P_50V_K

3300P_50V_K

0603_X7R

0603_X7R

PR25

PR25
33_J

33_J

0402

0402

M31AAGND

1 2

1 2

TPC60B_75

TPC60B_75

1 2

PR27

PR27
0_J

0_J

0603

0603

1 2

PR32

PR32
100_J

100_J

0402

0402

TP856

TP856

1

PD6

PD6

RB501V-40GTE-17

RB501V-40GTE-17

1 2

M31ALDOIN

12

PC25

PC25

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

TP858

TP858
tpc60t_100

tpc60t_100

1

1 2

PR35

PR35
100_J

100_J

0402

0402

12

+

PC421

+

PC421

47U_25V_M

47U_25V_M

6.3x5.8

6.3x5.8

TP857

TP857

tpc60t_100

tpc60t_100

BT+

PQ6

DCINPMOS

PQ6

3

D

D

S

S

2

5

1

G

G

4

FDMC4435BZ

FDMC4435BZ

null

null

12

PR21

PR21
470K_J

470K_J

0402

0402

8A

3A

12

12

PC20

PC20

PC19

PC19

10U_25V_K

10U_25V_K

10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

0805_X5R

0805_X5R

1

5

PQ51

PQ51

D

D

G

G

4

S

S

FDMC8884

FDMC8884

2

3

1

G

G

4

1

5

S

S

2

D

D

3

12

PQ52

PQ52

FDMC8884

FDMC8884

PC35

PC35
1000P_50V_K

1000P_50V_K

0402_X7R

0402_X7R

12

PC28

PC28
NC_2200P_50V_M

NC_2200P_50V_M

0603_X7R

0603_X7R

12

PR30

PR30
NC_2.2_J

NC_2.2_J

0603

0603

tpc60t_100

tpc60t_100

6.8UH_4.5A_0.06R

6.8UH_4.5A_0.06R

PCMC063T-6R8MN

PCMC063T-6R8MN

jump_gap_close_40x50

jump_gap_close_40x50

12

PC36

PC36
1000P_50V_K

1000P_50V_K

0402_X7R

0402_X7R

TP859

TP859

PL5

PL5

PJ33

PJ33

M31ACSIP_1

jump_gap_close_40x50

jump_gap_close_40x50

2 1

1

12

PC37

PC37
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

12

PC38

PC38
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

12

PC39

PC39
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

12

PC40

PC40
1000P_50V_K

1000P_50V_K

0402_X7R

0402_X7R

BT+

12

PC21

PC21
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

PR29

PR29

0.01_0.5W_F

0.01_0.5W_F

1206

1206

1 2

PJ34

PJ34

4A

2 1

12

PC22

PC22

0.01U_25V_K

0.01U_25V_K

0402_X7R

0402_X7R

2 1

BT+

PJ35

PJ35
jump_gap_close_40x50

jump_gap_close_40x50

A A

5

4

3

M31AAGND

1 2

0603

0603

0_J

0_J
PR43

PR43

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_Charger

PWR_Charger

PWR_Charger

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

2

Monday, January 31, 2011 14:12:45

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

53 67

Sheet of

53 67

Sheet of

53 67

0.1

0.1

0.1

5

DCBATOUT

12

PC147

PC147

D D

+5VALWP

12

+

+

PC56

PC56

150U_6.3V_M

150U_6.3V_M

C C

B B

A A

5A

12

12

0805_X5R

0805_X5R

12

PC89

PC89
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

5

12

PC157

PC157

PC162

PC162

10U_25V_K

10U_25V_K

10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

PL7

PL7

2.2UH-100KHZ_14A_0.07R

2.2UH-100KHZ_14A_0.07R

PCMB104E-2R2MS

PCMB104E-2R2MS

1 2

PJ4

PJ4

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

PJ21

PJ21

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

0805_X5R

0805_X5R

PQ23

PQ23

FDMC7692

FDMC7692

0.1U_16V_M

0.1U_16V_M

0402_X5R

0402_X5R

3

PC113

PC113

5

D

D

S

S

2

12

12

+5VALW+5VALWP

G

G

4

1

PR120

PR120

2.2_F

2.2_F

1206

1206

PC109

PC109

680P_50V_K

680P_50V_K

0402_X7R

0402_X7R

12

12

PC144

PC144

0.1U_16V_M

0.1U_16V_M

0402_X5R

0402_X5R

PQ13

PQ13

FDMC7692

FDMC7692

PQ15

PQ15

FDMS0312S

FDMS0312S

+5VAD3

M020AGND

ALW_ON25

5

D

D

S

S

2

3

5

D

D

S

S

2

3

1

2

1

2

PR303

PR303
100K_F

100K_F

0402

0402

1 2

M020SECFB

12

PR309

PR309
20K_F

20K_F

0402

0402

1

1

PD12

PD12

BAT54S-7-F

BAT54S-7-F

PD13

PD13

BAT54S-7-F

BAT54S-7-F

PC161

PC161

10U_25V_K

10U_25V_K

0.1U_25V_Y

0402_Y5V

0.1U_25V_Y

0402_Y5V

12

+

+

PC86

PC86

3.5x2.8x1.9

3.5x2.8x1.9

3.5x2.8x1.9

3.5x2.8x1.9

150U_6.3V_M

150U_6.3V_M

+12VSYS

12

PC90

PC90
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

4

DCBATOUT

+5VALW +/-5%
Thermal Design Current: 14A
OCP min: 19.6 A

M020DH1

PR121

M020BST1RC

12

PR317

PR317
10_J

10_J

0603

0603

M020ON1

PC350

PC350
NC_0.1U_16V_M_B

NC_0.1U_16V_M_B

0402_X5R

0402_X5R

M020ON2

PR121

0_J

0_J

0603

0603

1 2

M020AGND

ALW_PWRGD12,25

M020BST1

M020LX1

M020DL1

+5VALWP

M020SECFB

5VALWFB1

M020LDO

M020VCC

M020ILIM1

G

G

G

G

TP860

TP860
tpc60t_100

tpc60t_100

4

1

M020DL1

4

+5VAD1

3

+5VAD2

3

TP861

TP861
tpc60t_100

tpc60t_100

1 2

1 2

M020LDO

PR312

PR312

1 2

0402

0402

100_J

100_J

PR315

PR315

1 2

0402

0402

100_J

100_J

4

PC112

PC112

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

1 2

1

PC140

PC140

0.1U_16V_M

0.1U_16V_M

0402_X5R

0402_X5R

PC138

PC138

0.1U_16V_M

0.1U_16V_M

0402_X5R

0402_X5R

12

PC345

PC345

4.7U_6.3V_K

4.7U_6.3V_K

0603_X5R

0603_X5R

12

PC349

PC349
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

12

PC348

PC348
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

M020AGND

12

PR299

PR299
0_J

0_J

0603

0603

1 2

15

17

16

18

9

10

20

11

7

19

3

8

12

+3VALW

PR313

PR313
10K_J

10K_J

0402

0402

PU3

PU3

HGATE1

BOOT1

PHASE1

LGATE1

LDO_SW

OUT1

CP_FB

FB1

LDO

PVCC

VCC

LDOREFIN

ILIM1

PM6686

PM6686

null

null

M020AGND

12

3

M020IN

PR314

PR314
100_J

100_J

0402

0402

1 2

PR316

PR316
100_J

100_J

0402

0402

1 2

3

1 2

PC110

PC110
1U_25V_M

1U_25V_M

0603_X5R

0603_X5R

6

VIN

THERMAL PAD

PR125

PR125

1 2

0_J

0_J

0603

0603

M020PGOOD1

M020PGOOD2

+3VALW +/-5%
Thermal Design Current: 5A
OCP min: 7 A

M020DH2

26

HGATE2

BOOT2

PHASE2

LGATE2

PGND

REFIN2

VREF2

VREF3

EN_LDO

OUT2

ILIM2

GND

PG1

PG2

TON

SKIP

EN1

EN2

PR123

PR123
0_J

0_J

0603

0603

M020BST2

24

M020LX2

25

M020DL2

23

22
21

33

3V3ALWFB1

30

M020PGOOD1

13

M020PGOOD2

28

M020REFIN2

32

M020TON

2

M020REF

1

M020RTC

5

M020SKIP#

29

M020ONLDO

4

M020ON1

14

M020ON2

27

M020ILIM2

31

M020LDO +ECVCC

M020AGND

M020AGND

PR304

PR304
0_J

0_J

0402

0402

M020AGND

PC346

PC346

1U_6.3V_M_B

1U_6.3V_M_B

0402_X5R

0402_X5R

12

M020AGND

1 2

1 2

12

PC344

PC344

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

12

PC343

PC343

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

1 2

M020BST2RC

PR300

PR300
0_J

0_J

0402

0402

PR122

PR122
0_J

0_J

0402

0402

1 2

PR124

PR124
NC_10K_J

NC_10K_J

0402

0402

PR311

PR311
0_J

0_J

0402

0402

1 2

M020VCC

M020AGND

PC111

PC111

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

1 2

12

2

M020RTC

2

TP864

TP864
tpc60t_100

tpc60t_100

1

M020VCC

PU22

PU22

1

VIN

2

GND

3

SHDN#

FP6146-33S5GTR

FP6146-33S5GTR

null

null

1.5A

5

TP863

TP863

D

D

tpc60t_100

tpc60t_100

G

G

4

1

PQ12

PQ12

S

S

FDMC8884

FDMC8884

2

3

1

5

PQ14

PQ14

D

FDMC8884

D

FDMC8884

null

null

G

G

4

S

S

2

3

1

M020ILIM2

3V3ALWFB1

M020ILIM1

5VALWFB1

120mA

5

VOUT

4

NC

PC347

PC347
1U_6.3V_M_B

1U_6.3V_M_B

0402_X5R

0402_X5R

1 2

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

5V/3.3V

5V/3.3V

5V/3.3V

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Page Modified:

Page Modified:

DCBATOUT

12

12

PC128

PC128

0805_X5R

PC130

PC130

+5VALWP +3VALW

M020AGND M020AGND

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

Monday, January 31, 2011 14:12:46

0805_X5R

10U_25V_K

10U_25V_K

0402_Y5V

0402_Y5V

0.1U_25V_Y

0.1U_25V_Y

PL12

PL12

2.2UH_6.5*6.9*3

2.2UH_6.5*6.9*3

PCMC063T-2R2MN

PCMC063T-2R2MN

12

PR119

PR119

2.2_F

2.2_F

0805

0805

12

PC103

PC103
680P_50V_K

680P_50V_K

0402_X7R

0402_X7R

12

PR301

PR301

51.1K_F

51.1K_F

0402

0402

12

12

PR306

PR306

PR305

PR305

232K_F

232K_F

0402

0402

8.06K_F

8.06K_F

0402

0402

M020AGND M020AGND

HEART DIS

HEART DIS

HEART DIS

1

12

PC129

PC129

0805_X5R

0805_X5R

10U_25V_K

10U_25V_K

+3VALW

12

12

+

+

PC115

PC115

PC127

PC127

3.5x2.8x1.9

3.5x2.8x1.9

100U_6.3V_M

100U_6.3V_M

12

PR302

PR302
0_J

0_J

0402

0402

12

12

PR308

PR308

PR307

PR307
NC_49.9K_F

NC_49.9K_F

301K_F

301K_F

0402

0402

0402

0402

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

54 67

Sheet of

54 67

Sheet of

1

54 67

0805_X5R

0805_X5R

10U_6.3V_M

10U_6.3V_M

0.1

0.1

0.1

5

4

3

2

1

D D

+1.05VVDD

12

PC116

G5

VX_1

VDD_6

VX_2

VX_3
VX_4

VX_5

VX_6
VX_7

VX_8
VX_9

VX_10

VDES

GND_9

G3

PU6

PU6

F1
F2

F3
F4

F5

D1
D2

D3
D4

D5

A4

A3

VT358FCX-ADJ

VT358FCX-ADJ

PR373

PR373
453K_F

453K_F

0402

0402

PC116
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

+1.05VVDES

1 2

PR79

PR79
10_J

10_J

0603

0603

1 2

PC120

PC120

0.22U_10V

0.22U_10V

0402_X5R

0402_X5R

1.05V_AGND

C C

+1.05VIRIPL

B2

B3

B4

C4

C5

E4

E5

G4

IRIPL

AVDD

TEMP

VDD_1

VDD_2

VDD_3

VDD_4

+1.05V_STATE

B5

STAT

+1.05VOE +1.05V_PHASE1_L

A5

OE

A2

R_SEL/ILOAD

A1

BIAS

VDD_5

VSENSE+

12

PR84

PR84

12

2.43K_F

2.43K_F

PR86

PR86

0402

0402

44.2K_F

44.2K_F

0402

0402

B B

1 2

1.05V_AGND

RUN_PWRGD4,12,25,48,56

A A

1 2

1.05V_AGND

PR132

PR132

0_J

0_J

0603

0603

RUN_PWRGD

RUN_ON125

PR85

PR85

44.2K_F

44.2K_F

PR118

PR118
100_J

100_J

0402

0402

1 2

AGND_2

B1

PR116

PR116
0_J

0_J

0402

0402

1 2

GND_1

C1

C2

+3VALW

12

PC139

PC139

0.01U_10V_K

0.01U_10V_K

0402_X7R

0402_X7R

GND_2

GND_3

GND_4

GND_5

GND_6

GND_7

GND_8

E1

E2

E3

C3

G1

G2

12

PR117

PR117
10K_J

10K_J

0402

0402

+1.05V_STATE

+1.05VOE

PR87

PR87

42.2K_F

42.2K_F

0402

0402

1 2

12

PC117

PC117
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

PL10

PL10

0.1UH_32.5A_0.0017R

0.1UH_32.5A_0.0017R

PCMB063T-R10MS

PCMB063T-R10MS

+5VALW

2 1

12

PC118

PC118

0.1U_50V_K_B

0.1U_50V_K_B

0603_X7R

0603_X7R

PC134

PC134

2200P_16V_K

2200P_16V_K

0402_X7R

0402_X7R

PJ11

PJ11
jump_gap_open_47x94_c

jump_gap_open_47x94_c

5A

PC119

PC119
1U_25V_K

1U_25V_K

0603_X5R

0603_X5R

12

12

PC121

PC121

PC122

PC122

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

Rdes=PR373//PR87
=453K//42.2K
=38.6K Ohm

Vout=1.211V*(Rdes/Rbias)
=1.057V

PR88

PR88
0_J

0_J

0402

0402

VTT_SENSE

VSS_SENSE_VTT

1 2

PR83

PR83
0_J

0_J

0402

0402

1 2

tpc60t_100

tpc60t_100

12

PC123

PC123
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

TP862

TP862

1

+1.05VRUNP

+1.05VRUNP

12

12

12

PC124

PC124
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

PR127

PR127
100_J

100_J

0402

0402

PR128

PR128
100_J

100_J

0402

0402

PC125

PC125
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

VTT_SENSE 6

VSS_SENSE_VTT 6

PC126

PC126
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

+1.05VRUNP

PJ12

PJ12

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

PJ14

PJ14

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

PJ16

PJ16

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

19A

12

PC132

PC132

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

+1_05V_VTT

12

PC133

PC133
6800P_25V_K

6800P_25V_K

0402_X7R

0402_X7R

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_+1_05V

PWR_+1_05V

PWR_+1_05V

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

Monday, January 31, 2011 14:12:46

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:46

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

55 67

Sheet of

55 67

Sheet of

55 67

0.1

0.1

0.1

5

D D

PR64

PJ30

PJ30

2 1

RUN_ON25,60

PR64

100K_F 0402

100K_F 0402

1 2

+5VALW

NEED 3A CURRENT

12

PC99

PC99
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

PR66

PR66

100_J 0402

100_J 0402

SUS_ON25,60

SUS_PWRGD25

C C

B B

12

PR270

PR270

0_J

0_J

0402

0402

1 2

+3VALW

12

PC72

PC72
NC_0.1U_16V_K

NC_0.1U_16V_K

0402_X5R

0402_X5R

PR76

PR76
100K_J

100K_J

0402

0402

1 2

+1.5V_PGD

+5VALW

RUN_PWRGD4,12,25,48,55

PR70 0_J 0603PR70 0_J 0603

1 2

jump_gap_open_47x94_c

jump_gap_open_47x94_c

DCBATOUT

PR68 10_F 0402PR68 10_F 0402

1 2

PR339

PR339
0_J

0_J

0402

0402

+1.8_VIN

12

+1.8_VDD

PR36

PR36

10_J

10_J

0603

0603

12

PC80

PC80
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

4

DDRDIMM_VREF

1 2

PR65

PR65
698K_F

698K_F

0402

0402

12

PR67

PR67
1M_F

1M_F

0402

0402

1 2

3

12

PR63

PR63

_0_J

_0_J

0402

0402

12

PC64

PC64

+1.5V_VDD

0.047U_16V_K

0.047U_16V_K

0402_X7R

0402_X7R

7

NC_1

+1.5VSUSP

8

VDDQ

9

FB

10

S3

11

S5

12

TON

PC74

PC74
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

1 2

12

PC73

PC73
1U_10V_K

1U_10V_K

0402_X5R

0402_X5R

5

PU12

PU12

9

10

8

11

2

LX_1

PVIN_1

EN

3

LX_2

PVIN_2

SVIN

6

FB

GND

NC_1

PG

NC_2

SYP302DBC

SYP302DBC

1

4

7

null

null

+1.8_LX

+1.8_FB

+1.5V_PGD

6

DEM

PGOOD

13

5

VTTREF

VDD

14

+1.5V_VDD

2

3

4

MODE

GND_1

VTTSNS

VDDP

CS

NC_2

15

16

17

+1.5V_CS

12

PR71

PR71

9.53K_F

9.53K_F

0402

0402

PL14

PL14

1.2UH_4.2A_0.021R

1.2UH_4.2A_0.021R

ELL5PR1R2N

ELL5PR1R2N

PU4

PU4

1

RT8207GQW

RT8207GQW

null

null

25

VTTGND

GND_2

+0.75V_VTT

24

VTT

+1.5VSUSP+1.5V_FB

23

VLDOIN

PR74 0_J 0402PR74 0_J 0402

1 2

22

BOOT

+1.5V_DH

21

UGATE

20

PHASE

19

LGATE

PGND

18

12

PR248

PR248

20K_F

20K_F

0402

0402

+1.5V_DL

47P_50V_J

47P_50V_J

0402_NPO

0402_NPO

1 2

PR232

PR232

40.2K_F

40.2K_F

0402

0402

TP865

TP865
tpc60t_100

tpc60t_100

PC98

PC98

12

TP867

TP867

1

+1.5V_VIN

5

tpc60t_100

tpc60t_100

G

G

4

2

1

+1.5V_LX

+1.5V_LX

5

PQ21

PQ21

D

D

G

G

G

G

4

4

1

S

S

FDMC7692

FDMC7692

2

3

1

1

null

null

12

PC95

PC95
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

D

D

S

S

PC65

PC65

0.1U_16V_K

0.1U_16V_K

0402_X5R

0402_X5R

PQ19

PQ19

FDMC7692

FDMC7692

3

null

null

5

PQ20

PQ20

D

D

S

S

FDMC7692

FDMC7692

2

3

null

null

12

PC68

PC68

0.1U_50V_K_B

0.1U_50V_K_B

0603_X7R

0603_X7R

1 2

12

12

PR69

PR69
NC_3.3_J

NC_3.3_J

0603

0603

PC77

PC77
NC_1000P_50V_K

NC_1000P_50V_K

0402_X7R

0402_X7R

12

PC94

PC94
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

PC66

PC66
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

12

12

PC70

PC70
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

PL8

PL8

0.82U-100KHZ_13A_0.082R

0.82U-100KHZ_13A_0.082R

PCMC063T-R82MN

PCMC063T-R82MN

1 2

PC81

PC81
NC_0.1U_16V_K

NC_0.1U_16V_K

0402_X5R

0402_X5R

+1.8VRUNP

2 1

12

PC67

PC67
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

3A

PC71

PC71
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

12

+1.5V_FB

PJ31

PJ31

jump_gap_open_47x94_c

jump_gap_open_47x94_c

12

PR72

PR72
NC_9.31K_F

NC_9.31K_F

0402

0402

12

PR73

PR73
0_J

0_J

0402

0402

3A

2

PJ8

PJ8

2A

2 1

+0.75VRUN

jump_gap_open_47x94_c

jump_gap_open_47x94_c

DCBATOUT

+1.5VSUSP

+1.5VSUSP

12

12

PC76

PC76

PC75

PC75

0.1U_16V_K

0.1U_16V_K

+

330U_2.5V_M

+

330U_2.5V_M

0402_X5R

0402_X5R

3.5x2.8x1.9

3.5x2.8x1.9

+1.8VRUN +/-5%
Thermal Design Current: 2.5A
OCP min: 4.5 A

+1.8VRUN

PJ10

PJ10

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

PJ23

PJ23

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

1

+1.5VSUS

14A

A A

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_+1_5V/+0_75V

PWR_+1_5V/+0_75V

PWR_+1_5V/+0_75V

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Page Modified:

5

4

3

2

Page Modified:

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

Monday, January 31, 2011 14:12:43

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

56 67

56 67

56 67

0.1

0.1

0.1

5

CLK_EN#19

IMVP_OK19,25

D D

PROCHOT#4

PM_DPRSLPVR6

IMVP_VR_ON25

0_J

0_J

PR151

0402PR151

0402

1 2

0_J

0_J

PR143

0402PR143

0402

1 2

0_J

0_J

PR92

0402PR92

0402

1 2

VT12VID6

33

0402PR197

0402

0402PR186

0402

0402PR189

0402

0402PR193

0402

0402PR187

0402

0402PR191

0402

0402PR192

0402

1 2

1 2

RSEL0

12

+1_05V_VTT

1 2

1 2

5

VT12VID5

VT12VID4

VT12VID3

VT12VID2

VT12VID1

VT12VID0

DCMDRP

PR200

PR200

20.5K_F

20.5K_F

0402

0402

PR101 1K_F 0402PR101 1K_F 0402

PR244 NC_1K_F 0402PR244 NC_1K_F 0402

GND_2

1

VID[5]

2

VID[4]

3

VID[3]

4

VID[2]

5

VID[1]

6

VID[0]

7

VDD

8

GND_1

0_J

0_J

0402PR97

0402

IMVP_IMON6

RSEL1

12

PR185

PR185

49.9K_F

49.9K_F

0402

0402

1 2

1 2

1 2

PR98 NC_1K_F 0402PR98 NC_1K_F 0402

PR102 1K_F 0402PR102 1K_F 0402

PR104 NC_1K_F 0402PR104 NC_1K_F 0402

1 2

1 2

1 2

PR150 NC_1K_F 0402PR150 NC_1K_F 0402

PR147 1K_F 0402PR147 1K_F 0402

PR145 1K_F 0402PR145 1K_F 0402

VID66

VID56

VID46

VID36

VID26

VID16

VID06

+5VALW

C C

B B

VID[6:0]=0100111

Boot voltage 1.0125V

VT12VID5

VT12VID6

DPRSLPVR

A A

1 2

VSSSENSE6

VCCSENSE6

+1_05V_VTT

12

12

PR199

PR199
10_J

10_J

0402

0402

PR96

PR96

82.5K_F

82.5K_F

0402

0402

PR93

PR93

2.15K_F

2.15K_F

0402

0402

DCMDRP

PR186

PR189

PR193

PR187

PR191

PR192

12

1 2

1 2

1 2

1 2

1 2

1 2

12

PC159

PC159

0.047U_16V_M

0.047U_16V_M

0402_X7R

0402_X7R

1 2

PR149 1K_F 0402PR149 1K_F 0402

1 2

PR246 NC_1K_F 0402PR246 NC_1K_F 0402

0_J

0_J

0_J

0_J

0_J

0_J

0_J

0_J

0_J

0_J

0_J

0_J

PC143

PC143

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

PR97

PR90 0_J 0402PR90 0_J 0402

PR103 NC_1K_F 0402PR103 NC_1K_F 0402

PR144 1K_F 0402PR144 1K_F 0402

0_J

0_J

PR197

1 2

32

9

RSEL2

12

PR194

PR194

11.3K_F

11.3K_F

0402

0402

1 2

PR99 1K_F 0402PR99 1K_F 0402

1 2

PR148 NC_1K_F 0402PR148 NC_1K_F 0402

CPU_OE

DPRSLPVR

31

30

OE

VID[6]

DPRSLPVR

VT1312MFQX

VT1312MFQX

DCMDRP

SENSE-

SENSE+

10

11

1 2

1 2

PR100 1K_F 0402PR100 1K_F 0402

1 2

1 2

PR245 NC_1K_F 0402PR245 NC_1K_F 0402

RSEL0

VT12VID0

VT12VID1

VT12VID2

VT12VID3

VT12VID4

+3VRUN

+1_05V_VTT

12

12

12

PR89

PR89

PR95

PR95

PR91

PR91
NC_68_J

NC_68_J

1.91K_F

1.91K_F

1.91K_F

1.91K_F

0402

0402

0402

0402

0402

0402

PROCHOT#

ROSC

PWRGD_Vcore

29

28

27

26

25

PU10

PU10

NC

R_OSC

VR_TT#

PWRGD

CLK_EN#

SPHASE[2]

SPHASE[1]

SPHASE[0]

DB[2]

DB[1]

DB[0]

IDES_P

IDES_N

R_SEL[0]

R_SEL[1]

R_SEL[2]

IMON

R_REF

VT1312MFQX

VT1312MFQX

12

13

14

15

16

R_REF

RSEL1

RSEL2

+1_05V_VTT

12

PR94

PR94

NC_10K_F

NC_10K_F

0402

0402

12

PR196

PR196

12

8.06K_F

8.06K_F

PC148

PC148

0.022U_16V_K

0.022U_16V_K

0402

0402

0402_X7R

0402_X7R

VSSSENSE

ROSC

12

PR146

PR146

100K_J

100K_J

0402

0402

4

VHCORE_VDDH

2 1

+5VALW

jump_gap_open_47x94_c

jump_gap_open_47x94_c

IDESN1

IDESP1

DB<0>

24

SPHASE<1>

23

SPHASE<0>

22

DB<2>

21

DB<1>

20

DB<0>

19

IDESP

18

IDESN

17

12

PR188

PR188

44.2K_0.063W_D

44.2K_0.063W_D

0402

0402

DB<1>

DB<2>

SPHASE<0>

+5VALW

12

DCMDRP

12

PR201

PR201

365K_F

365K_F

0402

0402

PR198

PR198
10_J

10_J

0402

0402

PC155

PC155

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

4A

VHCORE_VDDH

IDESN2

A5

IDES_N

IDESP2

A4

IDES_P

DB<0>

A6

DB0

DB<1>

A1

DB1

DB<2>

B1

DB2

SPHASE<1>

B6

SPHASE

+5VALW

12

AVDD_1

AVDD_2

PR260

PR260

A3

B3

B4

10_J

10_J

0402

0402

12

PC261

PC261

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

COREAGND2

4

12

PJ13

PJ13

PC150

PC150
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

C4

C5

C6

E4

E5

E6

VDDH_1

VDDH_2

VDDH_3

VDDH_4

VDDH_5

VDDH_6

A5

IDES_N

A4

IDES_P

A6

DB0

A1

DB1

B1

DB2

B6

SPHASE

AGND_1

AVDD_1

AGND_2

AVDD_2

AVDD_3

AVDD_4

A2

A3

B2

B3

B4

B5

12

1 2

COREAGND1

12

12

PC258

PC258

PC256

PC256

10U_6.3V_M

10U_6.3V_M

10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

C4

C5

C6

E4

E5

E6

G4

G5

G6

J4

J5

J6

VDDH_1

VDDH_2

VDDH_3

VDDH_4

VDDH_5

VDDH_6

VDDH_7

VDDH_8

VDDH_9

VDDH_10

VDDH_11

VDDH_12

AGND_1

AGND_2

GND_1

GND_2

AVDD_3

GND_3

AVDD_4

GND_4

GND_5

GND_6

GND_7

A2

B2

B5

E1

E2

E3

C1

C2

C3

G1

PR129

PR129

1 2

0_J

0_J

0603

0603

3

4A

12

12

PC149

PC149

PC153

PC153

10U_6.3V_M

10U_6.3V_M

10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

G4

G5

G6

J4

J5

J6

PU7

PU7

VDDH_7

VDDH_8

VDDH_9

VDDH_10

VDDH_11

VDDH_12

VHCORE_LX1

D1

VX_1

D2

VX_2

D3

VX_3

D4

VX_4

D5

VX_5

D6

VX_6

F1

VX_7

F2

VX_8

F3

VX_9

F4

VX_10

F5

VX_11

F6

VX_12

H1

VX_13

H2

VX_14

H3

VX_15

H4

VX_16

H5

VX_17

H6

VX_18

GND_1

GND_2

GND_3

GND_4

GND_5

GND_6

GND_7

GND_8

GND_9

GND_10

GND_11

GND_12

VT1317SFCX

VT1317SFCX

J1

J2

J3

E1

E2

E3

C1

C2

C3

G1

G2

G3

null

null

PR130

PR130

0_J

0_J

0603

0603

12

12

PC259

PC259

PC254

PC254

10U_6.3V_M

10U_6.3V_M

0.1U_16V_K

0.1U_16V_K

0805_X5R

0805_X5R

0603_X7R

0603_X7R

PU18

PU18

VHCORE_LX2

D1

VX_1

D2

VX_2

D3

VX_3

D4

VX_4

D5

VX_5

D6

VX_6

F1

VX_7

F2

VX_8

F3

VX_9

F4

VX_10

F5

VX_11

F6

VX_12

H1

VX_13

H2

VX_14

H3

VX_15

H4

VX_16

H5

VX_17

H6

VX_18

GND_8

GND_9

GND_10

GND_11

GND_12

VT1317SFCX

VT1317SFCX

J1

J2

J3

G2

G3

null

null

3

12

PC146

PC146

0.1U_16V_K

0.1U_16V_K

0603_X7R

0603_X7R

12

12

PC156

PC156

PC145

PC145

1U_16V_K

1U_16V_K

1U_16V_K

1U_16V_K

0603_X7R

0603_X7R

0603_X7R

0603_X7R

TP2

TP2

tpc60t_100

tpc60t_100

VHCORE

1

12

PC137

PC137
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

12

PC262

PC262

PC255

PC255

1U_16V_K

1U_16V_K

1U_16V_K

1U_16V_K

0603_X7R

0603_X7R

0603_X7R

0603_X7R

2

1

36A

12

PC158

PC158
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

PC154

PC154

1 2

NC_2200P_50V_K0402_X7R

NC_2200P_50V_K0402_X7R

NC_2200P_50V_K0402_X7R

NC_2200P_50V_K0402_X7R

PL19

PL19
50NH_45A_0.000252R

50NH_45A_0.000252R

CTX17-18765-R

CTX17-18765-R

3 4

PR190 19.1K_F 0402PR190 19.1K_F 0402

1 2

PR195 19.1K_F 0402PR195 19.1K_F 0402

PC246

PC246

1 2

PR255 19.1K_F 0402PR255 19.1K_F 0402

PR256 19.1K_F 0402PR256 19.1K_F 0402

12

PC135

PC135
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

12

1 2

NC_14K_F 0402

NC_14K_F 0402

1 2

1 2

1 2

1 2

PR203

PR203

PR258

PR258

NC_14K_F 0402

NC_14K_F 0402

VHCORE_LX2

VHCORE

PC160

PC160

1 2

4700P_25V_M0402_X7R

4700P_25V_M0402_X7R

1 2

PR202 3.09K_F 0402PR202 3.09K_F 0402

1 2

PR204 3.09K_F 0402PR204 3.09K_F 0402

PC151

PC151

1 2

4700P_25V_M0402_X7R

4700P_25V_M0402_X7R

PC247

PC247

1 2

4700P_25V_M0402_X7R

4700P_25V_M0402_X7R

1 2

PR257 3.09K_F 0402PR257 3.09K_F 0402

1 2

PR259 3.09K_F 0402PR259 3.09K_F 0402

PC244

PC244

1 2

4700P_25V_M0402_X7R

4700P_25V_M0402_X7R

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_+VHCORE

PWR_+VHCORE

PWR_+VHCORE

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

Page Modified:

Monday, January 31, 2011 14:12:44

IDESN1

IDESP1

IDESN2

IDESP2

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

57 67

57 67

57 67

0.1

0.1

0.1

12

12

PC152

PC152

PC136

PC136

NC_22U_6.3V_M

NC_22U_6.3V_M

22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

VHCORE_LX1

IDESN

IDESP

2

5

PR158 0_J 0402PR158 0_J 0402

GFX_VR_EN7

D D

GFX_DPRSLPVR7

+3VRUN

GFX_VID67

GFX_VID57

GFX_VID47

GFX_VID37

GFX_VID27

GFX_VID17

GFX_VID07

1 2

+5VALW

PR168

PR168
10_J

10_J

0402

0402

C C

GFX_VSS_SENSE7

GFX_VCC_SENSE7

B B

1 2

PR159 0_J 0402PR159 0_J 0402

1 2

PR160 0_J 0402PR160 0_J 0402

1 2

PR161 0_J 0402PR161 0_J 0402

1 2

PR162 0_J 0402PR162 0_J 0402

1 2

PR163 0_J 0402PR163 0_J 0402

1 2

PR164 0_J 0402PR164 0_J 0402

1 2

PR165 0_J 0402PR165 0_J 0402

1 2

PR166 0_J 0402PR166 0_J 0402

1 2

PR167 0_J 0402PR167 0_J 0402

1 2

GFX_VDD

12

PC186

PC186

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

PR171 0_J 0402PR171 0_J 0402

PR172 0_J 0402PR172 0_J 0402

GFX_DCMORP

12

PR173

PR173

15.4K_F

15.4K_F

0402

0402

GFX_IMON7

1 2

1 2

12

PC188

PC188
2200P_16V_K

2200P_16V_K

0402_X7R

0402_X7R

GFX_DPRSLPVR_R

1

VID[5]

2

VID[4]

3

VID[3]

4

VID[2]

5

VID[1]

6

VID[0]

7

VDD

8

GND_1

GFX_IMON

GFX_ON

GFX_OE

33

GND_2

GFX_RSEL0

12

PR174

PR174

23.7K_F

23.7K_F

0402

0402

12

PR184

PR184

5.36K_F

5.36K_F

0402

0402

GFX_VSS_SENSE

+3VRUN

12

PR156

PR156

1.91K_F

1.91K_F

0402

0402

GFX_RSOC

GFX_PWRGD

32

31

30

29

28

27

26

25

DPRSLPVR

SENSE+

11

12

PR175

PR175

39.2K_F

39.2K_F

0402

0402

12

12

PWRGD

GFX_ON

R_SEL[0]

R_SEL[1]

12

13

PR181

PR181

NC_10K_J

NC_10K_J

0402

0402

PC192

PC192

0.027U_50V_K

0.027U_50V_K

0805_X7R

0805_X7R

NC

R_OSC

VR_TT#

SPHASE[2]

SPHASE[1]

SPHASE[0]

R_SEL[2]

IMON

R_REF

14

15

16

GFX_IMON

GFX_RSEL2

12

PR176

PR176

1.02K_F

1.02K_F

0402

0402

OE

VID[6]

DCMDRP

SENSE-

9

10

GFX_SENS-

GFX_SENS+

GFX_RSEL1

+1_05V_VTT

DB[2]

DB[1]

DB[0]

IDES_P

IDES_N

VT1313MFQX

VT1313MFQX

GFX_R_REF

GFX_RSOC

12

PR177

PR177

130K_F

130K_F

0402

0402

PU9

PU9

24

23

GFX_SPHASE<0>

22

GFX_DB<2>

21

GFX_DB<1>

20

GFX_DB<0>

19

GFX_IDESP

18

GFX_IDESN

17

GFX_IDESN

+5VALW

GFX_IDESP

4

PJ15

PJ15

2.5A

2 1

12

jump_gap_open_47x94_c

jump_gap_open_47x94_c

PC420

PC420

+

220U_6.3V_M

+

220U_6.3V_M

6.3x4.5

6.3x4.5

C4

C5

C6

GFX_IDESN1

A5

VDDH_1

VDDH_2

VDDH_3

IDES_N

GFX_IDESP1

A4

IDES_P

GFX_DB<0>

A6

DB0

GFX_DB<1>

A1

DB1

GFX_DB<2>

B1

DB2

GFX_SPHASE<0>

B6

SPHASE

+5VALW

12

PR169

PR169
10_J

10_J

0402

12

PR170

PR170

44.2K_F

44.2K_F

0402

0402

0402

PC187

PC187

0.1U_6.3V_K

0.1U_6.3V_K

0402_X5R

0402_X5R

AVDD_4

AGND_1

AVDD_1

AGND_2

AVDD_2

AVDD_3

B5

B2

B3

A2

B4

A3

12

1 2

GFX_AGND

PC189

PC189

1 2

4700P_25V_K0402_X7R

4700P_25V_K0402_X7R

PR178 5.76K_F0402PR178 5.76K_F0402

1 2

PR182 5.76K_F0402PR182 5.76K_F0402

1 2

PC191

PC191

1 2

4700P_25V_K0402_X7R

4700P_25V_K0402_X7R

PR179 11K_F0402PR179 11K_F0402

PR183 11K_F0402PR183 11K_F0402

12

PC170

PC170
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

E4

E5

E6

VDDH_4

VDDH_5

GND_1

C1

C2

PR131

PR131

0_J

0_J

0603

0603

1 2

1 2

3

GFX_VIN

12

12

12

PC171

PC171

PC172

PC172

10U_6.3V_M

10U_6.3V_M

10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

0805_X5R

0805_X5R

PU8

PU8

VDDH_6

D1

VX_1

GFX_LX

D2

VX_2

D3

VX_3

D4

VX_4

D5

VX_5

D6

VX_6

GND_2

GND_3

GND_4

GND_5

GND_6

VT1313SFCX

VT1313SFCX

E1

E2

E3

C3

GFX_IDESN1

PC190

PC190

1 2

4700P_25V_K0402_X7R

4700P_25V_K0402_X7R

PR180

PR180

1 2

3.16K_F0402

3.16K_F0402

GFX_IDESP1

PC173

PC173
1U_16V_K

1U_16V_K

0603_X7R

0603_X7R

PL13

PL13

0.1UH_32.5A_0.0017R

0.1UH_32.5A_0.0017R

PCMB063T-R10MS

PCMB063T-R10MS

12

PC174

PC174
1U_16V_K

1U_16V_K

0603_X7R

0603_X7R

GFX_VCC_SENSE

GFX_VSS_SENSE

12

PC176

PC176
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

12

PC175

PC175

0.1U_16V_K

0.1U_16V_K

0603_X7R

0603_X7R

+GFXCORE

22U *3

12

PR216

PR216
10_J

10_J

0402

0402

12

PR218

PR218
10_J

10_J

0402

0402

12

PC177

PC177
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

2

+GFXCORE
Thermal Design Current: 12A
Maximum Current: A
OCP min: 15 A

TP866

TP866

tpc60t_100

tpc60t_100

1

12

12

12

PC178

PC178
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

PC179

PC179
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

PC180

PC180
NC_22U_6.3V_M

NC_22U_6.3V_M

0805_X5R

0805_X5R

1

PJ25

PJ25

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

PJ29

PJ29

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

12A

+GFXCORE

A A

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_+GFXCORE

PWR_+GFXCORE

PWR_+GFXCORE

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:43

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

58 67

Sheet of

58 67

Sheet of

58 67

0.1

0.1

0.1

5

PR319

PR319
200K_F

16

9

2

4

10

15

17

1 2

PU23

PU23

TON

VDDP

VDD

PGOOD

CS

EN/DEM

GND

RT8208BGQW

RT8208BGQW

null

null

PR340

PR340
NC_100_J

NC_100_J

0402

0402

PR333

PR333
100_J

100_J

0402

0402

200K_F

0402

0402

RT8208_BST

13

BOOT

RT8208_UGATE

12

UGATE

RT8208_PHASE

11

PHASE

RT8208_LGATE

8

LGATE

RT8208_G0

7

G0

RT8208_FB

3

FB

RT8208_G1

14

G1

RT8208_D1

5

D1

RT8208_D0

6

D0

VDDCOREP

1

VOUT

12

12

D D

+5VALW

+5VALW

12

PR320

PR320

10_J

10_J

0603

0603

PC377

PC377
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

C C

PC378

PC378
1U_6.3V_M

1U_6.3V_M

0402_X5R

0402_X5R

1 2

1 2

PX_MODE48,60

DGPU_PWR_EN48,60

PR324

PR324

6.65K_F

6.65K_F

0402

0402

RT8208_TON

RT8208_VDD

RT8208_PGOOD

RT8208_EN

1 2

12

+3VRUN

B B

DGPU_PWROK11,15,25,48

DGPU_PWR_EN#15,48

A A

5

12

PR337

PR337
100K_J

100K_J

0402

0402

PR338

PR338
0_J

0_J

0402

0402

RT8208_PGOOD

12

+3VRUN

12

PR251

PR251
10K_F

10K_F

0402

0402

PR254 0_J

PR254 0_J

1 2

32

D

D

PQ50

PQ50

2N7002-7-F

2N7002-7-F

1

G

G

S

S

DGPU_PWR_EN

0402

0402

PR334

PR334
200K_F

200K_F

0402

0402

1

2

RT8208_EN

PD49

PD49

BAT54

BAT54

DGPU_PWR_EN48,60

PR321

PR321
0_J

0_J

0603

0603

1 2

4

12

PC79

PQ61

PQ61

D

D

NTMFS4921NT1G

NTMFS4921NT1G

2 5

3

null

null

PQ62

PQ62

D

D

NTMFS4935NT1G

NTMFS4935NT1G

2 5

3

null

null

PR239

PR239
1K_F

1K_F

0402

0402

PC79
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

G

G

4

+5VALW

12

PC238

PC238
1U_10V_K

1U_10V_K

0603_X5R

0603_X5R

PC242

PC242
NC_0.1U_16V_M

NC_0.1U_16V_M

0402_X5R

0402_X5R

O033EN25

3

PC376

4

PC376

0.1U_50V_K

0.1U_50V_K

0603_X7R

0603_X7R

1 2

PR326

PR326

75K_F

75K_F

0402

0402

PR329

PR329

150K_F

150K_F

0402

0402

R4

12

12

R3

DGPU_PWR_EN

G

G

4

G

G

4

1 2

S

S

1

S

S

1

PC386

PC386
NC_0.1U_10V_K

NC_0.1U_10V_K

0402_X5R

0402_X5R

PR240

PR240

1 2

10K_J

10K_J

0402

0402

D

D

S

S

2 5

1

PC374

PC374

0.1U_50V_K

0.1U_50V_K

1 2

0603_X7R

0603_X7R

PQ63

PQ63

NTMFS4935NT1G

NTMFS4935NT1G

3

null

null

12

12

12

PR342

PR342
33K_J

33K_J

0402

0402

3

12

12

RT8208_G0

RT8208_G1

3

12

PC78

PC78
10U_25V_K

10U_25V_K

0805_X5R

0805_X5R

PC382

PC382
NC_2200P_50V_M

NC_2200P_50V_M

0603_X7R

0603_X7R

PR322

PR322
NC_2.2_J

NC_2.2_J

0603

0603

O033POKPOK

O033EN

PL20

PL20

0.56U-100KHZ_25A_0.018R

0.56U-100KHZ_25A_0.018R

PCMC104T-R56MN

PCMC104T-R56MN

1 2

PC381

PC381
NC_220P_16V_J

NC_220P_16V_J

0402_NPO

0402_NPO

1 2

PR335 0_J 0402PR335 0_J 0402

12

PR336 0_J 0402PR336 0_J 0402

12

PC383

PC383
220P_16V_J

220P_16V_J

0402_NPO

0402_NPO

+1.5VSUS

12

PC211

PC211
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

PU15

PU15
OZ8033

OZ8033

5

VIN_1

6

VDDA

7

POK

8

EN

9

VOUT2
VOUT1

VIN_2

GND

DCBATOUT

FB

12

PR327

PR327
0_J

0_J

0402

0402

12

PR323

PR323
10K_F

10K_F

0402

0402

1 2

12

PR328

PR328
10_J

10_J

0402

0402

PC384

PC384
220P_16V_J

220P_16V_J

0402_NPO

0402_NPO

1 2

4
3

2
1

2

+VDD_CORE +/-5%
Thermal Design Current: 20A
OCP min: 30.8 A

VDDCOREP

20A

12

12

PC379

PC379

PC380

PC380

+

330U_2.5V_M

+

330U_2.5V_M

3.5x2.8x1.9

3.5x2.8x1.9

+

330U_2.5V_M

+

330U_2.5V_M

3.5x2.8x1.9

3.5x2.8x1.9

1 2

PC385

PC385

0.1U_10V_K

0.1U_10V_K

0402_X5R

0402_X5R

R1

PR330 10_J 0402PR330 10_J 0402

PR332 0_J 0402PR332 0_J 0402

2

12

12

VID control table for Whistler PRO:

2.5A

PJ22

PJ22

jump_gap_open_47x94_c

jump_gap_open_47x94_c

2 1

12

PC240

PC240
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

PR325

PR325

R2

51K_F

51K_F

0402

0402

PWRCNTL_0 38

PWRCNTL_1 38

1 2

+1.0VPEG_1

O033FBFB

12

PR241

PR241

12

PC241

PC241

2.67K_F

2.67K_F

0.01U_16V_K

0.01U_16V_K

0402

0402

0402_X7R

0402_X7R

12

PR242

PR242
10K_F

10K_F

0402

0402

Vo=(1+(PR187/PR189))*0.8=1V

AT_VCC_SENSE 41

AT_VSS_SENSE 41

PWRCNTL_0

PWRCNTL_1

0

0

1

0

1 1

TP894

TP894
tpc40b_50

tpc40b_50

+1_0VPEG

1

12

PC243

PC243
22U_6.3V_M

22U_6.3V_M

0805_X5R

0805_X5R

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_ AT_VDD/PEX_VDD

PWR_ AT_VDD/PEX_VDD

PWR_ AT_VDD/PEX_VDD

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Page Modified:

Page Modified:

Page Modified:

1

PJ26

PJ26

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

PJ28

PJ28

2 1

jump_gap_open_47x94_c

jump_gap_open_47x94_c

GPU Voltage

1.05V

1V

0.9V

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rooney/Presley

Rooney/Presley

Rooney/Presley

Monday, January 31, 2011 14:15:22

Monday, January 31, 2011 14:15:22

Monday, January 31, 2011 14:15:22

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

VDDCORE

Sheet of

59 67

Sheet of

59 67

Sheet of

59 67

0.1

0.1

0.1

5

4

3

2

1

+5VRUN +1.8VRUN

12

PR209

PR209
390_J

390_J

0603

0603

PQ38

PQ38

32

2N7002-7-F

2N7002-7-F

D

D

1

G

G

G

S

S

+3VSUS

1

G

G

G

12

PR217

PR217
330_J

330_J

0603

0603

32

D

D

PQ57

PQ57

2N7002-7-F

2N7002-7-F

S

S

+5VALW

RUN_ON#

SUS_ON#

PQ45

PQ45

2N7002-7-F

2N7002-7-F

1

12

32

D

D

PR243

PR243
100_J

100_J

0402

0402

1 2

1

G

G

S

S

PR341

PR341
NC_100_J

NC_100_J

0402

0402

12

12VSYSDRV

+5VALW

12

PR225

PR225
100K_J

100K_J

0402

0402

DGPU_PWR_EN#_1

1

G

G

32

D

D

PR247

PR247
100_J

100_J

0402

0402

1 2

1

G

G

PQ60

PQ60

S

S

2N7002-7-F

2N7002-7-F

G

G

PR213

PR213
100K_J

100K_J

0402

0402

RUN_ON#

PQ56

PQ56

2N7002-7-F

2N7002-7-F

12VSYSDRV

PC212

PC212
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

12

DGPU_PWR_EN48,59

6A

+5VRUN

PC216

PC216

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

6A

+3VRUN

4A

+1.5VRUN

0.3A

+3VSUS+3VALW

DGPU_PWR_EN48,59

PX_MODE48,59

S

S

D

D

3

G

G

1 2

12

32

D

D

S

S

SUS_ON#

1

PQ36

PQ36

2N7002-7-F

2N7002-7-F

12VSYSDRV

G

G

1

12

32

D

D

S

S

G

G

PR214

PR214
51K_J

51K_J

0402

0402

PQ42

PQ42

2N7002-7-F

2N7002-7-F

PR205

PR205
100K_J

100K_J

0402

0402

1 2

32

12

D

D

S

S

RUN_ON_LOAD

12

PC217

PC217

0.01U_25V_M

0.01U_25V_M

0402_X7R

0402_X7R

CP_SUS_ON_LOAD

PC213

PC213

0.01U_25V_M

0.01U_25V_M

0402_X7R

0402_X7R

+5VALW

+3VALW

+1.5VSUS

PQ35

PQ35

FDMC8884

FDMC8884

null

null

3

D

D

S

S

2

5

1

12

G

G

4

12

PR208

PR208
NC_470K_J

NC_470K_J

0603

0603

PQ41

PQ41

FDMC8884

FDMC8884

3

D

D

S

S

2

5

1

G

G

12

PC215

PC215

4

10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

12

PR215

PR215
NC_470K_J

NC_470K_J

0402

0402

PQ43

PQ43

FDMC8884

FDMC8884

3

D

D

S

S

2

5

1

G

G

4

12

PC218

PC218
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

PQ47

PQ47

FDMC8884

FDMC8884

3

D

D

S

S

2

5

1

G

G

12

PC219

PC219

4

10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

+12VSYS

PQ34

PQ34

TP0610K-T1-GE3

D D

C C

TP0610K-T1-GE3

12VDRVGATE

12

PR206

PR206
100K_J

100K_J

PR207

PR207

0402

0402

1K_J

1K_J

0402

0402

1

SUS_ON25,56

PQ40

PQ40

2N7002-7-F

2N7002-7-F

+5VALW

12

32

D

D

1

1 2

RUN_ON25,56

B B

G

G

S

S

PR220

PR220
100_J

100_J

0402

0402

12

PR210

PR210
330_J

330_J

0603

0603

32

D

D

S

S

PR221

PR221
100K_J

100K_J

0402

0402

PX_MODE#

PQ58

PQ58

2N7002-7-F

2N7002-7-F

12

PR224

PR224
51K_J

51K_J

0402

0402

32

D

D

PQ64

PQ64

S

S

2N7002-7-F

2N7002-7-F

1

12

PC225

PC225

0.01U_25V_M

0.01U_25V_M

0402_X7R

0402_X7R

1

12VSYSDRV

G

G

12

32

D

D

S

S

+1.5VRUN

G

G

PR223

PR223
51K_J

51K_J

0402

0402

PQ59

PQ59

2N7002-7-F

2N7002-7-F

12

32

D

D

PR211

PR211
NC_330_J

NC_330_J

0603

0603

PQ55

PQ55

2N7002-7-F

2N7002-7-F

S

S

DGPU_PWR_EN#_1

12

PC224

PC224

0.01U_25V_M

0.01U_25V_M

0402_X7R

0402_X7R

1

+1.5VSUS

+1_05V_VTT+3VRUN

12

32

D

D

G

G

S

S

+3VALW

+1.8VRUN

PR15

PR15

1 2

2.2K_F

2.2K_F

0402

0402

PR212

PR212
NC_330_J

NC_330_J

0603

0603

PQ39

PQ39

2N7002-7-F

2N7002-7-F

5

+3V_DELAY +1.8VGPU

12

PR226

PR226
330_J

330_J

0603

0603

32

D

D

1

G

G

PQ65

PQ65

S

S

2N7002-7-F

2N7002-7-F

PQ49

PQ49

STL17N3LLH6

STL17N3LLH6

null

null

D

S

D

S

5

G

G

4

12

PR222

PR222
NC_470K_J

NC_470K_J

0402

0402

PQ48

PQ48

FDMC8884

FDMC8884

null

null

3

D

D

S

S

2

1

G

G

4

PQ53

PQ53

FDMC8884

FDMC8884

3

D

D

S

S

2

5

1

G

G

4

12

PC14

PC14

2.2U_16V_M

2.2U_16V_M

0805_X5R

0805_X5R

12

PR219

PR219
330_J

330_J

0603

0603

32

PQ46

PQ46

D

D

1

G

G

S

S

2N7002-7-F

2N7002-7-F

PX_MODE#

10A

+1_5VRUNVGA

+1_5VRUNVGA

1

G

G

12

32

D

D

S

S

PR253

PR253
330_J

330_J

0603

0603

PQ54

PQ54

2N7002-7-F

2N7002-7-F

12

PR252

PR252
330_J

330_J

0603

0603

32

D

D

1

G

G

PQ66

PQ66

S

S

2N7002-7-F

2N7002-7-F

3
2

1

12

PC221

PC221
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

12

PC220

PC220
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

12

PC223

PC223
10U_6.3V_M

10U_6.3V_M

0805_X5R

0805_X5R

12

+3V_DELAY

PC222

PC222

0.1U_16V_M_B

0.1U_16V_M_B

0402_X5R

0402_X5R

0.2A

2A

+1.8VGPU

12

PC92

PC92

+

330U_2.5V_M

+

330U_2.5V_M

3.5x2.8x1.9

3.5x2.8x1.9

A A

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

PWR_Others power plane

PWR_Others power plane

PWR_Others power plane

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A2

A2

A2

Page Modified:

Page Modified:

5

4

3

2

Page Modified:

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

Monday, January 31, 2011 14:12:42

1

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

Sheet of

Sheet of

Sheet of

60 67

60 67

60 67

0.1

0.1

0.1

A

Rains DB

(2010/07/29)

P.25, 28 Del WWAN and KB Backlit for Customer request.
P.20,21 Swap CN27, CN28 DDR connector.
P.74 Change Cardreader schematics for customer request.
P.62 Del RF Solution for RF recommend.

4 4

P.42,43,44,45 Swap VRAM data signals for layout request.

(2010/07/30)

P.27 Del U57, C966 for unused EEPROM.
P.61 Del PWR_RF Solution for RF request.
P.11 Swap LAN & WLAN TX, RX for BIOS request.

(2010/08/02)

P.29 Change input to SATA Re-Driver U71 net name to SATA_TXP0_R,SATA_TXN0_R,
SATA_RXP0_R,SATA_RXN0_R

P.42~45 Change +1.5VRUN to +1.5VRUNVGA for VRAM part.
P.38 NC R1894, R1896, R1898, R254 and Reserve R255, R256, R257 for DAC2.
P.36 NC U62.U13 and U62.V13 for AMD recommend.
P.38 Add R9933, R9934 51.1K for AMD recommend.

3 3

(2010/08/03)

P.28 Connect CN42(WLAN) pin 42, 44, 46 together for BIOS request.
P.46 Add C1605, C1606, C1607, C1608, C1609, C1610, C1617, C1618

for AMD request.

P.47 Add C1700, C1701, C1702, C1710, C1711, C1712, C1717, C1718
for AMD request.

P.46 Del C1168, C1169, C1144, C1212, C1203, C1205, C1662, C1659, C1661,
C1689, C1686, C1688, C1690, C1903 for AMD request.

P.47 Del C1716, C1713, C1714, C1743, C1740, C1742, C1793, C1782, C1792,
C1797, C1795, C1796 for AMD request.

P.14 Add R687 to connect CLK_33M_Debug for customer debug card.
P.28 Reserve R591 for customer debug card.
P.27 Add R2803 to +3VALW for EE debug.
P.23 Del R65, R67, R68, R75 for PDD drop.

2 2

P.35 Del Bluetooth and LED board connector CN57 for customer drop.
P.35 Add CN3 USB3.0 connector.
P.25 Add PCIE_APM# in U91.123 and R579 for BIOS request.
P.14 Del R397 for BIOS request.
P.31 Del Bluetooth power Q85 and relative schematics for PDD drop.
P.25 Del Q2602 and Add Q2601 for Bluetooth and wireless LED feature.

(2010/08/05)

P.25 Add R583 and U91.89 to USB_PWR_EN for BIOS recommend.
P.35 Change CN3.28 form SUS_ON to USB_PWR_EN.
P.32 Add R31, R548, R563, R559, R561, R562, R564, C464 for vendor recommend.
P.31 Add CN6 Camera connector for customer recommend.
P.28 Add R589, LPC_AD0~3 and LPC FRAME# for HP debug card.
P.30 Change C6447 & C6448 from 0201 to 0402.

1 1

P.38 Add Q3 for SMBUS level shift.
P.23 Change CN38 to 30pin and del camera relative schematics.

(2010/08/06)

P.65 Change R6199 from 47K to 10K ohms
P.33 Del R6193 for vondor suggestion

A

B

C

P.33 Change C1853 from 0.1u to 0.01u for vendor suggestion
P.33 Change R6190 from 150k to 100k for vendor suggestion
P.30 CN3 pin 30 connect to SUS_PWRGD

D

E

(2010/08/10)

P.10 Add R349, R350, R351, R352 33 ohm for LPC_A0~3 debug.
P.66 Modify U61 relative schematics and del U3200 and D3200.
P.14 Del USB Port 0 & Port 9 NC for unused.
P.66 Add CN7 Audio MB to DB connector.
P.33 Change internal speaker net name to SPK-L+_L, SPK-L-_L, SPK-R+_L

, SPK-R-_L.

P.61 Del all of PWR RF solution for unused WWAN.

(2010/08/11)

P.49 Add Screw Hole.
P.23 Change C925 from 0402 to 0603 for derating issue.
P.11 Del R622 for unused.
P.7~47 Change C645, C264, C267, C266, C268, C269, C277, C273, C274,

C1813, C1814, C447, C1818, C449, C448, C429, C356, C424, C308, C950,
C984, C987, C1038, C1005, C926, C279, C282, C281, C284, C288, C289,
C290, C291, C292, C293, C295 from 33p to 10p for RF recommend.
P.32 Change CN43 cardreader connector for ME request.

(2010/08/12)

P.15 Change Net Name LCDID1 to GPIO37, LCDID4 to GPIO48.
P.15 Del R6105, R6103 and change R6113, R6100 to connect with +3VRUN.
P.11 Change CLK_PCIE_CR and CR_CLK_REQ# to PCIECLKRQ4#.
P.14 Del INT_PIRQE# and RP17.7, JP6, JP7.
P.15 Del JP2, JP3, JP4 for unused.
P.11 Del JP5 for unused.
P.15 Change GPIO37 net name to DGPU_PRSNT# and Add R6116.
P.25 Connect U91.118 to PCI_SERR# for Debug request.
P.11 Add TP374, TP375 for reserve DGPU select.

(2010/08/13)

P.25 Add R3, R4, R5, R6 for reserving TP power.
P.25 Add R580, Net QWEBSW# and TP_LED_A for customer request.
P.25 Add CN33, C2608, C2611 for TP LED.
P.35 Change CN56, CN3 Power board and USB3.0 connector to DB.
P.35 Add Q4202 for PWR_LED.
P.34 Change CN7 Audio DB connector for ME request.
P.31 Change CN42 WLAN connector for ME request.
P.24 Change CN32 HDMI connector.
P.22 Change CN37 CRT connector.

(2010/08/16)

P.34 Change CN7 pin define.
P.10 Swap CN25 pin 1 & 2 for ME request.
P.29 Change CN52 SATA HDD connector.
P.06 Add R403, R404 for EE measurement.
P.07 Add R400, R406, R407, R408 for

EE measurement.

P.16 Add R409, R265 for EE measurement.
P.17 Add R410 for EE measurement.

B

C

D

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

History

History

History

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

Monday, January 31, 2011 14:12:41

Page Modified:

Monday, January 31, 2011 14:12:41

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

E

Sheet of

61 67

Sheet of

61 67

Sheet of

61 67

0.1

0.1

0.1

5

4

3

2

1

A +C + D Type

PB_H1

PB_H1

hole_t443x246b256d106do110x91n

hole_t443x246b256d106do110x91n

1

D D

1

GND_PB

G Type

PB_H2

PB_H2

hole_tbc256d106

hole_tbc256d106

1

1

GND_PB

A + A Type

PB_H3

PB_H3

hole_tbshapec256d106

hole_tbshapec256d106

1

1

GND_PB

B Type

PB_H4

PB_H4

hole_c91d91n

hole_c91d91n

1

1

F + E Type

PB_H5

PB_H5

hole_tsh293x226bsh256x226d106

hole_tsh293x226bsh256x226d106

1

1

GND_PB

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

DB_POWER BUTTON

DB_POWER BUTTON

DB_POWER BUTTON

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Hon Hai Precision Industry Co. Ltd.

Rains HR

Rains HR

Rains HR

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

Sheet of

Sheet of

61 65

61 65

61 65

MV

MV

MV

POWER_LED_W_PB

PWRSW#_PB

12

PB_VR1

PB_VR1
PESD5V0L1BA

PESD5V0L1BA

GND_PB

4

Power LED

+5V_ALW_PB

PB_R1

PB_R1

1.91K_F

1.91K_F

0402

0402

12

WHITE

IF=5mA

32

D

D

PB_Q1

PB_Q1

2N7002A-7

2N7002A-7

1

G

G

S

S

GND_PB

12

PB_C1

PB_C1
100P_50V_J

100P_50V_J

0402_NPO

0402_NPO

GND_PB

PB_LED1

PB_LED1
1SA0603W32B0CBZ1

1SA0603W32B0CBZ1

9mA

1U_6.3V_K

1U_6.3V_K

12

0402_X5R

0402_X5R

PB_VR2

PB_VR2

NC_MLVS0603M04_VR

NC_MLVS0603M04_VR

3

QuickWeb Button

PB_SW2

1

2

smdfix1 smdfix2

smdfix1 smdfix2

5

LID SWITCH

+ECVCC_PB

PB_C3

PB_C3

12

GND_PB

PB_SW2

6

1BT002-0120L-7H_SW-SMD4

1BT002-0120L-7H_SW-SMD4

3

4

QWEBSW#_PB

12

PB_VR3

PB_VR3
PESD5V0L1BA

PESD5V0L1BA

GND_PBGND_PB

1

PB_U1

PB_U1

APX9132HAI-TRG

APX9132HAI-TRG

VDD

3

GND

VOUT

2

GND_PB

12

+ECVCC_PB

GND_PB

2

PB_C4

PB_C4
100P_50V_J

100P_50V_J

0402_NPO

0402_NPO

12

PB_R2

PB_R2
100K_J

100K_J

0402

0402

LIDIN#_PB

12

PB_C2

PB_C2
100P_16V_J

100P_16V_J

0603_NPO

0603_NPO

DB To MB Conn.

C C

FOX_GB5RF080-1203-7H

FOX_GB5RF080-1203-7H

B B

GND_PB

1

SMDFIX2

SMDFIX2

2

3
4

POWER_LED_W_PB

5
6

7

SMDFIX1

FPC CONN_8P

FPC CONN_8P

SMDFIX1

PB_CN1

PB_CN1

8

9 10

GND_PB

GND_PB GND_PB

LIDIN#_PB

PWRSW#_PB

QWEBSW#_PB

+ECVCC_PB

+5V_ALW_PB

Power Button

PB_SW1

PB_SW1

1BT002-0120L-7H_SW-SMD4

1BT002-0120L-7H_SW-SMD4

1

2

A A

5

smdfix1 smdfix2

smdfix1 smdfix2

5

GND_PB

3

4

6

A

Rains DB

(2010/08/17)

P.46 Add Stitching Caps C883~C890, C898, C899 for AMD request.
P.47 Add Stitching Caps C891~C897, C900~C902 for AMD request.
P.23 Modify CN38 LVDS pin dinfine.

4 4

(2010/08/18)

P.32 Change cardreader GND Power to GND.
P.25 Del R3, R4, R5, R6 for unused reserve.
P.25 Add R2620, R2621 for Wireless LED debug.
P.25 Change CN33 and EC pin name to TP_LED#.
P.34 Change H1 GND to A_GND.
P.27 Swap CN30 LAN connector A1, A2 and B1,B2 for vendor recommend.
P.33 Add SW1 and C5 for Power button and change CN56.2 to +5VALW.
P.23 Change CN38.27 to +5VRUN and add C608.
P.34 Add Boss1~6 for ME request.

(2010/08/19)

P.25 Del TP1151 for unused.
P.07 Del R408 for release space.

3 3

P.34 Connect H5, H6, H12, H13 to GND.
P.20 Add C445, C453 for power plane.
P.34 Add C457, C458, C459, C478 for power plane.
P.29 Add R2~R9 for reserving remove SATA redriver.

(2010/08/20)

P.34 Change H9, Boss1~7 for ME request.

Rains SI

(2010/09/03)

P.11 Change CR_RXN8, CR_RXP8, CR_TXN8, CR TXP8 to U38 PCIE port4 for EE debug.
P.29 Change U71 power pin name to 1.5VRUN for EE debug.
P.27 Change CN30 LAN connector pin define for EE debug.
P.28 Change R3007 to connect with SENSEA and Q3002A.6 for EE debug.

2 2

(2010/09/09)

P.33 Change CN3 pin 12 & 27 define to +3VRUN and USB30_SMI for EE request.

(2010/09/12)

P.23 Change LVDS connector pin define for ME request.
P.27 Change L103 LAN Transformer for EE debug.

B

C

(2010/09/24)

P.22 Change CRT connector CN37 for ME request.
P.24 Change HDMI connector CN32 for ME request.
P.25 Change KB connector CN54 for ME request.
P.27 Change LAN connector CN30 for ME request.
P.29 Change HDD connector CN52 for ME request.
P.31 Add WLAN BTB connector CN17 for ME request.
P.32 Change Cardreader connector CN43 for ME request.
P.33 Change USB3.0 BTB connector CN3 for ME request.
P.35 Add WLAN DB schematics for ME request.
P.25 Change Y13 for cost down.

D

E

(2010/09/28)

P.41 Add CAP13 in VDDCore for Power request.
P.33 Change CN3.2 to GND for EE request.
P.25 Add R12, Q4 for Mute LED debug.
P.28 Change U50.46 net name to MUTE_LED_A.
P.25 Add R13 for CAPSLOCK_LED# and CAPSLOCK_LED#_R.
P.35 Change GND to W_GND for DB.
P.23 Change C1006 from 0603 to 0402 1u and C1863 for EE debug.
P.23 Change R12 to connect to MUTE_LED#_A.

(2010/09/29)

P.28 Del D12 and Add Q103 for Audio Mute debug.

(2010/09/30)

P.23 Del R67~R77 and chang the LVDS net name for EE recommend.

(2010/10/04)

P.15 Change G_INT#_LED net name to G_INT_LED for high active.
P.33 Change G_INT#_LED net name to G_INT_LED for high active.
P.25 Del Q2601, Q3604, R2620 and Add Q7, Q8, Q9, Q12, Q14, R30, R33
for EE debug WLAN LED.

P.17 Add C823 22uF for EE solve CRT water wave issue.

(2010/10/05)

P.31 Del CN17 WLAN DB BTB connector for ME request.
P.35 Del W_CN1 & W_CN2 for ME request.
P.17 Add C484 0.1uF for reserving CRT water wave issue.

(2010/10/07)

P.32 Co-lay CN44 cardreader connector for introducing 2nd source
P.34 Update all of the screw hole.

(2010/09/13)

P.23 Rotate LVDS connector pin define for ME request.
P.28 Change SENSEA and COMBO_JACK_DET# in Q3000, R6205 for EE debug.

(2010/09/15)

P.10 Change CN25 RTC pin define for ME request.

1 1

P.25 Change CN52 HDD pin define for ME request.
P.31 Del CN6, L73, L74, C733, C718 Camera connector for ME request.

(2010/09/20)

P.33 Change CN3 USB3.0 connector pin define +3VRUN and USB30_SMI.

A

B

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

History (2)

History (2)

History (2)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

Monday, January 31, 2011 14:12:43

Page Modified:

C

D

Monday, January 31, 2011 14:12:43

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

E

Sheet of

62 67

Sheet of

62 67

Sheet of

62 67

0.1

0.1

0.1

5

DB To MB Conn.

U_GND

3132

3334

SMDFIX1

SMDFIX1

SMDFIX5SMDFIX3

SMDFIX5SMDFIX3

1

U_GND

B TO B CONN_2x15P

B TO B CONN_2x15P

11

13
15

17
19

21
23

25
27

29

3

5
7

9

U_GND

1

1

1

1

1

1

SMDFIX6SMDFIX2SMDFIX4

SMDFIX6SMDFIX2SMDFIX4

U_TP1 tpo20x4b_50U_TP1 tpo20x4b_50

U_TP2 tpo20x4b_50U_TP2 tpo20x4b_50

U_TP3 tpo20x4b_50U_TP3 tpo20x4b_50

U_TP4 tpo20x4b_50U_TP4 tpo20x4b_50

U_TP5 tpo20x4b_50U_TP5 tpo20x4b_50

U_TP6 tpo20x4b_50U_TP6 tpo20x4b_50

1

1

D D

C C

U_GND

B B

H_1

H_1

hole_tbc315d169

hole_tbc315d169

1

1

U_USB_PWR_EN64

U_PLT_RST#63

U_PCIE_WAKE#63

U_USB30_CLKREQ4#63

U_USB30_SMI63

+5VRUN_U

+3VSUS_U

+1.5VSUS_U

+5VALW_U

1

U_GND U_GND

150mA

720mA

2A

ACES_50057-03001-001

ACES_50057-03001-001

U_USB30_RXN1

U_USB30_RXP1

U_USB30_TXN1

U_USB30_TXP1

U_CLK_PCIE_USB30

U_CLK_PCIE_USB30#

H_5

H_5

hole_tsh394x401bshc315d106

hole_tsh394x401bshc315d106

1

CN_1

CN_1

3536

2

4
6

8
10

12
14

16
18

20
22

24
26

28
30

U_GND

H_2

H_2

hole_tshc256bshc315d106

hole_tshc256bshc315d106

4

U_CLK_PCIE_USB30 63

U_CLK_PCIE_USB30# 63

U_USB30_TXN1 63

U_USB30_TXP1 63

U_USB30_RXN1

U_USB30_RXP1

U_G_INT_A_LB

U_SATA_LED#_W_LB

U_POWER_LED#_W_LB

1

U_GND

C_34 0.1U_10V_K 0402_X7RC_34 0.1U_10V_K 0402_X7R

1 2

C_35 0.1U_10V_K 0402_X7RC_35 0.1U_10V_K 0402_X7R

1 2

PGP_8

PGP_8

21

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

H_3

H_3

hole_tshc256bshc315d106_b

hole_tshc256bshc315d106_b

1

+3VRUN_U

1

1

H_4

H_4

hole_odo126x67n

hole_odo126x67n

3

U_USB30_RXN1_C 63

U_USB30_RXP1_C 63

POWER_CLOSE_GAP_0402

POWER_CLOSE_GAP_0402

PGP_4

PGP_4

21

Power LED

R_14

R_14
130_F

130_F

0402

0402

12

WHITE

IF=5mA

U_POWER_LED#_WU_POWER_LED#_W_LB

LED_1

LED_1
LTW-C191TS5

LTW-C191TS5

U_GND

U_SATA_LED#_W_LB

2

HDD LED

+5VRUN_U+5VALW_U

R_15

R_15
390_F

390_F

0402

0402

LED_2

LED_2

LTW-C195DCKF-FN

1

U_GND

+5VRUN_U

12

32

D

D

G

G

S

S

R_16

R_16
10K_J

10K_J

0402

0402

Q_2

Q_2

2N7002-7-F

2N7002-7-F

LTW-C195DCKF-FN

1

G

G

12

VR_1

VR_1

NC_PESD5V0L1BA

NC_PESD5V0L1BA

1.Add Q1 ,Q2 and Q3

2.Change net name from G_INT#_A_LB to
G_INT_A_LB

32

D

D

S

S

Q_3

Q_3

2N7002-7-F

2N7002-7-F

U_GND

3 1

U_GND

+3VRUN_U

White

White

D

D

S

S

R_17

R_17
560_F

560_F

0402

0402

24

AMBERWHITE

IF=4.98mAIF=4.98mA

Orange

Orange

U_GND

32

G

G

Q_1

Q_1

2N7002-7-F

2N7002-7-F

1

1

3 4

NC1

NC1

2

1

D_2

D_2

NC_RSB12JS2

NC_RSB12JS2

U_G_INT_A_LB

5

6

U_GND

NC2

NC2

A A

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

BTB Conn& LED& Hole/Boss

BTB Conn& LED& Hole/Boss

BTB Conn& LED& Hole/Boss

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

Monday, January 31, 2011 14:12:45

Page Modified:

5

4

3

2

Monday, January 31, 2011 14:12:45

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains HR

Rains HR

Rains HR

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

1

Sheet of

62 65

Sheet of

62 65

Sheet of

62 65

MV

MV

MV

A

Rains PV

(2010/10/28)

P.4 Change R192, R180, R195, R63, R64, R708, R709, R969 to close gap.
P.7 Change R407 to PGP9 for EE cost down.
P.10 Change R160, R6039, R6052, R6065 to PGP10~13 for EE cost down.
P.11 Change R623 to PGP15 for EE cost down.

4 4

P.12 Change R279, R345, R280, R370, R368 to PGP16~20 for EE cost down.
P.13 Change R628, R629, R657, R658, R669, R655 to PGP21~26 for EE cost down.
P.14 Change R1403, R398 to PGP27~28 for EE cost down.
P.15 Change R393 to PGP 29 for EE cost down.
P.16 Change R258, R298 to PGP 30~31 for EE cost down.
P.17 Change R227, R514, R735, R221, R498, R497 to PGP 32~37 for EE cost down.
P.23 Change R527, R65, R62, R266 to PGP 38~41 for EE cost down.
P.24 Del R2409~R2416 for EE cost down.
P.33 Del R6229, R596 for EE cost down.

B

C

D

E

(2010/12/30)

P.26 Change EC_WP# to EC_WP and add U12, C145, R108 latch for HP request.
P.10 Change EC_WP# to SPI_PROTECT.

Rains1.1 PV

(2011/1/31)

P.25 Change PCB ID to ID[3..0]:1001, stuff R6175 and no-stuff R6176.
P.59 Change PR240 to 10K and PR342 to 33K for VGA loss issue

(2010/11/02)

P.4 Add CPU_DET# for EC request.
P.25 Add R6193, R302, DGPU_PWROK, CPU_DET# for EC request.

(2010/11/17)

3 3

P.64 Change PB_CN1 pin define for ME request.
P.24 Del R333,Q28, R334 for changing VGA HW_SD.
P.24 Add U45, U46, Q50, C749, C752, R2617, R871, R877 for VGA HW Shut down.

(2010/11/18)

P.24 Del TP997 and add R593 connect to EC_WP# for Flash Write Protect.
P.10 Add R226 to connect EC_WP# for Flash Write Protect.

(2010/11/19)

P.33 Swap CN56 Power board connector for ME request.
P.64 Recover PB_CN1 pin define for ME request.
P.10 Del R245 and add Q15, R107 for EC_WP#.
P.26 Add Q17 and R108, R9902 for EC_WP#.
P.35 Add Q73, Q81, R247, R241, R2909, Q2902 for Headphone jack mute.

2 2

P.24 Del R6123~R6130 and Q97, R6132 for HDMI quality.

(2010/11/22)

P.23 Add R73, R74, C19, C20, L63, Q28 for LVDS DCBATOUT.

Rains MV

(2010/12/3)

P.24 Add R763,R764 and connect DGPU_HPD_INTR# to Q64.1 pin for HDMI debug.

(2010/12/16)

P.33 Del SW1 & C5 for EE cost down.
P.10 NC CN13, U35, R490, C691 and stuff R6040 for EE cost down.

(2010/12/17)

1 1

P.29 Del R6357 for EE cost down.

(2010/12/28)

P.29 Add TP960 for L6 request.

A

Foxconn eMS Inc.

Foxconn eMS Inc.

Foxconn eMS Inc.

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

HNBD R&D phone: [phone]

Title

Title

Title

History (3)

History (3)

History (3)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A3

A3

A3

Page Modified:

Monday, January 31, 2011 14:27:33

Page Modified:

Monday, January 31, 2011 14:27:33

Page Modified:

B

C

D

Monday, January 31, 2011 14:27:33

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Hon Hai Precision Industry Co. Ltd.

Rains

Rains

Rains

(UTC/GMT)

(UTC/GMT)

(UTC/GMT)

E

Sheet of

63 67

Sheet of

63 67

Sheet of

63 67

0.1

0.1

0.1
