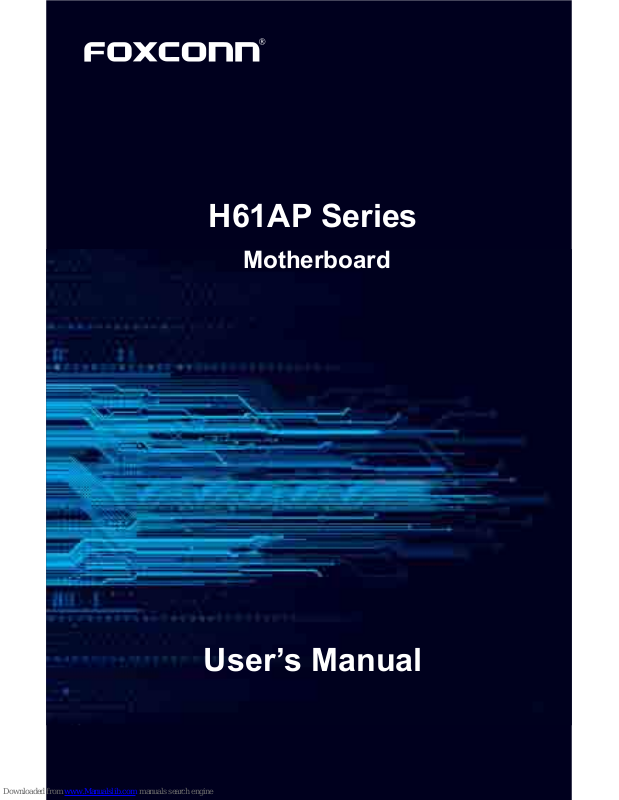

H61AP Series

Motherboard

User’s Manual

All trade names are registered trademarks of respective manufacturers listed.

All images are for reference only, please refer to the physical motherboard for specic features.

Statement:

This manual is the intellectual property of Foxconn, Inc. Although the information

in this manual may be changed or modied at any time, Foxconn does not obligate

itself to inform the user of these changes.

Trademark:

All trademarks are the property of their respective owners.

Version:

User’s Manual V1.2 for H61AP-S/H61AP motherboard.

Symbol description:

Note: refers to important information that can help you to use motherboard

better, and tells you how to avoid problems.

Caution: indicating a potential risk of hardware damage or physical injury

may exist.

WEEE:

The use of this symbol indicates that this product may not be treated as household

waste. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could other-

wise be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local city ofce, your

household waste disposal service or the shop where you purchased this product.

More information:

If you want more information about our products, please visit Foxconn’s website:

http://www.foxconnchannel.com

CAUTIO

Declaration of conformity

HON HAI PRECISION INDUSTRY COMPANY LTD

66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,

TAIPEI HSIEN, TAIWAN, R.O.C.

declares that the product

Motherboard H61AP-S/H61AP

is in conformity with

(reference to the specication under which conformity is declared in

accordance with 89/336 EEC-EMC Directive)

■ EN 55022: 1998/A2: 2003 Limits and methods of measurements of radio

disturbance characteristics of information technology equipment

■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)

Part 3: Limits Section 2: Limits for harmonic current emissions (equipment input current <= 16A per phase)

■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)

Part 3: Limits

Section 2: Limits of voltage uctuations and icker in low

voltage supply systems for equipment with rated current <= 16A

■ EN 55024/A2:2003 Information technology equipment-Immunity

characteristics limits and methods of measurement

Signature : Place / Date : TAIPEI/2012

Printed Name : James Liang

Declaration of conformity

Trade Name: FOXCONN

Model Name: H61AP-S/H61AP

Responsible Party: PCE Industry Inc.

Address: 458 E. Lambert Rd.

Fullerton, CA 92835

Telephone: 714-738-8868

Facsimile: 714-738-8838

Equipment Classication: FCC Class B Subassembly

Type of Product: Motherboard

Manufacturer: HON HAI PRECISION INDUSTRY

COMPANY LTD

Address: 66 , CHUNG SHAN RD., TU-CHENG

INDUSTRIAL DISTRICT, TAIPEI HSIEN,

TAIWAN, R.O.C.

Supplementary Information:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions : (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Tested to comply with FCC standards.

Signature : Date : 2012

Installation Precautions

Website: http://www.foxconnchannel.com Support Website: http://www.foxconnsupport.com Worldwide online contact Support: http://www.foxconnsupport.com/inquiry.aspx CPU Support List: http://www.foxconnsupport.com/cpusupportlist.aspx Memory, VGA Compatibility List: http://www.foxconnsupport.com/complist.aspx

Technical Support

■ Electrostatic discharge (ESD) is the sudden and momentary electric current that ows between two objects at different electrical potentials. Normally it

comes out as a spark which will quickly damage your electronic equipment. Please wear an electrostatic discharge (ESD) wrist strap when handling components such as a motherboard, CPU or memory.

■ Ensure that the DC power supply is turned off before installing or removing CPU,

memory, expansion cards or other peripherals. It is recommended to unplug the AC power cord from the power supply outlet. Failure to unplug the power supply cord may result in serious damage to your system.

CAUTIO

Please carefully read the following procedures to install your computer :

■ It is suggested to select high-quality, certied fans in order to avoid damage to

the motherboard and CPU due to high temperature. Never turn on the computer if the CPU fan is not properly installed.

■ We cannot guarantee that your system can operate normally when your CPU

is overclocked. Normal operation depends on the overclocking capacity of your device.

■ If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or S/PDIF cables to the internal connectors on the motherboard, make sure their pinouts are matching with the connectors on the motherboard. Incorrect connections might damage the motherboard.

■ When handling the motherboard, avoid touching any metal leads or connectors.

■ If there is a PCI Express x16 graphics card installed in your system, we recommend using a 24-pin ATX power supply to get the best performance.

■ Before turning on the power, please make sure the power supply AC input voltage setting has been congured to the local standard.

■ To prevent damage to the motherboard, do not allow screws to come in contact

with the motherboard circuit or its components. Also, make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

■ If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certied computer technician.

Chapter 1 Product Introduction

1-1 Product Specications ............................................................................2

1-2 Layout ....................................................................................................4

1-3 Back Panel Connectors ..........................................................................5

Chapter 2 Hardware Installation

2-1 Install the CPU and CPU Cooler ............................................................8

Install the CPU ..........................................................................................8

Install the CPU Cooler ............................................................................10

2-2 Install the Memory ................................................................................ 11

Dual Channel Memory Conguration ...................................................... 11

Installing a Memory .................................................................................12

2-3 Install an Expansion Card ....................................................................13

2-4 Install other Internal Connectors ..........................................................14

2-5 Jumpers ...............................................................................................18

Chapter 3 BIOS Setup

Enter BIOS Setup .......................................................................................21

Main ............................................................................................................22

F-center ......................................................................................................24

Smart BIOS .............................................................................................24

Fox Intelligent Stepping ..........................................................................25

CPU Conguration ..................................................................................26

Performance Tuning ................................................................................27

Advanced ...................................................................................................29

North Bridge ............................................................................................29

ME Subsystem ........................................................................................30

Onboard Device Conguration ................................................................31

SATA Conguration .................................................................................32

Super IO Conguration ...........................................................................33

Trusted Computing ..................................................................................34

Network Stack .........................................................................................35

Boot ............................................................................................................36

CSM parameters ....................................................................................37

Power .........................................................................................................38

Health .........................................................................................................40

Security ......................................................................................................41

Save & Exit .................................................................................................42

Chapter 4 CD Instruction

4-1 Install driver and utility ..........................................................................44

1. Driver ..................................................................................................44

2. Utility ...................................................................................................45

4-2 FOX ONE .............................................................................................46

TABLE OF CONTENTS

1. Main Page ...........................................................................................47

2. CPU Page - CPU Control ....................................................................50

3. Frequency Page - Frequency Control(Optional) .................................53

4. Limit Setting ........................................................................................53

5. Voltage Page - Voltage Control (Optional) ..........................................56

6. Fan Page - Fan Control ......................................................................56

4-3 FOX LiveUpdate ...................................................................................57

1. Local Update .......................................................................................57

2. Online Update .....................................................................................59

3. Congure ............................................................................................62

4. About & Help ....................................................................................... 64

4-4 FOX LOGO ..........................................................................................65

4-5 FOX DMI ..............................................................................................66

4-6 Smart charger ......................................................................................66

Thank you for buying Foxconn H61AP Series motherboard. Foxconn products are engineered to maximize computing power, providing only what you need for break-through performance.

This chapter includes the following information:

■ Product Specications

■ Layout

■ Back Panel Connectors

Chapter 1 Product Introduction

PRODUCT INTRODUCTION

1-1 Product Specications

CPU Support Intel® Ivy Bridge/Sandy Bridge LGA1155 Processors

Max processor power up to 95W

For the latest CPU information, please visit: http://www.foxconnsupport.com/cpusupportlist.aspx

Chipset Intel

H61

Memory 2 x 240-pin DDR3 DIMMs

Support up to 16GB of system memory Dual channel DDR3 1600(Ivy Bridge)/1333/1066 MHz architecture

Expansion Slots 1 x PCI Express X16 slot

-Support PCI Express Gen2 5GT/s data rate (Sandy Bridge)

-Support PCI Express Gen3 8GT/s data rate (Ivy Bridge) 6 x PCI slots

Storage Intel

H61 chipset

- 4 x SATA 2.0 connectors (3Gb/s data transfer rate) Asmedia ASM1061:

- 2 x SATA 3.0 connectors (6Gb/s data transfer rate) (only for H61AP-S)

LAN

Realtek 8111F Gigabit LAN chip

Support 10/100/1000Mbps

Audio Realtek ALC662 Audio chip:

-High Denition Audio

-2/4/5.1-channel

-Support for SPDIF Out

-Support Jack-Sensing function

USB Support up to 10 x USB 2.0 ports (4 rear panel ports, 3 onboard USB

headers supporting 6 extra ports) (H61AP) Support up to 8 x USB 2.0 ports (2 rear panel ports, 3 onboard USB headers supporting 6 extra ports)(H61AP-S)

Support up to 2 x USB 3.0 ports(only for H61AP-S) Support USB 2.0 protocol up to 480Mb/s Support USB 3.0 protocol up to 5Gb/s

Internal Connectors

1 x 24-pin ATX power connector 1 x 4-pin ATX 12V power connector 4 x SATA 2.0 connectors 2 x SATA 3.0 connectors(H61AP-S) 3 x USB 2.0 header (supporting 6 x USB devices) 1 x CPU Fan header (4-pin) 1 x System Fan header (4-pin)

1 x Front panel header 1 x Front Audio header 1 x SPDIF_OUT header 1 x Speaker header 1 x Intrusion Alarm header 1 x COM2 header 1 x TPM header

PRODUCT INTRODUCTION

Internal Connectors

1 x Clear CMOS header 1 x CIR header 1 x ME header

Back Panel Connectors

1 x PS/2 Keyboard/Mouse port 1 x VGA port 1 x COM port 1 x Parallel Port

4 x USB 2.0 ports(H61AP) 2 x USB 2.0 ports(H61AP-S) 2 x USB 3.0 ports (H61AP-S) 1 x RJ-45 LAN port

3 x Audio ports

Hardware Monitor System voltage detection

CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan speed control

Green Function Support ACPI (Advanced Conguration and Power Interface)

Support S3 (suspend to RAM), S4 (suspend to disk)

Support Deep S4,S5 Function

Support EuP function

Bundled Software FOX ONE, FOX LiveUpdate, FOX LOGO, FOX DMI, Smart Charger

Operating System Support for Microsoft

Windows® 8/7/XP

Form Factor Micro ATX Form Factor, 12 inches x 7.8 inches (30.4cm x 19.8cm)

PRODUCT INTRODUCTION

1-2 Layout

Note : The above motherboard layout is for reference only, please refer to the physical

motherboard for detail.

1. 4-pin ATX 12V Power Connector

2. SYS_FAN1 Header

3. PCI Express x16 Slot

4. PCI Slots

5. Front Audio Header

6. Speaker Header

7. SPDIF_OUT Header

8. Front USB Header

9. PCH_ME_ENABLE Jumper

10. TPM Header

11. Front Panel Header

12. CIR Header

13. SATA Connectors

14. Chipset: Intel® H61

15. Clear CMOS Jumper

16. 24-pin ATX Power Connector

17. INTR Header

18. COM2 Header

19. DDR3 DIMM Slots

20. CPU_FAN Header

21. LGA1155 CPU Socket

6 7

13 15 161412 17

5 34

PRODUCT INTRODUCTION

1-3 Back Panel Connectors

1. PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse.

2. PS/2 Keyboard Port

Use the lower port (purple) to connect a PS/2 keyboard.

3. COM Port

This is output of RS232 COM1 port.

4. Parallel Port

This connector provides printer port interface.

5. VGAPort

Use this port to connect external display devices, such as monitor or LCD display.

6. USB 3.0 Ports (only for H61AP-S)

The USB port supports the USB 3.0/2.0/1.1 specication. Use this port for USB devices such

as an USB keyboard/mouse, USB printer, USB ash drive and etc. You need to install the

USB 3.0 driver in the Driver CD before using it.

Back panel connectors of 5.1 channel (H61AP-S):

Back panel connectors of 5.1 channel (H61AP):

LAN Port

Audio PortsVGA Port

Line In

Line Out

Microphone

USB 3.0 Ports

(only for H61AP-S)

LAN Port

PS/2 Mouse Port

Audio Ports

Line Out

Microphone In

Line In

VGA Port USB PortsCOM Port

Parallel Port

PS/2 Keyboard Port

PS/2 Mouse Port

PS/2 Keyboard Port USB Ports

8 9

COM Port

Parallel Port

1 4

PRODUCT INTRODUCTION

7. RJ-45 LAN Port

The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.

8.USB Ports

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as

an USB keyboard/mouse, USB printer, USB ash drive and etc.

9. Audio Ports (3 jacks)

For the denition of each audio port, please refer to the table below :

: Please refer to Chapter 4, and run the Realtek audio driver (in CD) to assign the audio out-

put ports for different applications of 2/4/5.1 channels or 2/4/5/7.1 channels. The fundamental

audio outputs are depicted in the table above.

LAN Type

Left: Active Right: Link

Status Description Status Description

1000M

Off No Link Off No Link

Green Blinking

Data Activity

Off 10Mb/s Connection

Green 100Mb/s Connection

Orange 1000Mb/s Connection

Active Link LED LED

Port 2-channel 4-channel 5.1-channel

Blue Line In Rear Speaker Out* Rear Speaker Out*

Green Line Out Front Speaker Out Front Speaker Out

Pink Microphone In Microphone In Center/Subwoofer Out*

This chapter introduces the hardware installation process, including the installation of the CPU, memory, power supply, slots, pin headers and the mounting of jumpers. Caution should be exercised during the installation of these modules. Please refer to the motherboard layout prior to any installation and read the contents in this chapter carefully.

This chapter includes the following information :

■ Install the CPU and CPU Cooler

■ Install the Memory

■ Install an Expansion Card

■ Install other Internal Connectors

■ Jumpers

Chapter 2 Hardware Installation

HARDWARE INSTALLATION

2-1 Install the CPU and CPU Cooler

Install the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

LGA1155 CPU Socket

Alignment Key

Pin-1 corner of

the CPU Socket

LGA1155 CPU

Notch

Pin-1 triangle

marking of CPU

Read the following guidelines before you begin to install the CPU :

■ Make sure that the motherboard supports the CPU.

■ Always turn off the computer and unplug the power cord from the power supply

before installing the CPU to prevent hardware damage.

■ Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

■ Apply an even and thin layer of thermal grease on the surface of the CPU.

■ Do not turn on the computer if the CPU cooler is not installed, otherwise

overheating and damage of the CPU may occur.

■ Set the CPU host frequency in accordance with the CPU specications. It is not

recommended that the system bus frequency be set beyond hardware

specications since it does not meet the standard requirements for the peripherals. If you wish to set the frequency beyond the standard specications, please do so according to your hardware specications including the CPU,

graphics card, memory, hard drive, etc.

Hyper-Threading Technology System Requirements: (Go to Intel's website for more information about the Hyper-Threading Technology)

■ An Intel® CPU that supports HT Technology

■ A chipset that supports HT Technology

■ An operating system that is optimized for HT Technology

■ A BIOS that supports HT Technology and has it enabled

HARDWARE INSTALLATION

Follow the steps to install the CPU onto the CPU socket :

2. Lift the metal cover on the CPU

socket.

3. Remove protective socket cover.

5. When CPU is properly seated,

replace the metal cover and push the

CPU socket lever back to its locked

position.

4. Check pin one marking (triangle)

with the pin one corner of the CPU

socket, align the CPU notches with

the socket alignment keys and gently

put the CPU onto the socket.

1. Release the CPU socket lever.

Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU.

HARDWARE INSTALLATION

Install the CPU Cooler

Follow the steps below to correctly install the CPU cooler on the motherboard.

1. Apply and spread an even thermal grease on the surface of CPU.

2. Place the four bolts of the CPU cooler to the holes of the motherboard, push them straight down from the top, and the bolts will be fastened on the motherboard. That's it.

3. Check the solder side of the motherboard, the push pin should

be xed as depicted in the picture.

4. Attach the 4-wire CPU cooler

connector to the CPU FAN header on the motherboard .

Release bolts of CPU cooler from motherboard :

1.Turning the push pin (bolt) along with the direction of arrow (counterclockwise).

2. Pull the push pin straight up.

3. Turning push pin clockwise to its default position.

Use extreme care when removing the CPU cooler because the thermal grease may adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.

HARDWARE INSTALLATION

2-2 Install the Memory

Dual Channel Memory Conguration

Channel 0 : DIMM1

Channel 1 : DIMM2

The combinations of DIMM modules are :

Read the following guidelines before you begin to install the memory :

■ Make sure that the motherboard supports the memory. It is recommended that

memory of the same capacity, brand, speed, and chips be used, and please

select Dual channel rst to achieve optimum performance.

■ Always turn off the computer and unplug the power cord from the power outlet

before installing the memory to prevent hardware damage.

■ Memory modules have a foolproof design. A memory module can be installed in

only one direction. If you are unable to insert the memory, switch the direction.

DIMM1 DIMM2

Single Channel DS/SS -

Single Channel - DS/SS

Dual Channel DS/SS DS/SS

(DS : Double Side, SS : Single Side, - : No Memory)

HARDWARE INSTALLATION

Installing a Memory

If you take a look at front side of memory module, it has asymmetric pin counts on both sides

separated by a notch in the middle, so it can only t in one direction. Follow the steps below to

correctly install your memory modules into the sockets.

Step 1:

Spread the clips at both ends of the memory socket. Place the memory module onto the socket, then put your

ngers on top edge of the module, and push it down rmly

and seat it vertically into the memory socket.

Step 2: The clips at both ends of the socket will snap into place

when the memory module is securely inserted.

96-Pin

144-Pin

Notch

HARDWARE INSTALLATION

2-3 Install an Expansion Card

Follow the steps below to correctly install your expansion card in the expansion slot.

1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis

back panel.

2. Align the card with the slot, and press down on the card until it is fully seated in the slot.

3. Make sure the metal contacts on the card are completely inserted into the slot.

4. Secure the card's metal bracket to the chassis back panel with a screw.

5. After installing all expansion cards, replace the chassis cover.

6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes

for your expansion card(s).

7. Install the driver provided with the expansion card in your operating system.

Installing and Removing a PCI Express x16 Graphics Card :

• Installing a Graphics Card:

Gently insert the graphics card into the PCI Express x16 slot. Make

sure the graphics card is locked by the latch at the end of the PCI

Express x16 slot.

• Removing the Card:

Push the latch at the end of the PCI Express x16 slot to release the card and then pull the card straight up from the slot.

PCI

PCI Express x16

■ Make sure the motherboard supports the expansion card.

■ Always turn off the computer and unplug the power cord from the power outlet

before installing an expansion card to prevent hardware damage.

HARDWARE INSTALLATION

2-4 Install other Internal Connectors

Power Connectors

This motherboard uses an ATX power supply. In order not to damage any device, make sure all the devices have been installed properly before applying the power supply.

24-pin ATX Power Connector : PWR1

PWR1 is the ATX power supply connector. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure.

4-pin ATX 12 V Power Connector : PWR2

Connect the 4-pin ATX 12V power supply to PWR2 and provides power to the CPU.

20-Pin Power

Pin No. 24

3 1

GND

+12V

4 2

PWR2

PWR1

24 13

Pin # Denition Pin # Denition

1 3.3V 13 3.3V

2 3.3V 14 -12V

3 GND 15 GND

4 +5V 16 PS_ON(Soft On/Off)

5 GND 17 GND

6 +5V 18 GND

7 GND 19 GND

8 Power Good 20 NC

9 +5V SB(Stand by +5V) 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

12 3.3V 24 GND

Pin # Denition

1 GND

2 GND

3 +12V

4 +12V

We recommend you using a 24-pin power supply. If you are using a 20-pin power

supply, you need to align the ATX power connector according to the picture.

HARDWARE INSTALLATION

Audio Header : F_AUDIO

The audio connector supports HD Audio standard. It provides the Front Audio output choice.

Speaker Header : SPEAKER

The speaker connector is used to connect speaker

of the chassis.

USB Headers : F_USB1/2/3

In addition to the USB ports on the rear panel, this product also provides 10-pin USB headers on its motherboard. By connecting through USB cables with them, user can quickly expand another USB ports on the front panel.

SPDIF OUT Header : SPDIF_OUT

The connector is used for SPDIF output.

Serial ATA Connectors : SATA_1/2/3/4/5/6

The Serial ATA connector is used to connect with SATA Hard Disk or CD devices which support this

feature. The SATA_1/2/3/4 allows up to 3GB/s data transfer rate, the SATA_5/6 support SATA

3.0 specication, and allows up to 6GB/s data

transfer rate.

A_MIC2_L A_MIC2_R

A_LINE2_L

SENSE_SEND

SENSE1_RETURN

PRESENCEJ

EMPTY SENSE2_RETURN

AUD_GND

109

F_AUDIO

A_LINE2_R

PWR

EMPTY

SPEAKER

SPKJ

GND TX+ TXGND RXRX+ GND

SATA_1/2/3/4

GND TX+ TXGND RXRX+ GND

SATA_5/6

+5V

EMPTY

SPDIF_OUT

GND

SPDIF_OUT

VCC

D-

EMPTY

D+

GND

D+

D-

GND GND

VCC

1 2

109

F_USB1/2/3

HARDWARE INSTALLATION

Front Panel Header : FP1

This motherboard includes one connector for connecting the front panel switch and LED Indicators.

Hard Disk LED Connector (HDD-LED)

Connect to the chassis front panel IDE indicator LED. It indicates the active status of the hard disks. This 2-pin connector is directional with +/- sign.

Reset Switch (RESET-SW)

Attach the connector to the Reset switch on the front panel of the case; the system will restart when the switch is pressed.

Power LED Connector (PWR-LED)

Connect to the power LED indicator on the front panel of the chassis. The Power LED indicates the system’s status. When the

system is in operation (S0 status), the LED

is on. When the system gets into sleep mode (S1) , the LED is blinking; When the system

is in S3/S4 sleep state or power off mode (S5), the LED is off. This 2-pin connector is

directional with +/- sign.

Power Switch Connector (PWR-SW)

Connect to the power button on the front panel of the chassis. Push this switch allows the system to be turned on and off rather than using the power supply button.

TPM Header : TPM

The TPM (Trusted Platform Module) provides the ability to the PC to run applications more secure and to make transactions and communication more trustworthy. To utilize this function, you should purchase additional device and install it.

Fan Headers : CPU_FAN, SYS_FAN1

The fan speed can be controlled and monitored in the BIOS Setup. These fans can be automati-

cally turned off after the system enters S3, S4 and S5 sleeping states

HDD-LED

RESET-SW

PWR-SW

PWR-LED

EMPTY

FP1

LCLK

LFRAMEn

LRESETn

LAD3

VDD

LAD0

NC_2

NC_1

GND

LPCPDn

GND EMPTY

LAD2

NC_3

LAD1 GND

NC_4

SERIRQ CLKRUNin

NC_5

1 2

19 20

TPM

CPU_FAN/SYS_FAN1

SENSE

POWER

GND

CONTROL

HARDWARE INSTALLATION

Chassis Intruder Alarm Header : INTR

The connector can be connected to a security switch on the chassis. The system can detect the chassis intrusion through the function of this connector. If eventually the chassis is closed, the system will send a message out.

CIR Header : CIR

This connector supports infrared wireless transmitting and receiving device.

COM Header: COM2

This motherboard supports one serial RS232 COM port for legacy compatibility. User must purchase another RS232 cable with a 9-pin D-sub connector at one end to connect with the external

RS232 device and another end with 10-pin female

connector to connect with COM1 connector in the motherboard.

INTR

GND

INTRUDERJ

DCD

SOUT

GND

RTS

DSR

DTR

CTS EMPTY

SIN

1 2

109

COM2

CIR

5VSB_SYS

EMPTY

CIRTX

CIRRX

GND

HARDWARE INSTALLATION

2-5 Jumpers

For some features needed, users can change the jumper settings on this motherboard to modify them. This section explains how to use the various functions of this motherboard by changing the jumper settings. Users should read the following content carefully prior to modifying any jumper setting.

Description of Jumpers

1. For any jumper on this motherboard, pin 1 can be identied by the bold silkscreen next to it.

However, in this manual, pin 1 is simply labeled as “1”.

2. The following table explains different types of the jumper settings. "Closed" means placing a

jumper cap on the two pins to temporarily short them. The shorting can also be done by touch-

ing two pins by a screwdriver for a few seconds, but using jumper cap is recommended. It can

prevent hazardous ESD (Electrical Static Discharge) problem.

Clear CMOS Jumper: CLR_CMOS

The motherboard uses CMOS RAM to store the basic hardware information (such as BIOS data, date, time information, hardware password... etc.). Clear CMOS data is the fast way to go back to

factory default when the BIOS settings were mistakenly modied.

The steps to clear CMOS data are :

1. Turn off the computer, unplug the power cord from the power outlet.

2. Remove jumper cap from pins 2-3, put it onto pins 1-2 to short them. This will clear CMOS data.

3. Return the setting to its original with pins 2-3 closed.

4. Plug in the power cord to your computer and turn it on.

5. Go to BIOS Setup to congure new system as described in next chapter.

Clear

Normal (Default)

CLR_CMOS

■ Disconnect the power cable before adjusting the jumper settings.

■ Do not clear the CMOS while the system is turned on.

CAUTIO

Jumper Diagram Denition Description

Closed Set Pin 1 and Pin 2 closed

Open Set Pin 1 and Pin 2 Open

1-2 Set Pin 1 and Pin 2 closed

2-3 Set Pin 2 and Pin 3 closed

HARDWARE INSTALLATION

Intel® ME Jumper: PCH_ME_ENABLE

This motherboard uses PCH_ME_ENABLE jumper to enable or disable Intel® Management

Engine function.

Intel® Management Engine (ME) is an embedded microcontroller located in Intel chipset. It

provides latest IT management features such as Intel® AMT, that allows to improve manage-

ment of corporate assets.

Set the jumper to pins 1-2, you can enable the Intel® Management Engine function.

Set the jumper to pins 2-3, you can disable the Intel® Management Engine function.

Enable

(Default)

Disable

PCH_ME_ENABLE

Denition Description Function

1-2(default) Set Pin 1 and Pin 2 closed Enable ME function

2-3 Set Pin 2 and Pin 3 closed Disable ME function

Before ashing BIOS ROM, you need to set ME jumper to pins 2-3 rst.

CAUTIO

This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. You have to run the Setup Program when the following cases occur:

1. An error message appears on the screen during the system Power On Self Test (POST) process.

2. You want to change the default CMOS settings.

This chapter includes the following information :

■ Enter BIOS Setup

■ Main

■ F-Center

■ Advanced

■ Boot

■ Power

■ Health

■ Security

■ Save & Exit

Chapter 3 BIOS Setup

BIOS SETUP

Enter BIOS Setup

The BIOS is the communication bridge between hardware and software, correctly setting up the BIOS parameters is critical to maintain optimal system performance. Power on the computer, when the message "Press <DEL> to enter Setup, <F7> to Boot Menu" appears at the bottom of the screen, you can press <DEL> key to enter Setup.

Use the arrow right/left keys to select a specic function and go to the submenu. Each function is explained below:

Main

It displays the basic system conguration, such as CPU Name, memory size, system date, time

and so on. They all can be viewed or set up through this menu.

F-Center

The advanced system features can be set up through this menu.

Advanced

The values for the chipset can be changed through this menu, and the system performance can be optimized.

Boot

Boot features can be set up through this menu. You can set the boot device priority here.

Power

All the items related with Green function features can be setup through this menu.

Health

This setup enables you to read/change fan speeds, and displays temperatures and voltages of your CPU/System.

Security

The Administrator/User password can be set up through this menu to prevent unauthorized use of your computer. If you set a password, the system will ask you to key in correct password before boot or access to Setup.

Save&Exit

The optimal performance settings can be loaded through this menu. However, it may offer better performance in some ways (such as less I/O cards, less memory ...etc.), still, it may cause problem if you have more memory or I/O cards installed. It means, if your system loading is heavy, set to optimal default may sometimes come out an unstable system. What you need now

is to adjust BIOS setting one by one, trial and error, to nd out the best setting for your current

system. You also can save or discard the changes and exit BIOS setup here.

We do not suggest that you change the default values in the BIOS Setup, and we shall not be responsible for any damage which resulted from the change you made.

BIOS SETUP

Main

System Date [Tue 09/04/2012] System Time [16:02:30]

Access Level Administrator Model Name H61AP/H61AP-S ME Version N/A BIOS Version C53F1D05 Build Date and Time 08/23/2012 10:42:48

Halt On [All, but keyboard]

CPU Brand Name: Genuine Intel(R) CPU @ 2.20GHz

Total Memory 2048 MB (DDR3 1333) MAC Address D0-27-88-B2-0F8-7A

Set the Date. Use Tab to switch between Date elements.

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► System Date

<weekday><month><date> <year> format. Day—weekday from Sun. to Sat., this message is automatically displayed by BIOS (Read Only). Month—month from 1 to 12. Date—date from 1 to 31. Year—year, set up by users.

Use [ENTER], [TAB] or [SHIFT-TAB] to select a eld. Use [+] or [-] to input the value.

► System Time

This item allows you to congure the desired time. Use [ENTER], [TAB] or [SHIFT-TAB] to select a eld. Use [+] or [-] to input the value. The three elds of the setting are <hour> : <minute> : <second> respectively.

► Access Level

It displays your current access level. If you enter system with a user password, it will dispaly “User”. If no password is set or you enter system with administrator password, this item will dispaly “Administrator”.

► Model Name

This item shows the model name of this product.

► ME Version

It displays the current ME version.

► BIOS Version

It displays the current BIOS version. User can check this information and discuss with the

eld service people if a BIOS upgrade is needed.

► Build Date and Time

This item shows the BIOS building date and time.

► Halt On

This category determines whether or not the computer will stop if an error is detected during [All Errors]: All errors can result in system halt.

BIOS SETUP

[No Errors]: No error can result in system halt. [All, but keyboard]: All errors but keyboard can result in system halt.

► CPU Brand Name

It displays the current CPU name.

► Total Memory

This item displays the total memory size. The size is depending on how many memory modules are installed in your system before powering on.

► MAC Address

This item displays the onboard LAN MAC address.

BIOS SETUP

F-center

Fox Control Center

Super BIOS Protect [Enabled]

▶ Smart BIOS ▶ Fox Intelligent Stepping ▶ CPU Configuration ▶ Performance Tuning

Super BIOS Protection

Settings

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Super BIOS Protect

To protect the system BIOS, there is a BIOS write-protection mechanism provided to prevent BIOS FLASH tool being improperly used to update BIOS or the vicious virus(such as CHI,etc) rewriting BIOS setup.

► Smart BIOS/Fox Intelligent Stepping/CPU Conguration/Performance Tuning

Press <Enter> to go to relative submenu.

Smart BIOS

Smart Power LED [Disabled] Smart Boot Menu [Enabled]

Smart Power LED Settings

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

BIOS SETUP

► Smart Power LED

Smart Power LED is a feature built on your motherboard to indicate different states during Power On Self Test (POST). The LED is located at the front panel, and it displays POST state by different long-short blinking intervals. You can always leave this state enabled.

System Status Power LED Status Stop Blinking Condition

Normal Always On Always On

No Memory Continue blinking On (1sec.), Off (1sec.) Reboot & Memory OK

No Display Continue blinking On (2sec.), Off (2sec.) Reboot & Display OK

Post Error Message

Quick blinking twice (1/3sec. On, 1/3sec. Off), one long On (1sec.), continuously.

Enter Setup or Skip

No CPU Fan Continue blinking On (1/2sec.), Off (1/2sec.) Reboot & Fan OK

► Smart Boot Menu

When PC starts, it will ask you to press [Del] key to enter setup or press [F7] key to enter smart boot menu. If [Disabled] is selected, then pressing [F7] has no function. This also prevents user without password trying to get into your computer through smart boot menu.

Fox Intelligent Stepping

Spread Spectrum [Enabled]

Spread Spectrum Settings

→ ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Spread Spectrum

If you enabled this function, it can signicantly reduce the EMI (Electromagnetic Interference)

generated by the system, so to comply with FCC regulation. But if overclocking is activated, you had better disable it.

BIOS SETUP

CPU Conguration

CPU Configuration

CPU Brand Name: Genuine Intel(R) CPU @ 2.20GHz L1 Data Cache 32 KB X 4 L1 Code Cache 32 KB X 4 L2 Cache 256 KB X 4 L3 Cache 8192 KB Processor Stepping 4 Max CPU Speed 2200 MHZ Min CPU Speed 1600 MHz CPU Speed 2200 MHz Processor Cores 4 Intel HT Technology Not Supported Intel VT-x Technology Supported Intel SMX Technology Supported

Intel AES-NI [Enabled]

Intel XD Bit [Enabled]

Limit CPUID Maximum [Disabled] Intel Virtualization Technology [Disabled] CPU C3 Report [Enabled]

CPU C6 Report [Enabled]

Intel AES-NI

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Intel AES-NI

This item is used to disable or enable Advanced Encryption Standard feature.

► Intel XD Bit

This item is used to enable/disable the Execute Disable Bit feature. Intel’s Execute Disable Bit functionality can help prevent certain classes of malicious buffer

overow attacks when combined with a supporting operating system .

► Limit CPUID Maximum

This item is used to enable or disable CPUID maximum value limit conguration. Set Limit

CPUID Maximum to 3. Should be [Disabled] for WinXP.

► Intel Virtualization Technology (Appears only when CPU supports)

Virtualization (i.e. Intel® Vanderpool Technology) allows a platform to run multiple operating systems and applications in independent partitions or “containers.” One physical compute system can function as multiple “virtual” systems. Vanderpool Technology can help improve future virtualization solutions. This item will be displayed only when the CPU is supporting this feature and the setting is used to enable/disable it.

► CPU C3 Report

This item is used to enable or disable CPU C3 (ACPI C2) report to OS. ► CPU C6 Report

This item is used to enable or disable CPU C6 (ACPI C3) report to OS.

BIOS SETUP

Performance Tuning

▶ CPU Configuration

▶ North Bridge Configuration

CPU Configuration

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

CPU Conguration ► EIST Function

You can select the EIST (Processor Power Management, PPM) through this item.

Enhanced Intel SpeedStep® technology (EIST) allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production. There are some system requirements must be met, including CPU, chipset, motherboard, BIOS and operation system. Please refer to Intel Website for more information.

CAUTIO

► Turbo Mode(Appears only when CPU supports)

You can enable/disable the Turbo mode.

North Bridge Conguration ► Performance Memory Proles

This item is used to select Performance memory prole. Options: [Automatic], [Manual], [XMP Prole 1], [XMP Prole 2]. [Automatic]- Conguration database of using performance memory prole. [Manual]- Conguration database of using performance memory prole. The next submenu

will appear when select this item.

[XMP Prole 1]-Conguration database of using XMP timing prole 1. [XMP Prole 2]- Conguration database of using XMP timing prole 1.

The following items appear only when the option is set to “Manual”. ► Memory Clock Multiplier

This item is used to set the memory clock multiplier.

► Memory Multiplier

This item is used to set the memory multiplier.

BIOS SETUP

► tCL

The number of memory clocks it takes a DRAM to return data after the read CAS_L isasserted depends on the memory clock frequency. The value that BIOS programs into the memory controller is a function of the target clock frequency. The target clock frequency is determined from the supported CAS latencies at given clock frequencies of each DIMM.

► tRP

This item allows you to select the row precharge time (in clock cycles).

► tRCD

This item allows you to select a delay time (in clock cycles) between the CAS# and RAS# strobe signals.

► tRAS

This item allows you to set the minimum RAS# active time (in clock cycles).

► tWR

This item allows you to select the write recovery time (in clock cycles).

► tRFC

Refresh to Refresh or Refresh to Active command interval.

► tWTR

This item allows you to select a delay time (in clock cycles) between sending the last data from a write operation to the memory and issuing a read command.

► tRRD

This item allows you to select a delay time (in clock cycles) between the RAS# and RAS# strobe signals.

► tRTP

Internal READ Command to PRECHARGE Command delay

► tFAW

This item allows you to specify the time window in which four activates are allowed the same rank.

► Graphics Core Ratio Limit

This item is used to set the graphics care ratio limit.

► Graphics Voltage(1/256)

This item is used to set the graphics voltage.

BIOS SETUP

Advanced

▶ North Bridge

▶ ME Subsystem ▶ Onboard Device Configuration ▶ SATA Configuration ▶ Super IO Configuration ▶ Trusted Computing ▶ Network Stack

North Bridge Parameters

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► North Bridge/ME Subsystem/Onboard Device Conguration/SATA Conguration /Super IO Conguration/ Trusted Computing/Network Stack

Press <Enter> to go to its submenu.

North Bridge

North Bridge Configuration

Memory Information Total Memory 2048 MB (DDR3 1333) Memory Slot1 Not Present Memory Slot2 2048 MB (DDR3 1333)

Memory Configuration

Integrated Graphics [Auto]

UMA Frame buffer Size [256M]

Initate Graphics Adapter [Auto] VT-D [Enabled] IGD Multi-Montior [Disabled] DVMT/FIXED Memory [256M]

Keep IGD enabled based

on the setup options.

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Total Memory

This item displays the current using memory information.

BIOS SETUP

► Memory Slot 1/2

These items display the memory size installed on each slot. ► Integrated Graphics

This item allows you to determine whether to allocate memory for the integrated graphics controller from the system memory. Options: [Auto], [Manual]. [Auto]-Auto the integrated graphics controller. [Manual]- Manual the integrated graphics controller.

► UMA Frame Buffer Size

Allocates system memory for use as video memory to ensure the most efcient use of avail

able resources for maximum 2D/3D graphics performance.

This is a memory allocation method addition to the Unied Memory Architecture (UMA)

concept, wherein a static amount of page-locked graphics memory is allocated during driver

initialization. This xed amount of memory will provide the user with a guaranteed graphicsmemory at all times, and will no longer be available to the OS.

► Initial Graphic Adapter

This item is used to select which graphics controller is used as the primary boot device. ► VT-D

This item is used to enable or disable the VT-d feature. Intel® Virtualization Technology for Directed I/O (VT-d) can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environment.

► IGD Multi-Monitor

This item is used to enable or disable the IGD Multi-Monitor by internal graphics device.

► DVMT/FIXED Memory

This item is used to select DVMT/FIXED memory size used by internal graphics device.

ME Subsystem

Intel ME Subsystem Configuration

ME Version N/A

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► ME Version

It displays the current ME version.

BIOS SETUP

Onboard Device Conguration

Onboard Device Configuration

Onboard LAN Controller [Enabled]

Onboard LAN PXE OpROM [Enabled] Onboard USB Controller [Enabled] Legacy USB Support [Enabled] USB3.0 Support [Enabled] SATA3.0 Controller [Enabled] Azalia HD Audio Controller [Enabled]

Onboard LAN Controller

→ ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Onboard LAN Controller

This item is used to enable or disable the onboard LAN controller.

► Onboard LAN PXE OpROM

This item is used to enable or disable onboard LAN PXE option ROM.

► Onboard USB Controller

This item is used to enable or disable the onboard USB controller.

► Legacy USB Support

This item is used to enable the support for USB devices on legacy OS. If you have a USB keyboard or mouse, set to enabled. [Enabled]: This option will enable the legacy USB support. [Disabled]: This option will keep USB devices available only for EFI applications.

► USB3.0 Support This item is used to enable or disable USB3.0(XHCI) Controller Support. ► SATA3.0 Controller

This item is used to enable or disable SATA3.0 Controller

► Azalia HD Audio Controller

This item is used to enable or disable the Azalia HD Audio Controller.

BIOS SETUP

SATA Conguration

SATA Configuration

Onboard SATA Controller [Enabled]

Onboard SATA Mode [Native IDE]

▶ SATA Port1: Not Present ▶ SATA Port2: Not Present ▶ SATA Port3: Not Present ▶ SATA Port4: Not Present

Enable or disable SATA Device

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Onboard SATA Controller

This item is used to enable or disable the onboard SATA controller. ► Onboard SATA Mode

This item is used to set the operating mode of your SATA ports.

[Native IDE] - This congures the SATA ports to support native IDE mode. [AHCI] - The Advanced Host Controller Interface (AHCI) specication describes the register level interface for a Host Controller for Serial ATA. The specication includes a description of

the hardware/software interface between system software and the host controller hardware. AHCI provides more advanced features including SATA features, but some SATA drives may not support AHCI, unless they are labeled with AHCI support in its specication. If your motherboard supporting AHCI, and you have a SATA device, which also supports AHCI, then you can select IDE option to have fair performance (only PATA, SATA level), or you can select AHCI to get its best performance.

► SATA Port1/SATA Port2/SATA Port3/SATA Port4

Press <Enter> to go to its submenu. This item is used to show the SATA Device information.

BIOS SETUP

Super IO Conguration

Super IO Configuration

Super IO Chip IT8728

▶ Serial Port 0 Configuration

▶ Serial Port 1 Configuration

▶ Parallel Port Configuration ▶ CIR Controller Configuration

Set Parameters of Serial Port 1 (COMB)

→ ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

Serial Port 0/1 Conguration ► Serial Port

This item is used to enable or disable the serial port (COM).

► Device Settings

This item shows the resource assigned to the serial port.

► Change Settings

This item is used to select an optimal settings for Super IO device.

Parallel Port Conguration ► Parallel Port

This item is used to enable or disable the parallel port (LPT/LPTE).

► Device Settings

This item shows the resource assigned to the serial port.

► Change Settings

This item is used to select an optimal settings for Super IO device.

► Device Mode

This item is used to change the printer port mode.

CIR Controller Configuration

► CIR Controller

This item is used to enable or disable the onboard CIR controller.

► Device Settings

This item shows the resource assigned to the CIR controller.

► Change Settings

This item is used to select an optimal settings for Super IO device.

BIOS SETUP

Trusted Computing

TPM Configuration

TPM SUPPORT [Disabled]

Current TPM Status Information NO TPM Hardware

Enables or Disables BIOS support O.S. will not show TPM.Reset of platform is required.

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► TPM SUPPORT

This item is used to decide whether to support TPM (Trusted Platform Module) device func-

tion. Default option is [Disabled]. If you want to support TPM, rst you need to install a TPM

device on the motherboard and set this item to [Enabled], then save changing and reset your computer, otherwise the operation system can not show the relative information.

BIOS SETUP

Network Stack

Network stack [Disabled]

Enable/Disables UEFI network stack

→ ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Network stack

This item is used to enable/disable UEFI network stack.

The UEFI(Unied Extensible Firmware Interface)Network Stack implements the TCP/IP

network interfaces such as SNP, MNP,ARP, IP, UDP, DHCP, MTFTP, and TCP.

BIOS SETUP

Boot

Boot Configuration

Bootup Numlock State [On]

Quiet Boot [Enabled] Fast Boot [Disabled] Interrupt 19 Capture [Enabled] ▶ CSM parameters

Set Boot Priority

1st Boot [Hard Disk] 2nd Boot [CD/DVD] 3rd Boot [USB Floppy] 4th Boot [USB CD/DVD] 5th Boot [USB Hard Disk] 6th Boot [USB KEY] 7th Boot [Network] 8th Boot [UEFI]

▶ USB KEY Drive BBS Priorities ▶ UEFI Boot Drive BBS Prioriies

Select the keyboard NumLock state

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Bootup Numlock State

This item denes if the keyboard Num Lock key is active when your system is started. The

available settings are: On (default) and Off.

► Quiet Boot

This item is used to enable/disable the quiet boot. [Disabled] : Displays the normal POST messages. [Enabled] : Displays OEM customer logo instead of POST messages.

► Fast Boot

While Enabled, this option allows BIOS to skip certain tests while booting, this will shorten thetime needed to boot the system.

► Interrupt 19 Capture

Enable this item can allow Option ROMs to trap Interrupt 19.

► Set Boot Priorities

These items are used to set the system boot order.

► Hard Disk Drive BBS Priorities / CD/DVD ROM Drive BBS Priorities/USB Floppy Drive

BBS Priorities / USB CD/DVD ROM Drive BBS Priorities / USB HardDisk Drive BBS Priorities / USB KEY Drive BBS Priorities / NETWORK Device BBS Priorities / UEFI Boot Drive BBS Priorities This items appear only when the devices are available. Use this items to specify the boot device priority sequence of the detected devices.

BIOS SETUP

CSM parameters

Launch CSM [Always]

Boot option filter [UEFI and Legacy] Launch PXE OpROM policy [Do not launch] Launch Storage OpROM policy [Legacy only] Launch Video OpROM policy [Legacy only] Other PCI device ROM priority [Legacy OpROM]

This option

controls if

CSM will be launched

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Launch CSM

This item controls if CSM will be launched.

► Boot option filter

This item controls what devices system can boot to.

► Launch PXE OpROM policy

This item controls the execution of UEFI and Legacy PXE OpROM.

► Launch Storage OpROM policy

This item controls the execution of UEFI and Legacy Storage OpROM.

► Launch Video OpROM policy

This item controls the execution of UEFI and Legacy Video OpROM.

► Other PCI device ROM priority

This item is used to specify PCI device ROM priority.

BIOS SETUP

Power

ACPI Sleep State [S3]

Resume By PS2 Keyboard [Enabled] Resume By PS2 Mouse [Enabled] Resume By USB Device(s) [Enabled] Resume By PCI PME [Disabled] Resume By PCIE Device(s) [Disabled] Resume By Onboard LAN [Disabled] Resume By RTC [Disabled] Energy-using Products [Enabled] Restore AC Power Loss [Power Off]

Select the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

ACPI (Advanced Conguration and Power Interface) is an open industry standard interfaces

enabling OS-directed conguration, power management, and thermal management of mobile, desktop, and server platforms. It denes ve sleeping states, they are :

S1 - The S1 sleeping state is a low wake latency sleeping state. In this state, no system context

is lost (CPU or chip set) and hardware maintains all system context. (also called Power On Suspend)

S2 - The S2 sleeping state is a low wake latency sleeping state. This state is similar to the S1

sleeping state except that the CPU and system cache context is lost (the OS is responsible for maintaining the caches and CPU context). Control starts from the processor’s reset vector after the wake event.

S3 - The S3 sleeping state is a low wake latency sleeping state where all system context is lost

except system memory. CPU, cache, and chip set context are lost in this state. Hardware

maintains memory context and restores some CPU and L2 conguration context. Control

starts from the processor’s reset vector after the wake event. (also called Suspend to RAM)

S4 - The S4 sleeping state is the lowest power, longest wake latency sleeping state supported

by ACPI. In order to reduce power to a minimum, it is assumed that the hardware platform has powered off all devices. Platform context is maintained. (also called Suspend to Disk)

S5 - The S5 state is similar to the S4 state except that the OS does not save any context. The

system is in the “soft” off state and requires a complete boot when it wakes. Software uses

a different state value to distinguish between the S5 state and the S4 state to allow for initial

boot operations within the BIOS to distinguish whether or not the boot is going to wake from a saved memory image.

► ACPI Sleep State

This item is used to set the energy saving mode of the ACPI function. When you select “S1 (POS)” mode, the power is always on and computer can be resumed at any time. When you select “S3 (STR)” mode, the power will be down after a period of time. The status of the computer before it entering STR will be saved in memory, and the computer can quickly

BIOS SETUP

return to previous state when the STR function wakes.

► Resume by PS2 Keyboard

This item is used to enable/disable the PS2 keyboard to generate a wake up.

► Resume by PS2 Mouse

This item is used to enable/disable the PS2 mouse to generate a wake up. ► Resume by USB Device(s)

This item is used to enable/disable the USB device(s) to generate a wake up.

► Resume by PCI PME

This item is used to enable or disable the PCI device to generate a wake up. ► Resume by PCIE Device(s)

This item is used to enable/disable the PCI Express device to generate a wake up.

► Resume by Onboard LAN

This item is used to enable/disable the onboard LAN to generate a wake up.

► Resume by RTC

This item is used to enable/disable RTC alarm event to generate a wake up. RTC is system real time clock.

► RTC Alarm Date(Days)

When Resume by RTC is enabled, select a specic date to generate a wake up.

► RTC Alarm Time(HH:MM:SS)

When Resume by RTC is enabled, select a specic time to generate a wake up.

► Energy-using Products

This item is used to enable/disable the EuP(Energy-using Products) feature. When enable,

the suspend power of the chipset will be cut off in S5 suspend mode in order to reduce the

power consumption of motherboard. Enabled: S1/S3/S4 is normal, S5 wake up only by pressing the power button. Disabled: Normal ACPI function.

► Restore AC Power Loss

This item is used to set which state the PC will take with when it resumes after an AC power loss.

BIOS SETUP

Health

► Case Open Warning

This item is used to enable or disable case open warning function.

► CPU Warning Temperature

This option is used to set the warning temperature for the system. When the temperature of

CPU is higher than the set value, the motherboard will send out warning information.

► CPU Shutdown Temperature

This item is used to set the system temperature upper limit. When the temperature exceed-

sthe set value, the system will shut down automatically.This function works only when your operating system is supporting ACPI.

► CPU Smart Fan Control

This option is used to enable or disable CPU smart fan function. Default value is [Disabled].

► System Smart Fan Control

This option is used to enable or disable system smart fan function. Default value is

[Disabled].

Case Open Warning [Disabled]

CPU Temperature : +39 ˚C System Temperature : +35 ˚C CPU Fan Speed : 3026 RPM System Fan Speed : N/A CPU Vcore : +1.200 V DRAM Voltage : +1.608 V +12V SYS : +12.300 V +5V SYS : +5.097 V VBAT : +3.328 V

CPU Warning Temperature [Disabled]

CPU Shutdowm Temperature [Disabled] CPU Smart Fan Control [Disabled] System Smart Fan Control [Disabled]

Enabled Case Opening Warning and open chassis, Instruction Alarm will appear. If don’t enter bios setup and disabled Case Opening Warning one time, Instruction Alarm don’t clear, it will appear all the time.

→ ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

BIOS SETUP

Security

► Administrator Password

This item is used to install or change administrator password. After you input administrator password, it then will ask you to

conrm the password. ► User Password

This item is used to install or change user password. Only when there exists a Administrator password, then this setting can be activated.

► Security option

To protect the BIOS from being changed by the unauthorized users, there is a security option

provided for your choice. Only when there exists a Administrator password, then this setting can be activated.

[setup]:A password will be required to enter the BIOS.(Only check password when enter

setup)

[Always]:A password will be required to enter both the system and BIOS. (Always check

password)

► HDD BootSector Write

This item is used to enable or disable protect HDD MBR from avoiding destroied by virus.

► Secure Boot

This item is used to enable or disable Secure Boot control. Secure Boot is possible only if

system runs in User Mode.

► Secure Boot Mode

This item is used to select Secure Boot Mode. The detailed parameter submenus will appear when you select “Custom” Mode.

Security configuration

Administrator Password Not Installed User Password Not Installed

Administator Password HDD BootSector Write [Normal]

System Mode state Setup Secure Boot state Disabled

Secure Boot [Enabled] Secure Boot Mode [Standard]

Set Administrator Password.The password must be 1 to 20 characters long.

→ ←: Select Screen

↑ ↓/Click: Select Item

Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

BIOS SETUP

Save & Exit

Save Changes and Reset

Discard Changes and Reset Restore Defaults

Boot Override

Reset system setup after

saving the changes.

→ ←: Select Screen ↑ ↓/Click: Select Item Enter/Dbl Click: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit

Main Advanced Boot Power Health SecurityF-center Save&Exit

► Save Changes and Reset

If you select this option and press <Enter>, a message will be displayed in the screen. Select [Yes] to save your changes and reset computer, select [No] or <ESC> to return to the

main menu.

► Discard Changes and Reset

If you select this option and press <Enter>, a message will be displayed in the screen.

Select [Yes] to exit setup utility and reset computer without saving your modications, select

[No] or <ESC> to return to the main menu.

► Restore Defaults

Optimal defaults are the best settings of this motherboard. Always load the Optimal defaults after updating the BIOS or after clearing the CMOS values. Select this option and press Enter, it will pop out a dialogue box to let you load the defaults.

Select <Yes> and then press <Enter> to load the defaults. Select <No> and press <Enter>, it will not load.

By this default, BIOS have set the optimal performance parameters of system to improve

the performances of system components. But if the optimal performance parameters to be set cannot be supported by your hardware devices (for example, too many expansion cards were installed), the system might fail to work.

► Boot Override

BIOS auto detect the presence of connected devices, select the device you want to boot

from and press <Enter>, then the system will directly boot from the selected devices.

The utility CD that comes with the motherboard contains useful software and several utility drivers that enhance the motherboard features.

This chapter includes the following information:

■ Install driver and utility

■ FOX ONE

■ FOX LiveUpdate

■ FOX LOGO

■ FOX DMI

■ Smart Charger

Chapter 4 CD Instruction

CD INSTRUCTION

4-1 Install driver and utility

This motherboard comes with one DVD, after installing the Operating System, you can simply put it into your DVD-ROM drive, and the main menu will be displayed on your PC screen to guide you how to install.

1. Driver

Use these options to install all the drivers for your system. You must click "Intel Chipset Driver"

to install it rst. After that, you can click ”One Click Setup” and then choose the items you want

to install, or you can click on each individual driver to install it manually.

Choose the items you want to Install

Visit Foxconn's Website

Show Utilities Show Drivers

View the User’s Manual

Manual Installation Step by Step

Automatic Installation by One Click

Drop to System Tray

Exit the program

Browse CD

CD INSTRUCTION

Click here

2. Utility

Use these options to install additional software programs. And click “User’s manual” button to view the product manual.

CD INSTRUCTION

4-2 FOX ONE

FOX ONE is a powerful utility for easily modifying system settings. It also allows users to monitor various temperature values, voltage values, frequencies and fan speeds at any time.

With FOX ONE, you can :

■ Modify system performance settings, such as the CPU and memory bus speeds, CPU

voltages, fan speeds, and other system performance options.

■ Monitor hardware temperatures, voltages, frequencies and fan speeds.

Supporting Operating Systems :

■ Windows 8 (32-bit and 64-bit)

■ Windows 7 (32-bit and 64-bit)

■ Windows XP (32-bit and 64-bit)

Using FOX ONE :

The very rst time you run FOX ONE, F.I.S. Calibration function (FOX Intelligent

Stepping) will require you to calibrate the CPU’s loading. Click “OK” to proceed and start the Utility. F.I.S. is a feature of FOX ONE, which can automatically adjust your CPU clock based on your current system loading.

Depending on hardware support, voltage monitoring and Fox Intelligent Stepping features are optional and only supported in some models. If the option is selectable, it also means the feature is supported.

■ Voltage Monitoring is supported only in FOX ONE Premium & Deluxe products.

■ Fox Intelligent Stepping is supported only in FOX ONE Deluxe products.

Before you running the FOX ONE program, the system parameters (such as CPU clock, voltage...etc.) are controlled by BIOS settings. After you run FOX ONE, it will take over, and the controlling right will be transferred to FOX ONE. Later, if you exit FOX ONE, then BIOS control will be back again.

CD INSTRUCTION

1. Main Page

Toolbar

Use the toolbar to navigate to other pages.

Alert Lamp

When the system is in healthy state, the color of alert lamp is green. When the system is in abnormal state, the alert lamp color is red.

Switch Button

Click this button, it will simplify the whole FOX ONE control panel to a smaller information bar (i.e. Simple Mode) as depicted below, you can drag this bar to any place on your screen to help you monitoring system status.

Skin Button

There are more choices of FOX ONE screen panels. Click this button, you can select your favorite skin (FOX ONE Panel).

Click here to go back to FOX ONE full screen

Click here will drop the FOX ONE to Windows system tray

Exit FOX ONE

Show CPU Information

Toolbar

Alert Lamp

Switch Button

Exit

Minimum

Homepage

Monitor Frequency/Voltage/Fan speed/Temperature value

Conguration

Skin Button

CD INSTRUCTION

Exit

Click this button to exit the program.

Minimum

Click this button to drop the FOX ONE to Windows system tray located at the lower right corner of your screen.

Homepage

Click this button to visit Foxconn motherboard website : http://www.foxconnchannel.com

Conguration

1). Monitor interval (ms) :

This is to dene the interval of different messages of system settings which are to be displayed

on Simple Mode screen. Minimum value is 1 second.

Apply the changes

Click the new skin picture to select the new skin

Cancel the changes

CD INSTRUCTION

2). Simple Mode : To select which message of system settings are to be displayed in the Simple Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one by one in Simple Mode.

3). F.I.S. Calibration (FOX Intelligent Stepping, Optional) This function will re-calibrate the CPU's loading, and it may take several minutes to proceed. The FOX ONE calibration process will apply different loadings to your CPU, record PWM IC

voltage together with the CPU clock running at these loadings, so it can dene and estimate

within a particular range of system loading, what the CPU clock should be.

Step 1 : Click Calibration icon, a message pops out to ask for continue. Select Yes.

Step 2 : After data is collected, it will ask you to restart your computer now.

Later on, when the FOX ONE program is activated, and F.I.S. feature (in CPU Page) is also enabled, FOX ONE will automatically adjust your CPU clock according to your system loadings. (Loadings are like Power Gaming, Data Mining...etc.)

CD INSTRUCTION

2. CPU Page - CPU Control

This page lets you select (or overclock) CPU clock to meet the current performance level of the system. The fastest and suitable CPU clock running for current system can be calculated by FOX ONE automatically or manually input by yourselves.

Manual :

You can press the up/down button to adjust your CPU clock.

Auto :

Click this button to let FOX ONE check the highest CPU clock you can use. System will raise the CPU clock step by step until it hangs, you can then push the RESET button on your PC panel to restart the system. When system restarts, run FOX ONE again, it will display a recommended highest CPU clock for you, click <Yes> to apply it.

Press Auto button to let FOX ONE check the highest CPU clock you can use.

Go to CPU page

FIS Features: Select the different benchmarks

Adjust by manual

Apply the changes

Reset the changes

CD INSTRUCTION

A message informs you to push RESET button later if

the system hangs nally.

Click Yes to continue.

You can see the system is raising CPU clock until the system hangs. Push RESET button on the front panel of your system to restart the computer.

Run FOX ONE program again, it will inform you the previous

test found that 255MHz is the

recommended CPU clock for your system. Click Yes to apply it to your system.

CD INSTRUCTION

FOX Intelligent Stepping (F.I.S., Optional)

Select FOX Intelligent Stepping will allow your system to automatically adjust your

CPU clock rate based on different system loadings. For example, if you select Power

Gaming, CPU clock will be driven to run at its maximum speed. While in Energy

Saving, CPU will lower down its speed to a minimum. The four benchmarks - Power

Gaming, Data Mining, Ofce and Energy Saving, the references of their system

loading were calculated and dened in the FIS Calibration option of Conguration

menu. Select Auto, CPU will automatically adjust its clock according to current

system loading.

Now, your system is running at

a CPU clock of 255MHz.

CD INSTRUCTION

3. Frequency Page - Frequency Control(Optional)

This page lets you set memory and PCI Express frequencies by manual.

4. Limit Setting

4.1 Limit Setting - CPU Temperature

This page lets you to set CPU high limit temperature and enable the alert function.

Go to Freq. page

Close this page

Reset the changes

Apply the changes

Select the option you want to set

Adjust by manual

Go to Limit Setting page

Set high limit by dragging the lever

Show current CPU temperature value

Enable alert function when the CPU temperature is higher than high limit value

Show current high limit value of the CPU temperature

CD INSTRUCTION

4.2 Limit Setting - System Temperature

This page lets you to set system high limit temperature and enable the alert function.

4.3 Limit Setting - CPU Fan

This page lets you to set CPU fan low limit rpm and enable the alert function.

Set high limit by dragging the lever

Show current system temperature value

Enable alert function when the system temperature is higher than high limit value

Show current high limit value of system temperature

Set low limit rpm by dragging the lever

Show current CPU fan rpm value

Enable alert function when the CPU fan runs slower than the low limit rpm value

Show current low limit rpm value of CPU fan

CD INSTRUCTION

4.4 Limit Setting - System Fan

This page lets you to set system fan low limit rpm and enable the alert function.

4.5 Limit Setting - FAN1 Fan

This page lets you to set FAN1 fan low limit rpm and enable the alert function.

Set low limit rpm by dragging the lever

Show current FAN1 fan rpm value

Enable alert function when the FAN1 fan runs slower than low limit rpm value

Show current low limit rpm value of FAN1 fan

Set low limit rpm by dragging the lever

Show current system fan rpm value

Enable alert function when the system fan runs slower than low limit rpm value

Show current low limit rpm value of system fan

CD INSTRUCTION

5. Voltage Page - Voltage Control (Optional)

This page lets you set CPU voltage, memory voltage and North Bridge voltage manually. CPU

voltage can be stepped up/down by a unit of 12.5mV, while memory is 0.05V/step, and North Bridge is 0.04V/step.

6. Fan Page - Fan Control

This page lets you enable Smart Fan function or set the fan speed by manual.

When Smart Fan is selected, you must use a 4-pin CPU cooler in your system.

Go to Voltage page

Select the option you want to set

Adjust by manual

Reset the changes

Apply the changes

Go to Fan page

Set fan speed by dragging the lever

Enable or disable smart fan function

Apply the changes

CD INSTRUCTION

4-3 FOX LiveUpdate

FOX LiveUpdate is a useful utility to backup and update your system BIOS, drivers and utilities by local or online.

Supporting Operating Systems :

■ Windows 8 (32-bit and 64-bit)

■ Windows 7 (32-bit and 64-bit)

■ Windows XP (32-bit and 64-bit)

1. Local Update

1-1 Local Update - BIOS Information This page lets you know your system BIOS information.

*** : Please refer to the physical motherboard for detail.

1-2 Local Update - Backup

This page can backup your system BIOS. You can click “Backup”, and key in a le name, then click “Save” to nish the backup operation. The extension of this backup le is ".BIN" for Award BIOS and ".ROM" for AMI BIOS. Make sure you can remember the le name together with the

directory which it is stored, prevented that you may need them to recover your BIOS later.

Exit

Toolbar

Minimum

Show current BIOS information

Link to website

Please set the BIOS setting “BIOS Write Protect” or “Super BIOS Protect” to [Disabled] when running this application.

CD INSTRUCTION

1-3 Local Update - Update

This page helps you to update your BIOS from a local le. After click “Update”, An alert message will be displayed to ensure if you really want to continue, click “Yes” to conrm. A setup wizard will guide you to load a local BIOS le to nish the operation. You must remember from which directory to load your new BIOS le (with an extension of ".BIN" for Award BIOS,

".ROM" for AMI BIOS) before the setup wizard starts.

Key in a BIOS name

Click here

FOX LiveUpdate can automatically backup old BIOS before update. This feature

can be enabled in the "Congure-System" setup. Please refer to "Congure-

System" section for more detail. The default backup directory is C:\LiveUpdate_

Temp, but the backup le name will be automatically generated. It is hard to nd it

out from a backup directory, and we recommend you using Explorer to check date/

time message of this backup le to nd it out and write its name down to remember

it.

CD INSTRUCTION

2. Online Update

2-1 Online Update - Update BIOS This page lets you update your system BIOS from Internet. Click “Start”, it will search the new

BIOS from Internet. Then follow the wizard to nish the update operation.

2-2 Online Update - Update Driver This page lets you update your system drivers from Internet. Click “Start”, it will search the new

drivers from Internet. Then follow the wizard to nish the update operation.

Click here

Current information

Search new BIOS from Internet

Browse detailed information

Update BIOS

Close the window

Select BIOS to update

Click here

Current information

Search new drivers from Internet

CD INSTRUCTION

2-3 Online Update - Update Utility This page lets you update utilities from Internet. Click “Start”, it will search the new utilities from

Internet. Then follow the wizard to nish the update operation.

Browse detailed information

Install the selected driver

Close the window

Select the driver to update

Click here

Current information

Search new utilities from Internet

Browse detailed information

Install the selected utility

Close the window

Select the utility to update

CD INSTRUCTION

2-4 Online Update - Update All

This page lets you update your system drivers from Internet. Click “Start”, it will search all new

BIOS/drivers/utilities from Internet. Then follow the wizard to nish the update operation.

Click here

Current information

Search all new BIOS/ drivers/utilities from Internet

Browse detailed BIOS information

Close the window

Browse detailed driver information

Browse detailed utility information

CD INSTRUCTION

3. Congure

3-1 Congure - option

This page lets you set auto search options. After you enable the auto search function, FOX

LiveUpdate will start its searching from Internet and if any qualied item found, it will pop out a

message on the task bar to inform you to do the next step.

Double click on the icon as show below, you can see the detailed information.

Double click here

Apply the changes

Reset to default value

Click here

Set auto search options

Select search which kind of versions

Set auto search the latest FOX LiveUpdate

CD INSTRUCTION

When you enable "Auto Search FOX LiveUpdate", if your FOX LiveUpdate version is older, it will auto search from internet and prompt you to install the new version.

3-2 Congure - System

This page lets you set the backup BIOS location and determine if the FOX LiveUpdate can auto run when the system starts up.

Prompt you to install the new FOX LiveUpdate

Click here

Set the location of

download les or

auto backup BIOS

Determine if the FOX LiveUpdate can auto run when the system starts up

Apply the changes

Reset to default value

CD INSTRUCTION

3-3 Congure - Advance This page lets you select to ash BIOS / Boot Block. If you choose Flash Boot Block, it means BIOS is not protective, and you must make sure the ash process is continuous and without

any interruption.

4. About & Help

This page shows some information about FOX LiveUpdate.

Click here

Select which BIOS ROM

to ash(Only available to

motherboard with backup BIOS ROM )

Apply the changes

Reset to default value

Select to ash Boot Block

Click here

Show information about FOX LiveUpdate

We recommend that you had better keep the default setting unchanged to avoid any damage.

CD INSTRUCTION

4-4 FOX LOGO

FOX LOGO is a simple and useful utility to backup, change and delete the boot time Logo. The boot Logo is the image that appears on screen during POST (Power-On Self-Test).

You can prepare a JPG image (1024x768) le, then use FOX LOGO to open it and change the

boot time Logo. Boot time Logo will be displayed if you enable the "Quiet Boot" setting in BIOS.

Supporting Operating Systems :

■ Windows 8 (32-bit and 64-bit)

■ Windows 7 (32-bit and 64-bit)

■ Windows XP (32-bit and 64-bit)

When you change Logo or delete current Logo, the system will ash BIOS le

automatically. During this time, please DO NOT shut down the application and the system, or the motherboard will be damaged seriously.

CAUTIO

Minimize

Exit

Website

About

Backup

Change

Delete

Main screen

Please set the BIOS setting “BIOS Write Protect” or “Super BIOS Protect” to [Disabled] when running this application.

CD INSTRUCTION

4-5 FOX DMI

FOX DMI is a full Desktop Management Interface viewer, and it provides three DMI data formats: Report, Data Fields and Memory Dump. With DMI information, system maker can easily analyze and troubleshoot your motherboard if there is any problem occurred.

Supporting Operating Systems :

■ Windows 8 (32-bit and 64-bit)

■ Windows 7 (32-bit and 64-bit)

■ Windows XP (32-bit and 64-bit)

Please operate this utility as the comments shows.

Click here to select the DMI Data format you need

Click here to select the type you want to view

4-6 Smart charger

Smart Charger is used for iPad recharging, and when connected, an icon will appear on the right bottom corner of the PC screen.

Foxconn H61AP Series, H61AP-S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
