Foxconn A76ML User Manual

A7VML/A76ML Series Motherboard

User’s Manual

Statement:

This manual is the intellectual property of Foxconn, Inc. Although the information

in this manual may be changed or modied at any time, Foxconn does not obligate

itself to inform the user of these changes.

Trademark:

All trademarks are the property of their respective owners.

Version:

User’s Manual V1.0 for A7VML/A76ML Series motherboard.

P/N: 3A221C500-000-G

Symbol description:

N

O

I

T

U

A

C

Caution: refers to important information that can help you to use motherboard

!

better, and tells you how to avoid problems.

I

N

G

R

A

!

W

Warning: indicating a potential risk of hardware damage or physical injury may

exist.

WEEE:

The use of this symbol indicates that this product may not be treated as household

waste. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could other-

wise be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local city ofce, your

household waste disposal service or the shop where you purchased this product.

More information:

If you want more information about our products, please visit Foxconn’s

website: http://www.foxconnchannel.com

All trade names are registered trademarks of respective manufacturers listed.

All images are for reference only, please refer to the physical motherboard for specic features.

Declaration of conformity

HON HAI PRECISION INDUSTRY COMPANY LTD

66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,

TAIPEI HSIEN, TAIWAN, R.O.C.

declares that the product

Motherboard A7VML/A7VML-K/A76ML/A76ML-K

is in conformity with

(reference to the specication under which conformity is declared in

accordance with 89/336 EEC-EMC Directive)

■ EN 55022:1998/A2:2003 Limits and methods of measurements of radio

disturbance characteristics of information technology equipment

■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)

Part 3: Limits Section 2: Limits for harmonic current emissions (equipment input current <= 16A per phase)

■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)

Part 3: Limits

Section 2: Limits of voltage uctuations and icker in low

voltage supply systems for equipment with rated current <= 16A

■ EN 55024/A2:2003 Information technology equipment-Immunity

characteristics limits and methods of measurement

Signature : Place / Date : TAIPEI/2008

Printed Name : James Liang

Declaration of conformity

Trade Name: FOXCONN

Model Name:

Responsible Party: PCE Industry Inc.

Address: 458 E. Lambert Rd.

Fullerton, CA 92835

Telephone: 714-738-8868

Facsimile: 714-738-8838

Equipment Classication: FCC Class B Subassembly

Type of Product: Motherboard

Manufacturer: HON HAI PRECISION INDUSTRY

COMPANY LTD

Address: 66 , CHUNG SHAN RD., TU-CHENG

INDUSTRIAL DISTRICT, TAIPEI HSIEN,

TAIWAN, R.O.C.

A7VML/A7VML-K/A76ML/A76ML-K

Supplementary Information:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions : (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Tested to comply with FCC standards.

Signature : Date : 2008

Installation Precautions

I

N

G

R

A

!

W

■ Electrostatic discharge (ESD) is the sudden and momentary electric current

that ows between two objects at different electrical potentials. Normally it

comes out as a spark which will quickly damage your electronic equipment.

Please wear an electrostatic discharge (ESD) wrist strap when handling

components such as a motherboard, CPU or memory.

■ Ensure that the DC power supply is turned off before installing or removing

CPU, memory, expansion cards or other peripherals. It is recommended to

unplug the AC power cord from the power supply outlet. Failure to unplug

the power supply cord may result in serious damage to your system.

N

O

I

T

U

A

C

!

Please carefully read the following procedures to install your computer :

■ It is suggested to select high-quality, certied fans in order to avoid damage

to the motherboard and CPU due to high temperature. Never turn on the

computer if the CPU fan is not properly installed.

■ We cannot guarantee that your system can operate normally when your

CPU is overclocked. Normal operation depends on the overclocking capac-

ity of your device.

■ If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or

S/PDIF cables to the internal connectors on the motherboard, make sure

their pinouts are matching with the connectors on the motherboard. Incorrect

connections might damage the motherboard.

■ When handling the motherboard, avoid touching any metal leads or connec-

tors.

■ If there is a PCI Express x16 graphics card installed in your system, we

recommend using a 24-pin ATX power supply to get the best performance.

■ Before turning on the power, please make sure the power supply AC input

voltage setting has been congured to the local standard.

■ To prevent damage to the motherboard, do not allow screws to come in contact

with the motherboard circuit or its components. Also, make sure there are no

leftover screws or metal components placed on the motherboard or within the

computer casing.

■ If you are uncertain about any installation steps or have a problem related to

the use of the product, please consult a certied computer technician.

TABLE OF CONTENTS

Chapter 1 Product Introduction

Product Specications .................................................................. 2

Layout ........................................................................................... 4

Back Panel Connectors ................................................................ 5

Chapter 2 Hardware Install

Install the CPU and CPU Cooler ..................................................8

Install the Memory ......................................................................10

Install an Expansion Card .......................................................... 12

Install other Internal Connectors ................................................ 13

Jumpers ......................................................................................17

Chapter 3 BIOS Setup

Enter BIOS Setup ....................................................................... 19

Main Menu ..................................................................................19

System Information .................................................................... 21

Advanced BIOS Features ........................................................... 23

Fox Central Control Unit ............................................................. 25

Advanced Chipset Features .......................................................29

Integrated Peripherals ................................................................34

Power Management Setup ......................................................... 38

PC Health Status ........................................................................ 40

BIOS Security Features .............................................................. 41

Load Optimal Defaults ................................................................ 42

Save & Exit Setup ...................................................................... 42

Exit Without Saving ....................................................................42

Chapter 4 CD Instruction

Utility CD content ........................................................................44

Install driver and utility ................................................................ 45

FOX ONE

Main Page ............................................................................. 47

CPU Control .......................................................................... 51

Frequency Control ................................................................53

Limit Setting ..........................................................................54

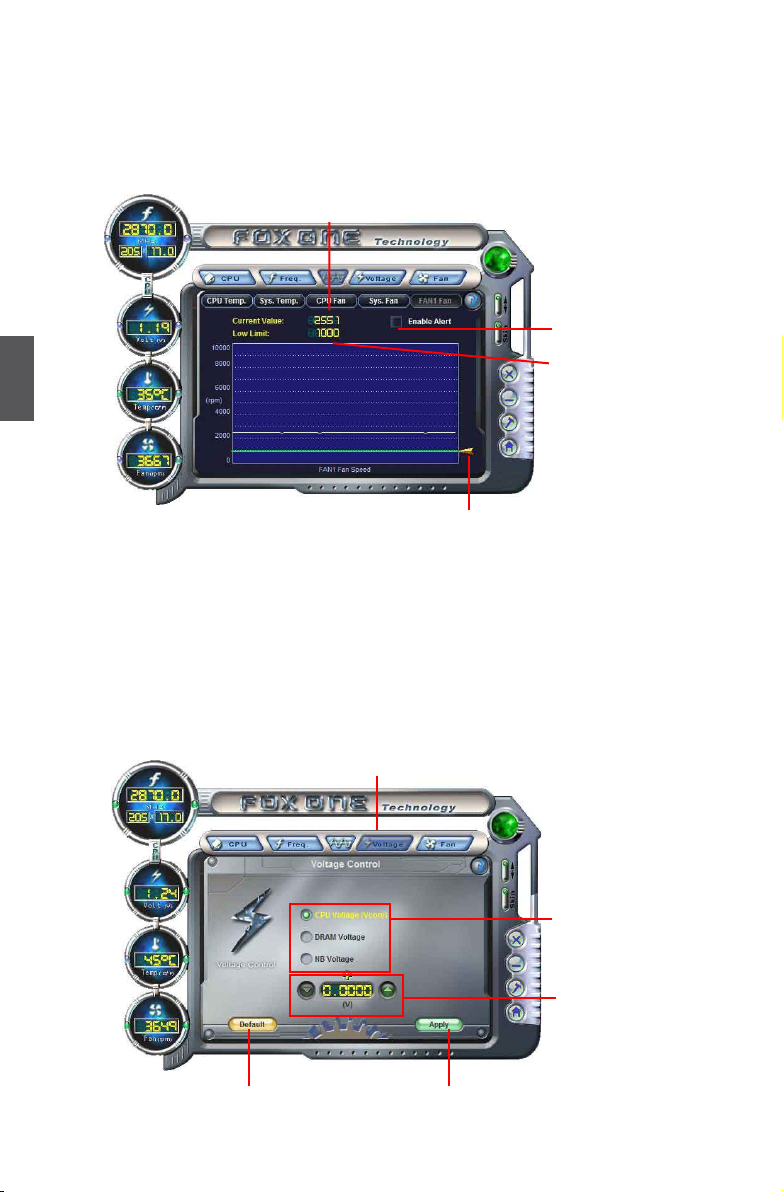

Voltage Control .....................................................................56

Fan Control ...........................................................................57

FOX LiveUpdate

Local Update ......................................................................... 58

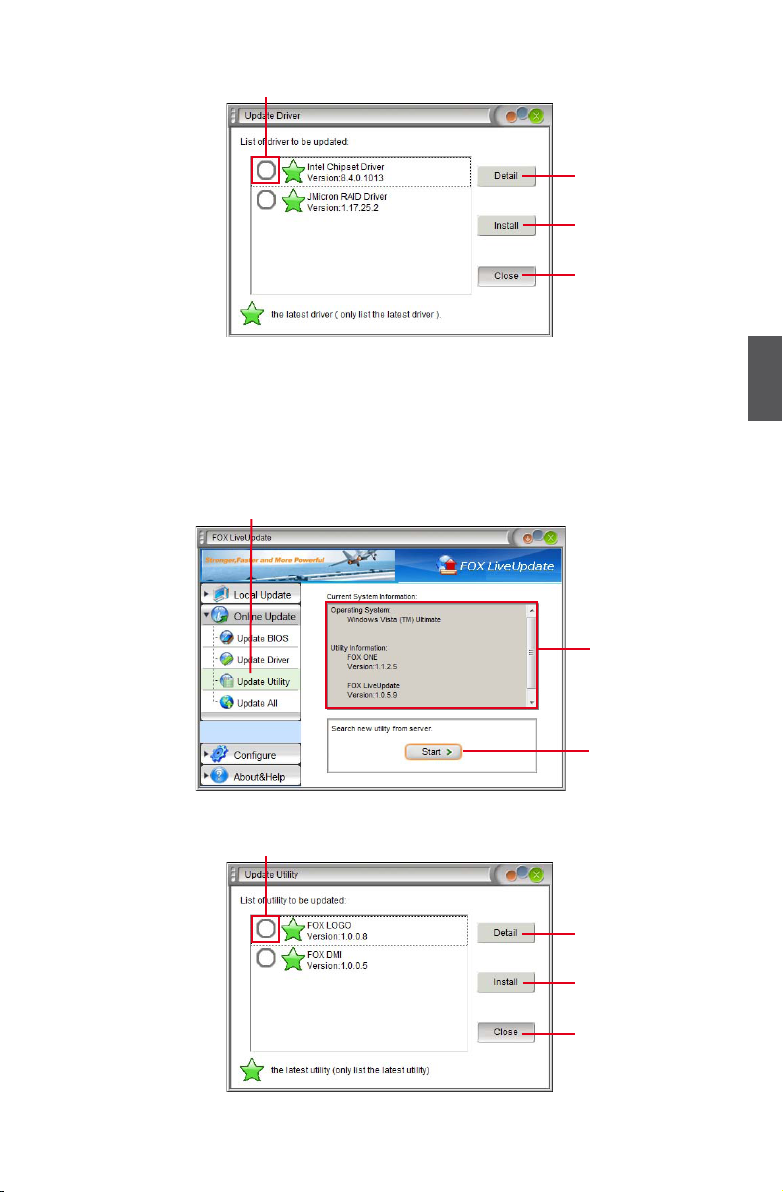

Online Update ....................................................................... 60

Congure .............................................................................63

About & Help ......................................................................... 65

FOX LOGO .................................................................................66

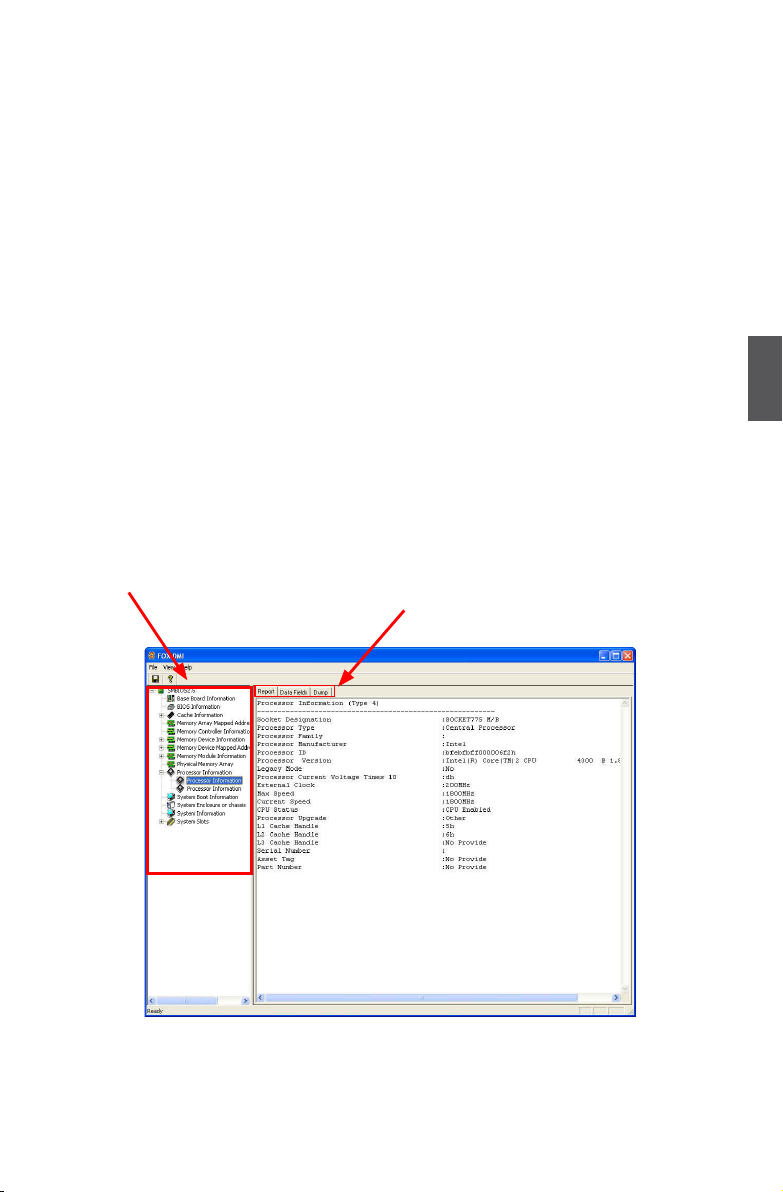

FOX DMI .................................................................................... 67

Chapter 5 RAID Conguration

RAID Conguration Introduction ................................................. 70

Option ROM Utility ......................................................................72

Create a RAID Driver Diskette ................................................... 74

RAID Enable in BIOS .................................................................76

Select a RAID Array for Use .......................................................76

Install a New Windows XP.......................................................... 89

Setting Up a Non-Bootable RAID Array ...................................... 93

Technical Support :

Support

Website :

http://www.foxconnchannel.com

Support Website :

http://www.foxconnsupport.com

Worldwide online contact Support :

http://www.foxconnchannel.com/support/online.aspx

CPU, Memory, VGA Compatibility Supporting Website :

http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx

Thank you for buying Foxconn A7VML/A76ML Series motherboard.

Foxconn products are engineered to maximize computing power,

providing only what you need for break-through performance.

With advanced overclocking capability and a range of connectivity

features for today multi-media computing requirements, A7VML/

A7VML-K/A76ML/A76ML-K enables you to unleash more power from

your computer.

This chapter includes the following information:

■ Product Specications

■ Layout

■ Back Panel Connectors

1-1 Product Specications

CPU Support AMD socket AM2+ Phenom

1

Support AMD socket AM2 series processors :

Athlon

TM

64X2 / Athlon

TM

64 / Sempron

TM

X3 / Phenom

TM

X4 processors

HyperTransport 2000/1600MT/s for AM2 CPU

Up to 5200MT/s (HT3.0) for AM2+ CPU

Chipset North Bridge: AMD 780V (A7VML, A7VML-K)

AMD 760G (A76ML, A76ML-K)

South Bridge: AMD SB700 (A7VML, A7VML-K)

AMD SB710 (A76ML, A76ML-K)

Memory 2 x 240-pin DDR2 DIMM sockets

Support up to 8GB of system memory

Dual channel DDR2 1066/800/667/533MHz architecture

Audio 6-channel audio chip

High Denition Audio

2/4/5.1-channel

Support Jack-Sensing function

LAN Realtek 10/100 Mb/s LAN chip (A7VML, A76ML)

Realtek Gigabit LAN chip (A7VML-K, A76ML-K)

Expansion Slots 1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Onboard Serial ATA 4 x SATA connectors

300MB/s data transfer rate

Support hot plug and NCQ (Native Command Queuing )

USB Support hot plug

Support up to 10 x USB 2.0 ports (4 rear panel ports, 3 onboard USB

headers supporting 6 extra ports)

Supports USB 2.0 protocol up to 480Mb/s

Internal Connectors 1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x Floppy disk drive connector

1 x IDE connector

4 x SATA connectors

3 x USB 2.0 connectors (supporting 6 x USB devices)

1 x CPU fan header (4-pin)

1 x System fan header (4-pin)

1 x Front panel connector

1 x CD_IN connector

1 x Front Audio connector

1 x Speaker connector (or Buzzer)

1 x IrDA connector

1 x Chassis intrusion alarm header (INTR)

1 x TPM connector

2

Back Panel 1 x PS/2 keyboard port

Connectors 1 x PS/2 mouse port

1 x Parallel port

1 x Serial port

1 x VGA port

4 x USB 2.0 ports

1 x RJ-45 LAN port

6-channel Audio ports

Hardware Monitor System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan speed control

PCI Express x1 Support 500MB/s (1GB/s concurrent) bandwidth

Low power consumption and power management features

PCI Express x16 Support 8GB/s (16GB/s concurrent) bandwidth

Low power consumption and power management features

Green Function Support ACPI (Advanced Conguration and Power Interface)

Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4

(suspend to disk), and S5 (soft - off)

Bundled Software FOX ONE

FOX LiveUpdate

FOX LOGO

FOX DMI

Operating System Support for Microsoft® Windows® Vista/XP only

Form Factor Micro ATX Form Factor, 9.6 inches x 8.2 inches (24.4cm x 20.8cm)

1

ON

TI

U

A

C

!

The chipset driver of this motherboard does not support Windows® 2000.

3

1-2 Layout

1

6

7

8

9

10

11 12

1. 4-pin ATX 12V Power Connector

2. CPU fan Header

3. PCI Express x1 Slot

4. PCI Express x16 Slot

5. PCI Slots

6. Front Audio Connector

7. CD_IN Connector

8. Front USB Connectors

9. Clear CMOS Jumper

10. Front Panel Connector

11. SATA Connectors

12. Speaker Connector (or Buzzer)

35

4

13

2

1514

16

1

23

22

21

20

19

17

18

13. South Bridge: AMD SB700(A7VML, A7VML-K)

AMD SB710 (A76ML, A76ML-K)

14. IDE Connector

15. 24-pin ATX Power Connector

16. Chassis Intrusion Alarm Header

17. Floppy Connector

18. IrDA Connector

19. TPM Connector

20. DDR2 DIMM Slots

21. System fan Header

22. CPU Socket

23. North Bridge: AMD 780V (A7VML, A7VML-K)

AMD 760G (A76ML, A76ML-K)

Note : The above motherboard layout is for reference only, please refer to the physical

motherboard for detail.

4

1-3 Back Panel Connectors

PS/2 Mouse Port

1

2

PS/2 Keyboard Port

3

4

Serial Port Audio Ports

5

VGA Port

LAN PortParallel Port

6

USB Ports

8

Line In

Line Out

Microphone

7

1. PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse.

2. PS/2 Keyboard Port

Use the lower port (purple) to connect a PS/2 keyboard.

3. Parallel Port

This connector provides printer port interface.

4. Serial Port

This is output of RS232 COM1 port.

5. VGA Port

To connect with external display devices, such as monitor or LCD display.

6. USB Ports

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an

USB keyboard/mouse, USB printer, USB ash drive and etc.

7. Audio Connectors

For the denition of each audio port, please refer to the table below :

Port 2-channel 4-channel 5.1-channel

Blue Line In Rear Speaker Out* Rear Speaker Out*

Green Line Out Front Speaker Out Front Speaker Out

Pink Microphone In Microphone In Center/Subwoofer Out*

1

* : Please refer to Chapter 4, and install the audio driver (in CD) to assign the audio output ports

for different applications of 2/4/5.1 channels. The fundamental audio outputs are depicted in

the table above.

5

8. RJ-45 LAN Port

The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.

1

LAN Type

Left: Active Right: Link

Status Description Status Description

Off No Link Off No Link

100M

Green

Blinking

Data Activity Orange 10/100Mb/s Connection

Off No Link Off No Link

Off 10Mb/s Connection

Green 100Mb/s Connection

Orange 1000Mb/s Connection

Active

LED

Link

LED

A

C

N

O

I

T

U

1000M

!

Green

Blinking

Data Activity

A7VML/A76ML supports 10/100Mb/s Ethernet.

A7VML-K/A76ML-K supports 1Gb/s Ethernet.

6

This chapter introduces the hardware installation process, including

the installation of the CPU, memory, power supply, slots, pin headers

and the mounting of jumpers. Caution should be exercised during

the installation of these modules. Please refer to the motherboard

layout prior to any installation and read the contents in this chapter

carefully.

This chapter includes the following information :

■ Install the CPU and CPU Cooler

■ Install the Memory

■ Install an Expansion Card

■ Install other Internal Connectors

■ Jumpers

Please visit this website for more supporting information about CPU, Memory and

VGA for your motherboard :

http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx

2-1 Install the CPU and CPU Cooler

N

O

I

T

U

A

C

!

Read the following guidelines before you begin to install the CPU :

■ Make sure that the motherboard supports the CPU.

■ Always turn off the computer and unplug the power cord from the power supply before

2

Install the CPU

Locate the Pin-1 CPU triangle mark and the Pin-1 corner of the CPU socket.

installing the CPU to prevent hardware damage.

■ Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

■ Apply an even and thin layer of thermal grease on the surface of the CPU.

■ Do not turn on the computer if the CPU cooler is not installed, otherwise overheating

and damage of the CPU may occur.

■ Set the CPU host frequency in accordance with the CPU specications. It is not

recommended that the system bus frequency be set beyond hardware specications

since it does not meet the standard requirements for the peripherals. If you want to

set the frequency beyond the standard specications, please do so according to your

hardware specications including the CPU, graphics card, memory, hard drive, etc.

1. Release the CPU socket lever.

Pin-1 corner of the

CPU socket

2. Align pin one of the CPU with the

CPU socket, and gently put the

CPU onto the socket.

8

Pin-1 triangle

marking of CPU

3. When CPU is properly seated,

push the CPU socket lever back

to its locked position.

Install the CPU Cooler

Follow the steps below to correctly install the CPU cooler. (The following procedures use Foxconn cooler as the example.)

2

1. Apply and spread an even thermal

grease on the surface of CPU.

3. Buckle the heatsink at another

side, and press the fasten lever

down to tightly seat the cooler.

N

O

I

T

U

A

!

C

Use extreme care when removing the CPU cooler because the thermal grease may adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.

2. Buckle the heatsink rmly at one side of the stand.

4. Attach t he 3-wire C PU cooler

connector to the CPU fan header

on the motherboard .

9

2-2 Install the Memory

N

O

I

T

U

A

C

!

Read the following guidelines before you begin to install the memory :

■ Make sure that the motherboard supports the memory. It is recommended that memory

2

Dual Channel Memory Conguration

This motherboard provides two DDR2 memory sockets and supports Dual Channel Technology.

When memory is installed, the BIOS will automatically check the memory in your system.

Two DDR2 memory sockets are divided into two channels :

Channel 0 : DIMM1

Channel 1 : DIMM2

The combinations of DIMM modules are :

of the same capacity, brand, speed, and chips be used.

■ Always turn off the computer and unplug the power cord from the power outlet before

installing the memory to prevent hardware damage.

■ Memory modules have a foolproof design. A memory module can be installed in only

one direction. If you are unable to insert the memory, switch the direction.

DIMM1 DIMM2

Single Channel DS/SS -

Single Channel - DS/SS

Dual Channel DS/SS DS/SS

(DS : Dual Side, SS : Single Side, - : No Memory)

N

O

I

T

U

A

C

!

It is recommended that memory of the same capacity, brand, speed, and chips be

used and please select dual channel rst to achieve optimum performance.

10

Installing a Memory

N

O

I

T

U

A

C

!

Before installing a memory module, make sure to turn off the computer and unplug the

power cord from the power outlet to prevent damage to the memory module. Be sure

to install DDR2 DIMMs on this motherboard.

112-Pin128-Pin

Notch

If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated

by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install

your memory modules into the sockets.

Step 1: Spread the clips at both ends of the memory socket. Place the memory module onto the socket, then put

your ngers on top edge of the module, and push it down rmly and seat it vertically into the memory

socket.

2

Step 2: The clips at both ends of the socket will snap into place when the memory module is securely inserted.

11

2-3 Install an Expansion Card

N

O

I

T

U

A

C

!

■ Make sure the motherboard supports the expansion card. Carefully read the manual

that came with your expansion card.

■ Always turn off the computer and unplug the power cord from the power outlet before

2

installing an expansion card to prevent hardware damage.

PCI Express x1

PCI Express x16

PCI

Follow the steps below to correctly install your expansion card in the expansion slot.

1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis

back panel.

2. Align the card with the slot, and press down on the card until it is fully seated in the slot.

3. Make sure the metal contacts on the card are completely inserted into the slot.

4. Secure the card's metal bracket to the chassis back panel with a screw.

5. After installing all expansion cards, replace the chassis cover.

6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for

your expansion card(s).

7. Install the driver provided with the expansion card in your operating system.

Installing and Removing a PCI Express x16 Graphics Card :

• Installing a Graphics Card:

Gently insert the graphics card into the PCI Express x16 slot.

Make sure the graphics card is locked by the latch at the end of

the PCI Express x16 slot.

• Removing the Card:

Push the latch at the end of the PCI Express x16 slot to release the card and then pull the card straight up from the slot.

12

2-4 Install other Internal Connectors

Power Connectors

This motherboard uses an ATX power supply. In order not to damage any device, make sure all the devices have been installed properly before applying the power supply.

24-pin ATX power connector : PWR1

PWR1 is the ATX power supply connector. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure.

Pin # Denition Pin # Denition

1 3.3V 13 3.3V

2 3.3V 14 -12V

3 GND 15 GND

4 +5V 16 PS_ON(Soft On/Off)

5 GND 17 GND

6 +5V 18 GND

7 GND 19 GND

8 Power Good 20 NC

9 +5V SB(Stand by +5V) 21 +5V

24

12

N

O

I

T

U

A

C

!

PWR1

We recommend you using a 24-pin power supply.

13

1

If you are using a 20-pin power supply, you need to align the ATX power connector according to the picture.

10 +12V 22 +5V

11 +12V 23 +5V

12 3.3V 24 GND

Pin No. 24

20-Pin Power

2

4-pin ATX 12V Power Connector : PWR2

Connect the 4-pin ATX 12V power supply to PWR2 and provides power to the CPU.

+12V

3 1

GND

4 2

Pin # Denition

1 GND

2 GND

3 +12V

4 +12V

PWR2

13

Front Panel Connector : FP1

This motherboard includes one connector for connecting the front panel switch and LED Indicators.

Hard Disk LED Connector (HDD-LED)

Connect to the chassis front panel IDE indicator LED. It indicates the active status of the hard disks. This 2-pin

2

connector is directional with +/- sign.

Reset Switch (RESET-SW)

Attach the connector to the Reset switch on the front panel of the case; the system will restart when the switch is pressed.

Power LED Connector (PWR-LED)

Connect to the power LED indicator on the front panel of the chassis. The Power LED indicates the system’s status. When the system is in operation (S0 status), the LED is on. When the system gets into sleep mode (S1) , the LED

is blinking; When the system is in S3/S4 sleep state or

power off mode (S5), the LED is off. This 2-pin connector is directional with +/- sign.

HDD-LED

RESET-SW

NC

1

2

+

PWR-LED

-

PWR-SW

EMPTY

10

9

FP1

Power Switch Connector (PWR-SW)

Connect to the power button on the front panel of the chassis. Push this switch allows the system to be turned on and off rather than using the power supply button.

Serial ATA Connectors : SATA_1/2/3/4

The Serial ATA connector is used to connect with SATA Hard Disk or CD devices which supporting this feature. The current Serial ATA II interface allows up to 300MB/s data transfer rate.

IrDA Connector : IR

This connector supports infrared wireless transmitting and receiving device.

TPM Connector : TPM

The TPM (Trusted Platform Module) provides the ability to the PC to run applications more secure and to make transactions and communication more trustworthy. To utilize this function, you should purchase additional device and install it.

14

SATA_1/2/3/4

1

2

3

4

5

LCLK

LFRAMEn

LRESETn

LAD3

VDD

LAD0 NC_1 NC_2

GND

LPCPDn

IR

1 2

19 20

TPM

1 GND

TX+ TX-

GND RXRX+

GND

+5V

EMPTY

IRRX

GND

IRTX

GND

EMPTY

NC_3 LAD2

LAD1

GND

NC_4

SERIRQ CLKRUNin

NC_5

Audio Connector : F_AUDIO

The audio connector supports HD Audio standard. It provides the Front Audio output choice.

Audio Connector : CD_IN

CD_IN is a Sony standard audio connector, it can be connected to a CD/DVD-ROM drive through a CD/DVD audio cable.

PORT1_L PORT1_R PORT2_R

SENSE_SEND

PORT2_L

CD_L GND CD_R

1 2

109

F_AUDIO

AUD_GND

PRESENCE_J SENSE1_RETURN EMPTY SENSE2_RETURN

2

USB Connectors : F_USB1/2/3

In addition to the four USB ports on the rear panel, this product also provides three 10-pin USB headers on its motherboard. By connecting through USB cables with them, user can quickly expand another six USB ports on the front panel.

1 2

VCC

D-

D+

GND

EMPTY

VCC DD+ GND

NC

109

F_USB 1/2/3

IDE Connector : PIDE

With the provided Ultra DMA IDE ribbon cable, you can connect to any IDE type of hard disk and CD/DVD ROM/RW drive.

Floppy Disk Drive Connector : FLOPPY

This motherboard includes a standard oppy disk drive

(FDD) connector, supporting 360KB, 720KB,1.2MB,

1.44MB, and 2.88MB FDDs.

CD_IN

Speaker Connector (or Buzzer): SPEAKER

The speaker connector is used to connect speaker of the chassis.

15

SPKJ

EMPTY

NC

SPKJ

SPEAKER

1

2

3

4

Chassis Intrusion Alarm Header : INTR

The connector can be connected to a security switch on the chassis. The system can detect the chassis intrusion through the function of this connector. If eventually the chassis was closed, the system will send a message out.

2

INTRUDERJ

2

1

GND

INTR

Fan Headers : CPU_FAN, SYS_FAN

There are two main fan headers on this motherboard. The fan speed can be controlled and monitored in “PC Health Status” section of the BIOS Setup. These fans can be automatically turned off after the system enters

S3, S4 and S5 sleeping states.

GND

1

POWER SENSE CONTROL

CPU_FAN / SYS_FAN

16

2-5 Jumpers

For some features needed, users can change the jumper settings on this motherboard to modify them. This section explains how to use the various functions of this motherboard by changing the jumper settings. Users should read the following content carefully prior to modifying any jumper setting.

Description of Jumpers

1. For any jumper on this motherboard, pin 1 can be identied by the bold silkscreen next to it.

However, in this manual, pin 1 is simply labeled as “1”.

2. The following table explains different types of the jumper settings. "Closed" means placing a jumper

cap on the two pins to temporarily short them. The shorting can also be done by touching two

pins by a screwdriver for a few seconds, but using jumper cap is recommended. It can prevent

hazardous ESD (Electrical Static Discharge) problem.

Jumper Diagram Denition Description

1

1-2 Set Pin 1 and Pin 2 closed

2-3 Set Pin 2 and Pin 3 closed

Clear CMOS Jumper: CLR_CMOS

The motherboard uses CMOS RAM to store the basic hardware information (such as BIOS data, date, time information, hardware password...etc.). Clear CMOS data is the fast way to go back to

factory default when the BIOS settings were mistakenly modied.

The steps to clear CMOS data are :

1. Turn off the computer, unplug the power cord from the power outlet.

2. Remove jumper cap from pins 2-3, put it onto pins 1-2 to short them. This will clear CMOS data.

3. Return the setting to its original with pins 2-3 closed.

4. Plug in the power cord to your computer and turn it on.

5. Go to BIOS Setup to congure new system as described

in next chapter.

2

1

Clear

Normal (Default)

2

3

1

2

3

CLR_CMOS

I

N

G

R

A

!

W

■ Disconnect the power cable before adjusting the jumper settings.

■ Do not clear the CMOS while the system is turned on.

17

This chapter tells how to change system settings through the BIOS

Setup menus. Detailed descriptions of the BIOS parameters are

also provided.

You have to run the Setup Program when the following cases oc-

cur:

1. An error message appears on the screen during the system

Power On Self Test (POST) process.

2. You want to change the default CMOS settings.

This chapter includes the following information :

■ Enter BIOS Setup

■ Main Menu

■ System Information

■ Advanced BIOS Features

■ Fox Central Control Unit

■ Advanced Chipset Features

■ Integrated Peripherals

■ Power Management Setup

■ PC Health Status

■ BIOS Security Features

■ Load Optimal Defaults

■ Save & Exit Setup

■ Exit Without Saving

Since BIOS could be updated some other times, the BIOS information described

in this manual is for reference only. We do not guarantee the content of this

manual will remain consistent with the newly released BIOS at any given time in

the future. Please visit our website for updated manual if it is available.

Enter BIOS Setup

The BIOS is the communication bridge between hardware and software, correctly setting up the BIOS parameters is critical to maintain optimal system performance. Power on the computer, when the message "Press <DEL> to enter Setup, <ESC> to boot menu". appears at the bottom of the screen, you can press <DEL> key to enter SETUP.

N

O

I

T

U

A

C

!

We do not suggest that you change the default values in the BIOS Setup, and we shall not be responsible for any damage which resulted from the change you made.

Main Menu

The main menu allows you to select from a list of setup functions together with two exit choices.

Use the arrow keys to select a specic item and press <Enter> to go to the sub-menu.

Each item in the main menu is explained below:

► System Information

► System Information ► PC Health Status

► Advanced BIOS Features ► BIOS Security Features

► Fox Central Control Unit Load Optimal Defaults

► Advanced Chipset Features Save & Exit Setup

► Integrated Peripherals Exit Without Saving

► Power Management Setup

3

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

Configure Time and Date. Display System Information...

► System Information

It displays the basic system conguration, such as BIOS ID, CPU Name, memory size plus

system date, time and Floppy drive. They all can be viewed or set up through this menu.

► Advanced BIOS Features

The advanced system features can be set up through this menu. There are boot up settings.

► Fox Central Control Unit

Some special proprietary features (such as overclocking) can be set up through this menu.

► Advanced Chipset Features

The values for the chipset can be changed through this menu, and the system performance

can be optimized.

► Integrated Peripherals

All onboard peripherals can be set up through this menu. There are IDE devices, Super I/O

devices such as Serial I/O and other USB devices... etc.

19

► Power Management Setup

All the items related with Green function features can be set up through this menu.

► PC Health Status

This setup enables you to read/change Fan speeds, and displays temperatures and voltages

of your CPU/System.

► BIOS Security Features

The Supervisor/User password can be set up through this menu to prevent unauthorized use

of your computer. If you set a password, the system will ask you to key in correct password

before boot or access to Setup.

► Load Optimal Defaults

3

The optimal performance settings can be loaded through this menu. However, it may offer bet-

ter performance in some ways (such as less I/O cards, less memory ...etc.), still, it may cause

problem if you have more memory or I/O cards installed. It means, if your system loading is

heavy, set to optimal default may sometimes come out an unstable system. What you need

now is to adjust BIOS setting one by one, trial and error, to nd out the best setting for your

current system.

► Save & Exit Setup

Save setting values to CMOS and exit.

► Exit Without Saving

Do not change anything and exit the setup.

20

System Information

This sub-menu is used to set up the standard BIOS features, such as the date, time, oppy drive

and so on. Use the arrow up/down keys to select an item, then use the <+> or <-> keys to change

the setting.

► Date (mm:dd:yy)

<weekday><month><date> <year> format.

Day—weekday from Sun. to Sat., this message is automatically displayed by BIOS (Read

Only).

Month—month from 1 to 12.

Date—date from 1 to 31.

Year—year, set up by users.

Use [ENTER], [TAB] or [SHIFT-TAB] to select a eld. Use [+] or [-] to input the value.

► Time (hh:mm:ss)

This item allows you to congure the desired time. Use [ENTER] to enter the setting, then use

[TAB] to move forward a eld. Use [+] or [-] to input the value.

The three elds of the setting are <hour> : <minute> : <second> respectively.

► Primary IDE Master/Slave, SATA1#/SATA2#/SATA3#/SATA4#

While entering setup, BIOS automatically detects the presence of IDE devices, and you can

enable or disable the related mode and technology for the relevant device. This item

displays the drive information of IDE devices.

► Floppy A

This option allows you to select which kind of the Floppy Disk Drive is installed in your system.

It can be [Disabled], [360KB, 51/4"], [1.2MB, 51/4"], [720KB, 31/2"], [1.44MB, 31/2"] and [2.88

MB, 31/2"].

► Halt On

This category determines whether or not the computer will stop if an error is detected during

powering up.

[All Errors] : All errors can result in system halt.

[All Errors But...] : All errors but keyboard or mouse or oppy can result in system halt. The

Date (mm:dd:yy) [Wed , 09/25/2008] Help Item

Time (hh:mm:ss) [11 : 59 : 49] ► Primary IDE Master ► Primary IDE Slave [Not Detected] ► SATA1# [Not Detected] ► SATA2# ► SATA3# [Not Detected] Use [+] or [-] to ► SATA4#

Floppy A [1.44 MB 3

[All Errors, But ...]

Halt On Keyboard [Enabled] Mouse [Enabled] Floppy [Disabled]

Model Name : A7VML/A76ML Series

BIOS Version :D07 Memory :256M

MAC Address :00-E0-4C-36-00-02

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

09

[Not Detected] Use [Enter], [TAB]

[Not Detected]

[Not Detected] change system Date.

1

/2]

or [SHIFT-TAB] to

select a eld.

3

21

halt condition can be enabled/disabled in the next three settings.

► Keyboard

The system boot will not stop for a keyboard error if you enabled this item.

► Mouse

The system boot will not stop for a mouse error if you enabled this item.

► Floppy

The system boot will not stop for a floppy error if you enabled this item.

► Model Name

Model name of this product.

► BIOS Version

It displays the current BIOS version. User can check this information and discuss with the eld

3

service people if a BIOS upgrade is needed.

► Memory

This item displays the current memory size. The size is depending on how many memory mod-

ules were installed in your system before powering on.

► MAC Address

This item shows the onboard LAN MAC address.

► CPU Name

It displays the current CPU name.

22

Advanced BIOS Features

► IDE Detect Timer Out

This item is used to select the time out value for detecting ATA/ATAPI devices. If the checking

time is over the set value, the system will skip it.

► MPS Revision

This feature is only applicable to multiprocessor motherboards as it species the version of the

MPS that the motherboard will use. The MPS is a specication by which PC manufacturers

design and build CPU architecture systems with two or more processors. MPS 1.1 was the

original specication. MPS version 1.4 adds extended conguration tables for improved

support of multiple PCI bus congurations and greater expandability in the future. In addition,

MPS 1.4 introduces support for a secondary PCI bus without requiring a PCI bridge. If your

operating system comes with support for MPS 1.4, you should keep the setting as the default

1.4. You also need to enable MPS 1.4 support if you need to make use of the secondary PCI

bus on a motherboard that doesn't come with a PCI bridge. You should only leave it as 1.1

only if you are running an older operating system that only supports MPS 1.1.

► PCI Latency Timer

This item is used to set the PCI latency timer. The value is in unit of PCI cycle for PCI device

latency timer register. Setting values are 32, 64, 96, 128, 160, 192, 224, 248.

This feature controls how long each PCI device can hold the bus before another takes over.

The larger the value, the longer the PCI device can retain control of the bus. Low values for

the PCI Latency Timer will reduce the effective PCI bandwidth while higher values means

every PCI device will have to wait longer before they can get access to the bus, but when they

do get access, they can conduct their transactions for a longer time. Normally, a default value

of 64 cycles is set. Some PCI devices may not agree with longer latency times so if you start

facing problems like stuttering sound or a less responsive system, reduce the latency. Higher

values will actually reduce performance as too much time may be allocated to each PCI device

to the disadvantage of other devices on the bus.

► Quiet Boot

This item is used to enable/disable the quiet boot.

IDE Detect Time Out [35] Help Item

MPS Revision [1.4] PCI Latency Timer [64] Select the time out

Quiet Boot [Enabled] value for detecting Quick Boot [Enabled] ATA/ATAPI device(s) Bootup Num-Lock [On] in second . Floppy Drive Seek [Disabled]

► Boot Device Priority ► Hard Disk Drives ► Removable Drives ► CD/DVD Drives

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

[35]

[Press Enter] [Press Enter] [Press Enter] [Press Enter]

23

3

[Disabled] : Displays the normal POST messages.

[Enabled] : Displays OEM customer logo instead of POST messages.

► Quick Boot

While Enabled, this option allows BIOS to skip certain tests while booting, this will shorten the

time needed to boot the system.

► Bootup Num-Lock

This item denes if the keyboard Num Lock key is active when your system is started. The

available settings are: On (default) and Off.

► Floppy Drive Seek

This item controls whether the BIOS will be checking for a oppy drive while booting up. If it

cannot detect one (either due to improper conguration or physical unavailability), it will appear

3

an error message. Disabling this function, then POST will not detect the oppy.

► Boot Device Priority

This option is used to select the priority for boot devices. After pressing <Enter>, you can

select the device using the Up/Down arrow keys, and change the device priority using <+> or

<->; you can exit this menu by pressing <Esc>.

► Hard Disk Drives

This option is used to specify the boot priority sequence from available hard disk drives.

► Removable Drives

This option is used to specify the boot priority sequence from available removable drives.

► CD/DVD Drives

This option is used to specify the boot priority sequence from available CD/DVD drives.

24

Fox Central Control Unit

► Super BIOS Protect

To protect the system BIOS from virus attack, there is a BIOS write-protection mechanism

provided. Super BIOS Protect function protects your BIOS from being affected by viruses, e.g.

CIH.

► Auto Detect PCI Clock

This option is used to auto detect PCI slot. When enabled, the system will turn off clock of the

empty PCI slot to reduce EMI (Electromagnetic Interference).

► Smart BIOS/Fox Intelligent Stepping/ Voltage Options/ CPU Configuration

Press <Enter> to go to its submenu.

Super BIOS Protect [Disabled] Help Item Auto Detect PCI Clock [Disabled]

► Smart BIOS [Press Enter]

► Fox Intelligent Stepping ► Voltage Options ► CPU Conguration [Press Enter]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

Fox Central Control Unit

[Disabled]

[Press Enter] [Press Enter] Disabled

Options

Enabled

3

Smart BIOS

Smart Power LED [Disabled] Help Item Smart Boot Menu [Enabled]

Current CPU Speed : 2400MHz

Current FSB/HTT Speed : 200MHz Current FSB Multiplier : 12x Disabled Current DRAM Speed : 533 MHz, N/A Enabled

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

► Smart Power LED (Optional)

F1:General Help F9:Optimized Defaults

Smart BIOS

[Disabled]

Options

25

Smart Power LED is a feature built on your motherboard to indicate different states during

Power On System Test (POST). The LED is located at the front panel, and it displays POST

state by different long-short blinking intervals. You can always leave this state enabled.

System Status Power LED Status Stop Blinking Condition

Normal Always On Always On

No Memory Continue blinking On (1sec.), Off (1sec.) Reboot & Memory OK

No Display Continue blinking On (2sec.), Off (2sec.) Reboot & Display OK

Post Error Message

3

No CPU Fan Continue blinking On (1/2sec.), Off (1/2sec.) Reboot & Fan OK

Quick blinking twice (1/3sec. On, 1/3sec. Off), one long On (1sec.), continuously.

Enter Setup or Skip

► Smart Boot Menu

When PC starts, it will ask you to press [Del] key to enter setup or press [Esc] key to enter

smart boot menu. If [Disabled] is selected, then pressing [Esc] has no function. This also

prevents user without password trying to get into your computer through smart boot menu.

► Current CPU Speed

This item displays the current CPU speed.

► Current FSB/HTT Speed

This item displays the current Front Side Bus speed.

► Current CPU Multiplier (Appears only when CPU supports)

This item displays the current CPU Ratio.

► Current DRAM Speed

This item displays the current DRAM speed, in dual channels.

Fox Intelligent Stepping

► CPU Clock Adjust

This option is used to adjust the CPU clock.

► PCIE Clock Adjust

CPU Clock Adjust [200] Help Item PCIE Clock Adjust [100] CPU Multiplier Adjust [Auto] Memory Speed Mode [Auto] GFX Engine Clock Override [Disabled] Spread Spectrum [Enabled]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

Fox Intelligent Stepping

200

26

This option is used to adjust the speed of PCI Express slot. It may enhance the graphics card

speed.

► CPU Multiplier Adjust (Appears only when CPU supports)

This option is used to adjust the CPU Clock Ratio. Multiply CPU clock with this ratio, you can

get the CPU speed. Increase this ratio may overclock your CPU. This option will be displayed

only if your CPU is supporting this feature.

► Memory Speed Mode

This item is used to enable/disable provision of DRAM timing by SPD device. The

SerialPresence Detect (SPD) device is a small EEPROM chip, mounted on a DDR2

memorymodule. It contains important information about the module’s speed, size, addressing

mode and various other parameters, so that the motherboard memory controller (chipset)

can better access the memory device. Select [Auto] for SPD enable mode.Select [Limit], the

DRAM speed will not exceed the specied value listed in the “Memory Speed Adjust” item.

If SPD value is faster than “Memory Speed Adjust” value, it will run at the specied “Memory

Speed Adjust” speed. Otherwise, SPD value is selected.Select [Manual], then DRAM speed is

manually selected according to the set value of “Memory Speed Adjust”.

► GFX Engine Clock Override

This item allows you to enable/disable GFX Engine Clock Override support.

► Spread Spectrum

If you enabled this function, it can signicantly reduce the EMI (Electromagnetic Interference)

generated by the system, so to comply with FCC regulation. But if overclocking is activated,

you had better disable it.

Voltage Options

DRAM Voltage Control [Disabled] Help Item NB Voltage Control [Disabled]

HT/SB Voltage Control [Disabled]

Disabled +50mV +100mV +150mV

+200mV

+250mV +300mV +350mV

+400mV +450mV

+500mV +550mV +600mV

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

Voltage Options

[Disabled]

Options

3

► DRAM Voltage Control

This option is used to change the DRAM voltage in a step of 50mV. The voltage can be

incremented from +50mV to +600mV.

► NB Voltage Control

This option is used to change the NB voltage in a step of 30mV. The voltage can be incre-

27

mented from +30mV to +360mV.

► HT/SB Voltage Control

This option is used to change the HT/SB voltage in a step of 30mV. The voltage can be incre-

mented from +30mV to +360mV.

CPU Conguration

3

This menu shows most of the CPU specications.

► Cool ’N’ Quiet (Appears only when CPU supports)

This option helps lowering down the CPU frequency and voltage when system is idling. When

the CPU speed is slowing down, the temperature will drop as well.

► C1E Support (Appears only when CPU supports)

C1E represents Enhanced HALT State. It is a feature which CPU uses to reduce power

consumption when in halt state. C1E drops the CPU’s multiplier and voltage to lower levels

when a HLT (halt) command is issued. This item is used to enable/disable the C1E support.

► CPU-NB HT Link Speed

HT stands for HyperTransport bus. The CPU<->NB HT Speed option controls the physical

speed of the CPU to Northbridge HT link using multipliers ranging 1x to 13x. The physical

speed of the link is determined by multiplying the CPU clock with the CPU<->NB HT Speed

setting.

► NCHT Incoming Link Width / NCHT Outgoing Link Width

The coherency refers to the caching of memory, and the HT links between processors are

coherent HT links as the HT protocol includes messages for managing the cache protocol.

Other (non processor-processor) HT links are Non-Coherent HT links, as they do not have

memory cache.

The HyperTransport link width and frequency are initialized between the adjacent coherent

and/or noncoherent HyperTransport technology devices during the reset sequence.

It is highly recommended to set to [Auto] for overall performance.

CPU Conguration

Module Version : 13.37 AGESA Version : 3.1.9.1 Enable/disable the Physical Count : 1 generation of ACPI Logical Count : 4 _PPC, _PSS, and _PCT objects .

AMD Phenom(tm) 9750 Qund-Core Processor

Revision : B3

Cache L1 : 512KB

Cache L2 : 2048KB

Cache L3 : 2MB

Current CPU Speed : 2400MHz,

Current FSB Multiplier : 12x Able to Change Freq. : Yes uCode Patch Level : 0x1000083 Cool ‘N’ Quiet [Enabled] C1E Support [Disabled]

CPU-NB HT Link Speed NCHT Incoming Link Width [Auto]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

CPU Conguration

Help Item

[Enabled]

[Auto]

28

Advanced Chipset Features

Northbridge Chipset Conguration

► Memory Configuration

► DRAM Timing Configuration [Press Enter]

CAS Latency :4.0

RAS/CAS Delay :4 CLK

Row Precharge Time :4 CLK

Min Active RAS :11 CLK RAS/RAS Delay :3 CLK Row Cycle :15 CLK

► Internal Graphics Config.

[Press Enter]

Advanced Chipset Features

[Press Enter]

Help Item

3

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

► Memory Conguration/DRAM Timing Conguration

Press <Enter> to go to its submenu.

The following six items display the DRAM timing values.

► CAS Latency

This item shows the CAS latency. The CAS Latency is the number of clock cycles that elapse

from the time the request for data is sent to the actual memory location until the data is

transmitted from the module.

► RAS / CAS Delay

This item displays a delay time (in clock cycles) between the CAS and RAS strobe

signals.

► Row Precharge Time

This item shows the number of clock cycles taken between issuing of the precharge command

and the active command. The DRAM row precharge time is in unit of clock cycle.

► Min Active RAS

Displays the number of clock cycles taken between a bank active command and

issuing of the precharge command.

► RAS / RAS Delay

This item shows a delay time (in clock cycles) between the RAS and RAS strobe

signals.

► Row Cycle

This item displays the minimum timing interval between successive active commands to the

same bank. The row cycle time is in unit of clock cycle.

► Internal Graphics Cong.

Press <Enter> to go to its submenu.

29

Memory Conguration

Bank Interleaving Channel Interleaving [Enabled] I interleaving DCT Unganged Mode [Always]

Memory Conguration

Help Item

[Disabled]

[Disabled] Enable bank Memory

3

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

► Bank Interleaving

Interleaving allows banks of SDRAM to alternate their refresh and access cycles. One

bank will undergo its refresh cycle while another is being accessed. This improves memory

performance by masking the refresh cycles of each memory bank. However, bank interleaving

only works if the addresses requested consecutively are not in the same bank.

► Channel Interleaving

Dual channel (Interleaved) mode offers the highest throughput for real world applications. Dual

channel mode is enabled when the installed memory capacities of both DIMM channels are

equal. If different speed DIMMs are used between channels, the slowest memory timing will be

used.

► DCT Unganged Mode

DCT stands for DRAM Controller.

Ganged refers to the use of both DRAM controllers within a memory controller acting in con-

cert to access memory. For a description of ganged (128-bit DRAM data width) and unganged

(64-bit DRAM data width) DRAM modes :

Ganged channels (DDR2) :

■ DCT channels A and B can be ganged as a single logical 128-bit DIMM.

■ Offers highest DDR2 bandwidth.

■ Requires both DIMMs in a logical pair to have identical size and timing parameters, both

DCTs programmed identically.

Unganged channels

■ DCT channels A and B operate as two completely independent 64-bit channels (both chan-

nels operate at the same frequency).

■ Reduce DRAM page conicts – more concurrent open dram pages .

■ Better bus efciency.

Burst lengths supported

When both DCTs are enabled in unganged mode, BIOS must initialize the frequency of each

DCT in order.

30

DRAM Timing Conguration

► DRAM Timing Mode

When both DCTs (DRAM controller) are enabled in unganged mode, BIOS must initialize the

frequency of each DCT in order, you also can congure the timings manually.

Settings are: [Auto], [DCT 0], [DCT 1], [Both].

[DCT 1] and [Both] will appear only in AM2+ CPU.

► CAS Latency

The number of memory clocks it takes a DRAM to return data after the read CAS_L is as-

serted

depends on the memory clock frequency. The value that BIOS programs into the memory

controller is a function of the target clock frequency. The target clock frequency is determined

from the supported CAS latencies at given clock frequencies of each DIMM.

► TRCD (RAS-to-CAS Delay)

This item allows you to select a delay time (in clock cycles) between the CAS# and RAS#

strobe signals.

► TRP (Precharge Command Period)

This item allows you to select the row precharge time (in clock cycles).

► tRTP (Internal Read to Precharge Command Delay)

Internal READ Command to PRECHARGE Command delay.

► TRAS (Active-to-Precharge Delay)

This item allows you to set the minimum RAS# active time (in clock cycles).

► TRC (Active-to-Active/Auto-Refresh Command Period)

This item allows you to set the row cycle time (in clock cycles). tRC = tRAS + tRP.

► tWR (Write Recovery)

This item allows you to select the write recovery time (in clock cycles).

► TRRD (Active-to-Active of a Different Bank)

This item allows you to select a delay time (in clock cycles) between the RAS# and RAS#

strobe signals.

► tWTR (Internal Write to Read Command Delay)

DRAM Timing Configuration

DRAM Timing Mode

Auto DCT 0 DCT 1 Both

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

DRAM Timing Configuration

Help Item

[Auto]

Options

3

31

This item allows you to select a delay time (in clock cycles) between sending the last data from

a write operation to the memory and issuing a read command.

► tRFC0, 1, (Auto-Refresh-to-Active/Auto-Refresh Command Period)

Refresh to Refresh or Refresh to Active command interval.

Trfc1: auto-refresh row cycle time for logical DIMM 1

Trfc0: auto-refresh row cycle time for logical DIMM 0

Internal Graphics Cong.

3

Internal graphics Config.

Internal Graphics Mode [Enabled] UMA Frame Buffer Size [128MB] Primary Video Controller [PCI-GFXO-IGFX] Disabled

Surround View [Disabled]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

Internal graphics Config.

Help Item

[Enabled]

Enabled

Options

► Internal Graphics Mode

Enable/Disable the integrated UMA graphics controller.

► UMA Frame Buffer Size

Allocates system memory for use as video memory to ensure the most efcient use of

available resources for maximum 2D/3D graphics performance.

This is a memory allocation method addition to the Unied Memory Architecture (UMA)

concept, wherein a static amount of page-locked graphics memory is allocated during driver

initialization. This xed amount of memory will provide the user with a guaranteed graphics

memory at all times, and will no longer be available to the OS.

► Primary Video Controller

This item is used to select which graphics controller is used as the primary boot device.

► Surround View

Surround View is the ATI technology that provides multi-graphics controller display capability

for both the ATI PCIe-based graphics card and the ATI integrated graphics processor (IGP).

Enabling SurroundView does not impact display modes (resolution and color depth) or perfor-

mance. The display mode of each output is controlled independently by the graphics controller

connected to it.

1. When using a non-ATI PCI Express (PCIe) graphics card, Surround View is not supported.

The integrated graphics processor (IGP) is automatically disabled, and the system memory

allocated to the IGP is freed for other use.

2. PCIe graphics card is the default rst display device. Enabling SurroundView in the BIOS

32

enables the integrated UMA graphics controller, which in turn makes available up to two

additional graphics outputs. When enabling the integrated UMA graphics controller, system

memory will be reallocated.

3

33

Integrated Peripherals

► IDE Conguration ► USB Conguration ► SuperIO Conguration ► Trusted Computing

OnBoard LAN [Enabled] OnBoard LAN Boot ROM [Disabled] HD Audio Controller [Enabled]

3

[Press Enter] Help Item

[Press Enter]

[Press Enter] [Press Enter] [Press Enter]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

► IDE Configuration / USB Configuration / SuperIO Configuration / Trusted Computing

Press <Enter> to go to relative submenu.

► OnBoard LAN

This item is used to enable or disable the onboard LAN controller.

► OnBoard LAN Boot ROM

This item is used to enable or disable the onboard LAN boot optional ROM. A LAN boot ROM

lets you set up a diskless workstation on the network. By installing a boot ROM in the network

board, you can enable a client PC system on the network to be booted remotely.

► HD Audio Controller

This item is used to enable or disable the HD Audio controller.

IDE Conguration

OnBoard PCI IDE Controller OnChip SATA Channel [Enabled] I integrated IDE OnChip SATA Type [Native IDE] controller. Enabled: Enable both IDE controllers.

IDE Conguration

Help Item

[Enabled]

[Enabled] Disabled: Disable the

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

34

► OnBoard PCI IDE Controller

[Disabled]: Disable the integrated IDE controller.

[Enabled]: Enable both IDE controllers.

► OnChip SATA Channel

[Disabled] : Disable SATA ports 1, 2, 3, 4.

[Enabled] : Enable SATA ports 1, 2, 3, 4.

► OnChip SATA Type

This item is used to set the operating mode of your SATA ports.

Options : [Native IDE]; [RAID]; [AHCI]; [Legacy IDE].

[Native IDE] - This congures the SATA ports to support native IDE mode.

[RAID] - When you enable RAID, it means all your SATA drives must also support AHCI.

[AHCI] - The Advanced Host Controller Interface (AHCI) specication describes the register

level interface for a Host Controller for Serial ATA. The specication includes a description of

the hardware/software interface between system software and the host controller hardware.

AHCI provides more advanced features including SATA features, but some SATA drives may

not support AHCI, unless they are labeled with AHCI support in its specication.

If your motherboard supporting AHCI, and you have a SATA device, which also supports AHCI,

then you can select IDE option to have fair performance (only PATA, SATA level), or you can

select AHCI to get its best performance.

[Legacy IDE] - This congures the SATA ports to support legacy IDE mode which is running

for old Windows system.

USB Conguration

USB Configuration

USB Devices Enabled : 1 Drive Disabled OnBoard USB Controller [Enabled] Enabled

USB 2.0 Controller [Enabled]

USB 2.0 Controller Mode [High Speed]

Legacy USB Support [Enabled]

► USB Storage Configuration

USB Configuration

Help Item

Options

[Enabled]

[Press Enter]

3

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

► OnBoard USB Controller

This item is used to enable or disable the onboard USB controller.

► USB 2.0 Controller

This item is used to enable or disabled the enhanced host controller interface for USB.

► USB 2.0 Controller Mode

This item is used to set the transmission rate mode of USB 2.0. This function only works under

35

DOS mode. The available settings are: [High Speed] in 480Mbps; [Full Speed] in 12Mbps.

► Legacy USB Support

This item is used to enable the support for USB devices on legacy OS. If you have a USB

keyboard or mouse, set to auto or enabled.

If USB devices are connected to the computer, the following item will appear:

► USB Storage Configuration

After pressing <Enter>, you can set the reset delay for the USB mass storage device. There

are many different emulation types of this USB device, such as oppy, hard disk and CDROM

can be selected.

3

SuperIO Conguration

SuperIO Configuration

OnBoard Floppy Controller

Serial Port1 Address [3F8/IRQ4] or disable oppy

IR Address IR Mode [IrDA] IR Duplex Mode [Half Duplex] Parallel Port Address [378] Parallel Port Mode [Normal]

[2F8/IRQ3] controller.

SuperIO Conguration

Help Item

[Enabled] Allows BIOS to enable

[Enabled]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

► OnBoard Floppy Controller

This item is used to enable/disable Floppy Controller.

► Serial Port1 Address

This item is used to assign the I/O address and interrupt request (IRQ) for the onboard serial

port 1.

► IR Address

This item is used to assign the I/O address and interrupt request (IRQ) for the IR port.

► IR Mode

This item is used to set the IR mode. The available settings are :

[IrDA] : An IrDA device for maximum 115200 bit/s.

[ASK IR] : A faster IrDA for 1152000 bit/s.

► IR Duplex Mode

This item enables you to determine the infrared function of the onboard infrared chip.

► Parallel Port Address

This item is used to assign the I/O address for the onboard parallel port .

► Parallel Port Mode

36

This item is used to set parallel port mode.

Trusted Computing

► TCG/TPM SUPPORT

Trusted Computing Group (TCG) members develop and promote open, vendor-neutral,

industry standard specications for trusted computing building blocks and software interfaces

across multiple platforms

TPM (Trusted Platform Module) is a specication promoted by TCG. A Trusted Platform Mod-

ule offers facilities for secure generation of cryptographic keys.

The TPM Work Group is chartered to create the Trusted Platform Module (TPM) specica-

tion. The denition of the TPM architecture comes from the TC and the TPM Work Group

denes the implementation of that architecture. Work group members should have a working

knowledge of security in relation to the design and usage of cryptographic modules. Members

should also have a working knowledge of cryptographic techniques including public-key cryp-

tography, cryptographic algorithms and protocols.

This item is used to enable/disable the function of TCG/TPM support.

Trusted Computing

TCG/TPM SUPPORT [No] Enable/Disable TPM TCG (TPM 1.1/1.2) support in BIOS

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help

F9:Optimized Defaults

Trusted Computing

Help Item

[No]

3

37

Power Management Setup

3

ACPI (Advanced Conguration and Power Interface) is an open industry standard interfaces

enabling OS-directed conguration, power management, and thermal management of mobile,

desktop, and server platforms. It denes ve sleeping states, they are :

S1 - The S1 sleeping state is a low wake latency sleeping state. In this state, no system

S2 - The S2 sleeping state is a low wake latency sleeping state. This state is similar to

S3 - The S3 sleeping state is a low wake latency sleeping state where all system context is lost

S4 - The S4 sleeping state is the lowest power, longest wake latency sleeping state supported

S5 - The S5 state is similar to the S4 state except that the OS does not save any context. The

ACPI Suspend Type [S3 (STR)] Help Item Power On After Power Fail [Power Off] Resume by LAN [Disabled] Select the ACPI Resume by PCI Card [Disabled] State used for Resume by PCIE Card [Disabled] System Suspend. Resume by USB KB/MS [Disabled] Resume by PS2 Keyboard [Disabled] Resume by PS2 Mouse [Disabled] Resume by RTC [Disabled]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

[S3 (STR)]

context is lost (CPU or chip set) and hardware maintains all system context. (also called

Power On Suspend)

the S1 sleeping state except that the CPU and system cache context is lost (the OS

is responsible for maintaining the caches and CPU context). Control starts from the

processor’s reset vector after the wake event.

except system memory. CPU, cache, and chip set context are lost in this state. Hardware

maintains memory context and restores some CPU and L2 conguration context. Control

starts from the processor’s reset vector after the wake event. (also called Suspend to

RAM)

by ACPI. In order to reduce power to a minimum, it is assumed that the hardware platform

has powered off all devices. Platform context is maintained. (also called Suspend to

Disk)

system is in the “soft” off state and requires a complete boot when it wakes. Software

uses a different state value to distinguish between the S5 state and the S4 state to allow

for initial boot operations within the BIOS to distinguish whether or not the boot is going to

wake from a saved memory image.

38

► ACPI Suspend Type

This item is used to set the energy saving mode of the ACPI function. When you select “S1

(POS)” mode, the power is always on and computer can be resumed at any time. When

you select “S3 (STR)” mode, the power will be down after a period of time. The status of the

computer before it entering STR will be saved in memory, and the computer can quickly return

to previous state when the STR function wakes.

► Power On After Power Fail

This item is used to set which state the PC will take with when it resumes after an AC power

loss.

► Resume by LAN

This item is used to enable/disable the OnBoard LAN to generate a wake up.

► Resume by PCI Card

This item is used to enable/disable the PCI card to generate a wake up.

► Resume by PCIE Card

This item is used to enable/disable the PCIE card to generate a wake up.

► Resume by USB KB/MS

This item is used to enable/disable the USB keyboard and mouse to generate a wake up.

► Resume by PS2 Keyboard

This item is used to enable/disable the PS2 keyboard to generate a wake up.

► Resume by PS2 Mouse

This item is used to enable/disable the PS2 mouse to generate a wake up.

► Resume by RTC

This item is used to enable/disable RTC alarm event to generate a wake up.

RTC is system real time clock.

► RTC Alarm Date(Days)

When Resume by RTC is enabled, select a specic date to generate a wake up.

► RTC Alarm Time (HH : MM : SS)

When Resume by RTC is enabled, select a specic time to generate a wake up.

3

39

PC Health Status

3

► Warning Temperature

This option is used to set the warning temperature for the system. When the temperature of

CPU is higher than the set value, the motherboard will send out warning beep.

► Shut Down Temperature

This item is used to set the system temperature upper limit. When the temperature exceeds

the set value, the system will shut down automatically.

This function works only when your operating system is supporting ACPI.

► Case Open Warning

This item is used to enable or disable case open warning function.

► CPU Temperature(Tcontrol)/System Temperature

The CPU/System temperature are automatically detected and displayed by the system.

► CPU Fan/System Fan Speed

The CPU fan/System fan speed are automatically detected and displayed by the system.

► CPU Core/DRAM Voltage/+ 3.3V/+5.0V/+12.0V

The current voltages are automatically detected and displayed by the system.

► CPU Smart Fan Function / System Smart Fan Function

This option is used to enable or disable smart fan function.

► Start PWM Temperature

It allows you set a temperature value from which smart fan starts its operation.

► Start PWM Value

It allows you to set an initial PWM value to drive the fan when the temperature reaches Start

value and smart fan begins its operation. The higher PWM value can achieve the faster fan

speed.

► Slope PWM Value

The slope controls the PWM value being stepped up or down versus temperature changes.

Warning Temperature [Disabled] Help Item Shut Down Temperature [Disabled] Case Open Warning [Disabled] CPU Temperature (Tcontrol) :63 oC/145 oF

System Temperature :35

CPU Fan Speed :3729 RPM 50 oC/122 oF System Fan Speed :N/A 55 oC/131 oF CPU Core :1.232 V 60 oC/140 oF DRAM Voltage :1.888 V 65 oC/149 oF +3.3V :3.424 V 70 oC/158 oF +5.0V :5.160 V +12.0V :11.712 V CPU Smart Fan Function [Disabled] System Smart Fan Function [Disabled]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

PC Health Status

[Disabled]

o

C/95 oF Disabled

Options

40

BIOS Security Features

Security Settings

Supervisor Password : Installed Install or change the User Password : Installed password.

Change Supervisor Password User Access Level [Full Access]

Change User Password [Press Enter]

Clear User Password

Password Check [Setup]

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

► Change Supervisor Password

This item is used to install or change supervisor password.

After you input Supervisor password, it then will ask you to

input user password optionally. If you have installed the Supervisor Password, the following

items will appear:

► User Access Level

This item is used to set user access level. The available settings are: [No Access]: Prevent user access to the setup utility.

[View Only]: Allow access to the setup utility but the elds can not be changed. [Limited]: Allow only limited elds to be changed, such as date and time. [Full Access]: Allow any eld to be changed except the supervisor password.

► Change User Password

This item is used to install or change user password.

► Clear User Password

This item will be displayed only when a User Password was set before. It is used to clear the

user password.

► Password Check

When it is set to [Setup], a password is required to enter the BIOS setup; select [Always], a password is required not only to enter BIOS setup, but also on each boot of your PC.

BIOS Security Features

Help Item

[Press Enter]

Enter New Password :

3

41

Load Optimal Defaults

Optimal defaults are the best settings of this motherboard. Always load the Optimal defaults after updating the BIOS or after clearing the CMOS values. Select this option and press Enter, it will pop out a dialogue box to let you load the defaults. Select <OK> and then press <Enter> to load the

Load Optimal Defaults?

[OK]

[OK] [Cancel]

defaults. Select <Cancel> and press <Enter>, it will not load. By this default, BIOS have set the optimal performance parameters of system to improve the performances of system components. But if the optimal performance parameters to be set cannot be supported by your hardware devices (for example, too many expansion cards were installed), the system might fail to work.

3

Save & Exit Setup

When you select this option and press <Enter>, a message will be displayed in the center of the screen: Select [OK] to save your changes to CMOS and exit the program, select [Cancel] or <ESC> to return to the main menu.

Save configuration changes and exit setup?

[OK] [Cancel]

[OK]

Exit Without Saving

If you select this option and press <Enter>, the following message will be displayed in the center of the screen:

Select [OK] to exit CMOS without saving your modications,

select [Cancel] or <ESC> to return to the main menu.

Discard changes and exit setup?

[OK]

[OK] [Cancel]

42

The utility CD that came with the motherboard contains useful software

and several utility drivers that enhance the motherboard features.

This chapter includes the following information:

■ Utility CD content

■ Install driver and utility

■ FOX ONE

■ FOX LiveUpdate

■ FOX LOGO

■ FOX DMI

Note : Because each module is independent, so the section number

will be reorganized and unique to each module, please understand.

Utility CD content

This motherboard comes with one DVD. You can simply put it into your DVD-ROM drive, and the main menu will be displayed on your PC screen to guide you how to install.

1. Install Driver

Use these options to install all the drivers for your system. You should install the drivers in order, and you need to restart your computer after all the drivers have been installed.

A. AMD Chipset Driver B. Realtek HDA Audio Driver C. Realtek 811X LAN Driver D. AMD RAID Driver (It appears when the “OnChip SATA Type” setting in BIOS is set to [RAID])

2. Software Utilities

4

Use these options to install additional software programs. FOX ONE is a very powerful user interface program which allows you to change your system setting without going to BIOS. Some auto features help user to improve (or overclock) your system without being a computer literate.

A. FOX ONE B. FOX LiveUpdate C. FOX LOGO D. FOX DMI E. Microsoft DirectX 9.0 F. Adobe Acrobat Reader G. Norton Internet Security H. AMD RAID Utility

44

Install driver and utility

1. Install Driver

You must click "AMD Chipset Driver" to install it rst. After that, you can click ”One Click Setup” to

install all the other drivers left, or you can click on each individual driver to install it manually.

Manual Installation Step by Step

Click to visit

Foxconn's

website

Select to

Install Utilities

2. Install Utility

You can select the specic utility to install.

Select to

Install Drivers

Automatic Installation by One Click.

Exit the

program

Browse CD Drop to System Tray

4

45

FOX ONE

FOX ONE is a powerful utility for easily modifying system settings. It also allows users

to monitor various temperature values, voltage values, frequencies and fan speeds at

any time.

With FOX ONE, you can :

■ Modify system performance settings, such as the CPU and memory bus speeds,

CPU voltages, fan speeds, and other system performance options.

■ Monitor hardware temperatures, voltages, frequencies and fan speeds.

N

O

I

T

U

A

C

!

4

Supporting Operating Systems :

■ Windows 2000 ■ Windows XP (32-bit and 64-bit)

■ Windows 2003 (32-bit and 64-bit) ■ Windows Vista (32-bit and 64-bit)

Using FOX ONE :

The very rst time you run FOX ONE, F.I.S. Calibration function (FOX Intelligent

Stepping) will require you to calibrate the CPU’s loading. Click “OK” to proceed

and start the Utility. F.I.S. is a feature of FOX ONE, which can automatically adjust your

CPU clock based on your current system loading.

Depending on hardware support, voltage monitoring and Fox Intelligent Stepping features are optional and only supported in some models. If the option is selectable, it also means the feature is supported.

■ Voltage Monitoring is supported only in FOX ONE Premium & Deluxe products.

■ Fox Intelligent Stepping is supported only in FOX ONE Deluxe products.

N

O

I

T

U

A

C

!

Before you running the FOX ONE program, the system parameters (such as CPU

clock, voltage...etc.) are controlled by BIOS settings. After you run FOX ONE, it will

take over, and the controlling right will be transferred to FOX ONE. Later, if you exit

FOX ONE, then BIOS control will be back again.

46

1. Main Page

Show CPU

Information

Toolbar

Alert Lamp

Switch Button

Skin Button

Exit

Minimum

Conguration

Homepage

Monitor Frequency/Voltage/Fan

speed/Temperature value

Toolbar

Use the toolbar to navigate to other pages.

Alert Lamp

When the system is in healthy state, the color of alert lamp is green. When the system

is in abnormal state, the alert lamp color is red.

Switch Button

Click this button, it will simplify the whole FOX ONE control panel to a smaller

information bar (i.e. Simple Mode) as depicted below, you can drag this bar to any

place on your screen to help you monitoring system status.

4

Exit FOX ONE

Click here will drop the FOX ONE to Windows system tray

Click here to go back to

FOX ONE full screen

47

Skin Button

There are more choices of FOX ONE screen panels. Click this button, you can select

your favorite skin (FOX ONE Panel).

Click the new skin

4

picture to select

the new skin

Apply the changes

Cancel the changes

Exit

Click this button to exit the program.

Minimum

Click this button to drop the FOX ONE to Windows system tray located at the lower

right corner of your screen.

Homepage

Click this button to visit Foxconn motherboard website :

http://www.foxconnchannel.com

48

Conguration

This menu allows you to congure :

1). Monitor interval (ms) :

This is to dene the interval of different messages of system settings which are to

be displayed on Simple Mode screen. Minimum value is 1 second.

2). Simple Mode :

To select which message of system settings are to be displayed in the Simple

Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one

by one in Simple Mode.

4

3). F.I.S. Calibration (FOX Intelligent Stepping, Optional)

This function will re-calibrate the CPU's loading, and it may take several minutes

to proceed. The FOX ONE calibration process will apply different loadings to

your CPU, record PWM IC voltage together with the CPU clock running at these

loadings, so it can dene and estimate within a particular range of system loading,

what the CPU clock should be.

49

Step 1 : Click Calibration icon, a message pops out to ask for continue. Select Yes.

4

Step 2 : After data is collected, it will ask you to restart your computer now.

Later on, when the FOX ONE program is activated, and F.I.S. feature (in CPU

Page) is also enabled, FOX ONE will automatically adjust your CPU clock

according to your system loadings. (Loadings are like Power Gaming, Data

Mining...etc.)

50

2. CPU Page - CPU Control

This page lets you select (or overclock) CPU clock to meet the current performance

level of the system. The fastest and suitable CPU clock running for current system can

be calculated by FOX ONE automatically or manually input by yourselves.

Manual :

You can press the up/down button to adjust your CPU clock.

Auto :

Click this button to let FOX ONE check the highest CPU clock you can use. System

will raise the CPU clock step by step until it hangs, you can then push the RESET

button on your PC panel to restart the system. When system restarts, run FOX ONE

again, it will display a recommended highest CPU clock for you, click <Yes> to apply it.

4

Go to CPU page

Reset the

changes

Adjust by manual

FIS Features :

Select the different

benchmarks

Press Auto button to let FOX

ONE check the highest CPU

clock you can use.

Apply the

changes

A message informs you to

push RESET button later if

the system hangs nally.

Click Yes to continue.

51

You can see the system is

raising CPU clock until the

system hangs.

Push RESET button on the

front panel of your system to

restart the computer.

4

Run FOX ONE program

again, it will inform you

the previous test found

that 255MHz is the

recommended CPU clock for

your system.

Click Yes to apply it to your

system.

52

Now, your system is running

at a CPU clock of 255MHz.

FOX Intelligent Stepping (F.I.S., Optional)

Select FOX Intelligent Stepping will allow your system to automatically adjust your

CPU clock rate based on different system loadings. For example, if you select

Power Gaming, CPU clock will be driven to run at its maximum speed. While in

Energy Saving, CPU will lower down its speed to a minimum. The four benchmarks

- Power Gaming, Data Mining, Ofce and Energy Saving, the references of their

system loading were calculated and dened in the FIS Calibration option of

Conguration menu. Select Auto, CPU will automatically adjust its clock according

to current system loading.

4

3. Frequency Page - Frequency Control

This page lets you set memory and PCI Express frequencies by manual.

Go to Freq. page

Close this page

Select the option

you want to set

Adjust by manual

Reset the changes

Apply the changes

53

4. Limit Setting

4.1 Limit Setting - CPU Temperature

This page lets you to set CPU high limit temperature and enable the alert function.

Go to Limit Setting

page

4

Show current CPU

temperature value

Enable alert function

when the CPU

temperature is higher

than high limit value

Show current high

limit value of the CPU

temperature

Set high limit by

dragging the lever

4.2 Limit Setting - System Temperature

This page lets you to set system high limit temperature and enable the alert function.

Show current system

temperature value

Set high limit by

dragging the lever

54

Enable alert function

when the system

temperature is higher

than high limit value

Show current high

limit value of system

temperature

4.3 Limit Setting - CPU Fan

This page lets you to set CPU fan low limit rpm and enable the alert function.

Show current CPU

fan rpm value

Enable alert function

when the CPU fan runs

slower than the low

limit rpm value

Show current low limit

rpm value of CPU fan

Set low limit rpm by

dragging the lever

4.4 Limit Setting - System Fan

This page lets you to set system fan low limit rpm and enable the alert function.

Show current system

fan rpm value

Enable alert function

when the system fan

runs slower than low

limit rpm value

4

Set low limit rpm by

dragging the lever

55

Show current low limit

rpm value of system

fan

4.5 Limit Setting - FAN1 Fan (Optional)

This page lets you to set FAN1 fan low limit rpm and enable the alert function.

Show current FAN1

fan rpm value

Enable alert function

when the FAN1 fan

runs slower than low

limit rpm value

4

Set low limit rpm by

dragging the lever

Show current low limit

rpm value of FAN1 fan

5. Voltage Page - Voltage Control (Optional)

This page lets you set CPU voltage, memory voltage and North Bridge voltage

manually. CPU voltage can be stepped up/down by a unit of 12.5mV, while memory is

0.05V/step, and North Bridge is 0.04V/step.

Go to Voltage page

Select the option

you want to set

Reset the changes

Adjust by manual

Apply the changes

56

6. Fan Page - Fan Control

This page lets you enable Smart Fan function or set the fan speed by manual.

When Smart Fan is selected, you must use a 4-pin CPU cooler in your system.

Go to Fan page

Enable or disable

smart fan function

Set fan speed by

dragging the lever

Apply the changes

4

57

FOX LiveUpdate

FOX LiveUpdate is a useful utility to backup and update your system BIOS, drivers and utilities by

local or online.

Supporting Operating Systems :

■ Windows 2000

■ Windows XP (32-bit and 64-bit)

■ Windows 2003 (32-bit and 64-bit)

■ Windows Vista (32-bit and 64-bit)

4

Using FOX LiveUpdate :

1. Local Update

1-1 Local Update - BIOS Information

This page lets you know your system BIOS information.

Link to website

Toolbar

*** : please refer to the physical motherboard for detail.

58

Minimum

Exit

Show current

BIOS information

1-2 Local Update - Backup

This page can backup your system BIOS. You can click “Backup”, and key in a le name, then

click “Save” to nish the backup operation. The extension of this backup le is ".BIN" for Award

BIOS and ".ROM" for AMI BIOS. Default directory is "C:\Desktop\My Documents" in Windows XP

and "Documents" in Vista. Make sure you can remember the le name together with the directory

which it is stored, prevented that you may need them to recover your BIOS later.

Key in a BIOS name

Click here

1-3 Local Update - Update

This page helps you to update your BIOS from a local le. After click “Update”, An alert message

will be displayed to ensure if you really want to continue, click “Yes” to conrm. A setup wizard

will guide you to load a local BIOS le to nish the operation. You must remember from which

directory to load your new BIOS le (with an extension of ".BIN" for Award BIOS, ".ROM" for AMI

BIOS) before the setup wizard starts.

4

N

O

I

T

U

A

C

!

FOX LiveUpdate can automatically backup old BIOS before update. This feature can be

enabled in the "Congure-System" setup. Please refer to "Congure-System" section

for more detail. The default backup directory is C:\LiveUpdate_Temp, but the backup

le name will be automatically generated. It is hard to nd it out from a backup directory,

and we recommend you using Explorer to check date/time message of this backup le

to nd it out and write its name down to remember it.

59

2. Online Update

2-1 Online Update - Update BIOS

This page lets you update your system BIOS from Internet. Click “start”, it will search the new

BIOS from Internet. Then follow the wizard to nish the update operation.

Click here

Current information

4

Search new BIOS

from Internet

Select BIOS to update

Browse detailed

information

Update BIOS

Close the window

2-2 Online Update - Update Driver

This page lets you update your system drivers from Internet. Click “start”, it will search the new

drivers from Internet. Then follow the wizard to nish the update operation.

Click here

Current information

Search new drivers

from Internet

60

Select the driver to update

Browse detailed

information

Install the selected

driver

Close the window

2-3 Online Update - Update Utility

This page lets you update utilities from Internet. Click “start”, it will search the new utilities from

Internet. Then follow the wizard to nish the update operation.

Click here

Current information

4

Select the utility to update

61

Search new utilities

from Internet

Browse detailed

information

Install the selected

utility

Close the window

2-4 Online Update - Update All

This page lets you update your system drivers from Internet. Click “start”, it will search all new

BIOS/drivers/utilities from Internet. Then follow the wizard to nish the update operation.

Click here

Current information

4

Close the window

Search all new BIOS/

drivers/utilities from

Internet

Browse detailed

BIOS information

Browse detailed

driver information

Browse detailed

utility information

62

3. Congure

3-1 Congure - option

This page lets you set auto search options. After you enable the auto search function, FOX

LiveUpdate will start its searching from Internet and if any qualied item found, it will pop out a

message on the task bar to inform you to do the next step.

Click here

Set auto

search options

Set auto search

the latest

FOX LiveUpdate

Select search

which kind of

versions

4

Apply the changes

Double click on the icon as show below, you can see the detailed information.

Reset to default value

Double click here

63

When you enable "Auto Search FOX LiveUpdate", if your FOX LiveUpdate version is older, it will

auto search from internet and prompt you to install the new version.

Prompt you to

install the new

FOX LiveUpdate

4

3-2 Congure - System

This page lets you set the backup BIOS location and change different skin of the FOX LiveUpdate

utility.

Click here

Determine if the FOX LiveUpdate can

auto run when the system starts up

Set the location of

download les or

auto backup BIOS

Select different skin

of the software

Reset to default value

Apply the changes

64

3-3 Congure - Advance

This page lets you select to ash BIOS / Boot Block and clear CMOS. If you choose Flash Boot

Block, it means BIOS is not protective, and you must make sure the ash process is continuous

and without any interruption.

Click here

Select which BIOS ROM

to ash(Only available to

motherboard with backup

BIOS ROM )

Select to ash Boot Block

Select to clear CMOS

4

Apply the changes

N

O

I

T

U

A

C

!

We recommend that you should better keep the default setting unchanged to avoid any

Reset to default value

damage.

4. About & Help

This page shows some information about FOX LiveUpdate.

Click here

Show information about

FOX LiveUpdate

65

FOX LOGO

FOX LOGO is a simple and useful utility to backup, change and delete the boot time

Logo. The boot Logo is the image that appears on screen during POST (Power-On

Self-Test).

You can prepare a JPG image (1024x768) le, then use FOX LOGO to open it and

change the boot time Logo. Boot time Logo will be displayed if you enable the BIOS

"Quiet Boot" setting in "Advanced BIOS Features" menu.

Supporting Operating Systems :

■ Windows 2000

4

■ Windows XP (32-bit and 64-bit)

■ Windows 2003 (32-bit and 64-bit)

■ Windows Vista (32-bit and 64-bit)

Using FOX LOGO:

Main Page

Main screen

Backup

Change

De l e t e

I

N

G

R

A

!

W

Exit

Minimize

Website

About

When you change Logo or delete current Logo, the system will ash BIOS le auto-

matically. During this time, please DO NOT shut down the application and the system,

or the motherboard will be damaged seriously.

66

FOX DMI

FOX DMI is a full Desktop Management Interface viewer, and it provides three DMI data

formats : Report, Data Fields and Memory Dump.

With DMI information, system maker can easily analyze and troubleshoot your mother-

board if there is any problem occurred.

Supporting Operating Systems :

■ Windows 2000

■ Windows XP (32-bit and 64-bit)

■ Windows 2003 (32-bit and 64-bit)

■ Windows Vista (32-bit and 64-bit)

Using FOX DMI:

Please operate this utility as the comments shows.

4

Click here to select the type you want to view.

Click here to select the DMI Data format you need

67

This chapter will cover two topics :

■ Creating a Bootable Array - Installing a new Windows XP

(or Vista) in a brand new RAID system.

■ Creating a Non-Bootable Array - Existing Windows XP

(or Vista) system with new RAID built as data storage.

It includes the following information :

■ RAID Conguration Introduction

■ Option ROM Utility

■ Create a RAID Driver Diskette

■ RAID Enable in BIOS

■ Select a RAID Array for use

■ Install a New Windows XP

■ Setting up a Non-Bootable RAID Array

The RAID BIOS Setup pictures shown in this chapter are for reference only, please refer to the practical screen.

Creating a Bootable Array - Installing a new Windows XP (or Vista) in

a brand new RAID system.

1. Follow 5-1 to create a RAID driver diskette.

2. Follow 5-2 to set RAID enabled in BIOS.

3. Follow 5-3 to select a RAID array for use.

4. Follow 5-4 to Install a new Windows Operating System.

What kinds of hardware and software you need here :

1. A oppy drive.

2. A DVD-ROM drive.

3. Several SATA hard disks.

4. A RAID driver diskette. (Could be bundled in motherboard package.)

5. A motherboard driver CD. (To create RAID driver diskette if it is not bundled.)

6. Windows XP or Vista Install CD.

Creating a Non-Bootable Array - Existing Windows XP (or Vista)

system with new RAID built as data storage.

Follow 5-5 to go through the processes to build a new RAID array in your existing Windows XP system, it includes :

1. Set RAID enabled in BIOS.

2. Follow 5-3 to select a RAID array for use.

3. Run setup program to install AMD RAID driver into your current Windows XP system.

4. Use Administrative Tools in Control Panel to format new RAID array.

5

What kinds of hardware and software you need here :

1. A DVD-ROM drive.

2. Several SATA hard disks.

3. A motherboard driver CD.

69

RAID Conguration Introduction

RAID (Redundant Array of Independent Disks) is a method for computer data storage

schemes that divide and/or replicate data among multiple hard drives. RAID can be

designed to provide increased data reliability (fault tolerance) or increased I/O (input/

output) performance, or both. The following RAID congurations are provided for

users.

There are three major key concepts in RAID:

1. Mirroring : The copying of data to more than one disk;

2. Striping : The splitting of data across more than one disk;

3. Error correction : Where redundant data is stored to allow problems to be detected

and possibly xed (known as fault tolerance).

Different RAID levels use one or more of these techniques, depending on the system

5

requirements. The main aims of using RAID are to improve reliability, important for

protecting information that is critical to a business, for example a database of customer

orders; or where speed is important, for example a system that delivers video on

demand TV programs to many viewers.

The conguration affects reliability and performance in different ways. The problem

with using more disks is that it is more likely that one will go wrong, but by using

error checking the total system can be made more reliable by being able to survive

and repair the failure. Basic mirroring can speed up reading data as a system can

read different data from both the disks, but it may be slow for writing if it insists that

both disks must conrm that the data is correctly written. Striping is often used for

performance, where it allows sequences of data to be read off multiple disks at the

same time. Error checking typically will slow the system down as data needs to be

read from several places and compared. The design of RAID systems is therefore a

compromise and understanding the requirements of a system is important. Modern

disk arrays typically provide the facility to select the appropriate RAID conguration.

RAID is often used in high availability systems, where it is important that the system

keeps running as much of the time as possible.

70

RAID 0 (Striped)

RAID 0 reads and writes sectors of data interleaved among multiple drives. If any disk

member fails, it affects the entire array. The disk array data capacity is equal to the

number of drive members times the capacity of the smallest member. RAID 0 does

not support fault tolerance.

RAID 1 (Mirror)

RAID 1 writes duplicate data onto a pair of drives and reads both sets of data in

parallel. If one of the mirrored drives suffers a mechanical failure or does not respond,

the remaining drive will continue to function. Due to redundancy, the drive capacity of

the array is the capacity of the smallest drive.

RAID Ready

A "RAID Ready" system is a specic system conguration that, with the addition of

a second Serial ATA hard drive, can be seamlessly migrated to a conguration that

provides either improved storage performance or data protection from a single hard

drive failure.

RAID 10 (Striped Mirror)

RAID 10 is a combination of striping and mirroring. This conguration provides optimal

speed and reliability, but you need four SATA hard disks.

5

Span (JBOD)

JBOD stands for “Just a Bunch of Disks”. Each drive is accessed as if it were on a

standard SCSI host bus adapter. This is useful when a single drive conguration is

needed, but it offers no speed improvement or fault tolerance. A spanned volume is a

formatted partition which data is stored on more than one hard disk, yet appears as

one volume. Unlike RAID, spanned volumes have no fault-tolerance, so if any disk

fails, the data on the whole volume could be lost. Additionally, the system or boot

partitions cannot be included in a spanned volume. FAT16/32 and NTFS le systems

may be used, and the volume can span up to 32 hard disks.

Comparison Table :

Solution Hard Disks No. Capacity Performance Reliability Application

RAID0 >=2 All Highest Dangerous Look for speed

RAID1 2 50% Read faster Excellent 100% Data backup

RAID10 >=4

(Even number)

Span >=1 All none Dangerous Big disk space

Smallest*2High Excellent Unlimited budget

71

Option ROM Utility

The Option ROM Utility supports RAID 0 ,RAID 1 and RAID10 functions. It allows you to get high performance with fault tolerance, big capacity, or data safety provided by different RAID functions.

Here, we will use four SATA hard disks as an example to guide you through how

to congure your RAID system. Assume four hard disks are connected to the

motherboard :

SATA port 1 - HDS728090PLA380, 82.34GB

SATA port 2 - WDC WD1200JD-98HBB0, 120.03GB

SATA port 3 - Hitachi HDT725025VLA3, 250.05GB

SATA port 4 - ST3320620AS, 320.07GB

I

N

G

R

A

!

W

To achieve the best performance and reliability, we highly recommend you

5

The relationships between port numbers in the Option ROM Utility and SATA ports on

the motherboard are shown below. They are :

Channel 1 is the SATA port 1 of the motherboard.

Channel 2 is the SATA port 2.

Channel 3 is the SATA port 3.

Channel 4 is the SATA port 4.

using the hard disks with the same brand, size and model number. Though

we are using four different hard disks as an example to describe RAID

function in this chapter, it is only helpful in explaining what the nal disk

volume of the RAID array will be. In the real world, using the same model to

build a disk array is strongly recommended.

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34

Extent 1 82.28 Free

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 Extent 1 119.96 Free 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05

Extent 1 249.99 Free 4 :Mas ST3320620AS SATA 1.5G 320.07

Extent 1 320.00 Free

[ View Drives Assignment ]

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Crtl+H] Secure Erase [PgUp/Dn] Page Change

72

Two topics will be covered in the following sections :

1). Creating a Bootable Array - Installing a new Windows XP in a brand new RAID

system.

2). Creating a Non-Bootable Array - Existing Windows XP system with new RAID

built as data storage.

Install SATA Hard Disks before we continue :

■ Shut down your computer.

■ Install SATA hard disks into the drive bays, connect all power and SATA cables.

N

O

I

T

U

A

C

!

■ Before installing the SATA hard disks, make sure to turn off the computer

and unplug the power cord from the power outlet to prevent damage to the

hardware.

■ Depending on how many SATA ports are built on your motherboard. If your

system is accompanied with a SATA DVD drive, then you may not select

Striped Mirror (RAID0+1) function if only four SATA ports are provided.

5

73

5-1 Create a RAID Driver Diskette

If you want to install a brand new Windows XP on a RAID system, you need to create a

RAID driver oppy diskette which will be used during Windows XP installation later.

1. Find a PC, put a diskette into its oppy

drive A:, this diskette will be formatted

later. Put the driver CD into DVD-ROM

drive.

2. Depending on which platform your

system is, normally, it is a 32-bit XP

system. Use Windows explorer, and

go to CD:\Driver\AMD\RAID\Floppy\

WinXP\, click on RaidTool icon to start

the creation.

5

3. Click on “GO” to Start.

4. Select the desired destination FDD drive.

It can be the default drive A: or any USB

FDD. Click “OK” to continue.

5. Insert a diskette, click “OK” to continue.

6. You can input a volume label for this dis-

kette, click on “Start” to format.

74

7. Click on "OK" to go through this warning mes-

sage.

8. Format nished. Click "OK" to continue copying of

RAID driver into this diskette.

9. Check if the rst diskette contains the

driver les.

5

75

5-2 RAID Enable in BIOS

1. Enter the BIOS setup by pressing <DEL> key when boot up.

2. Select the “Integrated Peripherals” from the “Main menu”, then select the “IDE

Conguration” menu and press <Enter> to go to the conguration items.

3. Enable RAID function and individual SATA port for hard drive or DVD connection.

4. Press <F10> to save the setting then PC will reboot itself.

IDE Conguration

OnBoard PCI IDE Controller OnChip SATA Channel [Enabled] I OnChip SATA Type [RAID] Native IDE RAID AHCI Legacy IDE

IDE Conguration

[Enabled]

[RAID]

Help Item

Options

5

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

5-3 Select a RAID Array for Use

When BIOS is restarted, it will display a message asking you to press [Ctrl-F] key to

enter the main menu of Option ROM Utility. Press [Ctrl-F], the Main Menu appears.

Press 1..4 to Select Option [ESC] Exit

View Drive Assignment. . . . . . . [ 1 ]

Define LD . . . . . . . . . . . . . . . . . [ 2 ]

Delete LD . . . . . . . . . . . . . . . . . [ 3 ]

Controller Configuration . . . . . . [ 4 ]

[ Main Menu ]

[ Keys Available ]

76

Create RAID 0 (Striped)

Here, we will show you how to create two RAID 0 Logical Drives (LD) by using two

hard disks.

1. Select [2] from the main menu, "Dene LD Menu" appears.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 −−−− −−−− −−−−−−−− −−−−

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

2. Press [Enter], the screen appears as below, select RAID 0.

3. Use [↓] key to select the hard disks, press [Space] key to change its assignment

status to "Y".

4. Press [Ctrl-Y] to save the setting

LD No RAID Mode Total Drv

LD 1 RAID 0 0

Stripe Block: 64 KB Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 N

4 :Mas ST3320620AS SATA 1.5G 320.07 N

[ Dene LD Menu ]

[ Drives Assignment ]

Y

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

77

5. A message prompts.

Press [Ctrl-Y] to erase the RAID array.

6. Another screen prompts.

Press [Ctrl-Y]. Input 80GB to select the rst

logical drive (LD1) and press [Enter].

Fast Initialization Option has been selected It will erase the MBR data of the disks, <Press Ctrl-Y Key if you are sure to erase it> <Press any other key to ignore this option>

Press Ctrl-Y to Modify Array Capacity or press any other key to use maximum capacity...

LD No RAID Mode Total Drv Capacity(GB)

LD 1 RAID 0

Stripe Block: 64 KB Fast Init: ON Gigabyte Boundary: OFF Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 N

4 :Mas ST3320620AS SATA 1.5G 320.07 N

RAID 0

Enter array capacity (in GB) here:

[ Dene LD Menu ]

2 164.56

[ Drives Assignment ]

5

[ Keys Available ]

[0-9] Input Capacity [Enter] Save [Backspace] Delete [ESC] exit

7. The selection of LD1 array is completed.

As we want to introduce how to create two logical drives by using the same two hard

drives here, so we will press [↓] to select LD2.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 RAID 0 2 79.99 Functional

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Enter] Select

78

8. When LD2 is selected, press [Enter] to continue.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 2 −−−− −−−− −−−−−−−− −−−−

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 79.99 Functional

[ Keys Available ]

9. You can see in the previous example, about 40GB of Channel 1 and 2 hard disks were

allocated. Select the remaining spaces from them for RAID0 again.

Press [Ctrl-Y] to save the setting.

LD No RAID Mode Total Drv

LD 2 RAID 0 2

Stripe Block: 64 KB Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 42.28 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 79.96 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 N

4 :Mas ST3320620AS SATA 1.5G 320.07 N

[ Dene LD Menu ]

[ Drives Assignment ]

Y

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

79

10. A message prompts.

Press [Ctrl-Y] to erase the RAID array.

LD No RAID Mode Total Drv

LD 2 RAID 0 2

Stripe Block: 64 KB Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 42.28 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 79.96 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 N

4 :Mas ST3320620AS SATA 1.5G 320.07 N

Fast Initialization Option has been selected It will erase the MBR data of the disks, <Press Ctrl-Y Key if you are sure to erase it> <Press any other key to ignore this option>

[ Dene LD Menu ]

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

11. The remaining disk spaces are assigned to LD2. The size is about 42GB*2 =

84GB.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 2 RAID 0 2 83.99 Functional

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[ Dene LD Menu ]

2 79.99 Functional

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Enter] Select

80

Create RAID 1 (Mirrored)

Here, we will show you how to create one Mirrored Logical Drives (LD) by using two

hard disks.

1. Select [2] from the main menu, "Dene LD Menu" appears.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 −−−− −−−− −−−−−−−− −−−−

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

2. Press [Enter], the screen appears as below, select RAID 1.

3. Use [↓] key to select the hard disks, press [Space] key to change its assignment

status to "Y".

4. Press [Ctrl-Y] to save the setting.

LD No RAID Mode Total Drv

LD 1 RAID 1 2

Stripe Block: NA Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 N

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 N 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 Y

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

[ Dene LD Menu ]

[ Drives Assignment ]

Y

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

81

5. A message prompts.

Press [Ctrl-Y] to erase the RAID array.

6. Another screen prompts.

Press any key to use the maximum capacity.

LD No RAID Mode Total Drv Capacity(GB)

LD 1 RAID 1 2

Stripe Block: NA Fast Init: ON Gigabyte Boundary: OFF Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 N

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 N 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 Y

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

5

[ Dene LD Menu ]

249.99

[ Drives Assignment ]

Fast Initialization Option has been selected It will erase the MBR data of the disks, <Press Ctrl-Y Key if you are sure to erase it> <Press any other key to ignore this option>

Fast Initial

Press Ctrl-Y to Modify Array Capacity or press any other key to use maximum capacity...

7. The selection of LD1 array is completed.

The nal capacity of 249.99GB (250GB) is the smaller size of the two hard drives.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 RAID 1 2 249.99 Functional

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

82

Create RAID 10 (Striped Mirror)

Here, we will show you how to create one Striped Mirror Logical Drives (LD) by using

four hard disks.

1. Select [2] from the main menu, "Dene LD Menu" appears.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 −−−− −−−− −−−−−−−− −−−−

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

2. Press [Enter], the screen appears as below, select RAID 10.

3. Use [↓] key to select the hard disks, press [Space] key to change its assignment

status to "Y".

4. Press [Ctrl-Y] to save the setting.

LD No RAID Mode Total Drv

LD 1 RAID 10 4

Stripe Block: 64 KB Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 Y

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

[ Dene LD Menu ]

[ Drives Assignment ]

Y

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

83

5. A message prompts.

Press [Ctrl-Y] to erase the RAID array.

6. Another screen prompts.

Press any key to use the maximum capacity.

LD No RAID Mode Total Drv

LD 1 RAID 10 4

Stripe Block: 64 KB Fast Init: ON Gigabyte Boundary: OFF Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 Y

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

5

[ Dene LD Menu ]

[ Drives Assignment ]

Fast Initialization Option has been selected It will erase the MBR data of the disks, <Press Ctrl-Y Key if you are sure to erase it> <Press any other key to ignore this option>

Fast Initial

Press Ctrl-Y to Modify Array Capacity or press any other key to use maximum capacity...

7. The selection of LD1 array is completed.

The nal capacity of 164.56GB (82.28GB*2) is twice capacities of the smallest size

of the four hard drives.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 RAID 10 4 164.56 Functional

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

84

Create RAID Ready

A "RAID Ready" system is a specic system conguration that, with the addition of

a second Serial ATA hard drive, can be seamlessly migrated to a conguration that

provides either improved storage performance or data protection from a single hard

drive failure.

1. Select [2] from the main menu, "Dene LD Menu" appears.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 −−−− −−−− −−−−−−−− −−−−

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

2. Press [Enter], the screen appears as below, select RAID READY.

3. Use [↓] key to select the hard disk, press [Space] key to change its assignment

status to "Y".

4. Press [Ctrl-Y] to save the setting.

LD No RAID Mode Total Drv

LD 1 RAID READY 1

Stripe Block: NA Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 N

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 N 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 N

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

[ Dene LD Menu ]

[ Drives Assignment ]

Y

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

85

5. A message prompts.

Press [Ctrl-Y] to erase the RAID array.

LD No RAID Mode Total Drv

LD 1 RAID READY 1

Stripe Block: NA Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 42.28 N

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 79.96 N 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 N

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

Fast Initialization Option has been selected It will erase the MBR data of the disks, <Press Ctrl-Y Key if you are sure to erase it> <Press any other key to ignore this option>

[ Dene LD Menu ]

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

6. The conguration of LD1 array is completed.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 RAID READY 1 320.00 Functional

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Enter] Select

86

Create JBOD

Here, we will show you how to create a JBOD Logical Drives (LD) by using four hard

disks.

1. Select [2] from the main menu, "Dene LD Menu" appears.

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 −−−− −−−− −−−−−−−− −−−−

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−− LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[↑] Up [↓] Down [ESC] Exit [Enter] Select

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

2. Press [Enter], the screen appears as below, select JBOD.

3. Use [↓] key to select the hard disks, press [Space] key to change its assignment

status to "Y".

4. Press [Ctrl-Y] to save the setting.

LD No RAID Mode Total Drv

LD 1 JBOD 4

Stripe Block: NA Fast Init: ON Gigabyte Boundary: NA Cache Mode: NA

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 82.34 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 Y

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

[ Dene LD Menu ]

[ Drives Assignment ]

Y

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

87

5. A message prompts.

Press [Ctrl-Y] to erase the RAID array.

LD No RAID Mode Total Drv

LD 1 JBOD 4

Stripe Block: 64 KB Fast Init: ON Gigabyte Boundary: ON Cache Mode: WriteThru

Channel :ID Drive Model Compatibilities Capacity(GB) Assignment

1 :Mas HDS728090PLA380 SATA 3G 42.28 Y

2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 79.96 Y 3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 Y

4 :Mas ST3320620AS SATA 1.5G 320.07 Y

Fast Initialization Option has been selected It will erase the MBR data of the disks, <Press Ctrl-Y Key if you are sure to erase it> <Press any other key to ignore this option>

[ Dene LD Menu ]

5

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Space] Change [Crtl-Y] SAVE [PgUp/Dn] Page Change

6. The conguration of LD1 array is completed.

Total size is 82.28+119.96+250.00+320.00 = 772.24GB

LD No RAID Mode Total Drv Capacity(GB) Status

LD 1 RAID 0

LD 1 JBOD 4 772.24 Functional

LD 2 −−−− −−−− −−−−−−−− −−−− LD 3 −−−− −−−− −−−−−−−− −−−− LD 4 −−−− −−−− −−−−−−−− −−−− LD 5 −−−− −−−− −−−−−−−− −−−− LD 6 −−−− −−−− −−−−−−−− −−−− LD 7 −−−− −−−− −−−−−−−− −−−−

LD 8 −−−− −−−− −−−−−−−− −−−− LD 9 −−−− −−−− −−−−−−−− −−−− LD10 −−−− −−−− −−−−−−−− −−−−

[ Dene LD Menu ]

2 163.99 Functional

[ Keys Available ]

[↑] Up [↓] Down [ESC] Exit [Enter] Select

88

5-4 Install a New Windows XP

Assume a Mirrored array (249.99GB) was created as introduced in section 5-3, after

the system restarts :

1. Press <DEL> to enter BIOS Setup during POST.

2. Insert the Windows installation CD into the optical drive.

3. Set the “1st Boot Device” to “CD/DVD-ROM”, save changes and exit BIOS.

Boot Device Priority Item Help

1st Boot Device [CDROM] Species the boot

2nd Boot Device [HDD:SM-HDS728080PL] sequence from the 3rd Boot Device [1st Floppy Drive] available devices.

A device enclosed in

parenthesis has been

disabled in the corresponding type menu.

↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit

F1:General Help F9: Optimized Defaults

4. The computer will reboot, and it will start installing Windows Operating System.

Watch the screen carefully, when the following picture appears, press <F6> key

immediately. If you forget to do this, PC will go to an fatal blue screen, and you

may need to reboot the system again. PC may not respond to your <F6> input

immediately, and it keeps loading les until the next screen displays.

Boot Device Priority

[CD/DVD:SS-DVD-ROM]

5

Windows Setup

Press F6 if you need to install a 3rd party SCSI or RAID driver.

89

5. After some les are copied to your system, the following picture appears, press <S>

to continue the specic driver installation.

Windows Setup

Setup could not determine the type of one or more mass storage devices installed in your system, or you have chosen to manually specify an adapter. Currently, Setup will load support for the following mass storage device(s):

<none>

* To specify additional SCSI adapters, CD-ROM drivers, or special disk controllers for use with Windows, including those for which you have a device support disk from a mass storage device manufacturer, press S.

* If you do not have any device support disks from a mass storage

5

device manufacturer, or do not want to specify additional mass storage devices for use with Windows, press ENTER.

S=Specify Additional Device ENTER=Continue F3=Exit

6. It will ask you to insert the RAID driver diskette into you oppy drive. Press <Enter>

after it is done.

Windows Setup

Please insert the disk labeled

manufacturer-supplied hardware support disk

into Drive A:

* Press ENTER when ready

Enter=Continue ESC=Cancel F3=Exit

90

7. There are two drivers, for your 32-bit XP system, press [Enter] to select the rst

driver - "AMD AHCI Compatible RAID Controller-x86 platform".

Windows Setup

You have chosen to configure a SCSI Adapter for use with Windows, using a device support disk provided by an adapter manufacturer.

Select the SCSI Adapter you want from the following list, or press ESC to return to the previous screen.

ENTER=Select F3=Exit

AMD AHCI Compatible RAID Controller-x86 platform

ATI AHCI Compatible RAID Controller-x86 platform

AMD AHCI Compatible RAID Controller-x64 platform

8. A conrmation message appears to double check if the driver is really what we

wanted, press <Enter> to continue.

5

Windows Setup

Setup will load support for the following mass storage device(s):

AMD AHCI Compatible RAID Controller-x86 platform

* To specify additional SCSI adapters, CD-ROM drivers, or special disk controllers for use with Windows, including those for which you have a device support disk from a mass storage device manufacturer, press S.

* If you do not have any device support disks from a mass storage device manufacturer, or do not want to specify additional mass storage devices for use with Windows, press ENTER.

S=Specify Additional Device ENTER=Continue F3=Exit

91

9. Windows will display the partition of your system. As we are using a Mirrored RAID

array as an example, its size 232.88GB is now displayed as 238410MB. You can

press [C] to create partitions as many as you wish, assign them C:, D: or E: logical

drive names.

(Note : 238410MB/1024 = 232.82GB)

Windows XP Professional Setup

The following list shows the existing partitions and unpartitioned space on this computer.

Use the UP ad DOWN ARROW keys to select an item in the list.

● To set up Windows XP on the selected item, press ENTER.

● To create a partition in the unpartitioned space, press C.

● To delete the selected partitions, press D.

238410 MB Disk 0 at Id 1 on bus 0 on ahcix86 [MBR]

Unpartitioned space 238410 MB

5

ENTER=Install C=Create Partition F3=Quit

10. In this example, we will create a 30GB partition C: and leave the remainding space

as a partition E:. (D: is allocated by a DVD drive)

11. Press <Enter> to install Windows. The Windows XP install processes will ask you

to format your hard disk, then copy les...etc. Follow the installation steps until the

whole Windows is setup.

Windows XP Professional Setup

The following list shows the existing partitions and unpartitioned space on this computer.

Use the UP ad DOWN ARROW keys to select an item in the list.

● To set up Windows XP on the selected item, press ENTER.

● To create a partition in the unpartitioned space, press C.

● To delete the selected partitions, press D.

238410 MB Disk 0 at Id 1 on bus 0 on ahcix86 [MBR]

C: Partition1 [New (Raw)] 29996 MB ( 29996 MB free)

E: Partition2 [New (Raw)] 208406 MB ( 208405 MB free) Unpartitioned space 8 MB

ENTER=Install D=Delete Partition F3=Quit

92

5-5 Setting Up a Non-Bootable RAID Array

This section assumes the following setup :

■ Boot Disk with Windows XP installed :

One hard disk HDS728090PLAT20 (80GB) is connected to the IDE channel, and set to Master.

■ A Mirrored RAID Array Disk :

Two SATA hard disks are congured as a mirrored RAID1 array, they are :

Hitachi HDT725025VLA3, (250.05GB) connected to SATA port2 of the motherboard.

Seagate ST3320620AS, (320.07GB) connected to SATA port3.

■ A SATA DVD Drive :

A DVD drive connected to SATA port1.

I

N

G

R

A

!

W

To achieve the best performance and reliability, we highly recommend you

using the hard disks with the same brand, size and model number. Though

we are using different brand of hard disks as an example here, the purpose

is only for easy understanding.

1. Reboot your system, and go to "IDE Conguration" menu.

Enable the RAID function. Press [F10] to save the settings and reboot.

IDE Conguration

OnBoard PCI IDE Controller OnChip SATA Channel [Enabled] I OnChip SATA Type [RAID] Native IDE RAID AHCI Legacy IDE

IDE Conguration

[Enabled]

[RAID]

Help Item

Options

5

↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit

F1:General Help F9:Optimized Defaults

93

Foxconn A76ML User Manual
