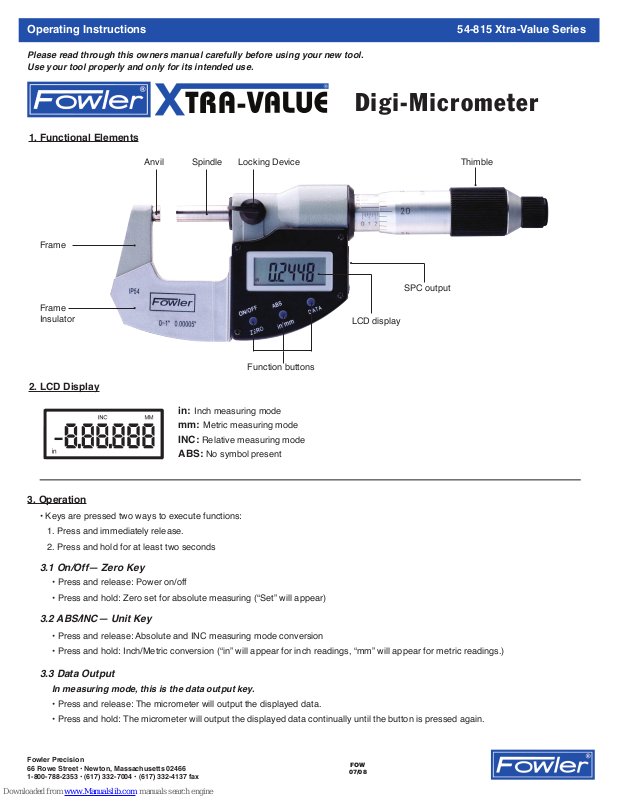

Fowler Xtra-Value Series Operating Instructions Manual

Operating Instructions 54-815 Xtra-Value Series

Please read through this owners manual carefully before using your new tool.
Use your tool properly and only for its intended use.

Digi-Micrometer

1. Functional Elements

Frame

Frame
Insulator

2. LCD Display

Anvil

Spindle Locking Device Thimble

SPC output

LCD display

Function buttons

in: Inch measuring mode
mm: Metric measuring mode
INC: Relative measuring mode
ABS: No symbol present

3. Operation

• Keys are pressed two ways to execute functions:

1. Press and immediately release.

2. Press and hold for at least two seconds

3.1 On/Off— Zero Key

• Press and release: Power on/off

• Press and hold: Zero set for absolute measuring (“Set” will appear)

3.2 ABS/INC — Unit Key

• Press and release: Absolute and INC measuring mode conversion

• Press and hold: Inch/Metric conversion (“in” will appear for inch readings, “mm” will appear for metric readings.)

3.3 Data Output

In measuring mode, this is the data output key.

• Press and release: The micrometer will output the displayed data.

• Press and hold: The micrometer will output the displayed data continually until the button is pressed again.

Fowler Precision
66 Rowe Street • Newton, Massachusetts 02466
1-800-788-2353 • [phone] • [phone] fax

FOW

07/08

Operating Instructions 54-815 Xtra-Value Series

4. Power

• If the micrometer is not used for ve minutes the power will automatically shut off. Powering off the micrometer by pressing the “On/

Off— Zero key to save the battery when not in use is recommended.

• Use a CR2032 battery and replace the battery when the display begins to blur

• Remove the battery cap by turning it counterclockwise with a coin or the supplied wrench

• Insert a new battery with (+) side up. Replace the battery cap by turning it clockwise

5. Data Output

• The output interface is a RS-232C

• The micrometer can be attached to a PC’s serial port by an SPC cable (contact Fowler)

• To attach the cable, remove the data output cap and insert the cable

• When not using the interface, always keep the data output cap in place

5.1 Serial Port Information

• Baud rate: 1200 Kb/second • Parity: none

• Stop bits: 2 • Data bits: 7

6. General Specications

• Measuring force: 5-10N

• Operating temperature: 0-40°C

• Storage temperature: -20-60°C

7. Precautions

• Do not subject the instrument to blows or shock. Do not drop it or apply excessive force

• Do not disassemble the instrument

• Do not press the keys with a pointed object

• Do not use or store the instrument under direct sunlight

• Avoid exposing the instrument away from strong magnetic elds and high voltage

• Use a soft cloth to clean the instrument. Never use organic solvents such as acetone or benzene to clean

• Clean measuring faces before use

• If the instrument is to be stored or left unused for extended periods, remove the battery

8. Troubleshooting

Problem(s) Cause(s) Solution(s)

Measuring data incorrect 1. Dirty measuring faces 1. Clean measuring faces

2. Zero is incorrect 2. Inspect and reset zero

No display on LCD 1. Battery position is incorrect 1. Reset battery

2. Battery is dead 2. Replace with new battery

1. Flickering display 1. Weak battery 1. Replace battery

2. Display is sporadic 2. Weak battery 2. Replace battery

3. Display remains dead 3. Battery position is incorrect 3. Reset battery

1. Display is blurry Weak battery Replace with new battery

2. Output data is incorrect

Fowler Precision
66 Rowe Street • Newton, Massachusetts 02466
1-800-788-2353 • [phone] • [phone] fax

FOW

08/16
