Fowler 54-100-000-1, 54-100-004-1, 54-100-008-1, 54-100-112-1 Instruction Manual

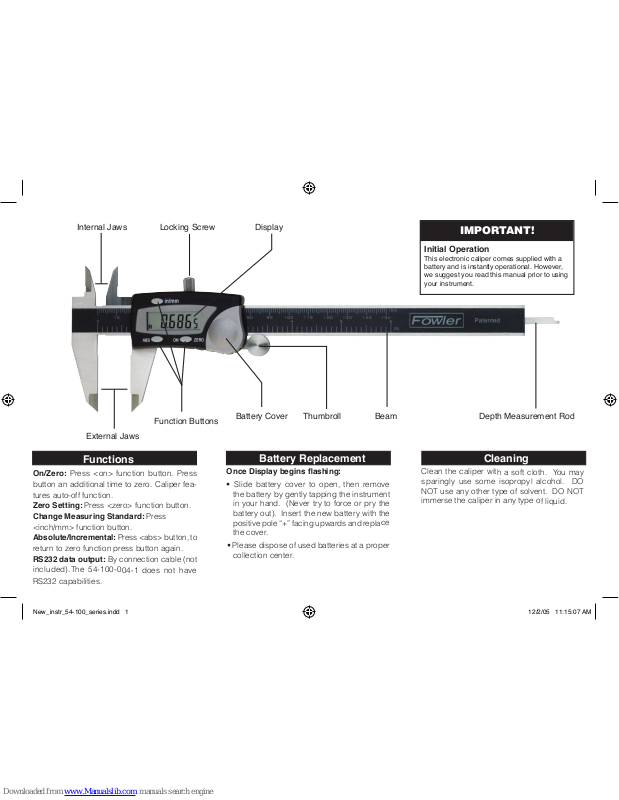

IMPORTANT!

Initial Operation

This electronic caliper comes supplied with a
battery and is instantly operational. However,
we suggest you read this manual prior to using
your instrument.

Internal Jaws

Locking Screw

Display

External Jaws

Function Buttons

Battery Cover Beam Depth Measurement RodThumbroll

On/Zero

:

Press <on> function button. Press

button an additional time to zero. Caliper fea

-

tures auto-off function.

Zero Setting:

Press <zero> function button.

Change Measuring Standard:

Press

<inch/mm> function button.

Absolute/Incremental

: Press <abs> button, to

return to zero function press button again.

RS232 data output

: By connection cable (not

included).The

54-100-004-1 does not have

RS232 capab

ilities.

Once Display begins flashing:

• Slide battery cover to open, then remove
the battery by gently tapping the instrument
in your hand. (Never try to force or pry the
battery out). Insert the new battery with the
positive pole “+” facing upwards and replace
the cover.

• Please dispose of used batteries at a proper
collection center.

Clean the caliper with a soft cloth. You may
sparingly use some isopropyl alcohol. DO
NOT use any other type of solvent. DO NOT
immerse the caliper in any type of liquid.

Functions

Battery Replacement Cleaning

New_instr_54-100_series.indd 1 12/2/05 11:15:07 AM

Instruction Manual

54-100-000-1

54-100-004-1

54-100-008-1

54-100-112-1

Fowler Electronic Digital Caliper

RESET:

In order to RESET the instrument, remove the

battery, wait 30 seconds, replace the battery and turn

the instrument on.

Precautions:

Although a top quality product, certain

precautions are required for any electronic instrument:

• Avoid exposure to all liquids and excessive humid

-

ity.

• Avoid exposure to electromagnetic fields.

• Do not expose the instrument to direct sunlight.

• Do not attempt to disassemble the caliper.

Technical Data

Measuring Range:

Resolution:

Maximum deviation:

• Repeatability:

• Measuring system:

• Display:

• Maximum Measuring Speed:

• Battery:

• Battery life:

• Degree of protection:

• Operational Temperature Range:

• Maximum Relative Humidity:

Model 54-100-000-1 is 0-6” /150mm

Model 54-100-004-1 is 0-4” /100mm

Model 54-100-008-1 is 0-8” /200mm

Model 54-100-112-1 is 0-12” /300mm

.0005” /.01mm

.001” /.02mm over 100mm*

.0015” /.03mm over 200mm

.0005” /.01mm

Capacitive

LCD (7.0 mm high)

120” per second

1.5V, type SR44, 165mAh

(Part #: 54-902-110)

Approx. 1 year

IP40

+10˚C to +40˚C

80%

* For measurement with directional changes and for measurement with the

depth rod, the values are increased by .02mm

Guarantee: We guarantee this instrument against

any fault of design, manufacture or material for a

period of 12 months from the date of purchase. Any

repair work carried out under the guarantee condi

-

tions is free of charge. Our responsibility is limited

to the repair of the instrument or, if we consider it

necessary, to its free replacement.

Declaration of conformity and confirmation of

traceability of the values: Thank you very much

for your confidence in purchasing this product. We

herewith certify that it was inspected in our works.

We declare under our sole responsibility that this

product is in conformity with standards and technical

data as specified in our sales documents (instruction

manual, leaflet, catalog).

In addition, we certify that the measuring equipment

used to check this product refers to national master

standards, the traceability of measuring values is

guaranteed by our Quality Assurance.

Fred V. Fowler Company, Inc.

66 Rowe Street • Newton, MA 02466

1-800-788-2353 • 617-332-4137(fax)

Internet: www.fvfowler.com

"A Standard of Quality & Accuracy"
